USER MANUAL 500CX Baumr-AG

Black and red lawn mower with 'Bäumr-AG' branding, next to two battery charging units (no text on main body)

500CX Lawn Mower

User Manual

[Revision 3.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description, and packaging.

THE BATTERY MAY HAVE SOME CHARGE ON ARRIVAL, IT IS IMPORTANT HOWEVER THAT THE BATTERY IS CHARGED PRIOR TO USE.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Always use a Residual Current Device (RCD) (GFCI) / Earth Leakage Circuit Breaker / Safety Switch when operating this item (electrical items only).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Child Choking Hazard!

- WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

- Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Lawn Mower Safety

• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
• Local regulations may restrict the age of the operator.
• Children should be supervised to ensure that they do not play with the product.
• Cleaning and user maintenance shall not be made by children without supervision.

Training

• Read the instructions carefully. Be familiar with the controls and the proper use of the product.
• Never allow children, persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator.
• Never mow while people, especially children, or pets are nearby.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

• While mowing, always wear substantial footwear and long trousers. Do not operate the product when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
• Thoroughly inspect the area where the product is to be used and remove all objects which can be thrown by the product.
• Before using, always visually inspect to see that the cutting blade, cutting blade bolts and cutting blade assembly are not worn or damaged. Replace worn or damaged cutting blades and bolts in sets to preserve balance. Replace damaged or unreadable labels.

- CAUTION! DO NOT TOUCH A ROTATING CUTTING BLADE.

Operation

• Operate the product only in daylight or in good artificial light.
• Avoid operating the product in wet grass, where feasible.
  • Always be sure of your footing on slopes.
• Walk, never run.

• Mow across the face of slopes, never up and down.
  • Exercise extreme caution when changing direction on slopes.

• Do not mow excessively steep slopes.

• Use extreme caution when reversing or pulling the product towards you.
• Stop the cutting blade(s) if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the area to be mowed.
• Never operate the product with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers, in place.
• Start the product or switch on the product carefully according to instructions and with feet well away from the cutting blade(s).
• Do not tilt the product when switching on the motor, except if the product has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part, which is away from the operator.
• Do not start the product when standing in front of the discharge chute.
• Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
• Do not transport the product while the power source is running.
• Never pick up or carry the product while the safety key is inserted.
• Stop the machine and remove the disabling device. Make sure that all moving parts have come to a complete stop:

- Whenever you leave the product.

- Before clearing blockages or unclogging chute.

- Before checking, cleaning, or working on the product.

- After striking a foreign object. Inspect the product for damage and make repairs before restarting and operating the product.

- If the product starts to vibrate abnormally (check immediately):

- Inspect for damage.

- Replace or repair any damaged parts.

- Check for and tighten any loose parts.

Maintenance and Storage

• Disconnect the product from the power supply (i.e., remove the battery pack and / or safety key) before checking, cleaning, or working on the product and when it is not in use.
• Disconnect the product from the power supply (i.e., remove the battery pack and / or safety key) before carrying out maintenance or cleaning work.
• Improper maintenance will lead to malfunction/failure of the product.
• Inspect and maintain the product regularly. Keep all nuts, bolts, and screws tight to be sure the product is in safe working condition.

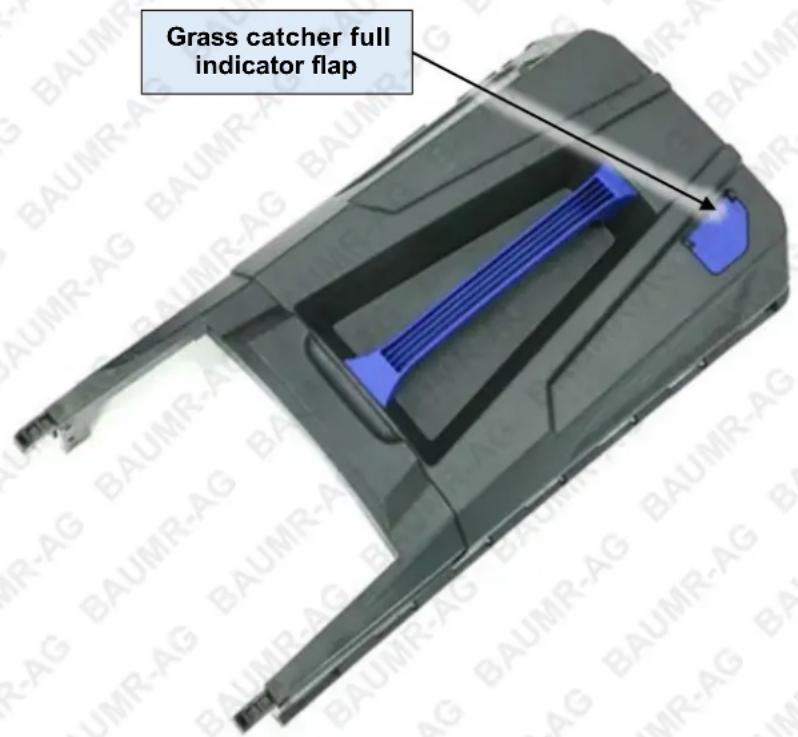

• Check the grass catcher frequently for wear or deterioration.
• Be careful during adjustment of the product to prevent entrapment of the fingers between moving blades and fixed parts of the product.
  • Always allow the product to cool before storing.
• When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved.
• Replace worn or damaged parts for safety. Use only genuine replacement parts and accessories.
• Wear strong work gloves when removing and re-assembling the cutting blade.
• Have the product repaired only by an authorized service centre or similar qualified specialist.
• When not in use, store the product out of the reach of children.

Safety Warnings for Battery Pack

• Recharge the battery pack only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use the product only with specifically designated battery pack. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery pack; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally see medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use battery pack that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Continuous intense sunlight, fire or other heat sources may cause an increased danger of explosion.
• Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of an open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.
• Follow all charging instructions and do not charge the battery pack outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
• Do not charge battery in a damp or wet location. Following this rule will reduce the risk of electric shock.
• Longer life and better performance can be obtained if the battery is charged when the air temperature is between 18°C and 24°C. Do not charge the battery in air temperature below 5°C or above 40°C. This is important as it can prevent serious damage to the battery.
• Remove the battery pack from the product when not in use.

• Don't maintain the battery pack on the charger when not in use.

• After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain the maximum performance.

• Do not disassemble the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted. Ensure fresh air and seek medical assistance in the event of discomfort.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
• When disposing of battery pack, keep the battery pack of different electro chemical systems separate from each other.

Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks:

• Only use the product as intended by its design and these instructions.
• Ensure that the product is in good condition and well maintained.
• Use correct cutting attachments for the product and ensure they are in good condition.
• Keep tight grip on the handles/grip surface.
• Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
• Plan your work schedule to spread any high vibration tool use across a longer period of time.

Emergency

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards.

• Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
• Switch the product off and remove the battery pack if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

• Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
• Injuries and damage to property due to broken attachments or the sudden impact of hidden objects during use.
  • DANGER OF INJURY AND PROPERTY DAMAGE CAUSED BY FLYING OBJECTS.
• WARNING! THIS PRODUCT PRODUCES AN ELECTROMAGNETIC FIELD DURING OPERATION! THIS FIELD MAY UNDER SOME CIRCUMSTANCES INTERFERE WITH ACTIVE OR PASSIVE MEDICAL IMPLANTS! TO REDUCE THE RISK OF SERIOUS OR FATAL INJURY, WE RECOMMEND PERSONS WITH MEDICAL IMPLANTS TO CONSULT THEIR DOCTOR AND THE MEDICAL IMPLANT MANUFACTURER BEFORE OPERATING THIS PRODUCT!

Other Important Safety Considerations

• BE AWARE THAT THE EQUIPMENT MAY INCLUDE HAZARDOUS COMPONENTS, SUCH AS BLADES, HOT SURFACES AND MOVING PARTS.
  • MOVING BLADES CAN CAUSE SERIOUS INJURY AND EVEN DEATH IF USED IMPROPERLY OR WITHOUT SUFFICIENT PPE.
• DO NOT USE THIS EQUIPMENT ON UNEVEN SURFACES AND ALWAYS MAINTAIN GOOD BALANCE WHEN USING THIS EQUIPMENT. FAILURE TO DO SO MAY CAUSE SERIOUS INJURY.
• MAINTAIN A SECURE GRIP OF THE TRIGGER ASSEMBLY AT ALL TIMES.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	EXHAUST FUMESCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present. Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.	Choking HazardChildren under 8 yrs. Can choke or suffocate on small parts. Adult supervision required.

Table of Contents

Safety 2

Safety Symbols....6

Parts Identification....9

Before Use....11

Unpacking 11

You Will Need / Before You Start 11

Set-Up....12

Lower Handle 12

Upper Handle 13

Grass Collector....14

Attaching the Battery Pack.... 15

Releasing the Battery Pack.... 16

Charging the Battery Pack....16

Battery Capacity Indicators 17

Connect Battery Pack....17

Operation 18

Intended Use 18

Cutting Height Adjustment 18

Handlebar Adjustment 19

Grass Indicator 20

Emptying the Grass Catcher 21

General Operation 21

Starting/Stopping 22

Mowing....23

After use....24

Lithium Battery Care and Maintenance....25

Top 3 Battery Care Requirements....25

Maintenance....27

Golden Rules for Care 27

General Cleaning....27

Underbody and Cutting Blade 27

Grass Collector....28

Electrical Cord 28

Repair....28

Storage....28

Transportation 29

Specifications 29

Parts Identification

21

22

No.	Name	No.	Name	No.	Name
1	Grip handle with foam	9	Grass bag	17	Front wheel (x2)Front wheel cap (x2)
2	Start lever	10	Rear flap	18	Grass collector handle
3	Switch box	11	Handle support assemblya. Angle adjustment wheel (x2)b. Screw (x4)c. Fix wheel (x2)d. Screw with washer assembly (x4)	19	Carry handle
4	Upper handle	12	Rear wheel (x2)Rear wheel cap (x2)	20	Safety key
5	Wing nut (x2)a. Washer (x2)b. Mounting bolt (x2)	13	Deck	21	Charger
6	Lower handle	14	Upper cover	22	Battery pack
7	Grass indicator	15	Lever for cutting height adjustment	23	Wire clip
8	Grass collector top covera. Frame of grass collectorb. Screws (x1)	16	Battery cover

Before Use

Unpacking

1. Unpack all parts and lay them on a flat, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. Using an incomplete or damaged product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation. This also includes suitable personal protective equipment.

WARNING! The product and the packaging are not children's toys! Children must not play with plastic bags sheets and small parts! There is a danger of choking and suffocation.

You Will Need / Before You Start

Items not supplied:

• Suitable personal protective equipment
• Suitable crosshead driver
- Suitable wrench

Items supplied:

• Grass collector
• Battery pack
• Charger

NOTE: The accessories required depend on the intended application. Ask your dealer for advice. Parts marked with * are not shown in this overview. Please refer to the respective part In the Instruction manual.

Set-Up

WARNING! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product! Do not connect the product to battery pack before it is completely assembled!

NOTE: Take care of small parts that are removed during assembly or when adjusting. Keep them secure to avoid loss.

Lower Handle

1. Put the main unit (13) on the ground.
2. Connect the lower handle (6) with the Handle support assembly (11): mount a angle adjustment wheel (11-a) to the lower handle (6) with 2 screws (11-b), The lower handle (6) is fixed on the main unit (13) through the engagement of an angle adjustment wheel (11-a) and a fixed wheel (11-c).

Upper Handle

1. Hold the upper handle (1) with the start lever (2) facing upwards. Align the mounting holes of the upper handle (1) and the lower handle (6).
2. Pass the mounting bolts (5-b) through the mounting holes of the upper handle (1) and the lower handle (6), washer (5-a) to the end, fasten the bolt (5-b) with the wing nut (5).
3. Make sure the electrical cord run on the handles.
4. Fix the electrical cord with the wire clip (23) on the lower handles (6)

Grass Collector

1. Match the grass bag (9) with grass frame (8-a) and insert the grass collector handle (18) into the top cover (8), with a screw (8-b) to fasten.
2. Open the rear flap (10) and hold it in position.
3. Carefully release the rear flap (10) afterwards.

NOTE: Always carry the grass collector by its handle (18).

Attaching the Battery Pack

1. Pull open the battery cover (16).
2. Unplug the safety key (20) and keep it hanging by its string.
3. Slide the battery pack (22) into the slots of the battery compartment.
4. Make sure that the electrical contacts are fully inserted into the battery pack (22) and that it snaps in place with a click.
5. The battery pack (22) can only be installed in one direction.
6. Reinstall the safety key (20) into its slot.
7. Close the battery cover (16).

Releasing the Battery Pack

The battery pack (22) can't be charged whilst in the mower. Remove the battery pack (22) from its battery compartment or spare battery compartment for charging.

1. Pull open the battery cover (16).
2. Squeeze the release button to unlock the latch of battery pack (22).
3. Slide out the battery pack (22) from the battery compartment.
4. Close the battery cover (16).

Charging the Battery Pack

The battery pack (22) for this product has been shipped in a low charge condition. Charge it fully before first use.

Battery Capacity Indicators

The battery pack (22) is equipped with the battery capacity indicators which are used to give an indication of the battery pack's remaining capacity. Press the battery capacity button to check battery capacity.

Technical diagram of a mechanical component with no visible text or symbols

Battery capacity status indicators		Battery capacity
		75-100%
		51-74%
		26-50%
		5-25%

Connect Battery Pack

1. Make sure the start lever (2) is released and safety switch button is not pressed.
2. Attach the battery pack (22) to the product. Ensure it snaps in place.
3. Insert the safety key (20) into its slot fully.
4. Your product is now ready to be used.

Operation

Intended Use

• This cordless lawn mower is designated with a rated voltage of 40V. It is designed only to be used with the battery pack which is listed in Specifications.
• The product is intended for mowing grass in domestic gardens only. It must not be used to mow unusually high, dry, or wet grass, e.g., pasture grass, or to shred leaves.
• For safety reasons it is essential to read the entire instruction manual before first operation and to observe all the instructions therein.
• This product is intended for private domestic use only, not for any commercial trade use. It must not be used for any purposes other than those described.

Cutting Height Adjustment

NOTE: There are 5 cutting height levels (30-75mm) available.

Adjust the cutting height according to the needs of your lawn. The cutting height depends on the kind of lawn and its actual height. When mowing high grass, start with the maximum cutting height and make a second cut with a lower cutting height.

1. Pull the lever (15) towards the rear wheel (12).
2. Move forward or backward to adjust the cutting height.
3. Release the lever (15) and ensure it engaged in the slot properly.

Handlebar Adjustment

1. Loosen the angle adjustment wheel (11-a) anti-clockwise but do not remove them.
2. Grasp the grip handle (1) and adjust to a comfortable position for the user.
3. 1. Tighten the angle adjustment wheel (11-a) clockwise afterwards.

VIDEO TUTORIAL: FOLDING THE HANDLES FOR STORAGE

Grass Indicator

The grass collector is equipped with a hatch that indicates the filling during operation.

1. When the hatch is opened, indicator (7) is blown up by airflow, which means the grass collector has sufficient volume left to collect grass.
2. When the hatch is closed, the grass collector is full and must be emptied.

Emptying the Grass Catcher

A lawn mower generates significant airflow when it moves the grass into the catcher. The catcher is fitted with a full indicator flap, which stays up if there is space inside. When the space inside the catcher is filled with grass, the airflow is no longer enough to raise the flap. The flap will drop at this point, indicating it is time to empty the catcher.

As soon as grass clippings start to trail the lawn mower, it is time to empty the grass catcher.

NOTE· Before taking off the grass catcher, switch off the engine and wait until the blade has come to a stop.

1. To take off the grass catcher, use one hand to lift up the ejector flap and the other to grab onto the carry handle. The ejector flap automatically falls down after removing the grass catcher and closes off the rear chute opening.
2. Empty the grass catcher of grass debris and then refit grass catcher.

NOTE: If any grass residue is caught in the discharge chute, clean it using a brush. Do not remove grass debris in the mower casing or on the blade with your hand or feet. Instead, use suitable tools such as a brush or broom. To ensure that the cut grass can be collected into the grass catcher, the discharge opening, and interior of the mower casing must be cleared of any blockage.

General Operation

1. Check the product, its battery pack and charger as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. Take care of any problem you find or have the product checked by qualified specialist.
2. Double check that accessories or attachments are properly fixed.
3. Always push the product using the grip handle (1). Keep the handles dry to ensure safe support.

4. Ensure that the air vents are always unobstructed and clear. Clean them, if necessary, with a soft brush. Blocked air vents may lead to overheating and damage the product.

5. Switch the product off immediately if you are disturbed while working by other people entering the working area. Always let the product come to complete stop before putting it down.

6. Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product.

Starting/Stopping

WARNING! Before starting, put the product on a flat surface free of high grass! Clean the underside of the deck! Start the motor carefully according to instructions. Keep your feet well away from the cutting blade! Do not tilt the product when starting the motor.

1. Install the battery pack (22) into the battery compartment.
2. Insert the safety key (20) into the slot fully.
3. Close the battery cover (16) and stand behind the grip handle (1).
4. While holding the safety switch button (3) pressed, pull the start lever (2) towards the grip handle (1).
5. After the mower starts, release the safety switch button (3).
6. The product begins mowing.
7. Release the start lever (2) to stop the mower.

Mowing

1. Make sure that the lawn is clear of stones, sticks, wire, or other objects that could damage the product or its product.
2. Do not cut wet grass because it tends to stick to the underbody of the product, preventing the proper discharge of grass clippings, and it could also cause you to slip and fall.

3. Never cut off more than one-third of the total length of the grass for a healthy lawn. In the autumn, lawns should only be cut if there is growth.

4. Slowly push the product forward.

5. Mow in slight overlapping rows. The most effective hat all the lawn is cut without missing any spots (Fig. 13).

6. Circle around flower beds. When reaching a flower bed in the middle of the lawn, cut a row or two around the circumference of the bed.

7. Pay special attention when changing direction.

Fig 13

WARNING: • Always observe the strictest safety procedures when using the lawnmower. • Carefully read the safety instructions of this manual before using the lawnmower. • Never open the ejector flap when the grass catcher has been detached (to be emptied) and the engine is still running. The rotating blade can cause serious injuries!

1. Select your required setting.
2. Start the engine and allow it to run and set it to required speed. See Starting the Engine.
3. Keep a firm grip on the upper handle with engine stop/start lever and drive lever (clutch lever) dosed and walk along with its self-propelling to start mowing.

When Mowing:

• Walk. never run with the mower. be very careful when mowing uneven or rough ground.
• Mow across slopes. never up and down.
• Be careful when changing the direction of the mower on a slope.
• Do not mow excessively steep slopes.

Note: Grass clippings can clog underneath the mower deck, preventing the blades from turning. This can overheat the engine, causing excessive wear to engine components, reducing the lawn mower's overall lifespan or catastrophic failure of engine bearings and pistons.

Clogging occurs if you mow wet, long, or lush grass. For the best result, mow when the grass is dry and use a whipper snipper to reduce the height of grass longer than 15cm (6") before mowing on the highest cutting setting.

• Grass grows at different rates at different time of the year. Never use the lowest cutting height for the first cut of the season or in drought conditions.
• Only about one thirds of the grass height should be cut.
• When mowing with the mulching function, do not cut high or wet grass to ensure that the cut grass can be scattered efficiently. When you have been cutting for several minutes, please stop the mower, and clean the blade and the deck.
• Do not remove grass debris in the mower casing or on the blade by hand or with your feet. Instead, use suitable tools such as a brush or broom.

After use

1. Switch the product off, disconnect the safety key (20), remove the battery pack (22) and let it cool down.
2. Check, clean and store the product as described below.

Lithium Battery Care and Maintenance

Top 3 Battery Care Requirements

1. Charge battery before first use. The battery may arrive with some charge, regardless of this the battery must be charged for 2 hours on the initial charge and 2 hours for each subsequent charge.
2. Charge battery immediately when it is depleted. Do not store a depleted battery. This will permanently impact the life of the battery. If the battery is going to be stored for a period of time, fully charge the battery before storing.
3. Disconnect battery when not in use. To prolong the life of a battery, disconnect it from the unit when not in use. Disconnect chargers from the battery once charged.

To ensure the battery maintains optimum performance, follow the guidelines outlined below.

• For best results, charge batteries in temperatures between 10°C and 30°C
- When battery is charged, disconnect the charger from the power supply and remove the battery from the charger.
- If a battery is stored or otherwise unused for an extended period, and the battery has no charge remaining when you check it, consider it to be damaged. Do not attempt to recharge it or to use it. Replace it with a new battery.
• Use only with the battery charger specified by the manufacturer.
- Ensure that the battery charger electrical cord is not subjected to damage or stress. Do not operate the battery charger if it has a damaged electrical cord or plug.
- Do not use the charger in wet areas or expose it to rain or water.
- The typical estimated life of a Lithium-Ion battery is about two to three years or 300 to 500 charge cycles, whichever occurs first. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.
- Explosion hazard – protect the battery against heat, for example, direct sunlight and fire. Do not store batteries in vehicles or locations subject to heat.
- Batteries can explode in the presence of an ignition source, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. Exploding batteries can propel debris and chemicals.
- Do not open the battery – danger of short-circuiting and/or explosion.
- Do not attempt to destroy or disassemble the battery pack or remove any of its components.
- Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result.
- Explosion hazard – do not open and/or short-circuit the battery.
- Poison hazard – battery leakage (liquid ejection). Under extreme conditions, liquid may be ejected from the battery – avoid contact. If contact accidentally occurs, immediately seek medical attention, and flush with water. If liquid contacts eyes, immediately seek medical attention, flush with clean water for at least 10 minutes. Liquid ejected from the battery may cause irritation or burns.
- Dispose of non-serviceable batteries in an environmentally responsible manner and according to local regulations.

Failure to adhere to the requirements above may result in the battery becoming inoperative or battery life being reduced. In extreme cases or abuse, battery overheating, or fire may result.

DANGER - BATTERY CHARGING, USE AND STORAGE

Like mobile phones, laptops, cordless vacuum cleaners etc, this product may contain or be related to a lithium ion battery pack (lithium ion batteries and lithium ion battery related items only). Lithium ion batteries allow fast charging and high capacities, however care must be taken to reduce chances of a fault, and increase safety in case a fault occurs. Catastrophic incidents involving lithium ion batteries have a tendency to result in large amounts of smoke and fire. Be sure to follow the points below to reduce the likelihood of danger whenever you use, charge or store any lithium ion battery.

• Never charge a battery that has been damaged or subjected to a forceful impact.
• Never charge a battery that has been exposed to moisture or water.
• Never charge a battery with a charger that wasn't supplied with the battery.
• Never use a battery in a device that it wasn't specifically designed for.
• Never use a battery with a modified or damaged device.
• Never modify the battery, product, charger, circuitry or wiring.
• Never charge a battery in an exit path that may be used by people to leave a room or building in case of an emergency, for example, the hallway or foyer of a residence.
• Never charge a battery in an area or building that doesn't have the recommended number of working smoke detectors that have been tested in accordance with local guidelines.
• Never charge a battery when the battery or charger is displaying a problem or charging incorrectly.
• Always charge batteries on a non-combustible surface, for example, on a concrete floor.
• Always charge batteries at least 3m away from anything combustible, such as floors, wall surfaces, furniture, storage shelves etc.
• Always charge batteries in an open area (outside if possible) ensuring the battery and charger are away from moisture and water.
• Always disconnect batteries from the charger after charging.
• Always remove or disconnect batteries from the device/product when not in use.
• Always ensure batteries are charged under adult supervision. Do not charge unattended. Do not charge batteries while no one is home or while people are sleeping.
• Keep batteries away from heat and moisture.
• Damaged batteries should be disposed of through your local e-waste collection service.
• Avoid mixing and matching chargers. Unplug products when fully charged, and charge batteries in a cool, dry place away from combustible materials like beds, lounges, or carpet.
• During charging and use, check your lithium-ion batteries for overheating, signs of swelling, leaking, or venting gas. Immediately stop using your product if these signs are present.
• Allow batteries to cool after use and before charging.

1

Maintenance

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends on factors such as proximity to the ocean and humidity or condensation of water vapour on metal surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when applied periodically, it will prevent rust from forming.

WARNING! Always switch the product off, remove the battery pack (22) and the safety key (20). Let the product cool down before performing inspection, maintenance, and cleaning work!

Golden Rules for Care

• Keep the product clean. Remove debris from it after each use and before storage.
  • Regular and proper cleaning will help ensure safe use and prolong the life of the product.
• Inspect the product before each use for worn and damaged parts. Do not operate it if you find broken and worn parts.

General Cleaning

• Clean the product with a dry cloth. Use a brush for areas that are hard to reach.
• Remove stubborn dust with high pressure air (max. 3 bar).

NOTE: Do not use chemical, alkaline, abrasive, or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

Underbody and Cutting Blade

1. Keep the underbody and cutting blade clean and free of debris. Remove clippings from the rear discharge chute.
2. Check all fasteners, such as nuts and bolts, periodically for tightness before operation.
3. After prolonged use, especially in sandy soil conditions, the cutting blade will become worn and lose some of the original shape. The cutting efficiency will be reduced, and the cutting blade should be replaced.
4. Keep the cutting blade sharp to ensure a good cutting performance.
5. Replace a worn or damaged cutting blade with a new one of the same type or have it sharpened by a qualified specialist.
6. Loosen the hex nut anti-clockwise using a suitable wrench (Size 16 mm) and remove it together with the cutting blade, the flat washer, and the spring washer.
7. Replace the cutting blade with a new one of the same type. Check the status of flange onto the spindle firstly, then attach the cutting blade, the flat washer, the spring washer, and the hex nut properly. Tighten the hex nut clockwise with 30 Nm min, 35 Nm max. to ensure safe operation of your product.
8. Replace this cutting blade after 50 hours mowing or 2 years whichever is sooner regardless of condition. If the cutting blade is cracked or damaged, you must immediately replace it with a new one.
9. Lubricate the cutting blade after each use to prolong the life span of cutting blade and product. Apply light machine oil along the edge of the cutting blade.

Grass Collector

1. Inspect the grass collector before each use. Do not use it if you find any damage.
2. Clean the grass collector after operation using water and mild soap.
3. Let the grass collector dry thoroughly before storing to avoid mildew.

Electrical Cord

Check the electrical cord before each use.

Repair

This product does not contain any parts that can be repaired by the consumer.

Storage

1. Switch the product off, disconnect the safety key (20) and remove the battery pack (22) before storage.
2. Clean the product as described above.
3. Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
4. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 °C and 30 °C.
5. We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust.

Transportation

1. Switch the product off, disconnect the safety key (20) and remove the battery pack (22) before transporting it anywhere.
2. Attach transportation guards, if applicable.
3. Always transport the product by its carry handle (19).
4. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
5. Secure the product to prevent it from slipping or falling over, damage and injury.

Specifications

Colour Black with Red

Power Type Battery

Starting System Electric Start

Motor Type Brushless

Battery 2x 20V 4.0Ah

Runtime 25 min

Charge Time 2 hours

Cutting Width 430mm

Deck Material Polypropylene

Height Adjustment 5 Stage Central Height Adjustment

Cutting Height 30 - 75mm

Catcher Volume 52L

Note: Requires minimal assembly

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

© Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
