Product Type	Soundbar
Brand	iLive
Model	ITB031B
Dimensions (W x H x D)	Approximately 36 x 3 x 2.5 inches
Weight	Approximately 3.5 lbs
Power Supply	AC 100-240V, 50/60Hz (external power adapter)
Power Consumption	30W (typical)
Audio Channels	2.0 (stereo)
Total Power Output	40W RMS
Frequency Response	60Hz - 20kHz
Connectivity	Bluetooth 5.0, Optical (TOSLINK), 3.5mm AUX, USB (for firmware updates)
Remote Control	Included (requires 2 AAA batteries)
Wall Mountable	Yes (brackets included)
Controls	Buttons on unit: Power, Volume+/-, Input, Source
Cleaning Instructions	Wipe with a soft, dry cloth; avoid liquids and abrasives
Safety Precautions	Do not expose to water or moisture; unplug during storms; avoid blocking vents
Spare Parts Availability	Remote control and power adapter available from iLive customer service
Repairability	No user-serviceable parts; contact authorized service center
Warranty	1 year limited warranty

Frequently Asked Questions - ITB031B iLive

How do I pair my soundbar with Bluetooth?

Press the Source button until Bluetooth is selected. The soundbar will enter pairing mode. On your device, scan for iLive ITB031B and connect. If prompted, enter PIN 0000.

Can I connect my TV via optical cable?

Yes, use the Optical input on the soundbar. Connect an optical cable from your TV's optical output to the soundbar. Press the Source button to select Optical.

Why is there no sound from the soundbar?

Check that the soundbar is powered on and the volume is turned up. Verify the correct input is selected. If using Bluetooth, ensure your device is connected. Also check the audio output settings on your TV.

How do I reset the soundbar to factory defaults?

Press and hold the Power button for 10 seconds until the LED flashes. This will reset the soundbar to factory settings.

Can I use the soundbar without a subwoofer?

Yes, the soundbar has built-in speakers that provide adequate bass for most content. For deeper bass, you can connect an optional external subwoofer (if supported by your model).

How do I mount the soundbar on the wall?

Use the included wall brackets. Drill holes at the appropriate spacing, insert wall anchors, and attach the brackets to the wall. Then slide the soundbar onto the brackets. Ensure it is securely mounted.

What is the maximum Bluetooth range?

The Bluetooth range is approximately 33 feet (10 meters) in open space. Walls and obstacles may reduce the range.

How do I clean the soundbar?

Unplug the soundbar. Use a soft, dry cloth to wipe the surface. Do not use any liquids, sprays, or abrasive cleaners.

Can I connect multiple devices at once?

No, the soundbar can only connect to one Bluetooth device at a time. You can switch between wired sources (Optical, AUX) by selecting the corresponding input.

What should I do if the remote control stops working?

Replace the batteries with new ones. Check that nothing is blocking the IR sensor on the soundbar. If it still doesn't work, try resetting the soundbar or contact customer support for a replacement.

USER MANUAL ITB031B iLive

Black rectangular electronic device with a speaker grille and control panel (no visible text or symbols)

29" HD Soundbar with Bluetooth Wireless

User's Guide for Model ITB031B v2411-01

For the most up-to-date version of this User's Guide, go to www.iLiveElectronics.com

Safety Instructions & Warnings

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. This product meets and complices with required Federal product guidelines.

WARNING: DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD.

Important Safety Instructions

• Read these Instructions.
- Keep these Instructions.
- Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

FCC Warnings

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
• WARNING: Shock hazard - Do Not Open.
• Caution and marking information is located at the rear or bottom of the apparatus.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.
• Objects filled with liquids, such as vases, shall not be placed on the apparatus.

- CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.

- WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

- WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.

- WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.

- CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

- Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

• Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Do not mix old and new batteries.
• Completely replace all old batteries with new ones.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
• Batteries should be recycled or disposed of as per state and local guidelines.

Table of Contents

Safety Instructions & Warnings....2

Table of Contents....4

Setup....5

Features & Specifications

Power

Remote Battery

Includes

Orientation 6

Front View

Rear View

Speaker Inputs Detail

Speaker Controls (Right Side)

Remote....8

Bluetooth Wireless 9

Pairing a Bluetooth Device for the First Time

Playing Audio Wirelessly

Audio Inputs 10

Optical Input

Stereo RCA Inputs (Aux In)

Line In

Optical Input - Detail

Stereo RCA Inputs (Aux In) - Detail

Line In

Line In - Detail

Company Information 12

Contact Information

Warranty

International Support

Setup

Features & Specifications

• 29" length
  • Supports Bluetooth
  • Wireless range: 60 ft.
  • 2 channel stereo sound
  • Digital volume control
  • Full-function remote
  • Optical digital audio input
  • Aux In (3.5mm audio input)
  • RCA stereo audio inputs

Includes

• Remote control with 1 CR2025 battery
• Optical digital audio cable
• AC/DC power adapter
• Wall-mount hardware and instructions

Power

Plug the small end of the power cord into the DC Input on the back of the speaker, and the large plug into a standard wall outlet.

Remote Battery

Pure electrical circuit lines without any symbols

Remote control: requires 1 CR2025 button cell type battery (included).

Orientation

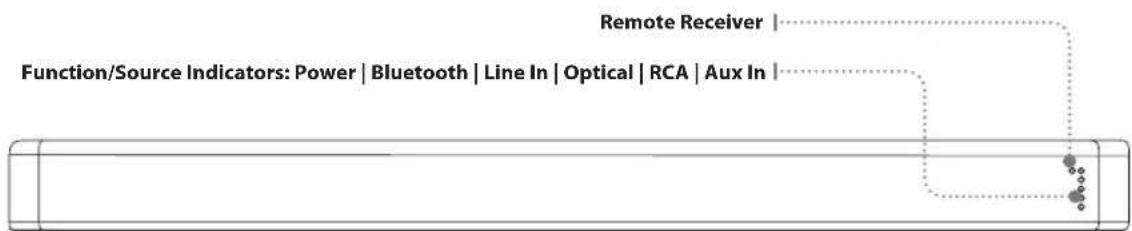

Front View

STATUS INDICATOR
Power Off Red Light
Optical Mode Amber Light
RCA/Aux In Mode White Light
Line In Mode Green Light
Bluetooth Pairing Flashing Blue Light
Bluetooth Connected Blue Light

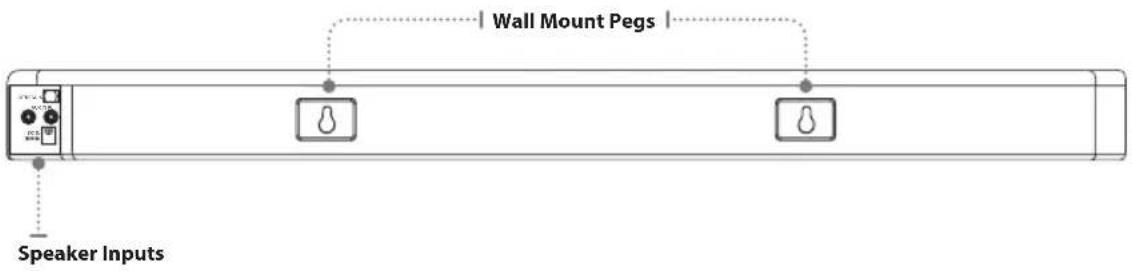

Rear View

Speaker Inputs Detail

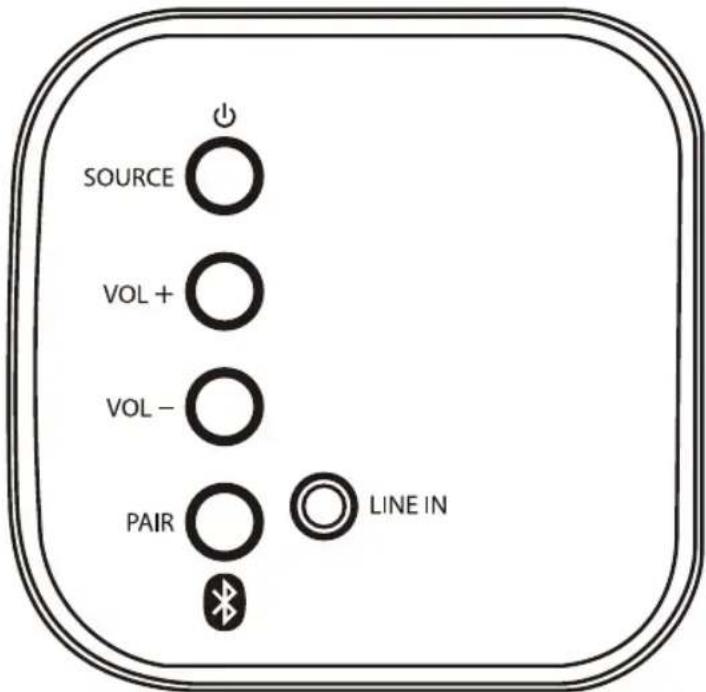

Speaker Controls (Right Side)

Source/Power Press to power the unit ON. Press and hold to power the unit OFF. Press to switch between Optical, RCA/Aux In, Line In, and Bluetooth modes.

Volume +/- Press to adjust volume up or down.

Pair Press to enter pairing mode manually.

Line In Connect the soundbar to an audio device using a 3.5mm audio cable.

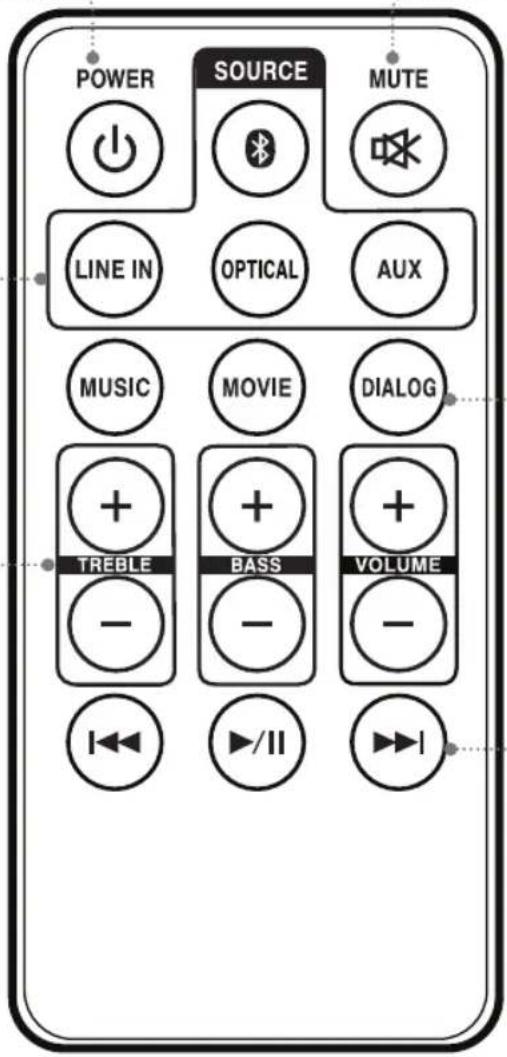

Remote

Power

Press to turn the unit on or off.

Press to switch to Bluetooth Mode.

Line In

Press to switch to Line In mode.

Optical

Press to switch to Optical mode.

AUX

Press to switch to RCA/Aux mode.

Treble

Press to adjust the treble up or down.

Bass

Press to adjust the bass up or down

Volume

Press to adjust the volume.

Mute

Press to mute the volume.

Music

Press to switch to the EQ optimized for music. Press and hold for 5 seconds to turn voice prompts ON OFF.

Movie

Press to switch to the EQ optimized for movie sound.

Dialog

Press to switch to the EQ optimized for dialog.

Skip Back/Fwd

In Bluetooth mode, press to skip the selected track.

Play/Pause

In Bluetooth mode, press to play or pause the selected track. Press and hold to enter pairing mode manually.

Bluetooth Wireless

Pairing a Bluetooth Device for the First Time

1. When first powered on the sound bar defaults to Bluetooth mode. A voice will say, "Bluetooth", and the LED indicator will slowly flash blue. When pairing, remain within 3 feet of the Bluetooth device.
2. Using the controls on your Bluetooth device, select ITB031 in the Bluetooth Settings to pair. If need be, refer to the user's manual for your specific device for more information.
3. When successfully paired, a voice will announce, "Bluetooth is connected", and the LED indicator will turn solid blue. Audio from the connected Bluetooth device will now be heard through the speaker.
4. Use the controls on the connected Bluetooth device to select and play audio. Use the speaker controls or the connected Bluetooth device to play, pause, and adjust the volume level.
5. After initial pairing, whenever the sound bar is powered on, the sound bar will automatically connect to the last Bluetooth device used. Note: If your device should become unpaired or you find it is unable to connect, press & hold the Pair button on remote or press the Pair button on the soundbar to enter pairing mode. A voice will announce, "Bluetooth is connecting", and you can connect to the speaker manually.

Playing Audio Wirelessly

1. After pairing to a Bluetooth device, use the controls on the connected Bluetooth Device to select a track.
2. Play, pause or skip a selected track using the controls on the connected Bluetooth Device or the soundbar's remote.
3. Audio played through the connected Bluetooth device will now be heard through the speakers.

Audio Inputs

Optical Input

You will need: An audio source with an Optical Audio Output and a Digital Optical Audio Cable (included). Please remove the protective plastic cap over the end of the optical cable before attempting to connect it.

1. Connect the Digital Optical Audio Cable (included) to the optical output on the audio source and to the Optical Input on the speaker bar.
2. Press the Power button to power the unit on.
3. Press the Source button repeatedly to switch to SPDIF Mode, indicated by a amber light.
4. Using the native controls on your connected device, make sure the audio settings are set to PCM or Optical Audio and are turned On.
5. Audio from the connected audio source will now be played through the speakers.

Important tips for optical audio:

Use the correct toslink cable and make sure that it is firmly seated in both source and sound bar sockets.

Optical output is activated on the source (they should see a red light emitting from the toslink socket). It may be labeled SPDIF in the setting menu of the source.

The optical output is set to output PCM and not Dolby Digital.

Stereo RCA Inputs (Aux In)

When connecting two products using an RCA cable (not included), match the colored ports to their corresponding plugs.

1. Connect the RCA cables (not included) to the RCA Stereo Inputs located on the back of the unit, and to the audio outputs on a television or other audio source.
2. Press the Power button to power on the unit.
3. Press the Source button to select Aux In, indicated by a white light.
4. Audio played through the television will now be heard through the speakers.

Line In

3.5 mm audio input cable not included.

1. Plug one end of a 3.5 mm audio input cable into the Line In on the unit and plug the other end of the cable into the audio output/headphone output on an MP3 Player or other audio source.
2. Press the Power button to power the unit on.
3. Press the Source button to select Line In, indicated by a green light.
4. Audio played through the connected device will now be heard through the speakers. Use the controls on the connected device to play, pause, or skip selected tracks.

Optical Input - detail

Stereo RCA Inputs (Aux In) - detail

Line In Line In - detail

Company Information

Contact Information

Website: www.iLiveElectronics.com

Email Support: [e-mail]

Email Parts: [e-mail]

Phone Support: 1-888-999-4215

Warranty

For Warranty Information and the most up-to-date version of this User's Guide, go to: www.iLiveElectronics.com

International Support

To download this User's Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com
