Product Type	Bluetooth HD Soundbar / TV Stand
Model	ITB174B
Brand	iLive
Wireless Technology	Bluetooth v2.1
Wireless Range	33 feet (10 meters)
Audio Inputs	Optical (Toslink), RCA Stereo, 3.5mm Line In
Subwoofer Output	RCA (for external subwoofer)
TV Compatibility	Flat panel TVs 20" to 55", up to 75 lbs
Power Supply	AC/DC power adaptor (included)
Remote Control Battery	CR2025 (pre-installed)
Indicator Lights	Red (off), Green (Line In), Amber (Optical), White (Aux), Blue (Bluetooth)
Controls	Power, Source, Volume +/-, Pair/Learn button on unit
Volume Control	Digital
Special Features	Learn Function (teaches soundbar to respond to TV remote), Bluetooth pairing
Cleaning Instructions	Clean with a dry cloth only
Safety Certifications	FCC Class B, double insulation
Warranty	See www.iLiveElectronics.com for details

Frequently Asked Questions - ITB174B iLive

How do I pair my Bluetooth device to the ITB174B soundbar?

Power on the soundbar and press the Source button to switch to Bluetooth mode (slowly flashing blue light). Then press and hold the Pair button on the side of the unit until the indicator flashes blue quickly. On your Bluetooth device, search for 'ITB174' and select it. If prompted, enter password 0000.

What should I do if the optical audio input is not working?

Ensure you are using a correct Toslink cable and it is firmly seated in both the source and soundbar. The source must have optical output activated (red light from the socket) and set to output PCM, not Dolby Digital. Also, select SPDIF mode on the soundbar (amber light).

How do I use the Learn Feature?

With the soundbar off, press the Learn button on the unit (red light flickers). Press the button you want to learn on the included remote (e.g., Volume+). Then press the corresponding button on your TV remote. A green light confirms success. Press Learn again to save. Repeat for each button.

Can I control the soundbar with my TV remote?

Yes, using the Learn Feature. You can teach the soundbar to respond to Power, Volume, and Mute commands from your TV remote. Note that some functions like bass/treble are only available on the included remote.

What type of battery does the remote control use?

The remote uses a CR2025 button cell battery, which is pre-installed. If replacement is needed, open the battery compartment and insert a new CR2025 with the correct polarity.

What do the different indicator lights mean?

The front LED shows: Red (power off), Green (Line In mode), Amber (Optical/SPDIF mode), White (Aux/Bluetooth pairing? Actually Aux is white), Flashing Blue (Bluetooth pairing), Solid Blue (Bluetooth connected).

How do I clean the soundbar?

Unplug the unit and clean it with a dry, soft cloth. Do not use any liquids or abrasive cleaners. Avoid getting moisture into any openings.

What is the maximum TV size and weight the soundbar can support?

The soundbar/TV stand is designed to support flat panel TVs from 20 to 55 inches, weighing up to 75 pounds (34 kg). Always ensure the TV is centered and stable.

Can I connect a subwoofer to this soundbar?

Yes, there is a dedicated RCA subwoofer output on the back. Connect an external powered subwoofer using an RCA cable. Audio from any source will automatically use the subwoofer.

What is covered under the warranty?

For warranty information, visit www.iLiveElectronics.com or call 1-888-999-4215. The warranty typically covers manufacturing defects but not misuse or normal wear. Keep your proof of purchase.

USER MANUAL ITB174B iLive

Black rectangular electronic device with ports and indicator lights (no visible text or symbols)

Bluetooth HD Soundbar/TV Stand

User's Guide for Model ITB174B v1012-01

For the most up-to-date version of this User's Guide, go to www.iLiveElectronics.com

Important Safety Instructions

Important Safety Instructions

• Read these Instructions.
- Keep these Instructions.
- Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

FCC Warnings

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.

• CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. AVIS: Danger d'explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l'équivalent.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.
• WARNING: The remote control's button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste.
• WARNING: Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never

be incinerated since they might explode.

- Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

Features & Specifications

Includes

Supporting TVs

Setup....5

Power

Remote Battery

Indicator Lights

Orientation ....6

Speaker Rear Inputs

Speaker Controls (Left Side)

Remote Layout

Audio Inputs....8

Using the Stereo RCA Inputs... and the Subwoofer Output

Using the Optical Input

Using the Line In

Bluetooth.... 10

Pairing a Bluetooth Device for the First Time

Playing Audio Wirelessly

Learn Feature 11

What Is the Learn Feature?

Why Use the Learn Feature?

Using the Learn Feature

Company Information 12

Contact Information

International Support

Green Initiative

Warranty

Unboxing Your HD Soundbar/TV Stand

Features & Specifications

• Supports Bluetooth v2.1
• Wireless range: 33 feet
• Digital volume control
• Optical digital audio input

Includes

• Remote control:
  requires a CR2025 battery (pre-installed)
  • RCA stereo audio cable
  • AC/DC power adaptor

3.5mm audio input
• RCA stereo audio inputs
- Subwoofer output
• LED power and source indicators

Supporting TVs

The Soundbar/TV Stand is designed to support 20-55" flat panel TVs of all types up to 75 lbs.

Setup

Diagram showing a device with an attached power outlet connected to a cable, no text or symbols present

Power

Plug the small end of the power cord into the DC Input on the back of the speaker, and the large plug into a standard wall outlet.

Remote Battery

Requires a CR2025 battery (pre-installed)

Indicator Lights

STATUS INDICATOR
Power Off Red Light
Line In Mode Green Light
Optical Mode Amber Light
Aux In Mode White Light
Bluetooth Pairing Flashing Blue Light
Bluetooth Connected Blue Light

Orientation

Speaker Rear Inputs

Speaker Controls (Left Side)

Power Press to turn the unit on or off.

Source

Press to switch between Optical, Line In, AUX, and Bluetooth modes.

Volume

Press to adjust the volume up or down.

Pairing/Learn

Press and hold to begin pairing to a Bluetooth device. Press to begin using the Learn function.

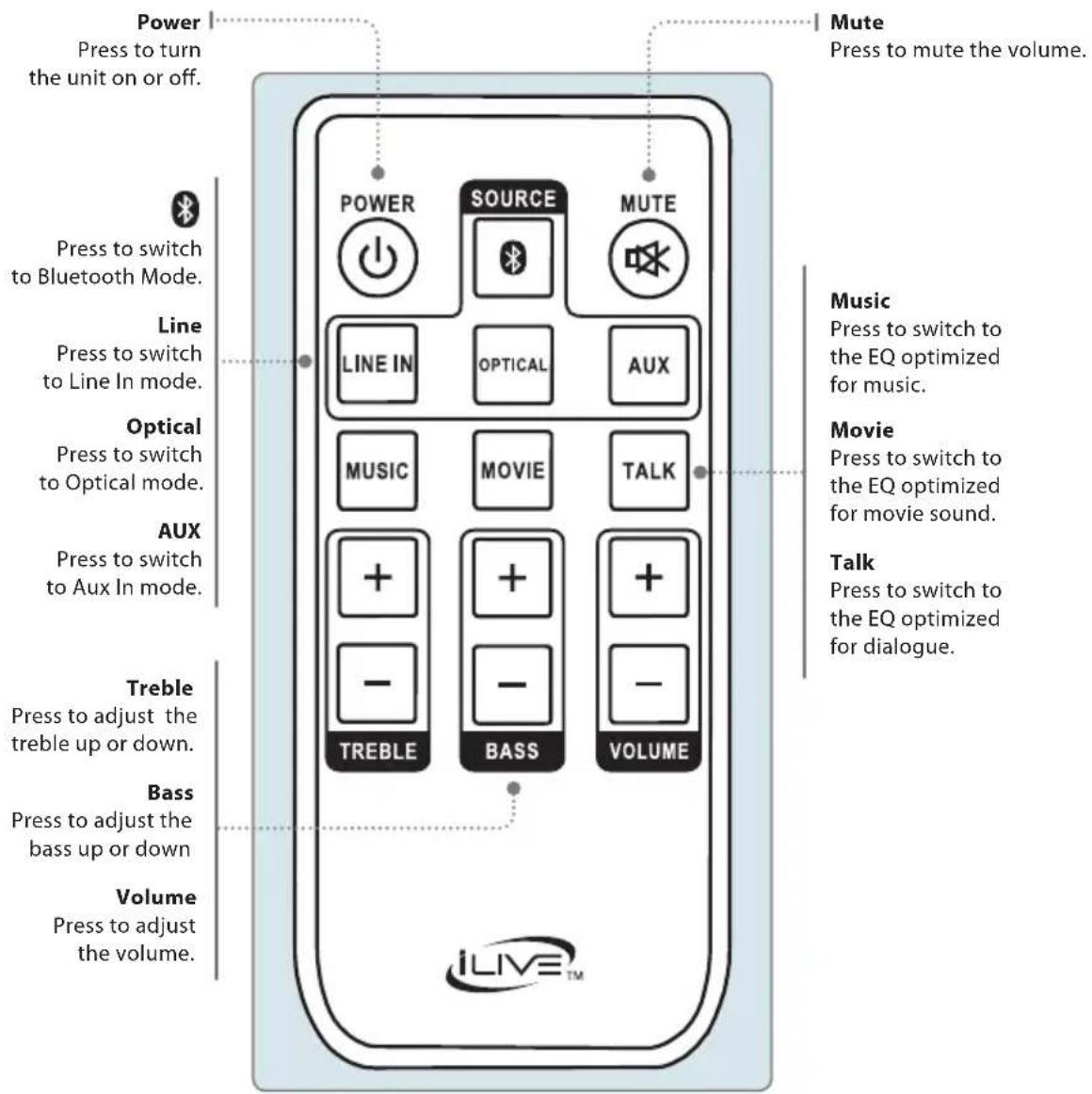

Remote Layout

Using the Stereo RCA Inputs...

When connecting two products using an RCA Cable, match the colored ports with the same colored connection.

1. Connect the RCA Cable to the RCA Stereo Inputs located on the back of the unit, and to the audio outputs on the television.
2. Press the Power button to power on the unit.
3. Press the Source button repeatedly to enter AUX Mode, indicated by a white light.
4. Audio played through the television will now be heard through the speakers.

and the Subwoofer Output

1. Use an RCA cable to connect an external subwoofer to the Subwoofer Output.
2. When audio is played through any source, the speaker will automatically use the connected subwoofer.

Using the Optical Input

You will need: An audio source with an Optical Audio Output and a Digital Optical Audio Cable (not included)

1. Connect the Digital Optical Audio Cable to the optical output on the audio source and to the Optical Input on the speaker bar.
2. Press the Power button to power the unit on.
3. Press the Source button repeatedly to switch to SPDIF Mode, indicated by a amber light.
4. Using the native controls on your connected device, make sure the audio settings are set to PCM or Optical Audio and are turned On.
5. Audio from the connected audio source will now be played through the speakers.

Important tips for optical audio:

Use the correct toslink cable and make sure that it is firmly seated in both source and sound bar sockets.

Optical output is activated on the source (they should see a red light emitting from the toslink socket). It may be labeled SPDIF in the setting menu of the source.

The optical output is set to output PCM and not Dolby Digital.

Using the Line In

3.5 mm audio input cable not included.

1. Plug one end of a 3.5 mm audio input cable into the Line In on the unit. and plug the other end of the cable into the audio output/headphone output on an MP3 Player or other audio source.
2. Press the Power button to power the unit on.
3. Press the Source button repeatedly to enter Line In Mode, indicated by a green light.
4. Audio played through the connected device will now be heard through the speakers.

Using the Stereo RCA Inputs - Rear View

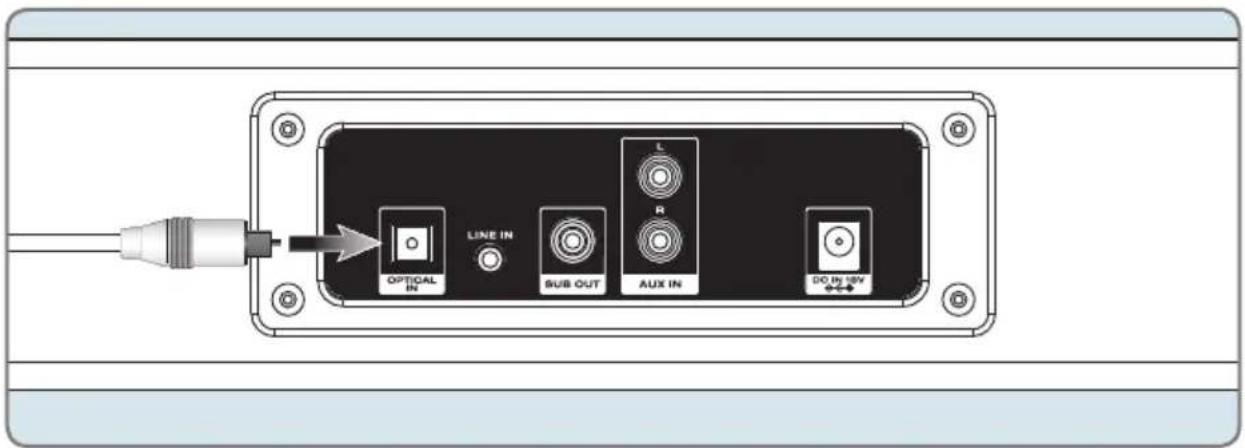

Using the Optical Input - Rear View

Using the Line In - Side View

Pairing a Bluetooth Device for the First Time

1. Power on the unit by pressing the Power button.
2. Press the 🧿 button on the remote to switch to Bluetooth Mode., indicated by a slowly flashing blue light.
3. Press and hold the Pair button on the side of the unit. The pairing indicator will flash blue quickly. When pairing, remain within 3 feet of the unit.
4. Using the native controls on your Bluetooth device, select the ITB174 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0 . Refer to the user's manual for your specific device for instructions on pairing and connecting Bluetooth devices.
5. When successfully paired and connected, a beep will issue from the unit and the Pairing Indicator will display a solid blue light.

After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat the above steps.

Playing Audio Wirelessly

1. After pairing to a bluetooth device, use the native controls on the connected Bluetooth Device to select a track.
2. Play, pause or skip a selected track using the native controls on the connected Bluetooth Device.
3. Audio played through the connected Bluetooth device will now be heard through the speakers.

What Is the Learn Feature?

The Learn feature captures remote commands from your television remote, and teaches your bar speaker to operate when these commands are pressed. Power, volume and mute are a few examples of commands that the bar speaker can learn.

Why Use the Learn Feature?

Teaching the bar speaker remote commands will reduce the number of remotes needed, save time searching for remote codes, and improve the ease of operation.

Note: Not all functions of the sound bar will be available through your own remote control, such as bass and treble. Use the included remote for these functions. While ITB174B is able to learn most IR protocols, not all can be programmed.

Using the Learn Feature

1. With the power Off, press the Learn button on the unit. An indicator will flicker red.

2. Press the button you desire to be learned on the included remote. For example: Volume +

3. The red light will continue to flicker, and another indicator will display a blue light.

4. Press the corresponding button on your remote.

5. The red light will continue to flicker, and another indicator will display a green light.

6. Press the Learn button on the unit.

7. The programmed button on your remote will now be able to control your sound bar. Note: It is necessary to program each button i.e. channel and volume + and - separately.

8. To start over, press and hold the learn key for over 3 seconds. If the sound bar has failed to learn a command, all the LED indicators will display a light for two seconds to signal the learning function has been reset.

Company Information

Contact Information

Website: www.iLiveElectronics.com

Email Support: [e-mail]

Email Parts: [e-mail]

Phone Support: 1-888-999-4215

Warranty

For Warranty Information and the most up-to-date version of this User's Guide, go to:

www.iLiveElectronics.com

International Support

To download this User's Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com

Our Environmental Commitment to "Protect for Today and Sustain for Tomorrow". On a continual basis DPI, Inc. is making efforts to sustain the environment and improve the recyclability of its products and packaging.

Focusing on “protecting for today and sustaining for tomorrow” DPI, Inc. has committed to reducing packaging size, increasing the usage of recyclable plastics, and ensuring that packaging and manuals are made with up to 85% recycled material. In addition to material consideration, DPI, Inc. has also focused on the finer details that positively impact the environment such as employing the usage of soy-based inks.

DPI, Inc. also ensures that the factories that produce the company's wide variety of consumer electronics adhere to environmentally friendly air and water restrictions. This is yet another example that every step of the way DPI, Inc. is making efforts to lessen any impact on the environment.

In 2011 DPI, Inc. also began conversations with Energy Star in order to ensure that the consumer electronics being produced meet high standards of energy efficiency. The ultimate goal is keeping energy costs for consumers low while providing quality, feature-rich products.

Copyright © 2014 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.
