IVDBI45 - Dishwasher ILVE - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	ILVE
Model	IVDBI45
Capacity	9 place settings

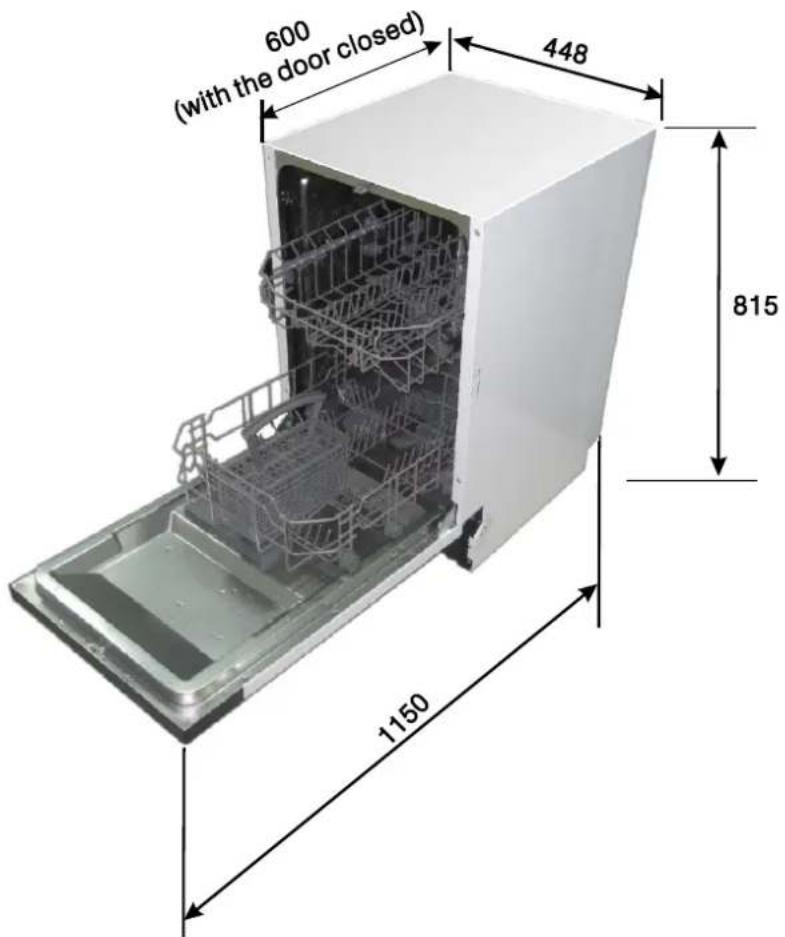

Dimensions (H x W x D)	815 x 448 x 574 mm
Weight	Approximately 45 kg
Power Supply	220-240 V / 50 Hz
Programmes	Intensive, Heavy, ECO, Glass, 90 min, Rapid
Energy Consumption (ECO)	0.55 kWh
Water Consumption (ECO)	10.9 L
Noise Level	Not specified (estimated 50 dB)
Water Pressure Range	0.04 – 1 MPa
Rinse Aid Dispenser	Yes, adjustable (110 ml capacity)
Detergent Dispenser	Yes, with pre-wash compartment
Filter System	3-stage: coarse, main, fine filter
Spray Arms	Upper and lower, removable for cleaning
Child Lock	Yes
Delay Start	3h, 6h, 9h, 12h
Safety Features	Earth connection, overflow protection, child lock
Installation Type	Under counter, customizable front panel
Warranty	24 months (domestic use)
Accessories Included	Cutlery basket, installation hooks, condensation strip

Frequently Asked Questions - IVDBI45 ILVE

Why won't my dishwasher start?

Check that the door is properly closed and latched. Ensure the power cord is plugged in and the circuit breaker hasn't tripped. Also confirm the water supply is turned on. If the issue persists, refer to the troubleshooting section in the manual.

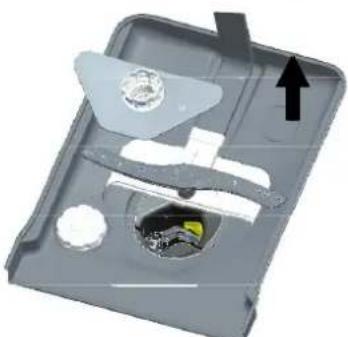

How do I clean the filters?

Turn the coarse filter counterclockwise and lift out the filter assembly. Rinse under running water and use a soft brush if necessary. Reassemble and install by turning clockwise. Clean the filters weekly for optimal performance.

What should I do if dishes are not drying properly?

Ensure the rinse aid dispenser is full and the setting is adequate (recommended level 4). Use a higher temperature program like Intensive. Open the door slightly after the cycle to let steam escape, and unload the lower basket first.

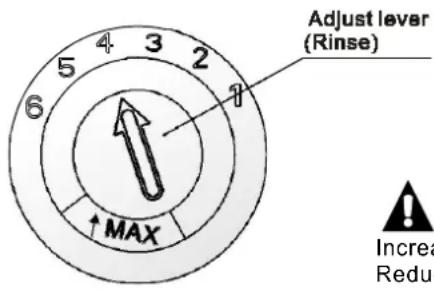

How do I adjust the rinse aid dosage?

Remove the rinse aid dispenser cap and turn the dial to a higher number (up to 6) if there are water spots, or lower if there is excessive foam. The factory setting is 4.

What does the error code 'Rapid' flashing mean?

The 'Rapid' code indicates a longer inlet time. Check that the water faucet is fully open, the water pressure is sufficient, and the inlet hose is not kinked or blocked.

Can I use regular dish soap?

No. Only use detergents specifically designed for automatic dishwashers. Using hand soap or laundry detergent will cause excessive suds and may damage the dishwasher.

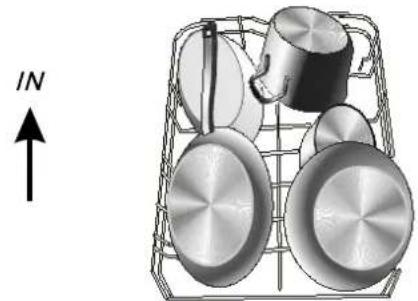

How do I load the dishwasher for best results?

Scrape off large food particles but do not rinse. Place hollow items facing downward, load heavier items in the lower basket, and delicate glassware in the upper basket. Ensure nothing blocks the spray arms.

What is the maximum number of place settings?

The dishwasher can hold up to 9 place settings. Overloading may reduce cleaning performance.

How do I install the dishwasher?

The installation should be done by a professional. Ensure proper leveling, connect to cold water supply (3/4 inch thread), drain hose (min 40 mm diameter), and power supply (220-240V, earthed). Secure the dishwasher to the worktop using the provided brackets.

Why are there white spots on my glasses?

White spots are usually caused by hard water. Increase the rinse aid dosage or use detergent with phosphate. If using phosphate-free detergent in hard water, add more detergent or select a higher temperature program.

USER MANUAL IVDBI45 ILVE

Read this Manual

Dear Customer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keep it to refer to it at a later date.
■ Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on training Tips will help you to solve some common problems by yourself.
If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
This user manual shall also be got from the manufacturer or responsible vendor.

1) Safety Information....1
2) Quick operation guide.... 2
3) Operation Instruction....3

Control Panel....3

Dishwasher Features....3

4) Prior using for the first time....4

A、Fill the Rinse Aid Dispenser....3
B、Function of Detergent 4

5) Loading the Dishwasher Basket......7

Recommendation....7

For washing in the dishwasher the following cutlery/dishes....7

Attention before or after loading the Dishwasher Baskets....7

Removing the Dishes.... 7 The Method Loading Normal Dishware....

6) Starting a washing programme....9

Wash Cycle Table....9
Turning on the Appliance....9
Change the Programme....10
At the end of the Wash Cycle....10

7) Maintenance and cleaning....11

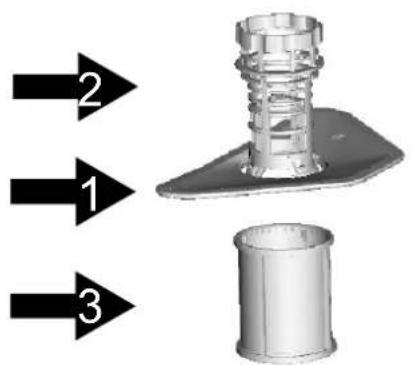

Filtering System....11
Caring for the Dishwasher....12

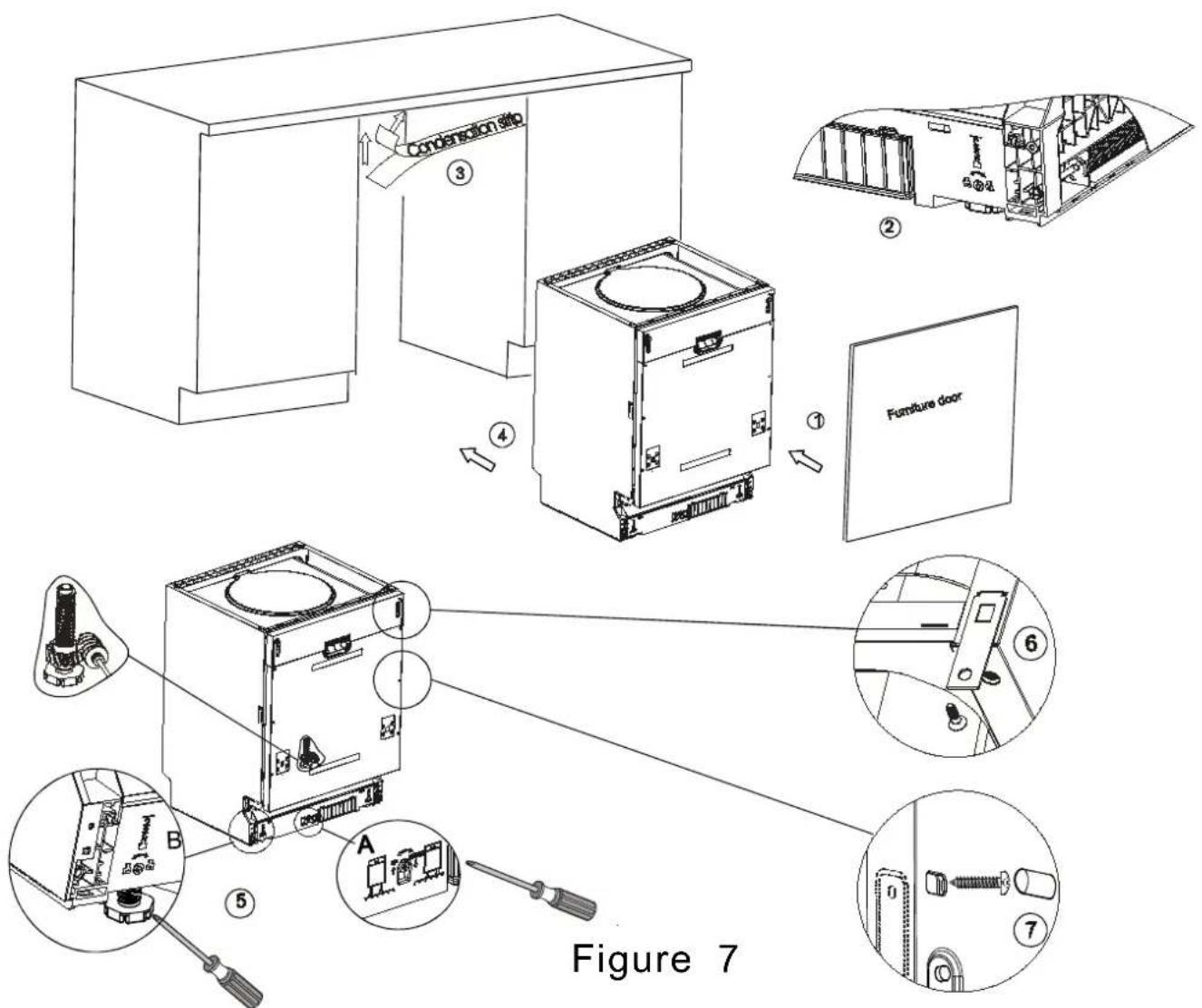

8) Installation instruction....13

13Instal

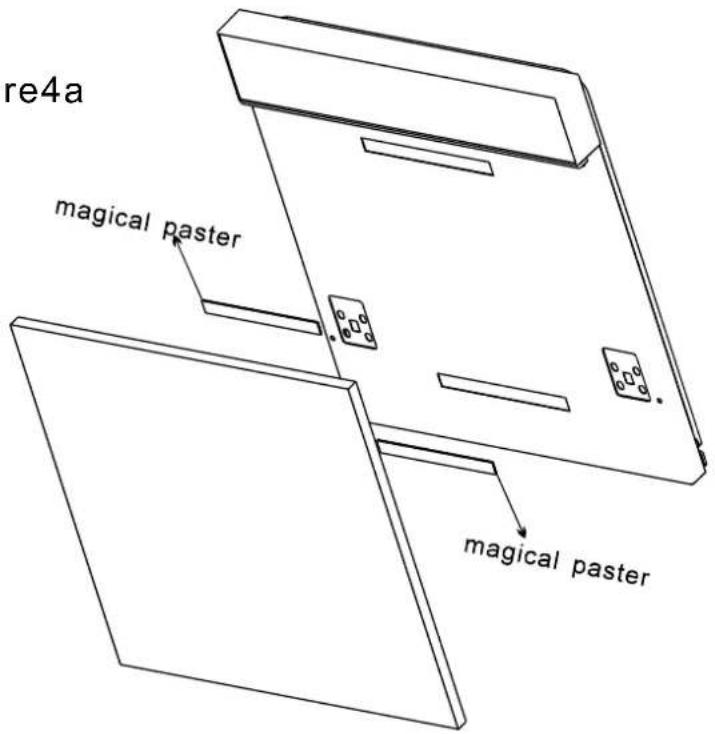

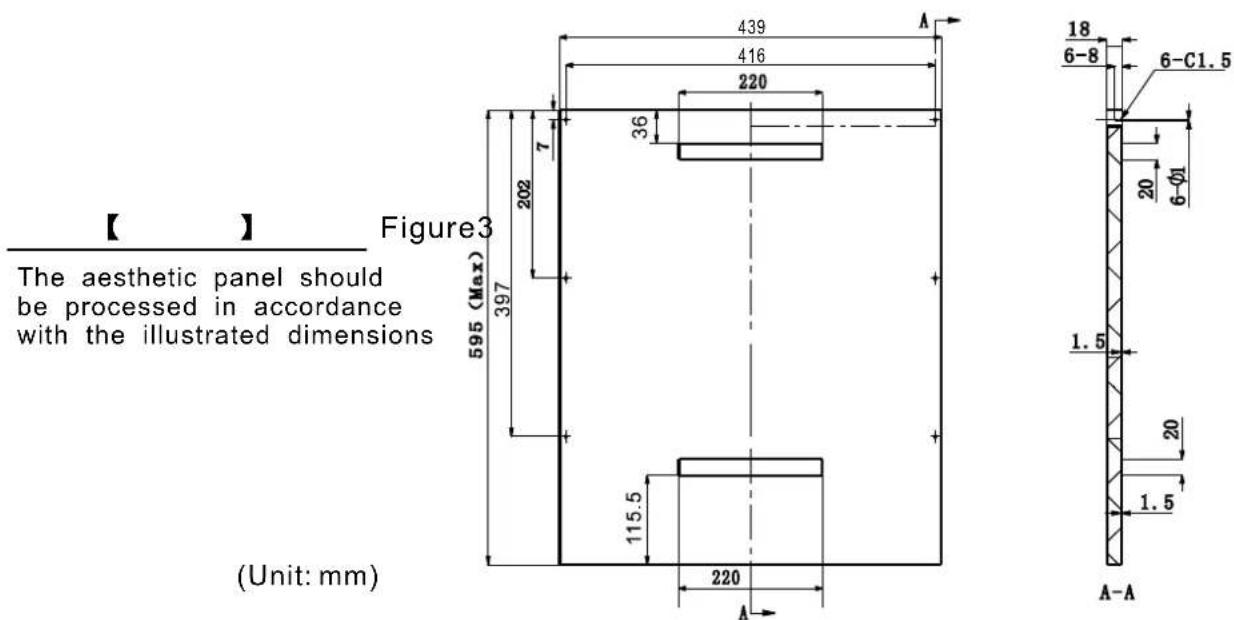

14Aesthe

16Tensi c

16Connec

17Dishw

About Electricity Connecting....18 Cold Water Connection.... 19

9) Troubleshooting Tips....20

Before calling for service....20
Error codes....21
Technical information for ma ti on.

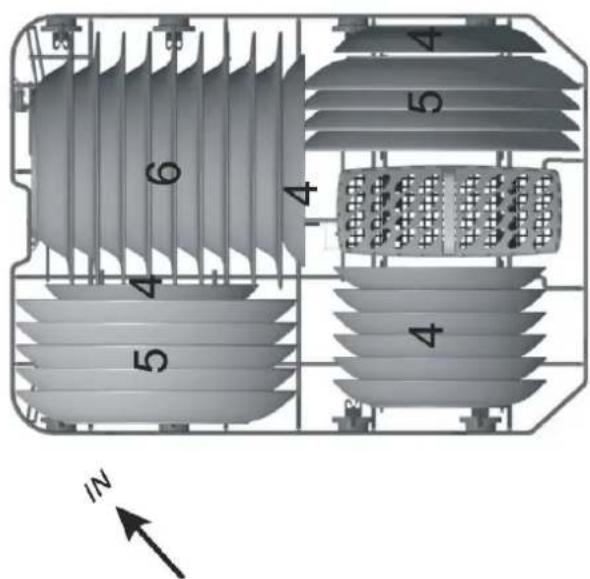

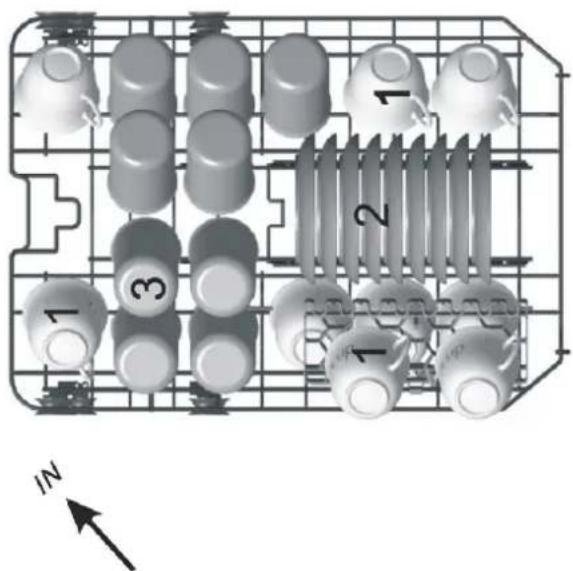

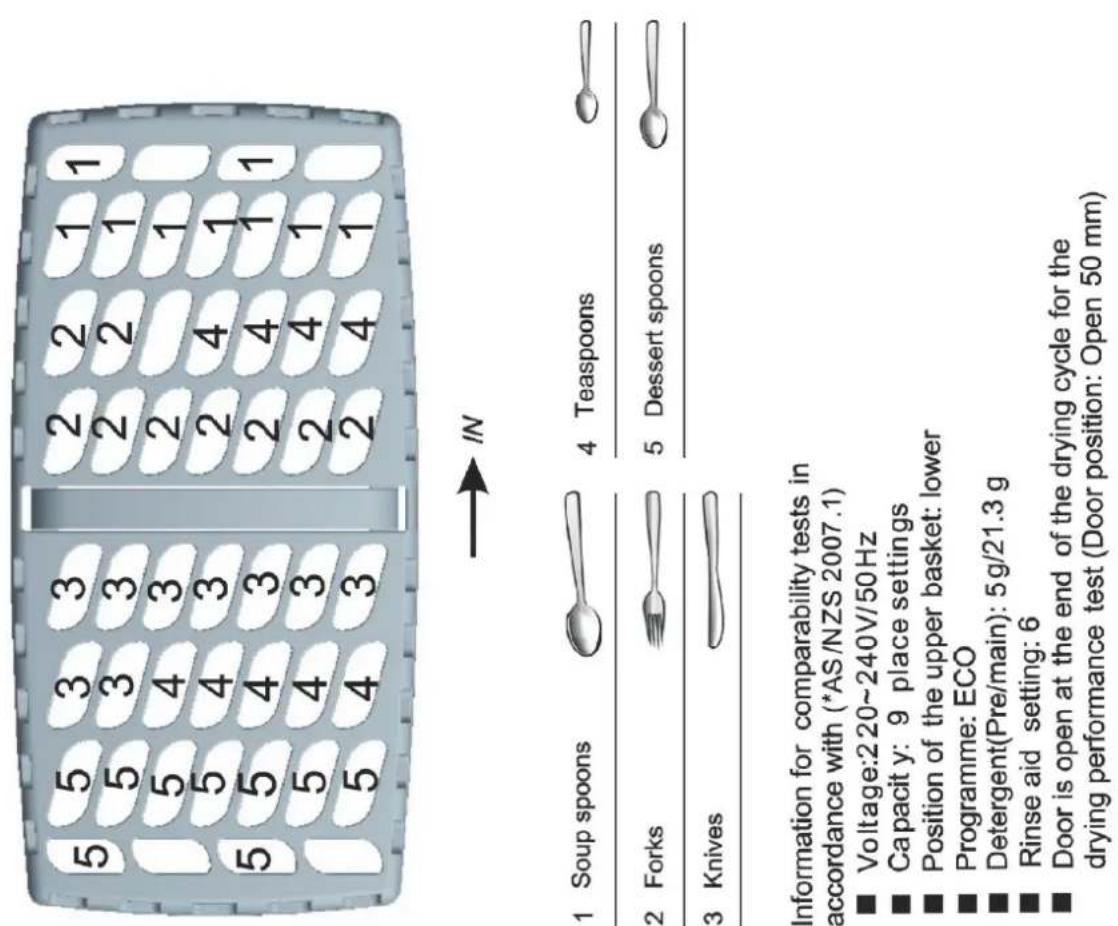

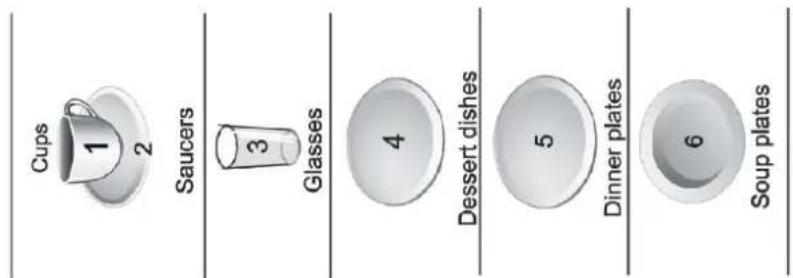

Loading the baskets according to AS/NZS 2007.1

1. IMPORTANT SAFETY INFORMATION

WARNING! When using your dishwasher, follow the precautions listed below:

■This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years and above at persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleanin and user maintenance shall not be made by children without supervision. (For EN60335-1)
■ This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1)
■ This appliance is for indoor use only, for household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plow water or other liquid.
■ Please unplug before cleaning and maintenance the appliance .Use a so cloth moisten with mild soap, and then use a dry cloth to wipe it again .

EARTHING INSTRUCTIONS

■ This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a earthing plug.
■ The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
■ Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
■ Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

■ Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
■ Do not operate your dishwasher unless all enclosure panels are properly in place
■ Open the door very carefully if the dishwasher is operating, there is a risk of wa squirting out.
■ Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
■ When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

■ Check that the detergent powder is empty after completion of the wash cycle.

■ Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic itemson so marked, check the manufacturer's recommendations.

■ Use only detergent and rinse additives designed for an automatic dishwasher.

■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher

■ Children should be supervised to ensure that they do not play with the appliance

■ The door should not be left open, since this could increase the risk of tripping.

■ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

■ During installation, the power supply must not be excessively or dangerously bent or flattened.

■ Do not tamper with controls.

■ The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.

■ The maximum number of place settings to be washed is 9.

■ The maximum permissible inlet water pressure is 1MPa.

■ The minimum permissible inlet water pressure is 0.04MPa.

Disposal

Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

■PE for polyethylene, e.g. sheet wrapping material

■PS for polystyrene, e.g. padding material

■POM polyoxymethylene, e.g. plastic clips

■PP polypropylene, e.g. Salt filler

■ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!

■ For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.

■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.

■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

■ For more detailed information about recycling of this product, please contact yourlocalcityofficeandyour household waste disposal service.

■ DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

Quick Operation Guide

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance

Open the door, press the On/Off button to switch on the appliance.

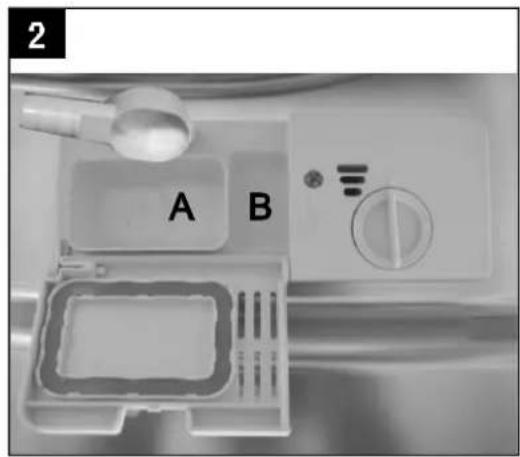

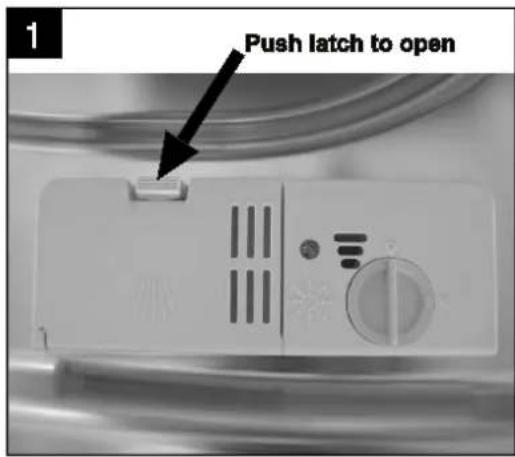

Fill the detergent dispenser

Compartment A:

For each wash cycle.

Compartment B:

For programs with pre-wash only.

(Follow the user instructions)

Check the rinse aid level

Mechanical indicator C.

Electric indicator on control panel (if provided).

Load the baskets

Scrape off any large food particles. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.

Select a program

Close the door, press the Program Button until the selected program lights up. ( See the section entitled Operation instruction ) "

Running the dishwasher

Turn on the water tap and press Start/PhaseButton will start working after about 10 seconds.

- Changing the program

- 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If in this case, the detergent dispenser must be refilled.

1. Press the Start/Pause button, the machine will be in standby state, press the program button more than 3 seconds then you can change the program to the desired cycle setting.
2. Press the Start/Pause Button, the dishwasher will run after 10 seconds.

- Add forgotten dishes in the dishwasher.

● 1. Press the Start/Pause Button to stop the washing.

2.Open the door a little.

1. After the spray arms stop working, you can open the door completely.

4.Add forgotten dishes.

1. Close the door

2. Press the Start/Pause Button, the dishwasher will run after 10 seconds.

WARNING!

Open the door carefully! Hot steam may escape when the door is opened!

- If the appliance is switched off during a wash cycle.

- If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state).

Switch off the appliance

When the working cycle is finished, the buzzer of the dishwasher will sound 8 times, then stop.

Turn off the appliance using the On/Off Button.

If the appliance was under standby mode, it will be power off automatically after 30 minutes without any operation.

Turn off the water tap, unload the baskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald, as the dishes and utensils are still hot and more susceptible to break.

They could also dry better. Unload the appliance, starting from the lower basket.

3. Operation Instruction

IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

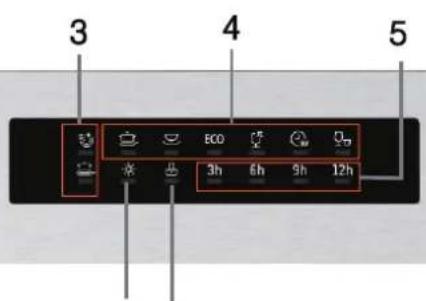

Control Panel

(

F

9 10

11

△∥

1. On/Off Button:

Turn on/off the power supply by pushing.

1. Function Button:

To select extra drying or strong wash function.

1. Function indicator:

Extra drying indicator:

Strong wash indicator:

[NO TEXT]

1. Program indicators:

To show which program you choose.

5.Delay indicators:

To show the delay time which you choose.

(3h/6h/9h/12h)

6.Delay Button:

Press the button to add the delay time.

1. Program Button :

To Press the button to select appropriate Program.

1. Start / Pause button:

To start the selected washing program or pause the washing program when the machine is working.

1. Rinse aid function indicator: ✦

2. Child lock indicator:

1. Child lock function:

Press delay button and program button for 5 seconds.

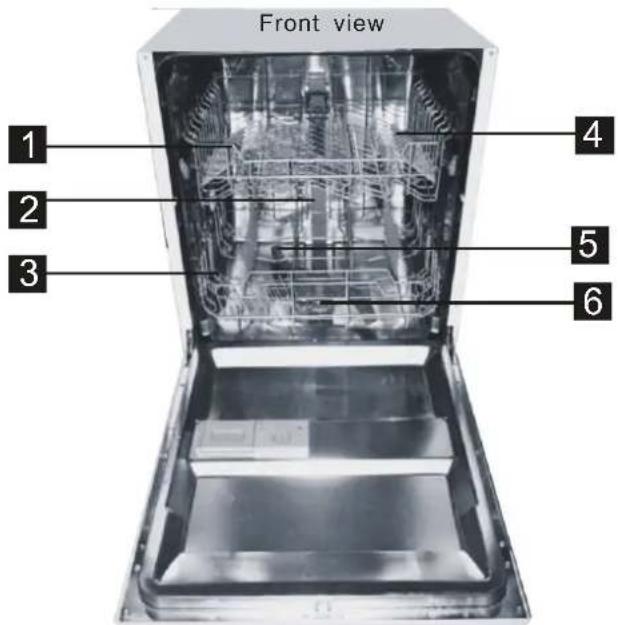

Dishwasher Features

1 Upper Basket

2 Inner pipe

3 Lower Basket

4 Cup Shelf

5 Spray arms

6 Filter assembly

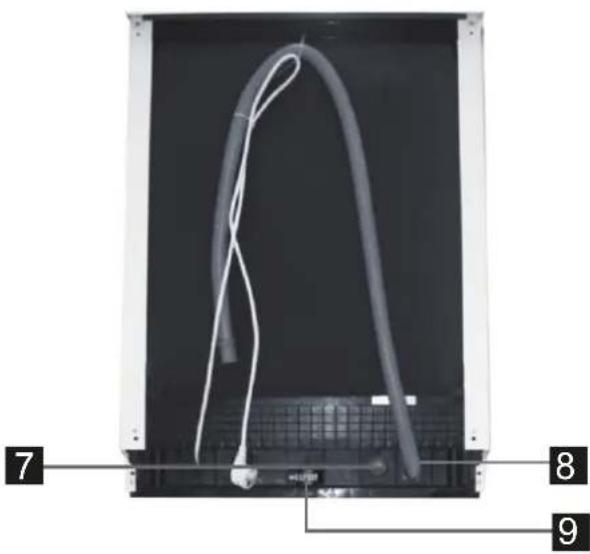

Back View

Interior view of a device with curved white cables and labeled components (7, 8, 9) on the left side, no readable text or symbols beyond labels.

7 Inlet pipe connector

8 Drain pipe

9 Adjuster

4. Prior to using for the first time

Before using your dishwasher for the first time:

A. Fill the rinse aid dispenser
B. Fill in detergent

A. Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

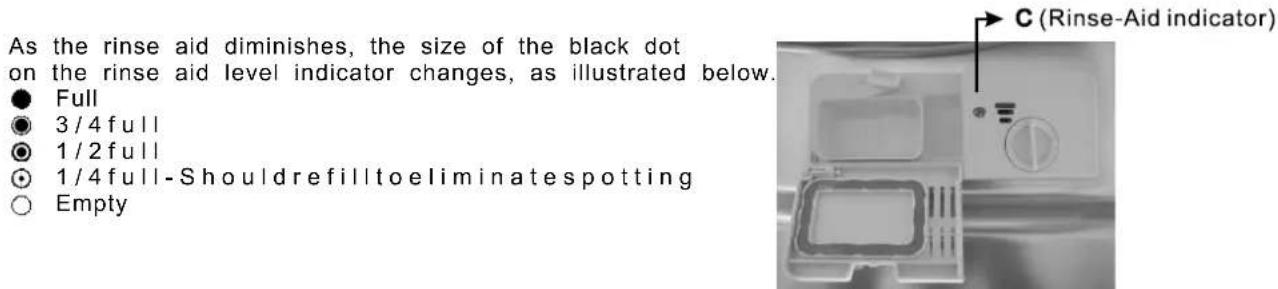

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of optical level

indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid

diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

How to fill the Rinse Aid Dispenser

Close-up of a hand pressing down on a white appliance panel with buttons and a circular indicator (no visible text or symbols)

Close-up of a medical device with a white bulb and label '2' (no readable text or symbols)

Hand holding a circular button next to a white electronic device with control buttons (no visible text or symbols)

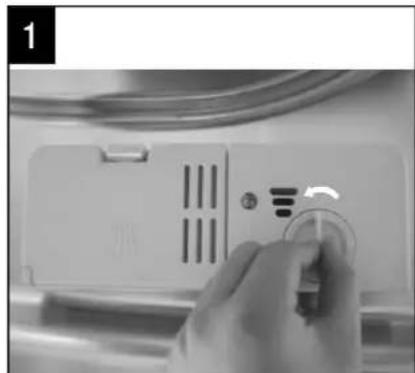

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

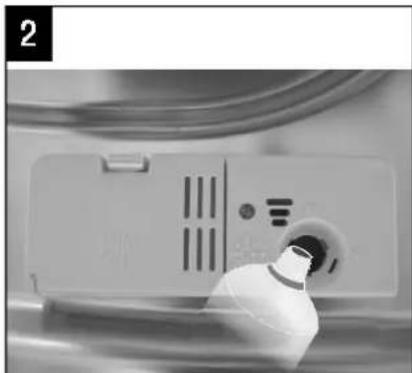

2 Pour the rinse aid into the dispenser, being careful not to overfill.

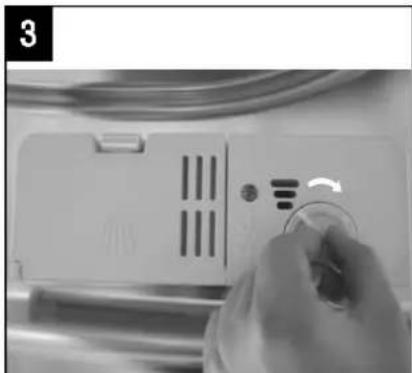

3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close dishwasher door.

Attention!

Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess during the next wash.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foam

during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rins aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware of knife blades.

B. Detergent

Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ Conventional, alkaline detergents with caustic components

■ Low alkaline concentrated detergents with natural enzymes

The use of normal washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason “normal” wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using intensive programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Adding detergent to dispenser

Close-up of a kitchen appliance with labeled parts A and B, showing a tool and control knob (no readable text beyond labels)

Fill in Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A For main wash detergent.

B For pre-wash detergent.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ If the lid is closed: push the latch to open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent and rinse aid for dishwasher.
■ You see inf or matio n about the amount of deterg ent for the si ngl e pro gramme last page9.
■ Please be aware that soiling levels and water hardness can effect wash results.
■ Please observe the manufacturer's recommendations on the detergent packaging.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low a temperature as possible.
■ To prevent damage, do not take glass and cutler you to of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable Are of limited suitability

■ Cutlery with wooden, horn china or mother-of-pearl handles
■ Plastic items that are not heat resistant
■ Older cutlery with glued parts that are not temperature resistant
■ Bonded cutlery items or dishes
■ Pewter or copper items
■ Crystal glass
■ Steel items subject to rusting
■ Wooden platters
■ Items made from synthetic fibres

■ Some types of glasses can become dull after a large number of washes

■ Silver and aluminum parts have a tendency to discolour during washing

■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower bas ket, we re comm end that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

3D diagram of a mechanical component with labeled force vector IN and internal components (no text or symbols beyond basic labels)

Please be reminded that: ■ Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

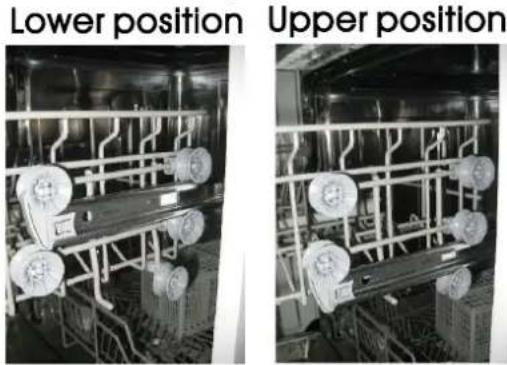

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms..

Two black-and-white photos showing industrial machinery with rollers and piping, labeled 'Lower position' and 'Upper position' (no text or symbols on the machinery itself)

Wheels

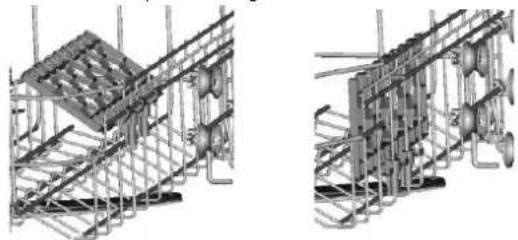

Folding back the cup shelves

tdFor better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Two technical diagrams showing structural steel frameworks with internal components and no visible text or symbols

Folding Spikes of Lower Basket

For better stacking of pots and pa the spikes can be folded down as show in the picture right.

Cutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

WARNING!

• Do not let any item extend through the bottom.
  ■ Always load sharp utensils with the sharp point down!

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the handles-down.
■ But place knives and other potentially dangerous utensils are placed handles-up.

6. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	For the heaviest soiled loads, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.	Pre-wash(50°C)Wash (60 °C)RinseRinseRinse(70°C)Drying	5/21.25g(OrAll in 1)	165	1.4	16.5
Heavy [KGH2]	For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-wash(45°C)Wash (55°C)RinseRinse (65°C)Drying	5/21.25g(OrAll in 1)	175	1.1	13
ECO (*AS/NZS 2007.1)	For normally soiled loads, such aspots, plates, glasses and lightly soiled pans. standard daily cycle.	Pre-washWash (45°C)Rinse(45°C)Drying	5/21.25g(OrAll in 1)	175	0.55	10.9
Glass	For lightly soiled loads, such as glasses, crystal and fine china.	Pre-washwash(40°C)RinseRinse(60°C)Drying	5/21.25g(OrAll in 1)	125	0.75	13.5
90 min [70TX]	For lightly soiled crockery and glass.	Wash(65°C)RinseRinse (65°C)Drying	26.25g(OrAll in 1)	90	1.15	11.5
Rapid [D64T]	A shorter wash for lightly soiled loads that do not need drying.	Wash (45°C)Rinse(50°C)Rinse(55°C)	20g	30	0.7	10	/

NOTE:

*AS/NZS 2007.1

T h

i s

p

in accordance with NAS fo2007:1

■ Capacity: 9 setting
■ Position Upper basket: upper wheels on rails
■ Rinse aid setting: 6
■ PI:0.49w;Po:0.45w

Turning On the Appliance

Starting a cycle wash

1 Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher").
2 Pour in the detergent (see the section entitled Detergent and Rinise Aid).
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 Hz, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Close the door, press the On/Off button, and the On/Off light will turn on.
5 Turn the program button, the wash program will be changed as follows direction: Intensive->Heavy->ECO->Glass->90 min->Rapid; If a program is selected, the response light will light. Then press the Start/Pause button, the dishwasher begins to start.

Change the Program

Premise:

1 Acycle that is under way can only be modified if this is only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the Start/Pause button the machine will be in stand by state, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled " Starting a wash cycle").

NOTE:

If you open the dooring the washing cycle will pause. The program light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish

A forgotten dish can be added any time before the detergent cup opens.

1 Press the Start/Pause Button to stop the washing.

4 Add forgotten dishes.

2 Open the door a little.

5 Close the door

3 After the spray arms stop working, you can open the completely.

6rPress theStart/Pause Button, the dishwasher will run after 10 seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ Switch Off the Dishwasher

The program light is on but is not blinking, only in this case the programme has ended.

1. Switch off the dishwasher by pressing the On/Off button.

2. Turn off the water tap!

■ Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarse filte 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

Fine filter 3

This filter holds soil and food residues in the sump area and prevents it from being deposited on the dishes during wash cycle.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. Rbis reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

⚠ WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

1

Step 1 Turn the filter in anti-clockwise direction,:

2

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Step 2 lift the filter assy up:

NOTE: When following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Remarks:

• Inspectthefiltersforblockingaftereverytimethedishwasherhasbeenused.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning the Door

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth.

To avoid pe ne trati on of water in to the door lock and electrical comp on ent s, do n use a spray cleaner of any kind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect Against Freezing

please take frost protection measures on the dishwasher in winter. Every time washing cycles, please operate as follows

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice please contact professional service persons.

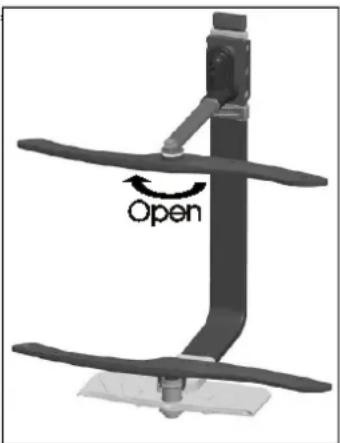

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To re move the u pp er spr a y a rm, ho ld th e nu t, r ot ate t he ar m clockwise to remove it.

To re move the lower s pray arm, pull out the spr ay ar m up wa rd.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To re move spots or sta in s from t he surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

Warning
	Electrical Shock Hazard Disconnect electrical power before installing dishwasher.Failure to do so can result in death or electrical shock.

A Attention:

The installation of the pipes and electrical equipments should be done by professionals.

Installation preparation

The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.

One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Note: please check the accompanying installation accessories(hook for aesthetic panel,screw)

Please carefully read the installation instruction.

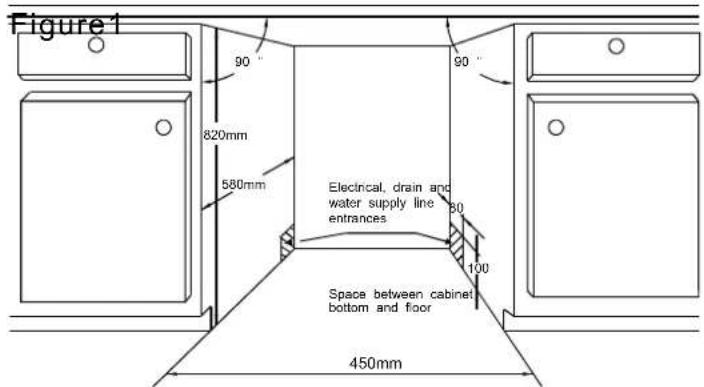

Illustrations of cabinet dimensions and installation position of the dishwasher

Preparations should be made before moving the dishwasher to the installation place.

1 Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).

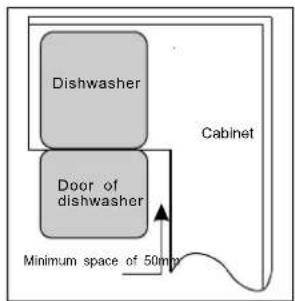

2 If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in figure 2) when the door is opened.

【 】

Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

【 】

Minimum space when the door is opened

Figure2

Aesthetic panel's dimensions and installation

1 The aesthetic wooden panel could be processed according to the Figure 3.

2 magical paster A and magical paster B be disjoinedon ,magical paster A on the aesthetic wooden panel and felted magical paster B of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the par onto the outer door by screws and bolts(See figure 4b)

【 】

Figure4a

Installation of aesthetic panel

【 】

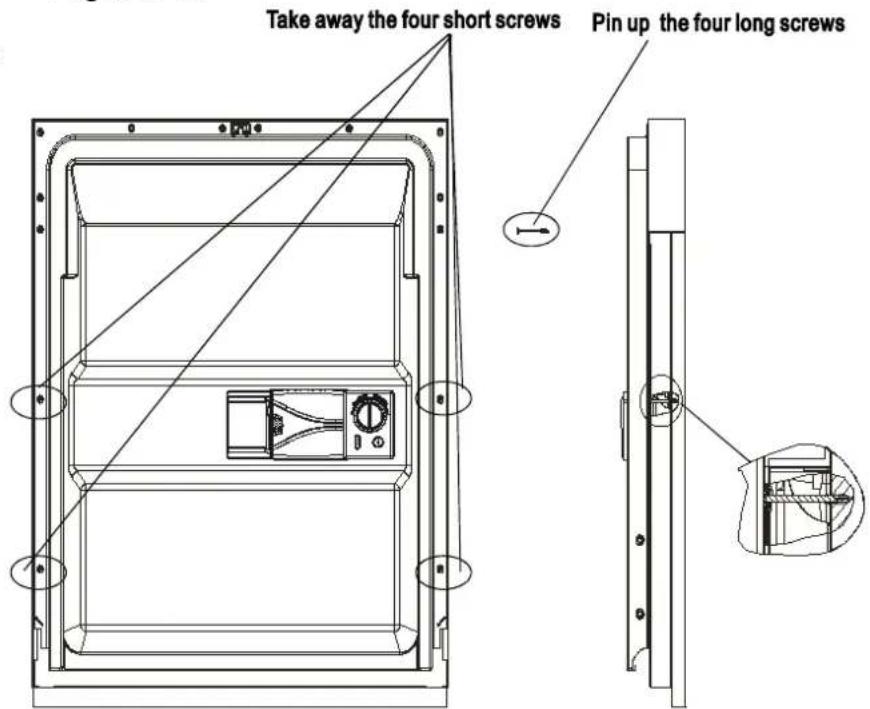

Installation of aesthetic wooden panel

1. takeaway the four short screws
2. pinup the fourlong screws

Figure4b

Tension adjustment of the door spring

The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tensio Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5).

Door spring tension is correct when the door remains horizontal in the fully opened position yet rises to a close with the slight lift of a finger.

【 】

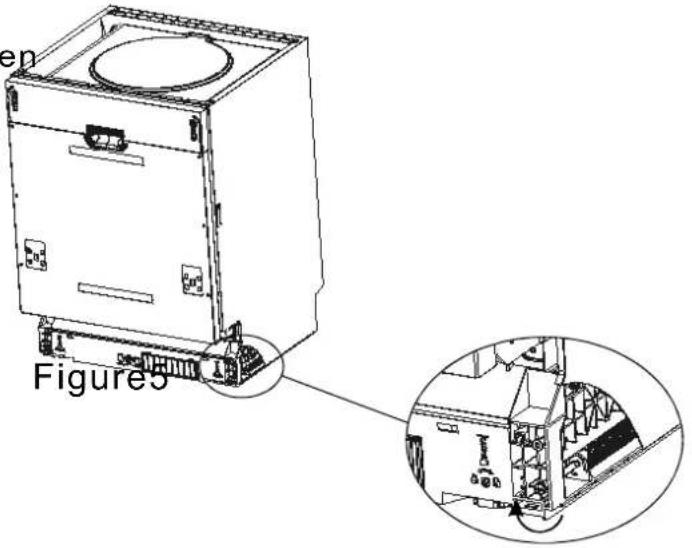

Tension adjustment of the door spring

Connection of drain hoses

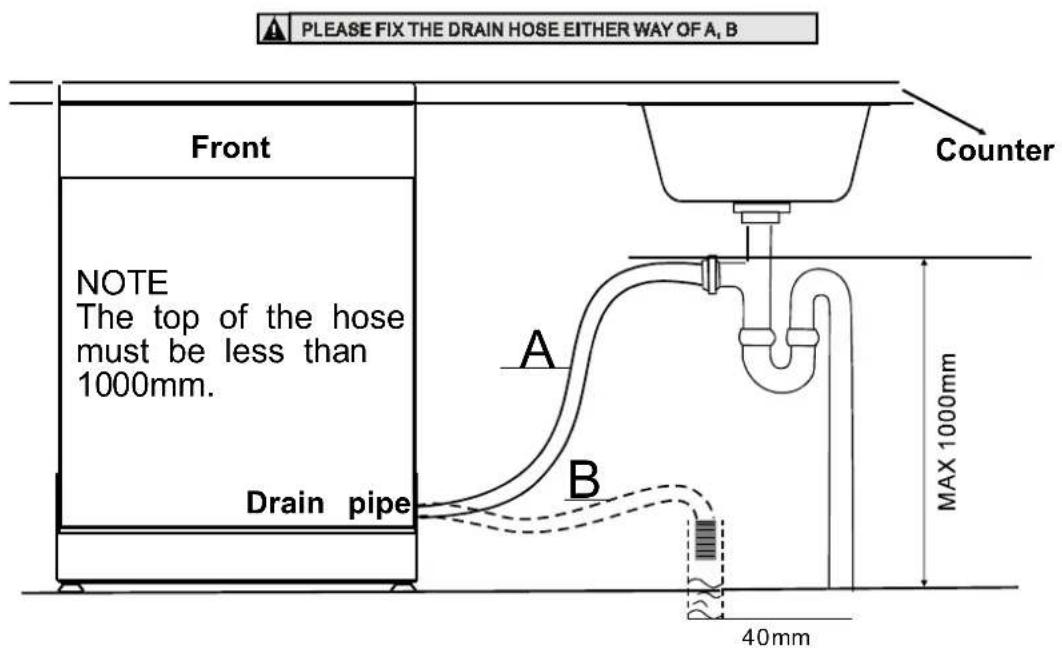

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure avoid bending or crimping it. The top of the hose must be less than 1000mm.

【Figure6】

- Dishwasher installation steps

1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher (Illustration 2)
3 Connect the inlet hose to the cold water supply
4 Connect the drain hose. Refer to diagram (Figure 6)
5 Connect the power card
6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface.
7 Place the dishwasher into position.(Illustration 4)
8 Level the dishwasher. The rear food can be adjusted from the front of the dishwasher by turning the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration
9 Thedishwasher must be secured in place. There are twowaysto

A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws (Illustration 6).

B. Marble or granite work top: Fix the side with Screw. (Illustration 7).

Dishwasher must be level for proper dish rack operation and wash performance.

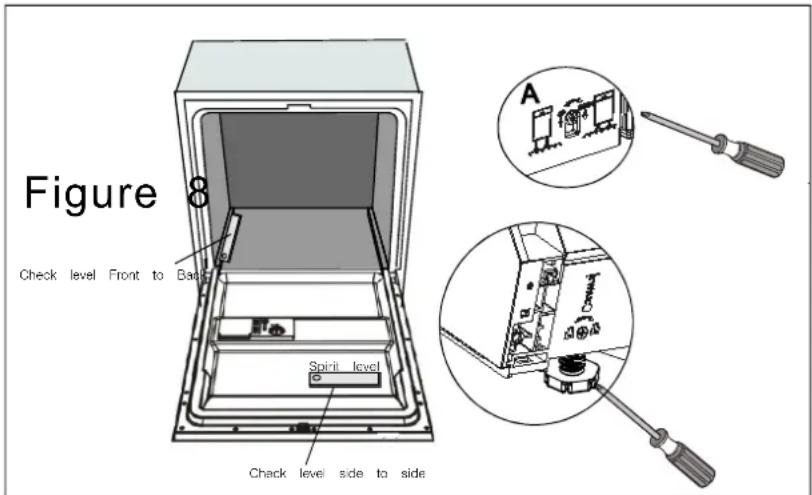

1 Place a spirit level on door and rack track inside the tub as shown to check that 1 dishwasher is level.
2 level the dishwasher by adjusting the three levelling legs individually.
3 When level the dishwasher, please pay attention not to let the dishwasher tip over.

【 】

Illustration of feet adjustment

NOTE:

The maximum adjustment height of the feet is 50 mm.

About Electricity Connecting

WARNING!

For personal safety:

■ Do not use an extension cord or an adapter plug with this appliance.
■ Do not, under any circumstances, cut or remove the earthing
■ Connection from the power cord.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power su Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical Connection

⚠️ Insure proper ground exists before use

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthe properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like they could cause overheating and burns.

Line drawing of a hand holding a pipe fitting (no text or symbols)

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING!

Please close the hydrant after using.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 Inlet hose connections are fully tightened and not leaking
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual. The content of this manual is very helpful to the users.

9. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
	Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
water not pumped from dishwasher	Kink in drain hose	Check drain hose.
	Filter clogged	Check thearse filter(see section titled Cleaning The Filter "
	Kitchen sink clogged	Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step.Open the door after draining is stop and check if the suds is disappeared.Repeat if necessary.
	Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
Stained tub interior	Detergent with colourant was used	Make sure that the detergent is the one without colourant.
White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.
	A programme was not run after dishwasher salt was added.Traces of salt have gotten into the wash cycle.	Always run the quick wash programme .without any crockery in the dishwasher and without selecting the Turbo function (if present),after adding dishwasher salt.
	The lid of the softer is loose	Check the lip .Ensure the fix is fine.
Knocking noise in the wash cabinet	As pray arm is knocking against an item in a basket	Interrupt the programme, and rearrange the items which are obstructing the sp ay arm.r
Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the programme,and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function.if in doubt, contact a suitably qualified plumber.

Problem	Possible Causes	What To Do
The dishes are not clean	The dishes were not loaded correctly.	See notes in " Loading the Dishwasher Baskets ".
	The program was not powerful enough.	Select a more intensive programme.See" Wash Cycle Table ."
	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items are blocking the path of sp ay arms.r	Rearrange the items so that the sp ayer can rotate
	The filter combination is not clean or is not correctly fitted.This may cause the sp ay arm jets get blocked.	Clean and/or fit the filter combination correctly.Clean the rsp ay arm jets. See "Cleaning the Spray Arms".
Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and selea shortest cycle to wash the glassware and to get them clean.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marl
Detergent left in dispenser cups	Dishes block detergent cup opens.	Re-loading the dishes properly.
The dishes are not drying	Improper loading	Load the dishwasher as suggested in the directions.
	Too little rinse-aid	Increase the amount of rinse-aid/refill the rinse-aid dispenser.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.
	Wrong program has been selected	In short program the rinse temperature is lower.This also lowers cleaning performance. Choose a program with a long high rinse .temperature
	Use of cutlery with a low-quality coating	Water drainage is more difficult with these items.Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Error Codes

When some malfunctions occur, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
Rapid	Longer inlet time.	Faucet is not opened, or water intake restricted,or water pressure is too low.
90min+Rapid	Not reaching required temperature	Malfunction of heating element.
Glass	Overflow.	Some element of dishwasher leaks.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a s

If there is water in the base pan because of an overfill or small the water should be removed before restarting the dishwasher.

Technical Information

Height : 815mm
Width : 448 mm
Depth : 574mm	(with the door clos)
Power supply: see rating label
Capacity: 9 place settings

3.Cutterly basket:

Information for comparability tests in accordance with (*AS/NZS 2007.1)
Voltage:220\~240V/50Hz
Capacit y: 9 place settings
Position of the upper basket: lower
Programme: ECO
Detergent(Pre/main): 5g/21.3 g
Rinse aid setting: 6
Door is open at the end of the drying cycle for the
drying performance test (Door position: Open 50 mm)

1. Upper basket:


1. Lower basket:

Color palette bar with grayscale gradient and a central crosshair (no text or symbols)

Product display of kitchen utensils including a covered pot, cooking pots, and a red coffee maker against a black background (no text or symbols visible)

Close-up of a metallic electronic device with a flat top and a dark base (no visible text or symbols)

Dark image with indistinct shapes and no visible text or symbols

OPEN 24/7

ILVE ACCESSORIES ONLINE SHOP

For a wide range of coffee machines, pods, and other ILVE accessories at the click of a button shop.ilve.com.au

Eurolinx Pty Limited A.B.N. 50 001 473 347 trading as ILVE ("ILVE")

Office: 48-50 Moore Street, Leichhardt N.S.W 2040

Post: Locked Bag 3000, Annandale, N.S.W 2038

P: 1300 MY ILVE (694 583)

WARRANTY REGISTRATION

Your ongoing satisfaction with your ILVE product is important to us. We ask that you complete the enclosed Warranty Registration Card and return it to us so that we have a record of the ILVE products you purchased. Alternatively you can register on line (see registration card for details)

PRIVACY

ILVE respects your privacy and is committed to handling your personal information in accordance with the National Privacy Principles and the Privacy Act 1988 (Cth). A copy of the ILVE Privacy Policy is available at www.ilve.com.au. ILVE will not disclose any personal information set out in the Warranty Registration Card (“Personal Information”) without your consent unless required by:

1. law;
2. any ILVE related company;
3. any service provider which provide services to ILVE or assist ILVE in providing services (including repair and warranty services) to customers. Our purpose in collecting the Personal Information is to keep a record of the ILVE product purchased by you, in order to provide a better warranty service to you in the unlikely event that there is a problem with your ILVE product. ILVE may contact you at any one or more of the address, email address or telephone numbers set out in the Warranty Registration Card. Please contact ILVE on 1300 694 583 should you not wish to be contacted by ILVE.

WARRANTY

1. Warranty

ILVE warrants that each ILVE product will remain, for a period of twenty four (24) months computed from the date of purchase of the ILVE product, free from defects arising in the manufacture of the ILVE product (“Warranty”). Except for consumer guarantees set out in the Competition and Consumer Act 2010 (Cth) (“Act”), ILVE does not make any further warranties or representations in relation to ILVE products.

2. What is not Covered by the Warranty.

The Warranty does not apply if an ILVE product is defective by a factor other than a defect arising in the manufacture of the ILVE product, including but not limited to:

(a) damage through misuse (including failure to maintain, service or use with proper care), neglect, accident or ordinary wear and tear (including deterioration of parts and accessories and glass breakage);
(b) use for purpose for which the ILVE product was not sold or designed;
(c) use or installation which is not in accordance with any specified instructions for use or installation;
(d) use or operation after a defect has occurred or been discovered;
(e) damage through freight, transportation or handling in transit (other than when ILVE is responsible);
(f) damage through exposure to chemicals, dusts, residues, excessive voltage, heat, atmospheric conditions or other forces or environmental factors outside the control or ILVE;
(g) repair, modification or tampering by the purchaser or any person other than ILVE, an employee of ILVE or an authorised ILVE service contractor;
(h) use of parts, components or accessories which have not been supplied or specifically approved by ILVE.
(i) damage to surface coatings caused by cleaning or maintenance using products not recommended in the ILVE product handbook provided to the purchaser upon purchase of the ILVE product;
(j) damage to the base of an electric oven due to items having been placed on the base of the oven cavity or covering the base, such as aluminium foil (this impedes the transfer of heat from the element to the oven cavity and can result in irreparable damage); or
(k) damages, dents or other cosmetic imperfections not affecting the performance of the ILVE in respect of an ILVE product purchased as a “factory second” or from display. The Warranty does not extend to light globes used in ILVE products.

3. Domestic Use

Each ILVE product is made for domestic use. This Warranty may not extend to ILVE products used for commercial purposes; under those circumstances the warranty period is limited to 3 month.

4. Time for Claim under the Warranty

You must make any claim under this Warranty within twenty eight (28) days after the occurrence of an event which gives rise to a claim pursuant to the Warranty, by booking a service call on the telephone number below. 5. Proof of Purchase

Customers must retain proof of purchase in order to be eligible to make a warranty claim in respect of an ILVE product.

6. Claiming under the Warranty

Customers will bear the cost of claiming under this Warranty unless ILVE determines the expenses are reasonable, in which case the customer must claim those expenses by providing written evidence of each expense to ILVE at the address on the Warranty Registration Card.

7. Statutory Rights

(a) These terms and conditions do not a ect your statutory rights.
(b) The limitations on the Warranty set out in this document do not exclude or limit the application of the consumer guarantees set out in the Act or any other equivalent or corresponding legislation in the relevant jurisdiction where to do so would:
(i) contravene the law of the relevant jurisdiction; or (ii) cause any part of the Warranty to be void.
(c) ILVE excludes indirect or consequential loss of any kind (including, without limitation, loss of use of the ILVE product) and (other than expressly provided for in these terms and conditions) subject to all terms, conditions and warranties implied by custom, the general law, the Act or other statute.
(d) The liability of ILVE to you for a breach of any express or non-excludable implied term, condition or warranty is limited at the option of ILVE to:
(i) replacing or repairing the defective part of the ILVE product;
(ii) paying the cost of replacing or repairing the defective part of the ILVE product;
(iii) replacing the ILVE product; or
(iv) paying the cost of replacing the ILVE product.
(e) Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

8. Defects

Any part of an ILVE product deemed to be defective and replaced by ILVE is the property of ILVE. ILVE reserves the right to inspect and test ILVE products in order to determine the extent of any defect and the validity of a claim under the Warranty.

*To locate your closest ILVE authorised service agent please contact ILVE on 1300 694 583, [e-mail] or visit

http://ilve.com.au/support/service/

IMPORTANT!

All warranty service calls must be booked via the customer care department. The team can be contacted on 1 300 85 64 11 option 1 or [e-mail]

Service is delivered through a network of Service Agents. If the Appliance is located outside our normal Service Area of our agents you, t he Customer will need to bear the cost of travel outside that area.

If you are unable to provide proof of purchase, the fault is not covered under warranty or the product is found to be working to specification you may be required to bear the full cost of the service visit

08042016

WARRANTY REGISTRATION CARD 08042016
Please complete and send to ilve at: REPLY PAID 83617 LEICHHARDT NSW 2040

Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / / (Please attach proof of purchase to validate warranty)

MODEL NUMBER	SERIAL NUMBER(if you cannot locate the serial number please call ILVE on 1300 85 64 11)
1
2
3
4

NOTES

ILVE.COM.AU

01052015

You can now find us on:

BLOG

facebook.com/ILVEappliances

twitter.com/ILVE_appliances

youtube.com/ILVEappliances

livewithilve.com

Australia National Telephone Number 1300 MYILVE (694 583)

New Zealand Telephone Number 0508 458 369

ILVE showrooms are open daily from 9am-5pm and Saturdays 10am-4pm

(WA by appointment only on Saturdays)

ilve.com.au

NSW & ACT (Head Office)

48-50 Moore Street

Leichhardt

F 02 8569 4699

VIC, TAS & SA

1211 Toorak Road

Camberwell

F 03 9809 2155

QLD

1/42 Cavendish Road

Coorparoo

F 07 3397 0850

WA & NT

Unit 10/55 Howe Street

Osborne Park

F 08 9201 9188

New Zealand

PO Box 11.160

Sockburn Christchurch

F 03 344 5906
