Product Type	Dishwasher
Brand	Ilve
Model	IVDFS645

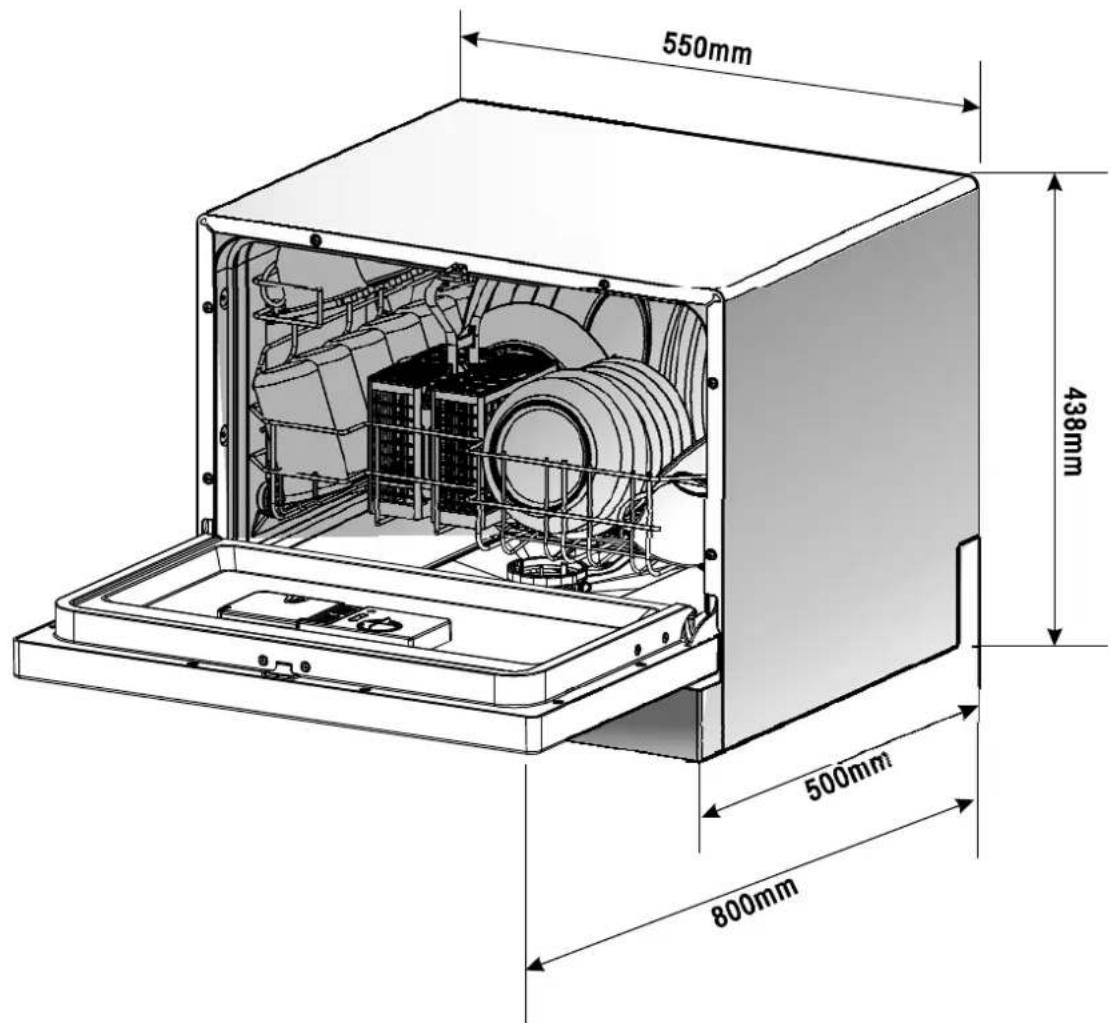

Dimensions (HxWxD)	438 mm x 550 mm x 500 mm
Capacity	6 place settings
Power Supply	220-240 V ~ 50 Hz, 10 A
Water Pressure Range	0.04 - 1.0 MPa
Programs	Intensive, Heavy, Normal, Rinse, Rapid, Soak
Control Panel	LED display with buttons for power, program selection, start/reset, delay, 3-in-1, child lock
Rinse Aid Dispenser	Adjustable setting (1-7), capacity approx. 110 ml
Salt Container	Integrated water softener
Filter System	Three-stage: coarse, main (flat), and micro (fine) filters
Spray Arms	Removable for cleaning
Cutlery Basket	Removable with multiple compartments
Cup Shelf	Foldable
Delay Start	0-24 hours
3-in-1 Function	Allows use of combined detergent tablets without salt/rinse aid
Child Lock	Activated by pressing two buttons simultaneously
Water Connection	Cold water only, 3/4 inch threaded connector

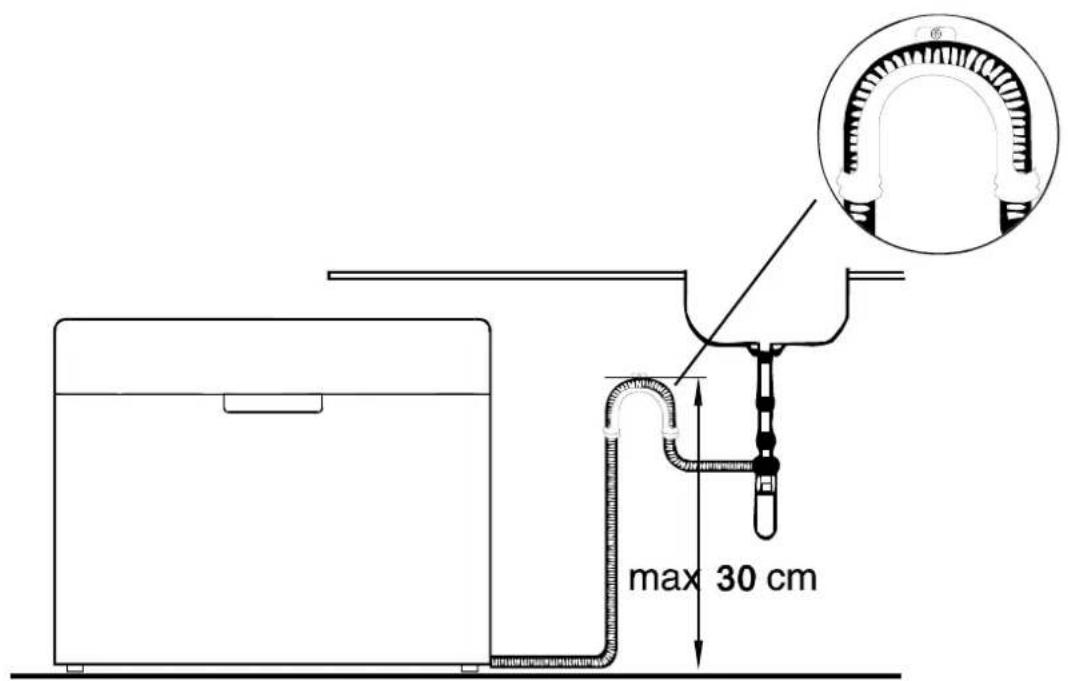

Drain Hose	Max height 30 cm, min diameter 4 cm; extension up to 4 m
Safety Features	Grounding, door lock, overflow protection, child safety
Warranty	24 months from purchase date (domestic use)

Frequently Asked Questions - IVDFS645 ILVE

How do I start the dishwasher?

Close the door, press the Power button, select a program using the Program button, then press Start/Reset.

What detergent should I use?

Use only automatic dishwasher detergent (powder, gel, or tablets). Never use soap, laundry detergent, or hand-washing detergent. For best results, follow the dosage instructions on the detergent package.

How do I fill the rinse aid?

Open the rinse aid dispenser cap (located inside the door, next to the detergent dispenser). Pour liquid rinse aid until the indicator turns completely black. Wipe any spills to avoid foaming. Adjust the setting (recommended '4') using the dial under the cap.

What do error codes E1 and E4 mean?

E1 indicates longer inlet time – check if the faucet is open, water pressure is adequate, or inlet hose is kinked. E4 indicates overflow – turn off the water supply and check for leaks. If water is in the base pan, remove it before restarting.

How should I load the dishes for best cleaning?

Scrape off large food residues, place hollow items (cups, glasses) upside down, angle curved items for water runoff. Ensure spray arms can rotate freely. Load sharp knives with points down or horizontally. Do not overload.

How do I clean the filters?

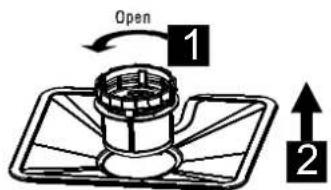

Turn off the dishwasher, remove the filter assembly by unscrewing the coarse filter. Rinse all parts under running water. Use a brush for stubborn particles. Reassemble and press down firmly. Clean filters at least once a week.

Why are my dishes not drying properly?

Check if rinse aid is full and the dose setting is appropriate (increase if needed). Use a program with drying (e.g., Intensive, Heavy, Normal). Leave the door slightly open after cycle to aid drying. Do not overload.

Can I use detergent tablets with the 3-in-1 function?

Yes, if your dishwasher has the 3-in-1 function, press the 3in1 button before starting. This allows using tablets that combine detergent, rinse aid, and salt. Note: only works for Intensive, Heavy, and Normal programs.

How do I winterize the dishwasher?

Cut off power, turn off water supply, disconnect inlet pipe and drain water from pipe and valve. Reconnect. Remove filter at bottom and sponge out water from sump. If ice has formed, contact a professional.

What fuses or breakers are required?

Use a dedicated circuit of 10 A with a time-delay fuse or circuit breaker. Do not use an extension cord or adapter plug. The plug must be properly grounded.

USER MANUAL IVDFS645 ILVE

Technical line drawing of an open kitchen appliance with internal components (no text or symbols)

Read this Manual

Dear Customer,

Please carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.
- Keepittorefertoatalaterdate.
Passitontoanysubsequentowneroftheappliance.

This manual contains sections of Safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farmhouses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Before Calling for Service

ToreviewhesedonTroubleshootingTips
will help you to solve some common problems by yourself.
If you cannot resolve the troubles by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1
2) Disposal....2

3) Operating Instructions....3 Control Panel....3 Dishwasher Features....3

4) Prior using for the first time....4 A、Fill the Rinse Aid Dispenser....4 B、Function of Detergent....5

5) Loading the Dishwasher Basket....7 Attention before or after loading the Dishwasher Baskets....7 Loading the Basket....8 Cutlery Basket....9 When load bigger Dinner Plates....10

6) Starting a washing programme....11 Wash Cycle Table....11 Turning on the Appliance....11 Change the Programme....12 At the End of the Wash Cycle....12

7) Maintenance and cleaning....13 Filtering System....13 Caring for the Dishwasher....14

8) Installation instruction....15 Positioning the Appliance....16 About Power Connection....16 Water Connection....16 Connection of Drain Hoses....17 Start of dishwasher....18

9) Troubleshooting Tips....19 Before calling for service....19 Error codes....20 Technical information....21

1. IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING

⚠ WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
■ Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith alllocalcodesandordinances.

▲ WARNING!

■ Improperconnectionoftheequipment-grounding conductorcanresultinariskofelectricshock.
Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhetherthe applianceisproperlygrounded.Donotmodifythe plugprovidedwiththeappliance;Ifitisnotfitfor theoutlet.Haveaproperoutletinstalledbya qualifiedelectrician.

WARNING! PROPER USE

■ Donotabuse, siton, or standard the door or dish rack of the dish washer.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheatingelement.)
■ Donotoperateyourdishwasherunlessall enclosurepanelsareproperlyinplace.Open thedoorverycarefullyifthedishwasheris operating,thereisariskofwatersquirtingout.
■ Donotplaceanyheavyobjectsofstandonthe doorwhenitisopen. The appliancecouldtip forward.
■ When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with heating element. (This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent-receptible is empty after completion of the wash cycle.
■ Donotwashplasticitemsunlesstheyaremarked dishwashersafeortheequivalent.Forplasticitems notsomarked,checkthemanufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never uses soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of thereach of children.

• Keepchildrenawayfromdetergentandrinseaid,keep childrenawayfromtheopendoorofthedishwasher,therecouldstillbesomedetergentleftinside.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasherwhenthedoorisopen.
  ■ The door should not be left in the open position since this could present a tripping hazards.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Removethedoortothewashingcompartmentwhen removinganolddishwasherfromserviceordiscarding it.
  ■ Please dispose of packing materials properly.
  ■ Usethedishwasheronlyforitsintendedfunction.
  During installation, the power supply must not be excessively or dangerously bent or flattened. Donottamperwithcontrols.
  ■ The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
  ■ The maximum number of place settings to be washedis6.
  ■ The maximum permissible inlet water pressure is 1Mpa.
  ■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY SAVE THESE INSTRUCTIONS

2.Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

■ PE——for polyethylene, e.g. sheet wrapping material

■ PS——for polystyrene, e.g. padding material

■ POM — polyoxymethylene, e.g. plastic clips

■ PP — polypropylene, e.g. Salt filler

■ ABS — Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!
■ For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

3. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions

before using it for the first time.

Control Panel

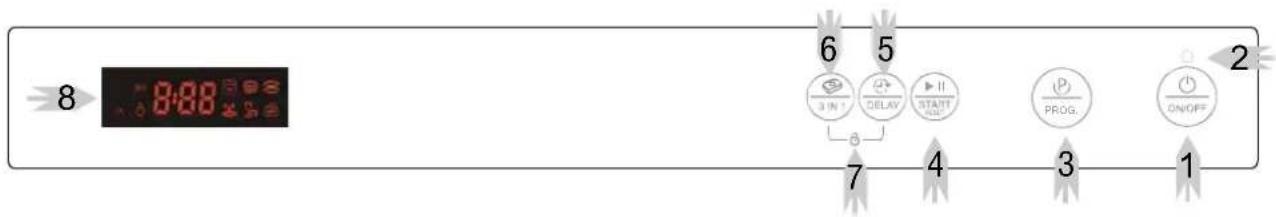

1 Power Button: To turn on/off the power supply.
2 Power Light: To be on when the ON/OFF Button is Presseddown.
3 WashingProgramSelector: Topressthebutton to selectwashcycles.
4 Start/Reset Button: Press this button to start or pausethedishwasher.

5 Delay Button: To press the button to delay time (0\~24hours)
6 3in1 function Button: Topress the button When you need no salt and rinse aid but 3in1 tablet. (Only for program: Intensive/Heavy/Normal.)
7 Childlock function: Topress 3 in 1 function button and delay button at the same time.
8 Display: To show delay time, rinse-aid warming, countdown of washing cycle's time, program what you selected, child lock function, 3in1 function and so on.

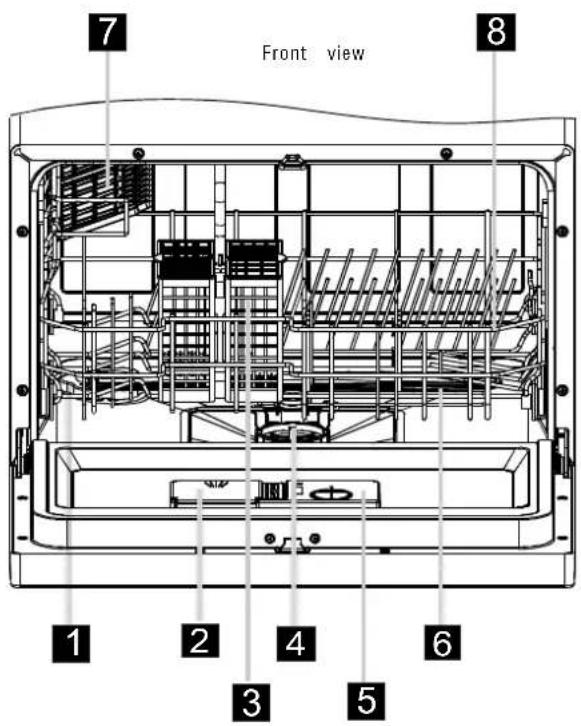

Dishwasher Features

1 SaltContainer

3 CutleryBasket

5 RinseAid Dispenser

7 Cup Shelf

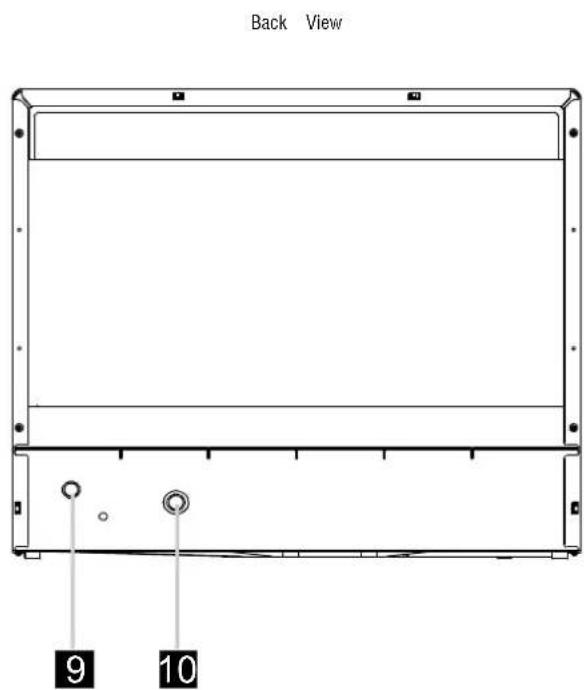

9 Drainpipeconnector

2 Detergent Dispenser

4 Filter assembly

6 SprayArms

8 Basket

10 Inletpipeconnector

A. Fill the Rinse Aid Dispenser

RinseAidDispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

Whento Refill the Rinse Aid Dispenser

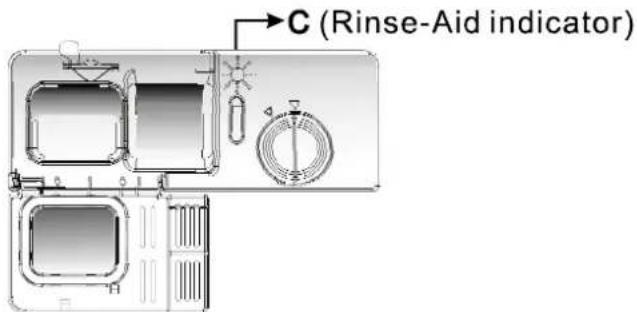

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aidget below 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2full
- 1 / 4 full - Should refill to eliminate spotting
Empty

Illustration of a bottle with a lid and a magnified view of its cap (no text or symbols)

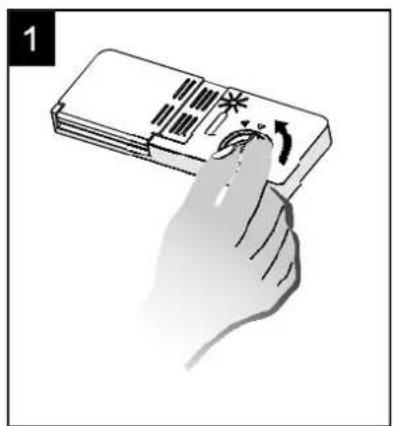

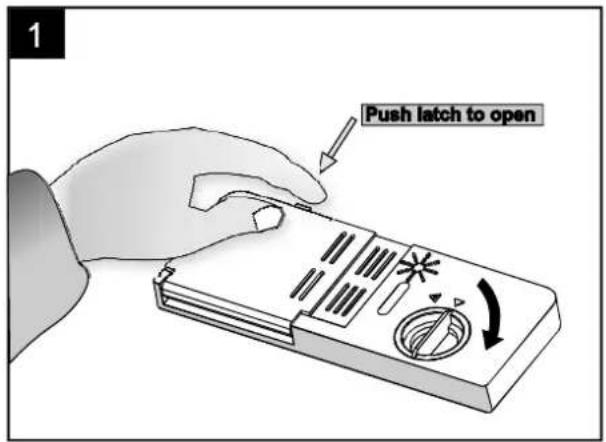

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

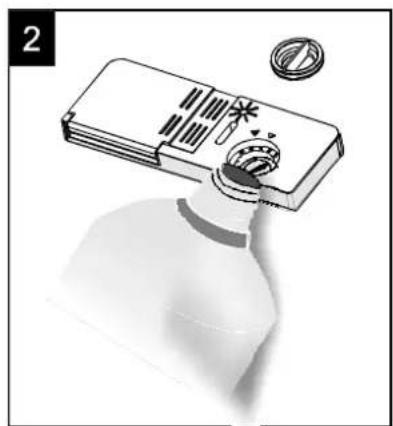

2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming during then next wash. Don't forgettoreplace the cap before you closed dishwasher door.

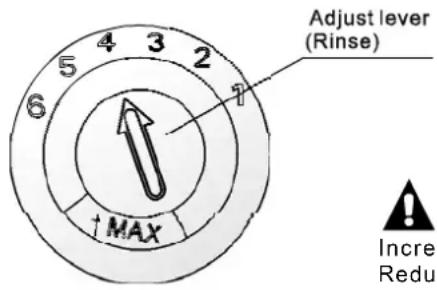

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser seton "4". If spots and poordrying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. The recommended setting is "4". (Factoryvalueis "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

B. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose.

Detergents

Thereare3sortsofdetergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chloride

Normally new pulverised detergent is without phosphate. The water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6^ H. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not remove completely. In this case please choose a programme with higher Temperature.

Concentrated Detergent

Based on their chemical composition, dishwasher can be split in two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

The use of “normal” washing programmes in conjunction with concentrated detergents reduces pollution and is good for your dishes; these wash programmes are specially matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason “normal” wash programmes in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programmes.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programmes. Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

NOTE: Detergent tablets are only for the models with 3 in 1 function or 3 in 1 program.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid then conventional dishwasher. Generally, only one tablespoon of detergent is needed for an o r m a l w a s h l o a d. A l s o , m o r e h e a v i l y s o i l e d i t e m s n e e d m o r e d e t e r g e n t . A l w a y s a d d t h e detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

AmountofDetergenttoUse

NOTE:

■ If the lid is closed: press release button. The lidspringsopen.
■ Always add the detergent just before starting each wash cycle.
■ Onlyusebrandeddetergentaidfordishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Proper Use of Detergent

Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Don't put powder detergent into the dispenser until you're ready to wash dishes.

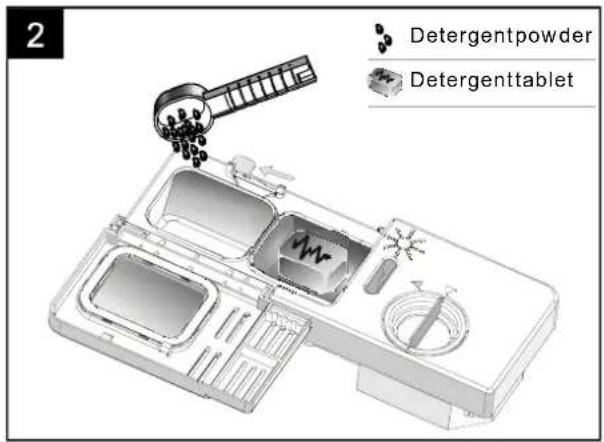

Fill indetergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on right:

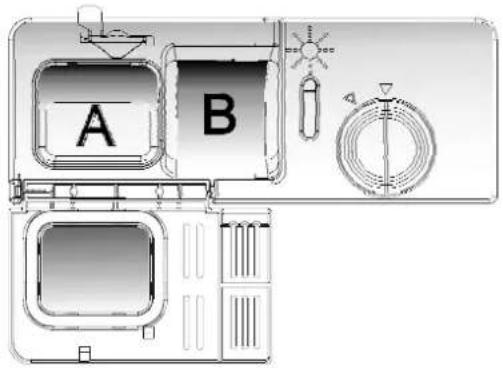

A The place of main wash cycle detergent placed.
B The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

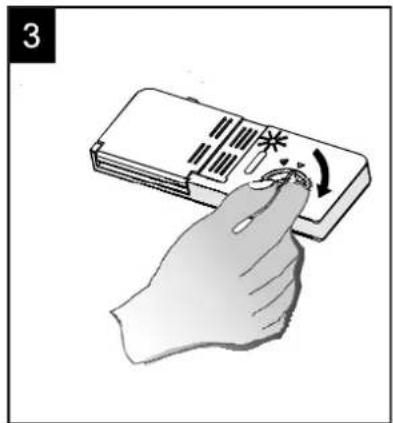

Closethe lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ You find information about the amount of detergent for the single programme on the last page.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

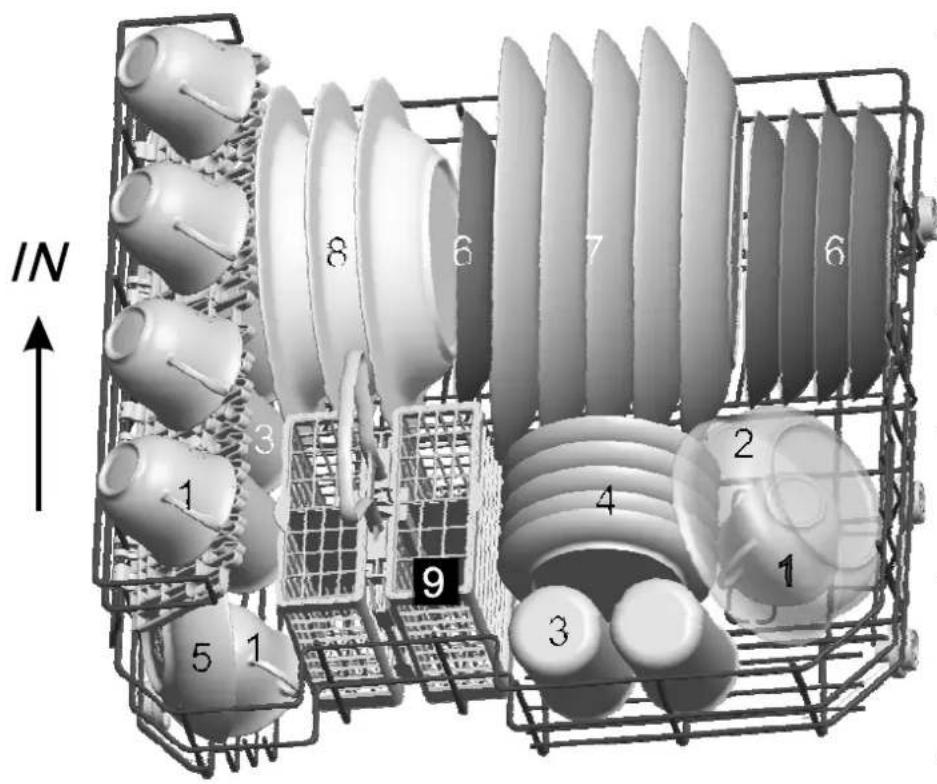

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind of dishes'. If necessary, seek further information from detergent manufacturers.
■ For particular items, select a programme with as low atemperature.
■ Topreventdamage, donottakeglass and cutlery out of the dish washer immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlery with wooden, horn china or mother-of-pearl handles
■ Plasticitemsthatarenot heatresistant
■ Older cutlery with glued parts that is not temperature resistant
■ Bonded cutlery items or disishes
■ Pewterorcooperitems
■ crystalglass
■ Steelitemssubjecttorusting
■ Woodenplatters
■ Items made from synthetic fibres

Areoflimited suitability

■ Some types of glasses can become dull after a large number of washes
■ Silver and aluminium parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans It is not necessary to rinse the dishes underrunning water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are face down.
2. Curved items, or those with recesses, should be loaded at a slant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotated freely during washing.

NOTE: Verysmallitemsshouldnotbewashedinthedishwasherastheycouldeasilyfalloutofthebasket.

• Load hollow items such as cups, glasses, pans etc. With the opening downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ Toavoidamagetoglasses, they must not touch.
• Load large items which are most difficult to clean into the basket.
  ■ Longbladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable energy consume.

Loading the Basket

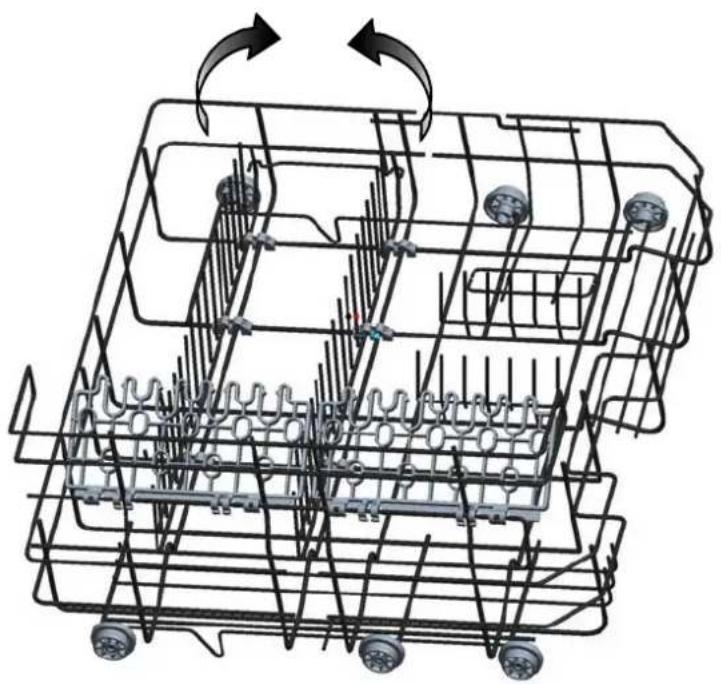

Position the dishes and cookware so that they will not get moved by the spray of water.

Technical diagram of a mechanical assembly with rotating components and spring-like elements (no text or labels)

PlateracksofBasket

The basket is fitted with plate racks which can be stowed horizontal if required.

Cutlery Basket

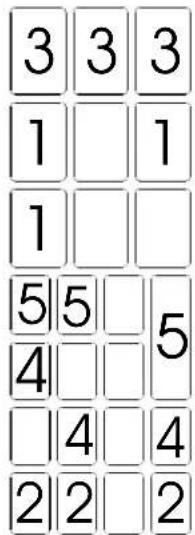

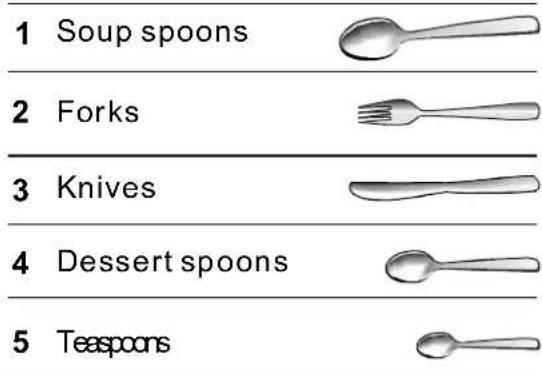

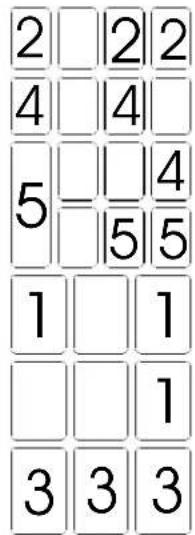

Cutlery should be placed in the cutlery basket with handles at the bottom. If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown.

▲ WARNING!

• Do not let any item extend through bottom.
  Always load sharp utensils with the sharp point down!

For personal safety and a top quality clean, place the silverware in the basket:

■ They do not nest together.
■ Place silverware with handles-down.
■ But place knives and other potentially dangerous utensils handles-up.

When load bigger Dinner Plates

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

PlateracksofBasket

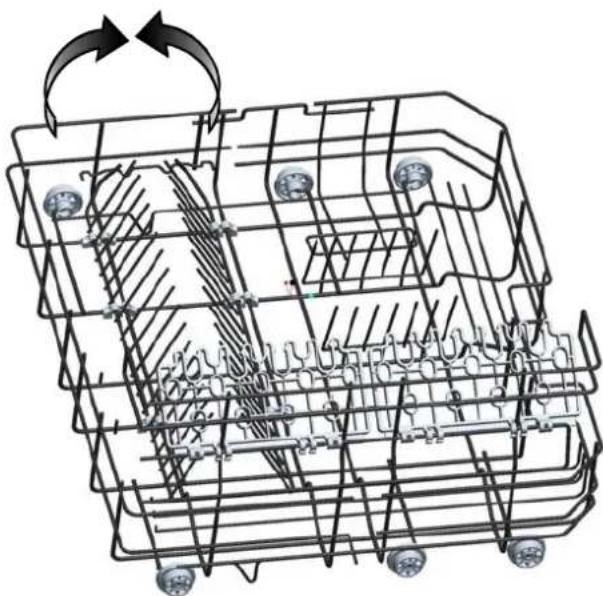

When load bigger Dinner plates, pleasefoldtheracktoleftpicture showedlocation.

The maximum plate can be loaded is 270mm(10 inches) diameter.

Loading the Basket

Position the dishes and cookware so that they will not get moved by the spray of water.

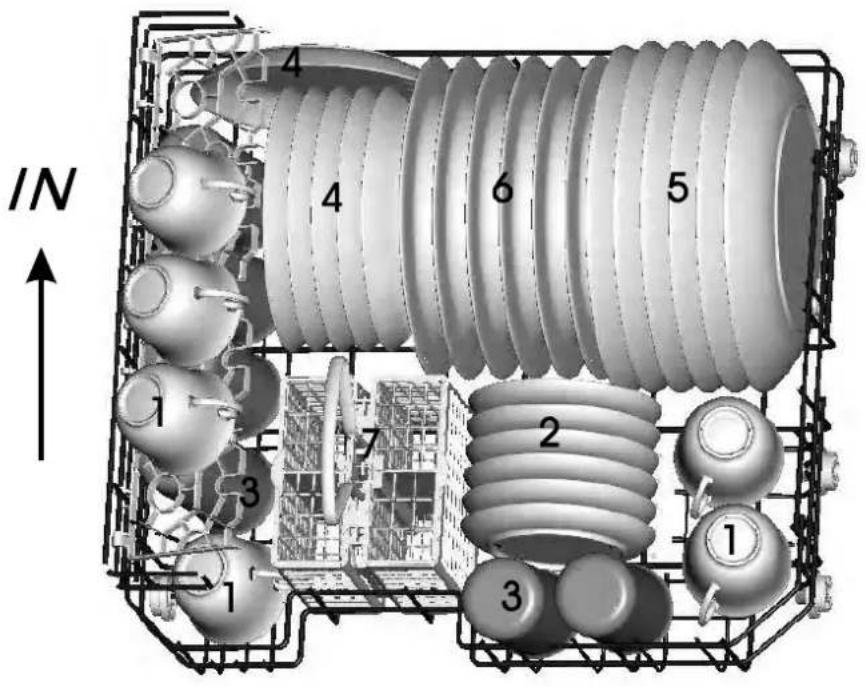

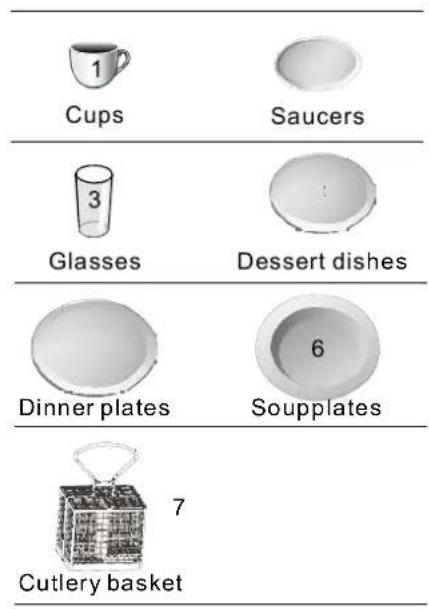

Cups

Largeservingbowl

Glasses

Saucers

Dish

Dessertdishes

Dinnerplates

Soupplates

Cutlery basket

6. Starting a washing programme

Wash Cycle Table

NOTE:

■ (★) Means: need to fill rinse into the Rinse-Aid Dispenser.
*AS/NZS2007.1: T setting is recommended to Position 6.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (l)	Rinse Aid
Intensive	Fortheheaviestsoiledloads, such aspots,pans,casserole dishesanddishesthathave beensittingwithdriedfood onthemforawhile.	Pre-wash(50°C)Wash(70 °CRinseRinseRinse(70 °CDrying	4/18.5g	140	0.94	9.7
Heavy	For heavy soiled loads,such as pots, plates,glasses and lightly soiled pans.standard daily cycle.	Pre-washWash(60)°CRinseRinse(70 °CDrying	4/18.5g	120	0.70	7.7
Normal AS/NZS 2007.1	Fornormalsoiledloads,such asplates,glasses,bowlsand lightlysoiledpans.	Wash(55)°CRinseRinseRinse(50 °CDrying	4/18.5g	105	0.48	8.7
Rinse	Forlightlysoiledloads,suchasglasses,crystaland finechina.	Wash(40 °CRinseRinse(70 °CDrying	/	80	0.48	4.0
[WASW]Rapid	A shorter wash for lightly soiledloadsthatdonot needdrying.	Wash(40 °CRinseRinse	15g.	30	0.30	5.8
Soak	To rinse dishesthyou plantowashlaterthatday.	Pre-wash	/	14	0.01	2.1

Note: We recommend you open the door slightly 50mm to assist in drying of the dishes.

Note: Test program for standard AS/NZS 2007, the Rinse Aid set on "6".

Turning On the Appliance

Starting a wash cycle...

1. Draw out the basket (see the section entitled Loading the Dishwasher).
2. Pour in the detergent (see the section entitled Détergent and Rinse Aid).
3. Insert the plug into the socket. The power supply is 220-240 VAC 50 HZ, the specification of the socket is 10 A 250 VAC.
4. Makesure that the water supply is turned onto full pressure.
5. Close the door, press the power button.
6. Press the program button to select the desired program, If a program is selected, the program icon will display in the LED display.
7. Then press the Start/Reset button, the dishwasher begins to start.

NOTE:

When you press the Start/Reset button to pause during washing, the program light will stop blinking and the dishwasher will mooring every minute unless you press the Start/Reset button to start.

Change the Programme...

Premise: You can modify the washing program, When the dishwasher just runs forashorttime. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").

Press Start/Reset Button more than three seconds the machine will be in stand by state, then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle...").

NOTE: If you open the door during washing, the machine will pause. When you close the door, the machine will keep on working after 10 seconds.

The LED display shows the state of the dishwasher:

a) The LED displayoff----On stand by
b)TheLED displayon----Being paused
c) Colon icon in the LED display blinking----Running

NOTE: If you open the door when washing, the machine will pause. When you close the door, the machine will keep on working after 10 seconds.

Forget to Add a Dish?

Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.

1 Pressthestart/resetbutton

4 Addforgottendishes.

2 Openthedooralittletostopthewashing.

5 Closethedoor

3 Afterthesprayarmsstopworking, you can open the door completely.

6 Pressthestart/resetbutton, thedishwasherwillrun after10seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ Switch Off the Dishwasher

In the digital display appears 0 (remaining programme time), only in this case the programme has ended.
1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turn off the water tap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it a jar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevent larger remnants of food or other objects from getting inside the pump.

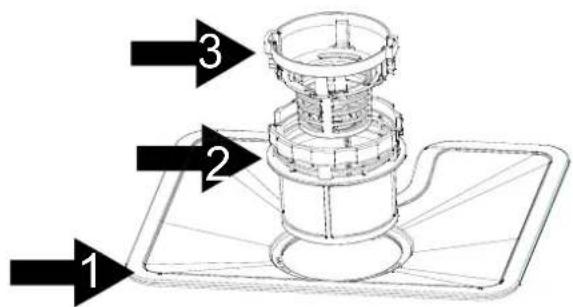

The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

Mainfilter 1

Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.

Finefilter 2

This filter holds soil and food residue in the sump area and prevents it from being redeposit on the dishes during wash cycle.

Coarsefilter 3

Larger items, such as pieces of bone or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be re-cyclated during the cycle. For best performance and results, the filter assembly must be regularly. This reason, it is a good idea to remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under running water. To remove the filter assembly, pull on the cup handle in the upward direction.

WARNING!

■ Neverrun the dishwasher without the filters in place.
■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Step 1 : contrarotate the Fifilter,

Step2: lift it up;

Pure diagram of a symmetrical mechanical component with no text or symbols

Step3 : lift the Main filter up

NOTE: If do it from step1 to step 3, the filter system will be removed; while if do it from Step 3 to Step 1, thefiltersystemwillbeinstalled.

Remarks:

• Inspectthefiltersforblockingeverytimethedishwasherhasbeenused.
• By unscrewing the coarse filter. you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning The Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures in the last page and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of dishwasher could be debased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth and dry thoroughly.

The exterior use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Technical line drawing of a rectangular electronic component with internal slots and mounting base (no text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agent or some paper towel should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on dishwasher in winter. Each washing cycles, please operate as follows:

1. Cutoff electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the watervalve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the watervalve.
5. Remove the filter at the bottom of the tub and use a sponge to use up water in sump.

NOTE: If your dishwashercannotwork because of the ice, please contact professional service persons.

Cleaning the Spray Arms

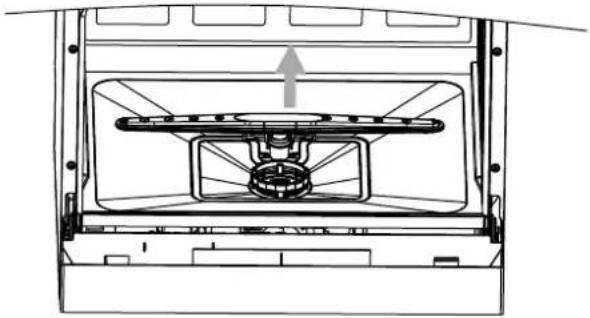

The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded.

Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms under a jet of running water and return them carefully to their seat. After reassembly, check that the spray arms turn freely. Otherwise, check that they have been installed correctly.

Technical line drawing of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water with a little vinegar, or a cleaning product made specifically for dishwashers.

When it is not in need for a long time It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to ast longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

▲Attention:

The installation of the pipes and electrical equipments should be done by professionals.

! Warning

Electrical Shock Hazard Disconnect electrical power before installing dishwasher.

Failure to do so can result in death or electrical shock.

Installation preparation Installation preparation

The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.

One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

About Power Connection

WARNING!

Forpersonalsafety:

■ DONOTUSEANEXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
■ DONOT, UNDERANYCIRCUMSTANCES, CUTORREMOVETHEEARTHING CONNECTIONFROMTHEPOWER CORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

■ Improperconnectionoftheequipmentearthingconductorcanresultintheriskofan electricshock.
Checkwithaqualifiedelectricianorservicerepresentativeifyouareindoubtwhetherthe applianceisproperlyearthed.
■ Donotmodifytheplugprovidedwiththeappliance.Iftheplugdoesnotfitproperlytothe outlet,pleasehaveaqualifiedelectriciantoinstallaproperoutlet.

Water Connection

Cold Water Connection

Line drawing of a hand holding a pipe fitting above a faucet (no text or symbols)

Connect the cold water supply hoseto a threaded 3/4 (inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

WARNING!

Please close the hydrant after using.

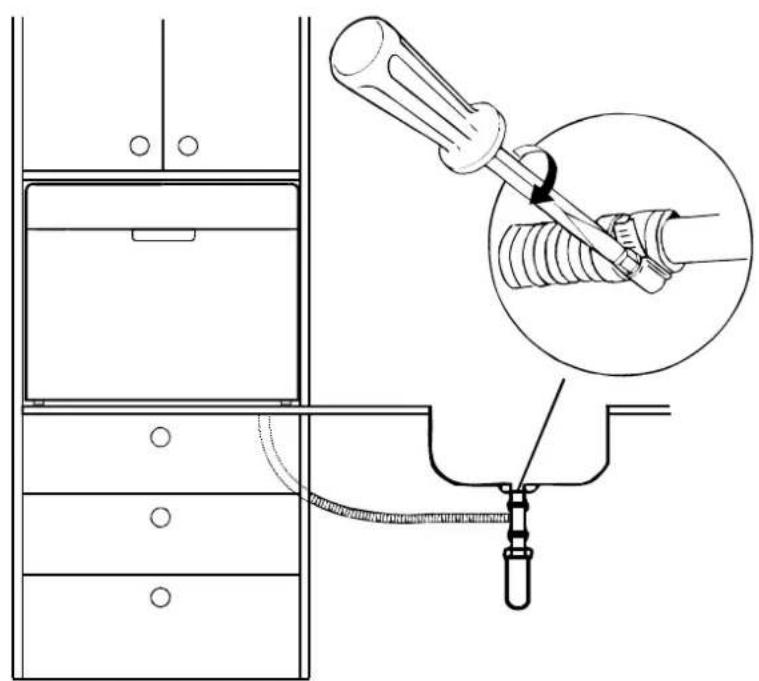

Connection of drain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. Use the special plastics support that comes with the appliance. The free end of the hose must be at a height lower than 30cm and must not be immersed in water to avoid the back flow of it.

Attention:

The special plastic hose support must be solidly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain.

Technical line drawing of a mechanical assembly with a magnified inset showing a tool interacting with a coiled spring (no text or symbols present)

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

WaterOutlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

ExtensionHose

If you need a drain hose extension, observe to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Start of dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 Theinletvalveisopen
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 The power is switched on
6 Theinletanddrain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

	Problem	Possible Causes	What To Do
Technical problems	Dishwasher doesn't start	Fuseblown,orthe circuitbreakertripped.	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
		Powersupplyisnot turnedon.	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
		Doorofdishwasher notproperlyclosed.	Closeddishwashermakingsurethatdoorlatches.
	Water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
		Filterclogged.	Checkcoarsethefilter.(see section titled " Cleaning The Filter ")
		Kitchensinkclogged.	Checkkitchensinktomakesureitisdrainingwell.Ifproblemiskitchensinknotdraining,youmayneed a plumber rather than a serviceman for dishwasher.
General problems	Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoid suds.Ifthisoccurs,openthedishwasherandletsuds evaporate.Add1gallonofcoldwatertothetub.Close andlatchthedishwasher, thenStartthe"soak"wash cycleodrainoutthewater.Repeatifnecessary.
		Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
	Stained tub interior	Detergentwith colourantwasused.	Makesurethatthedetergentistheonewithout colourant.
	White film on inside surface	Hardwaterminerals	To clean the interior, use a damp sponge with dishwasherdetergentandwearubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
	There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
		A pro g r a m m e w a s n o t runafterdishwasher saltwasadded.Tracesofsalthave gotintothewashcycle.c	AlwaysruntheQuickwash programme.without anycrockeryinthedishwasherand withoutselectingtheTurbofunction(ifpresent), afteraddingdishwashersalt.
		Thelidofsofter isloose.	Checkthelip.Ensurethefixisfine.
Noise	Knocking noise in the wash cabinet	Thespayarmis knockingagainst aniteminabasket.	Interrupttheprogramme,andrearrangetheitems whichareobstructingthespayarm.
	Rattling noise in the wash cabinet	Itemofcrockery areinsecure inthewashcabinet.	Interrupttheprogramme,andrearrangetheitemsofcrockery.
	Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasno influenceondishwasherfunction.ifindoubt,contactasuitablyqualifiedplumber.

	Problem	Possible Causes	What To Do
Unsatis -factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas not powerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemareblocking thepathofspayarms.	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination inthebaseofwash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect a shortestcycletowash the glassware and to themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminatethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis -factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Todittleinse-aid	Increase theamountofrinse-aid/Refilltherinse-aid dispenser.
		Dishesareremoved toosoon.	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogramme selection	Inshortprogrammesthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choosea programmewithalongwashingtime.
		Usingcutlerywith a low - quality coating	Water drainage is more difficult with these items.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longerinlettime.	Faucetsisnotopened,orwaterintakeisrestricted,orwaterpressureistoolow.
E4	Overflow.	Someelementofdishwasherleaks.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Height : 438mm
Width : 550mm
Depth : 500mm
Voltage connected Load : see rating label
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 6 Place settings

Eurolinx Pty Limited A.B.N. 50 001 473 347 trading as ILVE ("ILVE")

Office:

48-50 Moore Street, Leichhardt N.S.W 2040 Post:

Locked Bag 3000, Annandale, N.S.W 2038

P: 1300 856 411

WARRANTY REGISTRATION

Your ongoing satisfaction with your ILVE product is important to us. We ask that you complete the enclosed Warranty Registration Card and return it to us so that we have a record of the ILVE product purchased by you.

PRIVACY

ILVE respects your privacy and is committed to handling your personal information in accordance with the National Privacy Principles and the Privacy Act 1988 (Cth). A copy of the ILVE Privacy Policy is available at www.ilve.com.au. ILVE will not disclose any personal information set out in the Warranty Registration Card (“Personal Information”) without your consent unless required by:

1. law;

2. any ILVE related company;

3. any service provider which provide services to ILVE or assist ILVE in providing services (including repair and warranty services) to customers. Our purpose in collecting the Personal Information is

to keep a record of the ILVE product purchased by you, in order to provide a better warranty service to you in the unlikely event that there is a problem with your ILVE product. ILVE may contact you at any one or more of the address, email address or telephone numbers set out in the Warranty Registration Card. Please contact ILVE on 1300 694 583 should you not wish to be contacted by ILVE.

WARRANTY

1. Warranty

ILVE warrants that each ILVE product will remain, for a period of twenty four (24) months computed from the date of purchase of the ILVE product, free from defects arising in the manufacture of the ILVE product (“Warranty”). Except for consumer guarantees set out in the Competition and Consumer Act 2010 (Cth) (“Act”), ILVE does not make any further warranties or representations in relation to ILVE products.

2. What is not Covered by the Warranty.

The Warranty does not apply if an ILVE product is defective by a factor other than a defect arising in the manufacture of the ILVE product,

including but not limited to:

(a) damage through misuse (including failure to maintain, service or use with proper care), neglect, accident or ordinary wear and tear (including deterioration of parts and accessories and glass breakage);

(b) use for purpose for which the ILVE product was not sold or designed;

(c) use or installation which is not in accordance with any specified instructions for use or installation;

(d) use or operation after a defect has occurred or been discovered;

(e) damage through freight, transportation or handling in transit (other than when ILVE is responsible);

(f) damage through exposure to chemicals, dusts, residues, excessive voltage, heat, atmospheric conditions or other forces or environmental factors outside the control or ILVE;

(g) repair, modification or tampering by the purchaser or any person other than ILVE, an employee of ILVE or an authorised ILVE service contractor ^* ;

(h) use of parts, components or accessories which have not been supplied or specifically approved by ILVE.

(i) damage to surface coatings caused by cleaning or maintenance using products not recommended in the ILVE product handbook provided to the purchaser upon purchase of the ILVE product;

(j) damage to the base of an electric oven due to items having been placed on the base of the oven cavity or covering the base, such as aluminium foil (this impedes the transfer of heat from the element to the oven cavity and can result in irreparable damage); or

(k) damages, dents or other cosmetic imperfections not affecting the performance of the ILVE in respect of an ILVE product purchased as a “factory second” or from display

The Warranty does not extend to light globes used in ILVE products.

3. Domestic Use

Each ILVE product is made for domestic use. This Warranty may not extend to ILVE products used for commercial purposes.

4. Time for Claim under the Warranty

You must make any claim under this Warranty within twenty eight (28) days after the occurrence of an event which gives rise to a claim pursuant to the Warranty, by booking a service call on the telephone number below.

Continued over...

5. Proof of Purchase

Customers must retain proof of purchase in order to be eligible to make a warranty claim in respect of an ILVE product.

6. Claiming under the Warranty

Customers will bear the cost of claiming under this Warranty unless ILVE determines the expenses are reasonable, in which case the customer must claim those expenses by providing written evidence of each expense to ILVE at the address on the Warranty Registration Card.

7. Statutory Rights

(a) These terms and conditions do not affect your statutory rights.

(b) The limitations on the Warranty set out in this document do not exclude or limit the application of the consumer guarantees set out in the Act or any other equivalent or corresponding legislation in the relevant jurisdiction where to do so would:

(i) contravene the law of the relevant jurisdiction; or

(ii) cause any part of the Warranty to be void.

(c) ILVE excludes indirect or consequential loss of any kind (including, without limitation, loss of use of the ILVE product) and (other than expressly provided for in these terms and conditions) subject to all terms,

conditions and warranties implied by custom, the general law, the Act or other statute.

(d) The liability of ILVE to you for a breach of any express or non-excludable implied term, condition or warranty is limited at the option of ILVE to:

(i) replacing or repairing the defective part of the ILVE product;
(ii) paying the cost of replacing or repairing the defective part of the ILVE product;
(iii) replacing the ILVE product; or
(iv) paying the cost of replacing the ILVE product.
(e) Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

8. Defects

Any part of an ILVE product deemed to be defective and replaced by ILVE is the property of ILVE. ILVE reserves the right to inspect and test ILVE products in order to determine the extent of any defect and the validity of a claim under the Warranty.

*To locate your closest ILVE authorised service agent please contact ILVE on 1300 856 411 or visit http://support.ilve.com.au/

ALL SERVICE CALLS MUST BE BOOKED THROUGH THE ILVE SERVICE AND WARRANTY DEPARTMENT ON 1300 856 411

01012013

Warranty Card tear off

WARRANTY REGISTRATION CARD 01012013
Please complete and send to ILVE at: REPLY PAID 83617 LEICHHARDT NSW 2040

Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / / (Please attach proof of purchase to validate warranty)

MODEL NUMBER	SERIAL NUMBER(if you cannot locate the serial number please call ILVE on 1300 85 64 11)
1
2
3
4
