HSVC-MB22.2BL - Vacuum Cleaner Heinner - Free user manual and instructions

Product Type	Vertical Vacuum Cleaner
Brand	Heinner
Model	HSVC-MB22.2BL (V-Go Max)
Power	300 W
Suction Power	90 W
Noise Level	82 dB
Voltage	220-240 V ~ 50/60 Hz
Power Supply	Rechargeable battery (with power adaptor)
Battery Charger	Provided with appliance, designed for rechargeable battery
Accessories Included	Electric brush, crevice nozzle, 2-in-1 brush, extension tubes, wall mount, power adaptor
Dust Cup Capacity	Not specified (typical ~0.5 L)
Filtration System	Filter sponge and cyclone
Speed Settings	3 levels: Low, Mid, High
Operation Time	Not specified (estimated 20-30 minutes)
Charging Time	Not specified (estimated 4-6 hours)
Weight	Not specified (estimated ~3 kg)
Dimensions (H x W x D)	Not specified
Safety Features	Low voltage supply, overheat protection, battery protection
Maintenance	Clean dust cup, sponge, cyclone, and electric brush regularly; do not immerse in water
Troubleshooting	See manual for blinking indicators, suction loss, brush tangles
Intended Use	Indoor only, not for wet or outdoor use
Warranty	Contact Heinner service center; use original spare parts

Frequently Asked Questions - HSVC-MB22.2BL Heinner

How do I charge the vacuum cleaner?

Connect the power adaptor to the appliance and plug into a mains socket. During charging, the indicator lights blink. When fully charged, all three indicators stay on briefly and then turn off. Place the cleaner upright on its base stand or lay it down during charging.

What should I do if the suction power is weak?

Check the dust cup for excess dust and empty if needed. Clean the filter sponge by patting it gently. Ensure the brush or nozzle is not blocked. If washed with water, dry components completely before use.

How do I clean the filter?

Remove the dust cup, then detach the filter components. Tap the filter sponge to remove dust (do not tap in reverse). Rotate and remove the cyclone for cleaning. Reinstall all parts securely. Do not wash electrical parts with water.

Why are all three indicators blinking?

This indicates a warning. Possible causes: the floor brush or mite brush is entangled, or the ambient temperature is too high or low. Clean the brush and use the cleaner in a suitable environment. If the problem persists, contact service.

How do I empty the dust cup?

Press the dust cup release button and pull the cup downward to detach it. Then press the bottom lid button to empty the dust. Reinstall by pushing the dust cup upward until it clicks.

Can I use the vacuum cleaner on stairs?

Yes, but ensure the cleaner is stable. It cannot stand upright by itself; always place it on the base stand or lay it down when paused. Use the extension tubes to reach higher spots.

What should I do if the electric brush stops working?

Turn off the cleaner and check for tangled hair or debris on the brush. Remove the brush by pressing the button and rotating the end cap. Clean with scissors or a brush. Also check if large garbage is blocking the brush.

Is the vacuum cleaner suitable for pet hair?

Yes, but the electric brush may require frequent cleaning of tangled hair. Use a knife or scissors to cut away hair wrapped around the brush. Clean the brush and wheels regularly to maintain performance.

Can I wash the filter sponge with water?

Yes, you can wash it with water, but allow it to dry completely in a cool place before reinstalling. Never operate the vacuum with a wet filter. Do not wash the cyclone or electrical parts with water.

What type of battery does it use?

The vacuum uses a rechargeable battery provided by the manufacturer. Only use the included charger. If the battery is damaged or leaks, replace it with the same type from the manufacturer. Do not disassemble the battery.

USER MANUAL HSVC-MB22.2BL Heinner

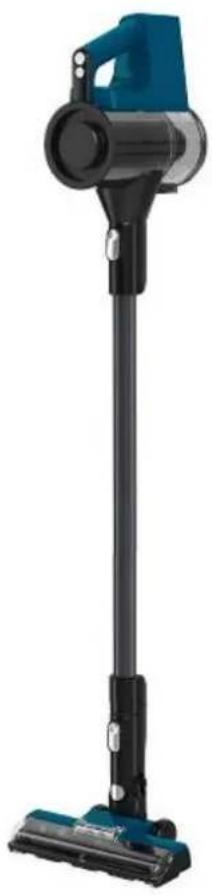

VERTICAL VACUUM CLEANER

Model:

V-Go Max

HSVC-MB22.2BL

Blue and black vacuum cleaner with handle and base (no visible text or symbols)

• Vertical vacuum cleaner

- Power: 300 W

- Suction power: 90 W

1. INTRODUCTION

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

2. CONTENT OF YOUR PACKAGE

→ Vacuum cleaner
→ User manual
→ Certificate of warranty
→ Declaration of conformity

3. SAFETY INSTRUCTIONS

GENERAL

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand.

The hazards involved.

Cleaning and user maintenance shall not be done by children without supervision.

Children should not play with the appliance.

The appliance is only to be used with the power supply unit provided with the appliance.

The appliance must only be supplied at safety with extra low voltage corresponding to the marking on the appliance.

If the batteries are damaged, it must be replaced by the manufacturer, its service agent or qualified persons in order to avoid a hazard

The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

Please keep the vacuum cleaner in a laid down position when storing.

The vacuum cleaner can't stand by itself, please put it to the base stand after use.

When you pause using the vacuum cleaner, please put it to the base stand or leave it in laid down position.

Before charging, read the instructions.

For indoor use only, do not expose to rain.

WARNING: Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charging.

Disconnect the supply before making or breaking the connections to the battery.

Beware of the risk of being caught in hair and loose clothing.

The charger must not be used if the enclosure is damaged because this will cause hazard of electric shock.

Damaged batteries must be replaced with new batteries of the same type provided by the manufacturer.

The battery charger is designed for charging the rechargeable battery provided by the manufacturer.

Do not use any other charger to recharge the battery provided by manufacturer and do not try recharge other types of battery with this charger.

Also do not try to charge non-rechargeable batteries with this charger.

Before charging, check whether the voltage specified on the marking label corresponds to the mains voltage.

During charging, the appliance must be placed in a well-ventilated area.

Keep the charger from all sources of heat.

Do not insert any item through the ventilation slots on the charger.

Do not expose the charger to rain, snow or any other environment of high humidity.

Do not immerse the appliance in water.

When separating the charger from the socket, pull the body of the plug rather than the supply cord; this will avoid hazard.

Do not continue to use the appliance in such and similar cases: drop, impact by a heavy object, other means of damage, etc. If it occurs, get the charger repaired by our service agent.

Do not disassemble the battery charger by yourself to avoid fire hazard or electric shock.

Please remove the plug from the socket before cleaning or maintaining the charger.

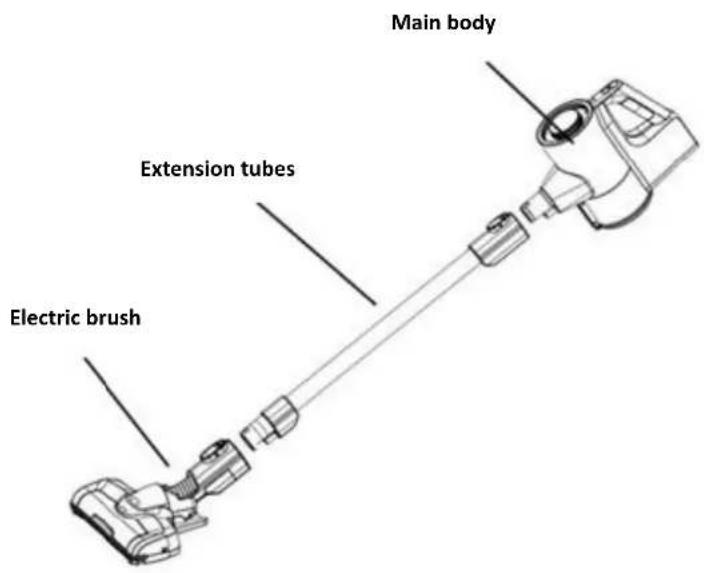

4. PRODUCT DESCRIPTION

Crevice nozzle

2-in-1 brush

Power adaptor

To clean higher spots, the accessory can be connected with the extension pipe.

5. OPERATION

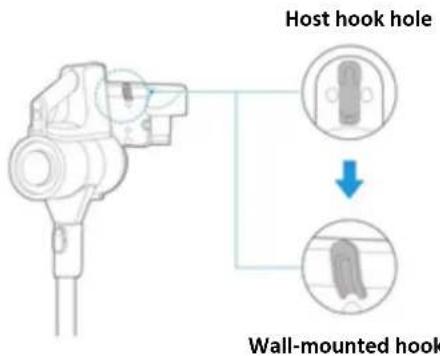

Installation and use of wall mount

1. Place the wall mount horizontally on the wall and fix it with two screws. After cleaning the brush, reinstall it in the reversed order as above.

1. Keep the cleaner in the power-off state and align the hook hole on the main body (back) to the hook of the wall mount. After cleaning the brush, reinstall it in the reversed order as above.

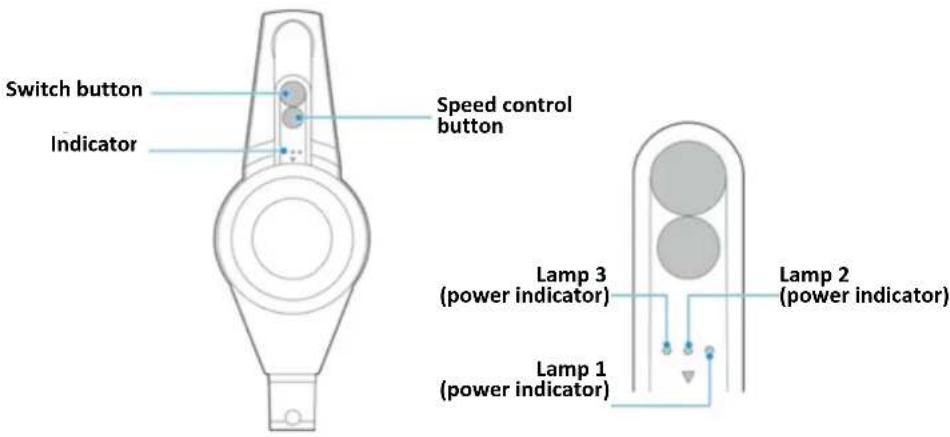

Functional operation

1. Press the "Start Button" to start cleaning.

2. Press the "Start Button" again to stop cleaning.

3. The flashing of indicator 1, 2 and 3 at the same time indicates a warning requiring the service from professionals.

4. The default mode after starting the cleaner is at Mid-level. Press the "Speed Regulation Button" to change to the High-level. Press the button to change to the Low-level. The speed is regulated in the order of Mid-level, High-level and Low-level in a circle.

5. Power indication during charging: indicator 1 blinks for low power, and the charging shall be continued. The indicator 1 to indicator 3 are on at the same time for full power, which will be off after the cleaner has been fully charged for a while.

6. Power indicator during operation (discharging): Indicator 1 to indicator 3 are on at the same time for sufficient power, and the cleaner could be used. Indicator 1 blinks for low power and the cleaner shall be charged timely.

6. CLEANING AND MAINTANANCE

Disassembly, installation, and cleaning of dust cup

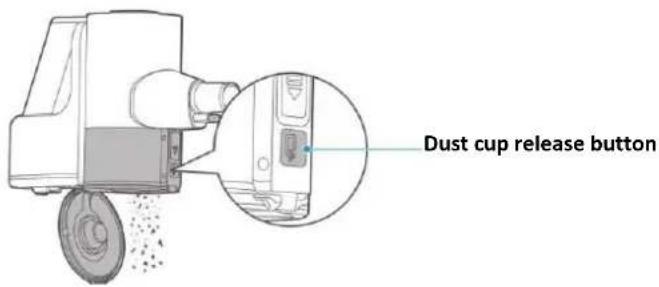

Disassembly of dust cup

Place the cleaner in the way shown in the picture with the hand grabbing the bottom of the dust cup. Press the dust cup release button and pull down the dust cup to remove it.

Diagram of a device with a blue arrow pointing to a component, showing hands and a magnified inset (no text or symbols)

Dust cup release button

Installation of dust cup

Push the dust cup upward into with the suction port facing outward, until a click could be heard.

Diagram of a mechanical device with an inset showing a blue arrow pointing to a component (no text or symbols present)

Cleaning of dust cup

Press the button and the bottom lid of the dust cup will open automatically, enabling one-touch dust to empty.

Disassembly and cleaning of filter components

Ensure that the components are installed in place, otherwise product failure may be caused.

Do not let water get into the electrical components of the vacuum cleaner, otherwise product failure may be caused.

1. Gently remove the filter components from the dust cup assembly by holding the tendon positions on both sides with hands.

1. Remove the filter sponge and pat it; (filter sponge must not be tapped in reverse) (filter sponge must not be tapped in reverse)

1. Remove the cyclone by rotating it as shown in the picture and clean it Clean (filter sponge must not be tapped in reverse)

Disassembly and cleaning of electric brush

To ensure the normal operation of the electric brush, please clean it timely in case the rolling brush and wheels are tangled or dirty.

When disassembling it for maintenance, please be sure to stop the operation of the electric brush.

Water is not recommended for cleansing the electric brush. The hairs winding on it could be removed with scissors or a knife. The dust on the rolling brush could be removed with a hairbrush.

1. Press the button to remove the electric brush:

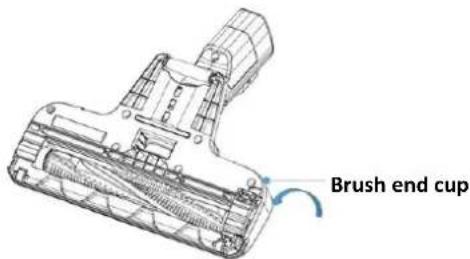

1. Rotate the brush end cap upward and remove it, then remove the brush and clean it. After cleaning the brush, reinstall it in the reversed order as above. After cleaning the brush, reinstall it in the reversed order as above.

7. TROUBLESHOOTING

In case of any abnormal conditions when using this product, please read the following table first.

Abnormal condition	Possible cause	Action
Three indicators blink	Floor brush or mite brush is entangled.Ambient temperature is too high or too low	Clean the floor by brushing or mite brush.Use the cleaner in a proper environment
Electric brush does not work	Any large garbage (e.g., packing film) is rolled into the cleaner.The brush is tangled by hair	Remove the hair on the brush.Remove the garbage
Operation duration shortened	Aged batteryThe ambience temperature is too high or too low.The battery is not fully charged	Contact the store or post- sales service to purchase a new battery.Use the cleaner in a proper environment.Charge the cleaner
Suction power weakened	Too much dust in dust cupFiltering sponge is blocked.Brush or accessory suction port is blocked.Not fully dried after washing with water	Remove the garbage timely.Clean the filtering sponge.Remove the blocking things!Put the components in a cool place for drying after washing them with water
The cleaner could not be charged	Ambient temperature is too low or too high during charging	Put the cleaner in a proper place for charging at appropriate temperature
Battery liquid leakage	The battery is not used for a long time	Change the battery

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number.

The information can be found on the rating plate. Subject to change without notice.

TECHNICAL DATA

Voltage	220-240V~50/60Hz
Power	300W
Suction power	90W
Noise level	82 dB

Thank you for purchasing this product. If you need support with your product, visit our website using the links below.

Get User manuals: https://www.heinner.ro

Get Service information: https://www.heinner.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

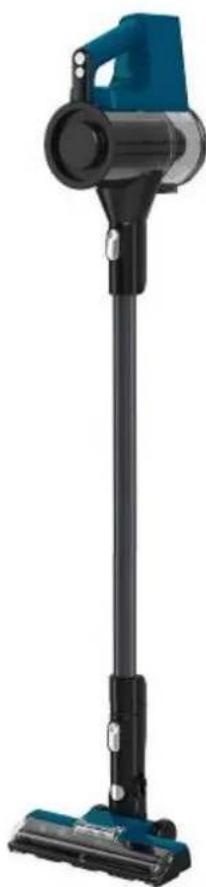

ASPIRATOR VERTICAL
