Product Type	Hydraulic Trolley Jack
Brand	T-Rex
Model	TFJ-12
Maximum Load Capacity	1200 kg (1.2 tons)
Minimum Height	88 mm
Maximum Height	358 mm
Lifting Range	88 mm - 358 mm
Material	Aluminium, Steel
Finish	Powder Coated
Weight	Approximately 25 kg
Hydraulic Oil Type	SAE10 hydraulic oil
Certification	AS/NZ 2615:2016
Intended Use	Lifting motor vehicles (private use)
Safety Features	Safety valve, overload protection, stable base, handle lock
Maintenance	Regular lubrication of moving parts (except cylinder rods); check oil level; purge air
Storage	Store horizontally in dry location, arm lowered, handle upright
Warranty	As per manufacturer; modifications void warranty

Frequently Asked Questions - TFJ-12 T-Rex

What is the maximum load capacity of the T-Rex TFJ-12 hydraulic jack?

The maximum load capacity is 1200 kg (1.2 tons). Do not exceed this limit to avoid damage and safety hazards.

What type of hydraulic oil should I use?

Use only SAE10 grade hydraulic oil. Do not use brake fluid, transmission fluid, or motor oil as they can damage seals.

How do I check and refill the oil level?

Turn the release valve counterclockwise to fully retract the ram. Remove the inspection plate and oil fill plug. With the jack upright (handle socket down), the oil should be level with the bottom of the fill hole. Top off if needed, but do not overfill. Replace plug and plate, then test operation.

Why won't the lifting arm raise when pumping under load?

First, ensure the drain valve is fully closed by rotating the handle clockwise. If the problem persists, check oil level and top up if low. Also purge air from the hydraulic system.

What should I do if the lifting arm sinks under load?

Follow the steps for 'arm not raising' (close valve, check oil). If the issue continues, the jack may need repair by an authorized technician.

Can I use the jack outdoors in rain or snow?

No. Do not use the jack outdoors in frost, rain, or strong winds. It is for use on firm, level ground in dry conditions.

Is it safe to work under a vehicle supported only by the jack?

Absolutely not. Never work under a vehicle supported only by the hydraulic jack. Always use adequately rated jack stands (axle stands) for support.

How often should I lubricate the jack?

Lubricate all external moving parts (foot roller bearings, lifting arm bolts, cylinder bolts, pumping arm bolts) every 3 months using penetrating oil, silicone spray, or Teflon spray. Never lubricate the cylinder rods.

What do I do if the lifting arm cannot be lowered?

Check if the tension spring has become unhooked or broken. Re-hook or replace the spring. Also clean and lubricate all moving parts. If there is too much oil, drain excess by opening the drain valve.

How should I store the jack when not in use?

Store the jack in a horizontal position in a dry location. Ensure the lifting arm is fully lowered and the handle is in the upright position to protect the mechanism. Keep away from children.

USER MANUAL TFJ-12 T-Rex

Red and black manual push-button device with visible warning labels and mechanical components (no readable text or symbols)

TFJ-12 Hydraulic Trolley Jack

User Manual

[Revision 1.0 December 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description, and packaging.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use – If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children – risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well-ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment – ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Always use a Residual Current Device (RCD) (GFCI) / Earth Leakage Circuit Breaker / Safety Switch when operating this item (electrical items only).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Child Choking Hazard!

- WARNING: CHOKING HAZARD – CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

- Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Product Safety

• Please read these instructions carefully before using the product for the first time and store them for future reference. This product must be operated in accordance with these instructions at all times. Make these instructions for use accessible to all persons who will be working with this product. This applies also when reselling the product.
• We cannot assume any liability for any accidents or damage that may arise due to non-observance of this guide, or the safety instructions contained therein. Any structural modifications to the product will void the manufacturer's warranty!
  • This product is intended for private use only!

Intended Use / Safety Instructions

• This product is a hydraulic trolley jack for lifting motor vehicles. It is intended for use as a lifting device only.
• Ensure that the load to be lifted does not exceed the maximum permissible load of the jack. The maximum load of 1.2 tonnes must not be exceeded otherwise the jack may become damaged and safety compromised.
• Use the jack on a firm, even surface only. Instability or slipping of the load may occur on soft or uneven surfaces. Consequential damage to the vehicle or persons cannot then be precluded. (Risk of accident!).
• Make sure there are no persons inside the vehicle being lifted. Position the hydraulic jack so that no part of your body will be under the vehicle while it is being lifted.
• Never work under a car that is being supported only by the hydraulic jack. Always use additional supports.
• Before lowering the hydraulic jack, ensure there are no persons or objects under the vehicle.
• Never leave the hydraulic jack unattended for longer periods when it is supporting a load as it can lose pressure and begin to sink for design-related reasons. Therefore, place something underneath the lifted load immediately! Never get into the vehicle or start its engine while it is on the hydraulic jack.

- Never use the car jack to life persons. Do not use the car jack with people inside or leaning against the vehicle.

- The user must keep eyes on the jack and the load during all movement.

- The condition of the markings on the car jack must be checked regularly and the markings must always correspond with the original markings.

• DO NOT USE THE CAR JACK IN THE FOLLOWING SITUATIONS:

• Outdoors in frost/rain/strong winds.
• In severe conditions (e.g., Very cold or very hot weather, when exposed to strong magnetic radiation and similar situations).
  • In potentially explosive environments, mines and similar situations.
• When lifting loads containing the following materials, among others: molten metal, acid, radioactive material or loose/not firmly connected goods and similar situations.

TFJ-12 Hydraulic Trolley Jack

• In contact with food and similar situations.
- On ships and in similar situations.

- To avoid any risk of being crushed or sustaining other injuries: NEVER work on, under or around a load supported only by a jack. ALWAYS use adequately rated jack stands. If the generated efforts exceed 400N (approx. 40kg), the effort shall be lowered by additional person.

- Do not alter or modify the car jack which will adversely affect the car jack's compliance with standard EN 1494:2000+A1:2008. Only attachments and/or adaptors supplied by the manufacturer shall be used. Only lift the vehicle using the jacking points specified by the vehicle manufacturer.

• WARNING: LIFTING OF PERSONS PROHIBITED!

Safety Warnings – Hydraulic Jacks

DEATH OR INJURY FROM INCORRECT USE

Diagram of a lever balance with weights and pivot point, enclosed in a green circular border (no text or symbols)

USE TWO SUPPORT STANDS

Green circular sign with a black silhouette of a manual lever on a surface (no text or symbols)

Green circular sign with a black mechanical lever diagram and directional arrows, no text or symbols present.

FREE TO ROLL DURING LIFTING AND LOWERING

Safe Usage – Hydraulic Jacks

• The jack should be used on level firm ground wherever possible.
  • The wheels of the vehicle to be chocked.
• No person should remain in a vehicle that is being jacked.
• No person should place any portion of his or her body under a vehicle supported by a jack.

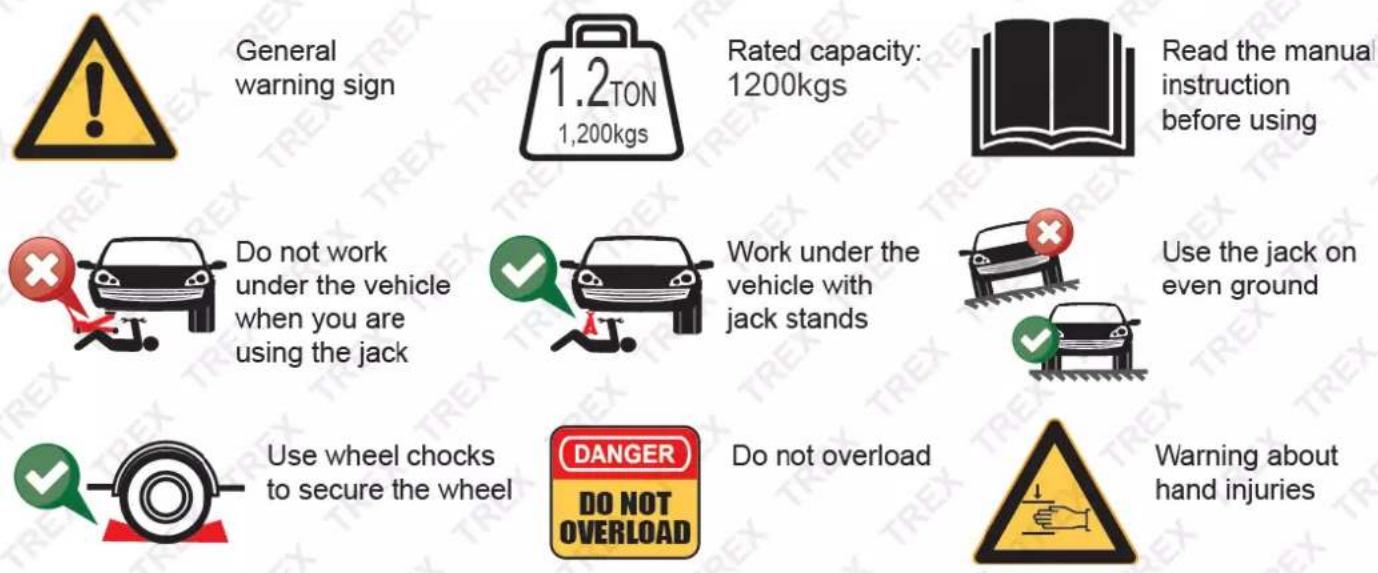

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	EXHAUST FUMESCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	“Slam Dunk” WarningDo NOT attempt “slam dunk” manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard – OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard – DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	“Kick-Back” HazardHigh level of “kick-back” hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.	Choking HazardChildren under 8 yrs. Can choke or suffocate on small parts. Adult supervision required.

Table of Contents

Safety 2

Safety Symbols....5

Operation 8

Maintenance....10

Troubleshooting ....11

Specifications ....12

Operation

Before using the hydraulic trolley jack, check for loss of oil, damage, or missing accessories.

TREX HYDRAULIC TROLLEY JACK - WORKING LOAD LIMIT 1200kg. HEIGHT LOWERED 88mm. HEIGHT RAISED 358mm.

62033 Milb International Trading Pty Ltd

1) Anyone using this jack must have read and understood the instruction manual and jack labelling. Do not use this jack otherwise. 2) Ensure that the base of the jack is on firm and level ground. The vehicle should be on firm and level ground wherever possible. 3) Be sure that the jack will not slip after the load is applied. 4) Ensure that the jack-lifting-point is fully under the lifting point on the vehicle. 5) Ensure that the lifting point on the vehicle engages securely with the jack-lifting-point - a vehicle slipping off the jack is likely to cause serious injury or death. 6) Be sure that the lifting point on the vehicle is rated to the load being raised. 7) Be sure that the load is completely stabilised before lifting so that it will not shift when raising or lowering. Always use blocks / chocks and any other required method to ensure a vehicle cannot move while being raised, held or lowered by this jack. 8) The wheels of a vehicle, trailer or caravan should be chocked. 9) Do not work under a vehicle being supported by a jack. Use axle stands / vehicle support stands to support the vehicle, and remove the jack before commencing work. No person should place any portion of their body under a vehicle / load that is supported by a jack. 10) Do not push the load off the jack - lower it carefully. 11) Do not use handle extensions. 12) Do not carry the jack by the handle lever. 13) Keep your head and all body parts away from the handle path of travel - the handle may spring upright with extreme force, causing serious injury or death. 14) No person / animal should remain in a vehicle, caravan or trailer that is being jacked. 15) Never lift a vehicle with anyone in the "falling area" of the vehicle or jack. 16) This jack is not rated to be used as a winch or clamp. 17) A trailer or caravan must be attached to a towing vehicle before raising the trailer / caravan. 18) Place the jack on its side when not in use to prevent it falling over. 19) The jack is not self-lubricating. Lubricate the entire jack with penetraing oil, silicone lubricating spray or Teflon spray as necessary, except the handle and surfaces that interface with the vehicle. 20) Inspect the jack fully before each use. Do not use the jack if there is damage, rust, wear, lack of lubrication or the jack is not clean. Importer: Mills International Trading Pty Ltd, Unit 2, 2 Costello Place, Seven Hills NSW 2147 60023 Mls International Trading Pty Ltd

First time operation:

1. Loosen the oil filling plug a couple of turns before inserting the handle and extension. Once you have inserted the handle pump the arm approx. 6 pumps.
2. Close the drain valve – the vehicle jack is now ready for use.

Lifting the vehicle:

1. Locate your vehicle on an even, firm surface and secure the vehicle against rolling as specified by the vehicle manufacturer.
2. To ensure safe lifting, position the jack at a 90° angle to the vehicle and under the appropriate jacking point (see the manufacturer's instructions).
3. Insert the handle into the socket and close it by rotating clockwise until it stops.
4. Insert the handle in the pumping arm and pump the handle until the saddle is in contact with the vehicle.
5. Check again that the jack is seated correctly.
6. Continue pumping the handle until the vehicle has been lifted to the desired height.

CAUTION: Observe the vehicle carefully during the lifting operation. The jack should move in the direction of the vehicle during lifting. Should this not be the case, there is a strong possibility that the vehicle will slide off the jack.

1. Put the handle out of the pumping arm. (Risk of accident!)
2. Secure the load with suitable jack stands before commencing work on or under the vehicle.

CAUTION: Working on or under the vehicle without first appropriately securing the raised load is prohibited! (Risk of accident!)

1. After you have finished working on the vehicle, carefully twist the handle in small increments in a counterclockwise direction until the vehicle begins to move downward.
2. Once the vehicle is firmly on the ground, you can turn the handle one half turn to return the arm back to the bottom starting position.

TFJ-12 Hydraulic Trolley Jack

1. Before lifting the load, check that the arm is properly secured into the socket..

2. All moving parts must be lubricated in accordance with the operators' manual and maintained on a regular basis.

3. If the jack is broken during using, get a new jack, with which you can lift the car, so that the defect jack can be removed. If you are unsure, please ask for professional help.

Storage and Care:

1. When the vehicle jack is not in use, the lifting arm should be in the lowest position and the handle in an upright position to protect the precision mechanics from damage. The vehicle jack must be stored in a horizontal position and in a dry location. Ensure the jack remains in its original condition. Do not undertake any modifications to the device.
2. Use only SAE10 (SAE: Society of Automotive Engineers) grade, special-purpose hydraulic oil for the pump. Dispose of all used and spilled oil appropriately.
3. Do not use a high-pressure cleaner to clean the jack. All external moving parts, e.g., the foot roller bearings, fastening bolts of the lifting arm, fastening bolts of the lifting arm cylinder, and fastening bolts of the pumping arm must be well lubricated regularly every 3 months.

IMPORTANT: Never lubricate or grease the rods of the pump and lifting cylinder.

1. All maintenance and repair work must be performed by suitably qualified personnel and in accordance with the manufacturer's instructions.

CAUTION: Do not use the jack if there are any missing, loose, or broken parts!

Maintenance

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends on factors such as proximity to the ocean and humidity or condensation of water vapour on metal surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when applied periodically, it will prevent rust from forming.

General

• Need to check the state of the markings and that the markings remain as the initial one.
• Jacks shall be maintained and repaired in accordance with the manufacturer instructions. Such maintenance and repair shall be carried out by qualified persons.
  • No modifications shall be carried out which adversely affect the compliance of the jack with this standard.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. Dispose of the hydraulic oil in an environmentally compatible manner. Ask your local repair garage to see to its disposal or find your nearest waste materials collection centre.

Check Oil Level

1. Turn release valve counterclockwise to allow ram to fully retract. It may be necessary to apply force to the saddle for lowering.
2. Remove the inspection plate.
3. With the jack in the level position, remove the oil fill plug. Stand jack in vertical position with handle socket down. The oil should be level with the bottom of fill hole. If not, top off. Do not overfill. Always fill with new, clean hydraulic jack oil.
4. Replace fill plug and inspection plate.
5. Check jack operation.
6. Purge air from system as required.
7. Do not use brake or transmission fluids or regular motor oil as they can damage the seals. Always purchase and use products labelled Hydraulic Jack Oil.

Troubleshooting

NOTE: The instructions below must not be carried out while the vehicle jack is In use. The vehicle jack is equipped with a safety valve. It has been configured to allow the vehicle jack to lift loads up to 2 tonnes. The safety valve must not be modified or adjusted in any way!

Problem 1: The lifting arm won't raise when pumping under load.

• Check whether the drain valve is fully closed. Close it by rotating the handle clockwise.
• Check the oil level by placing the vehicle jack in a horizontal position.
  • Not enough oil. Top up the hydraulic oil and purge the hydraulic system.

Problem 2: The lifting arm is sinking under load.

- Follow the instructions provided for "Problem 1". Should this still not eliminate the fault, the vehicle jack needs to be repaired by an authorized repairer.

Problem 3: The lifting arm can't be lowered.

• The tension spring for the lifting arm has unhooked or broken. Re-hook the spring or replace the broken spring by an equivalent new spring.
  • The vehicle jack presumably needs lubricating. All moving parts must be cleaned and lubricated or greased.

IMPORTANT: The rods of the pumping and lifting cylinder should never be lubricated or greased.

• Too much oil in the hydraulic system. Screw out the drain valve and drain out the excess oil.

Specifications

Maximum Load Capacity 1,200kg

Type Hydraulic

Material Aluminium, Steel

Finish Powder Coated

Min Height 88mm

Max Height 358mm

Certification AS/NZ 2615:2016

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

©2023 T-Rex. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
