Product Type	Hydraulic Table Lift Cart
Brand	T-Rex
Model	TMA-5H
Category	Jack
Maximum Load Capacity	350 kg
Pump Mechanism	Hydraulic Pedal
Material	Powder-coated Steel
Table Length	82 cm
Table Width	52 cm
Minimum Height	24 cm
Maximum Height	79 cm
Wheel Type	Swivel Wheels with Brakes
Assembly Required	Minimal (attach pedal and push handle)
Safety Features	Controlled release handle, brake system, pinch point warnings
Recommended Use	Hard, level surfaces; domestic use
Maintenance	Periodic bolt tightening, cleaning, wheel lubrication
Storage	Fully lowered, dry location, away from children

Frequently Asked Questions - TMA-5H T-Rex

What is the maximum load capacity of the T-Rex TMA-5H?

The maximum load capacity is 350 kg (771 lbs). Do not exceed this limit to ensure safety and prevent damage.

How do I assemble the hydraulic table lift cart?

The cart comes almost fully assembled. You need to attach the lifting pedal (24) using an M8x20 bolt, the push handle (42) using an M8x40 bolt, and fix the wire fix brackets (35). Use cable ties for the release wire if needed.

Can I use this cart on uneven surfaces?

No, the cart is designed for hard, level surfaces only. Using it on uneven or soft surfaces may cause instability and lead to accidents.

How do I lower the cart safely?

Use the controlled release handle to lower the cart at a safe speed, especially when carrying heavy loads. Avoid using the fastest release speed and keep hands away from the scissor mechanism.

What maintenance does the TMA-5H require?

Periodically check bolt tightness, keep the cart clean and free of corrosion, lubricate wheels, and inspect joints and bolts for damage. Do not use if cracks or frame deformation are found.

What are the dimensions of the table?

The table measures 82 cm (32.3 inches) in length and 52 cm (20.5 inches) in width.

What is the height range of the lift?

The minimum height is 24 cm (9.4 inches) and the maximum height is 79 cm (31.1 inches).

Are there any safety precautions I should follow?

Always read the manual before use. Keep clear of moving parts, do not exceed the load capacity, use on level surfaces, set brakes when loading/unloading, and do not use for lifting people.

How should I store the cart when not in use?

Lower the cart fully, store it in a dry, protected environment away from children and direct sunlight. Cover it to prevent corrosion.

Can I modify the cart with attachments?

No, do not use attachments or adapters. Modifying the cart can compromise safety and lead to injury or property damage.

USER MANUAL TMA-5H T-Rex

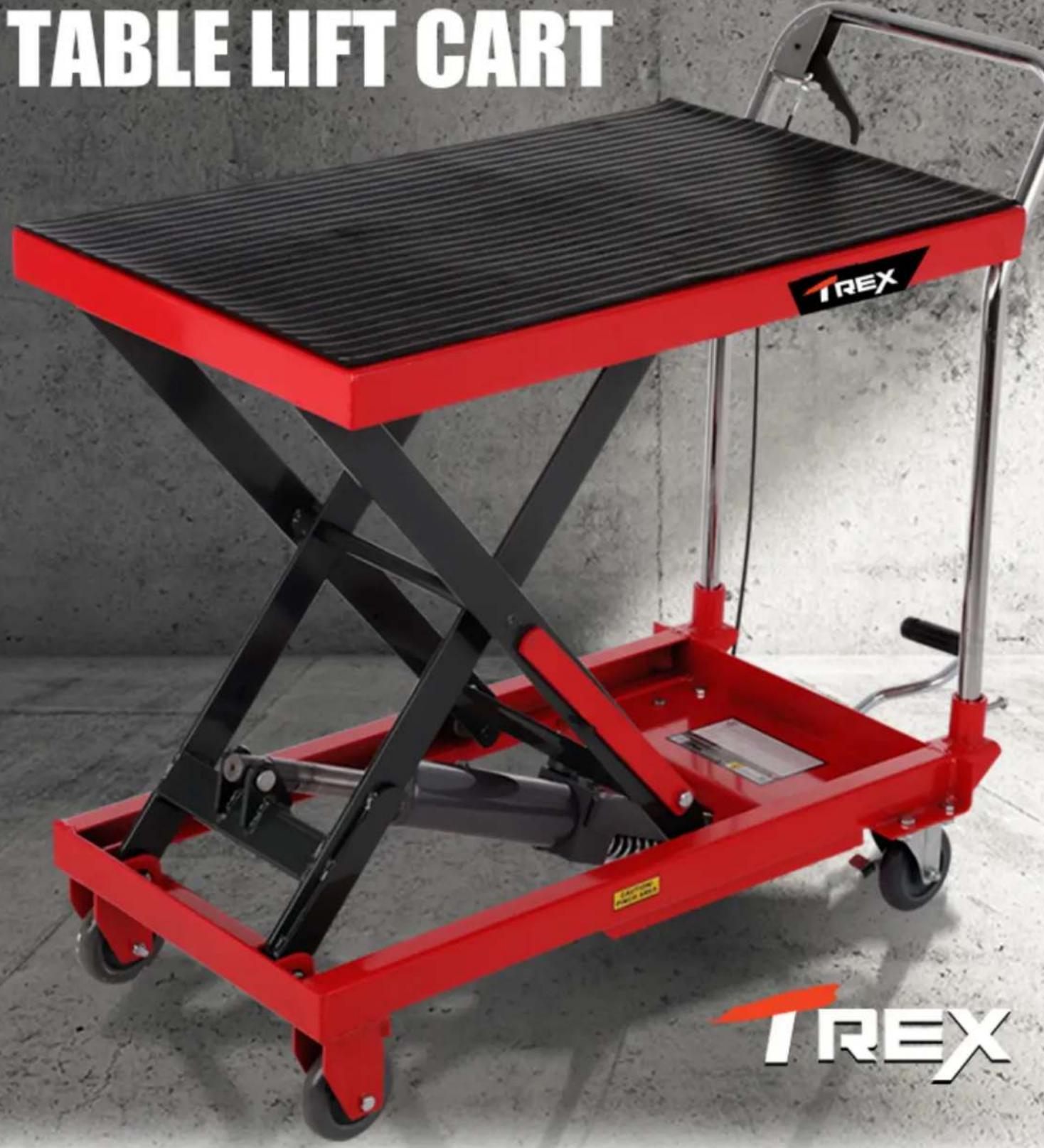

HYDRAULIC TABLE LIFT CART

User Manual

[Revision 2.0 December 2020]

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not over-reach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol or medication.
• This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors and vents.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.

• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.

• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.

• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Hydraulic Lift Cart Safety

• Read, study, and follow all instructions before operating this device. Failure to heed these instructions may result in personal injury and/or property damage.
  • DO NOT EXCEED RATED CAPACITY.
• Do not use the cart to lift or move people.
• This cart was designed to be used on hard, level surfaces capable of sustaining heavy load. Use on other surfaces could result in load instability and possible loss of load, resulting in property damage and personal injury.
• Keep clear of the scissor lifting frame area beneath the cart when lifting or operating. Scissor lifts have pinch areas between the frames which can cause serious injury if hands or feet are not cleared from these areas.
• Do not use attachments or adapters of any type to modify this cart.
• Always use the cart on a flat, stable surface. Do not drop items from a considerable height on the cart.
• Set the brakes on the rear casters when loading or unloading.
• When not in use, the cart should be fully lowered. Store it in a safe, dry location and keep it away from children.
• Do not overreach. Keep loads evenly balanced over the centre of the cart. Excessive loads on the top or sides of the cart may be unstable with the danger of the cart toppling over and causing injury or property damage.

Tips for Safe Operation

• Keep work area clean. Clutter work area invite injury. Do not use in damp, wet or poorly lit conditions.
• Keep the cart cleaned and wiped down. Do not expose the cart to prolonged wet or corrosive conditions.
• Cover the cart and store it in a dry, protected environment.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases or substances etc may be present. Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator. Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.

Table of Contents

Safety 2

Safety Symbols 4

Parts Identification....7

Assembly and Set-Up 9

Maintenance ....10

Specifications....10

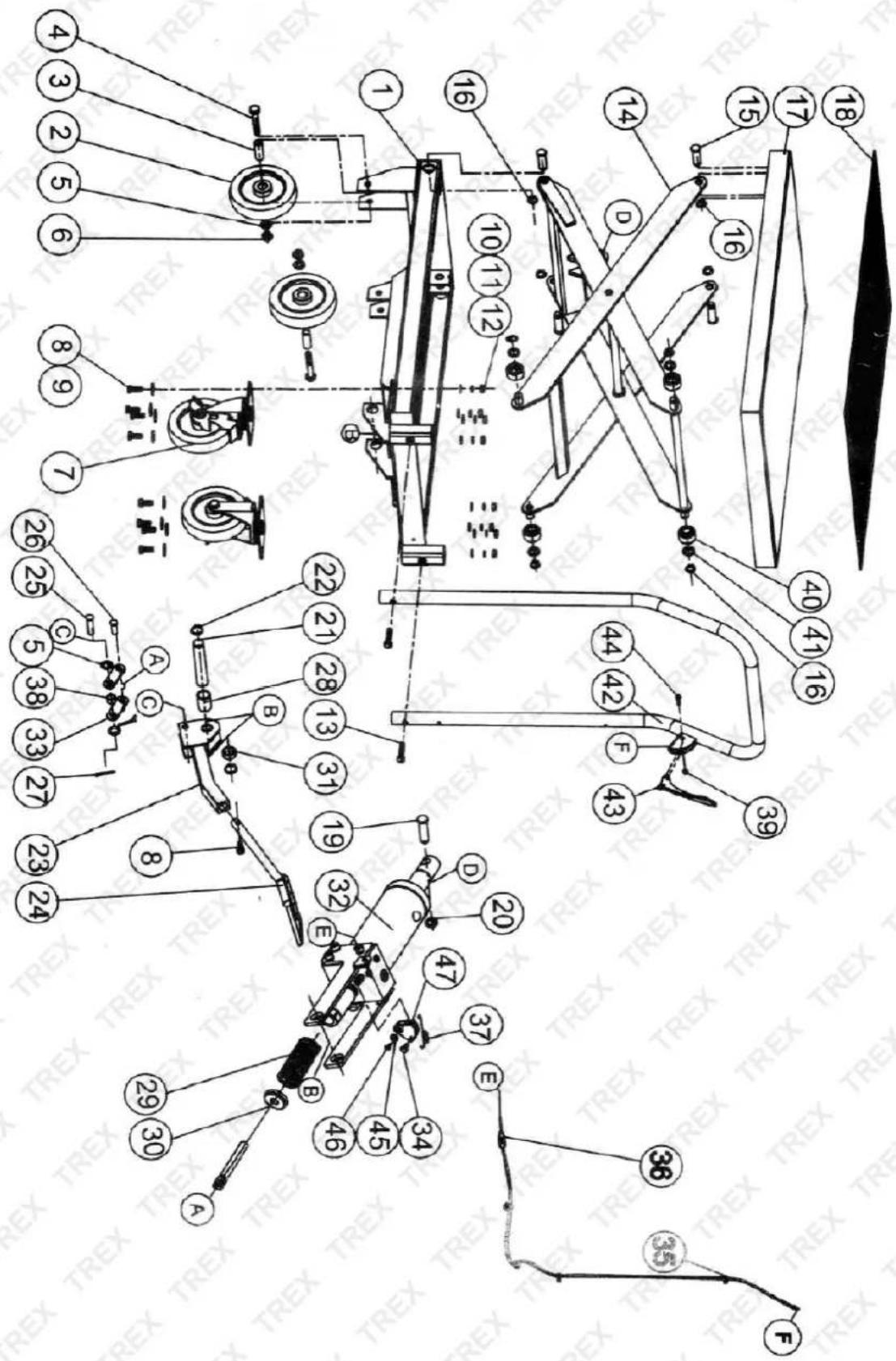

Parts Identification

No.	Description	Qty.
1	Base Assembly 1 25 Handle Pin	1
2	Wheel	2
3	Bushing	2
4	Hex Bolt M1Ox65	2
5	Flat Washer 01 o	4
6	Nylon Lock Nut M10	2
7	Swivel Wheel	2
8	Hex Bolt M8.x20	9
9	Big Flat Washer 08	8
10	Flat Washer 08	8
11	Lock Washer 08	8
12	Hex Nut MB	8
13	Hex Bolt M8x40	2
14	Lift Frame	1
15	Hinge Pin	4
16	Snap Ring 014	8
17	tabletop	1
18	Rubber Pad	1
19	Hinge Pin of Pump	1
20	Snap Ring 016	1
21	Long Axis	1
22	Snap Ring 020	2
23	Lifting Pedal Base	1
24	Lifting Pedal	1

No.	Description	Qty.
26	Connecting Rod Pin	1
27	Cotter Pin 03x25	2
28	Long Bushing	1
29	Pressure Spring	1
30	Pressure Spring Cover	1
31	Short Bushing	1
32	Jack	1
33	Connecting Rod	2
34	Hex Bolt M5x10	1
35	Wire Fix Bracket	4
36	Release Wire	1
37	Tension Spring	1
38	Small Washer	1
39	Nylon Lock Nut M5	1
40	Small Wheel	4
41	Small Flat Washer	4
42	Push Handle	1
	Release Handle	1
44	Hex Bolt M5x20	1
45	Big Flat Washer 05	1
46	Screw M5x8	1
47	Strut Adjusting Box	1

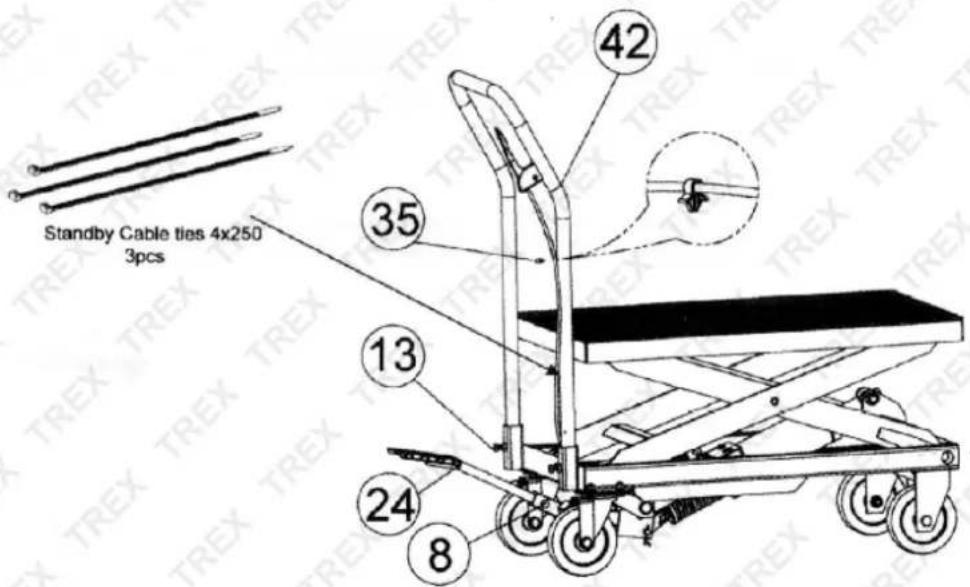

Assembly and Set-Up

Your hydraulic table lift cart is almost completely assembled when you open it. To complete the assembly, find the parts shown above enclosed with your cart.

1. Place the lifting pedal (24) into the hole in the end of the pedal pole and secure with M8X20 bolt (8).
2. Place the push handle (42) into the vertical tubes positioned on the pedal end of the base assembly. Secure with a M8x40 bolt (13).
3. Fix the wire fix brackets (35) into the holes in the push handle (42) and base assembly.
4. Use cable ties to fix the release wire, if necessary.

Assembly is now complete.

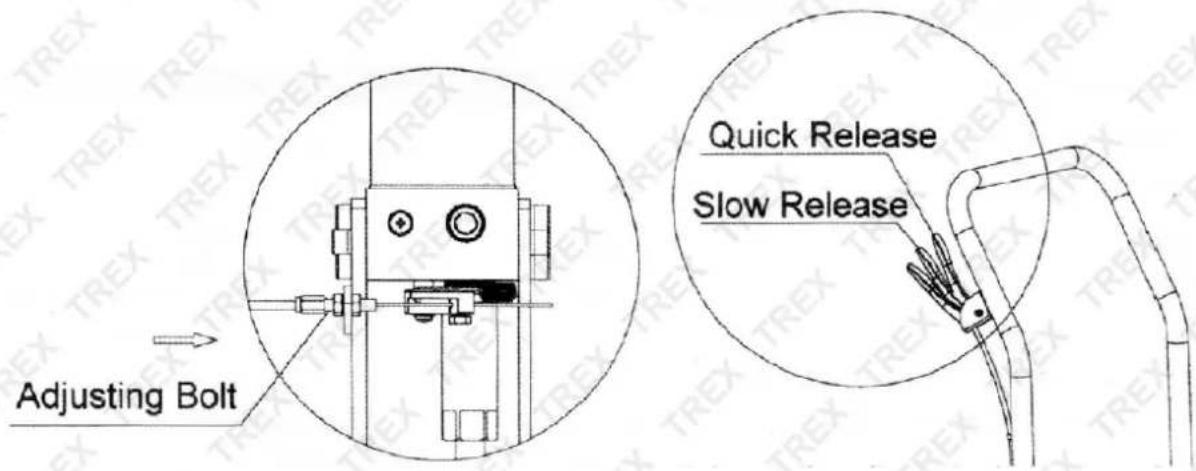

The adjusting bolt has been put in the best position. if the jack moves after putting on heavy items, adjust the bolt to the best position.

- Do not put your hands close to the scissor stand when you release oil to avoid pinching accidents. The controlled release handle can control the speed of falling. When putting on

heavy items on the cart, do not use the fastest speed for release. • Do not touch the release handle when putting on heavy items to avoid accidents.

Maintenance

• Check the tightness of the mounting bolts periodically.
• Remove all dirt and corrosions and always keep the cart clean.
• Lubricate the wheels to maintain smooth operation.
• Inspect all joints and bolts periodically. Do not use the cart if there are any cracks found or if the frame is bent or deformed.

Specifications

Model	TMA-5H
Maximum Load Capacity	350kg
Pump	Hydraulic Pedal
Type	Hydraulic
Material	Powder-coated steel
Table Length	82cm
Table Width	52cm
Min Height	24cm
Max Height	79cm

Note: Minimal Assembly required

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business or employee, or financially affect the user, business or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

©2020 Trex. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
