EdgebudsPro KTE-750 - Headphones Klip Xtreme - Free user manual and instructions

Product Type	True Wireless Stereo (TWS) In-Ear Earbuds with ANC & ENC
Model	KTE-750
Connectivity	Bluetooth® v5.3 (A2DP, AVRCP, HSP, HFP)
Active Noise Canceling (ANC)	Three modes: Normal, Transparency, Off (25dB cancellation)
Environmental Noise Canceling (ENC)	Yes, for phone calls
Battery Capacity (Earbud)	50 mAh each
Battery Capacity (Case)	400 mAh
Playback Time per Charge (ANC On)	Up to 6.5 hours (50% volume)
Playback Time per Charge (ANC Off)	Up to 7.7 hours (50% volume)
Total Playback Time (with Case)	Up to 26 hours (ANC On) / 30 hours (ANC Off)
Charging Time (Earbuds)	1 hour
Charging Time (Case)	1.5 hours
Charging Interface	USB-C (5V/0.5A)
Water Resistance	IPX3 (sweat and splash resistant)
Voice Assistant Support	Siri, Google Assistant
Driver Sensitivity	99.47 ±1.5 dB at 1kHz
Impedance	32 ohms
Frequency Response	20 Hz – 20 kHz
Microphone	MEMS omnidirectional (-42 dB sensitivity)
Wireless Range	33 – 49 feet (line of sight)
Weight (Total)	1.6 oz (45 g)
Dimensions (Case)	2.5 x 2 x 1.1 in
Dimensions (Earbud)	1.4 x 0.9 x 0.7 in
Special Features	Smart touch controls, LED battery indicators, auto pairing
Package Contents	Earbuds, charging case, USB-C cable, ear tips (S/M/L), user guide

Frequently Asked Questions - EdgebudsPro KTE-750 Klip Xtreme

How do I pair the EdgebudsPro KTE-750 with my phone?

Remove the earbuds from the charging case (they turn on automatically). On your phone, enable Bluetooth and select KTE-750 from the available devices. If prompted, accept pairing. You will hear a 'Done' prompt when successful.

How do I switch between ANC, Transparency, and Off modes?

Press and hold the right earbud's multifunction button for 2 seconds to cycle between ANC On, Transparency Mode, and ANC Off.

How long does the battery last on a single charge?

With ANC enabled, up to 6.5 hours; with ANC disabled, up to 7.7 hours (at 50% volume). The charging case provides approximately 4 full charges for a combined total of up to 30 hours (ANC off).

Are the earbuds waterproof?

They are IPX3 rated, meaning they resist rain, splashes, and sweat, but are not fully waterproof. Avoid submersion.

Can I use only one earbud at a time?

Yes. Remove only one earbud from the case; it will automatically pair within 20 seconds. You can switch ears as needed.

How do I reset or force disconnect the earbuds?

Place both earbuds in the charging case, close the lid for 10 seconds, then remove them. On your phone, forget the KTE-750 device and repeat the pairing process.

How do I activate the voice assistant?

Press and hold the left earbud's multifunction button for 2 seconds to activate Siri or Google Assistant. Press and hold again for 2 seconds to turn it off.

What touch controls are available for music playback?

Single tap to play/pause. Double-tap left for previous track, double-tap right for next track. Triple-tap left to lower volume, triple-tap right to raise volume.

How do I charge the earbuds and case?

Connect the USB-C cable to the case's charging port and a power source. The case charges in 1.5 hours. The earbuds charge when placed in the case; they fully charge in 1 hour.

Are replacement ear tips available?

Yes, the package includes 3 sizes (S, M, L). Replacement tips can be purchased from Klip Xtreme dealers or online.

USER MANUAL EdgebudsPro KTE-750 Klip Xtreme

klipxtreme

EdgebudsPro

KTE-750

I. Introduction

Thank you for purchasing the KlipXtreme KTE-750 True Wireless Stereo (TWS) wireless earbuds with Active Noise Canceling (ANC) technology. We encourage you to read this quick installation guide thoroughly to get the most out of this wireless device.

Main features

• Premium earbuds with Active Noise Canceling (ANC) technology that blocks unwanted noise so you can focus on what you want to hear
• Two active noise canceling modes: Normal mode cancels external sounds before you hear them, and Transparency mode allows to hear sounds around you without removing the earbuds
  • Environmental Noise Canceling (ENC) technology cancels out surrounding noise during your calls
• True Wireless Stereo, designed to stream audio wirelessly through two separate units simultaneously from the same audio source
• 26 hours of total playback time with 6.5 hours per cycle for up to 4 cycles ³
  • Modern and sleek design
• 25dB noise canceling level to neutralize background noise without compromising the sound of your music

• Smart touch design to play, pause, change modes, skip tracks, and answer or hang up calls with simple tap
  • IPX3 water resistant to rain, splashes, and sweat

• Compatible with Google and Siri voice assistant, it supports the voice recognition feature for true hands-free control at the touch of a button
  • Built-in USB-C charging port for wired charging

• Charging case includes LED indicators to display battery status
• Bluetooth® v5.3 latest technology enables more efficient channel selection from both devices to improve signal performance

Package content

• Wireless earbuds (I pair)
• Charging case (1)
  • Type C charging cable (I)
  • Ear tips (S, M, L) (3 pairs)
• User's guide (1)

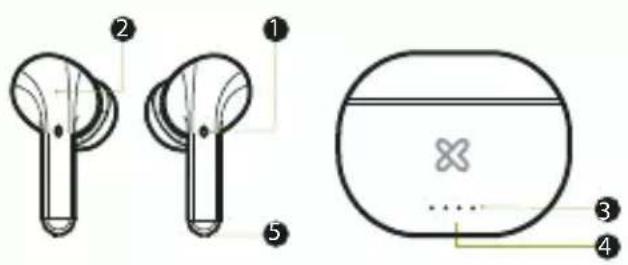

2. Product overview

I Microphone/LED indicator

2 Multifunction button: press the multifunction button to power the earbuds on and off. Also press this button to enable/disable ANC and transparency mode, play or pause media, and to answer or end an incoming call

3 Charging case LED indicator: The four LED lights showcase battery status

4 Charging port: insert the Type C cable in this port to charge the battery

5 Earbuds charging area: the earbuds will receive the charge in this area when wirelessly charged

1. Basic operation

a. Charging the case and earbuds

1. To charge the case, plug the USB cable into a power source and the Type C end into the case's charging port. The case starts charging automatically.

2. Charging the case battery to its full capacity may take 1.5 hour.

3. The four LED lights are on for 30 seconds and then turn off when the charging case is fully charged.

4. Unplug the case from the power source and

place the earbuds on the sockets of the charging case. The charging level is showcased as follows:

- One LED light on indicates that the earbuds have 25% charge

- Two LED lights on, indicate 50% charge

- Three LED lights on, indicate 75% charge

- Four LED lights on, indicate that the earbuds are fully charged

IMPORTANT: The touch button is sensitive. Therefore, please make sure to manipulate the earbuds by grabbing them from the arm to avoid taping the touch button by accident.

b. Turning your earbuds on or off

1. The earbuds automatically turn on when removed from the charging case or press and hold the multifunction button on each one for 3 seconds to turn them on.

2. As both earbuds synchronize, a voice prompt will be heard indicating that they are connected.

3. To turn the earbuds off, place them in the charging case and close the lid. To turn them off manually, press and hold the multifunction button on one of the earbuds for 5 seconds.

4. Advanced operation a.TWS pairing

Simply take the earbuds out of the charging case or turn them on as it has been instructed previously. The earbuds LED indicator will blink as the earbuds sync with each other automatically, and then enter into mobile pairing mode.

Note: Before installing this product, please make sure your device is Bluetooth® compatible.

b. Pairing the earbuds with your mobile device

1. Turn both earbuds on by removing them from the charging case or pressing the multifunction button for 3 seconds. Both earbuds will automatically pair.
2. Set your Bluetooth ^® mobile device to "discover" the wireless earbuds.
3. Place the earbuds and your phone not more than three feet from each other.
4. On your mobile phone, tap the newly discovered audio device KTE-750 being displayed in the Bluetooth ^® list.
5. When the mobile device asks if you want to pair with it, click Yes or OK to accept.
6. If pairing is successful the "Done" prompt will

be heard.

1. If after 60 seconds the pairing process fails, please repeat steps 1 through 5 as described above.
2. The earbuds will automatically go into standby mode after a short period of inactivity to save battery life.
3. You only need to pair the earbuds with your mobile phone once, as they will reconnect with memorized devices automatically.

Note: Either one of the earbuds may be used at a time. You can switch between the earbuds as you wish. Remove one earbud from the charging case and it will pair within 20 seconds.

c. Using the wireless earbuds

1. Answering and ending a call

• When there is an incoming call, your phone will ring along with a tone through your earbuds.
• Press the multifunction button once on any earbud to pick it up. You may also press the answer button on your mobile phone to

receive the incoming communication in your earbuds.

• To end a call, press the multifunction button once again on any earbud. Likewise, you may also finish the call directly using the end key on your smartphone.
• To ignore an incoming call and send the caller to voicemail, double tap or hold the multifunction button on any earbud.

2. Music playback, voice commands, ANC and transparency mode using your earbuds

• Press the multifunction button once on either one of the earbuds to play and stop audio playback.
• Double tap the left button to go to the previous track.
• Double tap the right button to go to the next track.
• Triple tap the left button to lower the volume.
• Triple tap the right button to increase the volume.
• Press and hold the left button for 2 seconds to activate the voice assistant for Siri or Google. Press and hold again for 2 seconds

to turn it off.

• When the earbuds are removed from the charging case, they are automatically in Bluetooth® mode.
• Press and hold the right button for 2 seconds to switch mode (Transparency/ANC On/ANC Off).

5. Troubleshooting

If you can't connect the earbuds to your mobile phone, try the following:

• Make sure that the earbuds are charged, turned on, paired with, and connected to your mobile phone.
• Make sure the Bluetooth feature is activated on your phone.

Precautions

• Your earbuds are powered by a rechargeable battery. The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge your battery only with compatible chargers.
• Unplug the USB charger from the source

when not in use.

• Parts of the earbuds are magnetic. Metallic materials may be attracted to the earbuds. Do not place credit cards or other magnetic storage media near the earbuds, as information stored on them may be erased.
• Do NOT drop, hit or shake the device.
• Do NOT disassemble, repair or modify the earbuds yourself.
• Do NOT use strong chemicals, solvents, or detergents to clean the device.

Technical specifications

MPN KTE-750
Device
Type	ANC and ENC TWS earbuds
Form factor	True wireless in-ears
Chipset	JL7003
Special features
Active Noise Canceling technology (ANC)	Yes, three modes: normal, transparency, and ANC
Environmental Noise Canceling technology (ENC) microphone	Yes
Touch button	Yes, smart touch
Voice assistant	Siri and Google Voice assistant compatible
Charging case battery LED indicator	Yes, 4 indicators
Volume control	Yes
Built-in microphone for calls	Yes
Speaker
RMS power output	10mW
Frequency	20Hz-20kHz
Impedance	32 ohm
Sensitivity	99.47 ±1.5dB at 1000Hz at 0.179V
Noise canceling level in dB	25dB
Microphone
Form factor	Built-in, MEMS microphone S15OT421-008
Directivity	Omnidirectional
Frequency	20Hz-10kHz
Impedance	200Ω @1kHz
Sensitivity	-42dB
Connectivity
Connection type	Bluetooth® v5.3
Profiles supported	A2DP, AVRCP, H-SP, H-FP
Wireless RF frequency	2.402-2.480GHz
Wireless range	33 to 49ft
Battery
Single earbud battery	50mAh
Charging case battery	400mAh
Charging connection type	Type C charging port
Wired charging rate (In V, A and W)	5V/0.5A
Charging case + earbud charging total time	2 hours
Earbud only battery charging time	1 hour
Charging case only battery charging time	1.5 hour
# of charging case cycles before battery runs out	4 cycles
Earbud only battery runtime (with ANC enabled)	Up to 6.5 hours (50% volume) 2
Earbud only battery runtime (with ANC disabled)	Up to 7.7 hours (50% volume) 2
Earbuds total run time (including cycles)	Up to 30 hours (ANC off) - 26 hours (ANC on) 3
Battery standby time	About 120 hours

Dimensions
Dimensions (LxWxH)	Charging case: 2.5x2x1.1inEarbud: 1.4x0.9x0.7in
Weight	1.6oz
Cable length	39.3in
Package contents	Earbuds, Type C charging cable, 3sets of ear tips, and user guide

I Range estimate is based on an area free of obstacles and interference, and within line of sight between devices.

2 Depending on the volume level and type of music file being played.

3 Battery runtime can last 6.5 hours per charging cycle (4) for an estimated total of 26 hours combined (ANC on), and 7.7 hours per charging cycle (4) for an estimated total of 30 hours combined (ANC off).

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

1. Introducción

KlipXtreme® is a registered trademark. All rights reserved. The Bluetooth® brand is a registered trademark owned by Bluetooth SIG, Inc. Siri and all related logos are trademarks of Apple.com, Inc. Google Assistant is a trademark of Google LLC. All other brand names and trademarks are the property of their respective owners. Any mention of such is only intended for identification purposes, and therefore shall not be construed as a claim to any or all rights pertaining to those brands. Made in China.
