Product Type	Underbench boiling and chilled water filter system
Brand	Billi
Model	Sahara
Dispenser Type	Swivel stainless steel faucet with lever or touch button options
Water Temperatures	Boiling (approx. 100°C) and ambient filtered water
Filtration	Single dual-action filter: sediment and chemical removal (sub-micron rating, reduces chlorine, VOCs, tastes, odors)
Filter Life	6-12 months depending on water quality
Filter Replacements	Premium (994002, 0.2 micron) or Standard (994001, 5.0 micron)
Power Supply	240V AC, 50Hz (10A recommended circuit)
Power Saving Modes	Eco Intelligence self-learning timer, Standby mode (reduces temperatures), Holiday mode (disables heating/cooling)
Safety Features	Childproof safety switch, boiling water safety isolation mode, safety timeout (10 sec for boiling), thermal cut-out, pressure relief valve
Dispenser Icons	LED indicators for filter change, safety lock, power mode, temperature ready, fault
Installation	Requires qualified tradesperson; air space of 25mm around unit; ambient temperature 4°C to 45°C
Maintenance	Wipe dispenser with damp cloth; check connections and tubing at each filter change; replace filter every 6 months
Warranty	24 months from purchase date (filters excluded)
Country of Manufacture	Australia

Frequently Asked Questions - Sahara Billi

How do I replace the water filter in my Billi Sahara?

To replace the filter: 1) Remove the front panel. 2) Press the Pressure Relief button to enter Holiday Mode. 3) Swing the filter forward about 30 degrees, then pull down to release. 4) Install the new filter by pushing up into the cradle and swinging back until it locks. 5) Flush ambient water for 1 minute, wait 10 minutes, then flush again for 1 minute. 6) Check for leaks and replace the front cover. Always use genuine Billi filter cartridges (Premium 994002 or Standard 994001).

How often should the filter be changed?

Billi recommends replacing the filter every 6 months or sooner if water quality deteriorates. The unit has a filter change monitor that flashes an orange icon when replacement is due. In areas with high sediment, more frequent changes may be necessary.

What safety features does the Sahara have for boiling water?

The Sahara includes: a childproof safety switch that must be activated before dispensing boiling water, a boiling water safety isolation mode that disables hot water entirely, a safety timeout that stops boiling water flow after 10 seconds, and a thermal cut-out to prevent overheating. The dispenser remains cool to the touch.

How do I activate the childproof safety switch?

For lever models: press the indent on the back of the tap momentarily while lifting the boiling lever. For touch models: press the red lock icon on the touch lens. The red padlock icon illuminates when activated. You will then have 8 seconds to dispense boiling water before the safety lock reactivates.

What do the flashing icons on the dispenser mean?

- Orange dot flashing: filter change due. Solid: overdue. - Red dot flashing: heating up; solid: boiling water ready. - Blue dot solid: ambient water ready. - Green leaf solid: Eco Intelligence active. - Green moon & stars flashing: Standby mode. - Red & blue flashing yellow: fault condition. Refer to the icon codes section in the manual for detailed explanations.

How can I save energy with my Billi Sahara?

You can enable Eco Intelligence (self-learning timer) or Standby mode (reduces hot water to 72°C and cold to 18°C after 2 hours of inactivity). For extended absences, use Holiday mode by pressing the Pressure Relief button—this disables both heating and cooling to minimize power usage.

What should I do if the unit displays a fault (yellow flashing lights)?

If the red and blue icons flash yellow, the unit has detected a fault. First, try turning the power off and on. If it persists, do not reset the thermal cut-out yourself. Contact Billi technical support at 1800 812 321 for assistance.

Can I install the Billi Sahara myself?

The unit must be installed by a suitably qualified tradesperson to ensure safety and compliance. The installation requires connection to water supply and electrical power (240V). Failure to install correctly may void the warranty.

How do I clean the dispenser?

Clean the stainless steel dispenser with a damp cloth and a non-solvent, non-smearing cleaner like Windex. Avoid abrasive cleaners. Do not pour water over the dispenser. Regularly check for leaks or damage during filter changes.

What is covered under warranty?

The Billi Sahara has a 24-month warranty from the date of purchase covering defects in materials or manufacture. Filters are excluded. The warranty applies if the unit is installed and used according to instructions. For claims, contact Billi with proof of purchase. Service is provided within Australia (travel charges may apply beyond 25 km from an authorized agent).

USER MANUAL Sahara Billi

Modern stainless steel faucet with a handle and 'Billi' branding (no additional text or symbols visible)

Contents

Warnings & Important information ..... 2

General Maintenance....3

Features and Modes 4

Options & Operation

XL Tap....5

XT, XR Tap....6

Dispenser Icon Codes....7

XL Tap....7

XTTap 8

XRTap 9

Filtration Information 10

Changing the filter 11

Service Support 12

Warranty 13

Warnings & Important information

- For continued safety of this appliance it must be installed, operated and maintained in accordance with the manufacturer's instructions.

- Your appliance should be installed by a suitably qualified tradesperson.

- For correct operation of this appliance it is essential to observe the instructions as outlined in this booklet.

- Do not use this appliance with water that is microbiologically unsafe or with water of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

- Filter replacement must be performed at intervals of not more than 6 months.

- Use this appliance only as directed in these instructions and only for its designed purpose.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- This appliance is not suitable in an area where a water jet could be used.

- Children should be supervised to ensure that they do not play with the appliance.

- DANGER: The operation of the thermal cut-out indicates a possibly dangerous situation. Do not reset the thermal cut-out until the water heater has been serviced by a suitably qualified person.

- WARNING: Do not connect any restrictor or pressure relief device to the vent pipe of this water heater if installed.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid creation of a hazard.
• Billi hose sets as supplied with the appliance are to be used. Old or other manufacturer's hose sets should not be re-used.
• If the appliance is located where the ambient air temperature could fall below 4°C when the heater is not in use, do not turn off the power supply to the appliance. This safeguard does not offer the same protection to the connecting pipework and fittings.
• The ambient temperatures this unit should operate within are 4^ to 45^ .
• Turn off power to unit, by unplugging the power cord from the power point, if water supply is turned off

Caution and safety

Boiling water is dangerous and can cause severe burns, particularly with young children. Boiling water must always be handled with caution. Use this appliance only as directed in these instructions and only for the purpose for which it has been designed. Your Billi Sahara is designed to be safe and practical. In an environment with young children, it is recommended that the boiling water safety switch is activated.

The following safety features have been included:

• Ergonomic levers
  – Levers/touch activations located safely above water outlet.
• Smooth electronically controlled boiling water flow rate. Flow is briefly reduced as water first enters cup to prevent splashing.
• Dispenser remains cool to touch.
  – Childproof safety switch.
• Boiling water Safety Isolation mode.

General Maintenance

Your Billi Sahara has been designed to require minimal maintenance other than replacement of filter cartridges. During each filter change, check all water connection fittings for signs of leakage. Check all tubing for any signs of damage. Check the cupboard area around the base of unit for any signs of moisture. Ensure side vents of the under bench module are kept clear and airflow is not obstructed. Restricted airflow will cause inefficient operation of the refrigeration system.

—Cleaning the dispenser

Your Billi Sahara Dispenser is fabricated from robust metal with a tough protect chrome plating. Care of dispenser is as with any chrome plated tapware. Avoid using abrasive cleaners. Wipe clean using a damp cloth. Use of a non-solvent, non-smearing cleaner such as Windex is recommended. Do not pour water over dispenser.

Cupboard ventilation requirements

Your Billi Sahara underbench module requires no cupboard ventilation but requires air space around the unit of 25mm. Care should be taken when using the cupboard space, to avoid stretching or damaging plastic pipe work. Check fittings and tubing at each filter change for signs of damage or leakage. Always ensure access to power switch and water supply tap is not restricted.

Features and Modes

—Dispenser Swivel

The Sahara dispenser incorporates a swivel function, allowing the dispenser to be swung out of the way if more sink space is required. A central position stop provides positive location during normal usage.

—Safety timeout

The Billi Sahara incorporates a water delivery Safety Timeout to prevent an uncontrolled flow of water. Water flow stops automatically after a set time interval. Flow can be started again by releasing and pressing the dispenser lever or for the XT or XR option simply press either the red or blue button.

Boiling water timeout – 10 secs.

—Childproof safety switch

The Billi Sahara is fitted with a childproof safety lock-out feature to protect against accidental dispensing of boiling water and the risk of burns. Please refer to page 5.

—Standby mode

Standby operation may be optionally enabled to reduce power consumption. In standby mode the hot water set point is reduced to 72^ C and the cold water set point is increased to 18^ C. When enabled, standby is invoked after two hours from the time of last use. When a tap lever is pressed in standby no water is dispensed. The indicators will flash to indicate the water is not ready. The tap can be repressed to dispense water. During Standby mode the Moon & Star icons will flash, to activate, refer to Options, page 5.

—Boiling water disabled mode

Your Billi Sahara features an additional boiling water safety isolation feature. Once activated, delivery of boiling water becomes totally disabled. Chilled water can be dispensed normally.

During this mode, the hot – red - icon will remain off. To activate, refer to Options & Operation, Safety Switch Settings on page 5.

—Holiday mode

Holiday Mode is provided to save energy when the unit will not be used for long periods. In this mode both the water chiller and water heater are disabled and the unit will use very little power. Pressing the Pressure Relief button places the unit in Holiday Mode. The unit will exit Holiday Mode if either the power is turned off then on or if any of the tap levers are pressed. The Self Learning Timer will ignore user behaviour while the unit is in Holiday Mode and resume normal operation when the mode is terminated. Holiday Mode is indicated the moon and star icon, see page 6 for icon codes.

Options & Operation

To operate, simply press the left lever to dispense boiling water and the right lever to dispense ambient. When lifted the levers will latch for continual delivery, until released with a light press.

Operating modes can be selected by the user by entering Options Mode.

Within the options mode, you can set the safety switch through the hot water lever and power save mode through the cold water lever.

See below for further instructions.

—To enter the options mode:

1. Turn on the unit and wait for normal operation (icons are both illuminated constantly).
2. Push both the hot and cold levers down & then while holding the two levers down press the safety switch at rear of tap. Hold both levers and safety switch for 3 seconds.
3. Icons will flash yellow.
4. Release both the levers & safety switch.
5. Unit is now in options mode.
6. If you wish to change or set the safety switch mode, follow the safety switch settings procedure below. If you wish to change or activate the power saving mode follow the power save mode settings procedure below.

—Safety Switch settings

The Red padlock indicates the different safety settings enabled. To change or activate a setting once in options mode as above, press and release the hot (left) lever to scroll through the following options;

• Red Icon Off: indicates the hot tap is disabled.
• Padlock icon on, Red icon on: indicates hot tap safety switch is enabled
• Red Icon On: indicates normal operation with safety switch not enabled.

To save new setting and exit Options Mode, touch the safety switch and release. Wait 10 seconds for unit to return to normal operation with modified settings.

— Power save mode settings (Ecolntelligence, standby or on 24/7)

The Green icons on the tap indicates the power save level that is selected. To change or activate a setting once in options mode, press and release the ambient (right) lever to scroll through the following options;

• Green leaf on: indicates Eco Intelligence™ self learning timer is enabled.
• Green moon & stars icon flashing: indicates Standby Mode is enabled.
• White Icon On: indicates system is in 24 hour continuous mode.

To save new setting and exit Options Mode, press the safety switch and release. Wait 10 seconds for unit to return to normal operation with now settings.

—Holiday mode

To set press the pressure relief valve located under the unit cover beside the filter housing.

Options & Operation

To operate, simple press the red (left) button to dispense boiling water, and blue (right) button ring to dispense ambient filtered water.

When the red or blue buttons are double tapped, the water will dispense continually until interrupted by another light press of either button.

Operating modes can be selected by the user by entering option mode. Within the options mode, you can set the safety switch thorough the hot red button (left) and power save mode through the blue button (right).

—To enter the options mode:

1. Turn on the unit and wait for normal operation (red and blue buttons are both illuminated constantly).
2. Press both the red and blue buttons & then while pressing the two buttons, touch the red lock icon located in the middle and towards the end of the lens. Press and hold both buttons and safety switch for three seconds.
3. Icons will flash yellow.
4. Release the safety switch and red and blue buttons.
5. Unit is now in options mode.
6. If you wish to change or activate the power saving mode, follow the power save mode settings procedure below.

—Safety Switch settings

The Red padlock indicates the different safety settings enabled. To change or activate a setting once in options mode as above, press and release the red (left) button to scroll through the following options;

• Red Icon Off: indicates the hot tap is disabled.
• Padlock icon on, Red icon on: indicates hot tap safety switch is enabled
• Red Icon On: indicates normal operation with safety switch not enabled.

To save new setting and exit Options Mode, touch the safety switch and release. Wait 10 seconds for unit to return to normal operation with the desired settings.

To dispense boiling water once the safety switch is activated simply touch the red lock icon on top of the touch lens you will be able to dispense boiling water for 8 seconds. After 8 seconds the safety switch will automatically reactivate, and the red padlock icon will appear again.

— Power save mode settings (Ecolntelligence™, standby or on 24/7)

The Green icons on the tap indicates the power save level that is selected. To change or activate a setting once in options mode, press and release the blue (right) button to scroll through the following options;

• Green leaf icon on: indicates Eco Intelligence™ self learning timer is enabled.
• Moon & star icon on: indicates Standby Mode is enabled.
• Blue Icon On, no green icons: indicates system is in 24 hour continuous mode.

To save new setting and exit Options Mode, press the safety switch and release. Wait 10 seconds for unit to return to normal operation with the desired settings.

—Holiday mode

To set press the pressure relief valve located under the unit cover beside the filter housing.

Transparent smart car door with digital display and control buttons (no text or symbols visible)

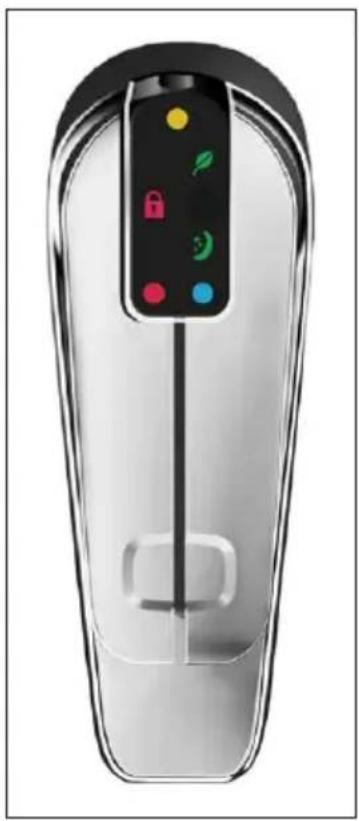

Dispenser Icon

Orange dot.

Flashes when filter change due. On constant when overdue.

Red lock illuminated.

Safety button activated. To use, press the indent on the back of the tap momentarily & lift or press the boiling lever.

Green leaf illuminated.

Eco intelligence.

Green moon & stars illuminated.

In holiday mode or off.

Green moon & stars flashing

In standby mode.

Red dot.

Flashes when heating up to temperature. On constant when boiling water ready. Off when in holiday, standby or boiling water disabled

Blue dot.

On constantly to indicate filtered water.

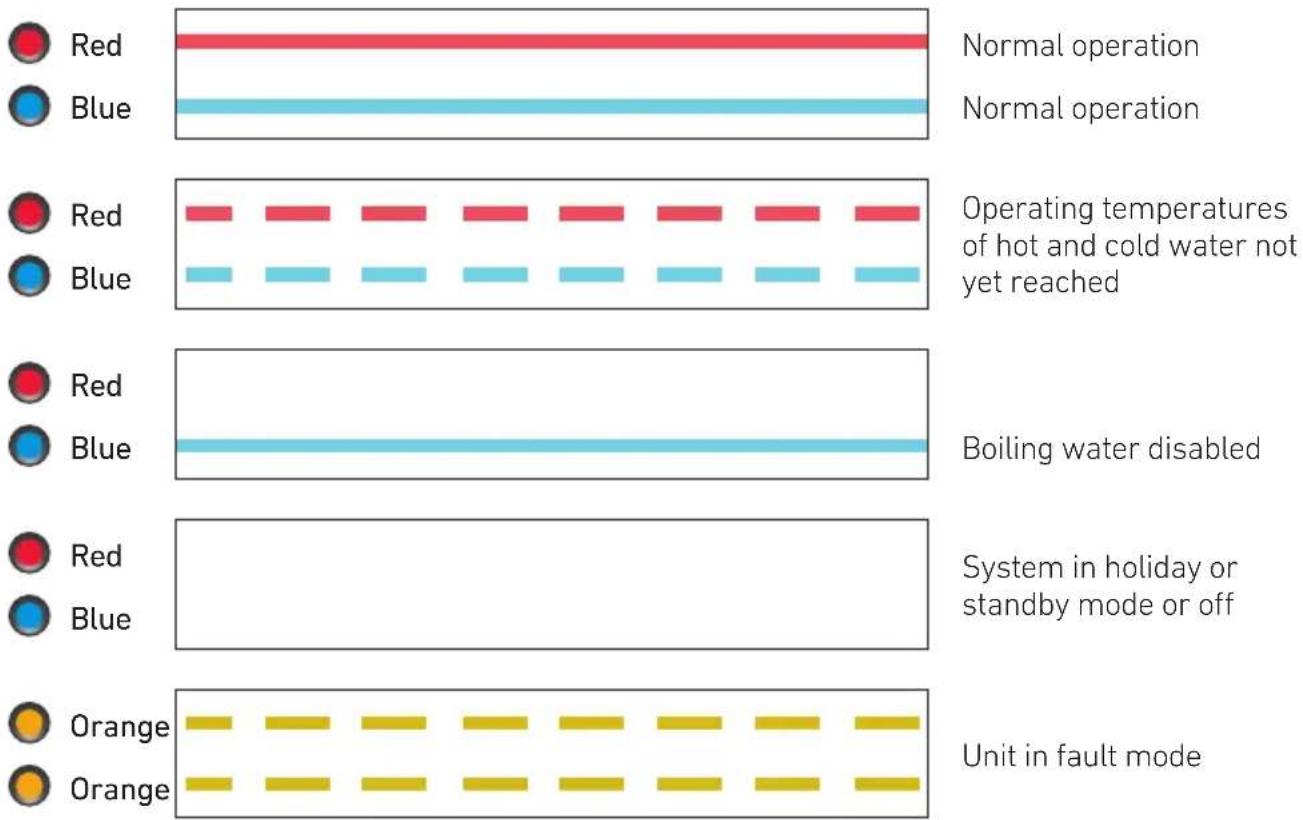

Red & Blue dots will flash yellow if the unit goes into fault.

Dispenser Icon codes

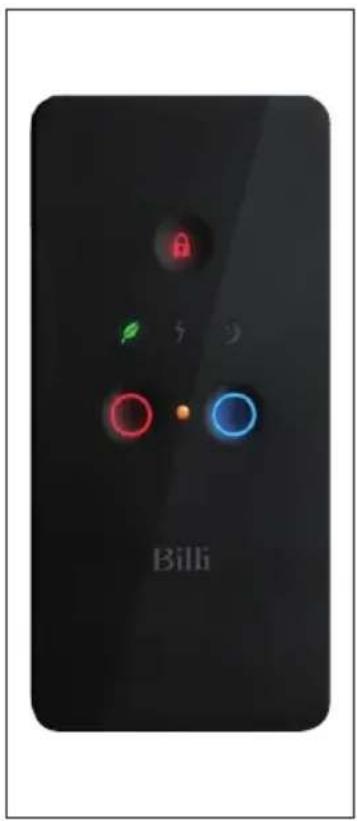

Front view of a remote control device with black display and colored buttons (no text or symbols visible)

Dispenser Icon

Orange dot.

Flashes when filter change due. On constant when overdue.

Red lock illuminated.

Safety button activated. To use, press the indent on the top of the tap momentarily & lift or press the red button.

Green leaf illuminated.

Eco intelligence.

Green moon & stars illuminated.

In holiday mode or off.

Green moon & stars flashing

In standby mode.

Red ring.

Flashes when heating up to temperature. On constant when boiling water ready. Off when in holiday, standby or boiling water disabled.

Blue ring.

On constantly to indicate filtered water.

Red & blue rings will flash yellow if the unit goes into fault.

Dispenser Icon codes

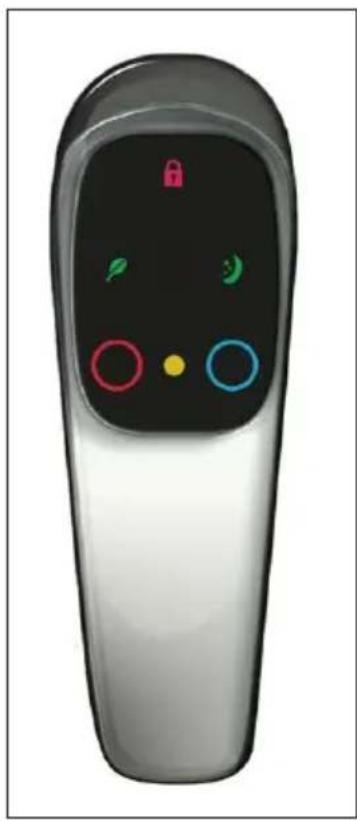

Dispenser Icon

Orange dot.

Flashes when filter change due. On constant when overdue.

Red lock illuminated.

Safety button activated. To use, press the indent on the top of the tap momentarily & press the boiling button (left).

Green leaf illuminated.

Eco intelligence.

Green moon & stars illuminated.

In holiday mode or off.

Green moon & stars flashing

In stand by mode.

Red ring.

Flashes when heating up to temperature. On constant when boiling water ready. Off when in holiday, standby or boiling water disabled.

Blue ring.

On constantly to indicate filtered water.

Red & blue rings will flash yellow if the unit goes into fault.

Dispenser Icon codes

Billi Filter Cartridges

The Bill Sahara is fitted with single dual action filter incorporating sediment and chemical removal elements. All Billi Sahara filters are manufactured using bacteria and biofilm resistant materials for improved water quality.

Premium filters provide better tasting water due to the high quality, carbon chemical removal filter. Sub micron rated, these filters have excellent chemical absorption, removing or reducing chlorine, volatile organic compounds (VOCs), chemicals, tastes and odours. Use only genuine filters as designed for this system. All drinking water filtration systems should be flushed after a period of non-use. If your Billi Sahara has not been used for a period of 48 hours or more, flush for one minute.

—Replacement of Billi Filter Cartridge

Periodic replacement of your Bill Sahara Filter Cartridge is necessary to maintain the cleanliness of your drinking water. Billi recommends a filter replacement every 6 months or sooner if necessary. Depending on mains water supply quality. A replacement filter change service is available. If you wish to install the replacement filter cartridges yourself, your Billi representative will provide genuine Billi replacement filter cartridge sets.

—Filter Change Due Monitor

The Sahara filter change due monitor operates by counting the number of cups dispensed and the number of days elapsed until a pre-set level is reached. Once reached, the dispenser icons will briefly change to orange once every five seconds. The Sahara will continue to operate while the filter indicator is flashing. Water filters installed in areas with higher levels of sediment will experience a reduced service life. It may be necessary to change filters before the change filter indicator flashes. If particularly dirty water is noticed coming through the water supply, e.g. from other tap ware, immediately place your Billi Sahara into Holiday Mode by pressing the Pressure Relief button. This will help prevent premature blocking of the filter cartridges.

Billi Filter Cartridges – Reduces & Removal

Filter Type

Order Part No.

Suits Micr.

Filters Sediment

Chlorine VOCs

Chemicals

Taste Odour

Fluoride Minerals

Expected Life

Prem.

994002

Billi Sahara

0.2 Single

√

√

√

√

√

Slight

6 - 12 months

Stand.

994001

Billi Sahara

5.0 Single

√

√

×

√

√

×

6 - 12 months

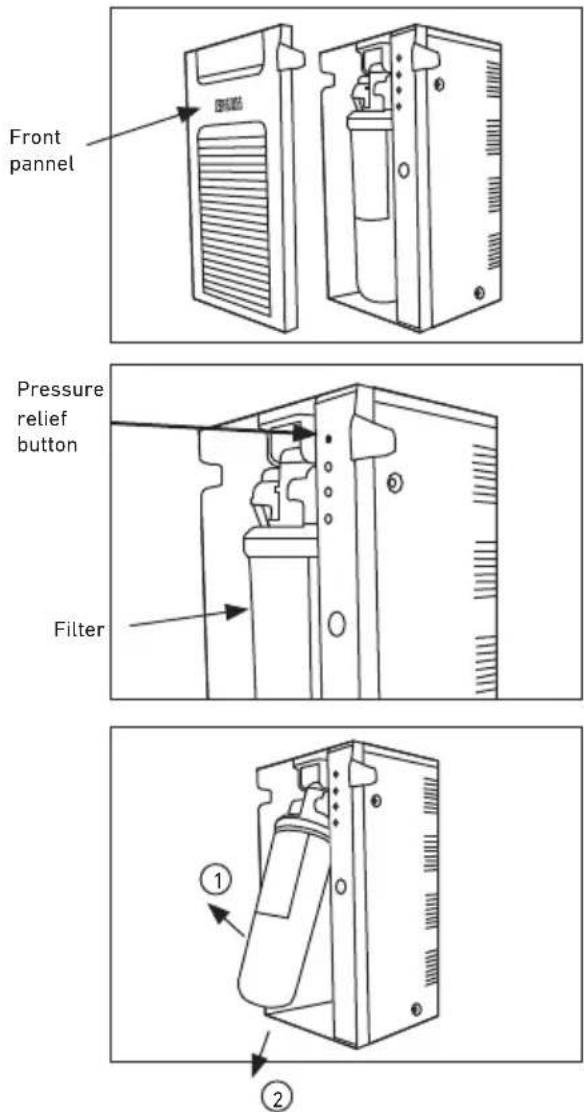

Filter removal and replacement instructions

Important note: Please ensure you remove the foam packing under the filter before installing.

1. Remove the front panel.
2. Place the unit in Holiday Mode by pressing the Pressure Relief button once. The lights on the dispenser will alternate and then go off.
3. Hold filter and swing towards you slowly. The top of the filter is in a hinged cradle assembly. It should stop after approximately 30 degrees of travel.
4. The filter can now be released from the holding cradle by pulling down on the filter.
5. Take care not to spill water in the base of the tray. If so wipe gently with absorbent paper.
6. Install new filter into the same location by pushing all the way up into the cradle.
7. Push filter back into the unit until it locks into place. Power light should come back on.
8. Flush ambient water for 1 minute. Wait for 10 minutes. Flush ambient for an additional 1 minute.
9. Check for any leaks from around the filter, hosing or pipeworks.
10. Replace the front cover.

Thank you for choosing to install a Billi Sahara Drinking Water Appliance. Your Sahara is manufactured to exacting standards using high quality materials and with proper maintenance and care, should function for many years.

For information on our filtration and service contract please contact Billi Head Office on 1800 812 321 or email us at [e-mail].

For technical support please call 1800 812 321 and speak to one of Billi's experienced technician's.

To book a service call out request a filter change or please contact the Billi Service Centre on 1800 812 321 or book online at www.billi.com.au/Service-Centre

Filter cartridges are also available for purchase online at www.billi.com.au/Buy-Filters.

Warranty

Subject to the warranty exclusions set out below, if a defect in a new product supplied by Billi Pty Ltd (ACN 124 066 717) ("Billi") and purchased by you ("customer") from a reseller authorised by Billi occurs within 24 months of the date of purchase of the product as a result of defective materials or defective manufacture by Billi, and Billi receives a written claim (containing details of the product defect together with a receipt from the reseller of the products showing the date of purchase of the products, or such other proof of purchase and the date of purchase as Billi may accept) within 25 months of the date of purchase, Billi shall, at its discretion:

a) direct an accredited service provider to attend the customer's premises (provided that the premises are located within Australia) and repair the defect free of charge; but if the customer's premises are located more than 25 kilometres from one of Billi's authorised service agent's locations then the customer will be liable for any increased freight costs, fees, charges or levies Billi may incur as a result of fulfilling its obligations under this paragraph a) of this Product Warranty; or b) direct the customer to return the product to Billi so that Billi may provide a replacement product free of charge. If Billi elects to do this, Billi will also pay the necessary freight charges, and the customer will pay for the removal of the product and the costs of reinstalling the replacement product.

Any product replaced or repaired under this Product Warranty will be covered by the product's remaining warranty period, or three months, whichever is greater. If the product or any part thereof is replaced by Billi under this Product Warranty, all of the right, title and interest in and to the replaced product or part shall vest in Billi upon it being replaced.

—Warranty exclusions

1. Billi shall not be liable under this Product Warranty:
   a) unless the product was installed correctly and as per the installation instructions supplied with the product;
   b) if the defect is contributed to or caused by any improper usage of the product or usage of the product for purposes other than that for which the product was designed or intended;
   c) if the defect occurs wholly or partially as a result of any act or omission by the customer, or any person other than Billi;
   d) if the product is subject to misuse, neglect, accident or abuse or the customer continues to use the product after the defect becomes apparent;
   e) if the product is damaged as a result of poor water quality;
   f) if the product is repaired, or any attempt to repair the product is made, by anyone other than an authorised repairer of the products acting at Billi's direction; or
   g) if the product is altered or modified in any way unless such modification has been approved in writing by Billi.
2. Notwithstanding anything to the contrary, filters are not covered by this (or any other) Product Warranty.

—Limitation of liability

1. Except for the Product Warranty set out above, and except for any liability in connection with the supply of goods imposed on Billi by the Trade Practices Act 1974 (Cth) and other similar state and territory legislation (including for breach of implied conditions and warranties) which cannot, or which can only to a limited extent, be lawfully excluded, all liability of, and conditions and warranties relating to the supply of the products by, Billi are hereby expressly excluded. Any such liability which cannot be lawfully excluded is limited, at Billi's option, to any one or more of the following:

a) the replacement of the goods or the supply of equivalent goods;
b) the repair of the goods;
c) the payment of the cost of replacing the goods or of acquiring equivalent goods; or
d) the payment of the cost of having the goods repaired.

Billi™

Billi Pty Ltd

42 Lucknow Crescent, Thomastown

Victoria 3074 Australia

Telephone [phone]

Facsimile [phone]

www.billi.com.au

Designed and manufactured in Australia.

As Billi Pty Ltd has a policy of continual improvement, all details are subject to change without notice. All goods are sold subject to our published terms and conditions. Billi is a registered trademark. 0514
