RB30N4180 - Freezer SAMSUNG - Free user manual and instructions

Product Type	Freestanding Refrigerator-Freezer
Model	RB30N4180
Brand	Samsung

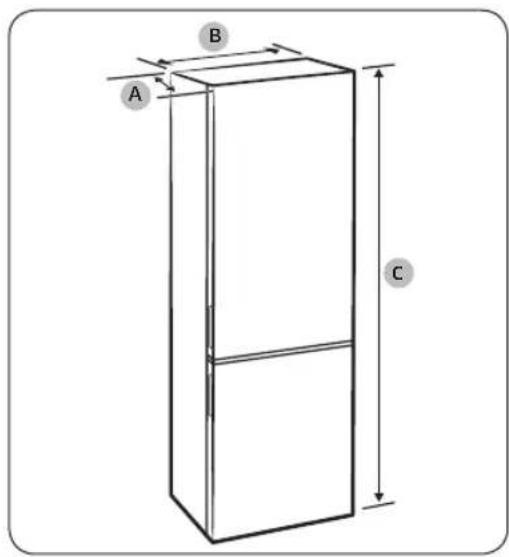

Overall Dimensions (WxDxH)	595 x 663 x 1700 mm
Net Weight	Approximately 65 kg (estimated)
Refrigerant	R-600a (isobutane), flammable
Energy Source	Electrical, 220-240 V, 50/60 Hz (check rating plate)
Climate Class	SN, N, ST, T (10 °C to 43 °C)
Freezer Capacity	Approx. 100 L (estimated, top drawer removable)
Fridge Capacity	Approx. 200 L (estimated)
Defrosting	Automatic (Frost Free)

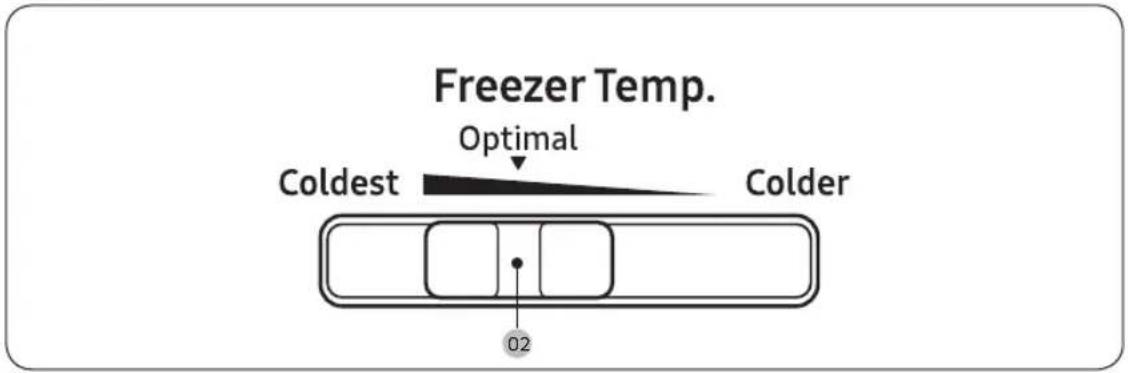

Temperature Control	Electronic panel with Fridge (1 °C – 7 °C) and Freezer slider (Coldest/Optimal/Colder)
Special Features	Power Cool, Optimal Fresh Zone (adjustable), Water Dispenser (select models), Movable Ice Maker / Tray Ice Maker (select models), Foldable Shelf, Deodorizer
Lighting	LED lamps (not user-serviceable)
Cleaning & Maintenance	Clean interior/exterior with mild detergent and soft cloth; replace deodorizer filter annually
Safety Features	Child lock (door bins, precautions), anti-pinch zones, grounding required, flammable refrigerant warnings

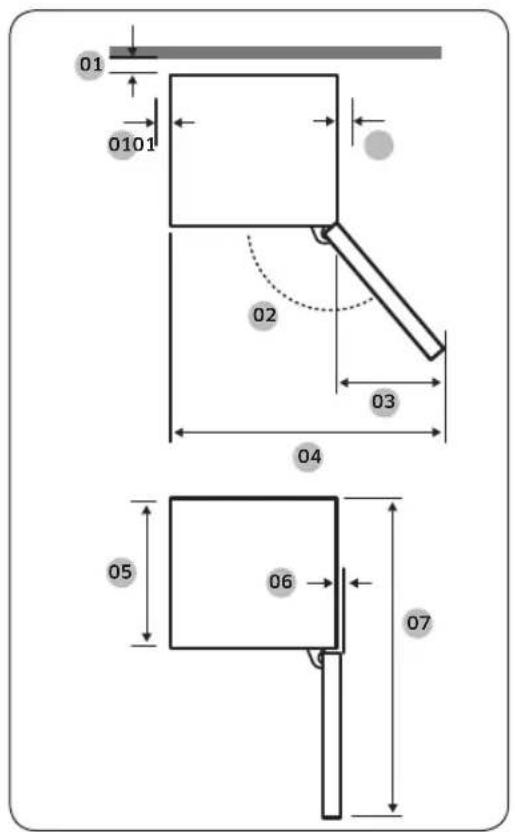

Installation Clearance	Right/left/back: >50 mm; top: >100 mm

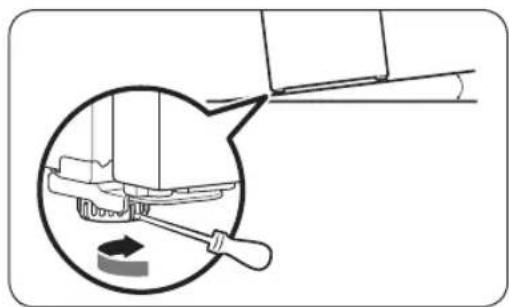

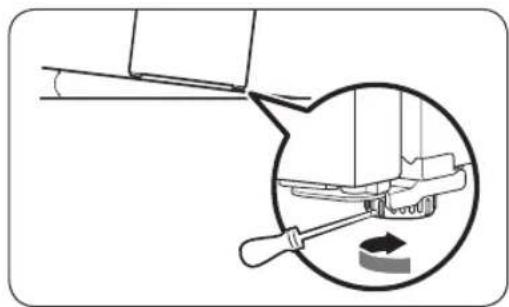

Leveling	Adjustable front legs with screwdriver
Accessories Included	Ice tray, water tank (select models), shelves, vegetable box
Warranty	Standard Samsung warranty (check local)

Frequently Asked Questions - RB30N4180 SAMSUNG

What should I do if the refrigerator does not cool?

Check that the power cord is properly plugged in and the temperature control is set correctly. Ensure the refrigerator is not near a heat source or in direct sunlight, and that there is adequate clearance (at least 50 mm on sides and rear). Also verify that the vents are not blocked by food.

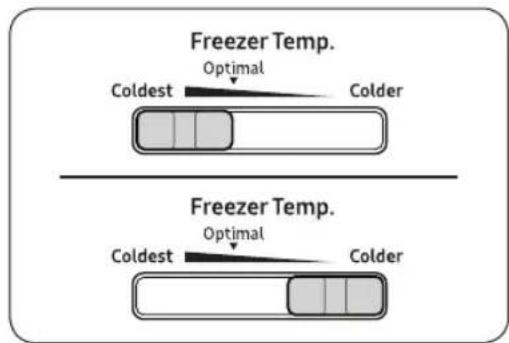

How do I adjust the temperature?

For the fridge, press the Fridge button repeatedly to cycle through temperatures from 1 °C to 7 °C (default 2 °C). For the freezer, slide the Freezer Temp. control between Coldest, Optimal, and Colder.

What is Power Cool and how do I use it?

Power Cool speeds up cooling for 2.5 hours at maximum fan speed. Press and hold the Fridge button for 3 seconds to activate; the indicator lights up. Press and hold again for 3 seconds to deactivate. Note that it increases energy consumption.

How does the Optimal Fresh Zone work?

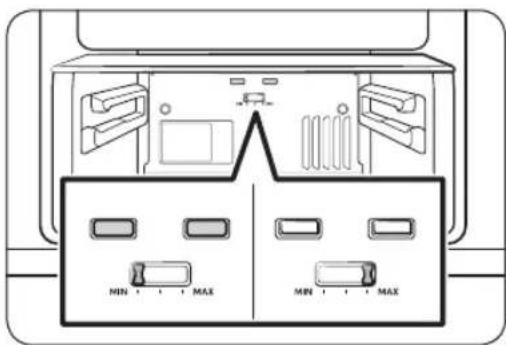

The Optimal Fresh Zone drawer has an inner dial to adjust temperature. For fruits/vegetables, set the dial to Min or Max depending on the fridge temperature. Refer to the table in the manual for food-specific settings.

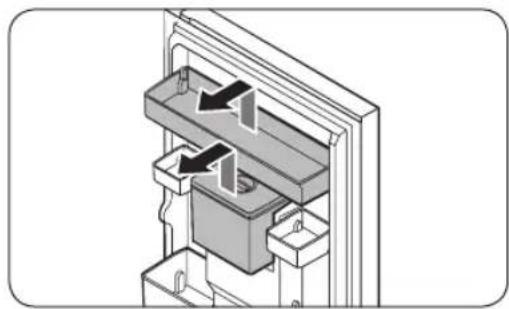

How do I use the water dispenser?

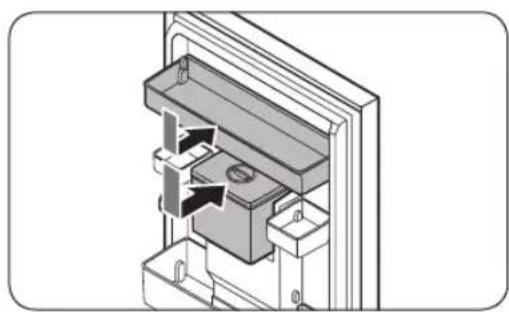

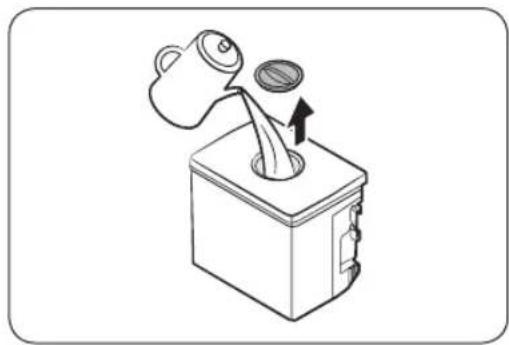

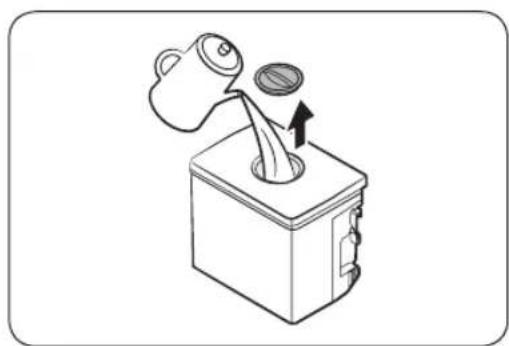

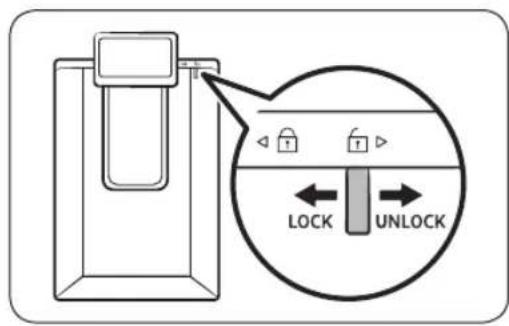

First, fill the water tank with potable water (up to 2 liters). To access the tank, remove the upper door bin, lift the tank by its grips, and fill through the top cap or cover. Reinsert the tank vertically, then place a glass under the dispenser and push the lever. Ensure the dispenser is unlocked.

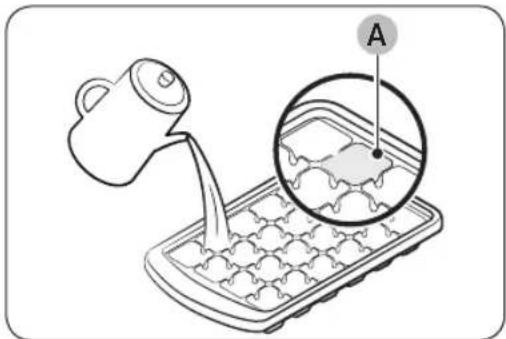

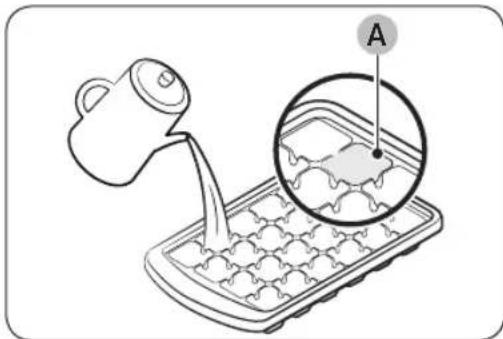

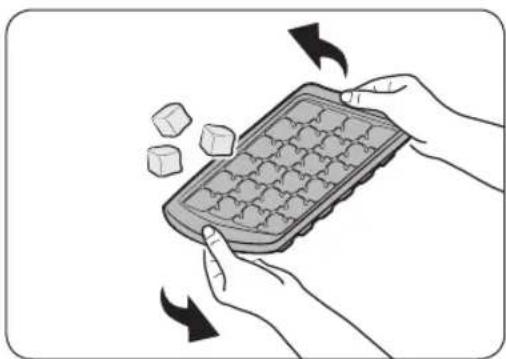

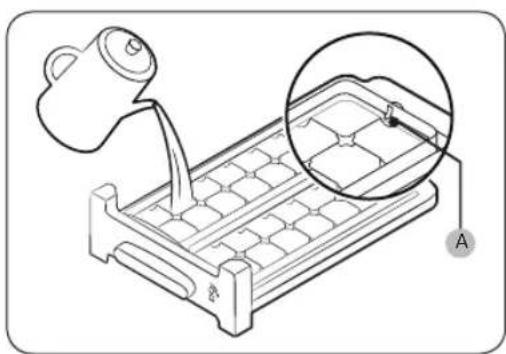

How do I make ice?

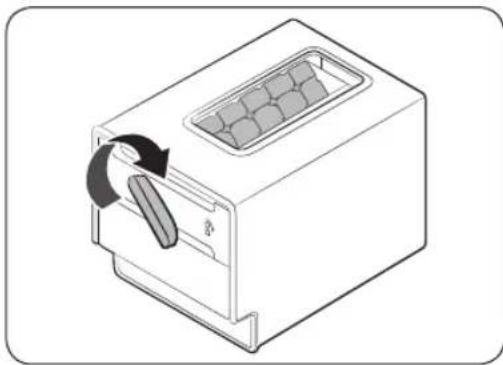

If you have a Movable Ice Maker, slide open the tray, fill with water to the MAX line, and close. Once frozen, turn the handle to release cubes into the storage bin. For the Tray Ice Maker or Ice Tray, fill to the MAX level and twist the tray to release cubes.

Why is there frost inside the refrigerator?

Frost around vents is usually caused by food blocking the airflow. Frost on interior walls may indicate the door is not closed properly or the gasket is dirty. Ensure no food obstructs the door and clean the gasket regularly.

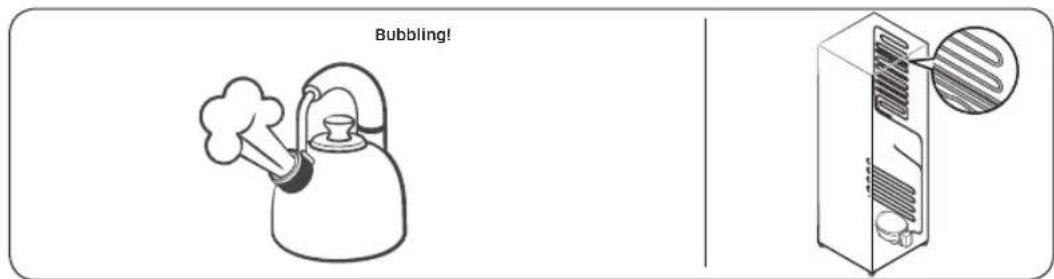

What should I do if the refrigerator makes unusual sounds?

Many sounds are normal: a humming when the compressor starts, bubbling from refrigerant, clicking during defrost, or plastic contraction/expansion. If the sounds are loud or persistent, check if the refrigerator is level and not touching walls. Contact service if abnormal.

How do I clean the refrigerator?

Unplug the appliance. Use a soft cloth with mild detergent and warm water to clean interior and exterior surfaces. Do not use abrasive cleaners, benzene, thinner, or spray water directly. Dry thoroughly before plugging back in.

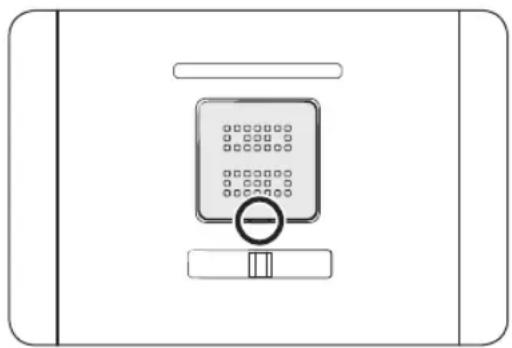

How often should I replace the deodorizer filter?

The recommended usage period is one year, but it may vary based on usage. You can purchase a replacement filter from a Samsung service center.

USER MANUAL RB30N4180 SAMSUNG

Free Standing Appliance

Contents

Safety information 3

Important safety symbols and precautions: 5

Severe warning signs for transportation and site 6

Critical installation warnings 6

Installation cautions 10

Critical usage warnings 11

Usage cautions 16

Cleaning cautions 18

Critical disposal warnings 20

Additional tips for proper usage 21

Saving Energy Tips 22

This appliance is intended to be used in household and similar applications such as 23

Instructions about the WEEE 23

Installation 24

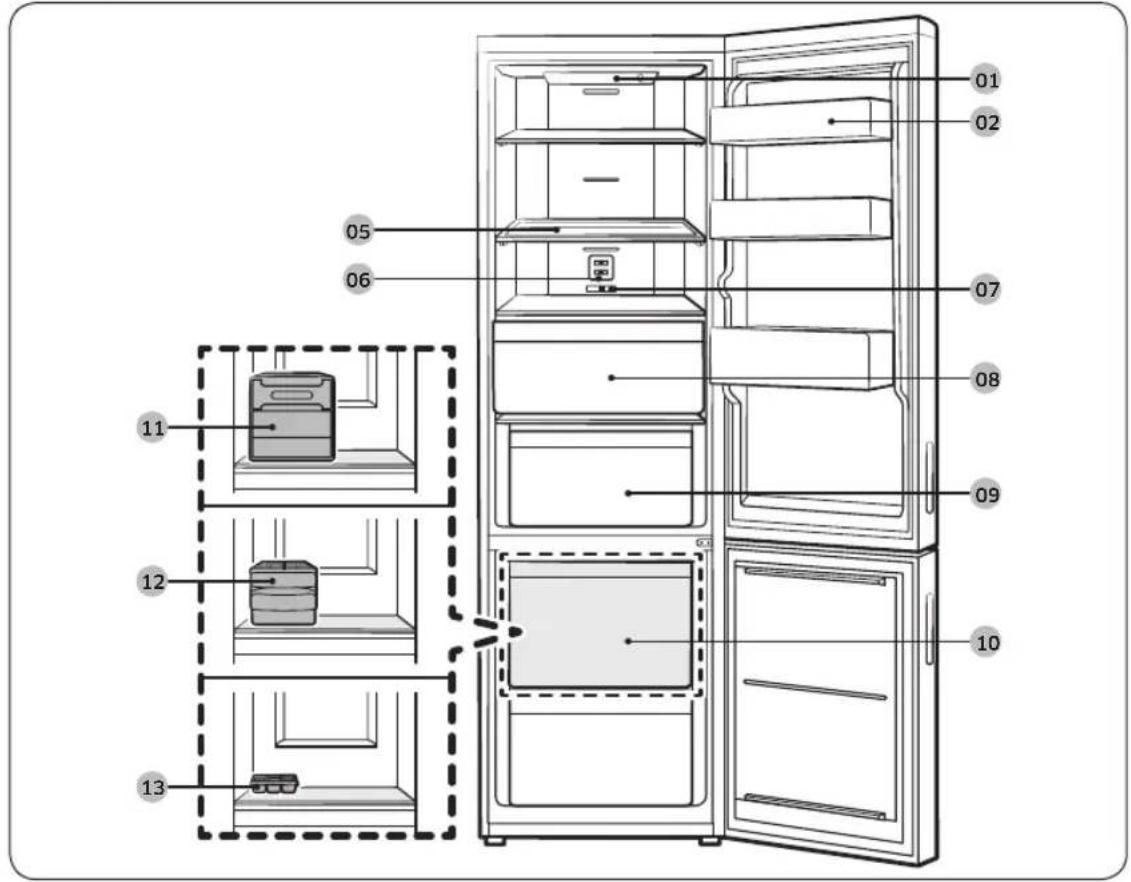

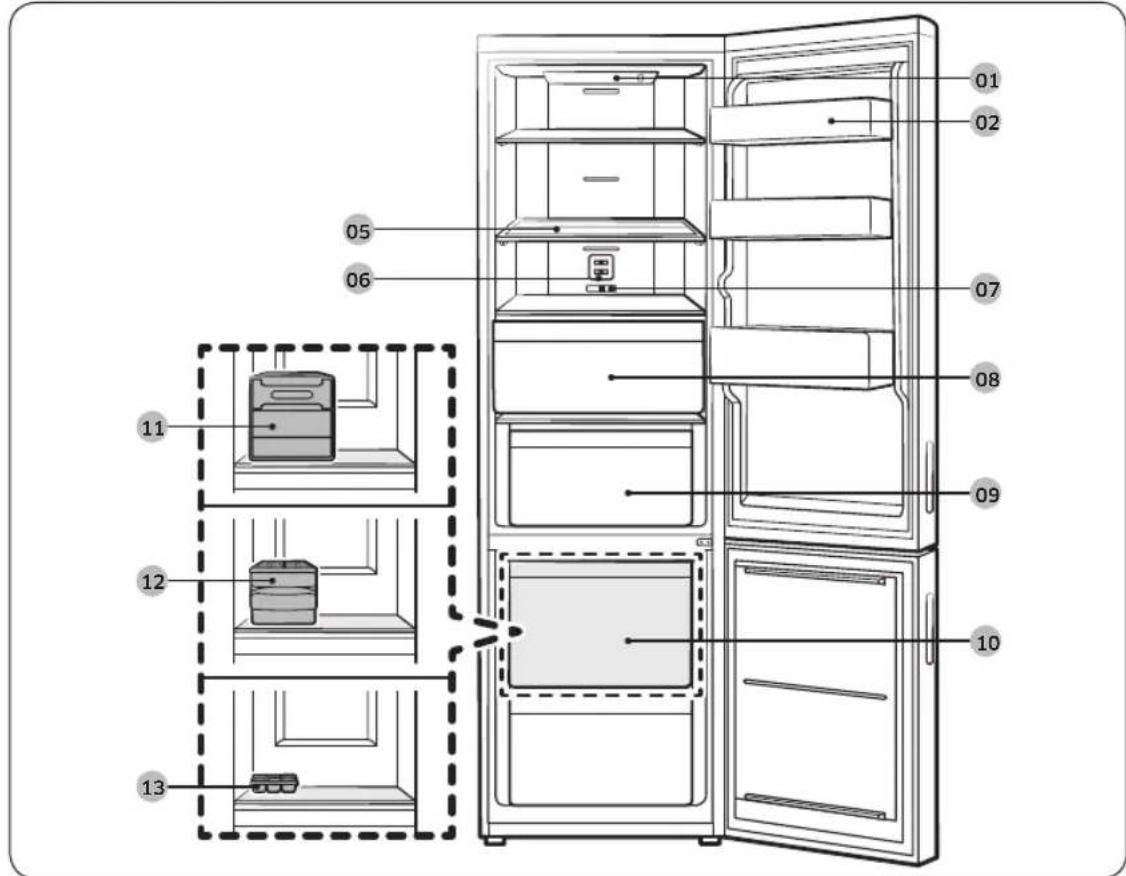

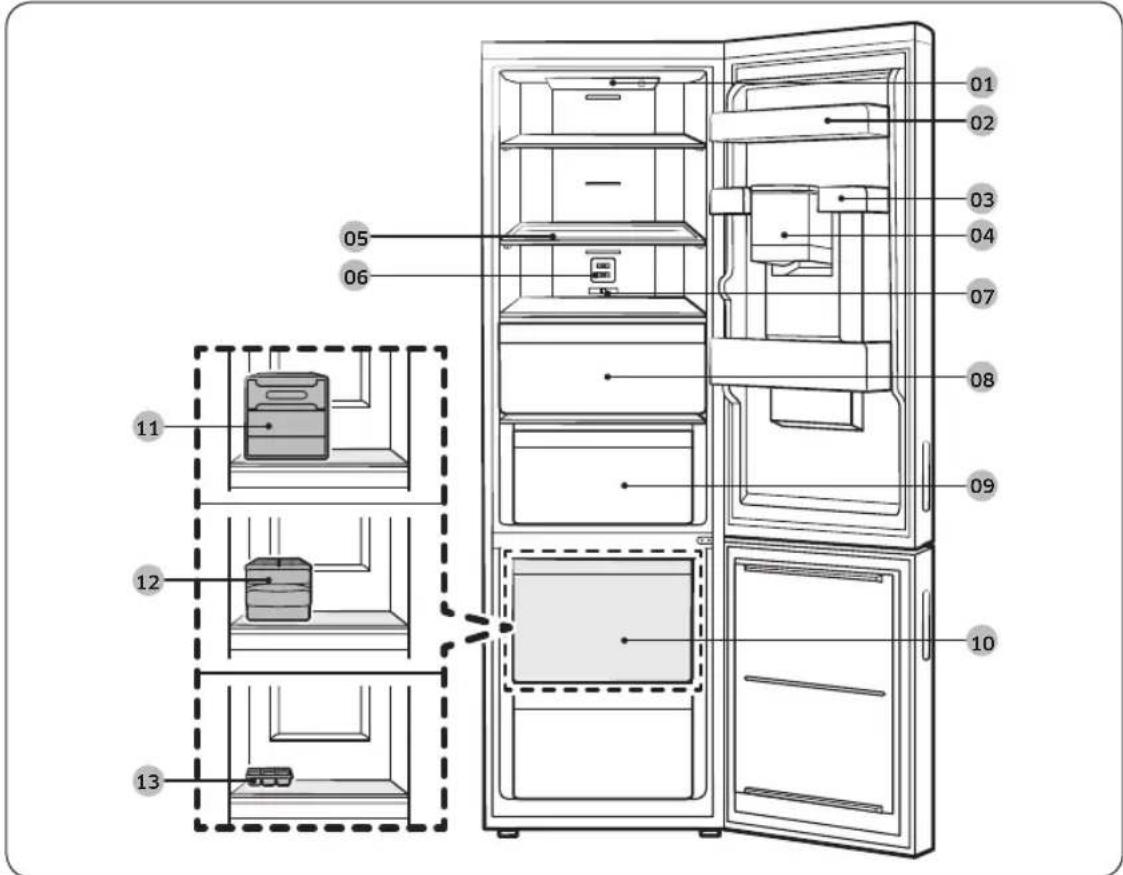

Refrigerator at a glance 24

Step-by-step installation 27

Operations 32

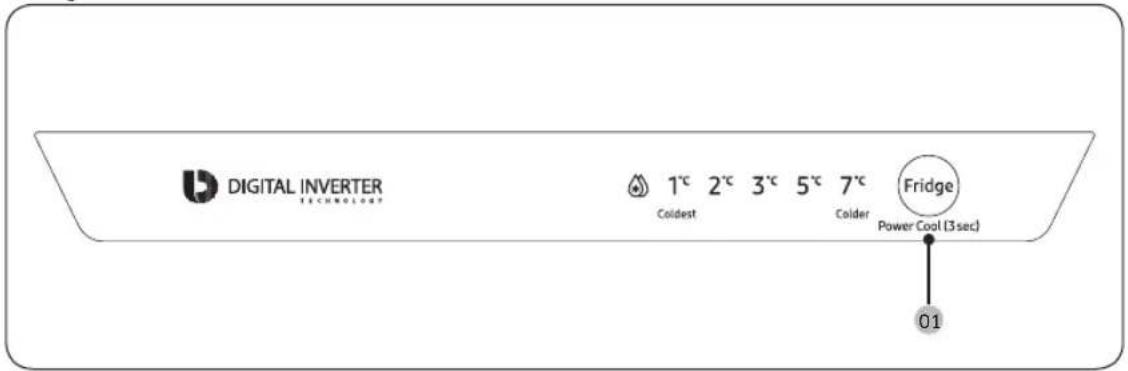

Feature panel 32

Special features 34

Maintenance 38

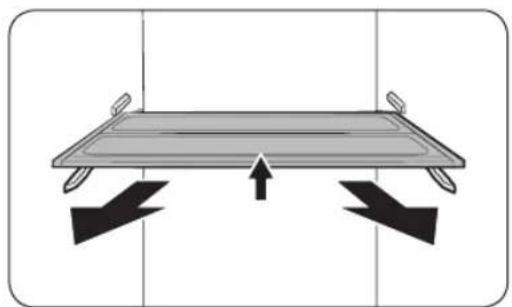

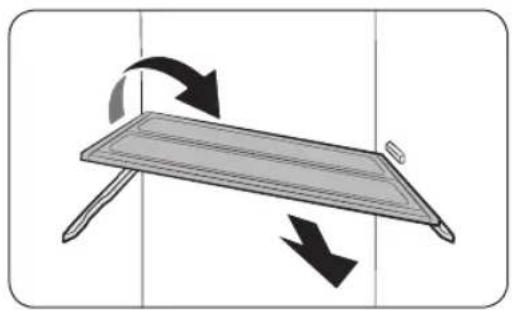

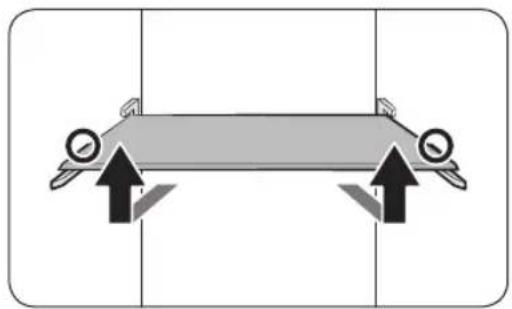

Handle and care 38

Cleaning 40

Replacement 40

Troubleshooting 41

General 41

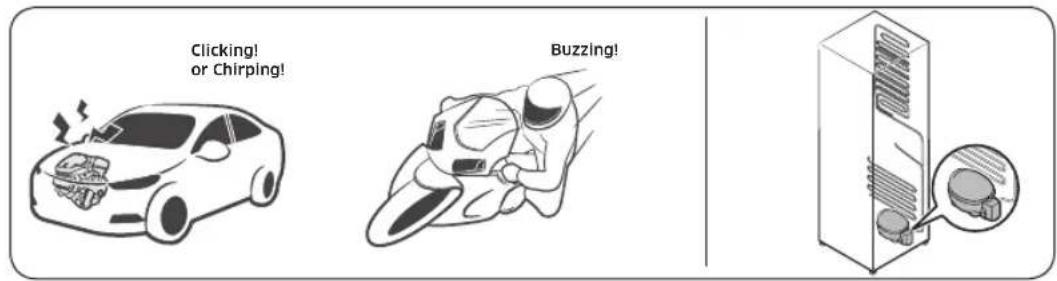

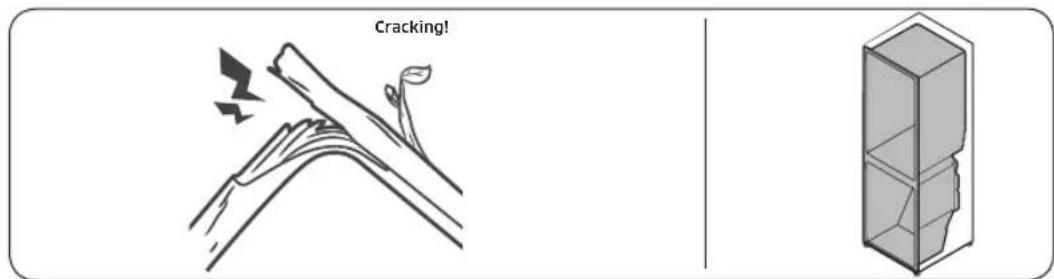

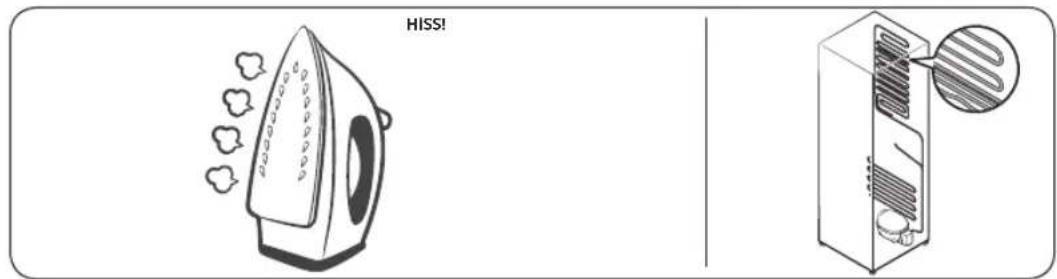

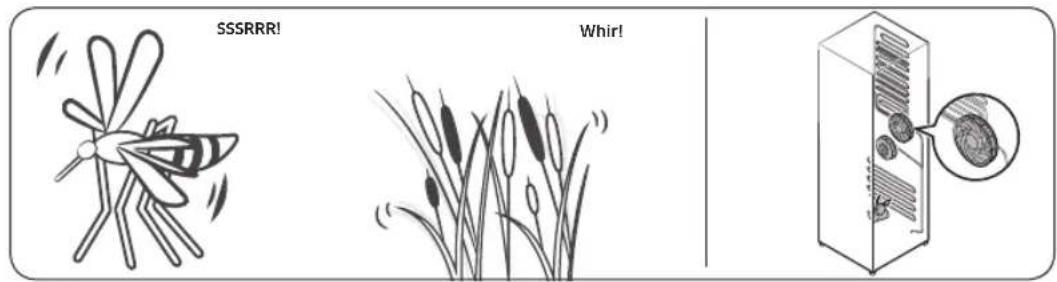

Do you hear abnormal sounds from the refrigerator? 43

English2

Safety information

• Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur.

It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.

Safety information

• Because these following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information online at www.samsung.com.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. The room must be 1 m³ in size for every 8 g of R-600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked flames and move anything flammable away from the product and ventilate the room immediately.
• Failing to do so may result in fire or explosion.
• It is hazardous for anyone other than an Authorised Service Person to service this appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning; Risk of fire / flammable materials

English4

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

Safety information

Severe warning signs for transportation and site

WARNING

- When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

- Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

- This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

Critical installation warnings

WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water.
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.

English6

- Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.

- This provides the best performance and also prevents overloading of house wiring circuits, which could cause a fire hazard from overheated wires.

- If the wall socket is loose, do not insert the power plug.

- There is a risk of electric shock of fire.

- Do not use a power cord that has cracks or abrasion damage along its length or at either end.

- Do not bend the power cord excessively or place heavy objects on it.

- Do not pull or excessively bend the power cord.

- Do not twist or tie the power cord.

- Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

- When moving the refrigerator, be careful not to roll over or damage the power cord.

- This may result in an electric shock or fire.

- Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

- Damage to the cord may cause a short-circuit, fire, and/or electric shock.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Safety information

• Do not install this appliance near a heater or inflammable material.
• Do not install this appliance in a location where gas may leak.
• This may result in an electric shock or fire.
• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
• If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.
• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.
• There is a risk of death from suffocation if a child puts the packing materials on his or her head.
• The appliance must be positioned so that the plug is accessible after installation.
• Failing to do so may result in an electric shock or fire due to electric leakage.
• Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops).
• Deteriorated insulation of electrical parts may cause an electric shock or fire.
• If any dust or water is in the refrigerator, pull out power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of fire.

English8

- Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

- This may result in an electric shock, fire, problems with the product, or injury.

- You need to remove all the protective plastic film before you initially plug the product in.

- Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.

- There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.

- The refrigerator must be safely grounded.

- Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

- Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.

- You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.

- This may result in an electric shock, fire, explosion, or problems with the product.

- Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.

- This may result in an electric shock or fire.

Safety information

• If the power cord is damaged, have it replaced immediately by the manufacturer or one of its service agents.
• The fuse on the refrigerator must be changed by a qualified technician or service company.

- Failing to do so may result in an electric shock or personal injury.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Installation cautions

CAUTION

- Allow sufficient space around the refrigerator and install it on a flat surface.

- Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.

• Allow the appliance to stand for 2 hours before loading foods after installation and turning on.
• We strongly recommend you have a qualified technician or service company install the refrigerator.

- Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.

• Overload on any one door may fell the refrigerator, causing physical injury.

English10

- The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.

Critical usage warnings

WARNING

- Do not insert the power plug into a wall socket with wet hands.

- This may result in an electric shock.

- Do not store articles on the top of the appliance.

- When you open or close the door, the articles may fall and cause personal injury and/or material damage.

- Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.

• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.

- Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.

- This may cause frostbite.

- Do not put a container filled with water on the refrigerator.

- If spilled, there is a risk of fire or electric shock.

- Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.

• This refrigerator is for storing food only.
• This may result in fire or explosion.

English 11

Safety information

• Children should be supervised to ensure that they do not play with the appliance.
• Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.
• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the bottom area under the appliance.
• Any sharp edges may cause personal injury.

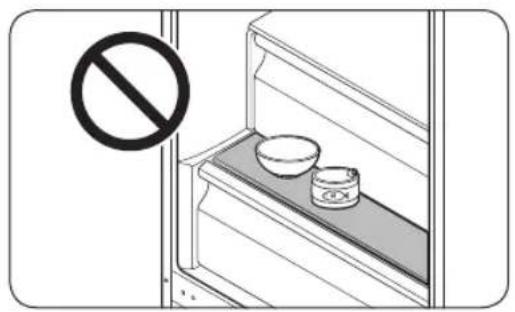

• Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.
• Products that require strict temperature controls must not be stored in the refrigerator.
• Do not place or use electrical appliance inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.
• If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung Electronics service center.
• If any dust or water is in Refrigerator, pull out power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of fire.
• Do not let children step on a drawer.
• The drawer may break and cause them to slip.

English12

- Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter inside the refrigerator.

- Do not allow babies or children go inside the drawer. - It can cause death from suffocation by entrapment or personal injury.

- Do not overfill the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage.

- Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.

- Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside of the refrigerator.

- Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator for removing bad odours.

- This may result in an electric shock or fire.

- Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the product, or injury. Do not put a container filled with water on the appliance.

- If spilled, there is a risk of fire or electric shock.

Safety information

• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Never stare directly at the UV LED lamp for long periods of time.
• This may result in eye strain due to the ultraviolet rays.
• Do not put fridge shelf in upside down. Shelf stopper could not work.
• It may cause a personal injury because of glass shelf drop.
• Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.
• If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.
• Do not touch the appliance or power cord.
• Do not use a ventilating fan.
• A spark may result in explosion or fire.
• Do not touch the appliance or power cord.
• Do not use a ventilating fan.
• A spark may result in explosion or fire.
• Use only the LED Lamps provided by the manufacturer or its service agents.
• Bottles should be stored tightly together so that they do not fall out.
• This product is intended only for the storage of food in a domestic environment.

English14

• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
• Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest service center.
• Failing to do so may result in an electric shock, fire, problems with the product, or injury.
• If the interior or exterior LED lamp has gone out, contact your nearest service center.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact your Samsung Electronics service center.
• Failing to do so may result in an electric or fire hazards.
• Pull the power plug out of the socket before changing the interior lamps of the refrigerator.
• Otherwise, there is a risk of electric shock.
• If you experience difficulty changing a non-LED light, contact a Samsung service center.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.
• Contact a Samsung service center.
• Plug the power plug into the wall socket firmly.
• Do not use a damaged power plug, damaged power cord or loose wall socket.
• This may result in an electric shock or fire.

Safety information

Usage cautions

CAUTION

- Do not re-freeze frozen foods that have thawed completely. Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer.

- When the contents freeze, the glass may break and cause personal injury.

• To get the best performance from the product:

• Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.
• Wrap food up properly or place it in airtight containers before putting it into the refrigerator.
• Do not place glass bottles or carbonated beverages into the freezer. They can freeze and break. Broken beverage containers can cause injury.
• Please observe maximum storage times and expiration dates of frozen goods.

- Do not place glass or bottles or carbonated beverages into the freezer.

- The container may freeze and break, and this may result in injury.

- Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer.

- When the contents freeze, the glass may break and cause personal injury and property damage.

English16

• Service Warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the refrigerator.

- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled.

- Wipe excess moisture from the inside and leave the doors open.

- Otherwise, odor and mold may develop.

- If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.

- When the refrigerator got wet by water, pull out the power plug and contact your Samsung Electronics service center.

- Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

- Be careful that your fingers are not caught in.

- If the refrigerator is flooded, make sure to contact your nearest service center.

- There is a risk of electric shock or fire.

Safety information

- Do not keep vegetable oil in your refrigerator's door bins. The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry.

- Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.

Cleaning cautions

CAUTION

• Do not spray water directly on the inside or outside the refrigerator.
• There is a risk of fire or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
• This may result in an electric shock or fire.
• Do not spray cleaning products directly on the display.
• Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service center.
• Failing to do so may result in an electric shock or fire.

English18

- Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.

- Otherwise, there is a risk of fire or electric shock.

- Do not clean the appliance by spraying water directly onto it.

- Do not use benzene, thinner, or Clorox, Chloride for cleaning.

- They may damage the surface of the appliance and may cause a fire.

- Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failing to do so may result in an electric shock or fire.

- Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.

- Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets.

- These can scratch or damage the material.

- Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping.

Safety information

Critical disposal warnings

WARNING

• Please dispose of the packaging material from this product in an environmentally friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. If this refrigerator contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. If trapped inside, a child may get hurt or suffocate to death.

- If trapped inside, the child may become injury and suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over his or her head, the child could suffocate.

English20-

Additional tips for proper usage

• In the event of a power failure, call the local office of your electric company and ask how long the failure is going to last.
• Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.
• Should the power failure last more than 24 hours, remove and discard all frozen food.
• The refrigerator might not operate consistently (frozen contents can thaw or temperatures can become too warm in the frozen food compartment) if sited for an extended period of time in a location where ambient air temperatures are constantly below the temperatures for which the appliance is designed.
• In case of particular foods, keeping it under refrigeration can have a bad effect on preservation due to its properties.
• Your appliance is frost free, which means there is no need to manually defrost your appliance. This will be carried out automatically.
• Temperature rise during defrosting complies with ISO requirements. If you want to prevent an undue rise in the temperature of frozen food while the appliance defrosts, wrap the frozen food in several layers of newspaper.
• Do not re-freeze frozen foods that have thawed completely.

Safety information

Saving Energy Tips

• Install the appliance in a cool, dry room with adequate ventilation. Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (a radiator, for example).
• Not to block any vents and grilles is recommended for energy efficiency.
• Allow warm food to cool down before placing it in the appliance.
• Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator.
• Do not keep the door of the refrigerator open for too long when putting food in or taking food out. The shorter the time the door is open, the less frost build-up you'll have in the freezer.
• It is recommended to install the refrigerator with clearance to the back and sides. This will help reduce power consumption and keep your energy bills lower. We recommend the value of clearance to be :
• Right, left, and back side: more than 50 mm
• Top side: more than 100 mm
• For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves on the position supplied by manufacturer.

English22

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

Instructions about the WEEE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Installation

Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it.

WARNING

• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualified technician.
• Dispose of the product packaging material in compliance with the local regulations.
  • To prevent electric shock, unplug the power cord before servicing or replacements.

Refrigerator at a glance

The actual image and provided component parts of the refrigerator may differ, depending on the model and the country.

Dispenser (Water tank) models

English24

Normal models

01 Fridge feature panel 02 Fridge door bin *

03 Multipurpose bin ** 04 Water tank **

05 Foldable shelf * 06 Deodorizer

07 Freezer feature panel 08 Vegetable box *

09 Optimal Fresh Zone * 10 Freezer drawer *

11 Movable ice maker * 12 Tray ice maker *

13 Ice tray *

* Applicable models only ** Dispenser models only

English 25

Installation

NOTE

• To quickly freeze large quantities of food, use the bottom drawer.
• For best energy efficiency, make sure all of shelves, drawers, and baskets are placed in their original position.

To secure more storage space (applicable models only)

To get more space, you can remove the top drawer of freezer compartment since it does not affect thermal and mechanical characteristics. A declared storage volume of frozen food storage compartment is calculated with the top drawer removed.

English26

Step-by-step installation

STEP 1 Select a site

Site requirements:

• Solid, level surface without carpeting or flooring that may obstruct ventilation
- Away from direct sunlight
- Adequate room for opening and closing the door
- Away from a heat source
• Room for maintenance and servicing
• Temperature range: between 10 °C and 43 °C

Effective temperature range

The refrigerator is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient Temperature range (°C)
		IEC 62552 (ISO 15502) ISO 8561
Extended Temperate SN	+10 to +32	+10 to +32
Temperate N +16	to +32 +16	to +32
Subtropical ST +16	to +38 +18	to +38
Tropical T +16 to	+43 +18 to	+43

NOTE

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

English 27

Installation

Clearance

See the pictures and table below for space requirements for installation.

Model RB30N* RB27N*
Depth "A" 663 663
Width "B" 595 595
Overall Height "C" 1700 1580

(unit : mm)

English28-

01 more than 50 mm recommended
02 115
03 295
04 839
05 575
06 9
07 1210

(unit : mm)

NOTE

The measurements in the above table may differ, depending on the measuring method.

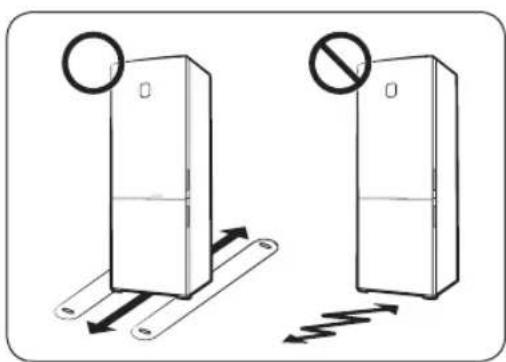

STEP 2 Flooring

Diagram showing two refrigerators with directional arrows indicating movement, one marked with a circle and the other with a prohibition sign (no text or symbols present)

• The surface to install the refrigerator must support a fully loaded refrigerator.
• To protect the floor, put a large piece of cardboard on each foot of the refrigerator.
• Once the refrigerator is in its final position, do not move it unless necessary to protect the floor. If you have to, use a thick paper or cloth such as old carpet along the movement path.

Installation

STEP 3 Adjust the levelling legs

CAUTION

• The refrigerator must be levelled on a flat, solid floor. Failing to do so can cause damage to the refrigerator or physical injury.
• Levelling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator.
• For safety reasons, adjust the front side a little higher than the rear side.

The refrigerator can be levelled using the front legs that have a special screw (leveller) for levelling purposes. Use a flat-head screwdriver for levelling.

Diagram showing a mechanical device with a lever and rotating component, no text or symbols present

To adjust the height of the left side:

Insert a flat-head screwdriver into the leveller of the front left leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower.

Diagram showing a mechanical device with a circular inset view of its internal components (no text or symbols)

To adjust the height of the right side:

Insert a flat-head screwdriver into the leveller of the front right leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower.

English30-

STEP 4 Initial settings

By completing the following steps, the refrigerator should be fully functioning.

1. Remove the PE foam sheet on each shelf corner, which is attached to protect the refrigerator during transportation.
2. Plug the power cord into the wall socket to turn the refrigerator on.
3. Open the door, and check if the interior light lights up.
4. Set the temperature to the coldest, and wait for about an hour. Then, the freezer will be slightly chilled, and the motor will run smoothly.
5. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready for use.

STEP 5 Final check

When installation is complete, confirm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a flat, level surface with a reasonable clearance from the wall or the cabinet.
• The refrigerator is level and is sitting firmly on the floor.
• The door opens and closes freely, and the interior light turns on automatically when you open the door.

Operations

Feature panel

Fridge

Freezer

01 Fridge / Power Cool 02 Freezer Temp.
(Coldest / Optimal / Colder)

English32-

01 Fridge / Power Cool (3 sec)

Fridge

To adjust the fridge temperature, pressFridgeto select the corresponding temperature.You can change the temperature between 1 °C and 7 °C (default: 2 °C).

Power Cool

Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature.To activate Power Cool, press and holdFridgefor 3 seconds. The corresponding indicator ( lights up, and the refrigerator will speed up the cooling process for you.To deactivate Power Cool, press and holdFridgeagain for 3 seconds. The fridge returns to the previous temperature setting.NOTEUsing Power Cool increases power consumption. Make sure you turn it off and return to the previous temperature if you don't intend to use it.

02 Freezer Temp. (Coldest / Optimal / Colder)

• To decrease the freezer temperature, slide the Freezer Temp. to Coldest.
• To increase the freezer temperature, slide the Freezer Temp. to Colder.
- In winter, slide the Freezer Temp. to Coldest.
• To make ice in summer (above 35^ C), set the freezer temperature to Optimal.

CAUTION

• To prevent system failure or food spoiling, do not set the temperature to Coldest in summer (above 35 °C).
• Do not store glass bottles containing liquid in the freezer. Glass bottles will crack or break into pieces when the liquid freezes.

Operations

Special features

The actual image and special functions of your refrigerator may differ, depending on the model and the country.

Water dispenser (applicable models only)

With the water dispenser, you can dispense water without opening the fridge door. The water tank must be filled with potable water before use.

To fill the water tank with potable water

Open the door and locate the water tank that is surrounded by the door bins.

Cross-sectional diagram of a mechanical or electronic component with internal channels and arrows indicating flow or movement (no text or symbols)

1. Hold the handgrips on both sides of the water tank and lift up to remove.

NOTE

Remove the upper door bin first before removing the water tank.

Line drawing of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

1. Fill the water tank with potable water up to 2 liters. You can remove either the top cap or the cover and pour water.

NOTE

• For first-time use, clean inside the water tank.
• Clean the water tank with neutral detergent and running water. Rinse well.

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

1. Reinsert the water tank first then the upper door bin. Put the water tank on the door wall and lower vertically to fit into position. Do not slant the water tank.

English34

1. Put a water glass under the water outlet of the dispenser, and gently push the dispenser lever to dispense water. Make sure the water dispenser is unlocked.

CAUTION

• The water dispenser is designed to dispense potable water. Fill the water tank only with potable water. Do not fill with any other liquids.
• Do not fill the water tank excessively, which causes an overflow.
  • Make sure that water tank is seated properly.
• Do not use the refrigerator without the water tank. This may reduce performance and efficiency.
  • To prevent water bouncing, make sure the glass is in line with the dispenser lever.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an abnormal smell or taste. This is not a system failure. Discard the first 1-2 glasses of water.

Ice making (applicable models only)

Movable ice maker

Diagram of a container being inserted into a tank, with an inset showing a magnified view of the internal structure (no text or symbols)

1. Take out the Movable ice maker from the freezer, and slide open the ice tray.
2. Fill the tray with water up to the maximum level (A) marked on the inner rear of the tray.
3. Slide the tray back into position.

NOTE

The ice making time depends on your temperature settings.

Operations

Line drawing of a microwave oven with a handle and internal compartments (no text or symbols)

NOTE

• Make sure the ice cube storage bin is in place under the ice tray.
- To dispense the ice cubes, turn the handle of the bin to the right to empty half of the ice cubes into the bin. Then, turn it to the left to empty the other half.
• Take out the bin by slightly lifting and pulling to the front.

Tray ice maker / Ice tray

The ice tray may differ depending on the model.

To make ice cubes:

• Tray ice maker: Fill the tray with water up to the maximum level (A) as shown in the illustration.
• Ice tray: Fill the tray with water up to the maximum level marked on the inner rear of the tray.

Illustration of hands holding a tray with ice cubes, showing cooling effect (no text or symbols)

To empty the ice tray, hold both ends of the tray and gently twist to remove the ice cubes.

English36

Optimal Fresh Zone (applicable models only)

To change the temperature of the Optimal Fresh Zone, remove the drawer and use the inner dial.

CAUTION

The temperature of Optimal Fresh Zone changes according to the temperature setting of the fridge. When storing food in the Optimal Fresh Zone, you must set the fridge temperature for food to store in the Optimal Fresh Zone. Otherwise, the food may spoil or freeze. For the fridge settings, see the table below.

Fridge temperature	Position of inner dial	Food
1 °C	Min Vegetable/fruit, dairy food
	Max Meat/fish: Soft-Freeze (Easy to cut)
2 °C	Min	White wine, butter, party dish Fruit: orange, lychee, pomegranate
	Max Meat/fish (stored freshly without being frozen)
7 °C	Min Potatoes, eggplants, pumpkins, sweet potatoes
	Max	White wine, butter, party dish Fruit: orange, lychee, pomegranate

Maintenance

Handle and care

Shelves

Diagram of a vehicle under load with two wheels and an upward arrow indicating motion (no text or symbols)

1. Slightly lift up the rear side of the shelf to pull out.

Foldable shelf (applicable models only)

Diagram of a table with two downward arrows indicating opposing forces or movement (no text or symbols)

1. Slightly lift up the front side of the shelf to pull out.

Diagram of a table with arrows indicating rotation and movement (no text or symbols)

1. Twist the shelf diagonally to remove.

English38-

CAUTION

• Do not put food or objects in front of the Vegetable box. The door will not close properly.
• The shelf must be inserted correctly. Do not insert upside down.
• When reinserting the shelf, make sure to push in the shelf to the end until it fits.
• Glass containers may scratch the surface of glass shelves.

Maintenance

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.

Replacement

Deodorizer filter

Simple line drawing of a refrigerator with a door and seat (no text or symbols)

• Put the flat-head driver in the groove on the bottom of the deodorizer filter cover, and pry up. Replace the filter, and then put the filter cover back.
• The recommended usage period of the deodorizer filter is one year, and the period may vary depending on your usage. You can purchase the deodorizer filter separately from the service center.

LED Lamps

To replace the lamps of the refrigerator, contact a local Samsung service centre.

WARNING

The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock.

English40

Troubleshooting

Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users.

General

Temperature

Symptom Possible causes Solution
Fridge/freezer does not operate.Fridge/freezer temperature is warm.	Power cord is not plugged in properly.Temperature control is not set correctly.Refrigerator is located near a heat source or direct sunlight.Not enough clearance between refrigerator and sides/rear.The refrigerator is overloaded. Food is blocking the refrigerator vents.	Properly plug in the power cord.Set the temperature lower.Keep the refrigerator away from direct sunlight or a heat source.We recommend that the gap between the refrigerator and nearby walls (or cabinets) is more than 50 mm.Do not overload the refrigerator. Do not allow food to block ventilation.
Fridge/freezer is over-cooling.	Temperature control is not set correctly.	Set the temperature higher.
Exterior wall is hot.	Refrigerator has hot pipe in the exterior wall.	To prevent condensation, the refrigerator has hot pipe in the front and side walls. If the ambient temperature rises, this equipment may produce more heat. This is not a system failure.

Troubleshooting

Odors

Symptom Possible causes Solution
Refrigerator has odors.	• Spoiled food.	• Clean the refrigerator and remove any spoiled food.
	• Food with strong odors.	• Make sure strong smelling food is wrapped airtight.

Frost

Symptom Possible causes Solution
Frost around the vents.	·Food is blocking the vents.	·Make sure no food blocks the refrigerator vents.
Frost on interior walls.	·Door is not closed properly.	·Make sure food does not block the door. Clean the door gasket.
Fruits or vegetables are frozen.	·Fruits or vegetables are stored in the Optimal Fresh Zone.	·Store fruits or vegetables in the vegetable box, or adjust the inner dial of the Optimal Fresh Zone (MAX to MIN).·For more information about Optimal Fresh Zone, see page 37.
Food in the fridge are frozen.	·The temperature of the fridge is too low.	·Adjust the temperature.
	·Food with high moisture content (such as fruit and vegetable) contact with cold air directly.	·Do not store food with high moisture content at the back of the fridge.

Condensation

Symptom Possible causes Solution
Condensation forms on the interior walls.	·If door is left open, moisture enters the refrigerator.	·Remove the moisture and do not open the door for a long time.
	·Food with high moisture content.	·Make sure food is wrapped airtight.

English42

Do you hear abnormal sounds from the refrigerator?

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

These sounds are normal.

- When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease.

- While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur.

- During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

English 43

Troubleshooting

- As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds.

- As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

• For ice maker models: When the water valve opens to fill the ice maker, buzzing sounds may occur.
• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur.

English44

異丁烷

iso-butane

R600a

Maintenance work must only be carried out at workshop by well-trained maintenance worker.

• The refrigeration system behind and inside the refrigerator contains refrigerant.
• Do not allow any sharp objects to come into contact with the refrigeration system.
• Do not use other electric appliances inside the refrigerator.
• Children should be supervised to ensure that the refrigerator should be used properly.
• Do not use the mechanical devices or other means to accelerate the defrosting process, unless they are of the type recommended by the manufacturer.
• Do not block the openings on the circumstances of the refrigerator.
• In case of having damaged the refrigerant circuit, do not use electric items or fire equipment nearby, and open all windows to provide good ventilation. Please also contact your local maintenance agent to follow up.

Memo

Memo

SAMSUNG

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Contact Center Web Site
HONG KONG 3698 4698	www.samsung.com/hk/support (Chinese)www.samsung.com/hk_en/support (English)
MACAU 0800 333	www.samsung.com/hk/support (Chinese)www.samsung.com/hk_en/support (English)

DA68-03799J-00

冰箱

使用者手册

RB30N*/RB27N*

獨立式電器

SAMSUNG

目錄

安全資訊 3

重要的安全符號與注意事項：4

有關運輸和選址的嚴重警告標誌 5

重要的安裝警告 5

安裝注意事項 8

重要的使用警告 8

使用警示 12

清潔警示 13

重要的處置警告 14

其他正確使用貼士 15

節能提醒 16

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

正確處理本產品（廢棄電器與電子設備）

(適用於使用垃圾分類系統的國家或地區)

繁體中文18

一般型號

Diagram showing two refrigerators with directional arrows indicating movement, one with a circular head and the other with a prohibition sign (no text or symbols on the devices themselves)

Diagram showing a mechanical component being inserted into a circular inset, with no visible text or symbols.

若要調整左側高度：

Diagram showing a mechanical device with a lever and a magnified inset highlighting a component (no text or symbols present)

若要調整右側高度：

01 Fridge（冷藏室）/ Power Cool（快速冷藏）
02 Freezer Temp. (冷凍室溫度) (Coldest (強冷) / Optimal (通常) / Colder (弱冷))

繁體中文26

01 冷藏室 / 快速冷藏 (3 秒)

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

1. 握住水箱兩側的把手，往上提後取出。

注意

先移開上門擱架，再取出水箱。

Line drawing of a mechanical device with a bucket and lever, showing motion direction (no text or symbols)

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

Diagram of a container being poured into a rack with a magnified inset showing internal structure (no text or symbols)

Diagram of a device with a handle and internal compartments, showing a circular arrow indicating rotation (no text or symbols present)

冰塊盒製冰機 / 冰塊盒

冰塊盒會因型號的不同而異。

Illustration of hands holding a tray with ice cubes, showing cooling effect (no text or symbols)

注意

Diagram of a vehicle under load with two wheels and an upward arrow indicating motion (no text or symbols)

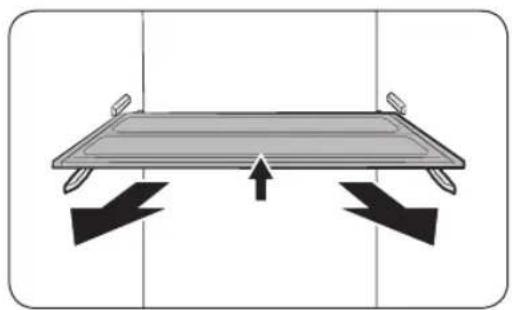

1. 將層板後端輕輕上提並拉出。

折疊式層板（僅限適用型號）

Diagram of a table with two arrows indicating downward motion, no text or symbols present

1. 將層板前端輕輕上提並拉出。

Diagram of a folding tray with arrows indicating rotation and movement (no text or symbols)

1. 對角地扭轉層板以取出。

繁體中文32

維修

Interior view of a refrigerator with a no-smoking symbol above the tray (no text or labels)

警示

Simple line drawing of a door lock with control panel and handle (no text or symbols)
