Product Type	Oven
Model	BMO4137
Brand	Becken
Power Supply	230 V, 50/60 Hz
Power Consumption	1380 W
Temperature Range	Up to 220°C
Timer Range	0–60 minutes (with auto shut-off and bell)
Heating Options	Upper heating, Lower heating, Upper and Lower heating
Interior Capacity	Not specified, but includes 3 rack positions
Accessories Included	Bake tray, Wire rack, Tray handle
Control Type	Dial knobs (temperature, function, timer)
Indicator Light	Yes, for heater operation
Door Type	Glass door with handle
Cleaning Method	Soft cloth with neutral cleaner; avoid abrasive materials
Safety Features	Auto shut-off, heat warning, child safety (keep away from children <8 years)
Warranty	2 years for manufacturing defects

Frequently Asked Questions - BMO4137 Becken

How do I set the timer for less than 5 minutes?

Turn the timer knob clockwise past 6 minutes, then back to the desired time (e.g., 3 minutes). This ensures accurate timing for short durations.

What should I do before first use?

Heat the empty oven at 220°C with upper and lower heating for about 10 minutes. Some smoke or smell may occur initially; this is normal.

How do I clean the oven cavity?

Unplug and let cool. Use a soft cloth or sponge with neutral cleaner. For heavy grease, soak accessories in hot water with kitchen detergent. Do not use hard brushes or abrasive cleaners.

Can I cook directly in the oven without a tray?

No, always use the bake tray or wire rack. The tray is essential to catch drips and ensure even cooking.

What do the different heating options do?

Upper heating browns the top, lower heating cooks from below, and upper+lower gives balanced cooking. Use depending on your dish.

Why does the interior look oxidized after some use?

Leaving the door closed after cooking traps steam, which can cause oxidation and rust. Always leave the door open until the cavity is completely dry.

Can I use aluminum foil?

Yes, for oily dishes like roast chicken, place two sheets on the tray to reduce splatter. Ensure foil does not touch the heating elements.

How do I adjust the rack position?

The oven has three rack supports (top, second, third). Slide the tray or wire rack into the appropriate level for your dish (e.g., top for browning, lower for roasting).

What should I do if the oven stops working?

Do not attempt to repair yourself. Contact your local Worten, Modelo, or Continente store for assistance. Unauthorized repairs void the warranty.

Is the oven suitable for commercial use?

No, this appliance is designed for household use only. Using it commercially may cause damage and void the warranty.

USER MANUAL BMO4137 Becken

MANUAL DE INSTRUÇÕES

White microwave oven with a baked cake inside, open for baking (no visible text or symbols)

BMO4137

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6

1.2. Power Cord and Other Cables 5

2. OPERATING INSTRUCTIONS

2.1. Product Description 8
2.2. Product usage 9
2.3. Maintenance 14

3. TECHNICAL SPECIFICATIONS 15

4. POST-SALE SERVICE 15

5. ENVIRONMENTAL PROTECTION 15

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

[you can trust]

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

BECKEN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

The cavity must be cleaned immediately after use.

The equipment door must be left open after cooking for the water vapor to evaporate completely, to ensure that the inside of the oven is dry instead of damp. If the door is closed after use, water vapor is kept in the cavity. And after some time of use, the cavity will have an oxidized and bleached appearance, and with normal use of the equipment, there will be wear and tear in the cavity, and consequently damage to the zinc coating generating rust.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Please refer to the Maintenance section of this manual for instructions on how to clean surfaces that will be in contact with food.

• The appliance's door or exterior surface may be hot when in use.

• To avoid the risk of an electrical shock, do not immerse the cord, plugs or cooking unit in water or other liquids.

• Do not allow the cord to hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot substances.
• To disconnect the unit, remove the plug from the outlet.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Keep the appliance and its cord out of reach of children less than 8 years.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

BECKEN

2. OPERATING INSTRUCTIONS

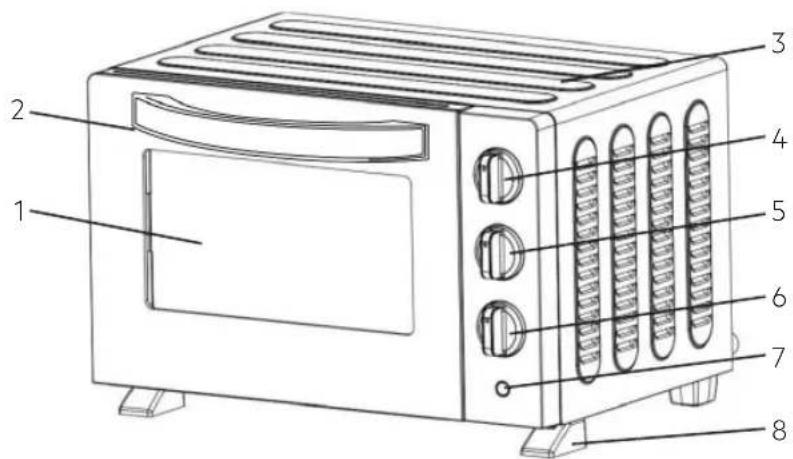

2.1. Product Description

1 Glass door
2 Door handle
3 Housing
4 Temp knob

5 Switch knob
6 Time knob
7 Indicator light
8 Oven feet

9 Bake tray
10 Tray handle
11 Wire rack

[you can trust]

2.2. Product usage

Operating instructions

Before using the unit for the first time:

Heat the empty oven.

1) Insert the tray and baking net.

2) Set the heater operating switch to "UPPER & LOWER", then set the temperature control dial to "220 °C" and heat the empty oven for about 10 minutes.

Note: There may be some smoke and a burning smell at first, but this is not a malfunction.

Temperature control dial:

Set the Temperature Control Dial for the dishes you are going to cook

Heat Operating Switch:

Select "Upper" "Lower" or "Upper and Lower" according to the dishes you are going to cook. You can observe whether the heaters are working or not by observing the front Indicator light.

Upper Heating Lower Heating Upper and Lower

1. Set the arrow on the timer knob to the number which indicates the cooking time (minutes) according to the dishes you are going to cook.

2. Set the Timer by turning it clockwise. The oven will turn off automatically at the end of the selected time and a bell will ring

- When setting the Timer to less than 5 min, turn it to more than 6 min instead and then back to the selected time.

1. The oven can be turned off manually during cooking by turning the Timer counterclockwise to the "OFF" position.

BECKEN

Note: if the oven's inner surface is dirty, cooking may take slightly longer than usual.

Cautions

The rear side of the oven must be placed against the wall, but if the oven is positioned too close to a wall, the wall will get burned or stained. Please make sure that curtains, etc. are not in contact with the unit's body. Do not put anything between the body and the surface on which it is set, since an object so placed could get burned.

Do not put anything on the oven while using it as the heat could cause deformation, cracking, etc.

Any bottled or tinned food cannot be heated directly as this would break out such bottle or tin and scald the person.

Be careful not to burn yourself while using the unit or immediately after using it, since the metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door.

AC power must be taken from a properly wired outlet. Make sure you insert the plug completely into the socket, because it could become abnormally hot if it is not well inserted. Do not use an outlet specifically for electric lights and never connect multiple plugs to the same outlet.

Always use protection when inserting or removing the tray, as touching directly these hot parts will cause severe burns

[you can trust]

When hot, do not apply water to the glass window, as this may cause the glass to break.

When unplugging the cord, always pull by the plug, never the cord. By pulling the cord, the wires inside the cord could break.

Do not position the unit close to a gas burner or other source of high temperature nor direct the unit towards an electric fan, etc., during use. By doing so, this could prevent correct temperature control.

Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended, since a malfunction while the plug is inserted into the outlet could cause a fire.

When cooking oil-splashing dishes such as roast chicken, it is recommended to put 2 sheets of aluminum foils on a tray in order to diminish oil splashing. Put one on a tray, then the oil will drip into a gap between foils.

Use indication

Special indication: parts and accessories vary depending on the different models. Please refer to the image of the actual item you bought.

BECKEN

Bake Tray and Wire Rack
Bake Tray Food	(For Ref. only) How to	use the Tray Handle
*It is recommended to use as a crumb tray.	Roast Chicken Wings, Hamburg steak, Gratin, Cake, almost all other oven-cooked foods.
Wire Rack Baked potatoes	oes, Dry food
Bake Tray and Wire Rack	For food which will drip, e.g. boiled fish, etc.

Please note that the trays are not perfectly square.

Note: Be careful when removing hot liquids.

Rack Support

1. There are 3 trays that cater for the different type of dishes you want to cook. You can adjust the cooking position by slotting the baking tray and wire rack at the top, second and third rack support (please refer to the picture on the right).

1. For example, when making macaroni gratin and you want to have the top part cooked the most, use the top or the second support. For roasting a chicken, you can use the third rack support.

Functional control Temperature control

Set the "Temperature Control" by turning the knob clockwise to select the suitable temperature according to the dishes you are going to cook.

Function Selector

Simple circular diagram with concentric rings and four small squares at cardinal points (no text or symbols)

Set the "Function Selector" by turning it clockwise to select the suitable heating function and convection.

OFF Upper Heating

☐ Lower Heating Upper and Lower Heating

BECKEN

Timer

L

Set the "Timer" to the number which indicates the cooking time (minutes). Now that the oven is working, beware of the HOT surface, and DO NOT open the glass door during cooking!

2.3. Maintenance Method of cleaning

Unplug the unit and let it cool down before cleaning.

When cleaning, wash the inner and outer surface, bake tray, wire rack and tray handle with a soft cotton cloth (or sponge) with neutral cleaner. Then wash with clean water. Particularly where heavy grease lies, put the accessories into hot water for a while, and you can use kitchen dedicated strong detergents to clear heavy oil, so to focus on decontamination. Do not use hard brushes or any other similar items to wash, so as not to scrape the inner surface of the oven, and to protect the tray, the net and the food fork.

Do not use any toxic and abrasive cleaners such as gasoline, polishing powder or solvent.

3. TECHNICAL SPECIFICATIONS

Model No. BMO4137 WH

Power supply 230 V 50 / 60 Hz

Power consumption 1380 W

4. POST-SALE SERVICE

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no visible text or numbers

Estimado cliente,

Indicación de uso

Simple circular diagram with concentric rings and four small squares at cardinal points (no text or symbols)

Symbol of a trash bin crossed with no visible text or numbers

Caro(a) cliente,

Line drawing of a microwave oven with labeled ports and interior compartments (no text or symbols)

Simple circular diagram with concentric rings and four small squares at cardinal points (no text or symbols)

□ Desligado (OFF) superior

Aquecimento

□Aquecimento inferior superior e

Aquecimento

inferior

BECKEN

Temporizador

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
