USER MANUAL EKJMA Eikon

UHF Handheld Wireless System

USER'S MANUAL

Black EIKON and J&M wireless microphone devices with attached spring scale (no visible text or symbols on device body)

ITALIANO ENGLISH

REV.01/21

INDEX

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT 4

SAFETY INSTRUCTIONS......4

IN CASE OF FAULT 4

PACKAGING, SHIPPING AND COMPLAINT....4

WARRANTY AND PRODUCTS RETURN......4

MAINTENANCE AND DISCLAIMER....5

POWER SUPPLY....5

WARNING POSSIBLE HEARING DAMAGE!......5

USER'S WARNINGS AND CE CONFORMITY 6

INTRODUCTION 7

DESCRIPTION 7

EKJ&M TRANSMITTER 7

EKJ&M RECEIVER 7

OPERATING INSTRUCTIONS......8

TECHNICAL SPECIFICATION....9

FIGURE 1, 2....19

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their

local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

SAFETY INSTRUCTIONS

• CAUTION - Before using this product read carefully the following safety instructions. Take a look of this manual entirely and preserve it for future reference. When using any electric product, basic precautions should always be taken, including the following:
  • To reduce the risk, close supervision is necessary when the product is used near children.
• Protect the apparatus from atmospheric agents and keep it away from water, rain and high humidity places.
• This product should be site away from heat sources such as radiators, lamps and any other device that generate heat.
• Care should be taken so that objects and liquids do not go inside the product.
• The product should be connected to a power supply only of the type described on the operating instructions or as marked on the product.

IN CASE OF FAULT

• In case of fault or maintenance this product should be inspected only by qualified service personnel when:
  ■ Liquids have spilled inside the product.
  ■ The product has fallen and been damaged.
  The product does not appear to operate normally or exhibits a marked change in performance.
• Do not operate on the product, it has no user-serviceable parts inside.
  • Refer servicing to an authorized maintenance centre.

PACKAGING, SHIPPING AND COMPLAINT

• This unit package has been submitted to ISTA 1A integrity tests. We suggest you control the unit conditions immediately after unpacking it.
• If any damage is found, immediately advise the dealer. Keep all unit packaging parts to allow inspection.
  • EIKON is not responsible for any damage that occurs during shipment.
• Products are sold "delivered ex warehouse" and shipment is at charge and risk of the buyer.
• Possible damages to unit should be immediately notified to forwarder. Each complaint for manumitted package should be done within eight days from product receipt.

WARRANTY AND PRODUCTS RETURN

• EIKON products have operating warranty and comply their specifications, as stated by manufacturer.
• EIKON warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly during the applicable warranty period, the owner should inform

about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed description. This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. EIKON will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. EIKON is not responsible for any "direct damage" or "indirect damage" caused by product defectiveness.

MAINTENANCE AND DISCLAIMER

• Clean only with dry cloth.
• EIKON products have been expressly designed for audio application, with signals in audio range (20Hz to 20kHz). EIKON has no liability for damages caused in case of lack of maintenance, modifications, improper use or improper installation non-applying safety instructions.
  • EIKON reserves the right to change these specifications at any time without notice.
• EIKON declines any liability for damages to objects or persons caused by lacks of maintenance, improper use, installation not performed with safety precautions and at the state of the art.

POWER SUPPLY

• This apparatus should only be connected to power source type specified in this user manual or on the unit.
• If the supplied AC power cable plug is different from the wall socket, please contact an electrician to change the AC power plug.
• Hold the plug and the wall outlet while disconnecting the unit from AC power.
• If the unit will not be used for a long period of time, please unplug the power cord from AC power outlet.
• To avoid unit power cord damage, please do not strain the AC power cable and do not bundle it.
• In order to avoid unit power cord damage, please ensure that the power cord is not stepped on or pinched by heavy objects.

WARNING POSSIBLE HEARING DAMAGE!

• To prevent possible hearing damage, do not listen at high volume levels for long periods.

• This product is also intended for professional use only. Commercial use is subject to the Safety at work regulations. EIKON as a manufacturer is bound to inform you formally about the existence of eventual sanitary risks.
• This system is able to induce an acoustic pressure exceeding 85 dB ( L_Aeq,T ), this is the maximum sound pressure level which your ear can be exposed to during a work day in almost all countries. According to the safety at work medicine higher sound levels or longer exposition times could damage your ear. The time of exposition by higher sound pressure levels should be shortened in order to prevent from ear damages. A few reliable warning signals which show that you have exposed yourself for a too long period to excessive sound pressure levels are: You hear bell or whistling sounds! You have the impression that you can't hear high tones anymore!
• The following table can help you to know which kind of sound, dB sound pressure level and time of exposure are typically permissible by human ears:

Duration Per Day in Hours	Sound Level dB (LpAslow)	Typical Example
8	90	Duo in a small club
4	95	Subway train
2	100	Very loud classical music
1	105	Traffic Noise
1/4	115	Loudest part in a rock concert

USER'S WARNINGS AND CE CONFORMITY

- Changes or modifications not expressly approved by EIKON could void your authority to operate the equipment.

LICENSING INFORMATION:

• Frequency Range of EKJ&M: 863 - 865 MHz.
• Frequency Range of EKJ&MA: 512 – 541,7 MHz.
- A government license may be required to operate this equipment in certain areas.
- This equipment may be capable of operating on some frequencies not authorized in your country.
- The use of this professional wireless earphone equipment in some countries could be intended for professional use, so the licensability depends on the country it operates.
- EIKON suggests the user to contact the appropriate telecommunications authority concerning proper licensing and to obtain information on authorized frequencies for wireless products in your region.
- Licensing of professional wireless earphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency.
• The product is in compliance with 2014 / 30/ EU EMC Directive & 2014 /35 / EU LVD Directive.
- EIKON hereby, declares that this ear monitor system complies with the essential requirements of Radio Equipment Directive (RED) 2014 / 53 / EU.
- The full and detailed declaration of conformity can be downloaded from the web site:
- www.eikon-audio.com

TABLE OF THE AUTHORIZED FREQUENCIES FOR THE EKJ&M SYSTEM IN EUROPE UPDATED WITH REFERENCE TO ERC-REC 70-03E DOCUMENT DATED FEBRUARY 7 2014
COUNTRY CODE	TRANSMITTING FREQUENCIES (MHz)
	512.000-541.700	863.000 - 865.000
BE CZ DK FI DE IS IE LI LU CH ES SI AL MD TR IT	Individual license required	no personal license required
AT EE FR LT PL SE GB	Individual license required and/or Limited implementation
BG CY HR GR HU LV MT NL NO PT RO SK BA MK ME RU RS UA	NOT IMPLEMENTED
GE	NOT IMPLEMENTED
IN ALL COUNTRIES THE USE OF WIRELESS MICROPHONE SYSTEMS IS SUBJECT TO ANY TELEVISION AND BROADCAST TRANSMISSION
CONSULT LOCAL OR NATIONAL RADIO SPECTRUM AUTHORITIES FOR INFORMATION ON POSSIBLE RESTRICTIONS OR NECESSARY AUTHORIZATIONS BEFORE USING THIS SHORT RANGE DEVICE.

INTRODUCTION

Thank you for choosing this EIKON product and for your trust in our brand, synonymous of professionalism, accuracy, high quality and reliability. All our products are CE approved and designed for continuous use in professional systems.

DESCRIPTION

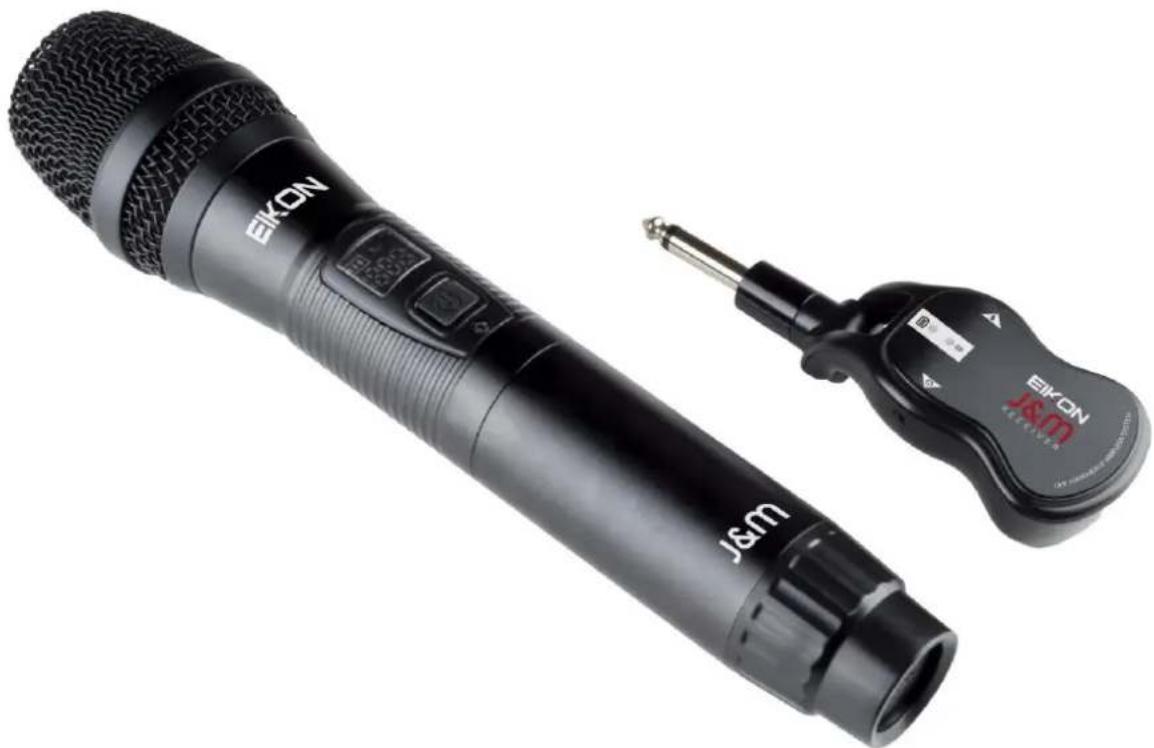

The EKJ&M is a UHF PLL controlled Wireless Microphone System providing a reliable and high quality signal transmission.

EKJ&M features 3 units: EKJ&M Handheld transmitter, EKJ&M compact "connector sized" receiver and USB to USB-C charging cable.

16 channels frequencies (50 channels EKJ&MA model) are available, allowing the possibility to use the apparatus with other wireless equipment.

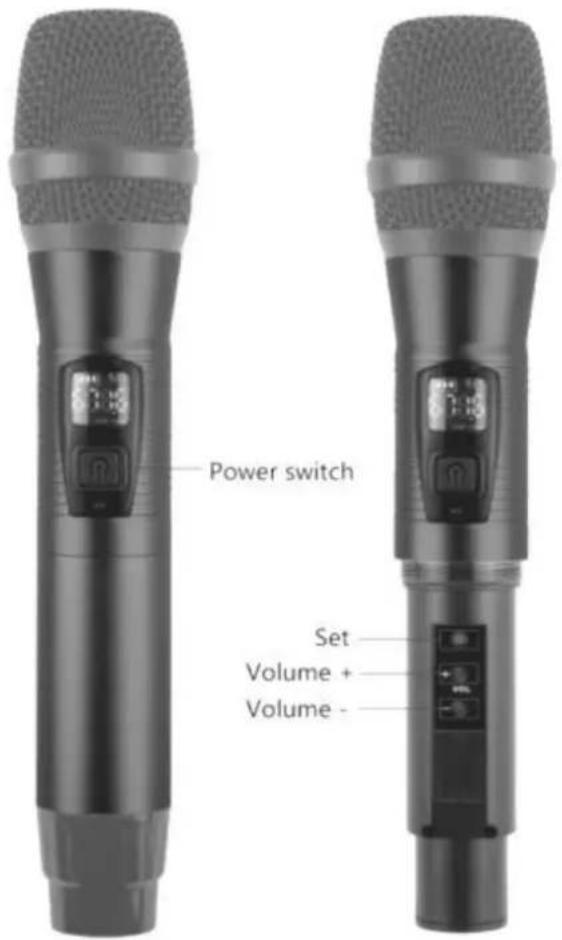

EKJ&M TRANSMITTER

See FIG. 1 at page 19:

1. POWER SWITCH

Press this button to turn the transmitter ON/OFF.

2. SET

Use this button to change the device Frequency channel.

3. VOLUME +

Use this button to increase the transmitter signal volume.

4. VOLUME -

Use this button to decrease the transmitter signal volume.

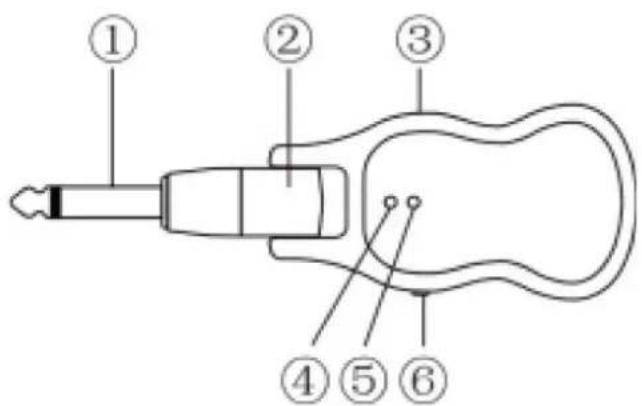

EKJ&M RECEIVER

See FIG. 2 at page 19:

1. SIGNAL OUT Jack Connector

Connect it to amplifier or mixer input channel.

2. 280^ rotating head

3. USB port for charging

4. Power indicator led

5. Frequency indicator led

6. POWER SWITCH

Press this button to turn the transmitter ON/OFF.

OPERATING INSTRUCTIONS

Turn on the power switch on receiver and transmitter respectively, the device will connect automatically, RF indicator LED will light.

Changing the Frequency

Turn on the transmitter, then short press the "SET" button to change frequency, the Receiver will automatically be matched.

Re-pairing

1. First, power on the receivers you plan to transmit to.
2. On the Transmitter, Press and hold the SET button and POWER button at the same time until battery LED begins to flash.
3. RF indicator LED will light up on the receivers to show a successful connection.
4. After successfully pairing once, it will be automatically matched on future startups.

Wireless system can support up to 6 pairs of devices working without interference.

Transmitting one signal to several receivers at the same time

1. First, power on all the receivers you plan to transmit to.
2. On the Transmitter, Press and hold the SET button and POWER button at the same time until battery LED begins to flash.
3. RF indicator LED will light up on the receivers to show a successful connection.

Troubleshooting

On the single channel systems, transmitters will transmit to "CH A=A Frequency group" by default. If you are having trouble connecting to your Receiver, the Transmitter's assignment may have been changed to "CH B=B Frequency group".

To change back to "CH A":

First be sure all Receivers are off. With transmitter powered off, hold down the power button until new group assignment is shown on display (CHA or CHB). Now power on the Receiver and connection should set automatically. If not, try method of "Re-Pairing".

Power Supply

The USB to USB-C cable is for charging. Please use this to connect to a USB charging port or a qualified power adapter. While charging, please make sure that device is shut down to avoid the loss of electricity. This can lead to longer charging time and shorter battery life.

TECHNICAL SPECIFICATION

EKJ&M – UHF PLL 16 Channel Transmitter
RF Channels	16 frequency presets
RF Frequency Band	UHF: 863-865 MHz
RF Frequency Stability	±0,002%
RF Oscillation Mode	PLL Synthesized
RF Modulation Type	Wideband FM Stereo
RF Output Power	10mW
Sub-harmonic	< 40 dB
Operating current	130 mA
Operating Time	5 to 8 hrs (depending on volume level)
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type C connector
Charging time	5 hours
Weight	0.30 Kg
EKJ&M –UHF PLL 16 Channels Receiver
RF Channels	16 frequency presets
RF Frequency Band	UHF: 863-865 MHz
RF Frequency Stability	±0,005%
RF Oscillation Mode	PLL Synthesized
RF Modulation Type	Wideband FM Stereo
RF Receiving Sensitivity	< -98 dBm
RF Receiving range	15 to 30 meters depending on used band conditions
Audio dynamic range	106 dBm
THD Distortion	< 0.5%
S/N Ratio	>102 dBA
Audio output connector	6.3 mm Mono Jack
Output Power Max (continuous)	400 mW
Operating current	80 mA
Operating Time	5 hours
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type C connector
Charging time	3 hours
Weight	0.05 Kg

TECHNICAL SPECIFICATION (A version)

EKJ&MA – UHF PLL 50 Channel Transmitter
RF Channels	50 frequency presets
RF Frequency Band	UHF: 512 – 541,7 MHz
RF Frequency Stability	±0,002%
RF Oscillation Mode	PLL Synthesized
RF Modulation Type	Wideband FM Stereo
RF Output Power	10mW
Sub-harmonic	< 40 dB
Operating current	130 mA
Operating Time	5 to 8 hrs (depending on volume level)
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type C connector
Charging time	5 hours
Weight	0.30 Kg
EKJ&MA –UHF PLL 50 Channels Receiver
RF Channels	50 frequency presets
RF Frequency Band	UHF: 512 – 541,7 MHz
RF Frequency Stability	±0,005%
RF Oscillation Mode	PLL Synthesized
RF Modulation Type	Wideband FM Stereo
RF Receiving Sensitivity	< -98 dBm
RF Receiving range	15 to 30 meters depending on used band conditions
Audio dynamic range	106 dBm
THD Distortion	< 0.5%
S/N Ratio	>102 dBA
Audio output connector	6.3 mm Mono Jack
Output Power Max (continuous)	400 mW
Operating current	80 mA
Operating Time	5 hours
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type C connector
Charging time	3 hours
Weight	0.05 Kg

INDICE

TRATTAMENTO DEL DISPOSITIVO ELETTRICO OD ELETTRONICO A FINE VITA.... 12

AVVERTENZE PER LA SICUREZZA....12

IN CASO DI GUASTO 12

IMBALLAGGIO, TRASPORTO E RECLAMI 12

GARANZIE E RESI....12

EKJ&M – UHF PLL 16 Channel Transmitter
RF Channels	16 frequency presets
RF Frequency Band	UHF: 863-865 MHz
RF Frequency Stability	±0,002%
RF Oscillation Mode	PLL Synthesized
RF Modulation Type	Wideband FM Stereo
RF Output Power	10mW
Sub-harmonic	< 40 dB
Operating current	130 mA
Operating Time	5 to 8 hrs (depending on volume level)
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type C connector
Charging time	5 hours
Weight	0.30 Kg
EKJ&M –UHF PLL 16 Channels Receiver
RF Channels	16 frequency presets
RF Frequency Band	UHF: 863-865 MHz
RF Frequency Stability	±0,005%
RF Oscillation Mode	PLL Synthesized
RF Modulation Type	Wideband FM Stereo
RF Receiving Sensitivity	< -98 dBm
RF Receiving range	15 to 30 meters depending on used band conditions
Audio dynamic range	106 dBm
THD Distortion	< 0.5%
S/N Ratio	>102 dBA
Audio output connector	6.3 mm Mono Jack
Output Power Max (continuous)	400 mW
Operating current	80 mA
Operating Time	5 hours
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type C connector
Charging time	3 hours
Weight	0.05 Kg

SPECIFICHE TECNICHE (A version)

EKJ&MA – UHF PLL 50 Channel Transmitter
RF Channels	50 frequency presets
RF Frequency Band	UHF: 512 – 541,7 MHz
RF Frequency Stability	±0,002%
RF Oscillation Mode	PLL Synthesized
RF Modulation Type	Wideband FM Stereo
RF Output Power	10mW
Sub-harmonic	< 40 dB
Operating current	130 mA
Operating Time	5 to 8 hrs (depending on volume level)
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type C connector
Charging time	5 hours
Weight	0.30 Kg
EKJ&MA –UHF PLL 50 Channels Receiver
RF Channels	50 frequency presets
RF Frequency Band	UHF: 512 – 541,7 MHz
RF Frequency Stability	±0,005%
RF Oscillation Mode	PLL Synthesized
RF Modulation Type	Wideband FM Stereo
RF Receiving Sensitivity	< -98 dBm
RF Receiving range	15 to 30 meters depending on used band conditions
Audio dynamic range	106 dBm
THD Distortion	< 0.5%
S/N Ratio	>102 dBA
Audio output connector	6.3 mm Mono Jack
Output Power Max (continuous)	400 mW
Operating current	80 mA
Operating Time	5 hours
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type C connector
Charging time	3 hours
Weight	0.05 Kg

FIG. 1

FIG. 2

EIKON

IS A BRAND OF

PROEL S.p.A.

(World Headquarters - Factory)
