KWH4209 - Heating Kunft - Free user manual and instructions

Product Type	Wall-mounted electric ceramic heater
Model	KWH4209
Brand	Kunft
Power Supply	220-240 V ~ 50-60 Hz
Maximum Power	2000 W
Heating Levels	2 levels (I: low, II: high) + ECO mode (18°C)
Heating Element	PTC ceramic
Control Type	Remote control with LCD display
Timer	Weekly programmable timer
Special Functions	Window open sensor, cool air mode (summer use), safety thermostat
Installation	Wall-mounted, minimum height 1.8 m from floor
Protection	Overheating protection, motor overheat protection
Cleaning	Wipe with dry soft cloth; vacuum air inlets and outlets regularly
Maintenance	No user-serviceable parts; contact support for repairs
Warranty	2 years against manufacturing defects
Accessories Included	Remote control with batteries, mounting hardware
Environmental Conditions	Indoor use only; suitable for well-insulated spaces

Frequently Asked Questions - KWH4209 Kunft

How do I install the KWH4209 heater?

Drill two holes on the wall about 1.8 m from the floor. Insert the supplied plastic anchors (6 mm diameter) and fix the hooks with screws. Then slide the heater onto the hooks until it locks. Ensure the air outlet faces downward.

Can I use the heater in a bathroom?

The heater should be installed at least 1.8 m above the floor and away from water sources. It is not designed for humid areas; do not use in bathrooms or near showers.

What do the different modes mean?

Mode I: low power (about 1500 W), Mode II: high power (2000 W), ECO: maintains room temperature at 18°C for energy saving. Press the MODE button to cycle.

How does the window open sensor work?

If the room temperature suddenly drops by at least 10°C, the heater automatically switches off to save energy. It reactivates when the temperature stabilizes. This function can be enabled/disabled via the remote control.

Can I use the heater as a fan in summer?

Yes. Select Mode I or II with the heating element off (cool air mode). The fan will blow unheated air.

How do I set the weekly timer?

Press and hold the PROG button for 3 seconds. The day flashes, use +/- to set. Press PROG again to set time, then MODE to select heating mode. Repeat for each day.

What should I do if the heater stops working?

Check the power supply and circuit breaker. If the overheat protection triggered, remove any blockage from the air outlet and let it cool. If it persists, contact customer support. Do not attempt to open the unit.

How do I clean the heater?

Unplug and let it cool. Wipe the exterior with a dry soft cloth. Use a vacuum cleaner to remove dust from air inlets and outlets. Do not use water or chemicals.

Is the heater safe for use around children?

Children under 3 must be kept away. Children aged 3-8 can only turn the heater on/off if supervised. Children 8+ can use it with proper instruction. The surface can become very hot; caution is needed.

What does the lock button on the remote do?

Hold the Lock button for 3 seconds to lock the remote control keys, preventing accidental changes. Repeat to unlock.

USER MANUAL KWH4209 Kunft

This product is only suitable for well insulated spaces or occasional use.

White industrial air conditioner unit with ventilation grilles and 'DO NOT COVER' label (no readable text beyond branding)

Simple line drawing of a rectangular container with horizontal lines and ellipsis (no text or symbols)

wall mounted heater

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS......4

1.1. Power Supply ......6
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 7
1.4. Cleaning....7
1.5. General Precautions ...... 7

1. OPERATING INSTRUCTIONS....10

2.1. Product Description.... 10
2.2. Product usage....11
2.3. Maintenance 13

1. TECHNICAL SPECIFICATIONS....13

3.1 Information requirements for electric local space heaters .... 14

1. POST-SALE SERVICE....15
2. ENVIRONMENTAL PROTECTION .... 15

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of electric shock.Do not open.
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be

wall mounted heater

KWH4209

EN

covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

This appliance can be used by children from the age of 8 and by

kunft.®

people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

wall mounted heater

KWH4209

EN

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.

kunft®

• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• The heater should be hung on the wall and the air outlet placed down or placed on a flat surface. You must not place it precipitately or tipsily.
• Please do not use the heater in a room with combustible or explosive gases and do not cover the air outlet.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• The heater must not be located immediately below a power outlet. Please make sure the power outlet is equipped with an earth connection with a capacity of 220-240 V, 50-60 Hz. Then check if the socket and plug are well connected.
• When repairing the heater, please unplug it from the socket.
• Please do not touch the heater with your hands wet.
• If the motor is malfunctioning, please stop it immediately.

wall mounted heater

KWH4209

EN

• While using the heater, please do not continuously open the door or window, otherwise it will influence the heating effect.
• If you want to close the machine, press the on/off switch to off. The machine will then keep the fan working for 30 seconds until it blows the cool air. After that the machine will stop working, and you may disconnect it.
• The heater should be hung on the wall but far away from water or bathrooms.
• The timer sets the heater working hours.
• For the remote control, please use two batteries. These should be removed from the appliance before they are worn out and then disposed safely.
• The heater should be installed at least 1,8 m above the floor, and in a way that the switches and other controls cannot be touched by a person in the bath or shower.

CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

To fix the heater on the wall it need two actions (insert and slide)

kunft.

2. OPERATING INSTRUCTIONS

2.1. Product Description

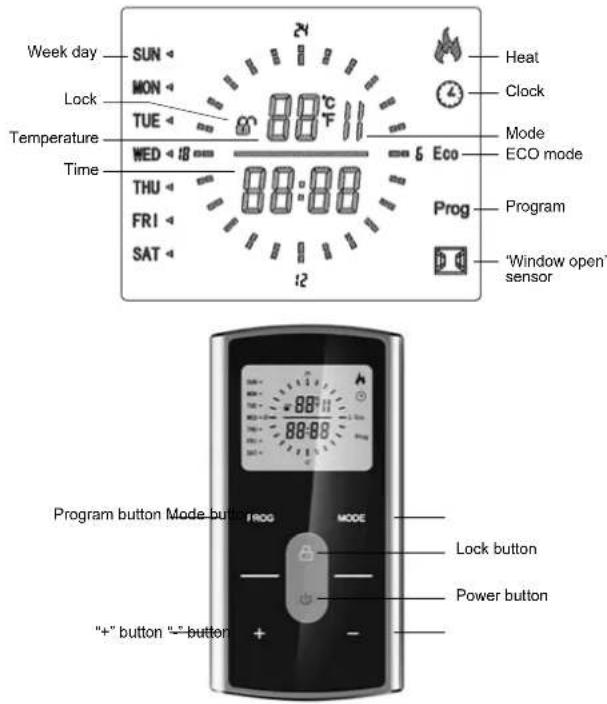

Remote Control Instruction Panel

Button instructions

1. "Button: to turn the appliance ON or OFF
2. “+” button: to increase the temperature and timer (hold “+” into the cycle of weekly timer)
3. "-" button: to increase the temperature and timer (hold "-" to confirm the weekly timer)
4. "mode button": to change the mode to I, II, ECO (hold the Mode button to switch the window sensor off or on)
5. "PROG" button: to set the week day and timer
6. "Lock" button: hold the button to lock and unlock the remote control.

wall mounted heater

KWH4209

EN

2.2. Product usage

Features

• PTC ceramic heater elements, high efficiency heating, quick heating, noiseless, odour-free, non-polluting, no flame and environmentally harmless (it will not kill the oxygen).
• Two heating levels so you can set the temperature according to your preferences.
• There is temperature fuse due to the danger of overheating and a motor overheat protection. It automatically turns off when the air outlet is blocked and turns on again when the blockages are cleared away.
• Natural / hot air selection. You may close the heating element in the summer so that the heater can blow cool air.
• Safety thermostat for overheat protection.

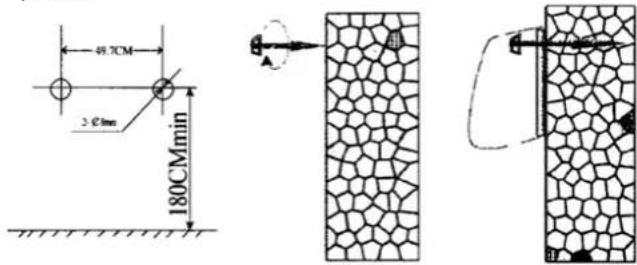

Installation

• Drill two holes on the wall about 1.8 m from the ground. The diameter of the hole should be wide enough to contain the inflated plastic pipe, which has a diameter of 6 mm.
• After tucking in the inflated plastic pipe, fix the hook on the pipe with a screw. Please make sure the hook is fully inserted, as below picture.

Heater instructions

• Remove all packaging and place the heater in your desired location.
• Unwind the power cord and plug it into the power outlet.
• Press the ⬤button; the LCD display will turn on and the heater will switch on; press again the button again and the heater will switch off.
• Press the MODE button: to change the mode to I, II, ECO; I for low power, II for high power, ECO to keep the room temperature at 18°C. When the temperature sensor reaches the room temperature

kunft®

and it suddenly decreases by 10^ C, the 'window open' sensor function will turn on (the 'window open' sensor function only works after pressing the button for this function on the remote control).

Pic 1: I power Pic 2: II power

Pic 3: ECO mode Pic 4: 'Window open' sensor function

• Press the "PROG" button for 3 seconds to set the local week timer (the week day will twinkle), press "+" and "-" to adjust. Hold the "PROG" button to set the local minutes" (the minutes will twinkle), press "+" and "-" to adjust.
• Press the "PROG" button to set the weekly timer cycle. The first is to set the day of the week and it starts with Sunday; press "+" or "-" to make the adjustment. Press the "PROG" button again to set the time, press "+" or "-" to make the adjustment; this starts with 00:00. Press "MODE" to set the heating mode. The default is ECO mode.

Pic 5: I mode Pic 6: II mode Pic 7: ECO mode

Pic 8; ECO mode Pic 9; 'Window open' sensor

wall mounted heater

KWH4209

EN

Setting process:

Week setting → Time setting → Heating mode

2.3. Maintenance

• Please make sure you switch the power supply off and pull out the plug before cleaning.
• Wait for the heater to cool down and clean the body with a damp cloth, washcloth or cleaner.
• DO NOT ALLOW water into the appliance. Do not place it close to naked flames to avoid the heater from changing colours and distort.
• DO NOT use soap or chemicals (like acids, thinners, gasoline, benzene, etc.), which may damage the heater's housing.
• Allow sufficient drying time before operating the heater again.
• Clean the air inlets and outlets regularly with a vacuum cleaner (if the heater has a regular use, at least twice a year).
• When the unit is not in use, we recommend that the heater is re-packed, after being wiped, in its original packaging and stored in a cool, dry place.
• Warning: Do not touch the appliance while it is working and do not cover the air outlet and inlet.

3. TECHNICAL SPECIFICATIONS

220-240 V \~ 50-60 Hz

2000 W

3.1 Information requirements for electric local space heaters

Model identifier(s): KTE3513

Item Symbol Value Unit Item Unit

Heat output Type of heat input, for electric storage local space heaters only
Nominal heat output	P_nom	2,00 kW Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	1,50 kW Manual heat charge control with room and / or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	2,00 kW Electronic heat charge control with room and / or outdoor temperature feedback	No
Auxiliary electri city consumption Fan assisted heat output No
At nominal heat output	eI_max	N/A kW Type of heat output / room temperature control
At minimum heat output	eI_min	N/A kW Single stage heat output and no room temperature control	No
In standby mode	eI_SB	0.00026 kW Two or more manual stages, no room temperature control	No
		With mechanic thermostat room temperature control	No
		With electronic room temperature control	No
		Electronic room temperature control plus day timer	No
		Electronic room temperature control plus week timer	Yes
		Other control options
		Room temperature control, with presence detection	No
		Room temperature control, with open window detection	Yes
		With distance control option	No
		With adaptive start control	No
		With working time limitation	Yes
		with black bulb sensor	No
Contact details	Worten Equipamentos p/ Lar S.A.Rua João Mendonça, n° 5054464-503 Senhora da Hora - Portugal

wall mounted heater

KWH4209

EN

4. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

he appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.
