Type	Stand fan
Fan diameter	40 cm (16 inches)
Number of blades	3
Speed settings	4 (0 off, 1 low, 2 medium, 3 high)
Oscillation	Yes, push/pull knob to start/stop
Adjustable height	Yes, via collar on inner/outer tube
Tilt adjustment	Yes, loosen neck screw, swivel head, retighten
Power supply	230 V ~ 50 Hz (typical, check rating label)
Power consumption	Not specified, approximately 50-60 W
Assembly required	Yes, base, tube, blade, guards
Safety features	Protective guards, auto shut-off not provided, do not use without guards
Cleaning	Unplug, use damp cloth with mild soap; do not allow water into motor
Warranty	2 years against manufacturing defects
After-sales service	Contact seller or authorized service centers (e.g., Worten)
Weight	Approximately 5.0 kg
Dimensions (height)	Adjustable, max about 1.3 m
Material	Plastic and metal (motor housing)
Color	White/light grey (typical)
Intended use	Household indoor use only
Environmental compliance	Recyclable materials, follow local disposal regulations

Frequently Asked Questions - KSF 2374 Kunft

How do I assemble the fan?

First, cross the two base bars (A and B) so they interlock, then secure with four screws. Slide the outer tube onto the base and tighten. Insert the inner tube, adjust height, and tighten the collar. Mount the switch box on the inner tube with the set screw. For the blade and guards: unscrew the plastic nut, place the rear grill on the motor housing with the handle up, tighten the nut. Push the blade onto the motor shaft, secure with the blade cap. Attach the front grill to the rear grill using the bolt and nut, then clip the retaining clips around the rim.

How many speed settings does the KSF 2374 have?

It has 4 settings: 0 (off), 1 (low), 2 (medium), and 3 (high). Use the switch box to select.

Can I use the fan in the bathroom or outdoors?

No. The fan is designed for indoor household use only. Do not use in damp or wet places like bathrooms, and never expose it to rain or outdoor conditions. This could cause electric shock.

How do I clean the fan?

Always unplug the fan before cleaning. Use a damp cloth with mild soap to clean the guards, blades, and housing. Do not allow water or any liquid to enter the motor housing. Thoroughly remove soap residue with a clean damp cloth. Dry all parts before reassembling.

How do I adjust the oscillation?

To start oscillation, push the oscillation knob (located on the motor housing) downwards. To stop, pull it up.

The fan is not working. What should I check?

Ensure the fan is plugged into a working mains socket. Check the speed selector is set to 1, 2, or 3 (not 0). If it still doesn't work, do not attempt to open the housing; contact a qualified technician or take it to a Worten store for service.

Is it safe to use the fan without the front guard?

No. Never operate the fan without both guards in place. The guards protect you from the rotating blade. Using the fan without guards is dangerous and could cause injury.

How do I adjust the tilt angle of the fan head?

Loosen the neck screw (on the side of the motor housing), adjust the head to the desired angle, then retighten the screw. Always turn off the fan before making this adjustment.

What is the warranty period for this fan?

The fan comes with a 2-year warranty against manufacturing defects from the date of purchase. The warranty covers correct use and maintenance as described in the manual. Unauthorized repairs will void the warranty.

How do I store the fan when not in use?

Store the fan in a cool, dry place. Disassemble if necessary, or keep it assembled but ensure it is clean and dry. Avoid moisture and dust accumulation.

USER MANUAL KSF 2374 Kunft

Illustration of a standing electric fan with a three-blade fan and a separate circular fan with a propeller, shown from different angles (no text or symbols)

stand fan 40 cm

is perfectly enough

KSF 2374 16"

kunft.®

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided.

The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

2

stand fan 40 cm

KSF 2374 16"

EN

INDEX

1. SAFETY INSTRUCTIONS......4

1.1. Power Energy 6
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions ...... 7

1. UTILIZATION AND FUNCTIONING .....11

2.1. Product Description....11
2.2. Assembly....11

2.2.1. Base Assembly ..... 11
2.2.2. Blade and Grill Assembly....12
2.3. Operating Instructions....12

1. AFTERMARKET 13
2. ENVIRONMENT CONSERVATION ....13

kunft.®

1. SAFETY INSTRUCTIONS

ATTENTION

Risk of Electric Shock Do Not Open

Attention: to avoid the risk of electric shock, do not remove the cover.

The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance, read carefully this instruction manual and keep it in a safe place, as you may need it for future consultations.

Before you start your appliance, and to ensure a correct use, do not use it if:

• It has fallen on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation;
  To avoid hazards and deterioration of your appliance by an incorrect use, it is advisable to read the instructions carefully and attentively.

Your appliance must not be used to other ends than the ones foreseen in the instructions manual. Your safety is only guaranteed in a household use and not for commercial use. The incorrect use will not be covered and automatically cancels the right to warranty.

stand fan 40 cm

KSF 2374 16"

EN

Assistance

Be sure that, in case of malfunction, you take your appliance to a qualified technician for assistance.

This appliance can be used by children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Unplug the appliance during filling and cleaning.

These instructions are also available on www.suporteworten.pt

kunft.®

1.1. Power Energy

Make sure the voltage of the electric network is compatible with the one of the appliance. If it does not match, consult the vendor or Customer Support Service.

1.2. Power Cord and Other Cables

Do not roll up or pull the cord to disconnect the appliance, and do not use to twine the appliance. Keep the cord far from warm surfaces.

Never use the appliance if it has a damaged cable or socket, or if it is not working properly.

In case of damage of the power cord, do not use your appliance. Take it to technical assistance for its replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not let your appliance to catch water under any circumstance, as it may be dangerous. TO AVOID FIRE HAZARD OR ELECTRIC SHOCK DO NOT EXPOSE YOUR APPLIANCE TO HUMIDITY OR WATER. Do not place your appliance under water (for example for washing).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the mains power supply.

stand fan 40 cm

KSF 2374 16"

EN

Use only a damp cloth to clean the enclosure.

Switch off and unplug from the power supply before assembling or disassembling and cleaning.

Keep the air vents at the rear of the main body free from dust or fluff-use a vacuum cleaner to remove these when necessary. Do not probe any opening to remove fluff.

Fan component parts should be cleaned using mild soap and a damp cloth or sponge. Do not allow any water or other liquid to enter liquid to enter the motor housing.

Thoroughly remove soap film with clean water.

1.5. General Precautions

• Please follow the instructions of the user manual, which helps properly installing and operating this product and enjoying its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Do not use the product if the supply cord is damaged. If it is the case, it must be replaced by the manufacturer or its service agent.
• Do not allow the cord to hand over sharp edges and keep it well away from hot objects and naked flames. Remove the plug from the socket only by holding the plug.

kunft.®

• Make sure that there is no danger that the cord or extension cord may inadvertently be pulled or cause anyone to trip when in use.
• If an extensive cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and /or plug may occur.
• Ensure the voltage used corresponds with the voltage indicated on the rating label.
• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• Never touch the blades with your fingers, pencils or any other kind of objects, whether the appliance is operating or not.
• Never pull the power cord too hard. If it gets damaged after prolonged use, have it repaired by a qualified electrician or technician.
• Do not use the appliance in damp or wet places, like bathrooms.
• Never allow the fan to get wet or that any kind of liquid enters the motor or control panel. However should the appliance accidentally fall into water, unplug the appliance immediately and have it checked by a qualified person before using it again. Non-observance could cause a fatal electric shock!

stand fan 40 cm

KSF 2374 16"

EN

• Do not use the appliance with wet hands, on a damp floor or when the appliance itself is wet.
• Do not touch the plug with wet or damp hands.
• Never block the blades while the appliance is operating.
• Never attempt to open the housing yourself.
• Do not place any kind of object into the inside of the housing.
• Do not hang or mount the fan on a wall or ceiling.
• Place the fan on an even and steady surface so it does not fall.
• Before using your fan, make sure it is completely and correctly mounted.
• To avoid damages in the cable, roll it without any effort.
  • After assembling the fan, make sure the power cord is not stuck.
• Remove all the packaging materials (plastic, cardboard, etc.).
• The packaging materials should not be left for children to reach it or have access to it. Keep all packaging materials away from children as there is a risk of suffocation.
• This appliance is not suitable for commercial use nor for use in the open air.

kunft.®

• The appliance may be used only for its intended purpose. No responsibility can be taken for any possible damage caused through incorrect use or improper handling.
• Never use the cord to carry the appliance. Use the handle to carry the appliance.
• Never leave the appliance unattended while it is in use.
• Always remove the plug from the socket when the appliance is not in use and each time before it is cleaned.
• Nominal voltage is still present in the appliance as long as the appliance is connected to the mains socket.
• No exchange will be made if the above instructions are not followed. Always test the product first before purchase.
• If the ventilator is no longer required, store it in a cool, dry place.
• Warning! After assembly, it's strictly forbidden to remove the protective guards during maintenance or cleaning.
  Never use the fan without the guards in place.

stand fan 40 cm

KSF 2374 16"

EN

2. UTILIZATION AND FUNCTIONING

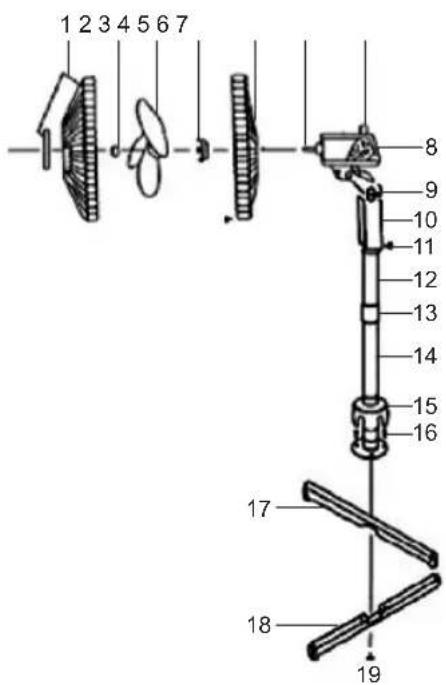

2.1. Product Description

1. Front Grill
2. Blade Cap
3. Fan Blade
4. Plastic Mounting Nut
5. Rear Grill
6. Motor Shaft
7. Oscillating Knob
8. Motor Housing
9. Neck Screw
10. Switch Box
11. Set Screw
12. Inner Tube
13. Height Adjustment Collar
14. Outer Tube
15. Base Decorative Cap
16. Screw
17. Cross Bar A
18. Cross Bar B
19. Screw

2.2. Assembly

2.2.1. Base Assembly

1. First, loosen and remove the four screws from the bars. Then cross bar A (17) and bar B (18) so that they interlock.
2. Be sure to align the four holes in the bars with those on the flange of the outer tube (14). Secure the flange to the bars with the four screws.
3. Loosen and remove the height adjustment collar (13) from the top of the inner tube (12). Slide the base decorative cap (15) down over the assembly.
4. Replace the height adjustment collar (13) on top of the inner tube (12). Pull the inner tube (12) out from the outer tube (14) to adjust the tube to the desired height and tighten the collar.

kunft.®

If necessary, slightly loosen the set screw (11) by turning it anticlockwise. Slide the switch box (10) down over the inner tube (12) and tighten the set screw (11). Make sure the set screw (11) is tightly secured.

2.2.2. Blade and Grill Assembly

1. Unscrew the plastic mounting nut (4) from the front of the motor housing (8) by rotating it anticlockwise.
2. Position the rear grill (5) against the front of the motor housing (8) with the handle uppermost, ensuring that the locating pegs on the motor housing (8) are engaged correctly in the holes of the rear grill (5).
3. Tighten the rear grill mounting nut (4) clockwise. Do not over tighten it.
4. Push the fan blade (3) on to the motor shaft (6), locating the slot at the back of the blade on the drive pin that passes through the motor shaft (6).
5. Tighten the blade cap (2) by turning it anticlockwise.
6. Position the front grill (1) against the rear grill (5) so that the holes in the rims that accept the small nut and bolt are in line. Insert the bolt through the holes and screw on the nut. Do not fully tighten at the stag.
7. Push the grill retaining clips into position ensuring that they engage correctly on the rim of the grill.
8. Fully tighten the small nut and bolt that passes through the rim of the grill.

2.3. Operating Instructions

1. Place your fan on a level and dry surface.
2. Plug the fan into the mains socket. Select the desired speed setting. There are 4 speed settings:
   0 - The fan is switched off.
   1 - The fan operates at the lowest speed.
   2 - The fan operates at medium speed.
   3 - The fan operates at high speed.
3. The fan can be set to oscillate by pushing the oscillating knob downwards. To stop the oscillating feature, pull up the oscillation knob.
4. To adjust the tilt angle of the fan head, loosen the neck screw, swivel the fan to the desired angle and then re-tighten the screw.

Caution: The fan should always be switched off when performing this adjustment.

stand fan 40 cm

KSF 2374 16"

EN

3. AFTERMARKET

KUNFT has designed this appliance in order to guarantee the maximum reliability. However, if a problem occurs, by following the procedures suggested in this section you may be able to determine its cause.

Do not attempt to open the appliance – there is a risk of electrical shock.

If you are not able to solve the problem, please contact your seller or manufacturer.

All users must be familiarized with this section. Knowing what could go wrong can help you avoid the occurrence of problems.

WARNING: any attempt of fixing the appliance without contacting the manufacturer will nullify the warranty.

In case the problem persists, take your appliance to an aftermarket section of any Worten, Modelo or Continente store in order to solve the problem.

Worten Equipamentos para o Lar ensures for a period of 2 years, counting from the date of purchase of this appliance, a warranty against any found manufacturing defect. The warranty supposes a correct use and maintenance of the appliance, namely according to the instructions expressed in this manual. In case otherwise identified, the malfunctions will not be under the warranty.

The repairing of electrical appliances must only be made by qualified technicians, as otherwise there may occur future complications on the appliances.

To avoid unnecessary risks, in case there are any malfunctions on the wires or on another type of components, repairing must be made on the specialized locations of technical assistance, as appropriate tools are needed.

4.ENVIRONMENT CONSERVATION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

kunft.®

Line drawing of a standard electric fan with three blades and a stand (no text or symbols)

stand fan 40 cm

is perfectly enough

KSF 2374 16"
