JCAV003430 - Wine cellar Jocel - Free user manual and instructions

Product Type	Wine cellar / Wine cooler
Brand	Jocel
Model	JCAV003430
Capacity	105 L, holds up to 32 standard 750 mL wine bottles
Temperature Range	6°C to 14°C (43°F to 57°F)
Dimensions (H x W x D)	83.3 x 44.5 x 48.1 cm
Net Weight	28.5 kg
Power Supply	220-240 V ~ 50 Hz
Refrigerant	Flammable refrigerant (R600a or similar)
Temperature Control	Digital thermostat with display, ± and °C/°F buttons
Door Type	Tempered glass with UV protection, magnetic gasket
Shelves	Odor-resistant, rustproof, removable (5 on top, 2 per bottom shelf)
Lighting	Interior white LED light (replaceable strip)
Door Hinge	Reversible (left or right swing)
Levelling	Adjustable front right foot
Defrost	Automatic (no manual defrost needed)
Installation	Free-standing only; 12.7 cm clearance around
Standby Time Before Power On	Minimum 6 hours upright after transport; 24 hours before first use
Cleaning	Baking soda solution (1 tbsp/L water) or mild detergent; no ammonia or alcohol
Warranty	Valid with purchase invoice; covers manufacturing defects; excludes misuse, transport damage, unauthorized repairs
Compliance	CE, Low Voltage Directive 2014/35/EU, EMC 2014/30/EU
Contact for Service	[e-mail]; Tel: [phone]

Frequently Asked Questions - JCAV003430 Jocel

How do I set the temperature on my Jocel JCAV003430 wine cooler?

Use the + and - buttons on the digital control panel to adjust the temperature by 1°C or 1°F increments. Press the °C/°F button to switch between Celsius and Fahrenheit. The set temperature range is 6°C to 14°C (43°F to 57°F).

Can I reverse the door on my wine cooler?

Yes, the door hinge is reversible. You will need a #2 cross-head screwdriver (not supplied). Follow the detailed instructions in the manual: remove hinges, covers, and screws, then reinstall on the opposite side. After reversal, ensure the door is level and the gasket seals properly. Allow the appliance to stand upright for 6 hours before plugging in after reversal.

How do I clean the wine cooler?

Unplug the appliance first. Clean the interior with a soft cloth and a solution of 1 tablespoon (15 ml) of baking soda per liter of water, or a mild detergent. Wash removable shelves in mild detergent, then dry. Clean the exterior with a damp cloth and mild detergent. Avoid ammonia or alcohol-based cleaners, as they can damage the finish.

What type of light does the wine cooler use and how do I replace it?

It uses a white LED light strip. To replace it, contact customer service for a replacement. Remove the two screws holding the light control box, then remove the light cover and strip. Handle with care to avoid damage.

Does the wine cooler need manual defrosting?

No, the appliance features automatic defrost. Defrost water is channeled to a drip tray above the compressor, where it evaporates due to the compressor's heat. No manual defrosting is required.

What should I do during a power failure?

Most power failures last only a few hours and will not affect the temperature if you minimize door openings. If the outage is longer, take steps to protect your wine. Wait 3 to 5 minutes before restarting the appliance after power is restored.

How should I move the wine cooler?

Empty the appliance, secure the door with tape, adjust the levelling foot up to avoid damage, and wrap the exterior with a blanket. Keep it upright during transport. If laid on its back or side, let it stand upright for 6 hours before plugging in.

How do I dispose of my old wine cooler?

Do not dispose of it as regular household waste. Take it to a designated collection point for recycling of electrical components. Contact your local waste disposal agency for information.

What are the common troubleshooting steps if the wine cooler is not cooling?

Check that the appliance is plugged in, the circuit breaker is not tripped, and the temperature setting is correct. Ensure the door is closed properly, the exhaust vent is not obstructed, and the ambient temperature is not extreme. Allow 12.7 cm clearance around the appliance.

What is the warranty coverage for the Jocel wine cooler?

The warranty covers parts replacement due to manufacturing defects when used according to the manual. It does not cover damage from transport, misuse, improper installation, or unauthorized repairs. Warranty is valid only with the purchase invoice. For service, contact [e-mail] or [phone].

USER MANUAL JCAV003430 Jocel

Exterior view of a modern stainless steel oven with open shelves and control panel (no visible text or symbols)

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

ÍNDICE

INSTRUÇÕES DE SEGURANÇA......2

• REQUISITOS DE SEGURANÇA ...... 2
• INSTRUÇÕES DE LIGAÇÃO À TERRA....3

Pure mechanical diagram showing a rotating component with directional arrows, no text or symbols present

Simple line drawing of a cabinet or enclosure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular frame with diagonal lines and an arrow, no text or symbols present.

LIMPEZA

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

INSTRUCCIONES DE ALMACENAMIENTO

Simple line drawing of a rectangular box with an arrow pointing right, labeled with circled number ② (no text or symbols on the diagram itself)

Simple line drawing of a rectangular frame with an arrow pointing right, no text or symbols present.

LIMPIEZA

Telef. 00 34 914 879 573

http://www.jocel.es

IMPORTANT SAFEGUARDS....22

• SAFETY REQUIREMENTS 22
- GROUNDING INSTRUCTIONS....23

INSTALLATION INSTRUCTIONS....23

- LOCATION 23

OPERATING INSTRUCTIONS....24

• FEATURES....24
  • TEMPERATURE CONTROL 25
• LEVELLING INSTRUCTIONS 25
• STORAGE INSTRUCTIONS ....25
• SHELF INSTRUCTION....25
  • LIGHT BULB REPLACEMENT ....26
  • DOOR REVERSAL INSTRUCTIONS....26

CARE AND MAINTENANCE......27

• CLEANING 27
• POWER FAILURE ....27
• DEFROST 27
  • VACATION......27
• MOVING 27
  • DISPOSAL....28

TROUBLESHOOTING 28

GENERALWARRANTY CONDITIONS....29

CONFORMITY DECLARATION....10

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

• Do not use mechanical devices to defrost wine cooler.
• Ensure that servicing is done by JOCEL authorized service personnel to minimize product damage or safety issues.
• Consult the user manual before attempting to service this product. All user manual instructions must be followed.
• Dispose of this product properly in accordance with federal or local regulations.
• Follow handling instructions carefully.
• If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstructions.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: The product must remain upright for 24 hours at minimum prior to being turned on.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

DANGER: Risk of child entrapment. Before throwing away an old appliance:

• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside.

DANGER: Do not add a lock to the door or lid. This can cause child entrapment and harm.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential-type environments;
- Bed and breakfast-type environments;
- Catering and similar non-retail applications.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

This appliance must be grounded. Grounding reduces the risk of electric shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a two-prong plug. The power cord must be plugged into an outlet that is properly grounded. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded adaptors.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to prevent potential hazards.

IMPORTANT SAFEGUARDS

LOCATION

Moving this appliance ideally requires two people.

• Remove the interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm, wet cloth.
• Place the appliance on a floor that is strong enough to support it when it is fully loaded.
• Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extremely cold ambient temperatures may also cause the appliance to perform improperly.
• Do not use the appliance near water, for example in a wet basement or near a sink.
• This appliance is intended for household use or in areas as stated on previous page. It is not designed for outdoor use, including anywhere that is not temperature controlled (garages, porches, vehicles etc.) or areas where it may freeze.
• Before connecting the appliance to a power source, let it stand upright for approximately six hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Dimensions (HxWxD): 83,3 x 44,5 x 48,1 cm. Make sure that you leave the minimum amount of space between the appliance and all surrounding walls and vents.
• Wine cooler Capacity: 105L. Temperature Range: 6–14°C (43–57°F). Rating: 220-240V\~50Hz. Net Weight: 28,5kg.
• Allow 12.7 cm of space between the back, sides and top of the appliance and all adjacent walls.

This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building-in this appliance can cause it to malfunction.

OPERATING INSTRUCTIONS

FEATURES

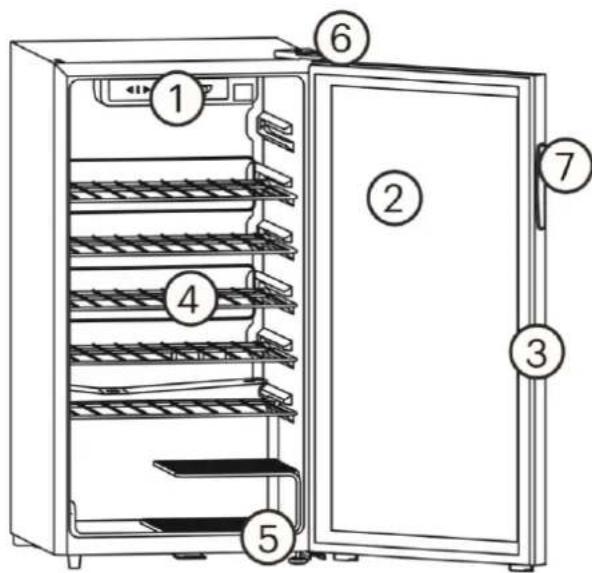

1. Panel with Thermostat and Temperature Display: Electronic display and controls for viewing and regulating the temperature.
2. Tempered glass door: Tinted for UV protection while still allowing for easy interior viewing.
3. Magnetic Door Gasket: Tight-fitting seals retain all the cooling power and humidity levels.
4. Shelves: Odour resistants, rustproof and removables for easy cleaning.
5. Levelling Foot: Adjust to level the appliance.
6. Reversible Door Hinge: For right and left handed swing.
7. Built-in Pocket Handle.

NOT SHOWN:

• Interior White LED Light: Illuminates the compartment when turned on.

TEMPERATURE CONTROL

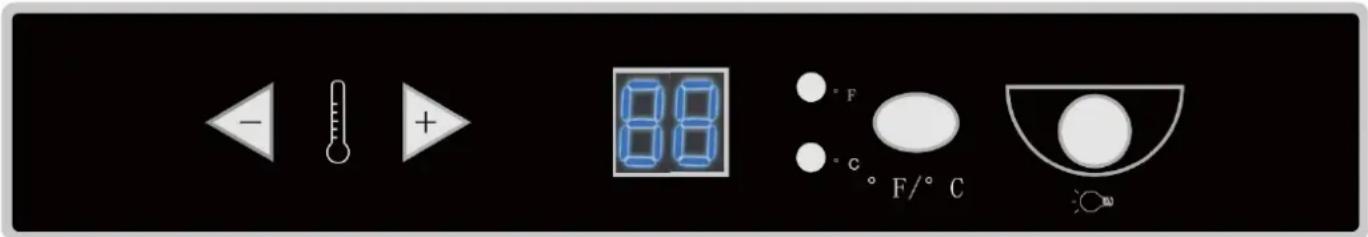

This appliance has digital control panel located on the top of the inside of the wine cooler. The temperature range is 6^ C to 14^ C ( 43^ F to 57^ F).

“+” and “-” Buttons: Use to increase or decrease the set temperature by 1°C and °F.

°C / °F Button: Press to change the temperature display between °C and °F.

Temperature Display: Shows the set temperature.

Actual temperature inside the appliance can vary based on ambient temperature, how often the door is opened and how many warm bottles have recently been added to the appliance.

LEVELLING INSTRUCTIONS

There is an adjustable foot on the front right of the appliance that can be turned up or down to ensure that the appliance is level.

1. Move the appliance to its final location
2. Turn the levelling foot counter-clockwise as far as it will go, until the top of the foot is touching the bottom of the chassis.
3. Slowly turn the levelling foot clockwise until the appliance is level.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

STORAGE INSTRUCTIONS

• The appliance can hold up to 32 standard 750 mL wine bottles.
• Place 5 bottles on the superior shelves.
• Place 2 bottles on each of the bottom-half shelves.

SHELF INSTRUCTIONS

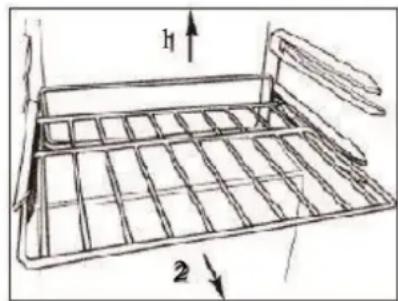

• To remove a shelf from its locked position, lift the rear of the shelf upward and then slide the shelf out of the unit.
• To replace the shelf, ensure it is resting securely on the support brackets and then push inward until the shelf locks into place.

Note: Do not cover shelves with aluminum foil or any other material that will prevent air circulation within the appliance as this can adversely affect internal temperature

LIGHT BULB REPLACEMENT

The appliance comes with a white LED light. To replace the LED light strip:

• Contact customer service for information on purchasing a replacement LED light strip.
• Remove the two screws holding the light control box and remove the box.
• Remove the light cover and then remove the light strip.

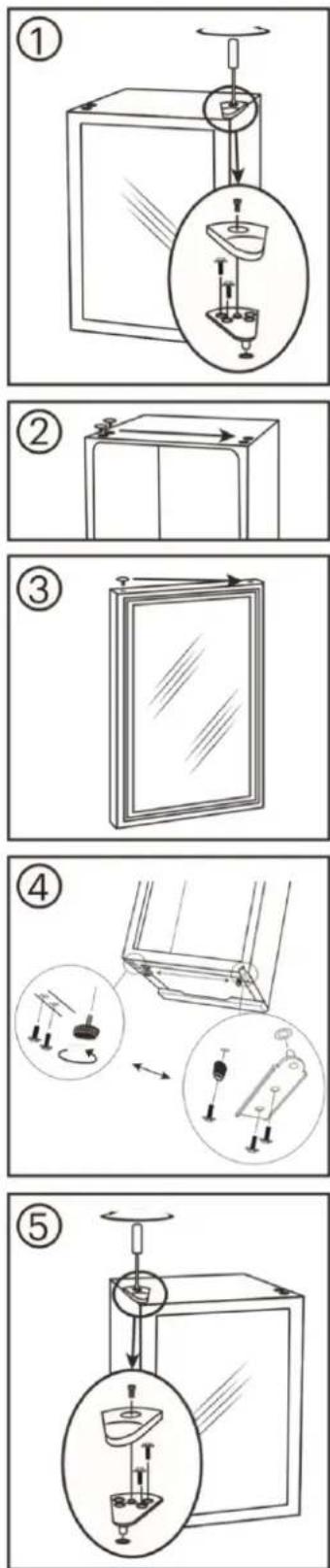

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must remain upright for six hours before plugging it in to avoid damage to the internal components.

A #2 cross-head screwdriver (not supplied) is required to reverse the door.

1. Remove the hinge cover and the upper hinge from the top right side of the wine cooler. Remove the door from the wine cooler.

2. Remove the screw hole covers from the top left side of the wine cooler and install them on the top right side of the wine cooler.

3. Remove the hinge hole cover from the top left side and install on the top right side of the door.

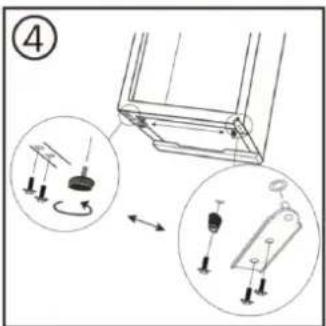

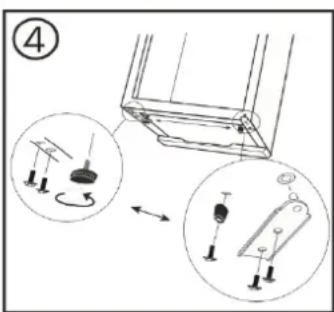

4. Remove the solid foot from the bottom left side of the wine cooler. Remove the adjustable foot and the lower hinge from the bottom right side of the wine cooler. Install the solid foot on the bottom right side of the wine cooler. Install the adjustable foot and the lower hinge on the bottom left side of the wine cooler.

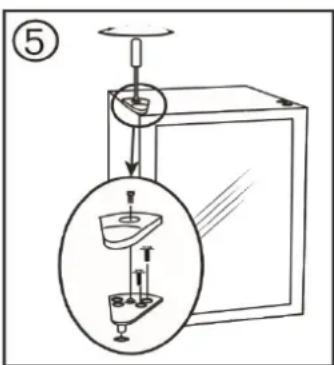

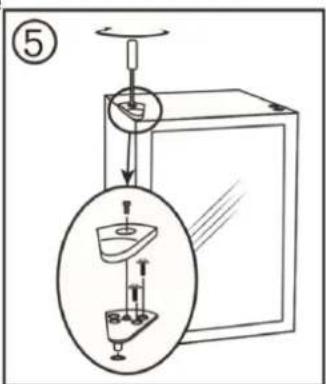

5. Install the door on the cabinet. Install the upper hinge and the hinge cover on the top left side of the wine cooler.

Note: When reinstalling the door, ensure that the top of the door is level with the top of the cabinet and that the rubber gasket makes a good seal with the wine cooler all the way around.

CLEANING

Ensure the appliance is unplugged before cleaning.

• To clean the inside of the appliance, use a soft cloth and a solution of 1 tablespoon (15 ml) of baking soda to 4 cups (1 L) of water or some mild detergent.
• Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
• Clean the outside with a soft, damp cloth and some mild detergent.
• It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse it with a damp cloth and let it dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.

Note: Wait 3 to 5 minutes before attempting to restart the appliance if the operation has been interrupted.

DEFROST

This appliance is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

VACATION

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly, blocking it open if necessary.

MOVING

• Ensure the appliance is empty.
• Secure the door with tape.
• Turn the adjustable leg up to the base to avoid damage.
• Protect the outside of the appliance with a blanket or similar item.
• Ensure the appliance stays in an upright position during transportation.

- If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for six hours before plugging in to avoid damage to the internal components.

DISPOSAL

This appliance may not be treated as regular household waste; it should be taken to the appropriate waste collection point for recycling electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE
No power.	A fuse may be blown or the circuit breaker tripped.Plug is not fully inserted into the wall outlet.
Internal temperature not cold enough.	Temperature setting is too warm.Door is not shut properly or opened excessively.Exhaust vent is obstructed.A large quantity of warm contents has recently been added to the equipment.Close proximity to heat source or direct sunlight.Ambient temperature or humidity is very high.More space is needed around the equipment: 12.7 cm of space between the back, sides and top of the appliance and all adjacent walls.
Appliance runs continuously.
Condensation on the cabinet or door	Door is not shut properly or opened excessively.Ambient temperature or humidity is very high.

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.

2. Exceeded the current legal period, for home appliances and for industrial appliances, warranty expires and assistance will be made by charging the costs of labor hand, according to current fees

3. With the modification or disappearance of the nameplate of the appliance.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910 351

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product WINE COOLER

Brand JOCEL

Model JAG003430

Complies with the following European directives and standards implementation:

Low Voltage 2014/35/EU

EN 60335-1:2012+AC:2014+A11:2014

EN 60335-2-24:2010+A1:2019+A2:2019

+A13:2017+A1:2019+A14:2019+A2:2019

EN 62233:2008

Electromagnetic Compatibility 22014/30/EU

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019
