HDCF16 - Household Fan Heller - Free user manual and instructions

Product Type	Pedestal Fan
Model	HDCF16
Brand	Heller
Blade Diameter	40 cm
Motor Type	DC Motor
Power Supply	220-240V ~ 50Hz
Power Consumption	30 W
Speed Settings	6 (Low to High)
Oscillation	Manual on/off knob
Timer	2 to 12 hours (2-hour intervals)
Remote Control	Yes (2 AAA batteries not included)
Energy Saving Mode	Yes, auto cycles speeds 1-3 every 5 minutes
Height Adjustment	Yes, via adjustable pole
Tilt Adjustment	Yes, manual tilt
Safety Features	Safety grill, non-immersion design, auto shut-off on overload (fuse)
Indoor Use Only	Yes
Cleaning	Wipe with damp cloth; do not immerse
Color	Black
Accessories	Manual, remote control (batteries not included)

Frequently Asked Questions - HDCF16 Heller

How do I assemble the pedestal fan?

Insert the standing pole into the base and fasten screws. Loosen the height adjustable ring to extend the pole to desired height. Place the fan assembly onto the pole and tighten the pole screw. Attach the back guard, blade, front guard, and secure with clips and nut.

How do I clean the fan?

Switch off and unplug the fan. Clean the housing with a damp cloth or vacuum. To clean blades, remove front guard and blade, wipe with slightly damp sponge. Never use flammable or abrasive cleaners. Never immerse the fan in water.

How do I use the remote control?

Insert two AAA batteries (not included). Press the ON/OFF button to turn on; fan starts at medium speed (setting 3). Use SPEED +/- buttons to adjust between 6 speeds. Press MODE for energy saving mode. Press TIMER to set 2-12 hours.

How do I set the timer?

Press the timer button on the remote or fan. The LED will show time setting status. Each press cycles through 2-hour increments from 2 to 12 hours. After 5 seconds of no operation, the setting is confirmed and LED returns to speed display.

What is the energy saving mode?

Press the energy saving button to activate. The fan automatically cycles through speeds 1, 2, and 3 at 5-minute intervals. Press the button again or press SPEED or ON/OFF to exit. Timer and some controls are disabled in this mode.

How do I adjust the fan speed?

Turn the speed control knob on the fan to select from 6 speeds (1-2 low, 3-4 medium, 5-6 high). The corresponding LED will light up. Alternatively, use the remote control SPEED +/- buttons.

How do I adjust the height?

Loosen the height adjustment ring on the pole, slide the pole to the desired height, then retighten the ring to secure.

How do I adjust the tilt angle?

Gently handle the motor housing and tilt it up or down until it locks into the desired position.

What should I do if the power cord is damaged?

Discontinue use immediately. The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not attempt to repair yourself.

Can I use this fan outdoors?

No. This fan is for indoor use only. Do not use in bathrooms, laundry areas, or near water. Exposure to rain or moisture can cause electric shock.

USER MANUAL HDCF16 Heller

40cm DC Motor Pedestal Fan

Model: HDCF16

Black outdoor fan with circular blades and a black stand (no text or symbols visible)

READ AND SAVE THESE INSTRUCTIONS

Please read and follow the instructions in this user manual even if you feel you are familiar with the product, and find a place to keep it handy for future reference.

For your convenience record the complete model number (located on the product identification plate) and the date you received the product, together with your purchase receipt and attach to the warranty and service information. Retain in the event that warranty service is required.

NOTE: The rating of this product (as marked on the product identification plate) is based on specific loading tests. Normal use or the use of other recommended attachments may draw significantly less power.

Important Safeguards

When using any electrically powered product, basic safety precautions should always be followed, including the following:

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT

WARNING!: - to reduce the risk of fire, electrical shock or injury to persons or property:

• Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.
• To reduce the risk of electric shock, do not use this fan with any solid state speed control device.
• Remove the unit from its packaging and check to make sure it is in good condition before using.
• Do not let children play with parts of the packing (such as plastic bags).
• Close supervision is necessary when the product is used by or near children or infirm persons. Do not allow children to use it as a toy.
• Do not operate any product with a damaged cord or plug, or after the product malfunctions, or is dropped or appears damaged in any way. Return the complete product to the place of purchase for inspection, repair or replacement.
• Before unplugging the power cord, be sure to turn the power off. When touching the unit, be sure your hands are dry to prevent electrical shock.
• Fully remove the power cord from the power cord tidy before use. Always uncoil the power cord before applying power.
• Ensure the fan is mounted on a stable, even wall, which is strong enough to hold it.
• The Pedestal Fan must be installed so the blades are at least 2.1m from the floor.
• Never install the unit where it is exposed to direct sunlight, excessive moisture/rain, dust and lack of ventilation near any heat sources.
• Avoid making contact with moving parts. Never insert fingers, pencils or any other objects through the guards whenever the power plug is connected, especially while the unit is working.
• To reduce the risk of electric shock, do not immerse or expose the product or flexible cord to rain, moisture or any liquid other than those necessary for correct operation of the product.
• This product should not be used in the immediate vicinity of water, such as bathtub, washbowls, bathroom swimming pool etc. Where the likelihood of immersion or splashing could occur.
• Switch off and unplug from outlet when not in use, before assembling or disassembling parts and before cleaning. Remove by grasping the plug - do not pull on the cord.
• Be sure that no other high current appliances are plugged into the same circuit with your fan as an overload can occur.
• Do not use this unit with a programmer timer or any other device that switches the unit 'On' automatically, since a fire risk exist the unit is covered or positioned incorrectly.

• Avoid the use of an extension cord as the extension cord may overheat and cause a risk of fire.

• Do not plug this unit into an extension lead, double adaptor or power board.

• Do not use the appliance for other than its intended use.
• Do not use outdoors. FOR INDOOR USE ONLY.
• This unit is not intended for use in bathrooms, laundry areas or similar moist indoor locations. Never locate the unit where it may fall into a bathtub, sink or any other water container.
• Do not run the power cord under carpeting or cover the power cord with throw rugs, runners or the like. Arrange the power cord away from traffic areas and where it will not be a hazard to persons.
• Do not place the power cord over any part of the unit.
• Do not leave the appliance unattended when switched on.
• Do not cover the grill, or operate in close proximity to curtains etc.
• Do not block air circulation.
• Do not move the machine when it is switched 'On' and in use.
• Place the machine on a level surface.
• To disconnect the unit, set the main switch to 'OFF' then remove the plug from the outlet.
• This unit has hot electrical parts inside. DO NOT use it in areas where gasoline, paint or flammable liquids are used or stored.
• Unplug the appliance during filling and cleaning.
• This product must always be used and stored in the upright position.
• The use of attachments or accessories not recommended or sold by the product distributor may cause personal or property hazards or injuries.
• This product is intended for normal domestic/household use only.
• Use this fan as described in this manual. Any other uses, not recommended by the manufacturer, may cause fire, electric shock, or injury to persons and may void the warranty.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not leave the fan running unattended.

WARNING

If the supply power cord is damaged, the power cord must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This product has not been designed for any uses other than those specified in this booklet.

SAVE THESE INSTRUCTIONS

FEATURES

1. FRONT GUARD
2. BLADE NUT
3. BLADE
4. GUARD MOUNTING NUT
5. BACK GUARD
6. CRANKSHAFT
7. MOTOR HOUSING
8. OSCILLATION KNOB
9. PITCHING
10. SPEED INDICATOR
11. ON/OFF AND SPEED CONTROL
12. COVER FOR ADJUSTABLE POLE
13. ADJUSTABLE POLE
14. STANDING POLE
15. BASE COVER
16. BASE
17. BASE SCREW CAP
18. BASE SCREW

Getting to Know your Pedestal Fan

Congratulations on the purchase of your new Pedestal Fan.

Before first use of your new Pedestal Fan, it is most important that you read and follow the instructions in this use and care booklet, even if you are familiar with this type of appliance.

Your attention is drawn particularly to the section dealing with IMPORTANT SAFEGUARDS. Find a safe and convenient place to keep this booklet handy for future reference.

This appliance has been designed to operate from a standard domestic power outlet. It is not intended for industrial or commercial use.

Your Pedestal Fan is safe and easy to use. It has been designed to function quietly and safely under normal circumstances. Your Pedestal Fan is fully portable with a sturdy stand and contemporary design. It energy efficient blades circulate cool air while using less power than a standard light globe. The heavy-duty motor is rated for continuous use to combat long hot summers.

Use the manual oscillation knob to choose a fixed direction for personal comfort or oscillating to cover large areas.

Assembly Instructions

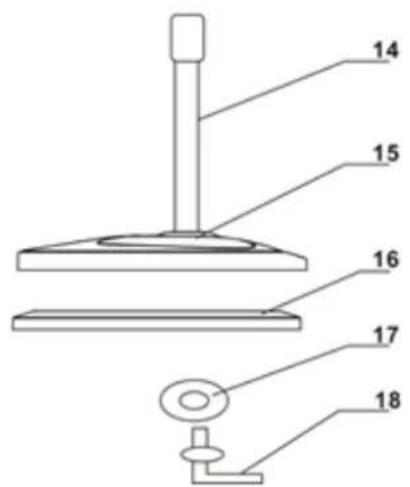

Installation of the Standing pole and the base: insert the pole into the hole of the base, then fasten the screws on the base. (14-18)

Loosen the height adjustable ring and extend the support pole to your desired height.

Retighten the height adjustment ring to prevent slipping, then place the fan assembly onto the pole and tighten the pole screw manually.

Put the fan housing on the extension pipe, then fix it by fasten the Knob on the fan house( back)

To assemble the safety grille and blade assembly, remove the locking nut (by turning it anticlockwise) from the motor housing.

Place the back safety grille into position. Ensure the safety grille fits onto the locating lugs. (Fig. 1) The hole for fixing screw and nut should be at the bottom. Fix the safety grille into position by replacing the locking nut tightly by hand. DO NOT FORCE THE LOCKING NUT.

Fig. 1 – Locating lugs and locking nut

The groove in the centre of the fan blade aligns with a T-bar on the motor shaft to ensure correct positioning.

Fix the blade into place by gently hand tightening the spinner (Fig. 2) anticlockwise onto the end of the motor shaft. The motor shaft is self-tightening; do not force it.

Diagram of a propeller assembly with a close-up inset showing internal components (no text or labels)

Fig. 2 – Motor Shaft tightens anti-clockwise

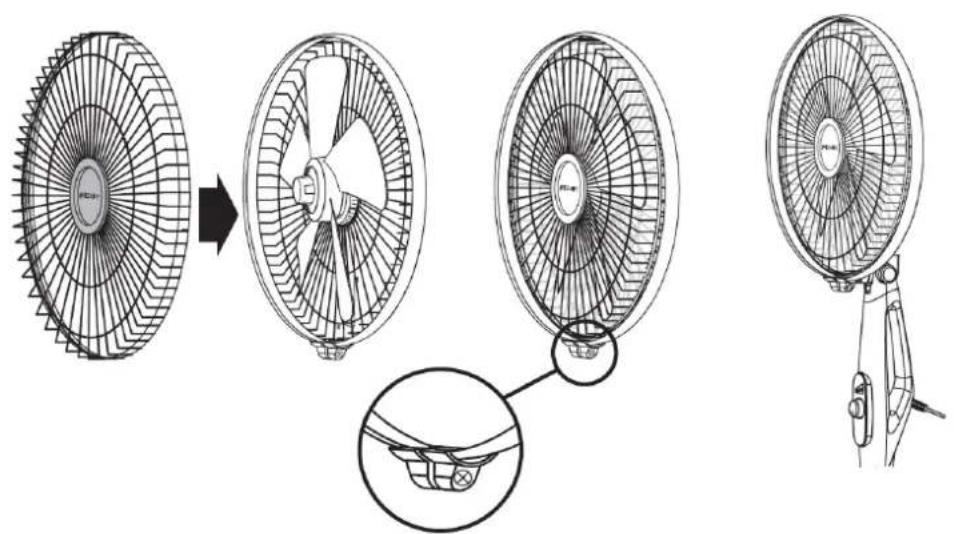

Lift out all locking clips on the front safety grille (Fig. 3)

(Fig. 3)

Place the safety grille into position and secure it by fastening the clips over the outer rim. The screw and nut at the bottom of the grille must be fitted (Fig. 4).

Line drawing of a double fan with internal blades and a close-up inset showing internal components (no text or symbols)

(Fig. 4)

Before First Use

Before use, remove all packaging and inspect the appliance for any damage. If there appears to be any damage, please take the unit back to place of purchase for a replacement.

Operating Instructions

Before inserting the plug into a power outlet, make sure that the correct voltage being used corresponds to what is indicated on the rating label, and that the socket has an earth facility.

Remove the cable tie and unravel the cord set before operation. Connect the plug into an electrical socket and switch on at the wall.

Tilt Adjustable:

Gently handle the motor house, tilt up or down until the assembly locate into the desired position.

Turn the On/off and speed control to the desired speed (from low to high total 6 settings). The speed indicator will light up according to the speed selected.

1-2.....Low fan speed
3-4.....Medium fan speed
5-6.....High fan speed

To blow air in one direction and stop oscillation, allow the Pedestal Fan to move into desired position and pull the oscillation knob up. To return to a normal oscillating function, press the oscillation knob down. (Fig. 5).

(Fig. 5)

Remote Control Operation

All available functions of the fan can be operated via the remote control.

Two pcs AAA battery · not included in the remote control.

White remote control device with black interior and red scroll wheel (no visible text or symbols)

1. Press the "ON/OFF" to turn on the remote. By default the fan will start at Medium (setting 3) speed. To turn the fan off, press the "ON/OFF" again.
2. To adjust the fan speed to the desired level: You have the option of 6 speed settings from Low to High, by pressing the "SPEED" button you are increasing the fan speed or "SPEED" button you are decreasing the fan speed, the chosen fan speed will illuminate the corresponding LED light displayed on the control panel of the fan.
3. Mode/Energy saving mode: - operates fan by auto cycling through speed 1,2 & 3 only at 5 minute intervals.

1) Press the energy-saving button to enter the energy-saving mode, press it again to exit the energy-saving mode, or press the speed button and the ON/OFF button to exit the energy-saving mode.
2) In the energy-saving mode, pressing the timer setting and pressing the keyboard is invalid.

1. Timer-Can set fan to operate for a specific length of time at 2 Hour intervals from 2 to 12 Hours.

Press the time setting button, the LED changes from the wind speed gear display to the time setting state, the LED corresponding to the set time flashes, the first LED flashes to indicate that the setting is 2H on, and the fan stops running after 2H.

By analogy, 3, 4, 5, 6 lights are on, indicating that the time setting is 6, 8, 10, 12 hours. After the time setting button stops operating for 5 seconds, the LED enters the real-time wind speed prompt state, and the corresponding LED light is always on. When all the six lights are on, press the time setting button again to exit the time setting and enter the always-on state.

Noted: When the indicator light is not flashing, press the timer button again, press the first time to view the timing, and the indicator light is flashing at the same time, you can adjust the timing only when the indicator light is flashing.

Care & Cleaning

• Your appliance must be switched OFF via the main power supply and unplugged before proceeding with any cleaning.
• Clean the housing with a damp cloth, a vacuum cleaner or a dusting brush.
• To clean the blade and grille assembly, first remove the safety grille, unscrew the locknut and remove the blade from the Pedestal Fan. Wipe them clean with a slightly damp sponge.
• Never use flammable or abrasive cleaning agents such as benzene or spirits to clean the appliance.
• Never immerse the appliance in water.
• Never spray the Pedestal Fan with liquids or submerge it in water or any other liquid.

NOTE: If the power cord set of this appliance becomes damaged, discontinue use. Repairs should be undertaken only by a qualified technician.

Specifications

Model	Description	Voltage	Frequency	Wattage
HDCF16	40cm DC Motor Pedestal Fan	220-240V~	50Hz	30W

Australian Customer Service

GAF Control (Sales) Pty Ltd

P.O Box 19

Altona North Victoria 3025

Phone: [phone]

Hours: 9am-5pm (EST) Mon-Fri

www.gafcontrol.com.au

*This product may vary slightly to the product illustrated due to ongoing product development.
