Product Type	Desk Fan
Brand	Heller
Model	HHDF23S
Fan Diameter	23 cm
Power Supply	220-240V~, 50Hz
Power Consumption	21 W
Speed Settings	3 (0, Low, High)
Oscillation	Yes, with push/pull knob
Tilt Adjustment	Yes, via neck screw
Number of Blades	3
Guard Material	Metal
Assembly Required	Yes (front guard, blade, rear guard)
Cleaning Method	Wipe with damp cloth, vacuum grill
Indoor Use Only	Yes
Safety Features	Overheat protection (thermal fuse)

Frequently Asked Questions - HHDF23S Heller

How do I assemble the fan?

Loosen the rear guard mounting nut from the motor housing. Fit the rear guard onto the motor housing and fasten tightly. Fit the blade onto the motor shaft. Connect the front guard to the rear guard and clip together, securing with screws.

How do I clean the fan?

Always switch off and unplug the fan before cleaning. Wipe the housing with a damp cloth. Use a vacuum cleaner brush nozzle on the grill to remove dust. Never immerse in water or use abrasive cleaners.

How do I adjust the oscillation?

Push the oscillation knob down to start oscillation. Pull the knob up to stop oscillation. Always switch off the fan before making adjustments.

How do I adjust the tilt angle?

Loosen the neck screw, swivel the fan head to the desired angle, then re-tighten the screw securely. The fan should be switched off during adjustment.

What are the speed settings?

The fan has three settings: 0 (OFF), 1 (LOW), and 2 (HIGH). Select via the speed control switch.

Can I use the fan outdoors?

No, this fan is for indoor use only. Do not expose it to rain or moisture.

Is it safe to leave the fan unattended?

No, never leave the fan running unattended. Always switch it off and unplug when not in use.

What should I do if the power cord is damaged?

Discontinue use immediately. The cord must be replaced by the manufacturer, its service agent, or a qualified person to avoid hazard.

Can I use an extension cord with the fan?

Avoid using an extension cord as it may overheat and cause a fire risk. If necessary, ensure it is rated for the fan's power.

How should I store the fan when not in use?

Switch off, unplug, and allow to cool. Store in a dry, dust-free place away from direct sunlight and moisture.

USER MANUAL HHDF23S Heller

Black-and-white photo of a HELLER electric fan with visible blades and grille, mounted on a stand (no text or symbols on the fan body)

READ AND SAVE THESE INSTRUCTIONS

Please read and follow the instructions in this user manual even if you feel you are familiar with the product, and find a place to keep it handy for future reference.

For your convenience record the complete model number (located on the product identification plate) and the date you received the product, together with your purchase receipt and attach to the warranty and service information. Retain in the event that warranty service is required.

NOTE: The rating of this product (as marked on the product identification plate) is based on specific loading tests. Normal use or the use of other recommended attachments may draw significantly less power.

IMPORTANT SAFEGUARDS

When using any electrically powered product, basic safety precautions should always be followed, including the following:

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT

WARNING!: - to reduce the risk of fire, electrical shock or injury to persons or property:

• Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.
• Remove the unit from its packaging and check to make sure it is in good condition before using.
• Do not let children play with parts of the packaging (such as plastic bags).
• Close supervision is necessary when the product is used by or near children or infirm persons. Do not allow children to use it as a toy.
• Do not operate any product with a damaged cord or plug, or after the product malfunctions, or is dropped or appears damaged in any way. Return the complete product to the place of purchase for inspection, repair or replacement.
• Before unplugging the power cord, be sure to turn the power off. When touching the unit, be sure your hands are dry to prevent electrical shock.
• Never install the unit where it is exposed to direct sunlight, excessive moisture/rain, dust and lack of ventilation near any heat sources.
• Avoid making contact with moving parts. Never insert fingers, pencils or any other objects through the guards whenever the power plug is connected, especially while the unit is working.
• Always place the fan on a stable, level surface when operating to prevent the fan from overturning. Do not run the power cord under carpet. Do not cover the power cord with throw rugs or runners. Route the power cord away from walking paths so that nobody can trip over it. The cable should be kept away from heat, sharp edges and oil.
• To reduce the risk of electric shock, do not immerse or expose the product or flexible cord to rain, moisture or any liquid other than those necessary for correct operation of the product.
• This product should not be used in the immediate vicinity of water, such as bathtub, washbowls, bathroom swimming pool etc. Where the likelihood of immersion or splashing could occur.
• Switch off and unplug from outlet when not in use, before assembling or disassembling parts and before cleaning. Remove by grasping the plug - do not pull on the cord.
• Be sure that no other high current appliances are plugged into the same circuit as your fan, as an overload can occur.
• Avoid the use of an extension cord as the extension cord may overheat and cause a risk of fire.
• Do not use the appliance for other than its intended use.
• Do not use outdoors. FOR INDOOR USE ONLY.

• Do not leave the appliance unattended when switched on.

• Do not cover the grill, or operate in close proximity to curtains etc.

• The use of attachments or accessories not recommended or sold by the product distributor may cause personal or property hazards or injuries.
• This product is intended for normal domestic/household use only.
• Never leave a working appliance unattended, even for a short period of time – always switch it off. Please unplug the appliance from the power supply when not in use.
• Use this fan as described in this manual. Any other uses, not recommended by the manufacturer, may cause fire, electric shock, or injury to persons and may void the warranty.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice.
  • Children should be supervised to ensure that they do not play with the appliance.
• Do not leave the fan running unattended.
• WARNING: If the supply power cord is damaged, the power cord must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This product has not been designed for any uses other than those specified in this booklet.
• CAUTION: Never insert your fingers or any other objects (hair, clothes, utensils, knives, screw drivers etc.) into the openings of the guard or close to the blade when the appliance is connected to the power supply.
• CAUTION: DO NOT COVER the appliance in any way in order to avoid overheating and fire.
• CAUTION - RISK OF ELECTRIC SHOCK: To reduce the risk of electric shock do not open this device, there are not serviceable parts for customers. Please refer any maintenance or repair to qualified personnel.

SAVE THESE INSTRUCTIONS

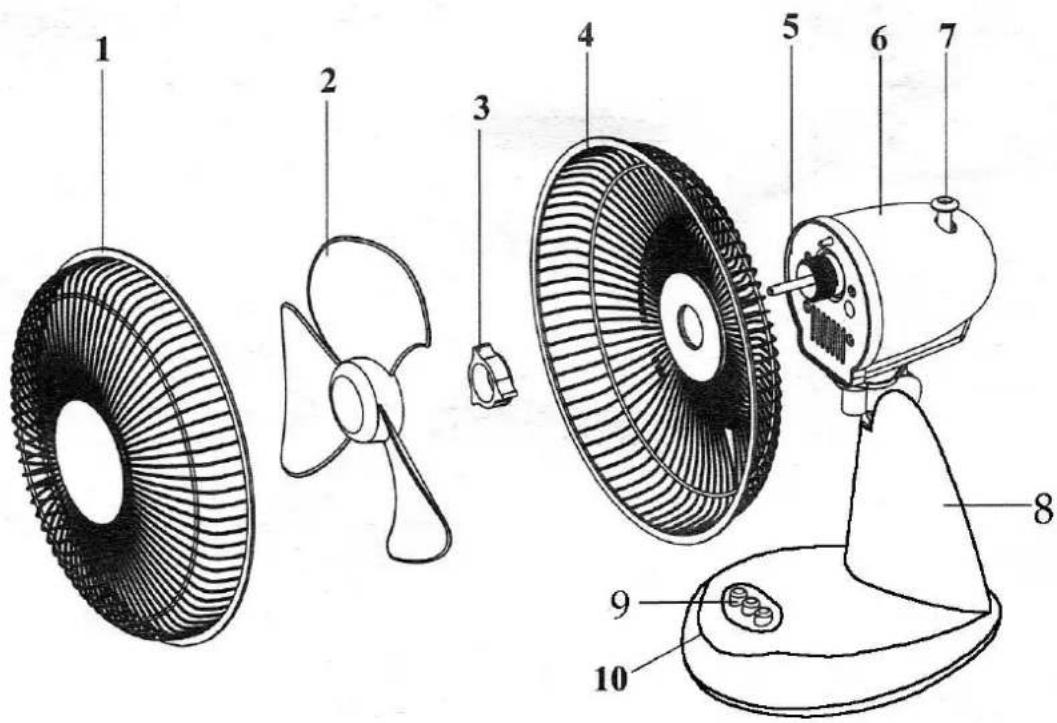

1. Front Guard
2. Fan Blade
3. Guard Mounting Nut
4. Rear Guard

5. Motor Shaft

6. Motor Housing

7. Oscillation Knob
8. Stand
9. Speed Control Switch (0,1,2)
10. Base

BEFORE FIRST USE

Before use, remove all packaging and inspect the appliance for any damage. If there appears to be any damage, please take the unit back to place of purchase for a replacement.

ASSEMBLY INSTRUCTIONS

1. Loosen the rear guard mounting nut from the motor housing.
2. Fit the rear guard onto the motor housing and fasten by turning the guard mounting nut tightly, but do not over tighten.
3. Fit the blade onto the motor shaft.
4. Connect the front guard to the rear guard and clip them together with the clips provided.
5. Both guards must be secured with the screws provided.

OPERATING INSTRUCTIONS

NOTE: Before inserting the plug into a power outlet, make sure that the correct voltage being used corresponds to what is indicated on the rating label, and that the socket has an earth facility.

CAUTION:

• Select a suitable location for the fan. Always choose a safe location in accordance to the safely recommendations outlined.
• When placing a fan on a table or shelf, always ensure that the power cord does not hang where it can accidentally be pulled /pushed or accidentally fall.

• Do not hang or mount the fan on a wall of ceiling.

• Place the fan on a firm and level surface.

• Plug the fan into a power outlet.

• Select the desired speed setting:

• 0 - OFF
  • 1 - LOW

• 2-HIGH

• The fan can be set to oscillate by pushing the oscillating knob down. To stop the oscillating feature, pull the oscillation knob up.

CAUTION: The fan should always be switched off when making any adjustments to the fan head angle.

1. To adjust the tilt angle of the fan head, loosen the neck screw, swivel the fan to the desired angle then re-tighten the screw.

CARE & CLEANING

NOTE: If the power cord set of this appliance becomes damaged, discontinue use. Repairs should be undertaken only by a qualified technician.

CAUTION: To avoid of electric shock, you must always switch off and unplug the fan before cleaning.

• Your appliance must be switched OFF via the main power supply and unplugged, and allow it to cool down before proceeding with any cleaning, assembling or disassembling.
• Clean the housing with a damp cloth, a vacuum cleaner or a dusting brush.
• We recommended lightly running a vacuum cleaner brush nozzle over the fan grille to remove any dust or dirt that may have accumulated.
• Never use flammable or abrasive cleaning agents such as benzene or spirits to clean the appliance.
• Never immerse the appliance in water.

SPECIFICATIONS

Model	Description	Voltage	Frequency	Wattage
HHDF23S	23cm Desk Fan	220-240V~	50Hz	21W

CUSTOMER SERVICE

Australian Customer Service

GAF Control (Sales) Pty Ltd

P.O Box 19

Altona North Victoria 3025

Phone: [phone]

Hours: 9am-5pm (EST) Mon-Fri

www.gafcontrol.com.au

*This product may vary slightly to the product illustrated due to ongoing product development.
