Product Type	Petrol Lawn Mower
Brand	Baumr-AG
Model	EX-880R
Engine Displacement	31 cc
Engine Type	4-Stroke, Full Crank
Cutting Width	224 mm (22.4 cm)
Cutting Height Range	28 mm - 30 mm
Cutting Height Adjustments	5 positions: +20, +10, 0, -12, -25 mm
Max Engine Speed (RPM)	6500 min⁻¹
Normal Operating Speed (RPM)	3000 min⁻¹
Fuel Tank Capacity	700 mL (0.7 L)
Fuel Type	Unleaded Petrol (E10 compatible)
Engine Oil Type	10W-30
Oil Capacity	60 mL (approx.)

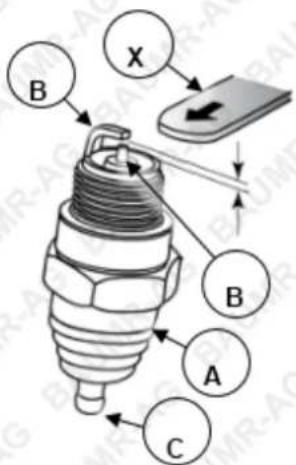

Spark Plug Gap	0.6 - 0.7 mm
Start Type	Manual Recoil Start
Grass Collection	Grass Catcher Bag (included)
Chassis Material	Steel (body), Plastic (deck)
Weight	Approx. 18 kg
Dimensions (L x W x H)	Approx. 1200 x 450 x 900 mm
Safety Features	Engine Brake, Blade Brake, Safety Guard
Maintenance Interval	Check oil & air filter before each use; spark plug every 12 months
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - EX-880R Baumr-AG

What type of oil should I use in my Baumr-AG EX-880R lawn mower?

Use SAE 10W-30 engine oil. The oil capacity is about 60 mL. Always check the oil level before each use and refill if necessary. The mower is not supplied with oil, so you must add it before starting.

What fuel does the EX-880R require?

Use unleaded petrol (gasoline) with an octane rating of 91 or higher. E10 (up to 10% ethanol) is compatible. Do not use E85 or diesel. Always use fresh fuel and avoid storing the mower with fuel for extended periods.

How do I adjust the cutting height on this mower?

The cutting height is adjusted by moving a lever on each wheel. There are 5 positions: +20, +10, 0, -12, and -25 mm relative to the base setting. The cutting range is from 28 mm to 30 mm. Adjust all four wheels to the same setting for an even cut.

Why won't my mower start?

Common causes: empty fuel tank, incorrect choke position, old or contaminated fuel, a fouled spark plug, or a wet spark plug from over-choking. Check fuel, set choke to CHOKE position for cold start, clean or replace the spark plug (gap 0.6-0.7 mm), and ensure the spark plug is dry.

How often should I change the oil?

Change the oil after the first 5 hours of use, then every 25 hours or annually, whichever comes first. Use 10W-30 oil. Drain the old oil from the oil fill cap/dipstick while the engine is warm, then refill to the MAX mark.

How do I clean or replace the air filter?

Remove the air filter cover, take out the foam element. Wash it in warm soapy water, rinse, and let it dry completely. Oil the foam with a few drops of engine oil and squeeze out excess. Reinstall. Replace the filter if it is damaged or excessively dirty.

Can I use the mower in wet grass?

It is not recommended to mow wet grass. Wet grass can clog the mower deck, reduce cutting performance, and increase the risk of slipping. Also, electrical components (if any) should be kept dry. Always mow when grass is dry for best results.

How do I change the blade?

Disconnect the spark plug cap. Tip the mower on its side (with air filter up). Use a wrench to remove the blade bolt. Replace with a genuine Baumr-AG blade (available via QR code in the manual). Tighten the bolt securely. Ensure the blade is balanced before use.

What safety precautions should I take?

Always read the manual before use. Wear sturdy shoes, long trousers, and eye/hearing protection. Keep bystanders and pets away. Never mow indoors. Refuel only when the engine is cool and turned off. Use the mower only on slopes less than 15 degrees. Do not operate if tired or under influence.

Where can I find spare parts for the EX-880R?

Spare parts such as blades, air filters, spark plugs, and oil are available from Baumr-AG or authorized dealers. Scan the QR code in the manual to access a parts portal. Always use original parts to maintain safety and warranty.

USER MANUAL EX-880R Baumr-AG

[Revision 4.0 May 2022]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment, or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not over-reach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol or medication.
• This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.

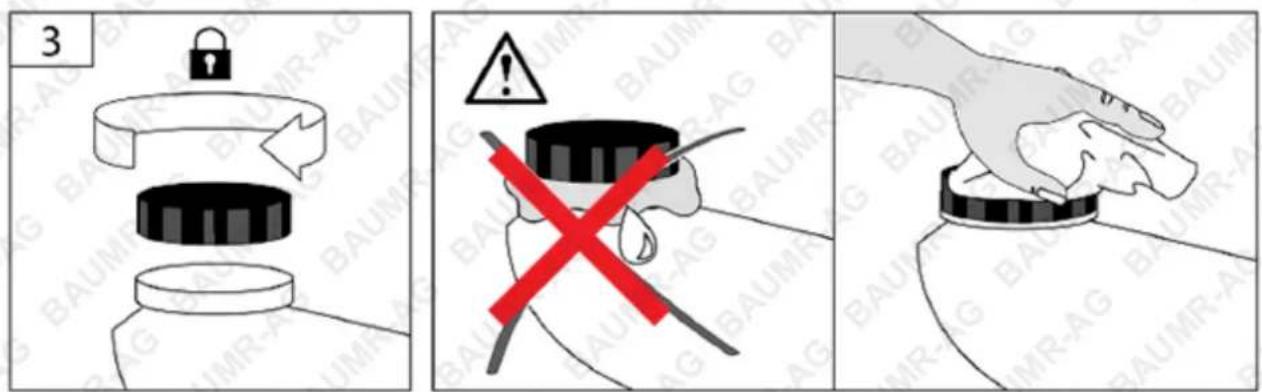

• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors and vents.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.

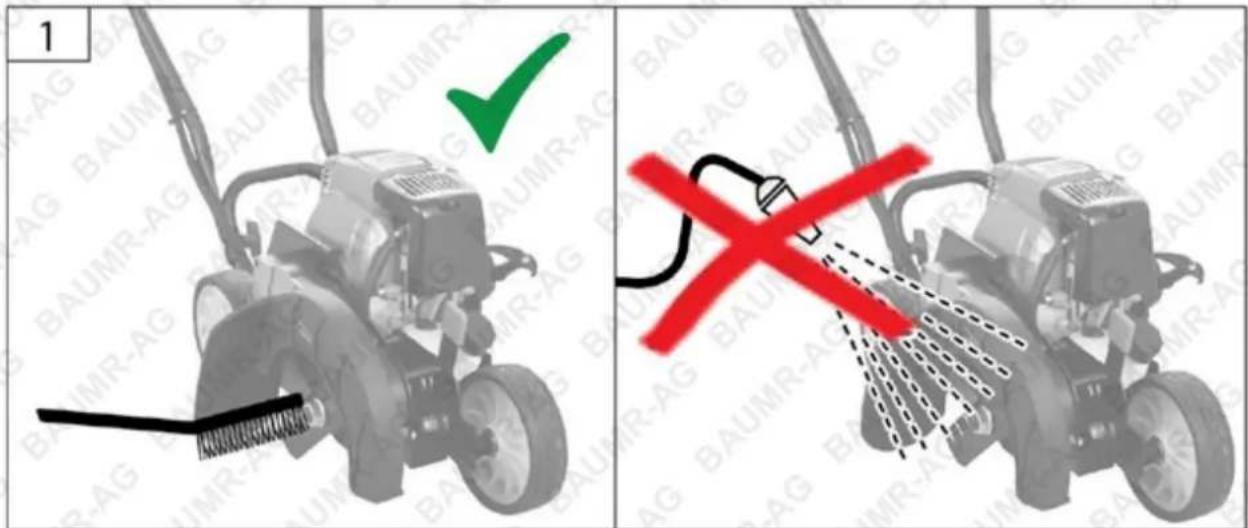

• Do not clean equipment with solvents, flammable liquids or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before making adjustments, changing accessories or performing repair or maintenance.
• Do NOT make adjustments while the equipment is running.
• Perform service related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Specified Conditions of Use

• The lawn edger is designed to look after domestic areas of grass and lawn. Due to the physical danger to the user and other persons, the appliance may not be used for other purposes.
• Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
• It is necessary to comply with the regulations applicable in the country where the truck is used.
• The appliance must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.
• Use the appliance only outside, never use it in confined and bad ventilated areas.
• Wear personal protective equipment. Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals. Wear protective gloves if necessary.
• Carefully check the terrain where the appliance is going to be used and remove all objects that could get caught or thrown off by the appliance such as stones, branches, wires, animals, etc.
• Avoid operating the equipment in wet grass, where feasible.

Requirements for Operating Staff

• The appliance may only be operated and maintained by persons familiarised with it and informed about possible risks.
• Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.
• The operating staff must carefully read the Operating Instructions before using the appliance.
• Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.
• Minimum age: Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education. Local regulations may stipulate the minimum age of the user.
• Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Residual Risks

Rotating blades may lead to serious injuries by cutting or amputating parts of the body. Never touch under the housing body when the engine is running. Wear protective shoes. Never remove the collection bag when the machine is being operated.

Thrown-off stones or soil may lead to injuries. Before mowing, check the area to be mowed for any undesirable objects. Make sure the collection bag is properly suspended. Wear safety goggles when working.

Poor lighting/light conditions represent a high safety risk. Provide adequate lighting or good lighting conditions when working with the machine.

Danger of burns! Some parts of the appliance get too hot when the appliance is operated. Contacting hot parts of the unit may cause burns. Let the unit cool down after its operation is over.

Risk of poisoning! Exhaust gases, fuel and lubricants are toxic. Inhaling exhaust gases may be fatal! Do not operate the unit in closed spaces where dangerous carbon monoxide gases may accumulate.

Risk of explosion/ Risk of fire! Petrol and petrol vapours are highly flammable, explosive. Do not work with the unit in an environment with a risk of explosion where there are flammable liquids, gases or dust. Never operate the unit near highly flammable materials.

DANGER

Using an engine or wood/charcoal/gas fuelled appliance indoors CAN KILL YOU IN MINUTES.

Engine exhaust and wood/charcoal/gas fumes contain carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a building, home, garage, boat, caravan or tent EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

Avoid other hazards · READ MANUAL BEFORE USE.

GENERAL:

• Do not operate in a hazardous location. Such areas include where there is a risk of explosion of petrol fumes, leaking gas or explosive dusts.
• Do not operate in a confined area where exhaust gases or wood/charcoal/gas fumes could reach dangerous concentrations.

PRODUCTS FEATURING AN ENGINE

• Follow all warnings in the section titled "GENERAL".
• Explosion hazard - never smoke while refuelling
• Take care not to spill fuel. When refuelling the engine, ensure that the engine has been allowed to cool. Prevent spilling of fuel as this may also ignite with a hot engine.
• Never refuel while engine is running.

GENERATORS

• Follow all warnings in the sections titled "GENERAL" and "PRODUCTS FEATURING AN ENGINE".
• The output of this generator is potentially lethal. The generator should not be connected to a fixed electrical installation except by an appropriately licensed person.
• Not weatherproof – protect your machine. This machine is not weatherproof and should not be exposed to direct sunlight, high ambient temperature, damp conditions, wet conditions or high humidity conditions

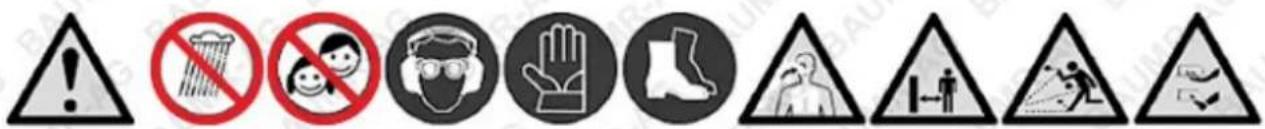

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc, replace them.

Flammable Material Hazard

Flammable liquids, gases or substances etc may present.

Avoid ignition sources and open flames. Danger of fire.

Read User Manual

Read and fully understand product safety warnings, operation, procedures etc before using the product.

Use Hand Protection

Wear appropriate hand protection and take due care as the product or use of the product may present hand hazards.

EXHAUST FOMES

Carbon-Monoxide Hazard

Do not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.

Electrocution / Electrical Shock Hazard

High voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or substances etc may be present. Avoid ignition sources and open flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.

Crush Hazard

The product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.

Single Operator Only

The product must be operated by a single person only. More than one person operating the product may introduce additional hazards.

Use Face Protection

Wear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.

Use Foot Protection

Wear appropriate foot protection and take due care as the product or use of the product may present foot hazards.

Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator. Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection for welding. Dorect exposure to weld arcs may cause permanent eye injury.

Laser Hazard

Laser may be in use – do NOT look directly at laser, or allow others to.

Table of Contents

Safety....2

Safety Symbols 4

Included Parts 8

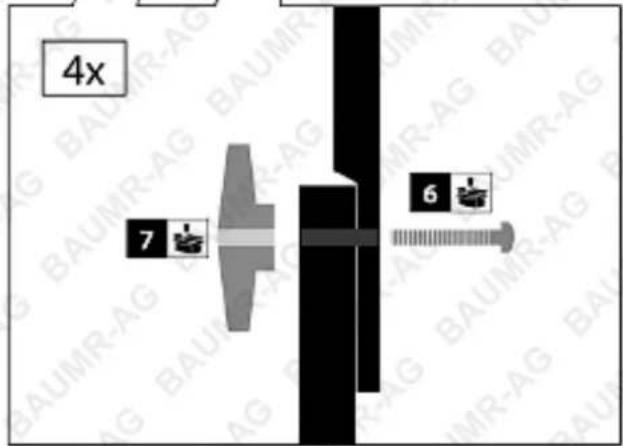

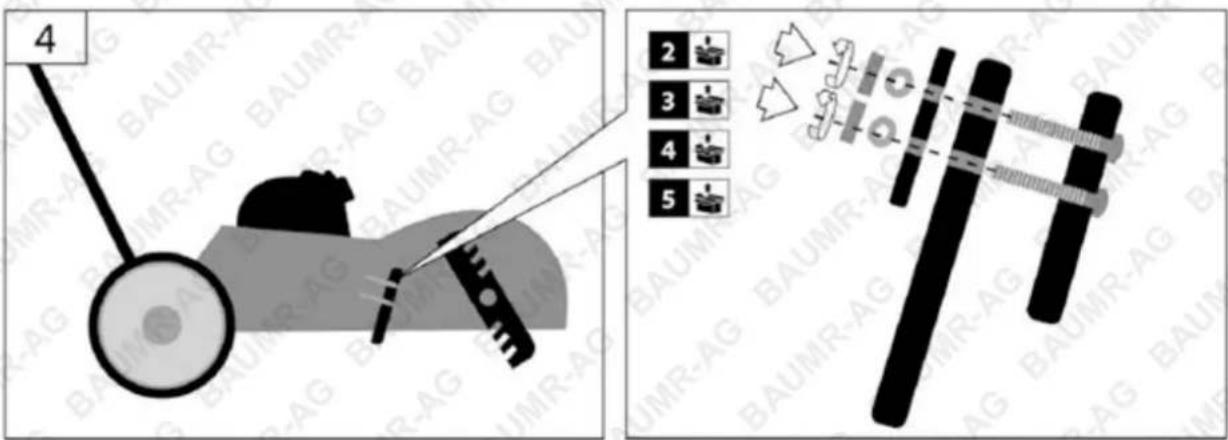

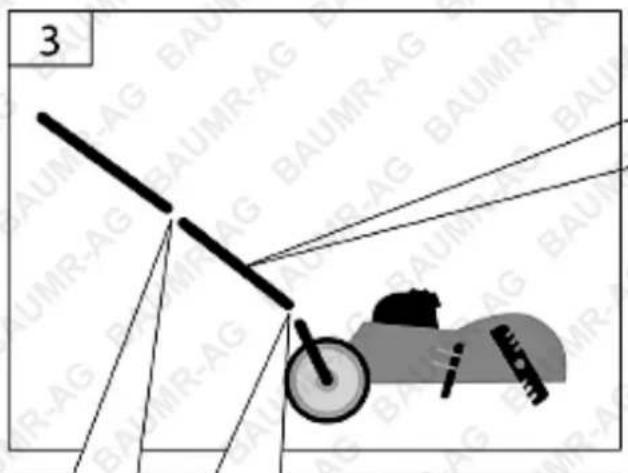

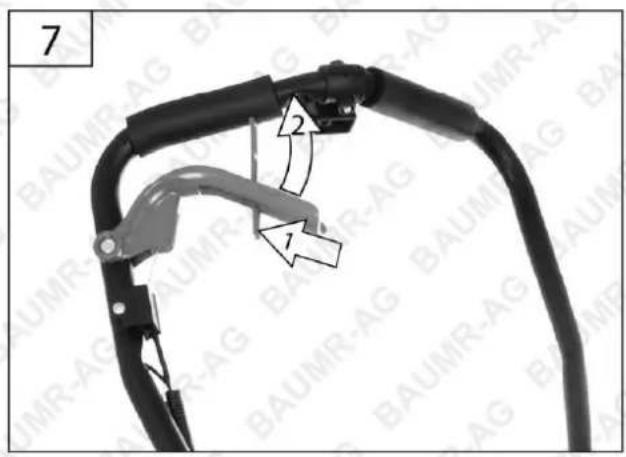

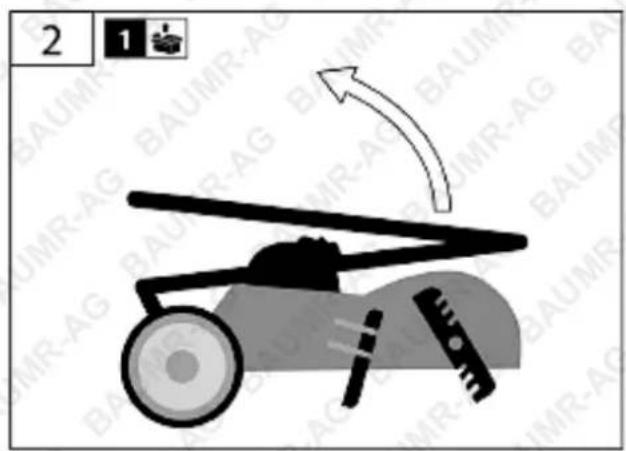

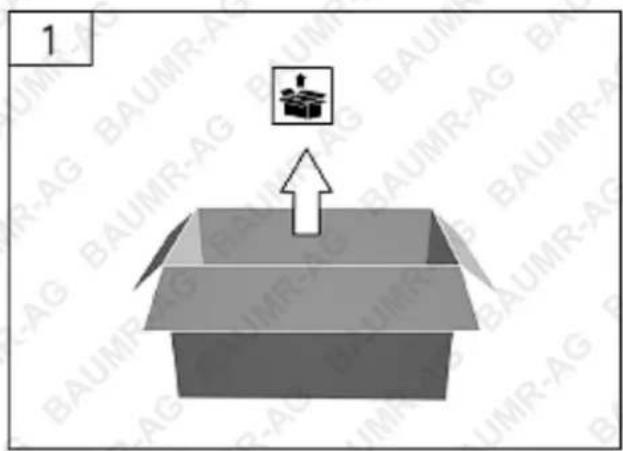

Assembly 9

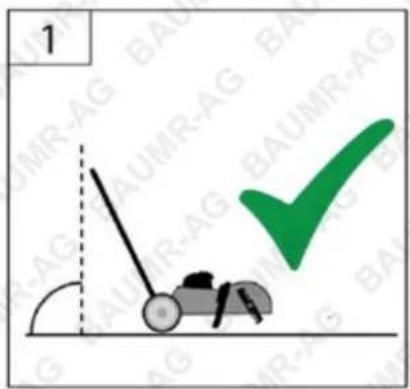

Set-Up....9

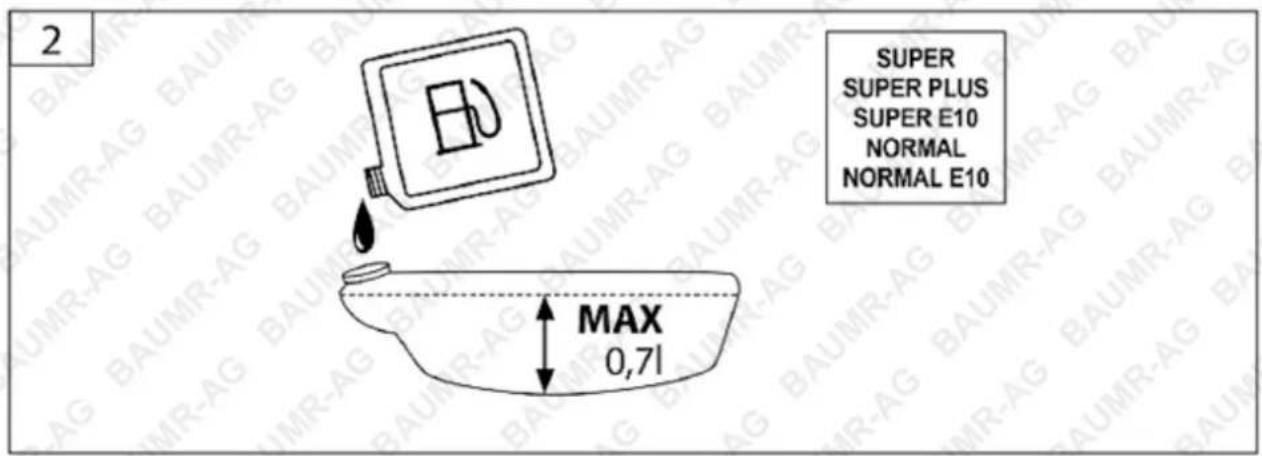

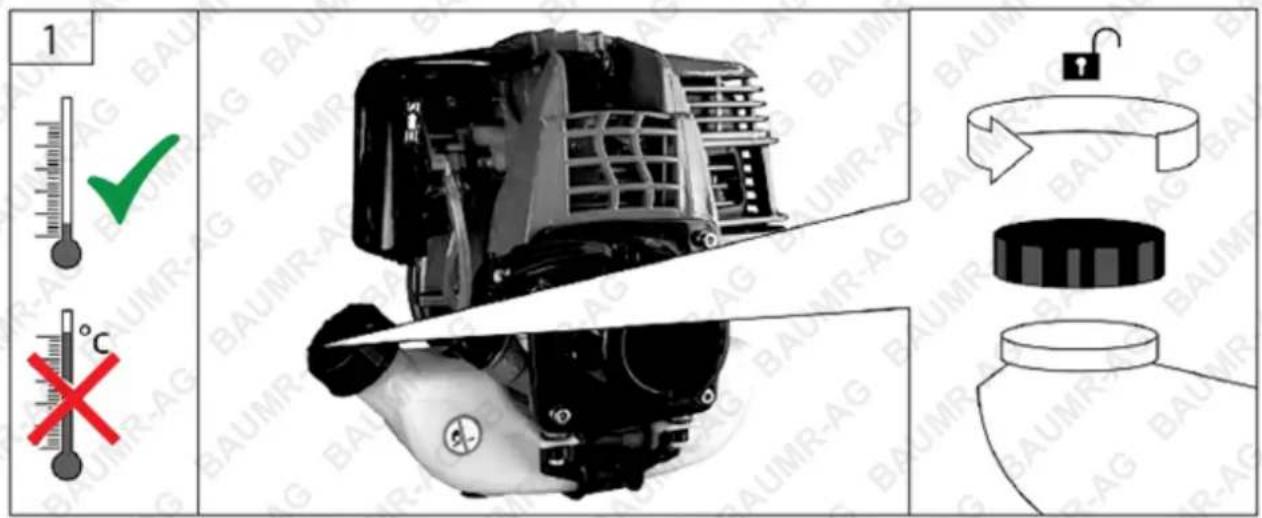

Fuel Tank Filling....11

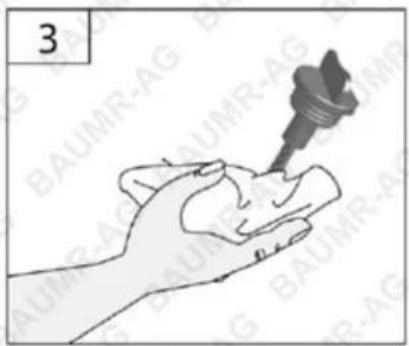

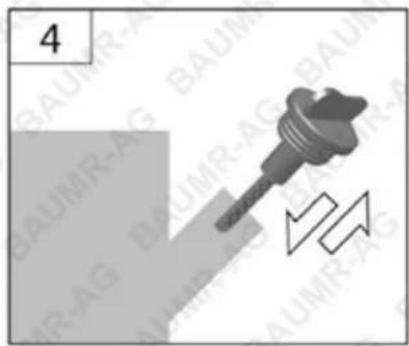

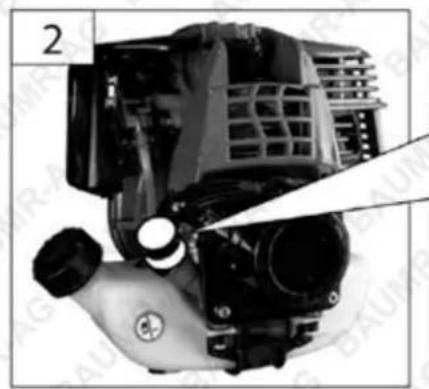

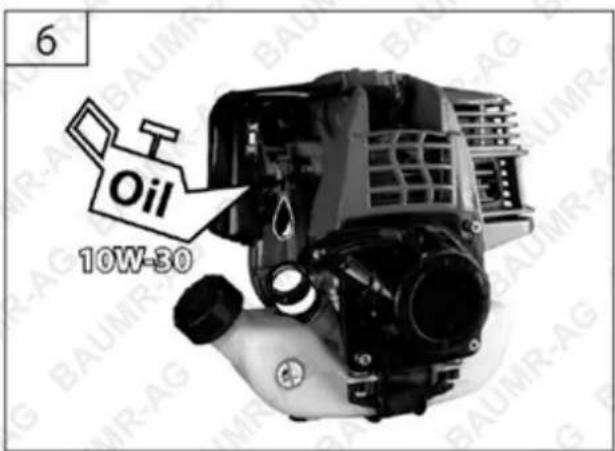

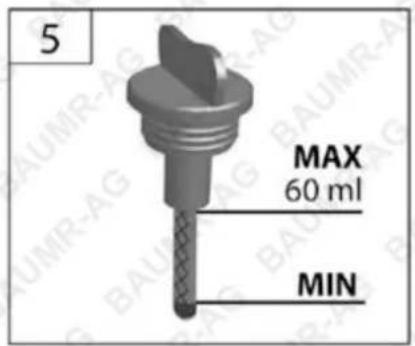

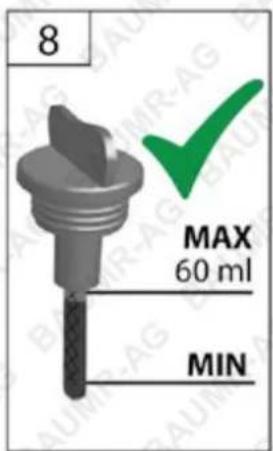

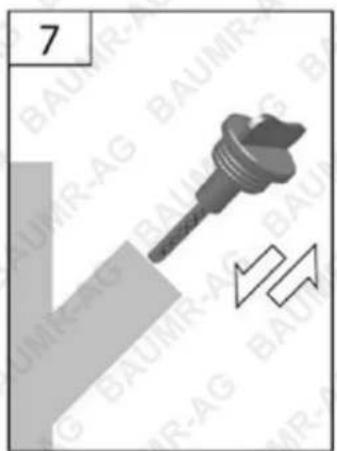

Oil Level Inspection....12

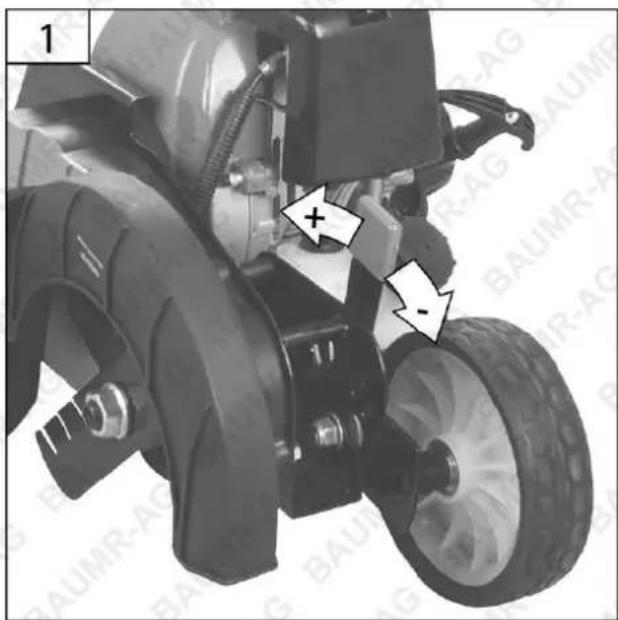

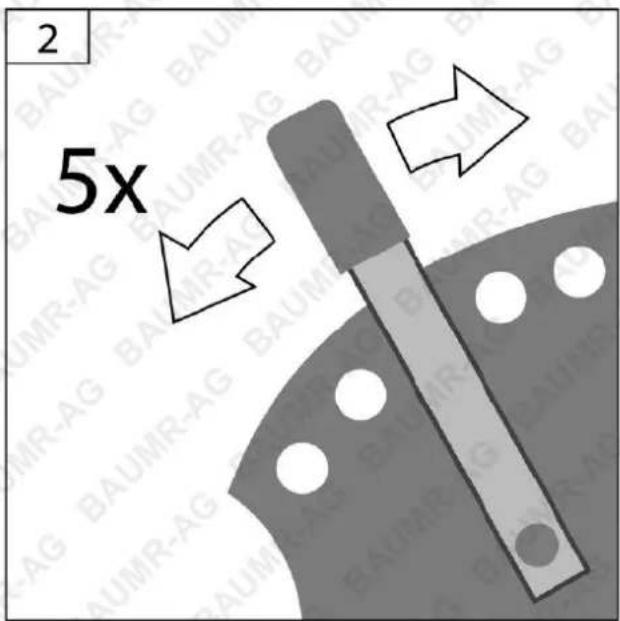

Cutting Height Setting....13

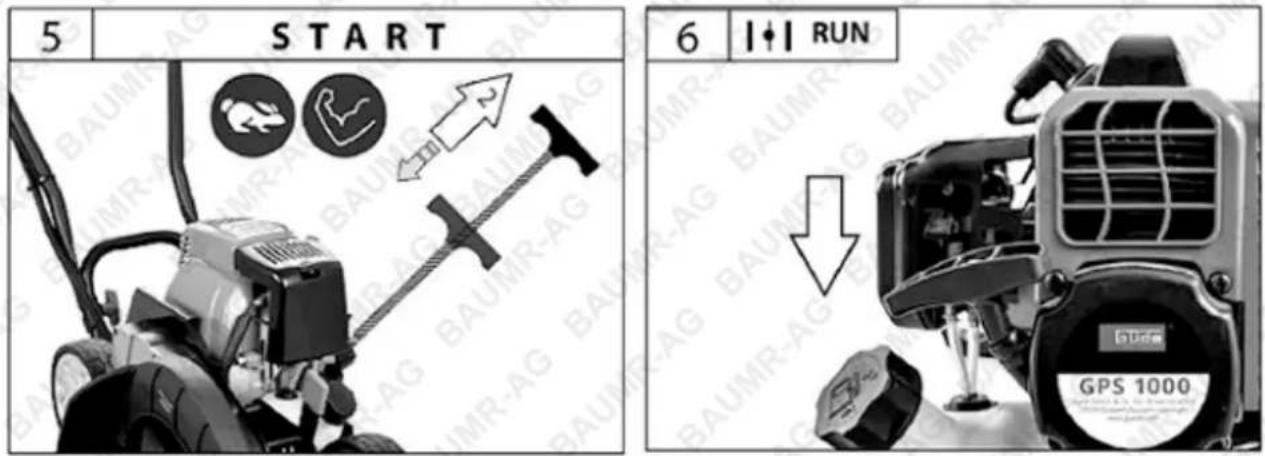

Operation 14

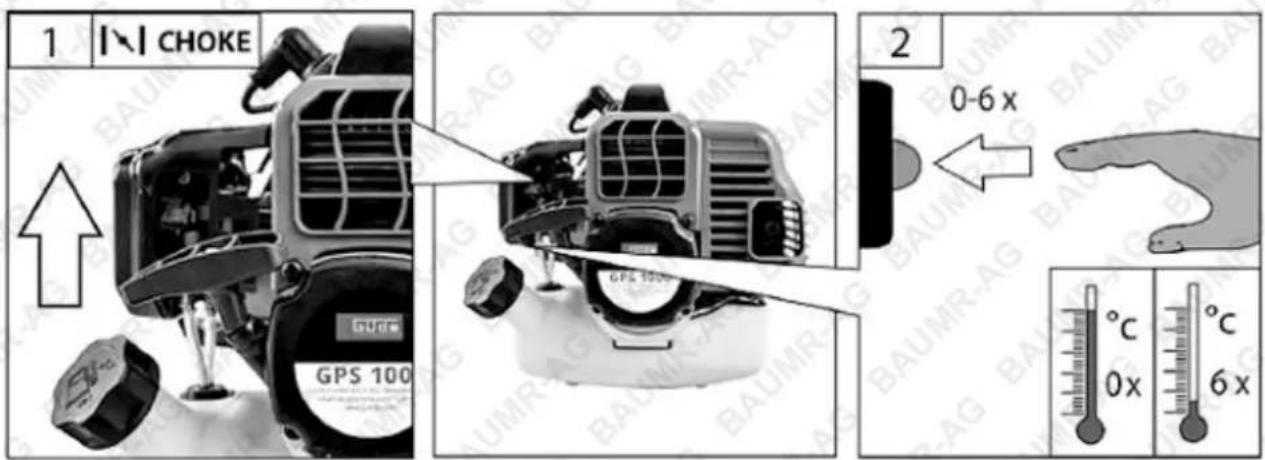

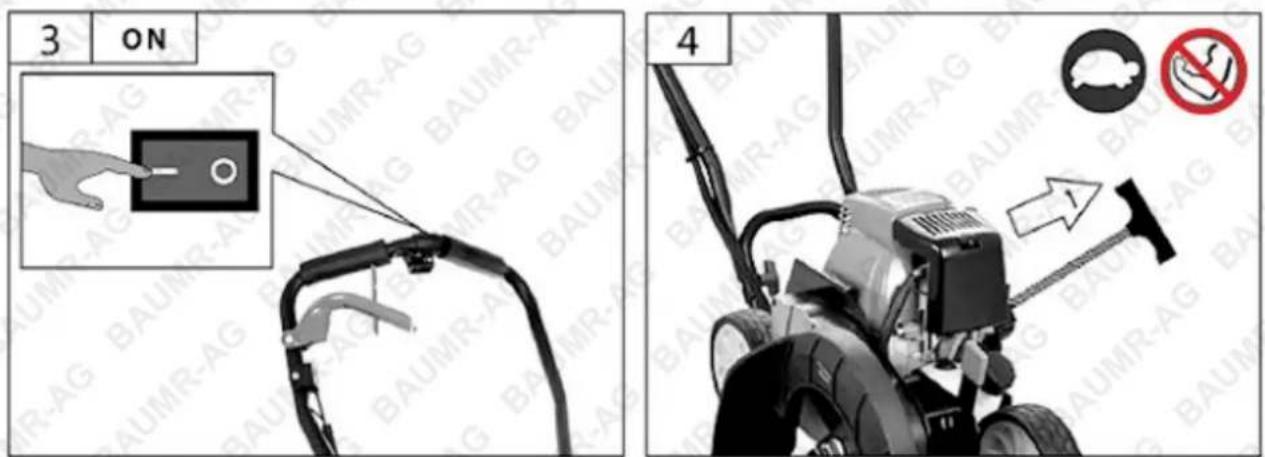

General 14

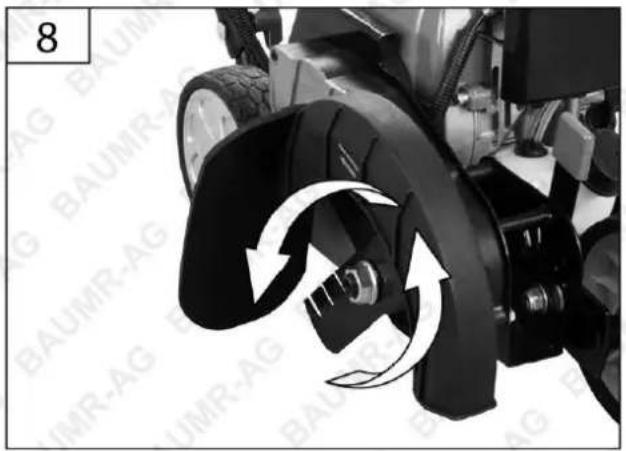

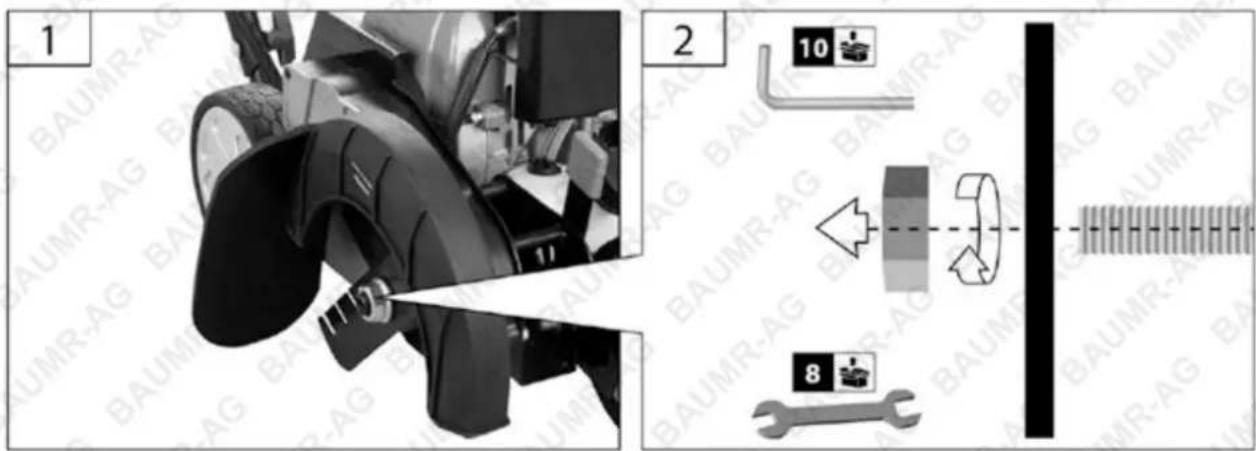

Changing the Knife....15

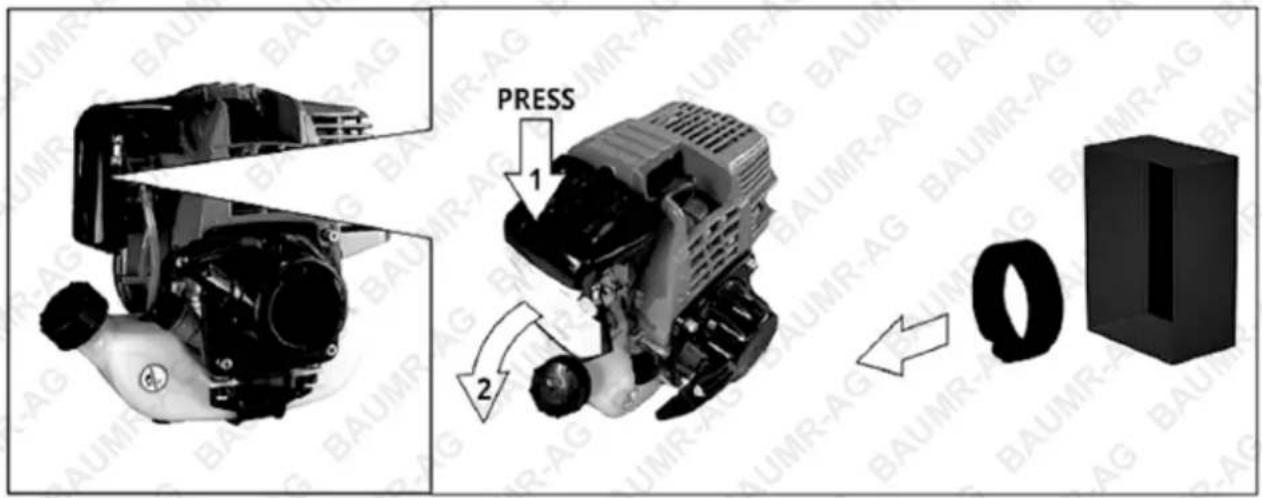

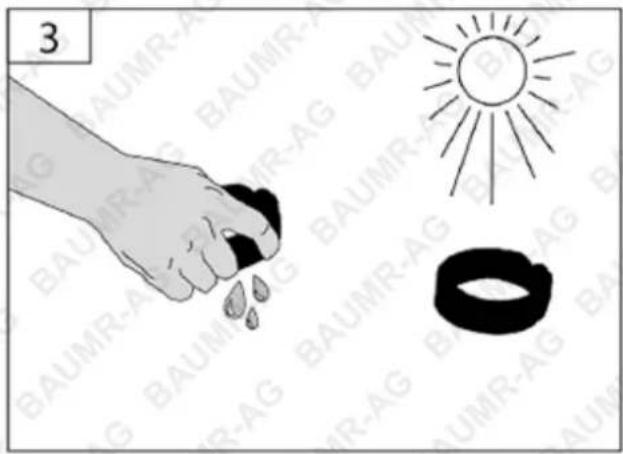

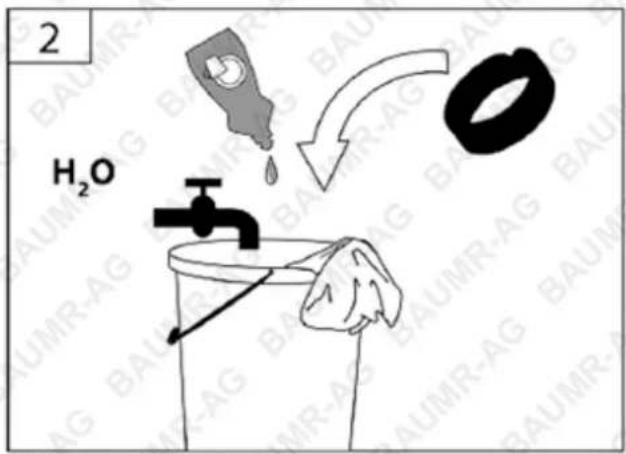

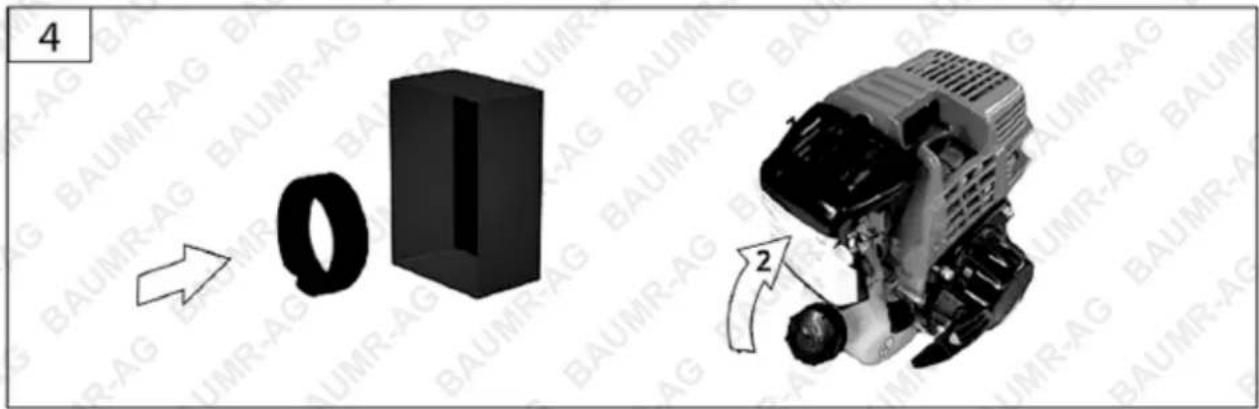

Air Filter....16

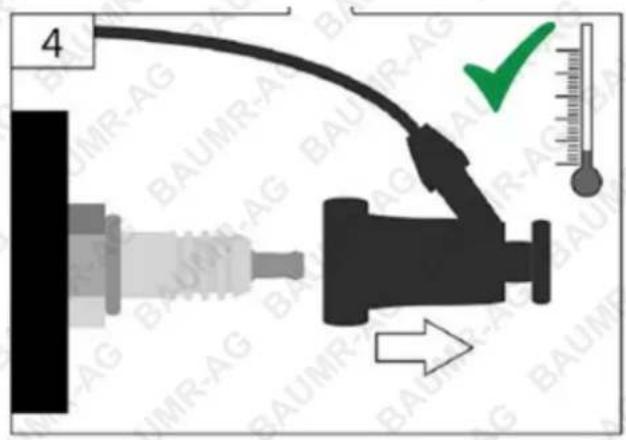

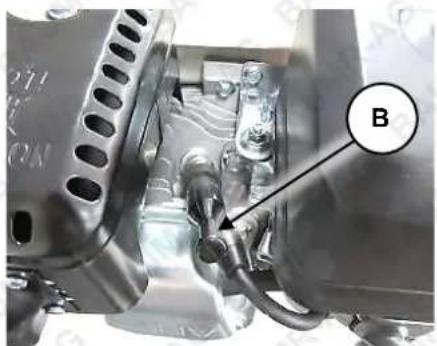

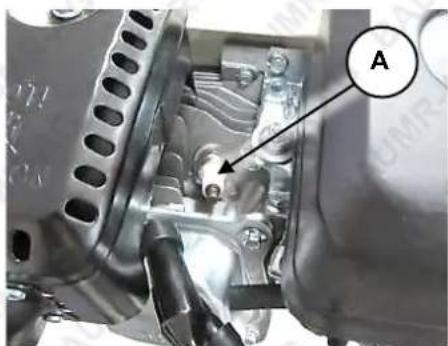

Spark Plug 17

Maintenance 18

Troubleshooting....20

Inspection and Maintenance Plan....21

Specifications....22

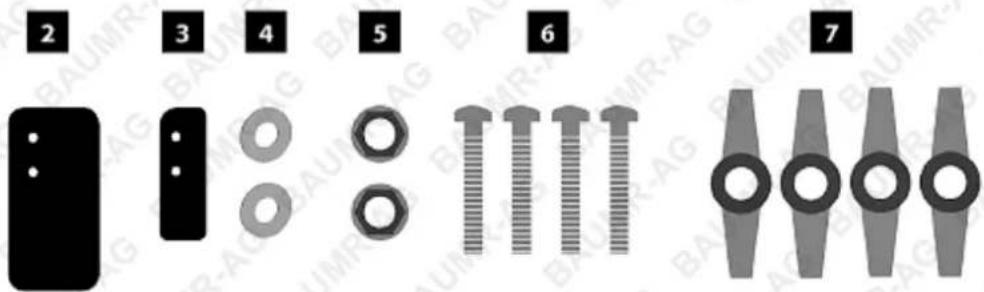

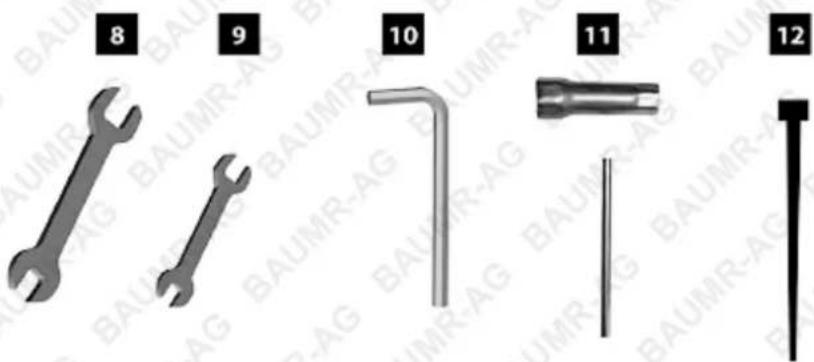

Included Parts

Products detailed in this manual may vary in appearance, inclusions, description and packaging from those shown or described. This section shows typical major components common to most powered generators, the position of some components may also vary between models.

Silhouette of a mechanical device with a wheel and two tools, no visible text or symbols

Spare parts available for purchase, scan QR code below:

Assembly

Set-Up

Illustration of a pusher with a circular head and blade, no text or symbols present

Fuel Tank Filling

Oil Level Inspection

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. To ensure quality, every piece of equipment is subject to a test led with motor oil. Oil is drained before transport; however, there can be some motor oil dip stick. Please check carefully the oil level and add motor oil again.

Close-up of a mechanical component with no visible text or symbols

Close-up of a black mechanical component with a white arrow pointing to it, against a patterned background (no text or symbols)

Illustration of a hand holding a small object with a dropper, no text or symbols present

Mechanical component illustration with no visible text or symbols

Mechanical component diagram with no visible text or symbols

Cutting Height Setting

Operation

General

Close-up of a mechanical component with curved black bands and arrows indicating motion or assembly (no text or symbols visible)

Changing the Knife

Air Filter

Spark Plug

If the spark plug is damaged (cracked insulator, broken or eroded electrodes etc), replace it. • Always use spark plugs of the correct "heat range".

The spark plug is used to ignite the air/fuel mixture inside the engine. The spark plug has electrodes on one end and an electrical terminal on the other. The spark plug requires regular maintenance.

Cleaning and Gap Checking

The spark plug should be checked and cleaned as per the maintenance schedule.

1. Remove any carbon deposits on the spark plug (A) electrodes (B) with a wire brush.
2. Clean the spark plug threads and the electrical terminal (C) on the top.

To check and adjust the spark plug "gap":

1. Use "feeler" or "thickness" gauges (X) to measure the existing gap. The gauge must drag a little when being slid between the electrodes (2) – this means the measurement is fairly accurate.
2. Adjust the gap to within specification. If the gap needs to be reduced, gently tap the electrode as required. If the gap needs to be increased, use pliers to gently pull the electrode as required.
3. Measure the gap again and ensure it is within the specified range before re-installing the spark plug.

Removal/Installation

1. Pull the electrical lead (B) from the terminal on top of the spark plug (A).
2. Clean the area around the spark plug so that no dirt or other material can enter the engine when the spark plug is removed.

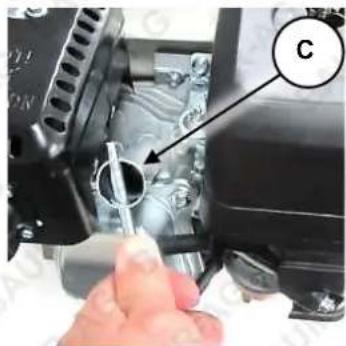

3. Use the spark plug tool (C) to remove the spark plug (rotate left).

Close-up of a mechanical component with labeled parts (B) and no readable text or symbols beyond labels

Close-up of a mechanical assembly with labeled component A (no readable text or symbols)

Close-up of a hand turning a mechanical component with a labeled section (c), no visible text or symbols beyond the label.

To re-install the spark plug:

1. Place the spark plug in its hole and screw it in (rotate right) until "finger tight".
2. Use the spark plug tool to tighten the spark plug approximately one quarter turn (do not over-tighten).
3. Place the electrical lead over the spark plug terminal and push it down so that it connects firmly with the terminal.

NOTE: Location of the spark plug varies between models and engines.

Maintenance

Any works/ adjusting on the machine to be only performed with the engine switched off, unplugged and when the mowing blade is not moving. Switch the engine off and remove the socket plug before k on the engine. Wait until all rotating parts have stopped and the appliance has cooled down.

Troubleshooting

Defect	Cause	Removal
The motor does not start	Empty fuel tank/Lack of fuel.	Add some fuel.
	Choke has not been used.	Use the choke.
	Wrong fuel, storing without petrol tank being drained.	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big.	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
	Main switch is not controlled	See 'Operation' section.
The motor does not develop maximum power	Sooted spark plug (carbon residues on electrodes), electrodes distance too big.	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm.
	Dirty air filter.	Clean or replace the air filter.
	Wrong fuel, storing without petrol tank being drained.	Drain the fuel tank and carburettor.Add fresh petrol.
Unsteady running, strong vibrations	Blade is damaged.	Replace the blade.
	Blade is loose.	Check and tighten the blade clamping.
Cutting capacity	Blade is blunt.	Have the blade sharpened or replaced.
	Mowing height adjustment not regulated	Adjust the mowing height

Inspection and Maintenance Plan

Regular Servicing Period		Before Any Start-Up	After Every Take out of Service	After 12 Months	After 24 Months
Air filter	Inspection X
	Change X
Spark plug	Inspection X
	Clean X
	Change X
ON/OFF switch	Functional test	X
Complete Machine	Clean X
	Let it regularly be checked by an authorised workshop
Plastic body	Check for cracks and fissures	X
Oil tank cap	Check for tightness	X
	In case of damage, have it repaired in an authorised workshop

Specifications

Model	EX-880R
Displacement	31cc
Cutting Width	224mm
Oil	10W-30
RPM (Max)	6500/Min
RPM (Normal)	3000/Min
Fuel Tank	700mL
Engine Type	Full crank
Cutting Depth Range	28mm - 30mm
Depth Adjustments	+20/+10/0/-12/-25

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

■ The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business or employee, or financially affect the user, business or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

Bäumr-AG®

.com.au

©2022 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
