Product Type	32" HD LED TV
Screen Size (Diagonal)	31.5" (80 cm)
Resolution	1366 x 768
Refresh Rate	60 Hz
Aspect Ratio	16:9
Dimensions (with stand)	732 x 480 x 191 mm
Dimensions (without stand)	732 x 441 x 81 mm
Net Weight	3.75 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	60W
USB Output	DC 5V, 500mA
Multimedia Playback (USB)	MP3, JPEG
VESA Mount Pattern	200 x 100 mm
Input Ports	HDMI (2), VGA, Component, Composite (AV), Antenna, Optical Audio Out, Headphone Jack
Features	PVR Recording, Time Shift, HDMI CEC, Sleep Timer, Parental Lock, Hotel Mode
Remote Control Range	Up to 5 m, 30° angle
Warranty	3 Years

Frequently Asked Questions - AK3220HD AKAI

How do I attach the TV stand?

Lay the TV face-down on a soft, flat surface. Match the stands to the installation points on the underside and attach using the provided screws with a Phillips-head screwdriver. Ensure legs face away from each other.

Can I wall-mount this TV?

Yes, it supports VESA 200x100 mm mounting. Use four M6*10 mm screws (or longer as needed). Contact a professional for installation.

How do I perform the first-time setup?

Press the STANDBY button to turn on. The First Time Setup menu will appear. Follow prompts to select OSD language, country, store mode, and auto-scan channels.

How can I record live TV?

Insert a USB storage device. In DTV mode, press REC on the remote to start recording. Press STOP to stop. Recordings are saved to the USB drive.

What should I do if the remote control doesn't work?

Check batteries are installed correctly and not exhausted. Point the remote within 5 m and 30° of the sensor. Remove obstacles. If still not working, try using the buttons on the TV.

How do I set parental controls?

Go to Menu > Lock. Enter default password 0000 (or master 4711 if forgotten). Enable System Lock, then set Channel Lock or Parental Guidance to block certain ratings.

What is the maximum USB storage supported?

The TV supports USB drives formatted in FAT32. For PVR, use a USB drive with sufficient capacity. The Time Shift size can be set to 512MB, 1GB, 2GB, or 4GB.

How do I update the TV software?

Download the update file to a USB drive. Insert into TV, go to Menu > Setup > Software Update (USB), and follow on-screen instructions.

Why is there no sound from the TV?

Check volume is not muted (press MUTE). Ensure correct input source. If using external audio, check S/PDIF Mode is set to PCM. Unplug headphones if connected.

How do I clean the TV safely?

Unplug the TV. Clean using a dry cloth only. Do not use water or chemicals. Avoid touching the screen directly.

USER MANUAL AK3220HD AKAI

AKAI

Makes Sense

MODEL: AK3220HD

Welcome

Congratulations on your purchase!

This manual tells you all you need to know about using your new AKAI product.

Please take special note of any important safety and usage information presented with the 🔒 symbol.

All products brought to you by AKAI are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty.

We hope you will enjoy using your purchase for many years to come.

Contents

Welcome 2

Unpack and Prepare 4

What's in the Box 4

Important Tips 5

Attaching the Stand 6

Wall-Mounting the TV 7

Connect to Power 8

Connect your Antenna 8

Controls and Connections 9

Get to know your TV 9

Buttons on the TV 9

Ports on the TV 10

Remote Control 12

Setup 12

Using the Remote Control 13

Buttons on the Remote 14

On-Screen Set Up 16

TV Setting Menus 17

Channel 19

Picture 21

Sound 23

Time 25

Lock 26

Setup 28

PVR File System 30

TV Guide 31

Recording 32

Recording Live TV 33

Scheduled Recording 33

Playback 33

Pause Live TV (Time-shift) 34

USB Mode 35

Set up 35

Troubleshooting 38

Specifications 41

Compliance and

Responsible Disposal 42

Unpack and Prepare

What's in the Box

Before installing your new TV, check you have everything needed.

In the box you will find:

A. 32" HD TV
B. Remote Control
C. AAA Batteries
D. Mini Component Adaptor
E. Mini Composite Adaptor
F. TV Stands
G. Screws for TV Stands
H. Warning Sheet

I. TV Toppling Safety Message
J. Quick Start Guide
K. Warranty Certificate
L. General Safety Warnings
M. User Manual

You will need:

• Phillips-head screwdriver (for stand installation)
- Antenna cable (to watch live TV)

Important Tips

• Place the TV on a level surface.
• Place the TV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 5 metres away from the TV.
• Unplug the TV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing the TV in place.
• Keep liquid, children and pets away from the TV at all times.

Attaching the Stand

CAUTION!

Do not apply excessive force as you might damage the screw holes.

!

• This TV is heavy! We recommend asking someone to help you lift it.
• Unplug the TV from the power outlet before installing or removing the stand.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps for securing the TV.

Unless you are wall-mounting the TV, you will need to attach its stands/legs.

1. Lay the TV face-down on a soft, flat surface (like the sofa, or a towel on a table) larger than the TV itself.
2. Match the stands to the installation points on the underside of the TV.
3. Attach the stand to the TV at the installation points using the screws provided. (Grab a screwdriver for this bit). Make sure the legs are facing away from each other (not leaning inwards).

Wall-Mounting the TV

• Unplug the TV from the power outlet before wall-mounting.
• Contact a professional for assistance with wall-mounting the TV.

Simple illustration of a screwdriver with a number 2 and a small dot, no text or symbols present.

Required

• VESA Mounting Bracket
- 4 x M6*10mm screws (or longer as required)

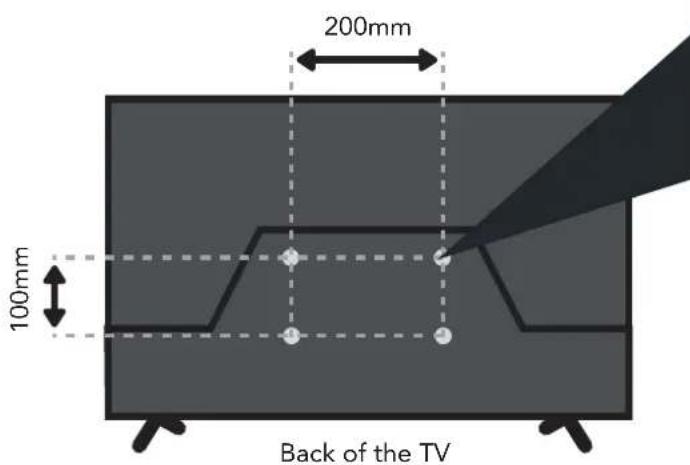

The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included).

Use four standard M6*10mm screws (or longer, depending on the mounting bracket) to wall-mount this TV (screws are not included).

The screws in the package are for securing the TV stand only. If you are wall-mounting the TV, consult a qualified installer for advice on bracket support and wall support.

Connect to Power

Illustration of a TV with a plug, power outlet, and a small battery (no text or symbols)

Connect your Antenna

Free-to-air TV in HD (High Definition)

High Definition (HD) channels provide the best viewing quality and are available with a digital antenna connection.

Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished.

Make sure the TV is switched off at the power outlet until you have finished connecting your cables.

Illustration of a cable with two USB connectors and a camera on top (no text or symbols)

Antenna cable not included.

Controls and Connections

Get to know your TV

Buttons on the TV

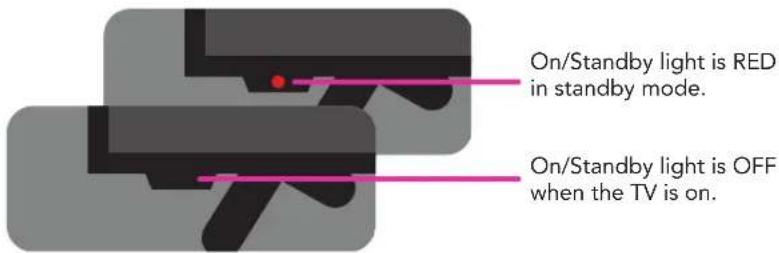

1. ⏻ Switch the TV ON or to Standby.
2. VOL + : Increase the volume level.
3. VOL - : Decrease the volume level.
4. CH + : Select the next channel.
5. CH -: Select the previous channel.
6. SOURCE : Change the input source.
7. MENU : Enter the settings menu.

See next page for more info on the connections.

CONTROLS AND CONNECTIONS | 9

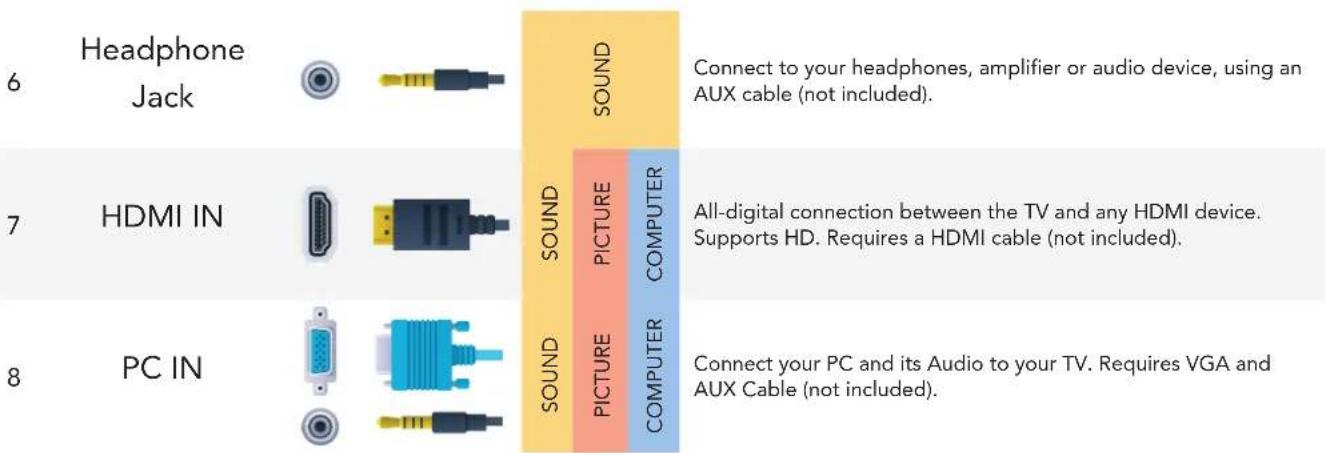

Ports on the TV

Illustration of a monitor with an orange arrow pointing to the screen (no text or symbols)

1	ANTENNA IN		FREE-TO-AIR TV	Connect your antenna for live TV. (Antenna cable not included).
2	OPTICAL OUT		SOUND	Connect an external digital audio device. Use an Optical cable (not included) to connect the unit with an amplifier, soundbar or other audio decoding device for digital audio signal output.
3	USB		STORAGE	»PVR record and pause live TV»Play your stored media files (supported file codecs and extensions may vary)»Software updates
4	MINI AV IN		PICTURE	You can use this to connect your DVD player. Supports Standard Definition (SD) picture quality. Requires an AV cable (a mini composite adaptor is included).
5	MINI COMPONENT IN		PICTURE	You can use this to connect your DVD player. Supports High Definition (HD) picture quality. This also requires a component cable (a mini component adaptor is included).

10 | CONTROLS AND CONNECTIONS

Remote Control

12 | REMOTE CONTROL

Setup

Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into place.

!

Precautions When Using Batteries

• Do not use old and new batteries together.
• Do not use different types of batteries (e.g. Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do not intend to use it for a long time.
• When discarding used batteries, follow any guidelines for recycling and disposal of batteries that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to extreme heat.

Using the Remote Control

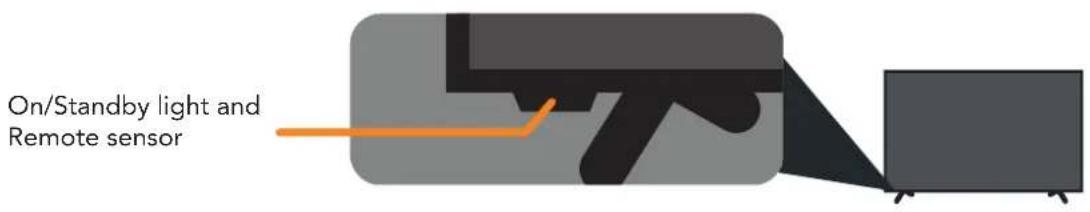

To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked.

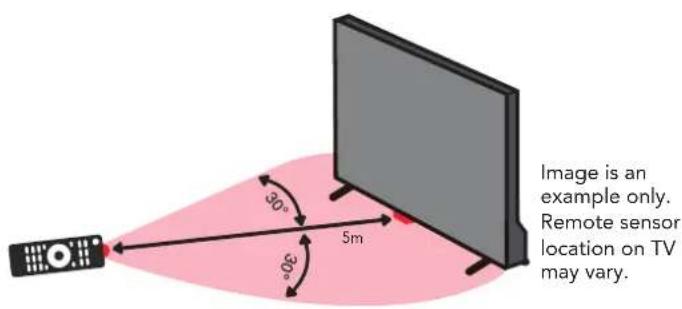

The remote has a range of up to about 5 metres from the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below.

Remote Hints and Tips

• Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction.
• Do not place objects between the remote control and the remote sensor.
• Do not use this remote control while simultaneously operating a remote control for other devices.

Buttons on the Remote

/STANDBY: Switch the TV to On or Standby

GOTO: Jump to a different chapter of the DVD*

/ANGLE: View DVD playback from different angles, if the DVD has this feature*

FAV: Press to display your favourite program in DTV mode

TEXT: Switch between TV and Teletext mode**

SUBTITLE: Enable/disable subtitles

SIZE/ZOOM: Change the picture size

MEDIA: Select USB mode

▶: PLAY/PAUSE in TIMESHIFT and USB mode

REC/D.SETUP: Record program in DTV mode/Display the main disc menu

■ : Stop playback

MENU: Display the main TV menu

▲/▼/ ▶:Press the UP/DOWN/LEFT/RIGHT buttons to navigate the on-screen menus and adjust the system settings

OK: Display the channels list (DTV)

TV/RADIO / EJECT: Switch between TV or radio / Eject a disc (DVD)*

A-B: Repeat selected DVD scenes*

/REPEAT: Repeat playback of a selected chapter, title, or the entire DVD*

SLEEP: Set the TV sleep timer

FREEZE/HOLD: Hold the picture temporarily

SUBPAGE: Manually jump to the previous or next subpage of Teletext**

ASPECT: Change the size of the image on your screen

▶: Fast forward

◀: Rewind

INDEX: Play next file./ Display the recorded programs list (DTV)

: Play the previous file

TITLE/EXIT: Display the DVD title menu. Exit from the main TV menu displayed on screen *

On-Screen Set Up

Make sure equipment is properly connected (as shown on pages 10-11) before connecting the TV to power.

First Time Setup menu

When you turn the TV on for the first time, the First Time Setup menu will appear.

Follow the prompts using the ▲ ▼/ ◀▶buttons to select your preferences. You will be able to adjust:

OSD Language Country Store Mode Auto Scan

If you make an error, you can update your preferences in the settings menu later.

TV Setting Menus

Menu Navigation Buttons

Press the MENU button to display the TV settings menu. See the guide below for all the other buttons you'll need to use to adjust and change your settings.

Function Remote Button

Display the main menu	MENU
Select different sub-menus /	◀ ▶
Enter a sub-menu	OK
Select preferred option /	▲ ▼
Adjust a value /	◀ ▶
Return to the previous menu	MENU
Exit a menu	TITLEEXIT

Once you have programmed any settings, the unit will retain them in its memory until you change them, even after turning the TV off.

Menus Index

Channel 19

• Auto Tuning
• ATV Manual Tuning
• DTV Manual Tuning
• Program Edit
• Schedule List
• Recorded List
• Signal Information

Picture 21

• Picture Mode
  • Personal Mode settings:
• Brightness
• Contrast
• Sharpness
• Tint

- Colour Temp

- Noise Reduction

• Screen Mode (VGA mode only)

• Dynamic Contrast

Sound 23

• Sound Mode
  • Personal Mode settings:
• Treble
• Bass
  • Balance
• Auto Volume
• Surround Sound
• S/PDIF Mode
  • AD (Auto Description) Switch

Time 25

• Clock
• Time Zone
• Off Time
• On Time
• Sleep Timer
• Auto Standby
• OSD Timer

Lock 26

• System Lock
• Set Password
• Channel Lock
• Parental Guidance
  • Key Lock
• Hotel Mode

Setup

• OSD Language
• Audio Language
• Subtitle Language
• Hearing Impaired
• Aspect Ratio
• PVR File System
• Blue Screen
• First Time Installation
• Store Mode
• Reset
• Software Update (USB)
• HDMI CEC

Channel

Option Description

Auto Tuning	Automatically tune all available free-to-air TV channels. Adjust settings (default settings are set for Australia). Press OK to start scanning.
ATV Manual Tuning	Manually select and tune analog TV channels. (Analog TV is no longer supported in Australia).Current channel: Press the◀▶buttons to select the channel number to save the tuned signal.Colour System: Select the colour system (PAL in Australia).Sound System: Select the sound system (BG in Australia).Fine-Tune: View the file tune setting.Search: Press the OK button to start tuning.
DTV Manual Tuning	Manually select and tune digital TV channels. Use◀▶select the broadcast channel. Press OK to begin scanning.
Program Edit	See the next page for more information.
Schedule List	Manage scheduled recordings. Press ▼REPEAT to add a new program to record.Press ▼A-B to edit an existing schedule. Press ▼GOTO to delete an existing schedule.
Recorded List	Display previously recorded programs.
Signal Information	Display current signal information (DTV mode only).

Program Edit

Use the ▼ buttons to highlight a channel.

Option Description

Move	Move the channel location on the list. Press ▶ REPEAT to enter Move Mode.Use the ▲/▼ buttons to select a position and press ▶ REPEAT to confirm it.
Delete	Press GOTO to delete the highlighted channel.
Skip	Press A-B to skip the highlighted channel.


Picture Mode

Home (default): Default picture settings for home use.

Bright Room : Brighter and clearer picture settings for bright viewing environments.

Dynamic : Enhanced brightness, contrast, colour depth and edges so content stands out.

Mild : Enhanced brightness with lower contrast, colour depth and edges.

Personal Adjust settings to best suit your viewing environment and content.

Personal Mode settings

Option Description
Brightness	Adjust the depth of shadow in the picture. The closer to 0, the darker shadows will look, losing detail in darker images.
Contrast	Adjust the intensity of highlights/white in the picture. The closer to 100, the brighter highlights will look, losing detail in brighter images.
Sharpness	Adjust the sharpness of the picture. The closer to 100, the sharper and clearer the image.
Tint	Adjust the saturation. The closer to 100, the deeper the colour.

See the next page for more menu settings

Option Description

Colour Temp	Adjust the on-screen colour temperature
Noise Reduction	Reduces noise to improve picture quality
Screen Mode (VGA mode only)	Adjust the screen mode for VGA inputs.
Dynamic Contrast	Adjusts the difference between the bright and dark sides of the screen according to the brightness of the image.

Sound

Option Description

Sound Mode

Standard

Music Spon

s Personal

Movie

These options are available in the Personal sound mode:

Option Description

Treble

Adjust the levels of higher pitched sounds.

Bass

Adjust the levels of lower pitched sounds.

Option Description

Balance	Adjust the audio output between the left and right speakers.
AVL (Auto Volume Level)	Turn on to keep the volume level consistent.
Surround Sound	Turn ON/OFF surround sound effect from your TV speakers.
S/PDIF Mode	Set the digital sound output setting.
AD (Audio Description) Switch	Audio Description (AD) provides an additional audio track for visually challenged persons (DTV only, subject to program).

Time

Option Description

Clock	Manually set the date and time.
Time Zone	Select your timezone.
Off Time	Set time and day to turn off the TV.
On Time	Set the time and day to turn on the TV.
Sleep Timer	Select the desired Auto Sleep (Standby) duration.
Auto Standby	Sets the time when the TV will enter standby mode due to inactivity.
OSD Timer	Select the desired OSD (On Screen Display) menu duration.

Lock

Enter the factory password '0000' using the number buttons on the remote and select 'OK' on-screen. If you changed your password but forgot it, you can still use the master password.

Factory Password: 0000

Master Password: 4711

Option Description

System Lock		Enable/disable the lock on the system.
Set Password		Input a new password using the number buttons on the remote and confirm to set the new password.
Channel Lock		Lock selected channels. Press the ▲▼buttons to select the channel you want to lock.Press /ANGLE repeatedly to lock/unlock the highlighted channel.
Parental Guidance		This item is used to block access to specific program ratings.
No Block	Block G and above	Block PG and above	Block M and above	Block MA and above	Block AV and above	Block R and above	Block All
Unrestricted	General	PG	Recommended for mature audiences	MA15+RESTRICTEDNot suitable for people under 15.Under 15s must be accompanied by a parent or adult guardian	Not suitable for people under 15.Under 15s must be accompanied by a parent or adult guardian	R>18+RESTRICTEDRestricted to 18 and over	Restricted
Key Lock		Enable/disable TV buttons.
Hotel Mode		See the next page for more information.

26 | TV SETTING MENUS

Hotel Mode

Option Description

Hotel Mode	Turn On/Off Hotel Mode.
Source Lock	Turn On/Off the lock on available sources.
Default Source	Set a default input source.
Default Program	Set the default digital program.
Default Volume	Set the default volume level.
Max Volume	Set a limit to the maximum volume level.
Import Database	Import data to your connected USB storage device.
Export Database	Export data to the TV from a USB memory device.
Clear Lock	Clear the above settings

Setup

Option Description

OSD Language Select your preferred On Screen Display language.

Audio Language Select your preferred audio language. (Available for digital channels, depending on the program.)

Subtitle Language Turn subtitles On/Off (available for digital channels, depending on the program).

Hearing Impaired

For hearing impaired users, this function explains scenes or actions via a descriptive caption. (Available for programs that contain related captions.)

Aspect Ratio Select the desired digital Teletext language and decoding page language (no longer available in Australia).

PVR File System See page 30 for more information.

Blue Screen When there is no signal or a poor signal, a blue screen will appear.

First Time Installation Return to First Time Setup menu.

Store Mode Select off for normal home viewing or on for in-store retail demonstrations.

Reset Restore the system settings to the factory default.

Software Upgrade (USB) Upgrade the software using a USB storage device.

HDMI CEC See the next page for more information.

HDMI CEC Setup

This feature allows for your TV and your connected HDMI device to be controlled by one remote.

Press the SOURCE button on the unit or remote control to select the HDMI input source.

Option Description

HDMI CEC (Consumer Electronics Control)	Turn HDMI CEC On/Off.
ARC (Audio Return Channel)	If this function is enabled, sound from the TV can be sent to an HDMI-ARC supported external audio device.
Auto Power	Turn on/off the auto power function.
Device Menu	Display the available device that is connected.

Make sure your device supports CEC! Also remember to turn on its ARC function.

PVR File System

REC

To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troubleshooting section if you're having problems setting up your USB device.

Option Description

Select Disk	Select a disk used for PVR.
Check PVR File System	Check the health of the USB drive file system.
USB Disk	Check if the USB disk format is supported.
Format	Format the connected USB disk.
Time Shift Size	Select the memory size for the Time Shift function.Options: 512MB, 1GB, 2GB, 4GB.
Speed	Checks the speed of the storage device.
Free Record Limit	Set the free recording time limit.Options: 1hr, 2hrs, 3hrs, 4hrs, 5hrs, 6hrs

TV Guide

(Free to air TV)

TV Guide Functions

Function Remote Button

Switch between the channels list and programs list /

Select a Channel or Program /

Schedule a reminder for the selected program ANGLE

Schedule a recording for the selected program GOTO

View TV Guide for the previous day REPEAT

View TV Guide for the next day

Display full program information

Exit TV Guide menu

EXIT

To access the TV guide, press the GUIDE button on the remote.

To activate the TV Channels use the ▲/▼buttons to select a channel in the left column, then press OK to confirm.

Recording

Important Tips:

• Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction.
• You cannot change channels while in recording mode.
• If the signal is interrupted while in recording mode, the recording will stop until the signal is established.
• Do not turn the TV off while it is in time-shift mode.
• The file recorded can only be used on this TV. Do not copy it to any other device.
• When connecting or disconnecting the USB storage device, ensure the TV is not in USB mode, otherwise the USB device or the files stored on it may be damaged.

Before you can record with this TV (including time-shift recording), you must insert your USB storage device into the USB port.

Recording Live TV

Instant Recording

Press REC once - start recording.

Press REC again to view detailed information.

Stop Recording

Press STOP once - display the dialogue box.

Select YES to stop recording.

Select NO to continue recording.

Scheduled Recording

See 'TV Guide' on page 31 about scheduling recordings.

Abstract graphic of a black pen-like object with a red dot, no text or symbols present

When a program is being recorded in the background (while the TV is in standby mode), the Standby/ON light will flash red.

Recording, scheduled recording and pause live TV functions only work in DTV mode (free-to-air).

Playback

Press the ⌘INDEX button then navigate to File Manager and press OK to display the list of recorded programs.

Use the ▲ buttons to select a recorded file.

Press the OK button to start playback in Full Screen Mode.

Press GOTO to delete the selected file.

Pause Live TV (Time-shift)

Temporarily pause the live TV signal, then resume playback at your convenience.

Before you can record with this TV (including time-shift recording), you must insert your USB storage device into the USB port.

Start Time-shift

Press the ▶button on the remote to enter time-shift mode.

Press the ▶ or OK button to resume playing the program.

Stop Time-shift

Press the ■(STOP) button to exit time-shift.

The USB storage device won't retain recorded data after you exit the time-shift function.

Recording, scheduled recording and pause live TV functions only work in DTV mode (free-to-air).

USB Mode

Set up

Insert your USB into a USB port on the TV.

Press the SOURCE button to select 'USB' mode.

You can only play Photos in the Photo category, Music in the Music category and so on. Make sure you select the correct category for the file you wish to play.

Function Remote Button

Choose a source or file / / /

Start playing your media

Return to the previous screen

Exit Media mode

Playback Functions

Playback of different media types have different controls.


Function Remote Button

Navigate to a folder or file / / /

Display a photo

Display the on-screen toolbar

Return to file list

Music

Function Remote Button

Navigate to a folder or file / / /

Play a track

Fast forward or rewind the track

Skip or restart the current track

Return to the file list

Text

Function Remote Button

Navigate to a folder or file / / /

Open the text file

Navigate to the next/previous page /

Return to the file list

Only supported file types will be displayed. See the specifications table for supported file types.

Troubleshooting

If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649.

Problem Solution
No power	Check the power outlet is turned on.If using a multi-outlet, check if it is working properly. To check whether a power strip is working properly, plug the TV's power plug directly to a wall outlet and make sure the white indicator light on the TV is lit.Try to power on using the button on the TV.
Picture issues	Ensure that all equipment is connected properly. If you are using an external device, turn it off, then turn it on again. If it says there is no signal on the screen, choose the correct source input.Adjust the antenna position.Move the TV away from electronic equipment or devices that could cause interference.Auto-tune free-to-air TV channels again.Try another channel.
No operations can be performed with the remote control unit	Check the batteries are correctly installed.The batteries may be exhausted: replace them.Make sure to point the remote control at the remote control sensor and try it again.Make sure to use the remote control at a distance of no more than 5 metres from the sensor.Remove any obstacles between the remote control and remote control sensor.When you press the power button on the remote, check that the power indicator light on the TV blinks.

Problem Solution

Sound issues	Ensure all equipment is connected properly.Ensure the input setting for the TV is correct.Ensure source input and audio settings on the external device are set correctly.Ensure the volume is not muted. If it is, press the ☑MUTE button to restore the sound.If earphones are connected, unplug them.Adjust the volume to a suitable level by pressing the VOL+ / VOL- button.If you are using an external audio device, check that the Menu > Sound > S/PDIF Mode setting is 'PCM'.If you are using an external audio device via an HDMI cable, make sure the audio device supports HDMI-ARC.
Button operation is not effective (unit and/or remote control)	Disconnect the power plug and then reconnect it. (The unit may not be operating properly due to lightning, static electricity or other factors.)
Live TV issues	Ensure the antenna is securely connected to the TV.Ensure the input source is set to DTV.If "No Signal"is displayed, run Menu > Channel > Auto Tuning to search for channels.If some channels are missing, run Menu > Channel > Auto Tuning or manually search by Menu > Channel > DTV Manual Tuning.If the picture appears fuzzy or blurry, select high definition (HD) channels or programs.

Problems relating to your USB media storage device

Problem Solution
My TV does not recognise my USB device or my external hard disk	First, refer to the instructions describing how to use USB devices with this TV. If the problem still occurs, your USB device may not be compatible. Some USB storage devices may not be compatible with this TV.This TV has been tested with the majority of Flash memory-based devices and hard disks (media players with HDD) on the market; however, it may not be compatible with certain devices, in particular external self-powered hard disks.Only use a USB storage device formatted in a FAT32 file system provided with the Windows operating system. If it is formatted by a different utility program that is not supported by Windows, it may not be recognised.
'Disk not ready' error	When you are in time-shift recording mode, without removing the USB recording device, you may experience some difficulty with a scheduled recording. You will need to remove the USB device as it is required to reset after each recording to protect the device from damage. If you see the message ‘DISK NOT READY’ displayed, remove the device, reconnect and proceed with your recording.
My media is loading slowly	For large file sizes and large capacity storage devices, the loading speed may be slower. The recognition speed of a USB storage device may vary depending on the device.
There is an 'unsupported file' message	If an “Unsupported File” message is displayed, it means the file extension, video codec, image resolution or frame rate is unsupported.

Specifications

Active screen size (diagonal)	31.5" (80cm)
Resolution 1366 x 768
Refresh rate 60Hz
Aspect ratio 16:9
Multimedia playback formats (USB mode)	Music MP3
	Photo JPEG
USB output DC 5V 500mA
Power source AC 100-240V, 50/60Hz
Power consumption 60W

Dimensions (W x H x D)		With stand: 732 x 480 x 191 mm
		Without stand: 732 x 441 x 81 mm
Weight	Net 3.75 kg
	Gross 5.04 kg

For Technical and Warranty Support

1300 886 649

www.tempo.org

[e-mail]

Distributed by Tempo (Aust) Pty Ltd,

PO Box 6056, Frenchs Forest DC 2086

Compliance and Responsible Disposal

Packaging

The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of. Please recycle these materials rather than throwing them away.

Product

At the end of its working life, do not throw this product out with your household rubbish.

An environmentally friendly method of disposal will ensure that valuable raw materials can be recycled. Electrical and electronic items contain materials and substances which, if handled or disposed of incorrectly, could potentially be hazardous to the environment and human health.

National Television and Computer Recycling Scheme

The careful disposal of e-waste is important because many televisions and computers contain materials which are hazardous to people and the environment. There are no fees for householders or small businesses disposing of e-waste at a scheme collection service.

Individuals can contact their local council for information on local e-waste management services, find scheme services listed on Planet Ark's website at www.recyclingnearyou.com.au, or call Planet Ark on 1300 733 712.

Compliance

This product complies with the Australian Safety Standard AS/NZS 62368.1 to ensure the safety of the product.

Notes

For Technical and Warranty Support

1300 886 649

www.tempo.org

[e-mail]

Distributed by Tempo (Aust) Pty Ltd,

PO Box 6056, Frenchs Forest DC 2086
