Product Type	Freestanding Washing Machine
Brand	Teka
Model	TK5 1470 (WH EU / EU SILVER)
Capacity	7.0 kg

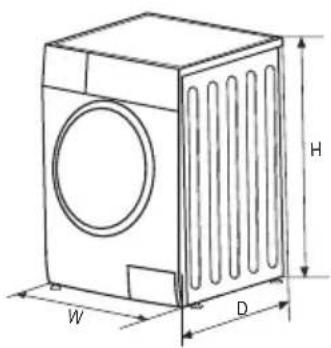

Dimensions (W x D x H)	595 x 495 x 850 mm
Net Weight	60 kg
Power Supply	220-240 V ~ 50 Hz
Maximum Current	10 A
Rated Power	2050 W
Water Pressure	0.05 MPa - 1 MPa
Max Spin Speed	1400 rpm
Energy Class (EU 2010)	A+++
Energy Class (EU 2019)	E
Programs	Cotton, Intensive, Synthetic, Mix, Jeans, ECO 40-60, 20°C, Spin Only, Rinse & Spin, Bulky/Bedlinen, Baby Care, Wool, Sport Wear, Rapid 45', Quick 15'
Additional Functions	Delay, Extra Rinse, Pre Wash, Temp. Adjustment, Speed Adjustment
Special Features	Child Lock, Drum Clean, Mute Buzzer, Memory Restore
Noise Level (Wash/Spin)	62 dB(A) / 79 dB(A)
Annual Energy Consumption	174 kWh (based on 220 standard cycles)
Annual Water Consumption	9900 L (based on 220 standard cycles)
Included Accessories	4 x Cover caps, 1 x Supply hose (cold water), 1 x Owner's manual
Maintenance Intervals	Clean inlet filter every 3 months; Clean detergent dispenser every 3 months; Clean drain pump filter every 3 months; Clean door seal and glass monthly
Safety Features	Child lock, door lock, overfill protection, anti-flood system (hoses)
Spare Parts Availability	Minimum 10 years after purchase
Installation Type	Freestanding, not built-in

Frequently Asked Questions - TK5 1470 TEKA

How do I remove the transport bolts?

Use a spanner to loosen the 4 transport bolts at the back of the machine. Remove the bolts including rubber parts, and cover the holes with the provided cover caps. Keep the bolts for future transport.

What should I do if the washing machine does not start?

Check that the door is properly closed and no clothes are stuck. Ensure the water tap is open and the machine is plugged in. If the problem persists, refer to the troubleshooting section in the manual.

How can I clean the drain pump filter?

Unplug the machine and let the water cool. Open the lower cover cap, turn the filter counterclockwise, remove any debris, and replace the filter securely. Clean the filter every 3 months.

What does the error code E30 mean?

Error E30 indicates the door is not closed properly. Close the door firmly and restart the machine.

How do I activate the child lock?

Select a programme, then press and hold the [Temp] and [Function] buttons simultaneously for 3 seconds until the buzzer beeps. The child lock will lock all buttons except Power and Child Lock.

What is the Drum Clean function and how do I use it?

The Drum Clean reminds you to clean the drum after 25 cycles. When the lamp flashes, press and hold the Drum Clean button for 3 seconds to start the cleaning cycle. Use a drum cleaner product or run a hot cycle without laundry.

Can I use extension cords or multiple plugs?

No, never use multiple plugs or extension cords. The appliance must be directly connected to a grounded outlet.

How do I mute the buzzer?

While the machine is off, press and hold the [Speed] button for 3 seconds. The buzzer will be muted. Repeat to reactivate.

What type of detergent should I use?

Use low-sudsing detergents suitable for automatic washing machines. For white cotton, use heavy-duty detergent with bleach. For colours, use colour detergent without optical brighteners. Refer to the detergent guide in the manual.

How do I clean the detergent dispenser?

Press the release button to pull out the dispenser drawer. Lift the softener cover, wash both parts with water, and dry. Clean the recess with a soft brush. Reassemble and push back. Clean every 3 months.

USER MANUAL TK5 1470 TEKA

Modern kitchen interior with glossy black cabinets and stainless steel appliances, featuring a 'TEKA' logo in the top-right corner (no other text or symbols)

User Manual

TK5 1060 WH EU

TK5 1470 WH EU

TK5 1470 EU SILVER

TK5 1480 WH EU

EN ES PT

SAFETY INSTRUCTIONS

■ Safety Instructions .... 2

INSTALLATION

■ Product Description 9

■ Installation 10

OPERATION

■ Quick Start 13

■ Before Each Washing 14

■ Detergent Dispenser 15

■ Control Panel 17

■ Programmes.... 18

■ Option.... 26

MAINTENANCE

■ Cleaning and Care 29

■ Trouble Shooting 32

■ Technical Specifications 33

■ Product Fiche 34

■ Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

! Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

⚠ Warning!

ELECTRIC SHOCK HAZARD

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
  Risk of electric shock!

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised that they do not play with the appliance.
• Children 3 years and under shall be kept away from the appliance or continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
• Do not climb or sit on the appliance.

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.

• Do not operate the machine in rooms with a temperature of below 5^ . This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.

• Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
• Before using the washing machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.

- Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

⚠ Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
• Always pull at the plug, not at the cable.
  •Always unplug the appliance if it is not being used.

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

• Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before use the appliance.
  • Thoroughly rinse items that have been washed by hand.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine
• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.

• Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.
- Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.

TRANSPORT

• Before Transport:
  -Bolts shall be reinstalled to the machine by a specialized person
  -Accumulated water shall be drained out of the machine
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use.

Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

• This appliance is intended to be used in household and similar applications such as:
  -Staff kitchen areas in shops, offices and other working environments;
  -Farm houses;
  -By clients in hotels, motels and other residential type environments;
  -Bed and breakfast type environments;
  -Areas for communal use in blocks of flats or in launderettes.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

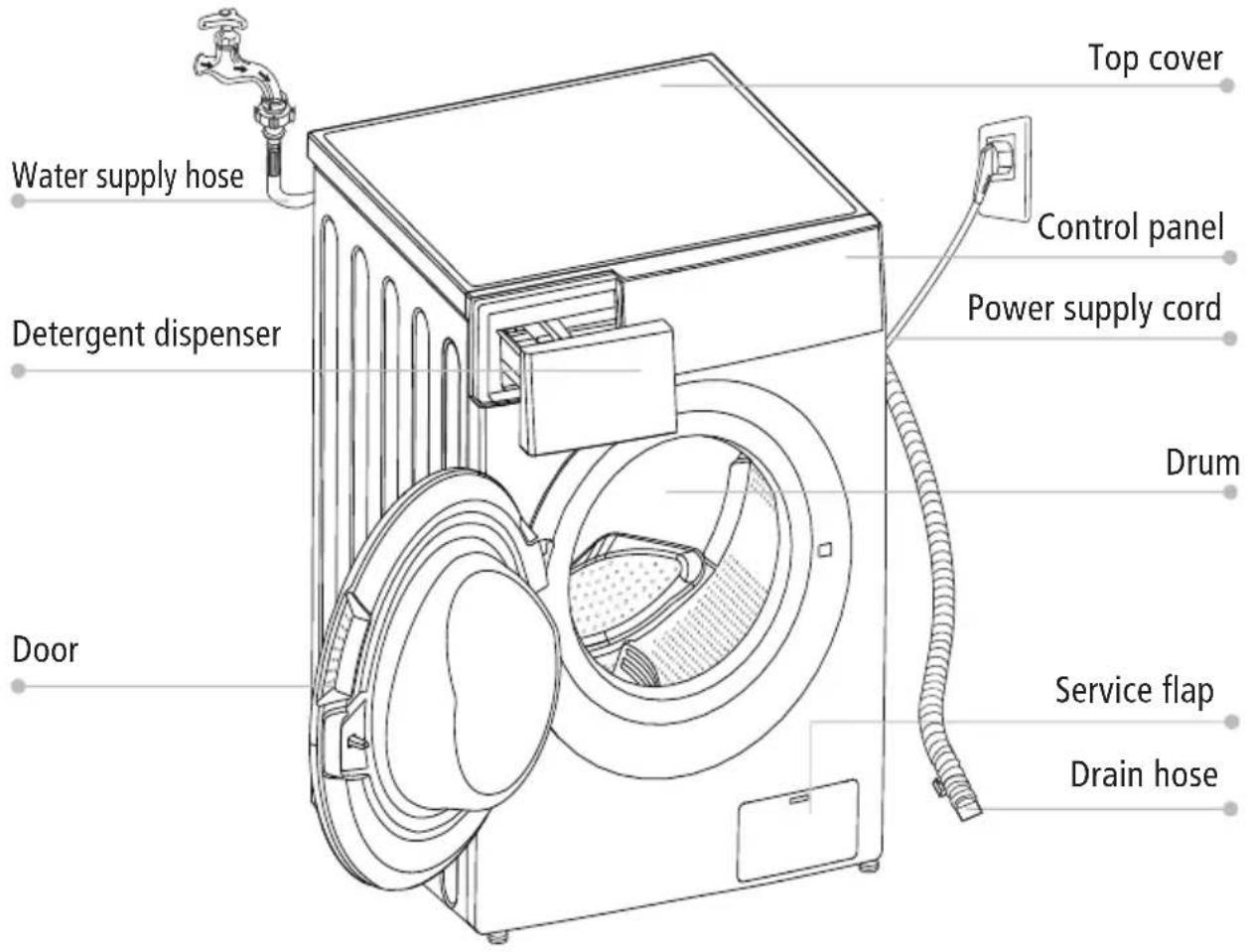

■ Product Description

Note!

- The product picture is for illustration only, please refer to real product as reference.

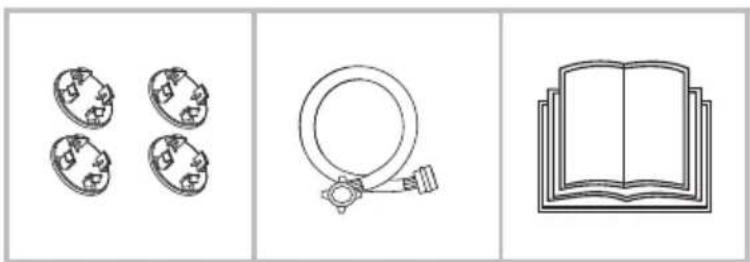

Accessories

Three-panel image showing four circular objects and a magnifying glass, alongside an open book outline (no text or symbols)

4 x Cover caps
1 x Supply hose cold water
1 x Owner's manual

■ Installation

Installation area

Warning!

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in the picture

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation

4. Room temperature is above 0^ C

5. Keep far away from the heat sources such as coal or gas burning appliances.

Simple line drawing of a rectangular box with a circular center and two X-shaped cross marks (no text or symbols)

Unpacking the washing machine

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

Diagram of a 3D box with an arrow pointing upward, and a magnified inset showing a small structure labeled 'a' (no text or symbols present)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

⚠ Warning!

- You must remove the transport bolts from the backside before using the product.

Close-up of a white car wheel with a wrench and blue arrow indicating rotation (no text or symbols)

Loosen the 4 transport bolts with a spanner.

Close-up of a mechanical component with a blue arrow pointing to a bolt (no visible text or symbols)

Remove the bolts including the rubber parts and keep them for future use.

Close-up of a medical device with a blue arrow pointing to a dark circular component (no text or symbols visible)

Close the holes using the cover caps.

Levelling the washing machine

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter

- Do not kink, crush or modify water inlet hose.

Close-up of a white 3D object with blue arrows indicating motion or rotation, no visible text or symbols

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Illustration of a faucet with blue arrows indicating clockwise motion (no text or symbols)

Note!

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

There are two ways to place the end of drain hose:

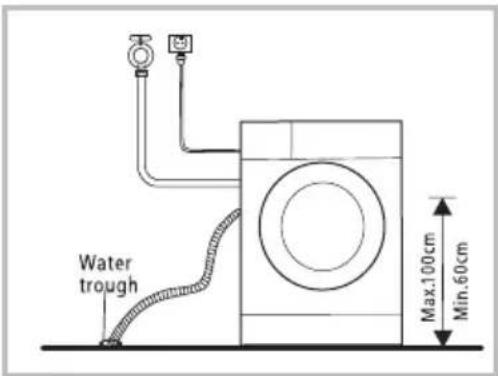

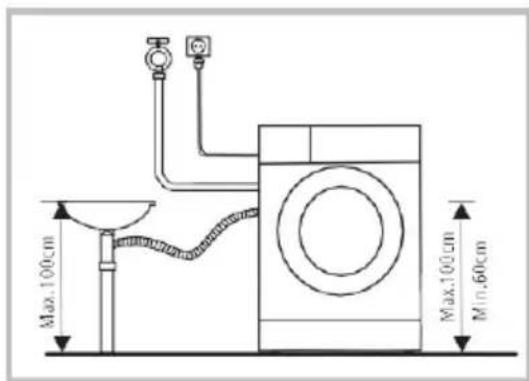

1. Put it into the water trough. 2. Connect it to the branch drain pipe of the trough.

Quick Start

! Caution!

• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.

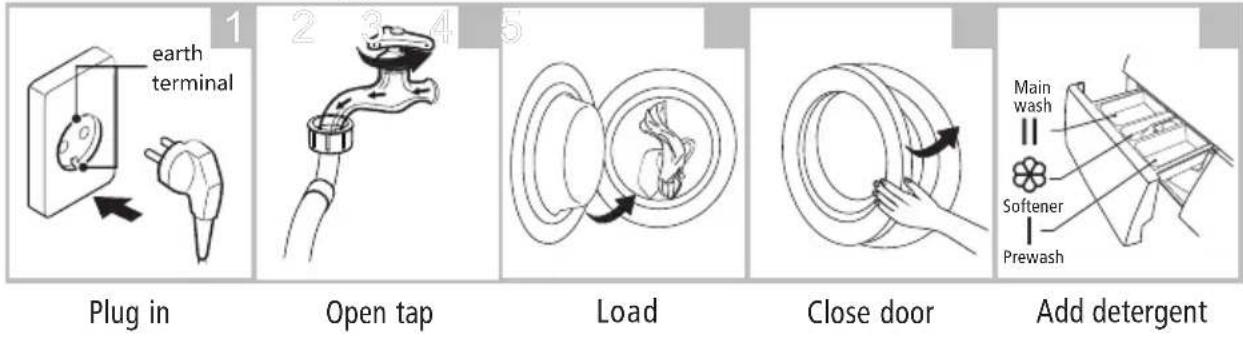

1. Before Washing

Note!

- Detergent need to be added in compartment I if the pre-wash function is selected.

2. Washing

Select Programme
Select function or default
Start up

3. After Washing

The door lock and the [Start / Pause] lights flash with the buzzer beeping or two small points flash on the digital screen.

■ Before Each Washing

• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag and patterned tie (no text or symbols)

Check the care label

Simple line drawing of a bag being folded into a basket (no text or symbols)

Sort laundry according to color and textile type

Take all items out of the pockets

Two handbags with circular designs, one open and one closed, shown in line drawing style (no text or symbols)

Tie together long textile strips and belts, close zips and button

Line drawing of a money bag with grid pattern and printed text (no readable document content)

Put small items into a laundry bag

Line drawing of a T-shaped jacket with textured top and side ribs (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

⚠ Warning!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

■ Detergent Dispenser

I Pre wash

II Main wash

Softener

Release button to pull out the dispenser

! Caution!

- Detergent only need to be added in "compartment I" after selecting pre-wash function.

Programme	I	II
Cotton	○	●	○
Synthetic	○	●	○
Mix	○	●	○
Jeans	○	●	○
Spin Only
Rinse & Spin			○
ECO 40-60		●	○
20°C		●	○

Programme	I	II
Bulky/Bedlinen	○	●	○
Baby Care	○	●	○
Wool		●	○
Sport Wear	○	●	○
Rapid 45'	○	●	○
Quick 15'		●	○
Intensive		●	○

● Means must ○ Means optional

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton,ECO 40-60	40 60/	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton	20/40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	Cotton,Synthetic	20/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic	20	Delicate textiles, silk, viscose
Special wool detergent	Wool	20 40/	Wool

Note!

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

■ Control Panel

Note!

The chart is for reference only, Please refer to real product as standard.

1 Off

Product is switched off.

3 Option

This allows you to select an additional function and will light when selected.

5 Display

The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

2 Start/Pause

Press the button to start or pause the washing cycle.

4 Programmes

Available according to the laundry type.

Programmes

Model:TK5 1060 WH EU

Programme	Load(kg)	Display Time
	6.0	6.0
Cotton	6.0	2:40
Intensive	6.0	3:48
Synthetic	3.0	2:20
Mix	6.0	1:20
Jeans	6.0	1:45
ECO 40-60	6.0	3:16
20°C	3.0	1:01
Spin Only	6.0	0:12
Rinse & Spin	6.0	0:20
Bulky/Bedlinen	3.0	1:48
Baby Care	6.0	1:43
Wool	2.0	1:07
Sport Wear	3.0	0:45
Rapid 45'	2.0	0:45
Quick 15'	2.0	0:15

Note!

- The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

Programmes

TK5 1060 WH EU
Cycle	Nominal capacity in kg	Temperature Setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter//operalling cycle	Highest temperature ature °C	residual moitsure in % /spin speed
Quick 15	2.0	Cold	0:15	0.035	31	Cold	70%/800
20°C	3.0	20	1:01	0.207	38	20	65%/1000
Intensive	6.0	40	3:48	1.029	58	40	70%/800
Mix	6.0	40	1:20	0.684	58	40	65%/1000
Cotton(60°C)	6.0	60	2:45	1.28	58	60	70%/800
ECO40-60	6.0	-	3:18	1.000	50.0	41	62%/1000
	3.0	-	2:36	0.650	39.0	33	62%/1000
	1.5	-	2:36	0.360	36.0	20	62%/1000

- The above data is for reference only, and the data may change due to different actual use conditions.

- The valves given for programmes other than the ECO 40-60 programme are indicative only.

- Concerning to EN 60456:2016 With (EU)No.1061/2010, The EU energy efficiency class is: A+

Energy test program:Intensive;Speed:The highest speed;Temp.: 60/40°C ; Other as the default. Half load for 6.0kg machine:3.0kg.

- Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: E

Energy test program: ECO 40-60. Other as the default.

Half load for 6.0kg machine:3.0kg.

Quarter load for 6.0kg machine:1.5kg.

Programmes

Model:TK5 1470 WH EU /☐TK5 1470 EU SILVER

Programme	Load(kg)	Display Time
	7.0	7.0
Cotton	7.0	2:40
Intensive	7.0	3:48
Synthetic	3.5	2:20
Mix	7.0	1:20
Jeans	7.0	1:45
ECO 40-60	7.0	3:23
20°C	3.5	1:01
Spin Only	7.0	0:12
Rinse & Spin	7.0	0:20
Bulky/Bedlinen	3.5	1:48
Baby Care	7.0	1:43
Wool	2.0	1:07
Sport Wear	3.5	0:45
Rapid 45'	2.0	0:45
Quick 15'	2.0	0:15

Note!

- The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

Programmes

TK5 1470 WH EU / ☐TK5 1470 EU SILVER
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter//operalling cycle	Highest temperature ature ^^1)	residual moitsure in % /spin speed ^2)
Cotton	7.0	60	2:45	1.385	65	60	70%/800
Mix	7.0	40	1:20	0.7	60	40	70%/1000
20°C	3.5	20	1:01	0.2	55	20	65%/1000
Intensive	7.0	40	3:48	1.000	65	40	70%/800
Quick 15'	2.0	Cold	0:15	0.05	39	Cold	75%/800
ECO 40-60 ^3)	7.0	--	3:28	1.074	55.5	39	53%/1400
	3.5	--	2:42	0.700	42	35	53%/1400
	2.0	--	2:42	0.460	34.6	24	53%/1400

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Concerning to EN 60456:2016 With (EU)No.1061/2010, The EU energy efficiency class is: A+++ Energy test program:Intensive;Speed:The highest speed;Temp.: 60/40°C ; Other as the default. Half load for 7.0kg machine:3.5kg.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: E Energy test program: ECO 40-60. Other as the default. Half load for 7.0kg machine:3.5kg. Quarter load for 7.0kg machine:2.0kg.

Programmes

Model:☐☐TK5 1480 WH EU

Programme	Load(kg)	Display Time
	8.0	8.0
Cotton	8.0	2:40
Intensive	8.0	3:48
Synthetic	4.0	2:20
Mix	8.0	1:20
Jeans	8.0	1:45
ECO 40-60	8.0	3:29
20°C	4.0	1:01
Spin Only	8.0	0:12
Rinse & Spin	8.0	0:20
Bulky/Bedlinen	4.0	1:48
Baby Care	8.0	1:43
Wool	2.0	1:07
Sport Wear	4.0	0:45
Rapid 45'	2.0	0:45
Quick 15'	2.0	0:15

Note!

- The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

Programmes

TK5 1480 WH EU
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in h:min	Energy consumption in KWh/cycle	Water consumption in L/cycle	Highest washing temperature ^^1)	Residual moisture in % / Spin speed in rpm 2)
20°C	4.0	20	1:01	0.218	47	20	65%/1000
Cotton	8.0	60	2:45	1.491	71	60	70%/800
Mix	8.0	40	1:20	0.801	71	40	65%/1000
Quick 15'	2.0	Cold	0:15	0.035	34	Cold	75%/800
Intensive	8.0	40	3:48	1.146	71	60	70%/800
ECO 40-60 ^3)	8.0	-	3:38	1.210	60	38	53% / 1400
	4.0	-	2:48	0.780	48	33	53% / 1400
	2.0	-	2:48	0.450	36	25	53% / 1400

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Concerning to EN 60456:2016 With (EU)No.1061/2010, The EU energy efficiency class is: A+++ Energy test program:Intensive;Speed:The highest speed;Temp.: 60/40°C ; Other as the default. Half load for 8.0kg machine:4.0kg.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: E Energy test program: ECO 40-60. Other as the default. Half load for 8.0kg machine:4.0kg. Quarter load for 8.0kg machine:2.0kg.

Programmes

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending.While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Baby Care	Washing the baby's clothes, it can make the baby's wear cleaner and make the rinse performance better to protect the baby skin.
Rapid 45'	Washing few and not very dirty clothes quickly.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
Jeans	Specially for jeans.
20°C	Washing brightly colored clothes, it can protect the colors better .
Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Wool	Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Spin Only	Extra spin with selectable spin speed.
Rinse&Spin	Extra rinse with spin.
Sport Wear	Washing the activewear.
Bulky/Bedlinen	This program is specially designed for washing Bulky/Bedlinen.
Intensive	To increase the washing effects, washing time is increased.
ECO 40-60	Default 40°C,not selectable,suitabale for laundry washing at about 40°C-60°C.

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Option

Cycle	Default Temp.(°C)	Default spin speed in rpm			Additional functions
Wash cycles		1000 1400	1200
Cotton	40	800	800	800	Delay, U, ☑,
Intensive	40	800	800	800	Delay,
Synthetic	40	800	800	800	Delay, U, ☑,
Mix	40	1000	1000	1000	Delay, U, ☑,
Jeans	60	1000	1000	1000	Delay, U, ☑,
EC0 40-60	--	--	--	--	Delay,
20°C	20	1000	1000	1000	Delay, ☑,
Spin Only	--	800	1000	1000	Delay,
Rinse & Spin	--	1000	1000	1000	Delay, ☑,
Bulky/Bedlinen	40	1000	1000	1000	Delay, U, ☑,
Baby Care	60	1000	1000	1000	Delay, U, ☑,
Wool	40	600	600	600	Delay, ☑,
Sport Wear	20	800	800	800	Delay, U, ☑,
Rapid 45'	40	800	800	800	Delay, U, ☑,
Quick 15'	Cold	800	800	800	Delay,

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

Delay

Delay

Set the Delay function:

1. Select a programme; 2. Press the Delay button to choose the time (the delaying time is 0-24 H.);
2. Press [Start/Pause] to commence the delay operation

Choose the Programme

Delay

Setting time

Start

Cancel the Delay function:

Press the [Delay] button until the display be 0H. It should be pressed before starting the programme. If the programme already started, should switch off programme to reset a new one.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, the program will continue.

Extra Rinse

The laundry will undergo extra rinse once after you select it.

Pre Wash

The Prewash function can get an extra wash before main wash, it is suitable for washing the dust rises to surface of the clothes; You need to put detergent into the Case (I) when select it.

Temp.

Temp.

Press the button to regulate the temperature(Cold, 20^ C, 40^ C, 60^ C, 90^ C)

Speed

Speed

Press the button to change the speed.

1000: 0-400-600-800-1000

1200: 0-400-600-800-1000-1200

1400: 0-400-600-800-1000-1200-1400

Drum Clean

Drum Clean

After the machine runs to the set counting period(counting cycle is 25 times), Drum Clean lamp flashes at the end of the last program, reminding the user to run the program;

Release condition:

1. Press and hold the Drum Clean button for 3s, Drum cleaner indicator remind will be cancel and the washing cycles will be recount for another 25 cycles.
2. The counted cycles will be recounted when drum clean program is finished.

Child Lock

To avoid mis operation by children.

Choose the Programme

Start

Press [Temp].[Function 3 sec. till buzzer beep.

Caution!

When child lock is activated and program starts, child lock indicator will switch on, "CL" and remaining time on the display are alternately displayed.

Press the other buttons will make child lock indicator flash. When program finishes, "CL" and "END" will alternate on the display.

• only press and hold the two button can release child lock, even power off, switch off and program end
• The "Child Lock" will lock all buttons except Power button and Child Lock button
• please release child lock before selecting program and starting washing.

Mute the buzzer

Choose the Programme

Speed

Press the [Speed]button for 3sec., the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

- MuAfter ting the buzzer function, the sounds will not be activated any more.

■ Cleaning and Care

⚠ Warning!

- Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Caution!

- Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages. Remove any coins, buttons and other objects from the seal after each wash. Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter need to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Diagram showing a valve mechanism with rotating arrows and a base, no text or symbols present

Line drawing of a hand holding a tool with a pen inserted (no text or symbols)

Illustration of a hand holding a small electronic device with a magnified inset showing the internal mechanism (no text or symbols)

Line drawing of a tennis racket being inserted into a table tennis bench (no text or symbols)

Clean The Detergent Dispenser

1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Restore the softener cover and push the drawer back into the recess.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Press the release and remove the dispenser drawer

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Clean the dispenser drawer and the softener cover under water

Line drawing of a hand using a tool to insert or remove material inside a container (no text or symbols)

Clean the recess with an soft brush

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

Cleaning the Drain Pump Filter

⚠ Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Open the lower cover cap

Hand holding a button with an arrow indicating rotation, placed on a tray (no text or symbols)

Open the filter by turning to the counter clockwise

Remove extraneous matter

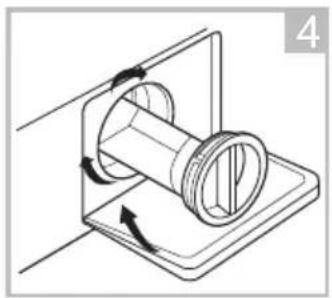

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Close the lower cover cap

Caution!

- When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can’t be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.

Error Codes

Description	Possible cause	Solution
E30	Door is not closed properly	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough.Straighten the water pipe.Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

■ Customer service

Spare part for your appliance are available for a minimum of 10 years.

In case of questions please contact our customer service at:

Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective.
  You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognised!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance Cleaning the drain pump filter")
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

■ Technical Specifications

Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1MPa

Model	Washing Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
TK5 1060 WH EU	6.0kg	595*400*850	52kg	2050W
Tk5 1470 WH EU/TK5 1470 EU SILVER	7.0kg	595*495*850	60kg	2050W
TK5 1480 WH EU	8.0kg	595*565*850	68kg	2000W

■ Product Fiche

Product fiche concerning to EN 60456:2016 With (EU)No.1061/2010.

Trade mark
Model identifier	TK5 1060 WH EU
Rated capacity in kg of cotton laundry	6
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+
Energy consumption 196kWh per year, based on 220 standard washing cycles for the standard cottonprogrammes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cottonprogramme at full load	0.93kWh
Energy consumption of the standard 60°C cottonprogramme at partial load	0.80kWh
Energy consumption of the standard 40°C cottonprogramme at partial load	0.83kWh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 9240 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class C on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1000
Remaining moisture content	62%
'Intensive 100°C programme' and the ' 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cottonprogramme at full load	260min
Programme time of the standard 60°C cottonprogramme at half load	260min
Programme time of the standard 40°C cottonprogramme at half load	245min
duration time of left-on mode	-
Airborne acoustical noise emissions during washing phase	64dB
Airborne acoustical noise emissions during spinning phase	79dB
'built-in' washing machine	no

Energy test program: Intensive 60/40°C. Speed: the highest speed; Other as the default.

Supplier's name or trade mark (^a)'(^c) :

Supplier's address( ^a )'( ^c ):

Model identifier ^(a) : Tk5 1060 WH EU

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (b) (kg)	6.0		Dimensions in cm (a), (c)	Height	85
				Width	60
				Depth	40
Energy efficiency index (b)(EEIw)	91.0		Energy efficiency class (b)	E (d)
Washing efficiency index (b)	1.031		Rinsing effectiveness (g/kg) (b)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 pro-gramme. Actual energy consump-tion will depend on how the appli-ance is used.	0.737		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.	43
Maximum temperature inside the treated textile (b) (°C)	Rated capacity	41	Weighted remaining moisture content (b) (%)	62.9
	Half	33
	Quarter	20
Spin speed (b) (rpm)	Rated capacity	1000	Spin-drying efficiency class (b)	C (d)
	Half	1000
	Quarter	1000
Programme duration (b) (h:min)	Rated capacity	3:18	Type	free-standing
	Half	2:36
	Quarter	2:36
Airborne acoustical noise emissions in the spinning phase (a)(dB(A) re 1 pW)	80		Airborne acoustical noise emis-sion class (b) (spinning phase)	C (d)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier (a)(c):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:

(*) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.
(1) for the eco 40-60 programme.
(*) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(*) if the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

Product fiche concerning to EN 60456:2016 With (EU)No.1061/2010.

Trade mark
Model identifier	TK5 1470 WH EU/TK5 1470 EU SILVER
Rated capacity in kg of cotton laundry	7
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+++
Energy consumption 174kWh per year, based on 220 standard washing cycles for the standard cottonprogrammes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cottonprogramme at full load	0.91kWh
Energy consumption of the standard 60°C cottonprogramme at partial load	0.69kWh
Energy consumption of the standard 40°C cottonprogramme at partial load	0.61kWh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 9900 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1400
Remaining moisture content	53%
'Intensive LDC Singapore programme' and the ' 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cottonprogramme at full load	240min
Programme time of the standard 60°C cottonprogramme at half load	230min
Programme time of the standard 40°C cottonprogramme at half load	230min
duration time of left-on mode	-
Airborne acoustical noise emissions during washing phase	62 dB
Airborne acoustical noise emissions during spinning phase	79dB
'built-in' washing machine	no

Energy test program: Intensive 60/40°C. Speed: the highest speed; Other as the default.

Supplier's name or trade mark(")(°):

Supplier's address(*)'(°):

Model identifier ^(a) : Tk5 1470 WH EU/TK5 1470 EU SILVER

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (b) (kg)	7.0		Dimensions in cm (a), (c)	Height	85
				Width	60
				Depth	50
Energy efficiency index (b)(EEIw)	91.0		Energy efficiency class (b)	E (d)
Washing efficiency index (b)	1.031		Rinsing effectiveness (g/kg) (b)	5.0
Energy consumption in kWh percycle, based on the eco 40-60pro-gramme. Actual energyconsump-tion will depend onhow the appli-ance is used.	0.784		Water consumption in litre percycle, based on the eco 40-60programme. Actual water con-sumption will depend on how theappliance is used and on thehardness of the water.	45
Maximum temperature inside the treated textile (b) (°C)	Ratedcapacity	39	Weighted remaining moisturecontent (b) (%)	53.9
	Half	35
	Quarter	24
Spin speed (b) (rpm)	Ratedcapacity	1400	Spin-drying efficiency class (b)	B (d)
	Half	1400
	Quarter	1400
Programme duration (b) (h:min)	Ratedcapacity	3:28	Type	free-standing
	Half	2:42
	Quarter	2:42
Airborne acoustical noise emissions in the spinning phase(°)(dB(A) re 1 pW)	80		Airborne acoustical noise emis-sion class (b) (spinning phase)	C (d)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (a)(c):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:

(*) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.
^(b) for the eco 40-60 programme.
(*) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(*) if the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

Product fiche concerning to EN 60456:2016 With (EU)No.1061/2010.

Trade mark
Model identifier	MFN80-S1405/C33E-EU(NE)
Rated capacity in kg of cotton laundry	8
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+++
Energy consumption 196kWh per year, based on 220 standard washing cycles for the standard cottonprogrammes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cottonprogramme at full load	0.90kWh
Energy consumption of the standard 60°C cottonprogramme at partial load	0.88kWh
Energy consumption of the standard 40°C cottonprogramme at partial load	0.79kWh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 11000 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1400
Remaining moisture content	53%
'Intensive LDC programme' and the ' 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cottonprogramme at full load	245min
Programme time of the standard 60°C cottonprogramme at half load	240min
Programme time of the standard 40°C cottonprogramme at half load	230min
duration time of left-on mode	-
Airborne acoustical noise emissions during washing phase	62 dB
Airborne acoustical noise emissions during spinning phase	79dB
'built-in' washing machine	no

Energy test program: Intensive 60/40°C. Speed: the highest speed; Other as the default.

Supplier's name or trade mark(")(°):

Supplier's address (^*)'(^c) :

Model identifier ^(a) : Tk5 1480 WH EU

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (b) (kg)	8.0		Dimensions in cm (a), (c)	Height	85
				Width	60
				Depth	57
Energy efficiency index (b)(EEIw)	91.0		Energy efficiency class (b)	E (c)
Washing efficiency index (b)	1.031		Rinsing effectiveness (g/kg) (b)	5.0
Energy consumption in kWh percycle, based on the eco 40-60pro-gramme. Actual energyconsump-tion will depend onhow the appli-ance is used.	0.827		Water consumption in litre percycle, based on the eco 40-60programme. Actual water con-sumption will depend on how theappliance is used and on thehardness of the water.	48
Maximum temperature inside the treated textile (b) (°C)	Ratedcapacity	38	Weighted remaining moisturecontent (b) (%)	53.9
	Half	33
	Quarter	25
Spin speed (b) (rpm)	Ratedcapacity	1400	Spin-drying efficiency class (b)	B (d)
	Half	1400
	Quarter	1400
Programme duration (b) (h:min)	Ratedcapacity	3:38	Type	free-standing
	Half	2:48
	Quarter	2:48
Airborne acoustical noise emissions in the spinning phase(a)(dB(A) re 1 pW)	80		Airborne acoustical noise emis-sion class (b) (spinning phase)	C (e)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (a)(c):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:

(*) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.
(°) for the eco 40-60 programme.
(°) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(*) if the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the hardness of the water.
3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

Three simple line drawings: four face masks, a magnifying glass, and an open book (no text or symbols)

Simple line drawing of a box with a cross mark on the front face (no text or symbols)

Close-up of a mechanical component with a wrench and circular knob, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a shaft (no visible text or symbols)

Close-up of a medical device with a blue arrow pointing to a dark circular component (no text or symbols visible)

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating direction, next to a circular component (no text or symbols visible)

Close-up of a faucet with blue arrows indicating rotation or movement around a white plastic component (no text or symbols)

i Nota!

Inicio rápido

ⓘ ¡ Precaución!

Simple diagram showing three concentric circles with curved arrows indicating rotation or direction (no text or symbols)

Line drawing of a sweater with a tag and tie, no text or symbols present

Simple line drawing of a bag being folded into a basket (no text or symbols)

Vacíe los bolsillos

Two handbags with circular cutouts, one wrapped in a blanket and the other in a sack (no text or symbols)

Simple line drawing of a bag with a small animal inside, no text or symbols present

Line drawing of a mechanical component with textured surfaces and no visible text or symbols

ⓘ¡ Precaución!

Line drawing of a hand washing a washing machine with a bird on top (no text or symbols)

ⓘ¡ Precaución!

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Diagram of a mechanical valve mechanism with rotating components (no text or symbols)

Line drawing of a hand holding a tool with a brush (no text or symbols)

Hand holding a small electronic component with a magnified inset showing the internal mechanism (no text or symbols visible)

Illustration of a hand holding a tool near a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a hand using a tool to remove or remove a dark object inside a container (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Hand pressing a button on a laptop keyboard, showing motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Three-panel image showing four face models, a magnifying glass, and an open book (no text or symbols)

Simple line drawing of a washing machine inside a room (no text or symbols)

W>20 mm

Diagram of a box with an open lid and a magnified inset showing a mechanical component labeled 'a' (no text or symbols present)

Close-up of a mechanical component with a wrench and circular button, no visible text or symbols

Close-up of a metallic mechanical component with a blue arrow pointing to it, no visible text or symbols.

Close-up of a medical device with a blue arrow pointing to a dark circular component (no text or symbols visible)

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a white object with blue arrows indicating direction, next to a circular object (no text or symbols)

Close-up of a faucet with blue arrows indicating rotation or adjustment (no text or symbols)

Observação!

Início Rápido

! Cuidado!

Simple diagram showing three concentric circles with curved arrows indicating rotation or direction (no text or symbols)

Simple line drawing of a sweater with a tag and tie, no text or symbols present

Simple line drawing of a box with two boxes and a paper stack, no text or symbols present

Two handbags with circular designs, one wrapped in a ribbon and the other in a patterned blanket (no text or symbols)

Atar tiras e faixas longas de tecido, fechar fecha fechos de correr e abotoar botões

Simple line drawing of a bag with a mesh pattern and a small object inside (no text or symbols)

Line drawing of a T-shirt with patterned collar and side buttons (no text or symbols)

Cuidado!

Programa	Carga (kg)	Tempo de visualização
	6,0	6,0
Algodão	6,0	2:40
Intensivo	6,0	3:48
Sintético	3,0	2:20
Mix	6,0	1:20
Calças de ganga	6,0	1:45
ECO 40-60	6,0	3:16
20 °C	3,0	1:01
Centrifugar	6,0	0:12
Enxaguar e Centrifugar	6,0	0:20
Volumoso/Roup a de cama	3,0	1:48
Cuidado do bebê	6,0	1:43
Lã	2,0	1:07
Roupa de desporto	3,0	0:45
Rápido 45'	2,0	0:45
Rápido 15'	2,0	0:15

Observação!

Line drawing of a hand washing a washing machine (no text or symbols)

Cuidado!

Line drawing of a hand gripping a curved object (no text or symbols)

Limpar o filtro de entrada

Observação!

Diagram of a valve mechanism with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool with a brush (no text or symbols)

Hand holding a small object with a circular inset showing a mechanical component (no text or symbols visible)

Simple line drawing of a person using a tool to adjust or install a component, no text or symbols present

Limpar o Dispensador de detergente

Technical line drawing of a mechanical assembly with no visible text or symbols

Premir a descarga e retirar a gaveta do dispensador

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Illustration of a hand using a tool to remove or remove a dark object into a container (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a mechanical component with a circular feature and rotation arrow (no text or symbols)

Hand holding a light bulb with rotating arrow inside a rectangular device (no text or symbols)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

World map silhouette showing continents and countries without any text or labels
