Concerta STANDM10 - Speaker Stand Revel - Free user manual and instructions

Product Type	Speaker Stand
Brand	Revel
Model	Concerta STANDM10
Height	24 inches (610 mm)
Width	10.5 inches (267 mm)
Depth	12 inches (305 mm)
Weight	12.5 lbs (5.7 kg) each
Load Capacity	Up to 50 lbs (22.7 kg) per stand
Material	Steel with black powder coat finish
Base Dimensions	12 x 12 inches (305 x 305 mm)
Top Plate Dimensions	8 x 9 inches (203 x 229 mm)
Spike Feet	Included for carpet; rubber pads for hard floors
Cable Management	Internal channel to hide speaker wires
Color	Black
Warranty	2 years limited
Included Accessories	Spikes, rubber pads, assembly hardware, user manual
Maintenance	Wipe with dry cloth; avoid liquids
Safety	Place on stable, level surface; do not exceed max load
Repairability	Replaceable parts: spikes, rubber pads; contact Revel for spare parts

Frequently Asked Questions - Concerta STANDM10 Revel

How do I assemble the Revel Concerta STANDM10 speaker stand?

Assembly is straightforward. Attach the base to the column using the provided bolts and an Allen wrench. Then mount the top plate and tighten all screws. Ensure the stand is level after assembly.

What is the maximum speaker weight the stand can support?

The stand can safely support speakers up to 50 lbs (22.7 kg). Do not exceed this limit to avoid instability.

Can I use the stand on carpet?

Yes, the stand includes spike feet for carpet. For hard floors, use the included rubber pads to prevent scratching.

How do I manage speaker wires with this stand?

The stand has an internal cable management channel. Route the speaker wire through the column to hide it from view.

What is the height of the Revel Concerta STANDM10?

The stand is 24 inches (610 mm) tall, ideal for bookshelf speakers to achieve optimal listening height.

Is the stand stable for large speakers?

Yes, the wide base (12x12 inches) and heavy steel construction provide excellent stability for speakers up to 50 lbs.

How do I clean the stand?

Use a soft, dry cloth to dust the stand. Avoid water or cleaning solvents that may damage the finish.

Does the stand come with a warranty?

Yes, Revel offers a 2-year limited warranty covering defects in materials and workmanship.

Can I replace the spikes if they are damaged?

Yes, spikes and rubber pads are replaceable. Contact Revel customer service to order spare parts.

What speakers are compatible with this stand?

The stand fits speakers with a base width up to 8 inches and depth up to 9 inches. It is designed for the Revel Concerta series but works with many bookshelf speakers.

USER MANUAL Concerta STANDM10 Revel

REVEL®

Installing the STANDM10 Loudspeaker Stand

Step One

Remove the bottom end cap of the speaker by unscrewing the single center screw (Allen wrench included with satellite).

Note: The bottom is the end closest to the Revel logo on the front grille.

Step Two

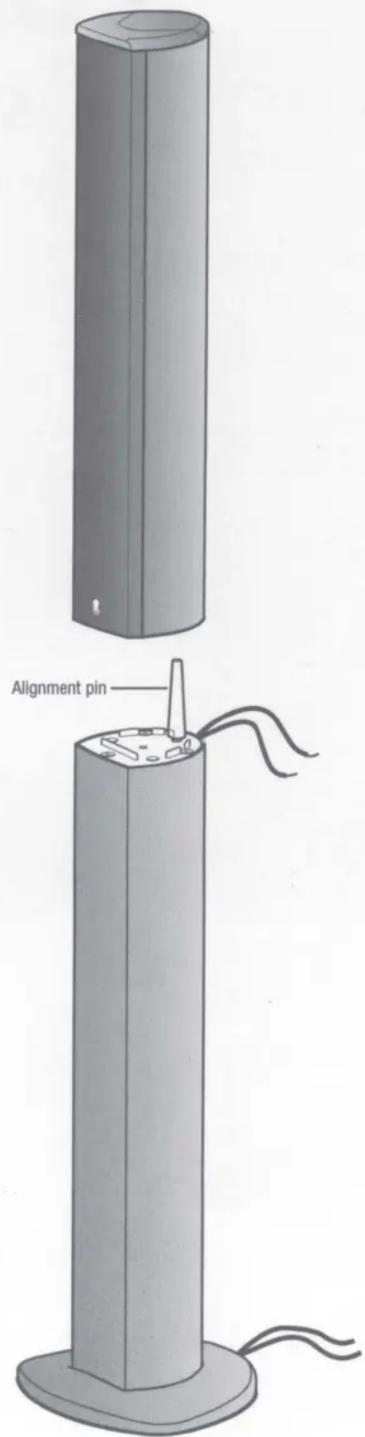

Attach alignment pin to stand, and run speaker wire up stand.

Note: Needle-nose pliers may be required.

Step Three

Align and insert the alignment pin into the bottom of the speaker.

Step Four

Tighten the bolts on the bottom, as shown. It is recommended that two people perform this step so that the speaker is supported while it's on its side and the bolts are being tightened. Attach the speaker wire as described in the Revel® Concerta™ M10 owner's manual.

Revel, the Revel logo and Concerta are trademarks of Harman International Industries, Incorporated, in the United States and/or other countries.

Features, specifications and appearance are subject to change without notice.

REVEL

www.revelspeakers.com

250 Crossways Park Drive, Woodbury, NY 11797

8500 Balboa Boulevard, Northridge, CA 91329

516.594.0300

Technical Support: 516.682.3744

Part No. ML-SP0087-01

©2008 Harman International Industries, Incorporated. All rights reserved.
