Product Type	Speaker Stand
Brand	Revel
Model	Performa3 M Stand
Series	Performa3
Package Quantity	2 stands
Material	Heavy-gauge steel
Height	28 inches (711 mm)
Base Width	12 inches (305 mm)
Base Depth	14 inches (356 mm)
Top Plate Size	10 x 12 inches (254 x 305 mm)
Maximum Load Capacity	50 lbs (22.7 kg) per stand
Weight per Stand	15 lbs (6.8 kg)
Finish	Matte black
Adjustable Spikes	Yes, for leveling
Cable Management	Yes, internal routing
Fillable	Yes, with sand or lead shot
Warranty	5 years
Country of Origin	USA
Recommended Use	Bookshelf or monitor speakers
Assembly Required	Yes, simple assembly
Safety Note	Place on stable surface; do not exceed load capacity
Maintenance	Periodic check of spikes and screws; wipe with dry cloth
Replaceable Parts	Floor spikes and rubber caps

Frequently Asked Questions - Performa3 M Stand Revel

What is the weight capacity of the Revel Performa3 M Stand?

Each stand can support up to 50 lbs (22.7 kg).

Can I fill the stands for added stability?

Yes, the stands are designed to be filled with sand or lead shot to lower the center of gravity and improve stability.

Are the stands sold as a pair?

Yes, the Revel Performa3 M Stand is sold as a pair of two stands.

How do I adjust the spikes on the stands?

The stands feature adjustable floor spikes. Simply turn the spike base to raise or lower the stand until it is level on uneven surfaces.

What type of speakers can I use with these stands?

These stands are suitable for bookshelf speakers or studio monitors that fit within the top plate dimensions and weight limit.

Is assembly required?

Yes, minimal assembly is required. You need to attach the top plate to the column and install the base. All necessary hardware is included.

How do I maintain the stands?

Regularly check the tightness of screws and spikes. Clean with a soft, dry cloth. Avoid using harsh chemicals.

Do the stands include cable management?

Yes, they feature internal cable routing to keep speaker wires hidden and organized.

What is the warranty on the Revel Performa3 M Stand?

Revel offers a 5-year limited warranty against defects in materials and workmanship.

Can I use these stands with floor-standing speakers?

These stands are designed for bookshelf or monitor speakers. Using them with larger floor-standing speakers is not recommended due to size and weight limitations.

USER MANUAL Performa3 M Stand Revel

NOTE: All of the parts shown in the following illustrations are supplied with the M-Stands.

1. Attach the stand base to the stand riser as shown in the illustration below.

1. Spin the clamping rings onto the spikes and insert the spikes into the bases as shown in the illustration below. You can install the spikes with either the pointed end or rounded end protruding from the base.

• If the stands are to be placed on a carpeted floor, install the spikes with the pointed ends protruding from the stand base.
• If the stands are to be placed on a wood or tile floor, install the spikes with the round ends protruding from the stand base.

After determining the final locations for the speakers you can place coins under the spikes to protect the floor surface from damage.

NOTE: If you wish you can install the spikes with the pointed ends protruding from the stands for placement on wood or tile floors. In this case you must place coins or similar items under the spikes to avoid damaging the floor surface.

Rotate the locking ring clockwise to firmly secure the spike to the cabinet. Make sure to thread the locking rings of all four spikes to achieve a level balance when the stand is placed rightsideup on the floor.

1. Attach the stand top to the stand riser as shown in the illustration below.

1. Attach the speaker to the stand as shown in the illustration below. Only Revel Performa3 M106 and M105 speakers can be attached to the M-Stand. Use the VELCRO® strap on the rear of the stand for wire management.

NOTE: All of the parts shown in the following illustrations are supplied with the C-Stands.

1. Attach the stand base to the stand riser as shown in the illustration below.

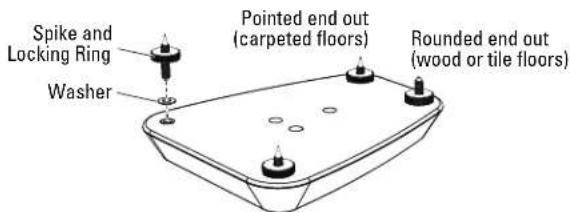

1. Spin the clamping rings onto the spikes and insert the spikes into the bases as shown in the illustration below. You can install the spikes with either the pointed end or rounded end protruding from the base.

• If the stand is to be placed on a carpeted floor, install the spikes with the pointed ends protruding from the stand base.
• If the stand is to be placed on a wood or tile floor, install the spikes with the round ends protruding from the stand base.

After determining the final locations for the speakers you can place coins under the spikes to protect the floor surface from damage.

NOTE: If you wish you can install the spikes with the pointed ends protruding from the stands for placement on wood or tile floors. In this case you must place coins or similar items under the spikes to avoid damaging the floor surface.

Rotate the locking ring clockwise to firmly secure the spike to the cabinet. Make sure to thread the locking rings of all four spikes to achieve a level balance when the stand is placed rightsideup on the floor.

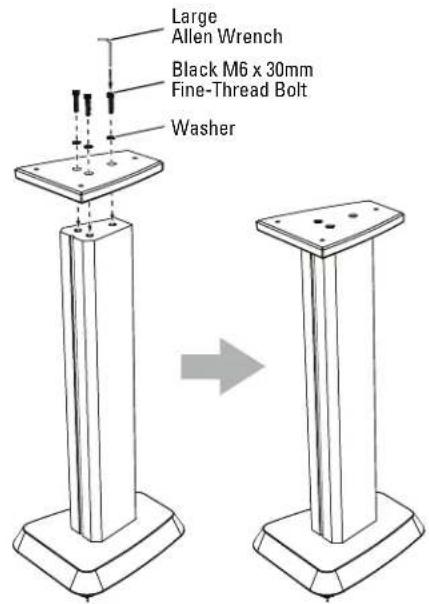

1. Attach the stand top to the stand riser as shown in the illustration below.

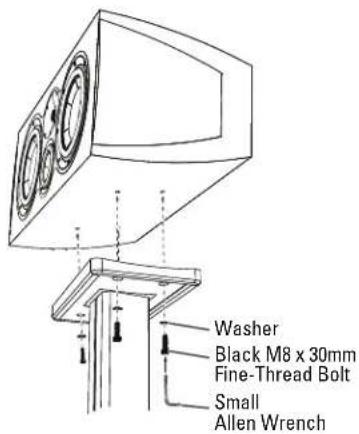

1. Attach the speaker to the stand as shown in the illustration below. Only Revel Performa3 C208 and C205 speakers can be attached to the C-Stand.

IMPORTANT: If you are attaching the C208 or C205 to the C-Stand you cannot use the adjustable feet that were included with the speaker. The C-Stand places the speaker at the proper angle for seated listeners without requiring additional adjustments.

HARMAN

HARMAN International Industries, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2012 HARMAN International Industries, Incorporated. All rights reserved.

Revel and the Revel logo are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.

VELCRO is a registered trademark of Velcro Industries B. V.

Features, specifications and appearance are subject to change without notice.

For questions, assistance or additional information concerning any of our products, call us at: [phone] or [phone]. For technical support, submit your detailed inquiry to [e-mail].

Part No. REVP4838 Rev. A @www.revoispeakers.com

LIMITED WARRANTY

United States, US Territories – Effective January 1, 2017

This limited warranty (this "Limited Warranty") protects only the original end-user ("you" or "your"), and is not transferable. Any attempt to transfer this Limited Warranty shall immediately make this Limited Warranty void.

Harman International Industries, Incorporated ("Harman") warrants to you that your Revel product (the "Product") will be free from defects in workmanship and materials for the corresponding period set forth in the table below (the "Warranty Period").

A-stock(purchased from authorized resellers)		B-stock(denoted with “-Z” at the end of the part number)
Product Category	Warranty Period	Product Category	Warranty Period
Passive Loudspeakers	5 years	Passive Loudspeakers	1 year
Powered Loudspeakers	5 years	Powered Loudspeakers	1 year
In-wall Loudspeakers	Lifetime	In-wall Loudspeakers	1 year
In-ceiling Loudspeakers	Lifetime In-ceiling Loudspeakers	1 year

This Limited Warranty does not cover defects which are a result of: (1) damage caused by accident, disaster, misuse, abuse or other unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must be presented to the carrier); (3) damage caused by improper installation or adjustment; (4) damage to, or deterioration of, any accessory or decorative surface; (5) damage resulting from failure to follow instructions contained in your owner's manual; or (6) damage resulting from the performance of repairs by someone other than an authorized Revel service center.

Furthermore, this Limited Warranty covers only actual defects within the Product itself, and does not cover the cost of installation or removal from a fixed installation, setup or adjustments, claims based on misrepresentation by the seller, performance variations resulting from installation-related circumstances such as program source quality or AC power or Product modifications, any Product on which the serial number has been effaced, modified or removed, or any Product sold on an "as-is" or final sale basis. This Limited Warranty is valid only for Products purchased from an authorized Revel dealer.

THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. EXCEPT TO THE EXTENT EXPRESSLY PROHIBITED BY APPLICABLE LAW, HARMAN EXPRESSLY DISCLAIMS ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT, WITH RESPECT TO THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, HARMAN SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES EXCEPT TO THE EXTENT EXPRESSLY PROVIDED (OR PROHIBITED) BY APPLICABLE LAW, EVEN IF HARMAN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Notwithstanding the above, if you qualify as a “consumer” under the Magnuson-Moss Warranty Act, or applicable state laws, then you may be entitled to any implied warranties allowed by law for the Warranty Period. Further, some states do not allow limitations on how long an implied warranty lasts or allow the exclusion or limitation of consequential damages, so such limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This Limited Warranty is applicable in the United States and its territories. Outside of the United States and its territories, please contact an authorized Revel dealer for warranty and service information.

When the Product needs service contact an authorized Revel dealer, or contact Revel customer support to request information about where the Product should be taken or sent. To validate your right to this Limited Warranty, you must provide the original dated sales receipt or other proof of ownership and date of purchase. Do not return your Product for service without prior authorization from an authorized service center. Warranty repair of the Product must be carried out by an authorized service center. Unauthorized warranty repair will void this Limited Warranty and is performed at your sole risk.

During the Warranty Period, Harman will at its sole option and expense, repair or replace any product found to be defective. In the event that the Product is no longer available and cannot be repaired effectively, Harman, at its sole option, may replace it with a reasonable equivalent, or refund the original purchase price paid. Harman will cover reasonable return shipping charges within the United States and its territories, only if the Product is found to be defective under this Limited Warranty.

You will be charged for the cost of examining any Product that is not in need of repair (including resulting shipping costs), or for necessary repairs not covered by this Limited Warranty.

We sincerely thank you for your expression of confidence in Revel. We wish you many years of listening pleasure.
