Product Type	Portable Air Conditioner (single-hose)
Model	77106
Brand	Kenmore
Functions	Cooling, Dehumidification, Fan-only, Continuous Drainage
Cooling Modes	Cool, Dry (Dehumidification), Fan
Fan Speeds	High (F2) and Low (F1) in Cool/Fan mode; Low fixed in Dehum mode
Timer Range	1 to 24 hours (shutoff or delayed start)
Sleep Mode	Increases set temperature by 2°F over 2 hours, low fan
Protective Functions	Frost protection, overflow protection (displays FL), automatic defrosting, thermal protection
Filter Cleaning	Every 2 weeks; upper and lower filter screens washable with mild detergent
Drainage	Manual (bottom drain cap) or continuous (drainage tube)
Power Cord	3-prong with GFCI (Test/Reset plug); do not use extension cord or adapter
Window Kit Compatibility	Sliding window: width 20.5" – 59" (vertical or horizontal)
Exhaust Hose Length	Extendable up to 59 inches; keep as short as possible
Remote Control	Battery-powered; includes power, timer, swing, sleep, mode, fan, temperature adjust
Display	LED shows ambient temperature or set temperature; can switch °C/°F
Replacement Parts	Filter screens available by calling 1-844-553-6667
Warranty	1 year limited (90 days for commercial use); labor and parts covered
Safety Restrictions	Do not use in bathroom or near flammable gases; ensure proper grounding
Dimensions (Approximate)	Not specified in manual; typical portable unit: ~28" H x 15" W x 13" D (estimate)
Weight (Approximate)	Not specified; ~55 lbs (estimate for similar models)

Frequently Asked Questions - 77106 KENMORE

How do I clean the air conditioner filters?

What does the FL error code mean?

How do I set the timer for automatic shutoff or delayed start?

Can I use an extension cord or power adapter?

How do I switch to dehumidification mode?

How do I use the sleep mode?

What should I do if the remote control stops working?

How do I perform continuous drainage?

Why does the compressor shut off during cooling?

How do I store the air conditioner after the season?

USER MANUAL 77106 KENMORE

Safety Instructions 3

Features and Components 5 - 6

Installation 7-8

Control Setting 9 - 10

Drainage Instructions 11

Maintenance 12 - 13

Troubleshooting 14

Warranty 15

Service Back Cover

Read this Use & Care Guide carefully before product use. Keep the Use & Care Guide for later review.

IMPORTANT SAFETY INSTRUCTIONS

WARNING! When using electrical appliances, basic safety precautions should be followed, including the following:

1. This air conditioner must be connected to proper electrical outlet with the correct electrical supply.

2. Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle MUST be properly grounded.

3. Do not operate air conditioner if power cord is frayed or otherwise damaged. Avoid using it if there are any cracks or abrasion damage along the length, plug connector or if the unit malfunctions or is damaged in any manner. Contact an authorized service technician for examination and repairs.

4. DO NOT USE AN ADAPTER OR AN EXTENSION CORD.

5. Do not block airflow around the air conditioner. The exhaust hose should be free of any obstructions.

6. Always unplug the air conditioner before servicing it or moving it.

7. Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is oily or sulfurous. Avoid any chemical coming in contact with your air conditioner.

8. Do not place any object on the top of the unit.

9. Never operate the air conditioner without filters in place.

10. Do not use the air conditioner in a bathroom or other highly humid environment.

11. Always unplug air conditioner when not in use.

12. Do not operate air conditioner with any safety devices removed.

13. Do not run power cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic area where it will not be tripped over.

14. Do not block air openings or place air conditioner on a soft surface such as a bed or sofa.

15. Do not place the air conditioner on a small, unlevel, uneven or any other surface which might allow the unit to tip or fall.

16. For proper operation, air conditioner should be placed on a smooth, noncombustible surface. Always place this air conditioner on a level surface at least 20" (50 cm) away from any wall or object.

17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

18. Always insert the filters securely. Clean the filters every two weeks.

19. Operating with clogged filters may cause failures.

IMPORTANT SAFETY INSTRUCTIONS

1. When moving the unit, make sure that it is in an upright position.
2. Keep the unit away from gasoline, flammable gas, stoves and other heat sources.
3. Don't disassemble, overhaul or modify the air conditioner, otherwise it will cause a malfunction or possibly bring harm to persons and properties. To avoid hazard, if a unit failure occurs, have the unit repaired before attempting to use it.
4. Do not install and use the air conditioning in the bathroom or other humid environments.
5. Do not pull the plug to turn off the unit operation.
6. Do not place cups or other objects on the body to prevent water or other liquids from spilling into the air conditioner.
7. Do not use insecticide sprays or other flammable substances near the air conditioning.
8. Do not wipe or wash the air conditioner with chemical solvents such as gasoline and alcohol. When you need to clean the air conditioner, you must disconnect the power supply, and clean it with a half-wet soft cloth. If the unit is very dirty, scrub with a mild detergent.
9. The appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
10. This appliance is intended for indoor residential use only, not for industrial or other commercial applications.
11. This appliance is intended for private household use only!

SAVE THESE INSTRUCTIONS

Power Plug

The power plug contains a device that senses damage to the power cord.

To test the power cord:

1. Plug in the air conditioner. The plug has a Test and a Reset button.
2. Press the TEST button and notice a click as the RESET button pops out.
3. Press the RESET button. You will also hear a click as the RESET button engages.
4. The power cord will now supply electricity to the unit.
5. Always make sure the RESET button in pushed in for correct operation. The power cord must be replaced if it fails to reset after this test.

FEATURES AND COMPONENTS

This air conditioner features cooling, dehumidification, fan-only, and continuous water drainage functions.

The air louvers in top of the unit have an automatic air swing function that is activated from the remote control

The remote control can be placed on the back of the body for convenient out of the way storage.

Handles on both sides make unit easier to carry.

The plug storage plate enables the plug to be inserted into the back of the unit during storage.

Operation of the unit provides continuous air filtration.

The Timer function provides for automatic shutoff and delayed starting.

The unit is equipped with a variety of protection functions, such as automatic defrosting and a water pan overflow signal.

The unit features thermostatic operation. The thermostat senses the temperature of the air surrounding the unit. When the air reaches the set cooling temperature, the compressor shuts off and the fan continues to run at low speed. When the surrounding air temperature increases by approximately 2^0F , the compressor restarts to cool the air to the set temperature.

The dehumidification mode combines compressor operation and low fan speed to reduce humidity in damp rooms. Keep room doors and windows closed for effective dehumidification. The fan speed cannot be varied when the unit is set to dehumidify. The display screen will show dh; it will not show the relative humidity percentage of the air.

FEATURES AND COMPONENTS

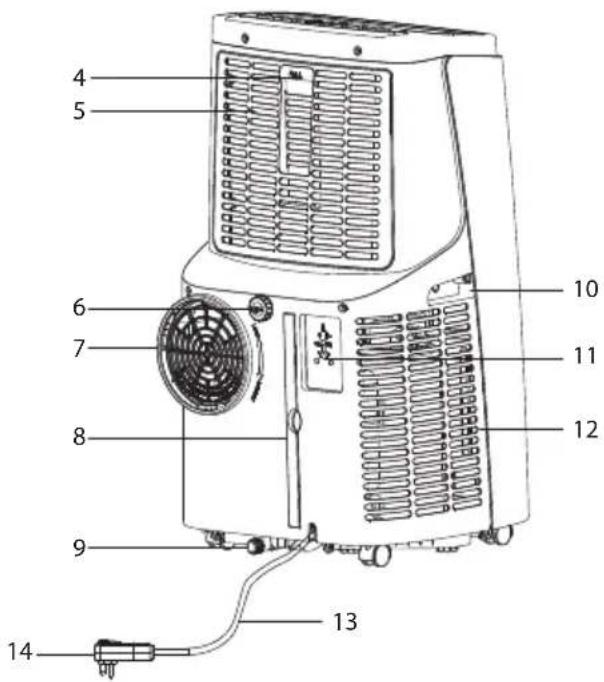

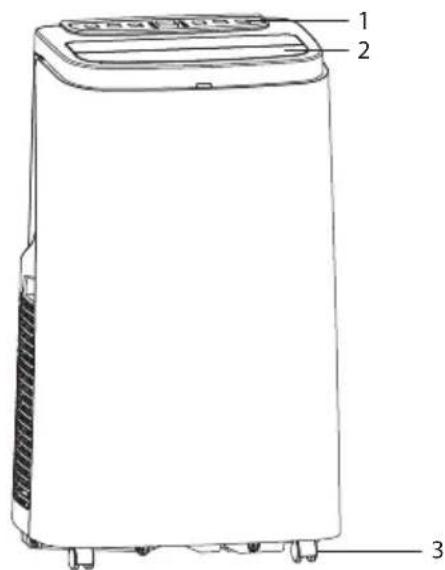

Front Back

1. Control Panel
2. Air Louvers
3. Casters
4. Remote Control Storage
5. Upper Filter Grille
6. Drainage Tube Port
7. Air Exhaust Vent
8. Lower Filter Screen
9. Lower Drainage Port
10. Handle
11. Plug Storage Plate
12. Lower (Air Intake) Filter Grille
13. Power Cord
14. 3-prong Power Plug
15. Air Exhaust Hose Inlet Coupler
16. Air Exhaust Hose
17. Air Exhaust Hose Flared Outlet Coupler
18. Window Slider Kit Piece 1
19. Window Slider Kit Piece 2

Not Shown

· 3 L Brackets
· 2 Straight Brackets
· 2 Foam Strips (Adhesive)
· 1 Foam Strip (Non-adhesive)
- Drainage Tube

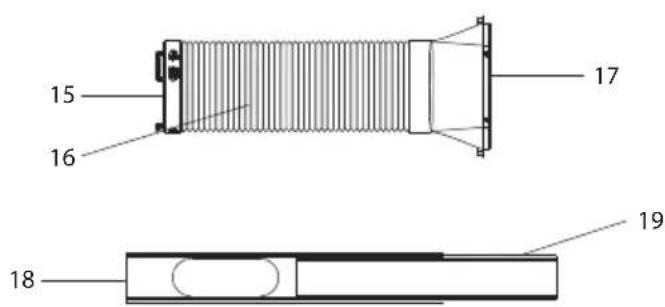

Air Exhaust Assembly

INSTALLATION AND ADJUSTMENT

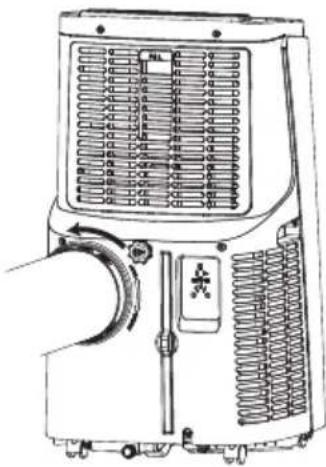

Air Exhaust Hose Installation

The couplers for the inlet and outlet ends of the air exhaust hose are shipped preattached to the hose. Ensure that they are securely screwed into place on the hose before hose installation.

1. Insert the hose inlet end coupler into the air exhaust vent. Turn coupler in the direction of the Lock arrows (counterclockwise) to secure the coupler in place. See Fig. 1.
2. Position the flared opening of the hose outlet over the elliptical opening in slider piece 1.
3. Push the tabs at the top of the flared outlet into the slots on slider piece 1. Slide the hose outlet to the side so that the tabs engage in the slots.

4. Use a screw to secure the flared outlet to slider piece 1 on the side of the elliptical opening that will be nearest to the window frame.

5. Insert slider piece 2 into piece 1 and push until tight against the flared outlet ridge protruding through the elliptical opening. You may need to trim material off of the inner end of piece 2 to fit the width of the window opening.

Fig.1

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

NOTE: If the window is narrower than 20.5", use only slider piece 1. Shorten the piece by cutting material from the end that is furthest from the hole. Do not cut from the end that is nearest to the hole.

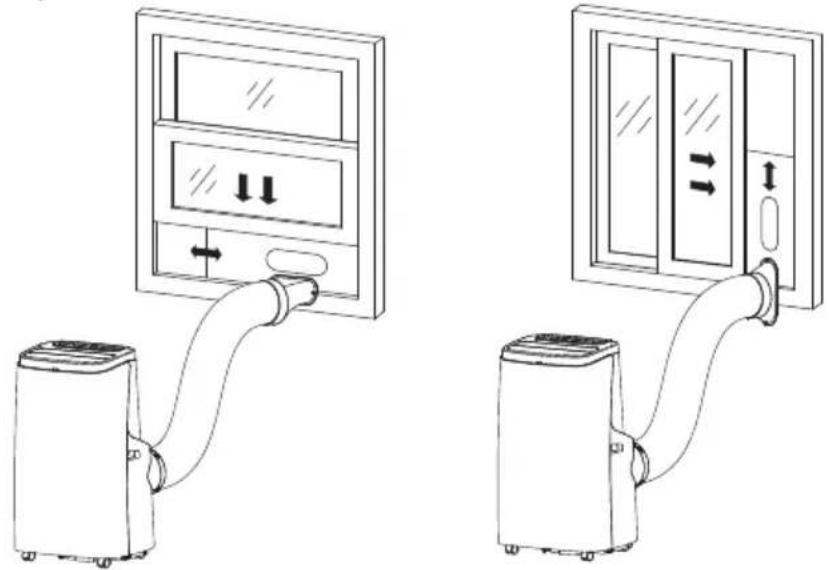

Position Unit Near Window

IMPORTANT! Before using the air conditioner, keep it upright for at least two hours.

The four casters on the air conditioner base allow it to be easily pushed in an upright position across a level floor. There are handles on each side of the unit to allow it to be lifted straight up if necessary.

CAUTION! To avoid injury, use proper lifting technique when lifting the unit by its handles. Do not bend over from waist with legs straight. Bend knees down to lift with back straight.

Diagram showing two connected air purifiers with directional arrows indicating flow or movement (no text or symbols)

INSTALLATION

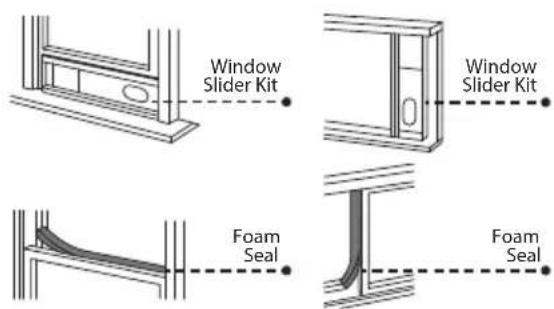

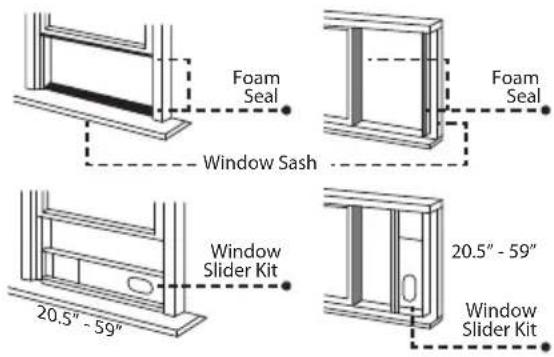

Mount the Window Slider Kit

1. Cut a length of foam seal (adhesive type) to the proper window opening width and attach it to the window sash.
2. Extend the air exhaust hose to necessary length. Place the window slider kit (with flared outlet attached) onto the window sash.
3. Cut a length of foam seal (adhesive type) to the proper width and attach it to the bottom (horizontally hung) or side (vertically hung) of the window.
4. Close the window securely onto the window slider kit.
5. Cut the foam seal (non-adhesive type) to an appropriate length and seal the open gap at the top of the window frame.

NOTE: You may use one of the supplied L brackets to secure the window closed (see figure to the right). Also, you may use the two supplied straight brackets to secure the top side of the slider kit to the window, and the other two L brackets to secure the bottom side of the slider kit to the window frame.

Diagram of a mechanical joint with a screw and dashed line indicating direction (no text or symbols)

NOTE: The length of the exhaust hose can be extended to 59 inches, but it is best to keep the length to a minimum. Make sure that the hose does not have any sharp bends. Do not use extension tubes or replace the supplied exhaust hose with a different hose, or a malfunction may result. There must be no obstructions within the hose, or the unit may overheat.

CONTROL SETTINGS

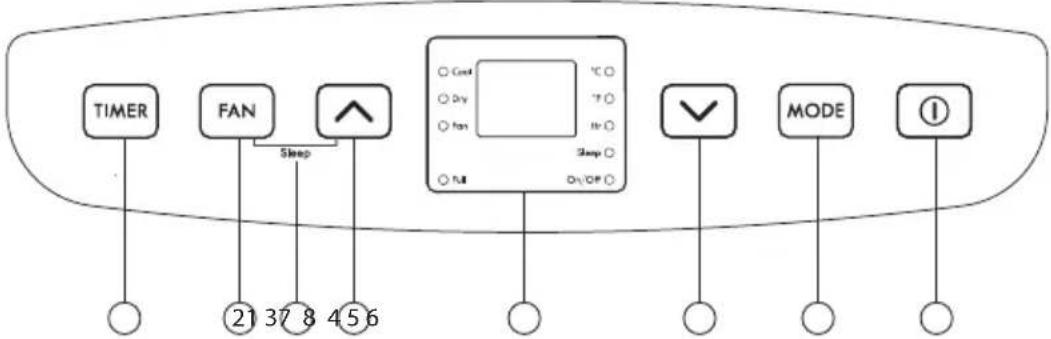

LED Control Panel

1. Timer Key

2. Fan Speed Selection Key

3. Up Key

4. Down Key

5. Mode Selection Key

6. Power Key

7. Sleep Mode

8. Display Screen

Plug the power cord of the unit into a 3-prong wall receptacle. You will hear a beep and the display screen will illuminate, showing digits for the surrounding air temperature. Press the Power Key. The air louvers on the front of the unit will open and the unit will begin operating in Cool mode. Press Up or Down key to adjust Cool temperature setting. Press Mode key to toggle from Cool to Dry (dehumidification) to Fan (fan-only) operation mode.

1 Timer Key – The Timer can be set from 1 to 24 hours in one-hour increments.

Shutoff Time – With power on, press the Timer key. Digits will start to flash in the display and the Hr indicator will light. While display is flashing, press the up and down keys to select the desired number of run time hours. After a few seconds the temperature digits will display and the Hr indicator will remain lit. The unit will run for the set time and then shut off.

Delayed Start Time – With the power off, press the Timer key. Digits will start to flash in the display and the Hr indicator will light. While the display is flashing, press the up and down keys to select the desired number of hours before startup. After a few seconds the temperature digits will display and the Hr indicator will remain lit. The unit will begin to run after the set number of hours has passed.

To cancel Timer settings press the Timer key twice in quick succession. The Hr indicator will turn off.

The Timer can be set from 1 to 24 hours and the amount of time is adjustable by one-hour increments.

2 Fan Speed Selection Key – In Cool and Fan mode, press the Fan key to select high (F2) or low (F1) fan speed. In Dehum mode, the fan defaults to the lowest speed (F1).

3, 4 Up and Down Keys – Press the up or down key to adjust the desired cooling temperature. While pressing Timer key, press up or down key to select the desired shutoff or delayed start time span. Simultaneously press both keys to switch between Celsius (°C) and Fahrenheit (°F).

5 Mode Selection Button – Press Mode key to switch between modes. With each press, the mode indicator will light up in sequence from Cool ---> Dehum ---> Fan

CONTROL SETTINGS

6 Power Key – Press the key to turn unit operation on or off. With key off the display shows surrounding air temperature.

7 Sleep Mode – In Cool mode, press the up key and fan key at same time to turn on Sleep mode. After one hour the temperature setting will increase by one degree, and by one more degree after another hour, to accord with how your body naturally cools while asleep. Fan speed is low for quiet operation. Press up and fan key at same time to turn Sleep mode off. The temperature will return to original setting.

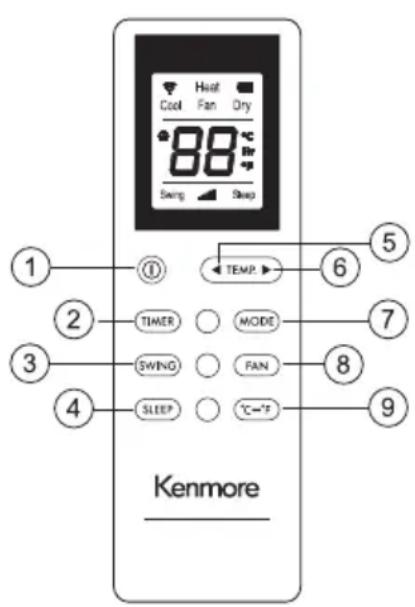

Remote Control

Point the remote control at the unit control panel when pressing remote control keys. You will hear the unit beep to confirm remote control key activation.

1 Power – Press Ⓘ key to turn unit operation on and off.
2 Timer – Press TIMER key to set the timer.
3 Auto-Swing Function – Press SWING key to start Oscillation mode.
4 Sleep – Press SLEEP key to turn on sleep mode.
5 Down – Press ◀ key to reduce temperature and adjust timer setting.
6 Up – Press ▶ key to increase the temperature and adjust timer setting.
7 Mode – Press MODE key to switch between cooling, dehumidifying and fan-only mode.
8 Fan – Press FAN key to select high or low wind speed.
9 Temperature unit converter - ^ F ^ C

Protective Functions

Frost Protection – In Cool and Dry modes, if the temperature of the compressor becomes too low, the unit will automatically enter protection status. Once coil rises to a sufficient temperature, the unit will automatically revert to normal operation.

Overflow Protection – When water in the water pan exceeds the maximum level, the unit will beep, stop running, and the display screen will show FL. The water in the pan must be drained empty before the unit will resume operation. See the Drainage Instructions in the next section of this Use & Care Guide.

Automatic Defrosting – The air conditioner has automatic defrosting. During defrosting, the compressor will stop working for about 3-5 minutes, during which time the fan continues to run.

Automatic Thermal Protection – The air conditioner has automatic thermal protection to protect against overheating. When thermal protection is activated, the compressor and motor will stop. Once cooled to a safe operation temperature, the unit can be restarted.

DRAINAGE INSTRUCTIONS

Manual drainage

1. When the unit stops after the water pan is full, press the power key to turn off power to the unit, and then unplug the power plug. Note: Move the unit carefully so as not to spill the water in the water pan at the base.
2. Place a water container below the bottom drainage port of the unit.
3. Unscrew the drain cap and remove the water plug. Water will automatically flow into the water container.

Notes

• During drainage, tilt the unit slightly backwards.
• If you see that your water container will not hold all the water, before it is full insert the water plug back into the drain port to prevent water from spilling onto the floor.
• When the all the water is drained from the unit, insert the water plug and retighten the drain cap.

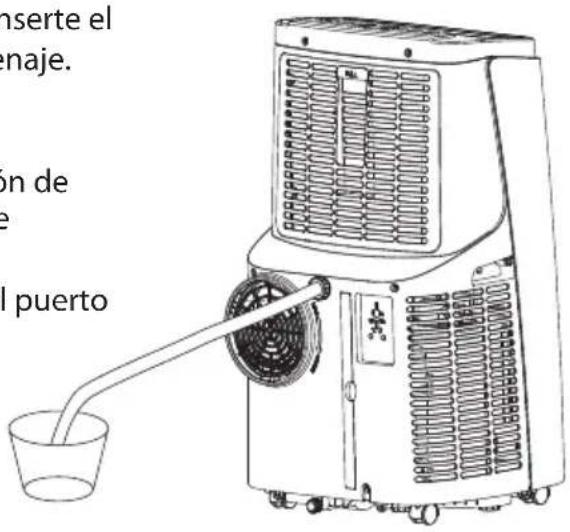

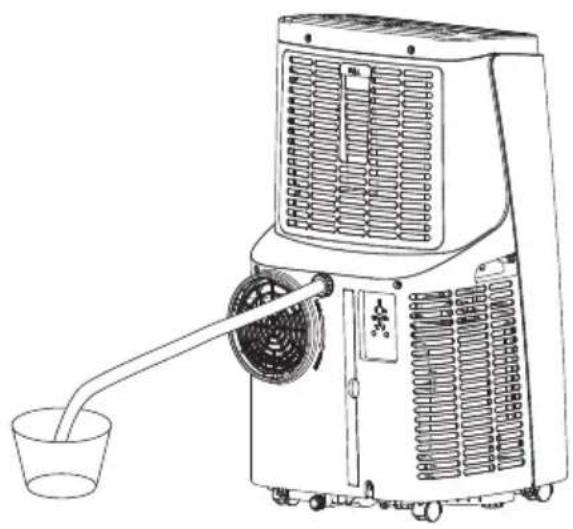

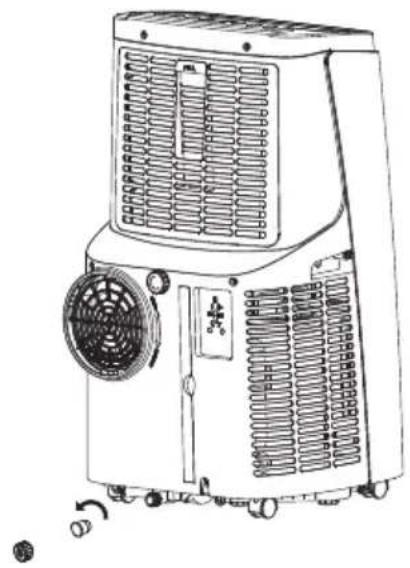

Continuous drainage

1. Unscrew the drain cap and remove the water plug from the drainage tube port in the middle back of the unit.
2. Push one end of the drainage tube into the drainage port.
3. Set the other end of the drainage tube into a water container or floor drain. Allow water pan to drain.

Note: If your water container becomes full, a water backup may occur that will fill the unit water pan and result in unit shutdown. Remove the adapter end and place into another empty container or floor drain. Allow water pan to drain.

1. When the all the water is drained from the unit, insert the water plug and retighten the drain cap.

Line drawing of an industrial air conditioner unit with fan and cooling fans (no text or symbols)

Line drawing of a portable air conditioner unit with a cup and water inlet (no text or symbols)

MAINTENANCE

Cleaning

Before cleaning and maintenance, press the power key is pressed to off and unplug the power cord from the electrical outlet.

Clean the exterior surface

Clean with surface of machine with a wet soft cloth. Don't use chemicals such as alcohol, gasoline, etc.; otherwise, the surface of the air conditioning will be damaged or even the whole machine will be damaged.

Clean the filter screens

If the filter screens become clogged with dust the effectiveness of the air conditioner is reduced. Be sure to clean the filter screens once every two weeks.

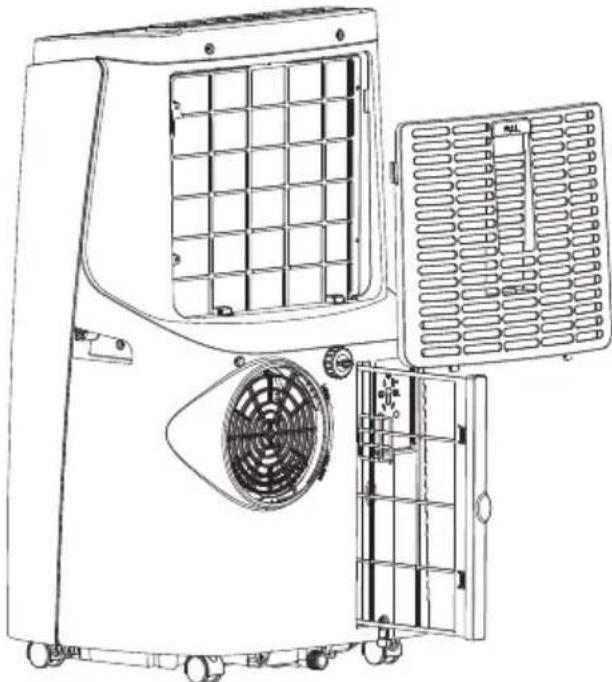

To clean upper filter screen

1. Remove Remote Control from storage slot in upper filter grille.
2. Insert fingertips beneath PULL tab at top of screen grille and pull outward to remove.
3. Remove upper filter screen. Place the screen into warm water (about 104^ F/ 40^ C) with mild detergent and allow it to air dry after rinsing clean.
4. Once screen is completely dry, insert back into place in unit.
5. To reinstall grille, insert tabs at bottom of grille into slots in unit frame. Push grille forward to snap into place.

Line drawing of an air conditioning unit with fan and vent, showing internal grid structure (no text or symbols)

To clean the lower filter screen

1. Grasp the tab in the middle of the lower filter screen and pull outward gently to remove it.
2. Place the filter screen into warm water (about 104^ F/ 40^ C) with mild detergent and allow it to air dry after rinsing clean.
3. Once screen is completely dry, insert back into place in unit.

To purchase new filter screens call 1-844-553-6667

MAINTENANCE

Postseason Storage

1. If unit is hooked up for continuous drainage, unscrew the middle drain cap, unplug the water plug, and discharge the water into other water containers or floor drain. If unit is not connected for continuous drainage, empty the pan according to the manual drainage instructions.
2. Turn on the air conditioner, adjust it to low-low fan speed, and run unit until for a period of time so as to dry out moisture from inside the unit to prevent formation of mildew during storage.
3. Turn off the air conditioner, unplug the power plug from wall receptacle and insert the power plug prongs into the plug storage plate on the back of the unit. Reinstall the water plug and the drainage cap.
4. Remove the air exhaust hose and store in a secure place.
5. Cover the air conditioner with a plastic bag. Store the unit in a dry place, keep it out of the reach of children, and take dust control measures.

TROUBLESHOOTING

If problems not listed in the table occur or recommended solutions do not work, contact a qualified service dealer for repair. Do not disassemble the air conditioner. Unqualified repair will void the warranty, and may cause injury to users or damage to property.

Problems Reasons Solutions
The air conditioner does not work.	There is no electricity.	Turn unit on after connecting it to a socket with electricity.
	The overflow indicator displays FL.	Discharge the water inside.
	The ambient temperature is too low or too high	Run the unit within the ambient temperature range of 44-95 °F (7-35°C).
	In cooling mode, the room temperature is lower than the set temperature	Change the set temperature.
	In dehumidification mode, the ambient temperature is low.	Place the unit in a room with an ambient temperature of greater than 62 °F (17 °C).
The cooling effect is not good	There is direct sunlight.	Pull the room curtain closed.
	Doors or windows are open; there are a lot of people in the room; or in cooling mode, there are other sources of heat.	Close doors and windows, and add new air conditioner.
	The filter screen is dirty.	Clean or replace the filter screen.
	The air inlet or outlet is blocked.	Clear obstructions.
Loud Noise	The air conditioner is not placed on a flat surface.	Put the air conditioner on a flat and hard place (to reduce noise).
Compressor does not work.	Overheat protection is active.	Wait for 3 minutes until unit cools, then restart.
The remote control does not work.	The distance between the unit and the remote control is too far.	Move the remote control closer to the air conditioner, and make sure that the remote control directly faces in the direction of the remote control receiver on the unit.
	The remote control is not aligned with the direction of the remote control receiver.
	Batteries are dead.	Replace batteries.
Display reads E1	The coil temperature sensor is malfunctioning.	Call for service.
Display reads E2	The room temperature sensor is malfunctioning.	Call for service.

WARRANTY

KENMORE LIMITED WARRANTY

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed, operated and maintained according to all supplied instructions.

WITH PROOF OF SALE a defective appliance will receive free repair or replacement at option of seller.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

This warranty applies for only 90 DAYS from the date of sale if this appliance is ever used for other than private household purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties: limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

TABLA DE CONTENIDO

Line drawing of a portable air conditioner unit with ventilation grilles and control panel (no text or symbols)

Diagram showing two identical electrical devices connected by tubing, with no visible text or symbols.

INSTALACION

Diagram of a mechanical joint with a screw and dashed line indicating alignment (no text or symbols)

Line drawing of an industrial air conditioner unit with fan and cooling fans (no text or symbols)

Line drawing of an air conditioning unit with fan and vent, showing internal grid structure (no text or symbols)

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Kenmore®

Customer Care Hotline

To schedule in-home repair service or order replacement parts
