Product Type	DDR4 Desktop Memory
Model	Trident Z RGB
Brand	G.Skill
RGB Lighting	Yes, customizable per module
Lighting Zones	5 per module
Software	Trident Z Lighting Control
Profiles	4 independent profiles
Lighting Effects	Static, Breathing, Strobing, Cycle, Rainbow, Breathing Rainbow, Comet, Comet Rainbow, Flash, Flash Rainbow, Wave
Music Sync	Yes, with adjustable amplitude
LED Off Mode	Yes, via software toggle
Color Customization	RGB sliders, HEX input, color palette
Speed Adjustment	Available for certain effects
Direction Adjustment	Default or Reverse
Module Detection	Automatic, lists installed modules
UI Language	Multiple languages selectable
Reset to Default	Per module or global
Compatibility	Trident Z RGB, Trident Z Royal, Trident Z Neo
Dimensions	Approx. 133.35 mm x 44 mm x 8 mm (per module)
Weight	Approx. 50 g per module
Warranty	Lifetime warranty (by G.Skill)

Frequently Asked Questions - Trident Z RGB G.Skill

How do I change the lighting effect on my G.Skill Trident Z RGB RAM?

Open the Trident Z Lighting Control software. Select a profile, then choose an effect from the list (e.g., Static, Breathing, Rainbow). Click "Apply" to save and activate.

Can I control each RAM module independently?

Yes. Click the memory module icon to switch from SYNC (all modules same) to DRAM# for individual control. Configure each module separately and click "Apply".

How do I set different colors per LED zone on a single module?

Select the module, then click on LED # to choose a zone. Adjust color via RGB sliders, HEX input, or color palette. Enable "Sync to LED 1" to copy color to all zones.

What is Music Mode and how do I enable it?

Music Mode syncs the RAM lighting to audio output. Click the Music button, then "Apply". A red circle indicates it's active. Adjust Amplitude to change sensitivity. No audio results in dark modules.

How do I turn off the LEDs completely?

Click the LED OFF button, then "Apply". A red circle will show the LEDs are disabled. To re-enable, choose any effect and apply.

Can I save my lighting settings?

Yes. The software saves up to 4 profiles. After configuring settings, click "Apply" to save to the current profile. Switch profiles to load different setups.

Why are my RAM sticks showing default rainbow after boot?

Lighting effects are not stored on the modules. After cold boot, they default to rainbow wave. Once the OS loads, the software runs in the background and restores your last applied settings.

How do I reset all lighting settings to default?

Click the Reset button in the bottom right. Note: reset is per module or SYNC mode; it only affects the currently selected module/group.

My software only shows 'DRAM' and no modules. What's wrong?

This means the software does not detect any configurable RGB modules. Ensure your RAM is properly installed and that it is a supported model (Trident Z RGB, Trident Z Royal, or Trident Z Neo).

How do I change the software language?

Click the language button on the top right (e.g., 'English'). A dropdown appears; select your preferred language. The UI will update automatically.

USER MANUAL Trident Z RGB G.Skill

Trident Z Lighting Control Software Guide

for Trident Z RGB, Trident Z Royal, and Trident Z Neo

Introduction

About This Guide

This guide will help you understand and navigate the Trident Z Lighting Control software, which is designed to control the lighting effects for the Trident Z RGB, Trident Z Royal, and Trident Z Neo series memory kits.

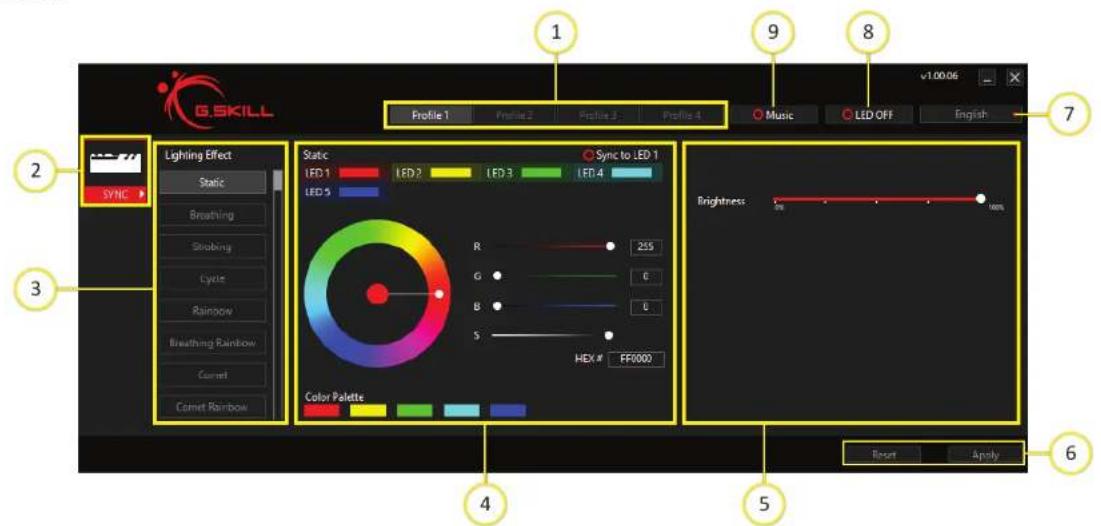

Software Interface

1. Profile selection
2. Sync all module lighting, or control each module independently
3. List of lighting effects
4. Color settings
5. Additional settings
6. Reset/Apply buttons
7. UI language
8. LED off button
9. Music mode button

Profiles

About Profiles

The Trident Z Lighting Control software allows you to save up to 4 independent profiles, each with its own set of lighting customizations.

How to Use Profiles

Once you have set up lighting for the current profile, clicking "Apply" will save the current settings to the current profile and apply the lighting effect to the memory modules.

If settings for the current profile has been changed, then switching to another profile without clicking "Apply" will prompt a pop-up window to ask if you want to save the current settings to the current profile. Click "OK" to save the settings, or click "Cancel" to discard the changes.

Lighting effects are not saved in the memory module. Upon a cold boot (booting the system after a shutdown), the memory modules will display the default rainbow wave effect. After entering the operating system, the software will run in the background and load the previously set lighting effect.

Example

1. Click on "Breathing" to set the lighting effect to "Profile 1".
2. Click on "Apply" to apply the lighting effect and save the settings under "Profile 1".
3. Click on "Profile 2" to switch to "Profile 2". By default, an empty profile will be set to "Static". If "Apply" is not clicked before switching to "Profile 2", a pop-up window will ask if you want to save the changes to "Profile 1".

Sync All or Individual Modules

Sync All / Individual Module Lighting

The lighting of the memory modules can be controlled together ("SYNC") or as independent modules. By default, the modules are set to "SYNC".

To select individual modules, click on the memory module icon on the left side. A list of available modules will be displayed in a list. Choose "SYNC" to sync all modules to the same lighting effect, or choose "DRAM#" to choose one of the individual modules.

After choosing the lighting effect and customizing the settings for a single module, press "Apply" to save the setting to the current module.

If "Apply" is not clicked before switching to another DRAM module, the setting changes will be lost.

The software will automatically list the total quantity of RGB memory modules that are installed in the system. If only "DRAM" is displayed and no list appears after clicking the icon, that means the software does not detect any configurable memory modules.

Example

1. Click on the memory module icon.
2. Click "DRAM1" to choose the first memory module.
3. Choose a lighting effect from the list and configure the settings.
4. Click "Apply" to save the settings to the module.
5. Click on the memory module icon to choose another module. Repeat until all modules are configured.

Lighting Effects

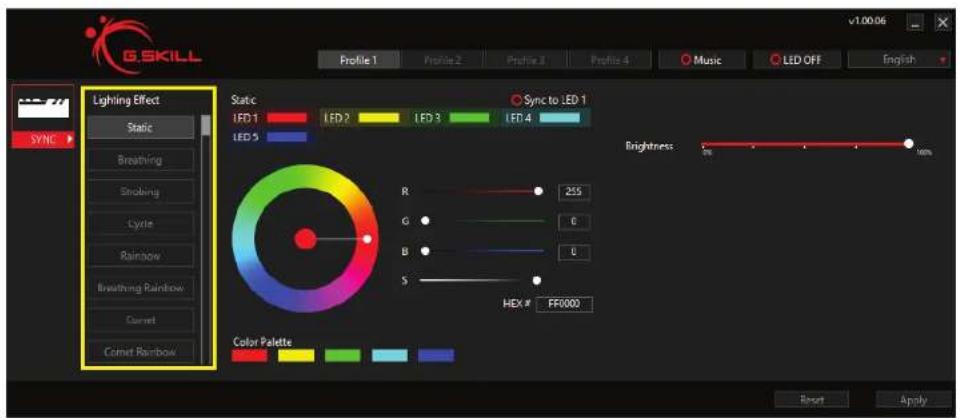

About Lighting Effects

The software has multiple lighting effects available for configuration. Click on the preferred lighting effect and the available settings will appear on the right for configuration.

To scroll down the list of lighting effects, use the mouse scroll wheel or drag the scroll bar on the right side of the list. Then click on the lighting effect and click "Apply" to apply the lighting effect.

Each lighting effect has its own set of available settings, so some lighting effects may have the option to customize "Speed" while other lighting effects do not. For example, "Static" will not have the option to change "Speed" or "Direction".

Reset to Default Values

To reset the settings of all lighting effects to default values, click on the "Reset" button on the bottom right.

The lighting effect settings for "SYNC" and each "DRAM#" module are stored independently, so clicking "Reset" in "DRAM1" will only reset the setting in "DRAM1" and will not affect any lighting effect settings in "SYNC" or other "DRAM#" modules.

Configuring Colors

Choosing the LED Zone

Click on "LED #" to choose the LED zone. To quickly change all LED zones to a single color, click the circle next to "Sync to LED 1" and all LED zones will be set to the color in "LED 1".

Changing the Color

After selecting an LED zone, there are multiple ways to change the color of the LED zone:

1. Click and drag the dot in the color wheel.
2. Click and drag the dot across the R / G / B color bars.
3. Type in the R / G / B decimal value. (0-255)
4. Type in the HEX color code in the "HEX #" box. (0-9, A-F)
5. Click on a predefined color from the "Color Palette".

Saturation and Brightness

"S" (Saturation) and "Brightness" will automatically adjust as RGB values are changed. Saturation and brightness can also be manually adjusted by dragging the dot across the respective bar.

Common Colors in HEX and RGB Values

Color #HEX (R, G, B)
Red #FF0000 (255, 0, 0) Blue #0000FF (0, 0, 255)
Orange #FFF8000 (255, 128, 0) Purple #8000FF (128, 0, 255)
Yellow #FFFF00 (255, 255, 0) Magenta #FF00FF (255, 0, 255)
Green #00FF00 (0, 255, 0) Black #000000 (0, 0, 0)
Cyan #00FFFF (0, 255, 255) White #FFFFF (255, 255, 255)

Additional Settings

Additional Lighting Effect Settings

Some lighting effects have additional settings that can be changed, such as speed and direction.

Speed

Some lighting effects allow the speed to be customized. Drag the white dot on the bar left or right to adjust the speed faster or slower.

Direction

Some lighting effects allow the direction to be customized. Click on the circle to select "Default" direction or the "Reverse" direction.

Music Mode

Enabling Music Mode

Click on the "Music" button and then click on the "Apply" button will activate music mode. A filled red circle will indicate that the music mode is activated.

Under music mode, all profiles are disabled.

You can customize the color of each lighting zone on the memory modules (8 zones for Trident Z Royal/Trident Z Neo and 5 zones for Trident Z RGB). All modules are synced to the same color setting.

Remember, music mode will require audio output to display the lighting effect. If there is no audio playing, then the memory modules will remain dark.

Amplitude

Adjust this setting to the left or right to change the sensitivity of the audio levels.

LED Off & UI Language

Turning LED Lighting Off

Click on the "LED OFF" button and then click on the "Apply" button to disable all the lighting on the memory modules. A filled red circle will indicate that the "LED OFF" function is activated.

Switching the UI Display Language

Clicking on the UI language button on the top right will display a dropdown menu of available UI language options. Click to select the desired language and the UI will automatically switch to the selected language.

Copyright © 2019 G.SKILL International Enterprise Co., Ltd. All rights reserved.
