Product Type	Desktop Memory Module (DDR5)
Brand	G.Skill
Model	Trident Z5 RGB
Memory Type	DDR5
Capacity	32 GB (2 x 16 GB)
Speed	6000 MHz
CAS Latency	CL30 (30-36-36-76)
Voltage	1.35 V
Form Factor	DIMM (288-pin)
RGB Lighting	Yes, customizable via software
Heatsink	Aluminum heatsink with fins
Dimensions (per module)	133.35 x 7.62 x 44.8 mm
Weight (per module)	Approx. 50 g
Power Consumption	Low (typical DDR5)
Operating Temperature	0°C to 85°C
Storage Temperature	-20°C to 85°C
Compatibility	Intel XMP 3.0, AMD EXPO
Warranty	Lifetime limited warranty
Maintenance	Clean with dry cloth; avoid liquids
Safety	Handle with care; avoid static discharge
Spare Parts & Repairability	Not repairable; replace module if faulty
General Information	High-performance memory for gaming and overclocking

Frequently Asked Questions - Trident Z5 RGB G.Skill

How do I install the Trident Z5 RGB memory modules?

Ensure your motherboard supports DDR5. Open the DIMM slot clips, align the module notch with the slot, and press down firmly until clips click. Refer to the motherboard manual for proper slot configuration.

Is the RGB lighting customizable?

Yes, the RGB lighting can be customized using software like G.Skill Trident Z Lighting Control or motherboard RGB software (e.g., ASUS Aura Sync, MSI Mystic Light).

What is the recommended voltage for overclocking?

For DDR5, the default voltage is 1.35 V. Overclocking may require increased voltage up to 1.5 V, but ensure proper cooling and stability testing.

How can I check the memory speed and timings?

Use software like CPU-Z or HWINFO to view memory speed, timings, and voltage. Enable XMP or EXPO in BIOS for rated speeds.

Is the memory compatible with Intel and AMD systems?

Yes, Trident Z5 RGB supports Intel XMP 3.0 and AMD EXPO for easy overclocking. Check your motherboard's QVL list for verified compatibility.

What should I do if the memory is not detected?

Reseat the modules firmly. Clear CMOS by removing the motherboard battery for 30 seconds. Update your motherboard BIOS to the latest version.

Can I mix different kits of Trident Z5 RGB?

Not recommended. Mixing kits can cause instability. For best performance, use identical modules from the same matched kit.

How do I clean the memory modules?

Use a soft, dry cloth to gently wipe the heatsink and PCB. Avoid liquids and compressed air from close range to prevent moisture damage.

What warranty does G.Skill offer?

G.Skill provides a lifetime limited warranty against defects. Register your product on the G.Skill website for support. Warranty does not cover damage from overvolting.

Is the Trident Z5 RGB compatible with DDR4 motherboards?

No, DDR5 memory is not backward compatible with DDR4 slots. It requires a motherboard with DDR5 DIMM slots and a compatible CPU.

USER MANUAL Trident Z5 RGB G.Skill

Trident Z Lighting Control Software Guide

for Trident Z RGB, Trident Z Royal, and Trident Z Neo

Introduction

About This Guide

This guide will help you understand and navigate the Trident Z Lighting Control software, which is designed to control the lighting effects for the Trident Z RGB, Trident Z Royal, and Trident Z Neo series memory kits.

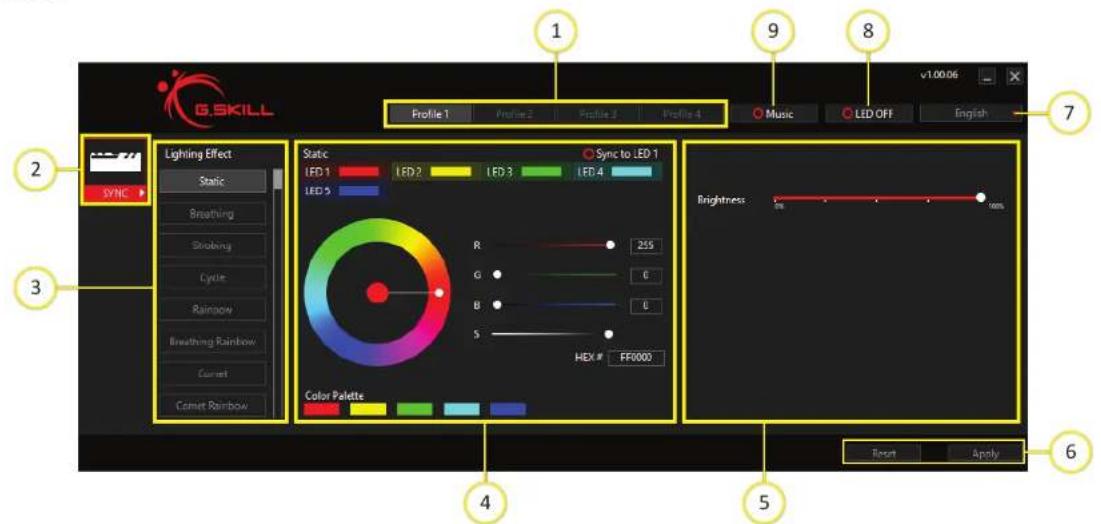

Software Interface

1. Profile selection
2. Sync all module lighting, or control each module independently
3. List of lighting effects
4. Color settings
5. Additional settings
6. Reset/Apply buttons
7. UI language
8. LED off button
9. Music mode button

Profiles

About Profiles

The Trident Z Lighting Control software allows you to save up to 4 independent profiles, each with its own set of lighting customizations.

How to Use Profiles

Once you have set up lighting for the current profile, clicking "Apply" will save the current settings to the current profile and apply the lighting effect to the memory modules.

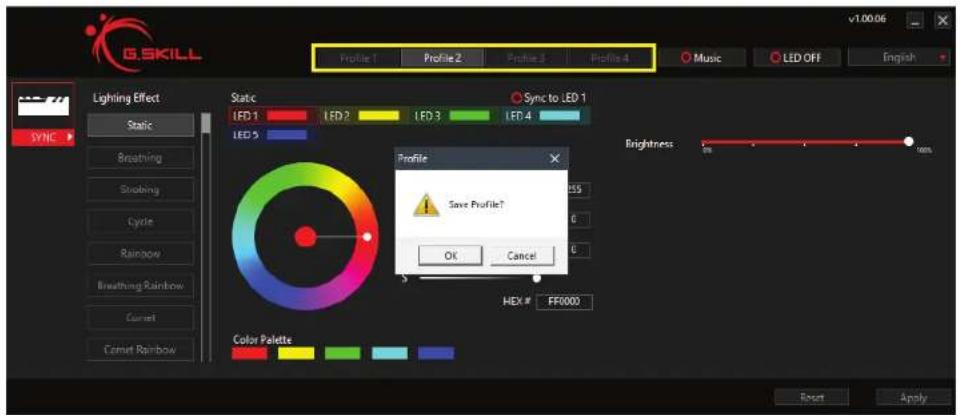

If settings for the current profile has been changed, then switching to another profile without clicking "Apply" will prompt a pop-up window to ask if you want to save the current settings to the current profile. Click "OK" to save the settings, or click "Cancel" to discard the changes.

Lighting effects are not saved in the memory module. Upon a cold boot (booting the system after a shutdown), the memory modules will display the default rainbow wave effect. After entering the operating system, the software will run in the background and load the previously set lighting effect.

Example

1. Click on "Breathing" to set the lighting effect to "Profile 1".
2. Click on "Apply" to apply the lighting effect and save the settings under "Profile 1".
3. Click on "Profile 2" to switch to "Profile 2". By default, an empty profile will be set to "Static". If "Apply" is not clicked before switching to "Profile 2", a pop-up window will ask if you want to save the changes to "Profile 1".

Sync All or Individual Modules

Sync All / Individual Module Lighting

The lighting of the memory modules can be controlled together ("SYNC") or as independent modules. By default, the modules are set to "SYNC".

To select individual modules, click on the memory module icon on the left side. A list of available modules will be displayed in a list. Choose "SYNC" to sync all modules to the same lighting effect, or choose "DRAM#" to choose one of the individual modules.

After choosing the lighting effect and customizing the settings for a single module, press "Apply" to save the setting to the current module.

If "Apply" is not clicked before switching to another DRAM module, the setting changes will be lost.

The software will automatically list the total quantity of RGB memory modules that are installed in the system. If only "DRAM" is displayed and no list appears after clicking the icon, that means the software does not detect any configurable memory modules.

Example

1. Click on the memory module icon.
2. Click "DRAM1" to choose the first memory module.
3. Choose a lighting effect from the list and configure the settings.
4. Click "Apply" to save the settings to the module.
5. Click on the memory module icon to choose another module. Repeat until all modules are configured.

Lighting Effects

About Lighting Effects

The software has multiple lighting effects available for configuration. Click on the preferred lighting effect and the available settings will appear on the right for configuration.

To scroll down the list of lighting effects, use the mouse scroll wheel or drag the scroll bar on the right side of the list. Then click on the lighting effect and click "Apply" to apply the lighting effect.

Each lighting effect has its own set of available settings, so some lighting effects may have the option to customize "Speed" while other lighting effects do not. For example, "Static" will not have the option to change "Speed" or "Direction".

Reset to Default Values

To reset the settings of all lighting effects to default values, click on the "Reset" button on the bottom right.

The lighting effect settings for "SYNC" and each "DRAM#" module are stored independently, so clicking "Reset" in "DRAM1" will only reset the setting in "DRAM1" and will not affect any lighting effect settings in "SYNC" or other "DRAM#" modules.

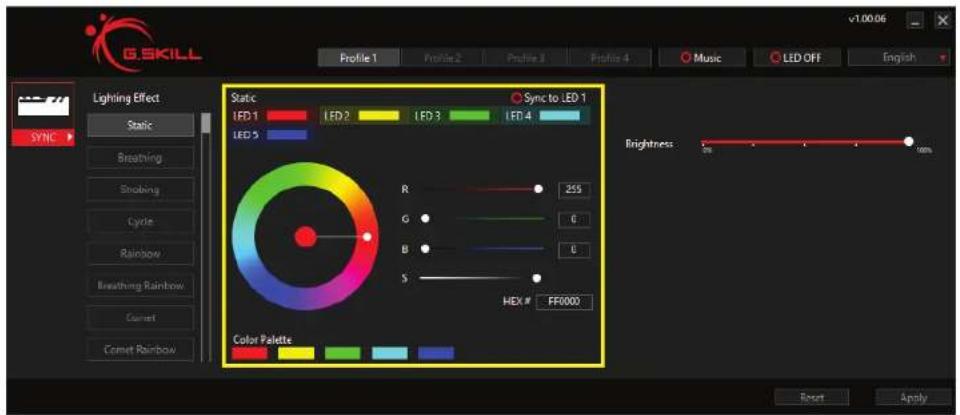

Configuring Colors

Choosing the LED Zone

Click on "LED #" to choose the LED zone. To quickly change all LED zones to a single color, click the circle next to "Sync to LED 1" and all LED zones will be set to the color in "LED 1".

Changing the Color

After selecting an LED zone, there are multiple ways to change the color of the LED zone:

1. Click and drag the dot in the color wheel.
2. Click and drag the dot across the R / G / B color bars.
3. Type in the R / G / B decimal value. (0-255)
4. Type in the HEX color code in the "HEX #" box. (0-9, A-F)
5. Click on a predefined color from the "Color Palette".

Saturation and Brightness

"S" (Saturation) and "Brightness" will automatically adjust as RGB values are changed. Saturation and brightness can also be manually adjusted by dragging the dot across the respective bar.

Common Colors in HEX and RGB Values

Color #HEX (R, G, B)
Red #FF0000 (255, 0, 0) Blue #0000FF (0, 0, 255)
Orange #FFF000 (255, 128, 0) Purple #8000FF (128, 0, 255)
Yellow #FFFF00 (255, 255, 0) Magenta #FF00FF (255, 0, 255)
Green #00FF00 (0, 255, 0) Black #000000 (0, 0, 0)
Cyan #00FFFF (0, 255, 255) White #FFFFF (255, 255, 255)

Additional Settings

Additional Lighting Effect Settings

Some lighting effects have additional settings that can be changed, such as speed and direction.

Speed

Some lighting effects allow the speed to be customized. Drag the white dot on the bar left or right to adjust the speed faster or slower.

Direction

Some lighting effects allow the direction to be customized. Click on the circle to select "Default" direction or the "Reverse" direction.

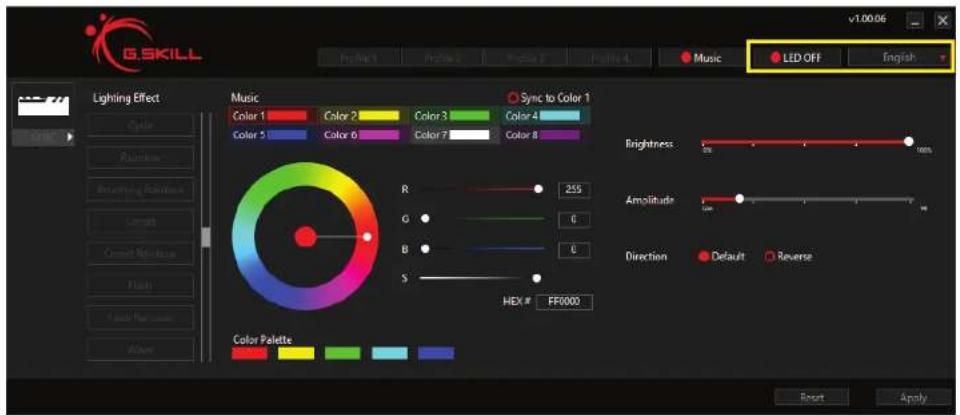

Music Mode

Enabling Music Mode

Click on the "Music" button and then click on the "Apply" button will activate music mode. A filled red circle will indicate that the music mode is activated.

Under music mode, all profiles are disabled.

You can customize the color of each lighting zone on the memory modules (8 zones for Trident Z Royal/Trident Z Neo and 5 zones for Trident Z RGB). All modules are synced to the same color setting.

Remember, music mode will require audio output to display the lighting effect. If there is no audio playing, then the memory modules will remain dark.

Amplitude

Adjust this setting to the left or right to change the sensitivity of the audio levels.

LED Off & UI Language

Turning LED Lighting Off

Click on the "LED OFF" button and then click on the "Apply" button to disable all the lighting on the memory modules. A filled red circle will indicate that the "LED OFF" function is activated.

Switching the UI Display Language

Clicking on the UI language button on the top right will display a dropdown menu of available UI language options. Click to select the desired language and the UI will automatically switch to the selected language.

Copyright © 2019 G.SKILL International Enterprise Co., Ltd. All rights reserved.
