MGU-01 - TV antenna UNIDEN - Free user manual and instructions

Product Type	Antenna Mounting Bracket
Model	MGU-01
Brand	Uniden
Material	Polished Stainless Steel
Thickness	2.0 mm
Design Type	"Z" Type Mount
Cable Slot	Yes
Compatibility	Fits any Uniden antenna
Mounting Location	Vehicle body (e.g., bull bar, mirror, etc.)
Installation Tools Required	Wrench, screwdriver (typical)
Maintenance	Clean with damp cloth; avoid harsh chemicals
Safety Note	Ensure bracket is securely tightened to prevent antenna movement
Spare Parts Availability	Contact Uniden dealer for replacement hardware
Warranty	Standard Uniden warranty (check product packaging)
Country of Origin	Designed for Australian & New Zealand conditions

Frequently Asked Questions - MGU-01 UNIDEN

What is the Uniden MGU-01 mount used for?

The MGU-01 is a Z-Type antenna mounting bracket designed to securely attach UHF CB antennas to vehicles, such as sedans, 4WDs, and trucks.

Which antennas are compatible with the MGU-01?

The MGU-01 mount is compatible with all Uniden antennas, including models like AT820, AT380, AT480, and others.

What material is the MGU-01 made of?

It is made from polished stainless steel with a thickness of 2.0 mm, ensuring durability and corrosion resistance.

Does the MGU-01 include mounting hardware?

The MGU-01 typically includes bolts, nuts, and washers for installation. Confirm with your dealer.

How do I install the MGU-01 bracket?

Installation involves positioning the bracket on a suitable flat surface (e.g., bull bar or body panel), routing the antenna cable through the cable slot, and tightening the included hardware securely.

Can the MGU-01 be used on any vehicle?

Yes, it is designed for various vehicles including sedans, 4WDs, trucks, and agricultural equipment. Ensure the mounting surface is clean and solid.

How do I maintain the MGU-01 mount?

Regularly clean with a damp cloth to remove dirt and salt. Avoid abrasive cleaners to preserve the stainless steel finish.

What is the thickness of the MGU-01 bracket?

The bracket has a thickness of 2.0 mm, providing a sturdy mount for antennas.

Where can I purchase spare parts for the MGU-01?

Spare parts, such as bolts or the bracket itself, can be obtained through Uniden dealers or by calling 1300 366 895 in Australia.

Is the MGU-01 suitable for off-road use?

Yes, it is built rugged for Australian & New Zealand conditions and withstands harsh off-road environments.

USER MANUAL MGU-01 UNIDEN

Uniden offers a wide range of accessories suited for your vehicle that are compatible with all Uniden products and other branded UHF radios.

AS SEEN ON LEADING 4WD & ADVENTURE TV SHOWS

Man wearing a straw hat and purple jacket standing outdoors near a parked car (no visible text or symbols)

PAT CALLINAN

4 X 4 Adventures TV Show

Pat Callinan is one of the most respected identities in the industry, with 4WD knowledge and outdoor adventure experience second to none. He is broadcasted nationally on TV and has a magazine that covers everything to do with 4WD and Outdoor Adventure. Pat's fleet of vehicles are continually put through their paces in the most rugged terrain that Australia has to offer. There is barely a track that Pat and his team have not driven and explored in Australia. Uniden UHF Radios and Accessories are fitted on all Pat's 4X4 vehicles and are used by his team to keep in touch – no matter how remote they go.

Man in cowboy hat smiling while holding a walkie-talkie, outdoors with rocky background (no visible text or symbols)

RICK OBRIEN

Offroad Adventure TV Show

Rick OBrien is one of Australia's favourite offroad adventurers, featuring in the Offroad Adventure TV show. Rick and the team at Offroad Adventure TV Show use Uniden UHF Handheld and Mobile Radios and Accessories to keep constantly in touch. They are fitted to all the team's vehicles, ensuring they never miss a thing, whether it be on the road, water, or in the middle of the desert. No matter how remote the location, the team can always stay connected.

Two men in blue vests and caps posing outdoors with military vehicles in the background (no visible text or symbols)

JASE ANDREWS

All 4 Adventure TV Show

Jase Andrews is the host of Australia's leading four-wheel-drive and adventure show, All 4 Adventure. Driven by an unquenchable love for the undiscovered regions of Australia this modern day explorer is persistent and fearless when heading out into the wild. When it comes to making All 4 Adventure he pushes himself, his crew and his gear to the limit in order to achieve the best 4X4, fishing and adventure show on Australian television. Uniden UHF Radios and Accessories are fitted on all of the Vehicles from 2017 onwards ensuring they remain connected.

Close-up of a black Uniden brand electronic device with ventilation grille and power button (no readable text or symbols beyond branding)

Metal bracket component with mounting holes and a curved cutout (no text or symbols visible)

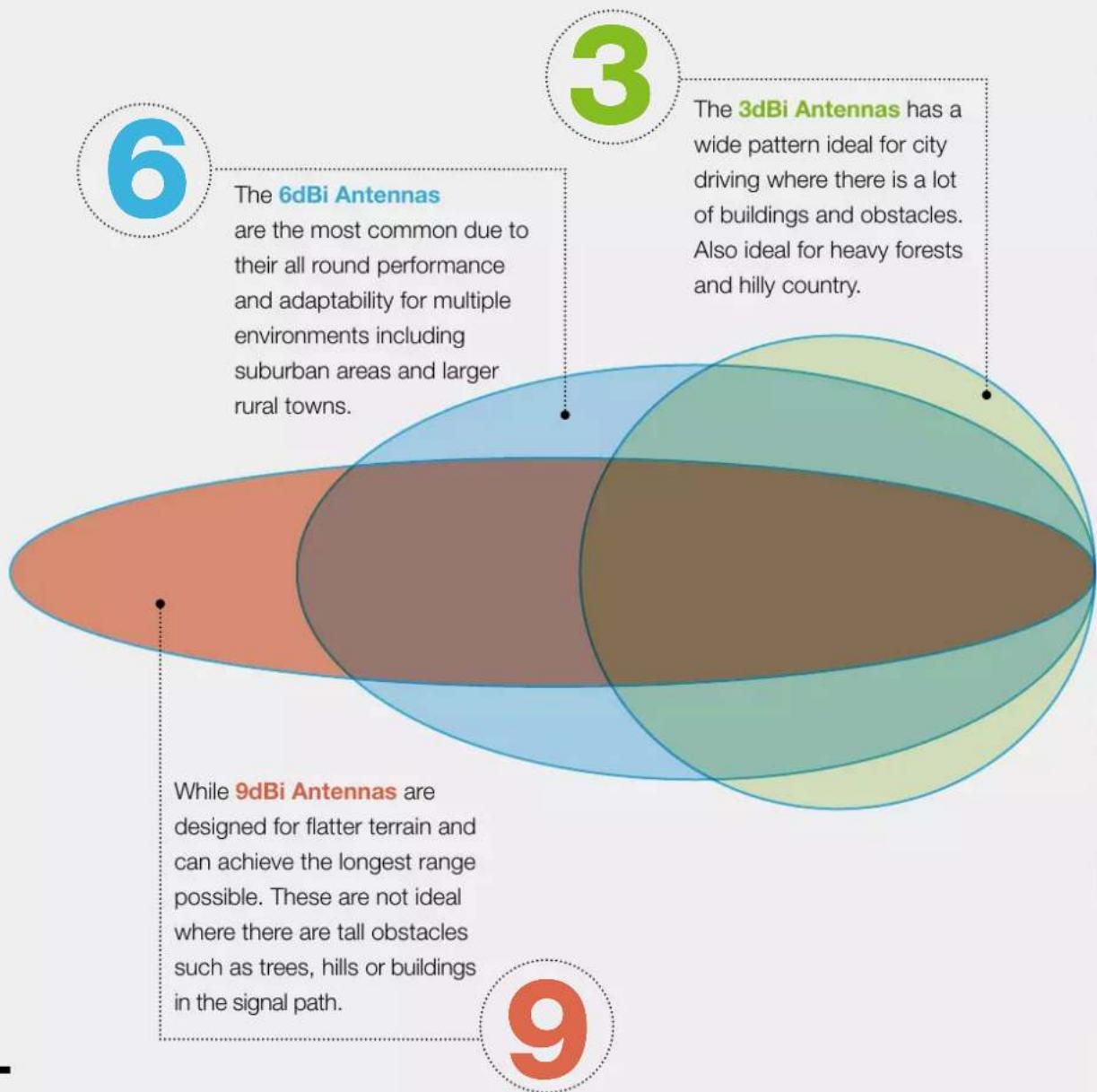

What Antenna is Right For You?

Where you mount your antenna and the terrain where you are traveling in your vehicle are the two main factors when selecting the correct Uniden Antenna for your vehicle.

Uniden®

UHF 2-Way CB Mobile Radio Accessories

Uniden® BUILT RUGGED

FOR AUSTRALIAN & NZ CONDITIONS

White off-road vehicle with 'Uniden' branding driving through mud, surrounded by sandy terrain and other vehicles (no visible text or symbols on the vehicle itself)

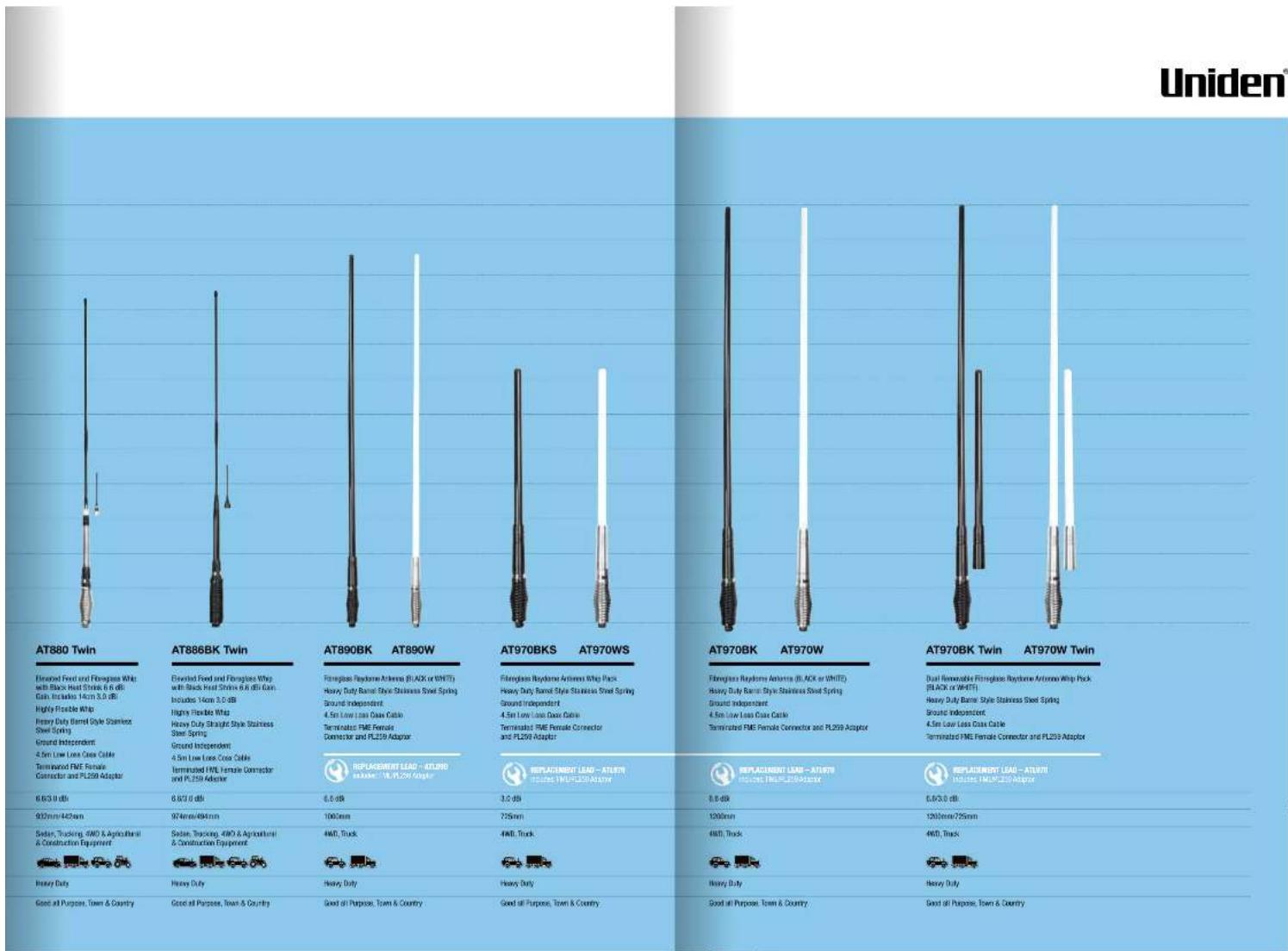

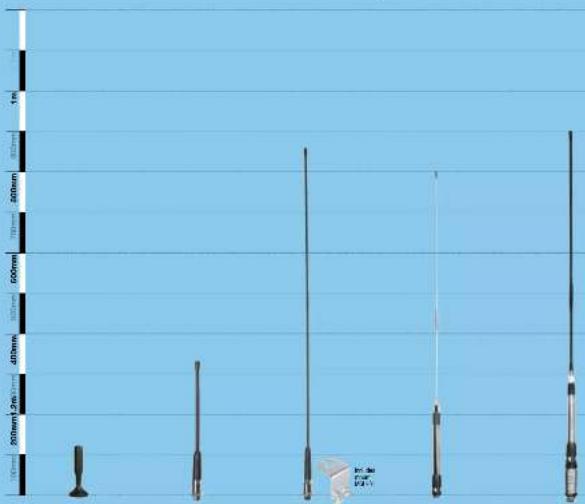

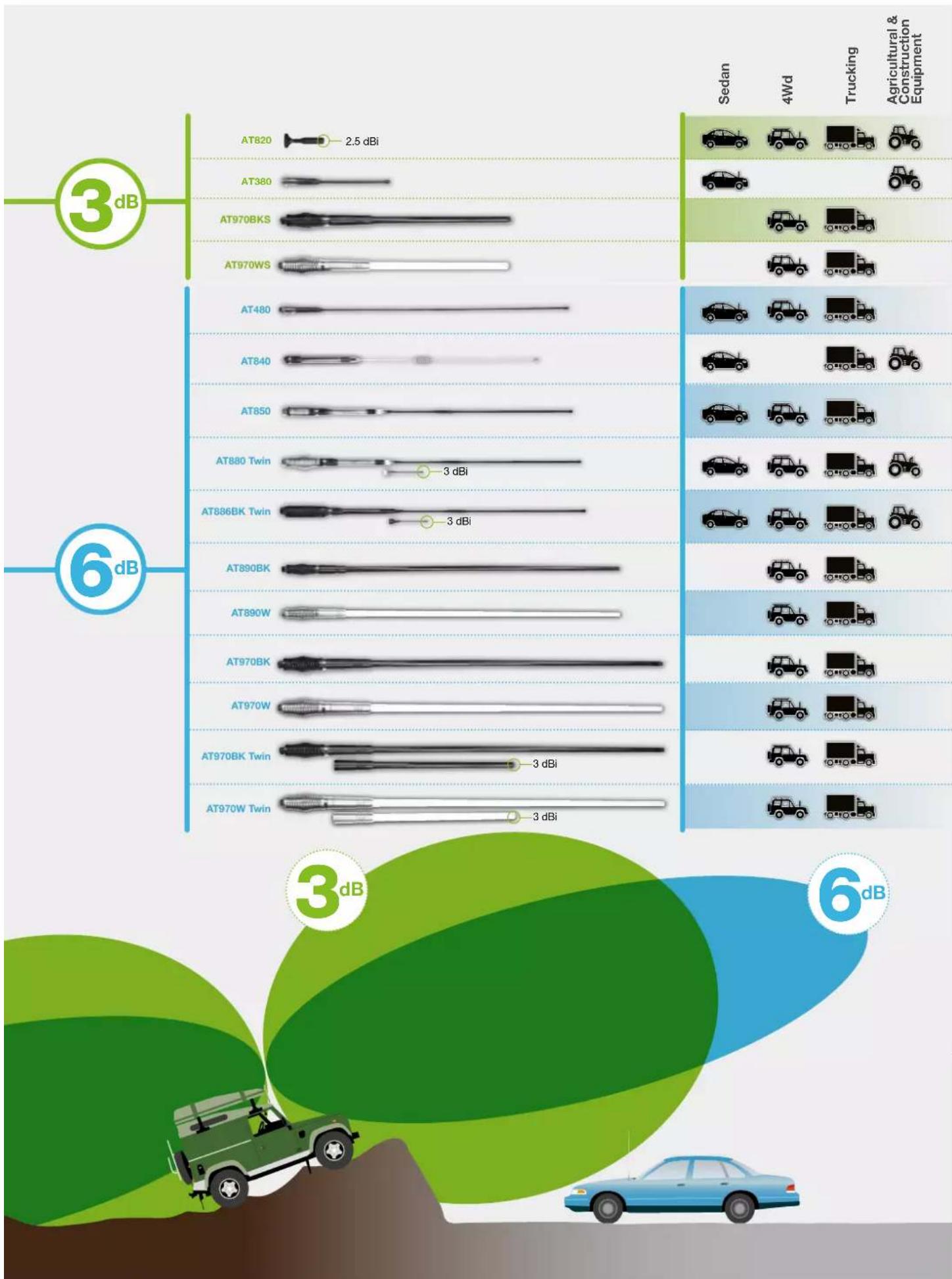

antenna range

Uniden Range of antennas suit UHF CB Radios for Australia's and New Zealand Rugged Conditions. They are engineered and tested to withstand most harsh conditions and suited for a variety of vehicle.

AT820

Portable Antenna Kit with Strong Magnetic Base 3.0m Low Loss Coil Cable Terminated FME Female Connector including SMA and PL25B Adaptor

AT380

High Flexible Rubber Whip with Black Heat Shrink Ground Independent 4.5m Low Loss Caxx Cable Terminated FME Female Connector and PL239 Adapter

AT480

Flexible Whip with Black Heat Shines including "2" Type Mounting Bracket (MGU-01) Ground independent 4.5m Low Loss Box Case Terminated PME Female Connector and PI,250 Adopter

AT840

Forested Feed and Stainless Steel Whip 8-5 dBi Cain Ground Independent 4.5m Low Loss Cox Cable Terminated FME Female Connector and PL299 Adaptor

AT850

Elevated Feed and Fiberglass Whip with Black Heat Shrink 6.6 dB Gain. Highly Flexible Whip Parallel Style Stainless Steel Spring Ground Independent 4.5m Low Loss Coax Cable Terminated FME Remote Connector and PL250 Adaptor

2.5 dB	3.0 dB	6.0 dB	6.6 dB	6.6 dB
125.5mm	355mm	844mm	805mm	805mm
Sedan, Trucking, 4WD, Agricultural & Construction Equipment	Sedan, Agricultural & Construction Equipment	Sedan, Trucking and 4WD	Sedan, Trucking	Sedan, Trucking and 4WD
Portable, Double	Flexible, Double	Flexible, Double	Lightweight	Lightweight
Good for Temporary Installations	High Terrain, City	Good all Purpose, Town & Country	Good all Purpose	Good all Purpose

Eloaped Feed and Fiberglass Whip with Black Heat Stroke 6.6 dB Gain, includes 14cm 3.0 dB

Highly Flexible Whip Heavy Duty Barrel Style Stainless

500 spn

Ground Hesperborn

a. 5th Line Lice Cuts Cuts Turing and ENS Farsely

Terminal LED Rectal Connector and PL250 Adaptor

6630 dB

932nm/442nm

Sedan, Trucking, AND & Agricultural & Construction Equipment

Henry Dats

Good at Purpos, Town & Country

Elevated Feed and Foreglass Whip with Black Heat Shrs 6.6 dBi Gan

1. 2017年1月1日

Heavy Duty Straight Style Stainless Steel Spring

Ground Independent

4.5m Low Loss-Cross Cable Terminated FML Female Connector and PL259 Adaptor

6.63.0 dB

974cm/494mm

Solan, Trading, 480 & Agricultural & Construction Equipment

Heavy Duty

Good all Purpose, Town & Country

Forreglass Paydown Artenas (AUX or WHITE) Heavy Duty Barrel Style Stainless Steel Spring

around independent 4.5m Low Low Case Cable Terminated PME Female Connector and PL259 Adaptor

6.5d39

1000mm

4680, Tru

Heavy Duty

Good all Purpose, Town & Country

Fibreglass Raydome Antenna Whip Pack Heavy Duty Ramel Style Stainless Steel Spring

ground independent 4.5m Low Loss Daxx Fabric Terminated RME Female Connector and PL259 Adaptor

3.0 dB

225nm

480 Truck

Heavy Party

Good at Purpose, Town & Country

Fiberglass Raytheon Antenna (BLACK or WHITE) Heavy Duty Ramen Style Stainless Steel Spring Ground Independent 4.5m Low Loss Coat Cable Terminated FME Female Connector and PL299 Adaptor

5.6-d段

120min

(4) Tio

Honey Daly

Good all Purpose. Team & Country

Dual Removable Fireglasses Rayborne Antenna Whip Pack (BLACK or WHITE) Heavy Duty Barrel Style Stainless Steel Spring Ground Independent 4.5m Low Loss Crack Cable Terminated FME Female Connector and PL203 Adaptor

0.63.0 dB

120mm/725mm

480,Truck

Henry Duty

Good all Purpose, Town & Country

antenna mounting

brackets

MGU-01MGU-02MBU-01MMI-01

Metal bracket component with mounting holes and a U-shaped groove (no text or symbols visible)

Metal bracket component with mounting holes and a U-shaped groove (no text or symbols visible)

Metal bracket with four holes and a curved cutout (no text or symbols visible)

Metallic industrial clamp bracket with coiled tubing and a circular hole (no text or symbols visible)

MIRROR MOUNT

• Cable Slot
  • Polished Stainless Steel
• Thickness: 2.5mm
  • Includes Bolts, Nuts and Washers

"Z" TYPE MOUNT

• Cable Slot
  • Polished Stainless Steel
• Thickness: 2.0mm

"L" TYPE MOUNT

• Cable Slot
  • Polished Stainless Steel
• Thickness: 2.5mm

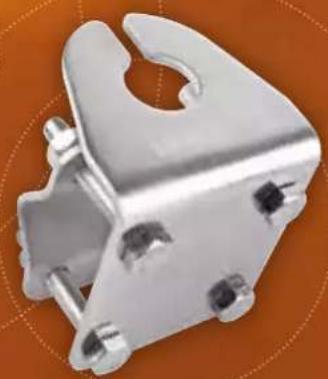

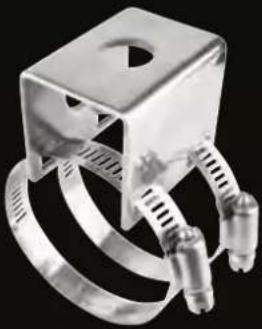

UNIVERSAL BULL BAR MOUNT

• Includes Stainless Steel Clamps
• Fits a bull bar of diameter (min: 35mm/max: 55mm)
- Polished Stainless Steel
- Thickness: 2.3mm

MBU-02MBU-03MBU-04

Close-up of a metallic mechanical clamp or bracket component (no text or symbols visible)

Close-up of a white metal clip or connector with circular cutouts and two small symbols, against a black background (no readable text or labels)

Close-up of a metallic mechanical component with circular features and mounting holes (no visible text or symbols)

Available in black MBU-03BK

White plastic mechanical bracket with a curved handle and two circular cutouts, against a black background (no text or symbols visible)

Close-up of a metallic mechanical component with circular outline (no visible text or symbols)

Available in black MBU-04BK

"U" BOLT BULL BAR MOUNT

• Includes Stainless Steel U Bolts & Nuts
  • Fits a bull bar of diameter (min: 40mm/max: 50mm)
• Polished Stainless Steel
• Thickness: 3mm

50MM WRAP AROUND BULL BAR MOUNT

• Cable Slot
• Includes Stainless Steel Bolts & Nuts
• Polished Stainless Steel
• Thickness: 3mm

76MM WRAP AROUND BULL BAR MOUNT

• Cable Slot
• Includes Stainless Steel Bolts & Nuts
  • Polished Stainless Steel
• Thickness: 3mm

All mounting brackets will fit any Uniden antenna.

accessories

Black Enidos phone with visible grille and control buttons (no readable text beyond branding)

MK800W

• Secure Sync For Easy Connection
• Push-To-Talk Control Button
  • Volume Up / Down Controls
• Battery Saving with Auto Power Off

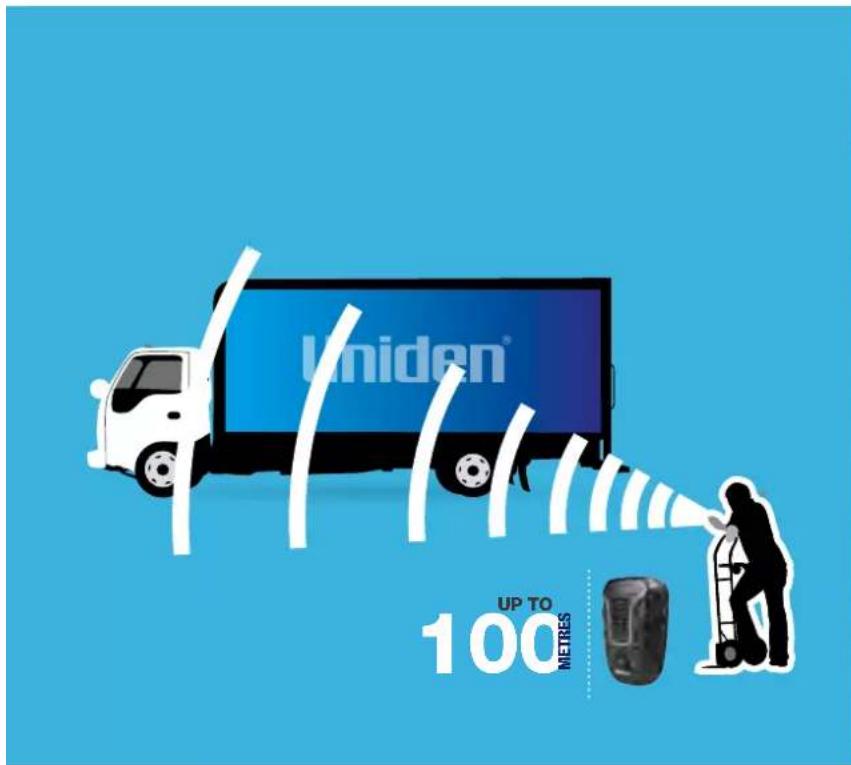

• Long Range – Up to 100 Metres
• Belt Clip For Added Mobility
• Up to 8 Hours Battery Life

SPEAKER
MICS

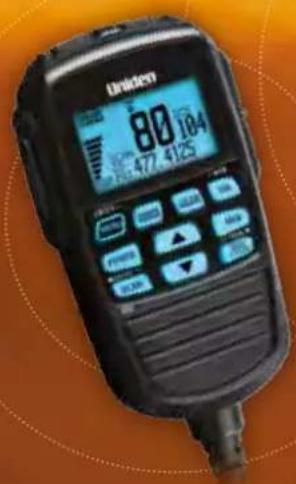

REMOTE LCD
SPEAKER MIC

STANDARD
COMPACT MICS

MK500

Two black rectangular electronic devices with ventilation grilles and leads (no visible text or symbols)

MK800/MK770

MK900

MK870

RM980

RM880

RM800/RM770

Uniden®

Portrait of a smiling man in a blue uniform and cowboy hat holding a portable radio, with autumn foliage in the background (no visible text or symbols)

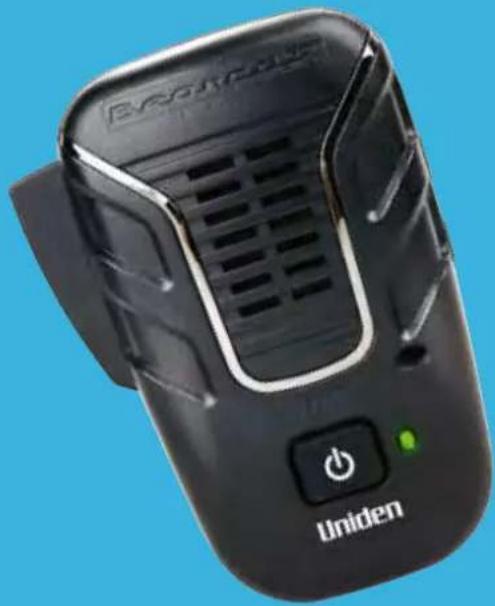

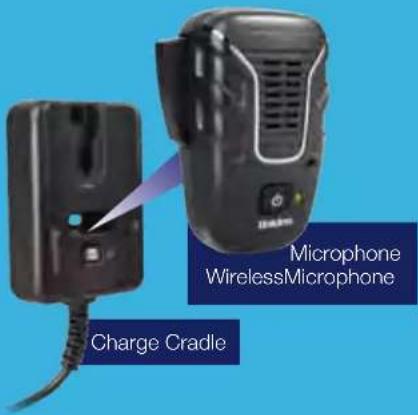

WIRELESS DECT

SPEAKER MIC

MOUNT KITS

3D rendering of a rectangular metal enclosure with recessed panels and a central opening (no text or symbols)

Mechanical device with a circular component mounted on a base (no visible text or symbols)

K7740 DMK7700 PNP-KIT

•		UH9080
•		UH9060
	•	UH9000
•		UH8080
•		UH8070
	•	UH8060S
•		UH8055S
	•	UH8020S / UH8010S+ANT
	•	UH5060
•		UH5050
•		UH5045
	•	UH5000 / UH5000PNP
	•	UH5040 / UH089NB

SPEAKER

7W EXTERNAL SLIMLINE

Suitable for all models

EXTENSION

CABLE

Suitable for all models, excluding:

UH5040 & UH089NB

Uniden®

DEALER DETAILS

For full range & details call 1300 366 895

or visit uniden.com.au
