AWM302 - TV antenna UNIDEN - Free user manual and instructions

Product Type	TV Antenna
Brand	Uniden
Model	AWM302
Frequency Range	VHF (174-230 MHz) & UHF (470-862 MHz)
Gain	Approximately 15-25 dB (amplified)
Impedance	75 Ohm
Power Supply	USB (5V DC) or via coaxial power inserter (included)
Dimensions (approx.)	300 x 200 x 50 mm (11.8 x 7.9 x 2.0 in)
Weight (approx.)	350 g (0.77 lbs)
Cable Length	3 m (9.8 ft) coaxial cable attached
Mounting Type	Indoor placement on flat surface or wall mount (bracket included)
Amplification	Built-in low-noise amplifier with switchable gain
Compatibility	DVB-T/T2, ATSC, ISDB-T (digital TV)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Safety Certifications	CE, RoHS
Maintenance	Wipe with a soft dry cloth; avoid moisture and solvents
Repairability	No user-serviceable parts; refer to qualified service
Package Contents	Antenna, USB power cable, mounting stand, user manual

Frequently Asked Questions - AWM302 UNIDEN

How do I install the Uniden AWM302 antenna?

Place the antenna on a flat surface or mount it on a wall using the included bracket. Connect the coaxial cable to your TV or set-top box, then plug the USB power cable into a 5V adapter (not included) or a TV USB port for amplification.

Does this antenna work for both VHF and UHF channels?

Yes, the AWM302 supports both VHF (channels 7-13) and UHF (channels 14-51) bands, covering most digital TV broadcasts.

How can I improve reception with this antenna?

Try repositioning the antenna near a window or higher location. Avoid obstacles like metal objects and thick walls. Adjust the amplifier gain if needed.

Is the antenna powered or passive?

The antenna has a built-in amplifier that requires USB power (5V DC). Without power, it acts as a passive antenna with lower gain.

What is the maximum range of the AWM302?

Under optimal conditions, the antenna can receive signals from up to 50 miles (80 km) away from the broadcast tower.

Can I use this antenna outdoors?

The AWM302 is designed for indoor use only. Exposure to weather may damage the electronics.

How do I clean the antenna?

Unplug the antenna and wipe the outer surface with a soft, dry cloth. Do not use water or cleaning chemicals.

What should I do if I receive no channels?

First ensure the coaxial cable is tightly connected and the amplifier is powered. Rescan for channels on your TV. Try moving the antenna to a different location.

Can I replace the cable if it gets damaged?

The cable is permanently attached and not user-replaceable. If damaged, the entire unit may need replacement.

Does the antenna support 4K or HD reception?

Yes, the antenna receives digital HD signals including 1080p and 4K if broadcast by your local stations.

USER MANUAL AWM302 UNIDEN

handhelds

Man smiling while holding a mobile phone with a black antenna, viewed from inside a boat (no visible text or symbols)

VHF MARINE

MHS050 MHS127 MHS155UV

marine & land in one

VHF & UHF 2-Way Radio

White walkie-talkie with a digital display and control buttons, set against a solid blue background (no visible text or symbols on the device body)

2.5W Power

Submersible Waterproof*

Floating Lightweight ^++

12 hrs ^+

5W Power

Submersible Waterproof*

Floating Lightweight ^++

12 hrs†

IN THE BOX

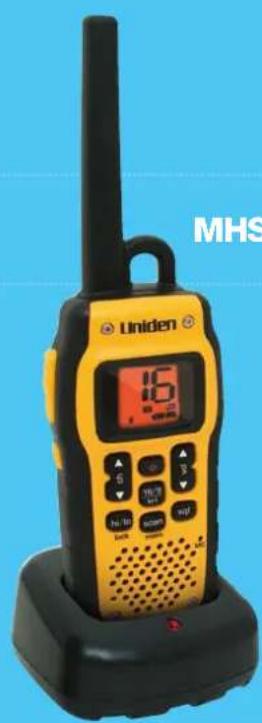

1 x MHS050
1 x Rechargeable NiMH Battery Pack
1 x Charger
1 x AC adaptor
1 x Belt Clip
1 x Carabiner Clip
1 x Owner's Manual

IN THE BOX

1 x MHS127
1 x Antenna
1 x Rechargeable Lithium-Ion Poly Battery Pack
1 x Alkaline Battery Tray (batteries not included)
1 x Charging Cradle with Screws
1 x Cigarette Lead Adaptor
1 x AC Adaptor
1 x Belt Clip
1 x Wrist Strap
1 x Owner's Manual

Floating Lightweight

Built-in Speaker Mic Jack

Large LCD Screen

12 hrs†

IN THE BOX

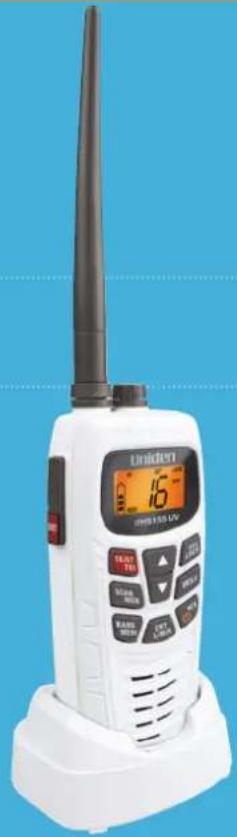

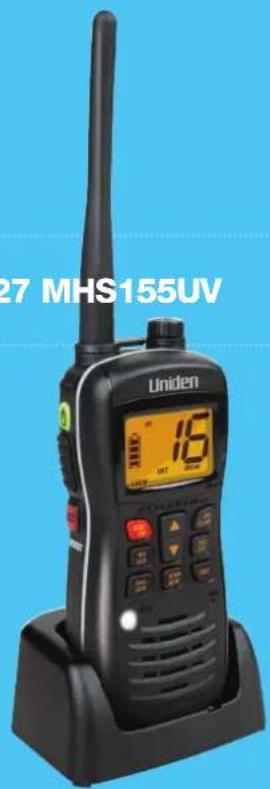

1 x MHS155UV Radio
1 x Desktop Charger Cradle
1 x Lithium-Ion Rechargeable Battery
1 x Belt Clip
1 x AC Adaptor
1 x Cigarette Lead Cable
1 x Battery Tray
1 x Mounting Hardware
1 x Owner's Manual

in boat radios

dual band

27MHz Marine/AM-CB

VHF MARINE

UM255

White medical device with digital display showing M, RX, and ANL numbers, connected to a medical device (no readable text or symbols beyond branding)

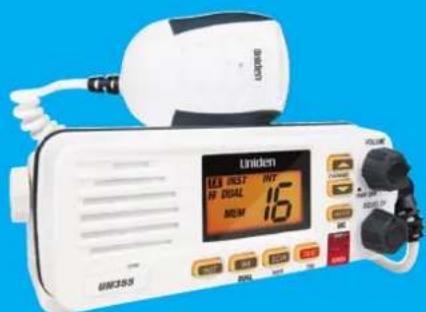

UM355

UM455

4W Power

Dual Band 27MHz Marine/AM-CB ^1

Large LCD Screen

Splashproof*

Dual Speakers

Buit-in PA Output

Compact

IN THE BOX

1 x UM255
1 x DC Power Cable
1 x Mounting Bracket & Knobs
1 x Microphone Hanger & Screws
1 x Owner's Manual

1-25W Power

Triple Watch Mode

Large LCD Screen

Splashproof^

IN THE BOX

1 x UM355VHF
1 x DC Power Cable
1 x Accessory Cable
1 x Mounting Bracket & Knobs
1 x Microphone Hanger & Screws
1 x Flush Mount Kit
1 x Owner's Manual

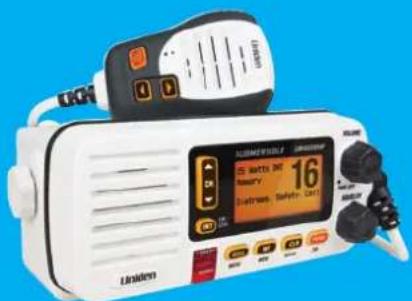

1-25W Power

GPS Connectivity

Digital Selective Calling ^##

Submersible Speaker Mic**

Waterproof*

Dual Speakers

Built-in PA Output

IN THE BOX

1 X UM455VHF
1 x DC Power Cable
1 x Accessory Cable
1 x Mounting Bracket & Knobs
1 x Microphone Hanger & Screws
1 x Flush Mount Kit
1 x Owner's Manual

Uniden®

Interior view of a ship's control cabin with a crew member and a helicopter, no visible text or symbols

MARINE Range & Accessories

antenna range

Uniden Range of antennas suit Marine Radios. They are engineered and tested to withstand Australia and New Zealand's most harsh conditions.

VHF Antennas 27MHz Antennas

ATM301	AWM302	AWM301	AWM300	ATM300	ATM201	AWM201	AWM200	ATM200
VHF	VHF	VHF	VHF	VHF	27MHz	27MHz	27MHz	27MHz
1.8m	2.4m	1.8m	1.2m	450mm	1.8m	2.4m	1.8m	600mm
Antenna & Fold-down Base	Antenna Whip	Antenna Whip	Antenna Whip	Antenna & Base	Antenna & Fold-down Base	Antenna Whip	Antenna Whip	Antenna & Base
Includes: 5m cable and FME plug & PL259 adaptor	To be mounted on the Uniden MBMxxMount Series	To be mounted on the Uniden MBMxxMount Series	To be mounted on the Uniden MBMxxMount Series	Includes 5m cable and FME plug & PL259 adaptor	Includes: 5m cable and FME plug & PL259 adaptor	To be mounted on the Uniden MBMxxMount Series	To be mounted on the Uniden MBMxx Mount Series	Includes: 5m cable and FME plug & PL259 adaptor

White medical device with green label on blue background (no text or symbols)

MBM10

Ratchet Fold-down

Single Hinge Round Base Antenna Mount with 5m cable, FME plug & PL259 adaptor

Suitable for:

UNIDEN AWM200/300/400 Series Antennas

White medical or laboratory device with a green circular badge on its side, mounted on a stand against a blue background (no text or symbols visible)

MBM20

Ratchet Fold-down

Single Hinge Square Base Antenna Mount with 5m cable, FME plug & PL259 adaptor

Suitable for:

UNIDEN AWM200/300/400 Series Antennas

White robotic arm device with green circular button on top, against a solid blue background (no text or symbols)

MBM15

Ratchet Fold-down

Double Hinge Round Base Antenna Mount with 5m cable, FME plug & PL259 adaptor

Suitable for:

UNIDEN AWM200/300/400 Series Antennas

White robotic arm with green circular button on blue background (no text or symbols)

MBM25

Ratchet Fold-down

Double Hinge Square Base Antenna Mount with 5m cable, FME plug & PL259 adaptor

Suitable for:

UNIDEN AWM200/300/400 SeriesAntennas

White rectangular frame with a blue interior and four corner dots (no text or symbols)

MKM200

Flush Mount Bracket

Suitable for:

UNIDEN UM455, UM365 and UM265 In-Boat Marine Radios

Coiled white medical or electronic device with connectors and ports against a blue background (no text or symbols visible)

SPM200

AM/FM Band Splitter for VHF or 27MHZ Antennas

Suitable for:

All UNIDEN Marine In-Boat Marine Radios & Antennas

VHF OR 27MHZ

Three walkiehels on a wooden deck with ocean background (no visible text or symbols)

VHF MARINE\*

Ideal for the safety of recreational boaters for ship-to-ship or ship-to-shore communications. Uniden VHF Marine Radios operate in the VHF Maritime Mobile Band on the frequency range between 156MHz and 162MHz. All Uniden VHF Marine Radios can communicate on the VHF distress & emergency channel 16, and receive local weather and navigation warnings on VHF channel 67 – the latter dependant on the local broadcast schedule. Modern VHF radios have the additional feature of Digital Selective Calling (DSC) that allows distress alerting at the push of a button.

27MHz MARINE

Suitable for recreational boaters for use in enclosed waters, the 27MHz Inshore boating radio service band is unique to Australia. Used for ship-to-ship and ship-to-shore communication, and capable of distress alerts on 27MHz channel 88 and receiving weather forecasts and marine safety information – provided that the vessel is operating within the coverage area and times of the volunteer services.

*An operating certificate (SROCP) is required to use a VHF radio. A fee is normally required for certification. More information about licensing of radios and operators can be found at the ACMA website.

Uniden®

where to buy?

VISIT uniden.com.au/stockists

DEALER DETAILS

For full range & details call 1300 366 895 or visit uniden.com.au
