Product Type	Laptop Cooling Pad
Brand	Targus
Model	PA248U5
Compatible Laptop Sizes	Up to 17 inches
Number of Fans	2
USB Ports	2
Power Source	USB powered (5V)
Dimensions (approx)	14.3 x 10.6 x 1.3 inches
Weight (approx)	1.5 lbs
Material	Plastic, metal mesh
Color	Black
Fan Speed Control	None (fixed speed)
Noise Level	Low, ~20 dBA
System Requirements	Available USB 2.0 port
Warranty	1 year limited
Cleaning Method	Wipe with dry cloth
Safety Features	Anti-slip pads, vented surface
Included Accessories	USB cable

Frequently Asked Questions - PA248U5 TARGUS

How do I use the Targus PA248U5 laptop cooler?

Place the cooler on a flat, hard surface. Connect the built-in USB cable to a USB port on your laptop. Then place your laptop on the cooler, aligning the vents for optimal airflow. The fans will start automatically.

Does the PA248U5 require any drivers or software?

No, the cooler is plug-and-play. It draws power and operates through the USB connection without additional drivers.

Is this cooler compatible with my laptop?

The PA248U5 is designed for laptops up to 17 inches. It fits most standard laptops. Check the dimensions: 14.3 x 10.6 inches to ensure your laptop sits completely on the cooler.

How do I clean the laptop cooler?

Unplug the cooler and use a soft, dry cloth to wipe the surface. For the fan vents, you can use compressed air to remove dust. Avoid using liquid cleaners.

Can I use the cooler on soft surfaces like a bed or pillow?

No, the cooler requires a firm, flat surface to ensure proper airflow. Using it on soft surfaces may block the fan intakes and cause overheating.

What is the noise level of the fans?

The fans operate quietly at about 20 dBA, making them suitable for quiet environments such as offices or libraries.

Does the cooler help reduce laptop temperature?

Yes, the PA248U5 helps lower laptop temperature by providing active cooling through its two fans. It can reduce surface temps by 5-15°C depending on usage.

What is the warranty period for this product?

Targus offers a 1-year limited warranty covering defects in materials and workmanship. Refer to the warranty card for details.

Can I replace the USB cable if it gets damaged?

The USB cable is permanently attached. If damaged, the cooler may need replacement. Contact Targus support for options.

Why are my laptop's USB ports not working after connecting the cooler?

Ensure the USB cable is fully inserted. The cooler draws power, but if your laptop's USB port can't supply enough power, the fans may not spin. Try using a different USB port or a powered USB hub.

USER MANUAL PA248U5 TARGUS

1 YEAR LIMITED WARRANTY: We pride ourselves on the quality of our products. For complete warranty details and a list of our worldwide offices, please visit www.targus.com. Features and specifications are subject to change without notice. Microsoft, Windows and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. All trademarks and registered trademarks are the property of their respective owners. ©2010 Targus Group International, Inc. All rights reserved.

User Guide

Targus Laptop ChillMat™

Introduction

Thank you for your purchase of the Targus Laptop Chill Mat. The Laptop Chill Mat features two USB powered fans positioned to provide optimal cooling to your laptop.

Features

•2 USB powered fans

System Requirements

• USB 1.1/2.0 compliant port

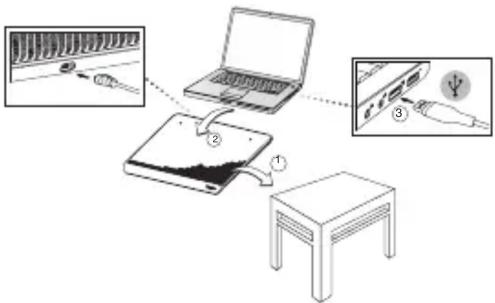

To Use the Chill Mat

1. Place the Chill Mat on a surface, such as a table or desktop.
2. Position your laptop on top of the Chill Mat.
3. Connect the USB cable to the Chill Mat.
4. Connect the other end of the USB cable into an available USB port on your laptop.

Targus Laptop ChillMat™

Laptop

(not included)

WARNING: KEEP ALL ITEMS, SUCH AS LOOSE CLOTHING AND JEWELRY, AND LONG HAIR AWAY FROM THE FANS TO AVOID POSSIBLE PERSONAL INJURY OR DAMAGE TO THE CHILL MAT OR YOUR LAPTOP.

Targus Laptop ChillMat™

Targus Laptop ChillMat™

Technical Support

For technical questions, please visit:

US Internet: www.targus.com/support.asp

Australia Internet: www.targus.com/au

Email: [e-mail]

Telephone: [phone]

New Zealand Telephone:[phone]

Product Registration

Targus recommends that you register your Targus accessory shortly after purchasing it. Go to:

http://www.targus.com/registration.asp

You will need to provide your full name, email address, country of residence and product information.

Warranty

Targus warrants this product to be free from defects in materials and workmanship for one year. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to devices; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does not affect your statutory rights.

Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All trademarks and registered trademarks are the property of their respective owners. All rights reserved. Features and specifications are subject to change without notice. © 2010. Targus Group International, Inc. and Targus, Inc., Anaheim, CA 92806 USA
