AWE01US2 - Laptop cooler TARGUS - Free user manual and instructions

Product Type	Laptop Cooler
Brand	Targus
Model	AWE01US2
Compatibility	Up to 17-inch laptops
Dimensions	15.5 x 12.5 x 1.5 in
Weight	1.8 lb
Power Source	USB-powered (5V, 0.5A)
Number of Fans	2
Fan Size	80 mm each
Fan Speed	Adjustable via built-in switch
Noise Level	Less than 25 dBA
Material	Plastic with mesh surface
Color	Black
Ergonomic Design	Tilted surface for improved typing angle
Non-Slip Feet	Rubber pads on bottom and front lip
Additional Features	USB port for peripheral passthrough
Cleaning	Wipe with dry cloth; avoid liquids
Storage Temperature	-20°C to 60°C
Operating Temperature	0°C to 40°C
Warranty	3 years limited warranty

Frequently Asked Questions - AWE01US2 TARGUS

What laptops are compatible with the Targus AWE01US2 cooler?

The cooler is designed for laptops up to 17 inches. It fits most standard laptops within that size range.

How is the Targus AWE01US2 powered?

It is powered via a USB cable that connects to your laptop's USB port (5V, 0.5A). It does not require an external power adapter.

Does the cooler have adjustable fan speeds?

Yes, it features a built-in switch to adjust the fan speed to low, medium, or high.

Is the Targus AWE01US2 noisy?

No, the fans operate at a noise level of less than 25 dBA, making it very quiet even at high speed.

How do I clean the laptop cooler?

Use a soft dry cloth to wipe the surface. Avoid using liquids or compressed air directly into the fans.

Can I use the cooler without plugging it in?

No, the cooler requires USB power to operate the fans. Passive cooling is minimal without power.

Does the cooler have any storage or cable management?

Yes, it includes a USB pass-through port and a built-in cable management groove to keep your workspace tidy.

Is the cooler suitable for gaming laptops?

Yes, it provides effective cooling for gaming laptops up to 17 inches, with dual 80mm fans and adjustable speed.

What is the price range of the Targus AWE01US2?

The price typically ranges from $25 to $35 USD, depending on the retailer.

Does the cooler have a warranty?

Yes, it comes with a 3-year limited warranty from Targus against defects in materials and workmanship.

USER MANUAL AWE01US2 TARGUS

Targus NOTEBOOK COOLING CHILL HUB XC

1 YEAR LIMITED WARRANTY: We pride ourselves on the quality of our products. For complete warranty details and a list of our worldwide offices, please visit www.targus.com. Features and specifications are subject to change without notice. Microsoft, Windows and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. All trademarks and registered trademarks are the property of their respective owners. ©2010 Targus Group International, Inc. All rights reserved.

User Guide

Targus Notetbook Cooling Chill Hub XC

Introduction

Congratulations on your purchase of the Targus Notebook Cooling Chill Hub XC. This cooling device dissipates thermal heat, reducing your computer's overall temperature, resulting in maximum performance. It also allows you to connect through a single USB connection up to 4 USB devices. Its thin yet durable design is both portable and sturdy.

System Requirements

• USB 1.1/2.0 compliant port

To use the Chill Hub

1. Remove the USB cable from the bottom of the Chill Hub.
2. Decide on where you want to place the Chill Mat, either on a work surface, such as a table or desktop, or your lap. If you choose to use the Chill Mat on a work surface, you can extend the feet to the required angle.
3. Place the Chill Mat on the work surface or your lap.
4. Position your laptop computer on top of the Chill Hub.

Targus Notetbook Cooling Chill Hub XC

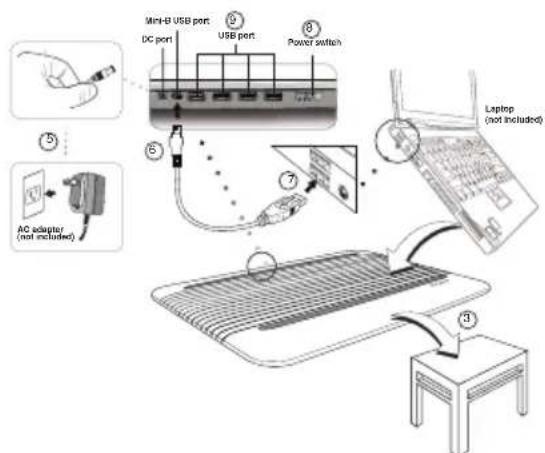

1. If you have purchased the optional AC power adapter, connect one end into the Chill Hub's DC port and the other end into the power outlet.
2. Connect one end of the USB cable into the mini-B USB port located at the rear of the Chill Hub.
3. Connect the other end of the USB cable into an available USB port on your laptop computer.
4. Turn the fan on by sliding the Power switch to "I" for low speed fan and "II" for high speed fan.
5. To connect a USB device to the Chill Hub, plug the USB cable from the device into an available port on the Chill Hub.

Simple line drawing of a mechanical tool or bracket with a circular base and handle, no text or symbols present.

Targus Notetbook Cooling Chill Hub XC

NOTE: If there's insufficient power after connecting USB devices to the Chill Hub, you may purchase and use the separately sold AC Adapter (Targus model number APA09USZ) on www.targus.com to provide more power to the USB devices.

WARNING: Keep all items, such as loose clothing and jewelry, and long hair away from the fans to avoid possible personal injury or damage to the Chill Hub or your computer.

Targus Notetbook Cooling Chill Hub XC

Technical Support

For technical questions, please visit:

US Internet: www.targus.com/support.asp

Australia Internet: www.targus.com/au

Email:[e-mail]

Telephone:[phone]

New Zealand Telephone:[phone]

Product Registration

Targus recommends that you register your Targus accessory shortly after purchasing it. Go to:

http://www.targus.com/registration.asp

You will need to provide your full name, email address, country of residence and product information.

Warranty

Targus warrants this product to be free from defects in materials and workmanship for one year. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to devices; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does not affect your statutory rights.

Targus Notetbook Cooling Chill Hub XC

Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Statement

Tested to Comply

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Targus Notetbook Cooling Chill Hub XC

• Reorient or relocate the receiving antenna;
- Increase the separation between the equipment and receiver;
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;
- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not authorized by the party responsible for compliance could void the user's authority to operate this product.

Declaration of Conformity

Hereby, Targus, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All trademarks and registered trademarks are the property of their respective owners. All rights reserved. Features and specifications are subject to change without notice. ©2010. Targus Group International, Inc. and Targus, Inc., Anaheim, CA 92806 USA
