USER MANUAL Toast-R-Oven TRO520 BLACK & DECKER

Save this use and care book

Electrónico

Horno Tostador

Asador

Series TRO220 - TRO520

Exterior view of a small kitchen toaster oven with open lid and side grilles (no visible text or symbols)

English

0220-TRO520

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

■Do not touch hot surfaces. Use handles or knobs.
■To protect against risk of electrical shock, do not immerse cord, plug, or any non-removable parts of this oven in water or other liquid.
■Close supervision is necessary when any appliance is used by or near children.
■Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
■Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to an authorized service facility for examination, repair, or electrical or mechanical adjustment.
■The use of accessory attachments not recommended by Black & Decker may cause injuries.
■Do not use outdoors.
■Do not let cord hang over edge of table or counter, or touch hot surfaces.
■Do not place on or near a hot gas or electrical burner, or in a heated oven.

When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

■To turn off toasting, press STOP. To stop cooking, baking, or broiling, turn the control to OFF.
■In the event of food flare up, keep door shut and unplug the toaster oven.
■To disconnect, grasp plug body and remove from outlet. Do not pull by the cord.
■Do not use oven for other than intended use.
■Oversize foods, airtight foil packages, cardboard containers, plastic wrapped food or utensils must not be inserted in this appliance, as they may create a fire or electrical hazard.
■A fire may occur if the toaster oven is covered or touching flammable material including curtains, draperies, walls and the like, when in operation. Keep this appliance at least 1" (2.54 cm) away from wall or rear of counter. Do not store any item on top of unit when in operation.
■To avoid a fire hazard, do not store or place flammable materials (including packaged bread, paper towels, etc.) on top of or inside the toaster oven at anytime.

■Do not place any of the following materials in the oven: Paper, cardboard, or plastic. Refer to "Cooking Containers."
■Do not operate in the presence of explosive and/or flammable fumes.
■This product is intended for household use only, not commercial or industrial use.

If this product is mounted under a cabinet:

■To reduce the risk of fire, do not place any heating or cooking appliance beneath the appliance.
■To reduce the risk of fire, do not mount unit over or near any portion of a heating or cooking appliance.

• To reduce the risk of electric shock, do not mount over a sink.
• Do not store any materials other than the manufacturer's recommended accessories in this oven when not in use.
• Do not cover crumb tray or any parts of the oven with metal foil. This will cause overheating of the oven.

Electrical Cord

The cord length of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an approved extension cord. When using an extension cord, be sure not to let it drape over the working area or dangle where someone could accidentally pull or trip over it.

How To Use

OVEN FEATURES

Easy-Clean Interior Control Panel Slide Rack

THE CONTROL PANEL

Toasting

1. Select the toast color setting.
2. Close the door and press the Start Toast Button. The Oven will automatically shut off when the toast cycle is done.
3. To stop toasting in the middle of a cycle, press "Stop" or open the door. To continue toasting, shut the door and press the Start Toast Button. (A)

Top Browning

NOTE: Always use the Oven Pan when melting, crisping, and top browning.

1. Turn the Toast Color Selector to Top Brown and press the Start Toast Button.
2. When top browning, both the top and bottom heating elements will slow to dif-

Baking and Heating

1. Turn the Bake Control Dial to the desired temperature setting. Always preheat for 5 minutes and use the Oven Pan.
2. When baking, both the upper and lower heating elements will cycle on and off during baking to maintain the selected temperature. Operation is interrupted when the door is opened. To continue operating, close the door. Watch for doneness. (See "Cooking/Baking Guide")
3. When finished baking, turn the Bake Control Dial to OFF.

Broiling (selected models)

1. Always use the Oven Pan and Broil Grid together. (B) Turn the Bake Control Dial to BROIL and close the door.
2. Only the upper heating elements will operate and glow when broiling: The heating elements will cycle on and off.
3. Watch food carefully and remove the Pan and Grid when finished broiling. Be sure to turn the Control Dial to OFF. (See "Broiling Guide")

Oven Pan and Broil Grid Tips

• Use Upper Position for faster browning and broiling. Allow at least 1" (2.54 cm) between food and heating elements. (B)
• Use Lower Position for longer broiling times or delicate foods (such as fish or chicken) when you want less browning. (B)
• Do not cover Broil Grid with aluminum foil as this prevents fats/juices from dripping into the Oven Pan.

Defrosting

1. Remove all plastic and paper wrapping. Rewrap in aluminum foil and place in Oven Pan.
2. Do not preheat. Turn the Control Dial to 200° F. (93° C)
3. The thickness of meats determines how long to defrost. Start by allowing 15 to 20 minutes per side for meats 1/2'' (1.27 cm) or thicker. Always cook meat promptly after thawing.

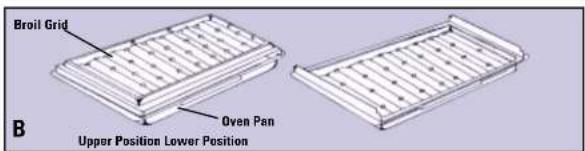

Broil Grid Oven Pan Upper Position Lower Position B

Care and Cleaning

Cleaning Your Oven

IMPORTANT: Before cleaning any part, be

1. To remove the rack, open the door and tilt it up slightly until the Rack can be pulled

Line drawing of a hand using a computer to open a device (no text or symbols visible)

nylon pad. To replace the Rack, open the door completely and slide the back of the Rack into the Rack Support Grooves. Tilt the door up until the front of the Rack slides into the Rack Hooks. Open and close the door to be sure the Rack is seated properly.

1. Wash the Oven Pan and Broil Grid after each use in hot, sudsy water. To minimize scratching, use a polyester or nylon pad.

Crumb Tray

To open, tip the Oven onto its back and unscrew the bottom panel or pull down on the Crumb Tray knob (depending on the model). Wipe away crumbs and food spills with a slightly damp cloth. Stubborn spots can be removed with a nylon pad. Be sure to dry thoroughly and close tightly before using Oven.

Continuous Clean Coating (Selected models)

1. For models with the dark, speckled interior coating, wipe away heavy splatters with a nylon pad and warm water. DO NOT USE any cleaning agent, scouring pad, or abrasives as they may harm the coating

2. Blot dry — DO NOT RUB. The porous

Do not use chemical oven cleaners.

1. DO NOT use any abrasive cleansers or scouring pad, as they may harm the Coating. Dry with a paper or cloth towel.

Exterior and Chrome Top

Be sure the oven has cooled completely before wiping the brushed chrome top (Selected Models) and exterior walls with a damp cloth or sponge. Dry afterward.

Cooking Containers

1. The inside dimensions of this Oven are 11" x 7 1/2" x 3" (28 cm x 19 cm x 7.6 cm). This size allows for many different types of everyday baking containers. Before buying a container for your Oven, be sure it fits.

2. Metal, ovenproof glass without lids, or ceramic bakeware may be used in your Oven. Follow manufacturer's instructions. Be sure the top edge of the container is at least 1" (2.54 cm) away from the upper heating elements.

3. Some frozen foods are packaged in containers suitable for microwave or regular ovens. Check package instructions to see if the container can be used in a regular oven.

4. Remove any plastic wrapping or paperboard covers which may be suitable for microwave oven use only. Replace with foil if food begins browning too quickly.

5. Some items which should NEVER be used in your Toaster Oven:

- Glass lids on glass or metal bakeware. (If desired, cover containers with aluminum foil making sure it does not touch heating elements.)

• Air-tight packages such as sealed

Broiling Guide (Selected Models)

When broiling meat, fish, or poultry, always place food on the Broil Grid over the Oven Pan. Turn the Bake Control Dial to BROIL. Do not preheat. Watch for done-ness. Use minimum times for models with plain (not Continuous Clean or Easy Clean) interiors.

FOOD BROIL GRID POSITION AMOUNT TIME SUGGESTIONS
Bacon Upper 4 slices 4-6 mins. Turn when slices look brown. Ifbrowning too fast, use lower Grid position.
Chicken Lower 4 pieces 40-50 mins. Turn halfway through cooking. Broilluntil well done — juices run clear.
Frankfurters Upper 8-10 franks 10-13 mins. Turn frequently.
Hamburgers Upper 4 (1/4 lb. ea./113 kpl) 14-16 mins. Turn halfway through cooking. Timeshown is for medium doneness.
Pork Chops Upper 2 (3/4"/(1.91 cm thick)) 15-30 mins. Always broil pork until well done.
Fish Stoaks Lower 1 large (1" - 1-1/4" 20-30 mins. Broil until it flakes easily.2.54-3.18 cm thick)
Cheese Sandwiches Lower(Open Faced)	1-2 Slices	Use broil setting. For a crispiersandwich, toast broad first. Placson Oven Pan. Top with cheese andtomato. Sake until cheese bubbles.

COOKING/BAKING GUIDE NOTE: Always preheat for 5 minutes before cooking/baking.

MEATS	AMOUNT	TEMP. SETTING/ APPROX. TIME	PROCEDURE
Chicken Pieces	To fit Oven Pan	Bake 400°F (200°C) for 40-50 minutes.	Place in Oven Pan or Broil Grid (lower position) over Oven Pan.
Hami, Meat Leaf,Lamb or Pork Chops	To fit Oven Pan	Bake following favorite recipe.	Place on Oven Pan. If browning too rapidly, cover with foil or turn frequently.
BREADS & DESSERTS
Leftover Pizza	Oven Pan	400°F (200°C)	Bake until crisp or until cheese bubbles.Watch for doneness.
Cookies(drop or refrigerator)	6-8 cookies	Follow package or recipe directions.	Bake on Oven Pan.
Cakes/Bar Cookies,Biscuits/Dinner Rolls(Refrigerated)	To fit Oven Pan	Follow package or recipe directions.	Bake until done and browned as desired.
VEGETABLES

VEGETABLES

Service or Repair

Service, if necessary, must be performed by a Black & Decker Company-Owned or Authorized Household Appliance Service Center. The Service Center nearest you can usually be found in the yellow pages of your phone book under "Appliances - Small - Repairing". For your convenience, a complete listing of our Company-Owned Service Centers can be found on insert sheet.

If shipping or mailing the Toast-R-Oven, clean it, then pack the unit carefully in a sturdy carton with enough packing material to prevent damage. The original carton is not suitable for mailing. Include a note describing the problem to our Service Center and be sure to give your return address and phone number. We also suggest that you insure the package for your protection.

Full Two-Year Warranty

Household Products, Inc. warrants this product against any defects that are due to faulty material or workmanship for a two-year period after the original date of consumer purchase. This warranty does not include damage to the product resulting from accident, misuse or repairs performed by non-authorized repair shops. If the product should become defective within the warranty period, we will repair it or elect to replace it free of charge. To honor this warranty, the product with the correspondent registration card and/or proof of purchase are required. This warranty gives you specific legal rights and you may have other rights which may vary in your country. Should you have any questions, contact your nearest Black & Dacker owned or authorized service center, see list included.

Español

CONSERVE ESTAS INSTRUCCIONES

Illustration of a hand inserting a device into a microwave oven (no text or symbols visible)

COLETOR DE MIGALHAS

m = 311

m = 311

"

BLACKSCHECKER

eletrodomésticos

CAIXA POSTAL 28

CEP 09211-970

SANTO ANDRE • 8

Se necessitar aiuda

Copyright © 1997-1998 Household Products, Inc. Pub. No. 174048-00
