Product Type	Built-in Dishwasher
Brand	ILVE
Model	IVFIX4

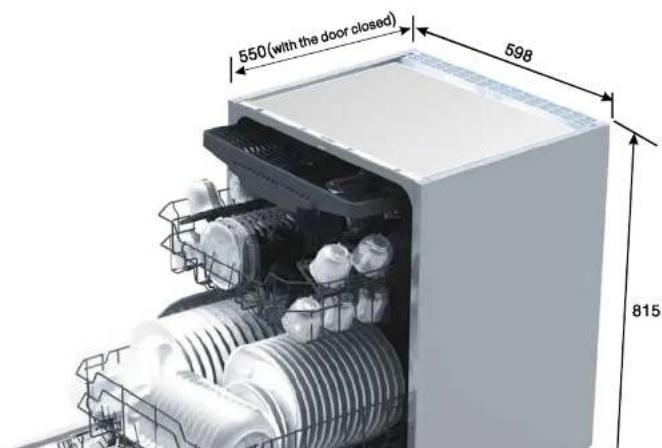

Dimensions (H x W x D)	815 x 598 x 550 mm
Capacity	15 place settings
Programs	Auto, Intensive, Heavy, Normal, Glass, 60 Min, Rapid, Soak
Wash Temperature Range	40°C - 65°C
Electrical Supply	220-240 V, 50 Hz, 10 A fuse
Water Pressure Range	0.04 - 1 MPa (cold water only)
Rinse Aid Dispenser	Yes, adjustable (settings 1-6)
Detergent Types	Powder, gel, tablets (including 3-in-1)
Filter System	3-stage: coarse, main, fine filter
Adjustable Upper Basket	Yes, height adjustable
Foldable Spikes (Lower Basket)	Yes, for large pots and pans
Safety Features	Grounding, overfill protection, child safety warnings
Installation Type	Built-in under counter, adjustable feet (max 50 mm)
Warranty	As per ILVE warranty card (Australia)

Frequently Asked Questions - IVFIX4 ILVE

How do I start a wash cycle on the ILVE IVFIX4 dishwasher?

After loading the dishes and adding detergent, press the On/Off button to turn on the appliance. Select the desired program using the Menu button and +/- buttons, then press OK. Close the door; the dishwasher will start automatically after about 10 seconds.

Why are my dishes not drying properly?

Common causes include: insufficient rinse aid (refill or increase the setting), incorrect program selection (use a program with drying, like Auto or Intensive), or unloading too soon. Wait until the dishes are barely warm and unload the lower basket first to prevent water from upper basket dripping onto lower dishes.

How do I clean the filters in my dishwasher?

Turn off and unplug the dishwasher. Remove the lower basket. Pull up the filter assembly by the cup handle. Unscrew the coarse filter to separate the parts. Rinse all filters under running water, using a brush if needed. Reassemble and reinsert, pressing down firmly. Clean filters at least once a week.

What should I do if the dishwasher won't start?

Check that the door is closed securely and latched. Ensure the power supply is on (plug connected, circuit breaker not tripped). Verify the water supply is turned on. If an error code like E1 appears, it indicates low water pressure – check hose and tap.

Can I use regular dish soap instead of dishwasher detergent?

No, never use regular dish soap or hand-washing liquid. It will create excessive suds and may damage the dishwasher. Always use a branded dishwasher detergent (powder, gel, or tablets) specifically designed for automatic dishwashers.

How do I adjust the rinse aid dosage?

Open the rinse aid dispenser cap. Use the dial underneath to adjust the setting. The factory setting is 4. Increase to 5 or 6 if you see water spots on dishes. Decrease to 1-3 if there are sticky whitish stains or a bluish film on glassware.

What is the correct way to load dishes into the upper basket?

Place delicate items like glasses, cups, and saucers in the upper basket. Angle items with recesses downward to allow water to drain. Ensure small items don't block the spray arms. The upper basket height can be adjusted by lifting the basket or pressing the handle to lower it.

Why are there spots or cloudy film on my glassware?

Cloudiness may result from hard water combined with too much detergent. If you have soft water, reduce detergent amount. Also, check rinse aid level – insufficient rinse aid can cause spotting. For persistent cloudiness, try a program with higher temperature or use a rinse aid booster.

How do I install the dishwasher properly?

The dishwasher must be installed by a professional. Ensure the cabinet opening meets dimensions (min 820x600 mm). Connect the inlet hose to cold water (3/4 inch thread), drain hose to a 40 mm min pipe, and plug into a grounded outlet. Level the dishwasher by adjusting the feet (max 50 mm) and secure it under the countertop.

What does the error code E1 mean?

Error code E1 indicates low water pressure. Check that the water supply is turned on fully and the inlet hose is not kinked. Also ensure the water pressure is between 0.04 and 1 MPa. If the problem persists, contact ILVE service.

USER MANUAL IVFIX4 ILVE

LIVE WITH

ICAE

Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

SwitchontheapplianceOpenthedoor, presstheOn/Offbuttontoswitchontheappliance

Electric indicator on control panel (if provided)

Loadthebaskets

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans,

thenloadthebaskets. Refertothedishwasherloading instructions.

Selectaprogramme

Press the Menue Button, then press "+" or "-" Button select one programme. at last press

OK button( See the section entitled "Operation instruction")

Runningthedishwasher

Turn on the water tap, close the door. The machine will start working after about 10 seconds.

- Changingtheprogramme

• 1. Arunninocyclecanonlybemodifiedifthasbeenrunningforashortime. Otherwisethedetergent

mayhavealreadyvbeenreleasedandthewateralreadvdrained.Ifthisisthecase.thedeterdent.

Read this Manual

DearCustomer,

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farmhouses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.

- Keep it as a reference in the later days.

Passitonto any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

CONTENTS

1) Safety Information....1

2) Operating Instructions....2

Control Panel....2 Dishwasher Features....2

3) Prior to using for the first time....3

A. Fill the Rinse Aid Dispenser....3 B. Function of Delargent....4

4) Loading the Dishwasher Basket....6

Attention before or after loading the Dishwasher Baskets....6 The Method of Loading Normal Dishware....7

5) Starting a washing programme....8 Wash Cycle Table....8 Turning on the Appliance....8 Change the Programme....9 At the End of the Wash Cycle....9

6) Maintenance and cleaning....10 Filtering System....10 Caring for the Dishwasher....11

7) Installation instruction....12 Installation preparation....12

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug
■ Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith alllocalcodesandordinances.

▲WARNING!

■ Improper connection of the equipment-grounding conductor can result in the risk of an electric shock.
Checkwithaqualifiedelectricianorservice representative if you are indoubt whether the appliance is properly grounded. Donot modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Donotabuse, siton, or standard the door or dish rack of the dish washer.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheatingelement.)
■ Donotoperateyourdishwasherunlessall enclosurepanelsareproperlyinplace.Open thedoorverycarefullyifthedishwasheris operating,thereisariskofwatersquirtingout.
■ Donotplaceanyheavyobjectstheonorstandon doorwhenitisopen. The appliancecouldtip forward.
■ When loading itemstobewashed: 1) Locate sharp items so that they are not likely

• Keepchildrenawayfromdetergentandrinseaid,keep childawayfromtheopendoorofthedishwasher,
  there could still be some detergent left inside. This appliance is not intended for use by persons (including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.
  Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.

2. Operation Instruction

IMPORTANT Togethebestperformancefromyourdishwasherreadalloperatinginstructions

before using it for the first time.

Control Panel

1. On/Off Button: To turn on/off the power supply.

2. Menu Button: Menu interface switch .Cycle selection: program selection→delay time setting

→option setting→alternative wash function selection →language setting

Pressing Menu, you can choose optional function and program

3.OK Button: Confirm the menu selected after pressing thebutton.

1. • Button: Move to the left. Press once the menumovestothenextitemontheleft.
2. • Button: Move to the right. Press once the menu moves to the next item on the right

3. Display Screen: To display delay time, running indicator, errorcodes, programs, Language and etc.

Quick operation guideline:

NOTE:

1. when a selected programme (no matter defined with a function or not) finished, all of the sets will be recorded by the system, but for the language set, it will be recorded immediately after you press the OK button.

2. The display will show "add rinse or add salt" information if you press power button, Remind you to refill rinse or salt. however you can still keep using the machine following the same operations as above-mentioned after pressing "MENU" button once.

Dishwasher Features

Frontview

BackView

3. Prior to using for the first time

Before using your dishwasher for the first time:

A Filltherinseaidispenser

B Fill indetergent

A. Fill the Rinse Aid Dispenser

RinseAidDispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

Whento Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

Astherinse aid diminishes, the size of the black dot

on the rinse aid level indicator changes, as illustrated below.

Full

3/4full

1/2full

- 1 / 4 full - Should refill to eliminate spotting

Empty

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes are still drying properly or are showing spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory values "4".)

A NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knifeblades.

B. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 ^d H. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

AmountofDetergenttoUse

Interior view of a kitchen appliance showing a tray with a showerhead and control panel (no visible text or symbols)

NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent and rinse aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

FillinDetergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as

4. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mlld detergent that is described as 'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
■ For particular items, select a program with as low a temperature as possible.
■ Toprevenldamage, donottakeglassandoutleryoutofthedishwasherimmediately
after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlerywithwooden,hornchinaor mother-of-pearlhandles
■ Plastic items that are not heat resistant
■ Oldercutlerywithgluedpartsthatarenot
temperature resistant
■ Bondedcutleryitemsordishes
■ Pewterorcooperitems
■ Crystalglass
■ Steelitemssubjecttorusting
■ Wooden platters
■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after a large number of washes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to inset the dishes underrunning water

Place objects in the dishwasher in the following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

■ The Method of Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cook ware so that they will not get moved by the spray of water.

Diagram of a mechanical assembly with gears and housing, no text or symbols present

Please be reminded that:
Pots, serving bowls, etc, must always be placed top down.
■ Deep pot should be slanted to allow water to flow out.

The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top sprayarm.

Illustration of kitchen utensils including a pot, lid, and pan (no text or symbols)

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by lift up the basket for the upper position, and up press the handle to lower the upper basket, see the picture below;

Lift the basket for upper position

Up press the handle to lower the basket

Folding back the cup shelves

For better stacking of pots and pans.
the spikes can be folded down as

shown in the picture right.

Folding Spikes of Lower Basket

For better stacking of pots and pans,

theenikes can be folded-down as

5. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Auto	Auto sensing wash, lightly, commonly or heavily soiled crockery, with or with out dried-on food	Pre-wash(45°C) Autowash (50-60°C) Rinse Rinse(60°C) Drying	5/28.75g(OrAll in1)	120~170	1.1~1.4	10.0~13.5
Inten.	Forheaviestsoiledcrockery, and soiledpots, pans, dishesetcwithdried onsoiling.	Pre-wash(50°C) Wash(65°C) Rinse Rinse Rinse(65°C) Drying	5/28.75g(OrAll in1)	155	1.45	17.0
Heavy	Forheavilysoiledloads, such aspots,plates,glasses andlighlysoiledpans.	Pre-wash(45°C) Wash(55°C) Rinse Rinse(60°C) Drying	5/28.75g(OrAll in1)	170	1.15	13.5
Normal (ASINZS2007)	Standarddailycyclefor normallysoiledloads,such as pots, plates, glasses.	Pre-wash Wash(55°C) Rinse Rinse(45°C) Drying	5/28.75g(OrAll in1)	175	0.62	12.0
Glass	For lightly soiled crockery and glass.	Pre-wash wash(40°C) Rinse Rinse(60°C) Drying	5/28.75g(OrAll in1)	115	0.85	13.5
60 Min	For lightly soiled loads that do not need excellent drying efficiency.	Pre-wash(50°C) Wash(60°C) Rinse(50°C) Drying	5/28.75g(OrAll in1)	60	0.80	9.0

5 Press the menue Button, then press "-" or "+" button change the program as follows direction:

Auto->Intensive->Heavy->Normal->Glass->60Min->Rapid->Soak;

If a program is selected, the display screen will show. Press the OK button, Close the door, the dishwasher begins to start.

Change the Program...

Premise:

1 A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the washwater. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").

2 Open the door, press the Menue button, then press "+" or "-" button, you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle...").

NOTE:

If you open the door, there might be upset. The program light will stop blinking and the buzzer will sound every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

1 Openthedoor alittle.

4 Closethedoor

2 After the spray arms stop working, you can open the door completely.

5 Thedishwasherwillrunafter10seconds.

3 Addforgottendishes.

At the End of the Wash Cycle

6. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filtersystem consists of a coarse filter, a flat (Main filter) And a microfilter (Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. The reason, its a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup underrunning water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improperreplacementofthe filtermayreduce the performance levelofthe appliance and damaged dishes and utensils.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Todeanthedgearoundthedoor,youshoulduseonlyasoftwarm,dampdoth. To avoid penetration of water into the coblock and electrical components, donot use a spraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

How to Keep Your Dishwasher in Shape

■ AfterEveryWash

After every wash, turn off the watersupply to the appliance and leave the doors slightly open so that moisture and odours are not trapped inside.

■ RemovethePlug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ NoSolventorAbrasiveCleaning

Tocleantheexteriorandrubberpartsofthedishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. Toremovspotsorstainsfromthesurfaceofthe interior, use a cloth dampened with water an alittle vinegar, or a cleaning product made specifically for dishwashers.

■ WhennotinUseforaLongTime

It is recommend that your run awash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ MovingtheAppliance

If the appliance must be removed, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this fromoccurring.

7. Installation instruction

Positioning the Appliance

▲Attention:

The installation of the pipes and electrical equipments should bed one by professionals.

Warning

Electrical Shock Hazard Disconnect electrical power before installing dishwasher.

Failure to do so can result in death or

Please carefully read the installation instruction.

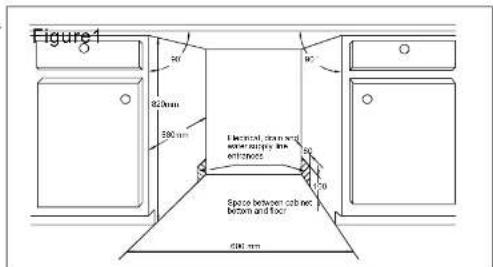

Illustrations of cabinel dimensions and installation position of the dishwasher

Preparations should be made before moving the dishwasher to the installation place.

If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in figure 2) when the door is opened.

【 】

Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

[ ]

Minimum space when the door is opened

Figure2

- Aestheticpanel's dimensions and installation

2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher (see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws and bolts (See figure 4b).

【Figure4a】

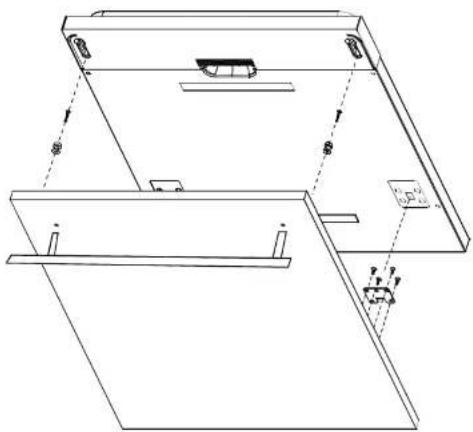

Installation of aesthetic panel

Technical line drawing of a mechanical assembly with no visible text or symbols

【 】

Installation of aesthetic

Figure4b

Take away the four short screws Pin up the four long screws

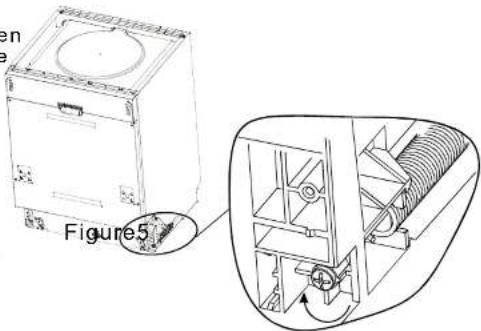

• Tensionadjustmentofthedoorspring

The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the doorspring tension. Rotate the adjustingscrew to drive the adjustortostrain or relax the steel cable (seefigure5).

Doorspring tension is correct when the door remains horizontal in the fully opened position yet rises to a close with the slight lift of a finger.

【 】Tensionadjustment of the doorspring

- Connectionofdrainhoses

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

- Dishwasher installation steps

! Install the furniture door to the outer door of the dish to the template for positioning of the brackets.

2 Adjust the tension of the doors springs by using an Allen key turning in tighten the left and right door springs. Failure to do this could cause damage to your dishwasher (Illustration 2).

3Connecttheinlethosetothecoldwatersupply.

4Connectthedrainhose. Refertodiagram. (Figure 6)

5 Connect the power cord

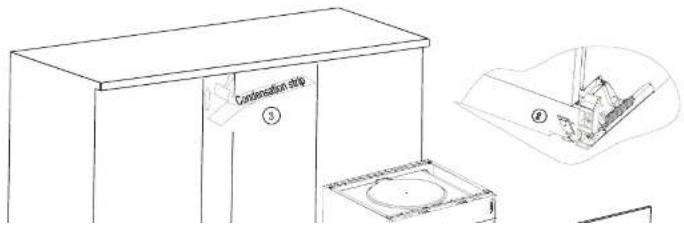

6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface.

7 Place the dishwasher into position.(Illustration 4)

8 Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning

the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).

9 Thedish washer must be secured in place. There are twowaystodo this

A. Normal work surface: Put the right(left) installation hook into the slot of the right(left) side plane and secure it to the work surface with two woodscrews (Illustration 6).

B. Marble or granite work top: Bend the right(left) installation hook into right-angle, and put it into the slot of the right(left) side plane and secure it to the work surface with two woodscrews s (Illustration 7).

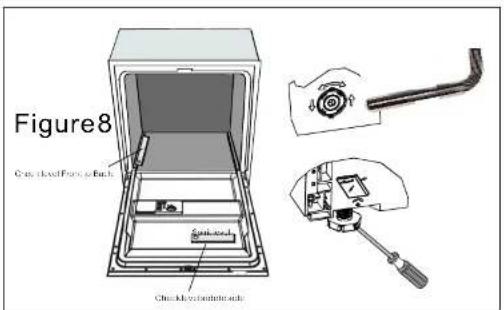

Dishwashermustbelevelforproperdishrackoperationandwashperformance.

1 Placeaspiritlevelondoorandracktrackinsidethetubasshowntocheckthatthe dishwasherislevel.
2 level the dishwasher by adjusting the three levelling legs individually.
3 When level the dishwasher, please pay attention not to let the dish washertip over.

【 】

Illustrationoffeetadjustment

NOTE:

The maximum adjustment height of the feet is 50 mm.

About Electricity Connecting

WARNING!

Forpersonalsafety:

DONOTUSEANEXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.

DONOT, UNDERANYCIRCUMSTANCES, CUTORREMOVETHEEARTHING

CONNECTIONFROMTHEPOWERCORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

How to Connect the safety supply hose

The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.

Water pressure must be between 0.04 MPa and 1 MPa. If the pressure is below the minimum consultour Service Department for advice.

1 Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.

2 Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.

3 Tum waterfully on beforestarting the dishwasher.

ABOUT THE SAFETY SUPPLY HOSE.

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

▲WARNING!

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to Disconnect the safety supply hose

1 Turn offline water.
2 Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severe splashing.
3 Unscrew the safety supply hose from the faucet.

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened slightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

Positioning the Appliance

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2Theinletvalveisopen
3 There is a leakage at the connection of the conducts
4 The wires are tightly connected
5The powerisswitchedon
6Theinletanddrainhosesareknotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: Afterinstallation,please makesure to keep this manual.

The content of this manual is very helpful to the users.

8. Troubleshooting Tips

Before Calling for Service

Problem	Possible CausesWhat To Do
Dishwasher doesn't start	Fuseblown,orthehome circuitbreakerhasbeen triggered.	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
	Powersupplyisnot tumedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurathepowercordisproperlypluggedintothe wallsocket.
	Errorcode:E1:Waterpressuroislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
	Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
water not pumped from dishwasher	Kinkindrainhose	Checkdrainhose.
	Filterclogged	Checkthefilter (see section titled "Cleaning The Filter")
	Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.If the problem is the kitchen sink not draining ,you may needaplumberratherthanaservicemanfordishwashers.
Suds in the tub	Improperdelargent	Useonlythespecialdishwasherdetergenttoavoldsuds.lfthisoccurs,openthedishwasherandletsudsevaporate.Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststlop. Openthedoorafterthe draininghasstoppedandcheckifthesudshave disappearedRepeatifnecessary.
	Spilledrinse-aid	Alwayswipeuprinse-aidspilisimmediately.

General

Unsatis -factory washing result
Unsatis -factory drying result

Problem	Possible Causes	What To Do
The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
	Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
	Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
	Itemsaroblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotalefreely.r
	Thefiltercombination inthebascofwash cabinetisnotcleanor isnolcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSprayAms".
Cloudiness on glassware	Combinationofsoft waterandloornuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandtoget themclean.
Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamilidabrasivecleanertoeliminatethosemarks.
Detergent left in dispenser cups	Dishesblock detergentcups.	Ro-loadingthedishesproperly.
The dishes are not drying	Improperioading	Loadthedishwasherassuggestedinthedirections.
	Todillerinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
	Dishesareremoved toosoon	Donotemptyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncethedishesarebarelywarmlothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
	Wrongprogram hasbeenselected	Inshortprogramthewashingtemperatureislower.Thisslowwarencleaningperformance Choose

WARNING!

■ Ifoverflowoccurs,turnoffthemainwatersupplybeforecallingaservice.

■ Ifthereiswaterinthebasepanbecauseofanoverfillorsmallleak,

thewatershouldberemovedbeforerestartingthedishwasher.

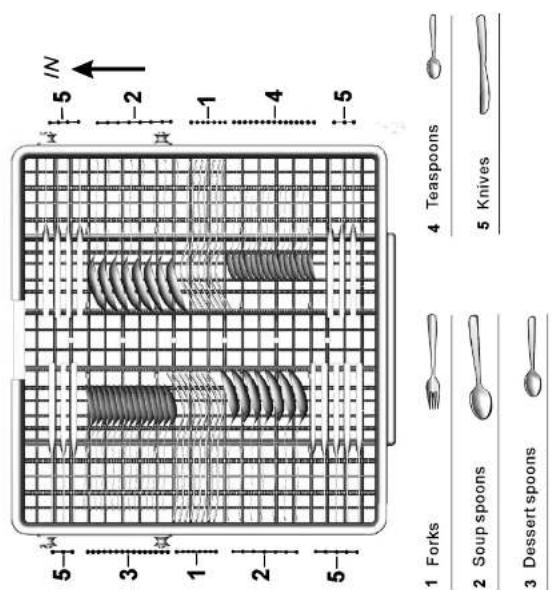

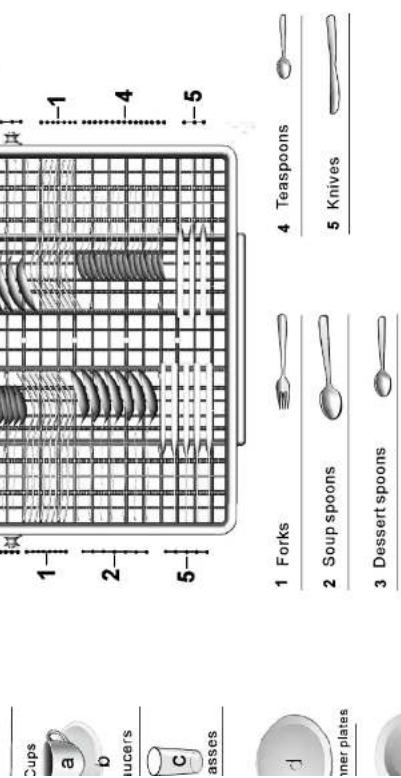

Technical Information

3.Cutterly basket:

Information for comparability tests in accordance with (*AS/NZS 2007.1) ■ Voltage:220-240V/50Hz ■ Capacity: 15 place settings ■ Position of the upper basket: lowe ■ Programme: Normal ■ Detergent(Pre/main): 5 g/28.75 g ■ Rinse aid setting: 6

WARRANTY CARD

ILVE.COM.AU

Eurolinx Pty Limited A.B.N. 50 001 473 347 trading as ILVE ("ILVE")

Office:

48-50 Moore Street, Leichhardt N.S.W 2040 Post:

Locked Bag 3000, Annandale, N.S.W 2038 P: 1300 856 411

WARRANTY REGISTRATION

Your ongoing satisfaction with your ILVE product is important to us. We ask that you complete the enclosed Warranty Registration Card and return it to us so that we have a record of the ILVE product purchased by you, Alternitivley, you can now register your warranty online at http://support.eurolinx.com.au/

PRIVACY

ILVE respects your privacy and is committed to handling your personal information in accordance with the National Privacy Principles and the Privacy Act 1988 (Cth). A copy of the ILVE Privacy Policy is available at www.ilve.com.au. ILVE will not disclose any personal information set out in the Warranty Registration Card ("Personal Information") without your consent unless required by:

1. law;

2. any ILVE related company;

3. any service provider which provide services to ILVE or assist ILVE in providing services (including repair and warranty services) to customers. Our purpose in collecting the Personal Information is to keep a record of the ILVE product purchased by you, in order

is defective by a factor other than a defect arising in the manufacture of the ILVE product, including but not limited to:

(a) damage through misuse (including failure to maintain, service or use with proper care), neglect, accident or ordinary wear and tear (including deterioration of parts and accessories and glass breakage);

(b) use for purpose for which the ILVE product was not sold or designed;

(c) use or installation which is not in accordance with any specified instructions for use or installation;

(d) use or operation after a defect has occurred or been discovered;

(e) damage through freight, transportation or handling in transit (other than when ILVE is responsible);

(f) damage through exposure to chemicals, dusts, residues, excessive voltage, heat, atmospheric conditions or other forces or environmental factors outside the control or ILVE;

(g) repair, modification or tampering by the purchaser or any person other than ILVE, an employee of ILVE or an authorised ILVE service contractor ^* ;

(h) use of parts, components or accessories which have not been supplied or specifically approved by ILVE.

(i) damage to surface coatings caused by cleaning or maintenance using products not recommended in the ILVE product handbook provided to the purchaser upon purchase of the ILVE product;

(j) damage to the base of an electric oven due to items having been placed on the base of the oven

WARRANTY CARD CONTINUED

ILVE.COM.AU

1. Proof of Purchase

Customers must retain proof of purchase in order to be eligible to make a warranty claim in respect of an ILVE product.

1. Claiming under the Warranty

Customers will bear the cost of claiming under this Warranty unless ILVE determines the expenses are reasonable, in which case the customer must claim those expenses by providing written evidence of each expense to ILVE at the address on the Warranty Registration Card.

1. Statutory Rights

(a) These terms and conditions do not affect your statutory rights.

(b) The limitations on the Warranty set out in this document do not exclude or limit the application of the consumer guarantees set out in the Act or any other equivalent or corresponding legislation in the relevant jurisdiction where to do so would: (i) contravene the law of the relevant jurisdiction; or

(ii) cause any part of the Warranty to be void.

(c) ILVE excludes indirect or consequential loss of any kind (including, without limitation, loss of use of the ILVE product) and (other than expressly provided for in these terms and conditions) subject to all terms,

conditions and warranties implied by custom, the general law, the Act or other statute.

(d) The liability of ILVE to you for a breach of any express or non-excludable implied term, condition or warranty is limited at the option of ILVE to:

(i) replacing or repairing the defective part of the ILVE product;

(ii) paying the cost of replacing or repairing the defective part of the ILVE product;

(iii) replacing the ILVE product; or

(iv) paying the cost of replacing the ILVE product. (e) Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

1. Defects

Any part of an ILVE product deemed to be defective and replaced by ILVE is the property of ILVE. ILVE reserves the right to inspect and test ILVE products in order to determine the extent of any defect and the validity of a claim under the Warranty.

*For your closest ILVE authorised service agent please contact ILVE on 1300 856 411 or Email: [e-mail]

ALL SERVICE CALLS MUST BE BOOKED THROUGH THE ILVE SERVICE AND WARRANTY DEPARTMENT ON 1300 856 411

01062014

WARRANTY CARD TEAR OFF

ILVE.COM.AU

iWarranty

REGISTER YOUR WARRANTY ONLINE NOW

GO TO: http://support.eurolinx.com.au/

NOTES

ILVE.COM.AU

LIVE WITH ILVE

ICAE
