Product Type	Built-in Dishwasher
Brand	ILVE
Model	IVSIX6
Place Settings	10-12 Place Settings
Energy Efficiency Class	A+

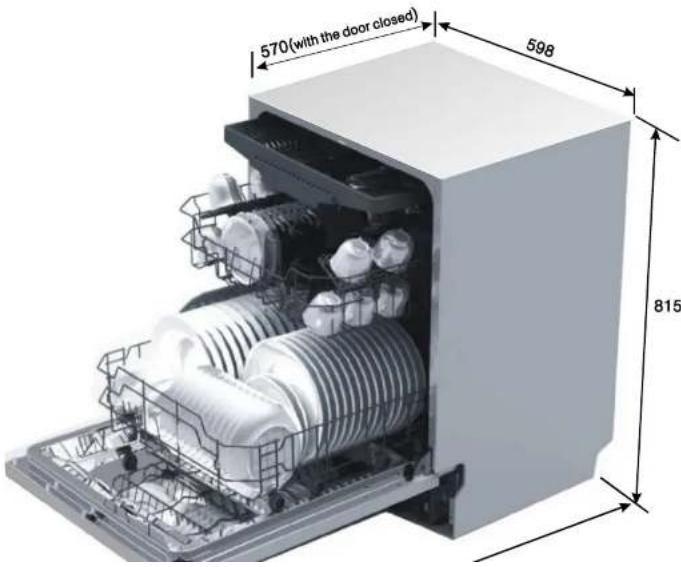

Dimensions (H x W x D)	85 cm x 60 cm x 57 cm
Weight	42 kg
Power Supply	220-240 V, 50 Hz, 10 A
Water Connection	Cold water only
Noise Level	44 dB(A)
Number of Programs	6 Programs (Eco, Intensive, Quick, Glass, Pre-rinse, Auto)
Safety Features	Child Lock, Anti-flood System, Overflow Protection
Display	LED Time Remaining Indicator
Interior Material	Stainless Steel
Adjustable Racks	Height-adjustable upper basket, folding tines on lower basket
Drying System	Condensation Drying
Water Consumption per Cycle	9.5 L (Eco program)
Energy Consumption per Year	~260 kWh
Maintenance	Clean filters monthly, descale every 3 months
Spare Parts Availability	Racks, filters, spray arms, and seals available

Frequently Asked Questions - IVSIX6 ILVE

How do I start a wash cycle?

Load the dishwasher, add detergent, select a program using the control panel, and press the Start button. The LED will indicate the remaining time.

What should I do if the dishwasher does not drain?

Check if the drain hose is kinked or the filter is clogged. Clean the filter and ensure the hose is properly connected. Also inspect the pump for obstructions.

Can I use any detergent?

Use detergent specifically designed for dishwashers, such as powder, gel, or tablets. Avoid hand dishwashing soap as it can cause excessive foaming.

Why is there water left in the bottom after a cycle?

This could be due to a clogged filter, a blocked drain hose, or a faulty drain pump. Check and clean the filter and drain area.

How do I clean the spray arms?

Remove the spray arms, rinse them under running water, and use a toothpick to clear any blocked holes. Reattach securely.

What does the child lock do and how to enable it?

The child lock prevents children from accidentally starting the dishwasher or changing settings. Press and hold the Child Lock button (often labeled with a key icon) for 3 seconds to activate.

My dishes are not drying completely. Why?

Ensure you have added rinse aid and adjust the dosage. Also, select a program with drying phase or use the Extra Dry option if available.

How often should I clean the filter?

Clean the fine filter after every cycle or at least once a week to prevent clogs and ensure optimal performance. The coarse filter can be cleaned less frequently.

What are the installation requirements?

The dishwasher requires a 220-240V power outlet, cold water supply (3/4 inch thread), and a drain connection. Ensure a gap of at least 5 cm behind for hoses.

How do I troubleshoot error codes?

If the display shows an error code (e.g., E1, E2), refer to the user manual. Common fixes include checking water supply (E1), draining blockages (E2), or heating issues (E3).

USER MANUAL IVSIX6 ILVE

Quick Operation Guide

For detailed operating method read the corresponding content on the instruction manual.
Switch on the appliance	Open the door, press the On/Off button to switch on the appliance.
Fill the detergent dispenser	Compartment A:For each wash cycle.Compartment B:For programs with pre-wash only.(Follow the user instructions)
Check the rinse aid level	Mechanical indicator C.Electric indicator on control panel (if provided).
Load the baskets	Scrape off any large particles food. Soften remnants of burnt food in pans,then load the baskets. Refer to the dishwasher loading instructions.
[X3W4]
Select a programme	Close the door, press the Programme Button until the selected program lights up.( See the section entitled “Operation instruction”)
[CH81]
Running the dishwasher	Turn on the water tap, press the start/Pause button, the machine will start working afterabout 10 seconds.
[6A44]
Changing the programme	● 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergentmay have already been released and the water already drained. If this is the case, the detergentdisperse must be refilled

Read this Manual

Dear Customer,

This appliance is intended to be used in household

and similar applications such as:

-staff kitchen areas in shops, offices and other

working environments;

-farm houses;

-by clients in hotels, motels and other residential

type environments:

-bed and breakfast type environments.

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.

- Keep it as a refer in the later days.

Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips etc.

Before Calling for Service

To review the section on troubleshooting Tips

1) Safety Information....1

2) Operation Instructions....2

Control Panel....2

Dishwasher Features....2

3) Prior to using for the first time....3

A. Rinse Ald Dispenser....3

B. Detergent 4

4) Loading the Dishwasher Basket......6

Attention before or after loading the Dishwasher

Baskets....6

The Method of Loading Normal Dishware....7

5) Starting a washing programme....8

Wash Cycle Table....8

Turning on the Appliance....8

Change the Programme....9

At the end of the Wash Cycle....9

6) Maintenance and cleaning....10

Filtering System....10

Caring for the Dishwasher....11

7) Installation instruction....12

Installation preparation....12

Aesthetic nanal's dimension and installation 12

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

⚠ WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
■ The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

▲ WARNING!

■ Improper connection of the equipment-grounding conductor can result in the risk of an electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not flt the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
■ Do not touch the heating element during or immediately after use. (This instruction is only applicable to machines with a visual heating element.)
■ Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out
■ Do not place any heavy objects onor standon the door when it is open. The appliance could tip forward.
■ When loading items to be washed: 1) Locate sharp items so that they are not likely

• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Children should be supervised to ensure that they do not play with the appliance.
  ■ The dishwasher must always be connected to the water system using new hose sets.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid

2. Operation Instruction

▲ IMPORTANT

To get the best performance from your dishwasher, read all operating instructions

before using it for the first time.

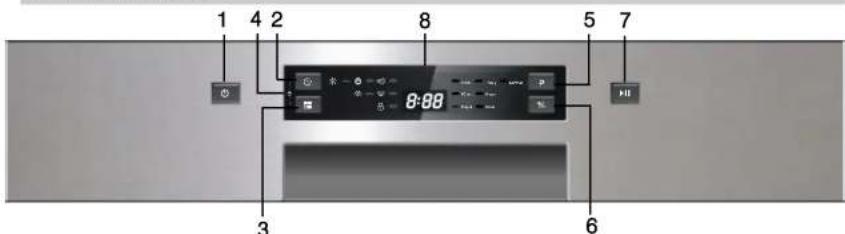

Control Panel

1. On/Off Button: To turn on/off the power supply.
2. Delay Button: Press the button to delay the washing time.
3. Function button: To select the Extra Dry function or the Express wash function.
4. Child lock button: Press the two buttons (Delay button and Function button) simultaneously for 3 seconds to lock the operation, the same way to unlock.
5. Program Button: To Press the button to select a wash Program.
6. Alt Button: Dual zone wash function, press the button to select the upper basket and top cutlery tray load only, or the lower basket load only, or all baskets load, and the corresponding indicators will be on.
7. Start /Pause button: To start the selected washing program or pause the washing program when the machine is working.

8. Display screen: To show the washing time, remaining time, washing programs and washing status etc.

9. Delay time, washing time, Remaining time, or error codes indicator: 8:88

10. Rinse Aid indicator:
    Indicates when the dispenser needs to be refilled.
    • Extra dry indicator:

An increased temperature during the final rinse to increase drying. There is a slight increase in the energy consumption. This function can only be used with programs of Intensive, Heavy, Normal, Glass and 90min.

• Express wash indicator:

This function can reduce the washing time. Water and energy consumption are slightly increased. This function can only be used with programs of Intensive, Heavy, Normal and Glass.

- Alt function indicators:

means Only the upper spray arm and top spray arm will be running.
means Only lower spray arm will be running
Both the indicators light on, means all the spray arms will be running
• Child lock indicator:
- Program indicators: Intensive, Heavy, Normal, 90min,

3. Prior to using for the first time

Before using your dishwasher for the first time:

A Rinse aid dispenser

B Detergent

A. Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

As the rinse aid diminishes, the size of the black dot

on the rinse aid level indicator changes, as illustrated below.

Full

3/4 full

1/2 full

- 1 / 4 full - Should refill to eliminate spotting

○ Empty

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are showing spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

A NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

B. Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents
1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverized detergent is without phosphate, thus the water softener function of phosphate is not given. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and colored spots will not remove completely. In this case please choose a program with higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

Amount of Detergent to Use

Close-up of a kitchen appliance with a tool and control panel (no visible text or symbols)

NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent and rinse aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Fill in Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as

4. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
- For particular items, select a program with as low a temperature as possible. - To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

■ Cutlery with wooden, horn china or mother-of-pearl handles
■ Plastic items that are not heat resistant
■ Older cutlery with glued parts that are not temperatureresistant
■ Bonded cutlery items or dishes
■ Pewter or copper items
■ Crystal glass
■ Steel items subject to rusting
■ Woodenplatters
■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after a large number of washes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in the following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

The Method Of Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Please be reminded that:
Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded

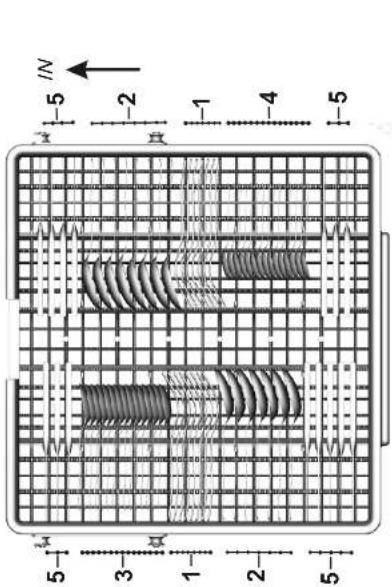

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Illustration of kitchen utensils and pots arranged in a grid (no text or symbols)

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by lift up the basket for the upper position, and up press the handle to lower the upper basket, see the picture below:

Lift the basket for upper position

Up press the handle to lower the basket

Folding back the cup shelves

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Architectural line drawing of two structural steel beams with support structures (no text or symbols)

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as

5. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	For heaviest soiled crockery, and soiled pots, pans, dishes etc with dried on soiling.	Pre-wash(50°C)Wash (65°C)RinseRinseRinse(65°C)Drying	5/28.75g (Or All in 1)	155	1.45	17.0
Heavy	For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-wash(45°C)Wash (55°C)RinseRinse (60°C)Drying	5/28.75g (Or All in 1)	170	1.15	13.5
Normal	Standard daily cycle for normally soiled loads, such as pots, plates, glasses.	Pre-washWash (55°C)RinseRinse(45°C)Drying	5/28.75g (Or All in 1)	175	0.65	12.2
Glass	For lightly soiled loads, such as glasses, crystal and line china.	Pre-washWash (40°C)RinseRinse(60°C)Drying	5/28.75g (Or All in 1)	115 0.85		13.5
90 min	For lightly soiled crockery and glass.	Wash(65°C)RinseRinse (60°C)Drying	33.75g	90 12.5	1.33
Rapid	A shorter wash for lightly soiled loads and quick wash.	Wash (40°C)RinseRinse (45°C)	20g	40	0.5	10.0
Soak

Soak

Change the Program

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the Start/Pause button, press the Program button more than 3 seconds, the machine will be in standby state, then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle").

NOTE:

If you open the door during a wash cycle, the machine will pause. The program light will stop blinking and the buzzer will sound every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

1 Press the Start/Pause button

4 Add forgotten dishes.

2 Open the door a little to stop the washing.

5 Close the door

3 After the spray arms stop working, you can open the door completely.

6 Press the Start/Pause button, the dishwasher will run after 10 seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

6. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarse filter 2

Larger items, such as pieces of bones or glass, that could block the drain and easily become trapped in the course filter. To remove the i temscaught by the filter, gently squeeze the tap on the top of this filter and lift out.

Fine filter 3

This filter holds soil and food residues in the sump area and prevents it from being redeposited on the dishes during wash cycle.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the previous page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

A WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

7. Installation instruction

Attention:

Warning

Please carefully read the installation instruction.

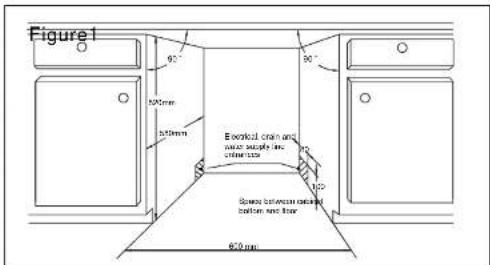

Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should be made before moving the dishwasher to the installation place.
1 Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).
2 If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in figure 2) when the door is opened.

【 】 Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

【 】 Minimum space when the door is opened
Figure2

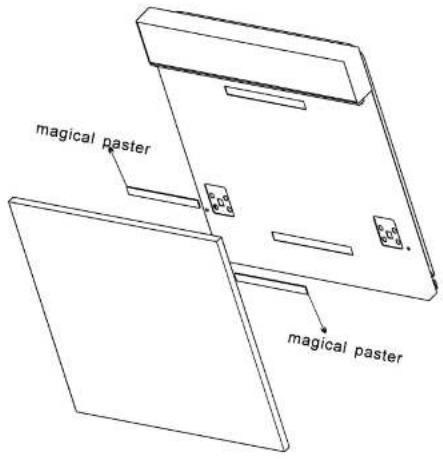

● Aesthetic panel's dimensions and installation

2 magical paster A and magical paster B be disjoined, magical paster A on the aesthetic wooden panel and felted magical paster B of the outer door of dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws and bolts(See figure 4b)

【Figure4a】

Installation of aesthetic panel

【Figure4b】

Installation of aesthetic

Take away the four short screws

Pin up the four long screws

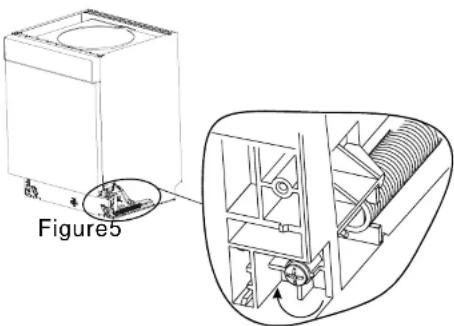

- Tension adjustment of the door spring

The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5).

Door spring tension is correct when the door remains horizontal in the fully opened position, yet rises to a close with the slight lift of a finger.

- Connection of drain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

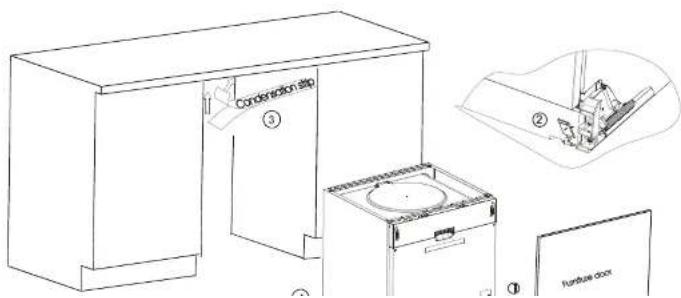

Dishwasher installation steps

1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher (Illustration 2).
3 Connect the inlet hose to the cold water supply.
4 Connect the drain hose. Refer to diagram.(Figure 6)
5 Connect the power cord.
6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface.
7 Place the dishwasher into position.(Illustration 4)
8 Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws (Illustration 6).
B. Marble or granite work top: Fix the side with Screw. (Illustration 7).

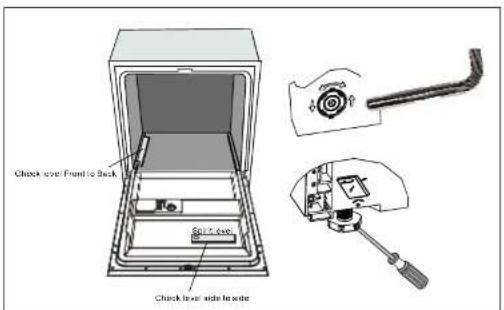

Dishwasher must be level for proper dish rack operation and wash performance.

1 Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level.
2 level the dishwasher by adjusting the three levelling legs individually.
3 When level the dishwasher, please pay attention not to let the dishwasher tip over.

【Figure 8】

Illustration of feet adjustment

NOTE:

The maximum adjustment height of the feet is 50 mm.

About Electricity Connecting

WARNING!

For personal safety:

DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

▲ WARNING!

please close the hydrant after using. (For the models: no safety inlet hose.)

Water Connection

Connect the cold water supply hose to a threaded 3/4 (inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

How to Drain Excess Water From Hoses

If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

8. Troubleshooting Tips

Before Calling for Service

Problem	Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the home circuit breaker has been triggered.	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
	Power supply is not turnedon	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall s ocket.
	Error code:E1;Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Doorofdishwasher notproperly c l osed.	Make sure to close the door properly and latch it.
water not pumped from dishwasher	Kinkin drainhose	Checkdrainhose.
	Filter clogged	Check thefilter(see section titled " Cleaning The Filter ")
	Kitchen sink clogged	Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub	Improperdetergent	Use only the special dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step.Open the door after the drain has stopped and check if the suds have disappeared.Repeat if necessary.
	Spilled rinse-aid	Always wipe up rinse-aid spills immediately.

Stained tub interior

Delargent with

Make sure that the deterrent is the one without

Unsatis -factory washing result
Unsatis -factory drying result

Problem	Possible Causes	What To Do
The dishes are not clean	The dishes were not loaded correctly.	See notes in " Loading the Dishwasher Baskets ".
	The programme was not powerful enough.	Select a more intensive programme.See" Wash Cycle Table ".
	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items are blocking the path of spray arms.	Rearrange the items so that the spray can rotate freely.
	The filter combination in the base of ash cabinet is not clean or is not correctly fitted.This may cause the spray arm jets to get blocked.	Clean and/or fit the filter combination correctly.Clean the spray arm jets. See "Cleaning the Spray Arms".
Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
Black or grey marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser cups	Dishes block detergent cupopens.	Re-loading the dishes properly.
The dishes are not drying	Improper loading	Load the dishwasher as suggested in the directions.
	Too little rinse-aid	Increase the amount of rinse-aid/refill the rinse-aid dispenser.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm to the touch. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.
	Wrong program hashing is elected	In short program the washing temperature is lower.This also lowers cleaning performance. Choose

Technical Information

1. Cutlery basket:


Information for comparability tests in accordance with (*AS/NZS 2007.1)
Voltage:220-240V/50Hz
■ Capacity: 15 place settings ■ Position of the upper basket: lower position
■ Programme: Normal
Detergent(Pre/maln): 5 g/28.75 g
- Rinse aid setting: 6

assert dishes

Product display of kitchen utensils including a microwave oven, pot, kitchenware, and a red espresso machine against a black background (no text or symbols)

OPEN 24/7

ILVE ACCESSORIES ONLINE SHOP

WARRANTY CARD

ILVE.COM.AU

Eurolinx Pty Limited A.B.N. 50 001 473 347 trading as ILVE ("ILVE")

Office:

48-50 Moore Street, Leichhardt N.S.W 2040 Post:

Locked Bag 3000, Annandale, N.S.W 2038 P: 1300 856 411

WARRANTY REGISTRATION

Your ongoing satisfaction with your ILVE product is important to us. We ask that you complete the enclosed Warranty Registration Card and return it to us so that we have a record of the ILVE product purchased by you, Alternitivley, you can now register your warranty online at http://support.eurolinx.com.au/

PRIVACY

ILVE respects your privacy and is committed to handling your personal information in accordance with the National Privacy Principles and the Privacy Act 1988 (Cth). A copy of the ILVE Privacy Policy is available at www.ilve.com.au. ILVE will not disclose any personal information set out in the Warranty Registration Card ("Personal Information") without your consent unless required by:

1. law;

2. any ILVE related company;

3. any service provider which provide services to ILVE or assist ILVE in providing services

is defective by a factor other than a defect arising in the manufacture of the ILVE product, including but not limited to:

(a) damage through misuse (including failure to maintain, service or use with proper care), neglect, accident or ordinary wear and tear (including deterioration of parts and accessories and glass breakage);

(b) use for purpose for which the ILVE product was not sold or designed;

(c) use or installation which is not in accordance with any specified instructions for use or installation;

(d) use or operation after a defect has occurred or been discovered;

(e) damage through freight, transportation or handling in transit (other than when ILVE is responsible);

(f) damage through exposure to chemicals, dusts, residues, excessive voltage, heat, atmospheric conditions or other forces or environmental factors outside the control or ILVE;

(g) repair, modification or tampering by the purchaser or any person other than ILVE, an employee of ILVE or an authorised ILVE service contractor ^4 ;

(h) use of parts, components or accessories which have not been supplied or specifically approved by ILVE.

(i) damage to surface coatings caused by cleaning or maintenance using products not recommended in the ILVE product handbook provided to the

4

WARRANTY CARD CONTINUED

ILVE.COM.AU

1. Proof of Purchase

Customers must retain proof of purchase in order to be eligible to make a warranty claim in respect of an ILVE product.

1. Claiming under the Warranty

Customers will bear the cost of claiming under this Warranty unless ILVE determines the expenses are reasonable, in which case the customer must claim those expenses by providing written evidence of each expense to ILVE at the address on the Warranty Registration Card.

1. Statutory Rights

(a) These terms and conditions do not affect your statutory rights.

(b) The limitations on the Warranty set out in this document do not exclude or limit the application of the consumer guarantees set out in the Act or any other equivalent or corresponding legislation in the relevant jurisdiction where to do so would: (i) contravene the law of the relevant jurisdiction; or

(ii) cause any part of the Warranty to be void. (c) ILVE excludes indirect or consequential loss of any kind (including, without limitation, loss of use of the ILVE product) and (other than expressly provided for in these terms and conditions) subject to all terms,

conditions and warranties implied by custom, the general law, the Act or other statute.

(i) replacing or repairing the defective part of the ILVE product;

(ii) paying the cost of replacing or repairing the defective part of the ILVE product;

(iii) replacing the ILVE product; or

(iv) paying the cost of replacing the ILVE product. (e) Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

1. Defects

Any part of an ILVE product deemed to be defective and replaced by ILVE is the property of ILVE. ILVE reserves the right to inspect and test ILVE products in order to determine the extent of any defect and the validity of a claim under the Warranty.

*For your closest ILVE authorised service agent please contact ILVE on 1300 856 411 or

Email: [e-mail]

All warranty service calls must be booked via the customer care department. The team can be contacted on 1 300 85 64 11 option 1 or [e-mail]

WARRANTY CARD TEAR OFF

ILVE.COM.AU

iWarranty

REGISTER YOUR WARRANTY ONLINE NOW

GO TO: http://support.eurolinx.com.au/

中

4

中

[NO TEXT]
