Product Type	PTZ Security Camera
Brand	Lumens
Model	VC-A60S
Image Sensor	1/2.8-inch CMOS
Resolution	1920 x 1080 (Full HD)
Optical Zoom	20x
Pan Range	360° continuous
Tilt Range	-30° to +90°
Dimensions	200 x 200 x 300 mm (approx.)
Weight	2.2 kg (approx.)
Power Supply	PoE+ (802.3at) or DC 12V
Power Consumption	Max 15W
Video Output	HDMI, 3G-SDI, IP (RTSP/RTMP)
Audio Input	3.5mm stereo jack
Control Interface	RS-232, RS-422, IP
Preset Positions	255
Motion Detection	Yes, built-in
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Mount Type	Ceiling or wall mount (bracket included)
Maintenance	Clean lens with soft, lint-free cloth. Do not use solvents.
Safety	Use only certified PoE switches or power adapters.
Spare Parts	Contact Lumens support for replacement parts.
Warranty	2 years limited

Frequently Asked Questions - VC-A60S Lumens

How do I reset the camera to factory defaults?

Press and hold the reset button on the back panel for 10 seconds until the LED blinks red.

Can I use the camera outdoors?

The VC-A60S is designed for indoor use only. Exposing it to rain or extreme temperatures may damage it.

What video formats are supported?

It supports H.264, H.265, and MJPEG compression via IP stream.

How do I set up the camera for the first time?

Connect the camera to your network via PoE, assign an IP address using the Lumens Discovery Tool, then access the web interface to configure settings.

Does the camera support ONVIF?

Yes, it is ONVIF Profile S compliant for integration with third-party systems.

What is the maximum SD card capacity?

The camera supports microSD cards up to 128GB for local recording.

Can I control the camera via RS-232?

Yes, use the supplied RS-232 cable and standard VISCA protocol.

How do I clean the camera lens?

Use a soft, dry cloth to gently wipe the lens. Avoid any liquid cleaners that could seep into the housing.

What should I do if the camera doesn't power on?

Check the PoE switch or power adapter, ensure the cable is securely connected, and try a different port.

Is there a warranty?

Yes, Lumens provides a 2-year limited warranty covering manufacturing defects.

USER MANUAL VC-A60S Lumens

Installation Guide - English

Technical line drawing of a Lumens device component (no text or symbols on the diagram itself)

Table of Contents

Copyright Information....3

Chapter 1 Safety Instructions....4

Chapter 2 Package Contents....7

Chapter 3 Product Overview ....8

3.1 Overview....8

3.2 Description of LED indicator 8

Chapter 4 Instruction for installation....9

4.1 Preparation before installation 9

4.2 Instruction for installation 9

4.3 Connecting the device 19

Chapter 5 Remote Control and Setting Menu 22

5.1 Functions of remote control 22

5.2 Setting Menu 23

Chapter 6 Descriptions of Major Functions .... 31

6.11 I would like to freeze images....33
6.12 I would like to rotate the image 33
6.13 I would like to change the camera direction 34
6.14 I would like to display the current status 34
6.15 I would like to reset to the original setting 34

Chapter 7 DIP Switch Setting ...... 35

7.1 DIP SWITCH....35
7.2 RS-422 Connection 37

Chapter 8 Troubleshooting....39

Copyright Information

Copyrights © Lumens Digital Optics Inc. All rights reserved.

Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc.

Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.

In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. The information in this file is subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may refer to names of other products or companies without any intention of infringement.

Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any

Chapter 1 Safety Instructions

Always follow these safety instructions when setting up and using the PTZ Video Camera:

1 Operation

1.1 Please use the product in the recommended operating environment.
1.2 Do not place the product in tilted position.
1.3 Do not place the product on an unstable trolley, stand or table.
1.4 Do not use this product near water or source of heat.
1.5 Use attachments only as recommended.
1.6 Use the type of power source indicated on the PTZ Video Camera. If you are not sure of the type of power available, consult your distributor or local electricity company for advice.
1.7 Always take the following precautions when handling the plug. Failure to do so may result in sparks or fire:
■ Ensure the plug is free of dust before inserting it into a socket.
■ Ensure that the plug is inserted into the socket securely.
1.8 Do not overload wall sockets, extension cords or multi-way plug boards as this may cause fire or electric shock.
1.9 Do not block the slots and openings in the case of PTZ Video Camera. They provide ventilation and prevent the PTZ Video Camera from overheating.
1.10 Except as specifically instructed in this User Manual, do not attempt to operate this product by yourself. Opening or removing covers may expose you to dangerous voltages and other hazards. Refer all servicing to licensed service personnel.
1.11 Unplug the PTZ Video Camera from the wall outlet and refer servicing to licensed service personnel when the following situations happen:
■ If the power cords are damaged or frayed.
■ If liquid is spilled into the Product or the Product has been exposed to rain or water.

2 Installation

2.1 For security considerations. please make sure the standard handing rack you

■ Precautions

Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

If PTZ Video Camera will not be used for an extended time, unplug it from the power socket.

		NoteRisk of Electric ShockPlease do not open it by yourself
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel.
	This symbol indicates that this equipment may contain dangerous voltage which could cause electric shock.			This symbol indicates that there are important operating and maintenance instructions in this User Manual with this unit.

■ FCC Warning

This PTZ Video Camera has been tested and found to comply with the limits for a Class A digital device, pursuant to Article 15-J of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation.

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard

Extron IP Link Compatible

Extron has developed and tested an IP Link driver for this product. Using IP Link technology, this device can be monitored, controlled and supported over a standard Ethernet network. In order to enable IP Link network connectivity and control, you must install and

configure an IP Link-enabled device such as a MediaLink controller or IP Link Ethernet control interface. To download an IP Link driver for this product, please visit http://www.extron.com/driverdownloads.

Chapter 2 Package Contents

VC-A60S

Instruction for installation

Remote Control

Power Cord Power Adapter RS-422 Connector

Appearance may vary depending on country/region

Metal Plate A Metal Plate B M3 Screws

Chapter 3 Product Overview

3.1 Overview

Front View

Back View

1. Camera lens 2. Power LED indicator
3. Standby LED indicator 4. DVI output
5. Component output 6. Power input
7. IR SELECT 8. OUTPUT Switch
9. Camera Address Selectors 10. RS-232 output

Chapter 4 Instruction for installation

4.1 Preparation before installation

Installation and connection of VC-A60S PTZ Video Camera requires special skills. To install by yourself, please follow necessary steps, ensure steady and tight installation of the device, and pay attention to your safety to avoid any accident.

4.1.1 Ensure the safety of the installation environment. Please do not install the device on unstable ceiling or in a place where the device is in danger of falling to avoid any accident.
4.1.2 Please check whether accessories in the box are complete or not. Please contact the supplier for any shortage, and make sure to keep the accessories in the box intact.
4.1.3 Please choose a proper place for installation of VC-A60S in advance. Please determine an installation place according to the following requirements.

4.1.1.1 Confirm the position for the object to be captured.
4.1.1.2 Confirm whether the VC-A60S is set at a proper distance from other light sources.

4.2 Instruction for installation

4.0.1. I would like to call VQ 4000 -- the J-1

4.2.1.2 Installation steps

1. Please adjust DIP switch at first prior to installation

Please refer to Chapter 7 DIP Switch Setting for the relevant descriptions on DIP switch.

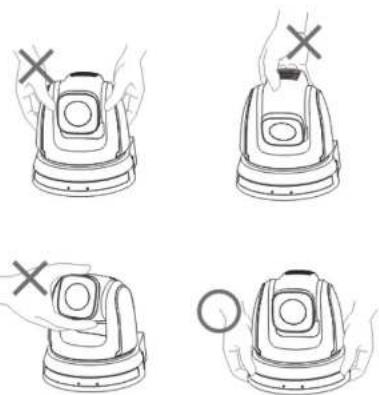

1. Place the camera on a flat desk directly to ensure the normal vertical and horizontal operation of the machine

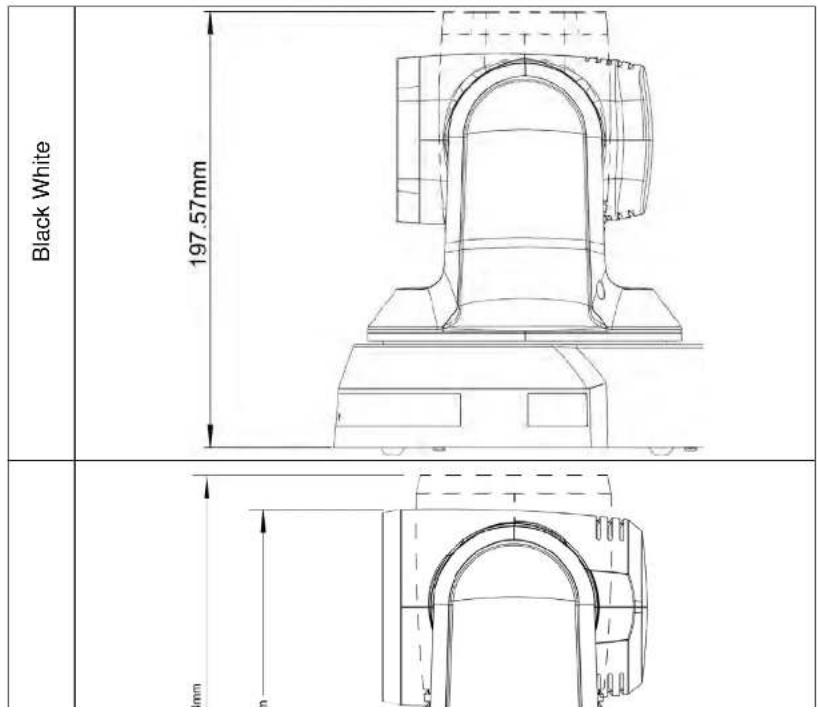

4.2.2.2 Camera Size

Length x Width x Height : 174x186x182.7mm

Weight : 2.0Kg

Black
White

4.2.2.3 Max. rotation dimension of camera

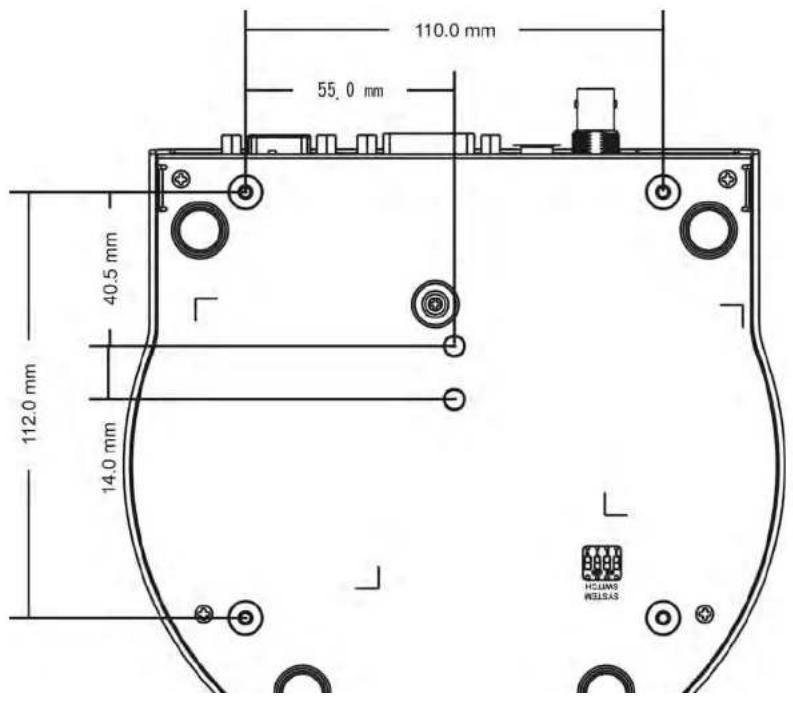

4.2.2.4 Size Diagram

1. Metal plate B - ceiling side

Metal plate B locking screw Metal plate B locking bolt

1. Metal plate A - machine side

Metal plate A locking screw

1. Bottom of machine


4.2.2.5 Precautions for installation

1. Before installation, please confirm the orientation of the machine relative to the object to be captured
2. It is recommended that the machine should be set at a distance of more than 1 meter away from the object to be captured. Please adjust for a best distance according to the magnification of the lens

1. The machine (including metal plates) is weighed at about 2.5 kg. If it is to be installed on the ceiling, please use the hanger that has obtained UL security approval to prevent the machine from falling down.
2. Please check whether the camera is installed securely on a

Technical line drawing of a mechanical component with mounting holes and internal cavities (no text or symbols)

1. Lock the metal plate B on ceiling mounted hanger

※Caution:

(1) Please use the hanger that has obtained UL security approval
(2) Please reserve the hole for the connecting wires of the camera

1. Combine the metal plate A and the metal plate B

(1) Push the metal plate A up to the ceiling and then to the right to latch the metal plate B
(2) And then secure with 2 M3 silver screws and 1 M3 black

4.2.2.7 How to remove

1. Remove the connecting wires from the camera
2. Uninstall the camera together with the ceiling, loosen the three screws that fix the metal plates A and B and push to the left to remove the machine

Technical line drawing of a mechanical component with mounting bracket and side ports (no text or symbols)

1. Then remove the screws on the hanger and the machine

4.3 Connecting the device

4.3.1 Image Output

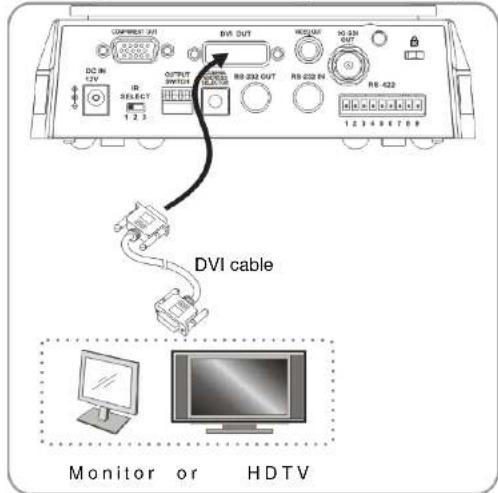

4.3.1.1 Connecting to an HDTV/computer monitor (DVI)

4.3.1.2 Connecting to a TV (C-Video)

4.3.1.3 Connecting to an HDTV (3G-SDI)

4.3.1.4 Connection to the device for image output

4.3.2 Controlling VCs with the computer

4.3.2.1 Connecting to one computer for connection between VCs (RS-232 in/out)

With RS-232 in/out, at most 7 VCs can be connected.

4.3.2.2 Connecting to one computer for connection between VCs (RS-422)

Chapter 5 Remote Control and Setting Menu

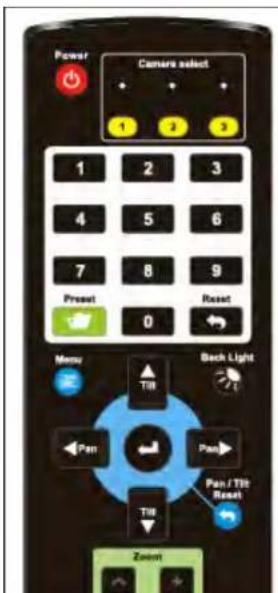

5.1 Functions of remote control

The below functions are listed alphabetically.

Item	Description
<,>,▲,▼	Move the lens
Back Light	Turn on/off back light compensation
Camera select	Select 1 ~ 3 VC-A60S
Focus-Manual / Far/Near	Turn on manual focus to adjust the focal length
Focus-Auto	Auto focus
Freeze	Freeze the screen
Home-Enter	Go back to the main page / Execute
Info	Status information
L/R Direction Set	L/R Direction / OFF / Normal
Menu	Display OSD menu
	Rotate the image/OFF/Mirror/

5.2 Setting Menu

Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults.

1^st LevelMajorItems	2^nd LevelMinor Items	3^rd LevelAdjustmentValues		Function Descriptions
Exposure	Mode	1. Auto2. Brightness3. Shutter Pri4. Iris Pri5. Manual		Exposure mode setting
	Exposure_Comp.	On/Off		AE Level
	Exposure_Comp. Level	-7~C~7		The value can be adjusted only after Exposure_Comp. is activated
	Spot Light On	/Off _		The value can be adjusted when the mode is set to Full Auto or Shutter Pri
	Spot Light Position	X(0~15)Y(0~15)		The value can be adjusted only after Spot Light is activated
		60/59.94/30/29.97	50/25mode
		1/350	1/300
		1/250	1/215
		1/180	1/150
		1/125	1/120
		1/100	1/100
		1/90	1/75
		1/60 1/50	—
		1/30	1/25
		1/15	1/12
		1/8	1/6
		1/4	1/3
		1/2	1/2
		1/1	1/1
	Manual Gain	1. F1.62. F23. F2.44. F2.85. F3.41. 0dB2. 3.6 dB3. 7.1 dB4. 10.7 dB5. 14.3 dB6. 17.8 dB7. 21.4 dB8. 25 dB9. 28.6 dB10. 32.1 dB11. 35.7 dB12. 39.3 dB13. 42.8 dB14. 46.4 dB15. 50 dB		Manually set the gain
		60/59.94/30/29.97 mode	50/25 mode
		1/10000	1/10000
		1/6000	1/6000
		1/4000	1/3500
		1/3000	1/2500
		1/2000	1/1750
		1/1500	1/1250
		1/60 1/50	—
		1/30	1/25
		1/15	1/12
		1/8	1/6
		1/4	1/3
		1/2	1/2
		1/1	1/1
	Manual Iris	1. F1.62. F23. F2.44. F2.85. F3.46. F47. F4.88. F5.69. F6.810. F811. F9.612. F1113. F1414. Close		Manually set the aperture
	Bright	1~C~28
White Balance	Mode	1. Auto2. Indoor3. Outdoor4. Trigger White Balance5. Auto White Balance6. Manual7. Outdoor Auto8. Sodium Lamp Auto9. Sodium Lamp10. Sodium Lamp Outdoor Auto	Select the color temperature mode
	One Push Trigger	ENTER	One push trigger
	R-Gain 0~ C~255 _		Adjustable when the white balance mode is set to Manual
	B-Gain 0~ C~255 _		Adjustable when the white balance mode is set to Manual
	Picture effect	1. Off2. Neg3. B&W	Set the picture effect
	Sharpness 1~ A~16		Adjust the sharpness of the image
	Hue 0~ A ~14	—	Adjustable when the image mode is set to Custom mode
	Gamma	1. 02. 1	Adjustable when the image mode is set to Custom mode
	Brightness 0~	A ~31	Adjustable when the image mode is set to Custom
	Contrast 0~ A	~31_	Contrast adjustment;Adjustable when the image mode is set to Custom
	Black Level	1. Off2. Type 13. Type 24. Type 3	Shadow details and transparency adjustment,adjustable when the image mode is set to Custom
	Pan / Tilt Limit	On / Off	Turn on/off the angle limit setting
	Pan Right Limit	0~170	Limit the right angle
	Pan Left Limit	-170~0	Limit the left angle
	Tilt UP Limit	0~90	Limit the upward angle
Dig.-Effect	Mirror	1.Off2. Mirror3. Flip4. Mirror + Flip	Set the mode at which the image is turned
Auto Focus	AF Sensitivity	1. Low2.Normal	Select the AF triggering speed. The higher the speed is, the faster AF is triggered
	AF speed	1.Normal2. 13. 24. 35. 46. 5	Focus speed after AF triggering
	C-Video	NTSC LB	Image mode
		NTSC CP
		NTSC SQ
		PAL LB
		PAL CP
		PAL SQ
	Video Type	DVI/SDI	Select video output type
		YPbPr
	Prompt On / Off	—	Turn on/off the prompt information on the display
			When the function is
	PD Address 1~ C~255		The Protocol set to PD allows the camera ID address to be assigned
	Output Mode	1. 1920x1080/60p2. 1920x1080/50p3. 1920x1080/30p4. 1920x1080/25p5. 1920x1080/60i6. 1920x1080/50i7. 1280x720/60p8. 1280x720/50p9. 1280x720/30p10. 1280x720/25p11. 1080/59.94p12. 1080/59.94i13. 1080/29.97p14. 720/59.94p15. 720/29.97p
	Factory Reset	On / Off	Resume the factory default setting
Status			Display the current setting status

Chapter 6 Descriptions of Major Functions

6.1 I would like to switch to VC-A60S

1. Press [Camera 1 \~ 3] on the remote control to select VC-A60S.

● Camera 1 \~ 3 is selected with IR SELECT.

6.2 I would like to save the current lens position data

1. Press [Preset + ID] on the remote control to save the current position data.

- ID shall be a digit [0 \~ 9].

- Use VISCA command to store position data to [0 \~ 127]

6.3 I would like to clear the saved position data

1. Press [Reset + ID] on the remote control to clear the given position data.

- ID shall be a digit [0 \~ 9].

- Use VISCA command to clear position data stored in [0 \~ 127]

6.4 I would like to turn on the back light compensation function

(Motionless Preset)

1. Press [MENU] to activate the setting menu.
2. Press [▶] or [◀] to select [System].
3. Press [ENTER] to activate.
4. Press [▲] or [▼] to select [Motionless Preset].
5. Press [ENTER] to activate.
6. Press [▶] or [◀] to select [Off / On].
7. Press [MENU] to exit.

6.7 I would like to zoom in/out images

6.7.1 Adjust image size

1. Press [Fast +] on the remote control to zoom in images.
2. Press [Fast -] on the remote control to zoom out images.

6.7.2 Fine-tune image size

1. Press [Slow +] on the remote control to zoom in images.
2. Press [Slow -] on the remote control to zoom out images.

6.8 I would like to adjust the focal length

When the environment is too dark to enable auto focus or fixed objects have to be shot in different brightness, AF Sensitivity can be set to [Low].

1. Press [MENU] to activate the setting menu.
2. Press [▶] or [◀] to select [Auto Focus].
3. Press [ENTER] to activate.
4. Press [▲] or [▼] to select [AF Sensitivity].
5. Press [ENTER] to activate.
6. Press [▶] or [◀] to select [High / Medium / Low].
7. Press [MENU] to exit.

6.9.2 Adjust the AF speed

The focus speed upon triggering AF Sensitivity

● [Normal] (default): Image flickering may not occur
● [Fast]: Fast focus speed
1. Press [MENU] to activate the setting menu.
2. Press [▶] or [◀] to select [Auto Focus].
3. Press [ENTER] to activate.
4. Press [▲] or [▼] to select [AF speed].
5. Press [ENTER] to activate.

+ Flip].

6.13 I would like to change the camera direction

1. Press [L/R Direction Set] on the remote control to switch [L/R Direction / Off / Normal].

6.14 I would like to display the current status

1. Press [Info] on the remote control to display the current status information.

6.15 I would like to reset to the original setting

1. Press [MENU] to activate the setting menu.
2. Press [▶] or [◀] to select [System].
3. Press [ENTER] to activate.
4. Press [▲] or [▼] to select [Factory Reset].
5. Press [ENTER] to activate.
6. Press [▶] or [◀] to select [On]
7. Press [ENTER] to execute.

Chapter 7 DIP Switch Setting

Please turn off the machine before changing DIP switch setting.

7.1 DIP SWITCH

7.1.1 OUTPUT Switch

Output Mode Setting	Output Mode Setting
1920x1080/60p 1920
1920x1080/30p 1920
1920x1080/60i 1920
1280x720/60p 1280

7.1.2 IR SELECT

ID Setting
1
2
3

7.1.3 Camera Address Selector

Setting	Function Descriptions
0~7	ID 0~7
8~9	Reserved

7.1.4 System Switch

7.2 RS-422 Connection

7.2.1 RS-422 Pin Description

Pin NO. Function
1 RXD OUT -
2 RXD OUT +
3	TXD	OUT	-
4	TXD	OUT	+
5	GND
6	RXD	IN	-
7	RXD	IN	+
8	TXD	IN	-
9	TXD	IN	+

Please connect IN+ to OUT+ when connecting to SONY productsFor non-SONY products, it may be necessary to connect IN+ to OUT-

7.2.2 Use RS-422 Connection

1. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector hole; then use flat screw driver to fix it

Isometric line drawing of a connector with a circular arrow indicating rotation (no text or symbols)

1. Insert the wired RS-422 connector back to the camera. Now the connection is completed

-Note: When RS-422 connection is being used, do not use

Chapter 8 Troubleshooting

This chapter describes problems you may encounter while using VC-A60S. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.

No.	Problems Solutions
1.	Boot without power signal	1. Make sure you have plugged in the power cord.2. Make sure the Service DIP switch is Off.
2.	There is no image output from VC-A60S	1. Check the power.2. Check if DIP switch is properly set. Please refer to Chapter 7 DIP Switch Setting for related settings.3. Make sure the display supports the output resolution; in general, the resolution is 1080p60/1080i60/720p60.4. Replace the cables and make sure they are not faulty.
3.	VC-A60S image is severely delayed	Please use 1080p or 720p 60/50 Hz signals rather than 25/30 Hz signals.
4.	Not working after changes to DIP Switch setting	After completing DIP Switch setting, unplug and reconnect the power cord and turn on the machine to change the setting.1.1 Press [MENU] on the remote control1.2 Choose [Status]1.3 Go to Page 5 of [System]1.4 Make sure the firmware version is correct2. Make sure the connection is correct (RS-232/422 Input).3. Make sure System Switch DIP 1 and DIP 3 are correct.
7.	The device cannot be controlled with RS-232/RS422	1. Make sure the connection is correct (RS-232/422 Input).2. Make sure System Switch DIP 1 and DIP 3 are correct.
