Product Type	Security Camera (PTZ)
Brand	Lumens
Model	VC-BC301P
Dimensions	200 x 200 x 150 mm
Weight	1.5 kg
Power Supply	PoE+ (Power over Ethernet)
Power Consumption	12 W
Image Sensor	1/2.8" CMOS
Resolution	1920 x 1080 (Full HD)
Pan Range	360° continuous
Tilt Range	-30° to +90°
Night Vision	IR LEDs up to 30m
Weatherproof Rating	IP66
Video Compression	H.265, H.264
Audio Support	Built-in microphone
Storage	MicroSD (up to 256GB)
Network	Ethernet, ONVIF compatible
Operating Temperature	-20°C to 50°C
Cleaning Instructions	Wipe gently with a dry, soft cloth. Do not use solvents.
Safety	Use only with specified power adapter. Avoid exposure to rain or moisture.
Spare Parts & Repairability	Contact Lumens service center for parts. Professional repair recommended.
Warranty	2 years (limited)

Frequently Asked Questions - VC-BC301P Lumens

How do I reset the Lumens VC-BC301P to factory defaults?

Press and hold the reset button located near the network port for 10 seconds using a paperclip. The camera will reboot and restore factory settings.

How can I connect the camera to my network?

Connect an Ethernet cable from your PoE+ switch or injector to the camera's network port. Use a web browser to access the camera's IP address assigned by DHCP, or use the Lumens configuration tool.

Does the VC-BC301P support ONVIF?

Yes, it is ONVIF Profile S compliant, allowing integration with most third-party NVRs and security software.

Can I install the camera outdoors?

Yes, the camera has an IP66 weatherproof rating, making it suitable for outdoor use in rain or snow.

What is the maximum microSD card capacity?

The camera supports microSD cards up to 256GB for local recording.

How do I enable motion detection alerts?

Log in to the camera's web interface, go to 'Event' settings, enable motion detection, and configure email or FTP notification.

Why is my camera not powering on?

Ensure you are using a PoE+ switch (IEEE 802.3at) or a PoE injector, and check the Ethernet cable connection. If using a power adapter, verify it is 12V DC and 2A.

Can I pan and tilt the camera remotely?

Yes, the camera supports PTZ control via web interface, IR remote (included), or RS-485 commands.

How do I clean the camera lens?

Use a soft, dry microfiber cloth to gently wipe the lens. Avoid using liquids or abrasive materials that may scratch the surface.

What is the default username and password?

The default username is 'admin' and password is 'admin'. It is strongly recommended to change the password after initial setup.

USER MANUAL VC-BC301P Lumens

User Manual - English

Black Lumens camera with visible lens and control buttons (no text or symbols on body)

VCAM105

[Important]

To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens https://www.MyLumens.com/support

Table of Contents

Chapter 1 Package Contents ......2
Chapter 2 Function Introduction ......3

2.1 I/O functions Introduction ....3

2.2 Tally Lamp Function Description....3

Chapter 3 Instruction for installation....4

3.1 Basic Devices....4

Chapter 4 System diagram ....5

Chapter 5 Remote Control and Setting Menu ....6

5.1 Functions of remote control....6

5.2 Setting Menu....7

Chapter 6 Network Function Settings Description....12

6.1 Web System Requirements....12

6.2 Web Page Function Description ......16

Chapter 7 Troubleshooting....30

Chapter 8 Safety Instructions....31

Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information.....32

Copyright Information 33

Chapter 1 Package Contents

VC-BC301P

Power Cord

Power Adapter

Appearance may vary depending on country/region

Adapter

Bracket Accessory Set

(For Japan only)

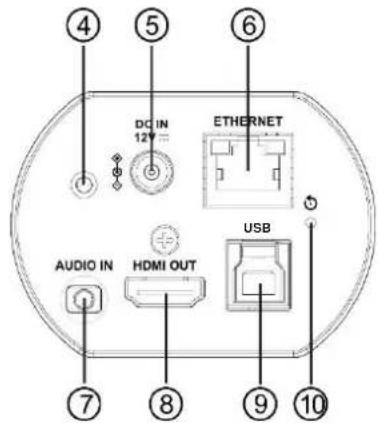

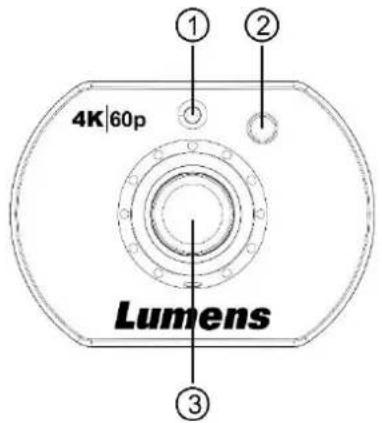

2.1 I/O functions Introduction

Front View Back View Bottom

4K|60p Lumens ① ② ③

④ ⑤ ⑥ DC IN 12V ETHERNET AUDIO IN HDMI OUT USB ⑦ ⑧ ⑨ ⑩

⑫ ⑪

NO.	Item	Function Descriptions
1	IR receive	Support infrared remote control
2	Tally Lamp	Display the Tally Lamp status of the camera
3	Lens	HD camera lens
4	Power indicator	Display the status of the camera
5	DC 12 V power connector	AC power supply connecting port
6	Network port	Network cable port supports routers or hubs of IEEE802.3af with PoE power supply
7	Audio input	Support Line In/Mic In audio input
8	HDMI 2.0 output	Connect to HDMI output signal source
9	USB 3.0 Type-B port	Connect to the computer using a USB cable; capture images via the software
10	Reset button	Press and hold for 5 seconds to reset the machine
11	Tripod locating holes	Tripod locating holes
12	Tripod screw holes	Support 1/4", 20 UNC

2.2 Tally Lamp Function Description

2.2.1 The tally indicator light function may be enabled through the control of VISCA command. The setting method is as follows:

Tally Mode: 8x 01 7E 01 0A 01 0p FF

$$ p = 0: O F F $$

$$ p = 4: \text { On (half - brightness) } $$

$$ p = 5: \text { On (full - brightness) } $$

3.1 Basic Devices

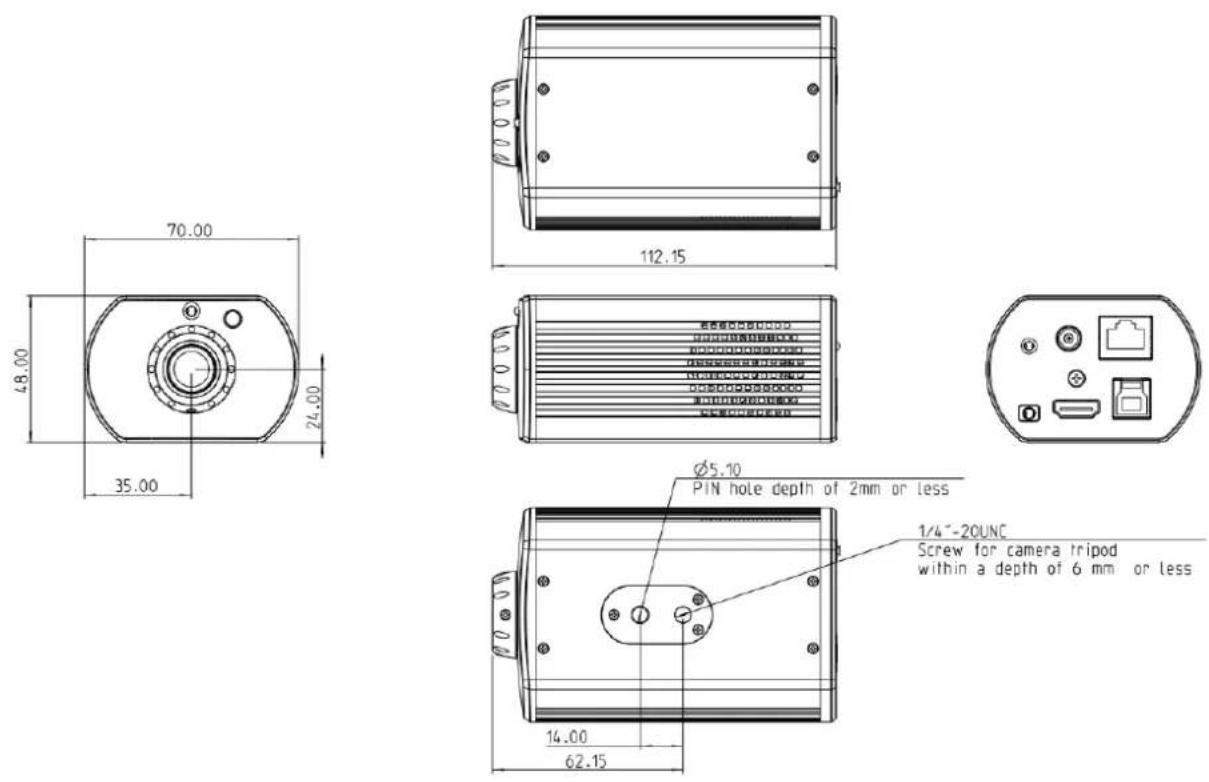

3.1.1 VC-BC301P size

Length x Width x Height : 113 x 70 x 51 mm

Weight : 0.35 Kg

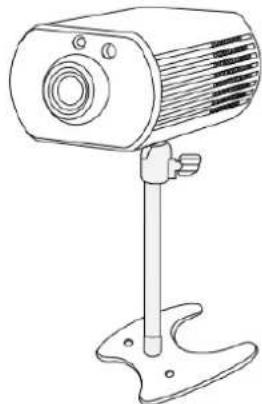

3.1.2 Installation method

You can use the included bracket accessory kit to install the camera on the wall or table

Line drawing of a mounted camera with a vertical sensor mounted on a wall (no text or symbols)

Line drawing of a portable electronic device with a stand and mounting bracket (no text or symbols)


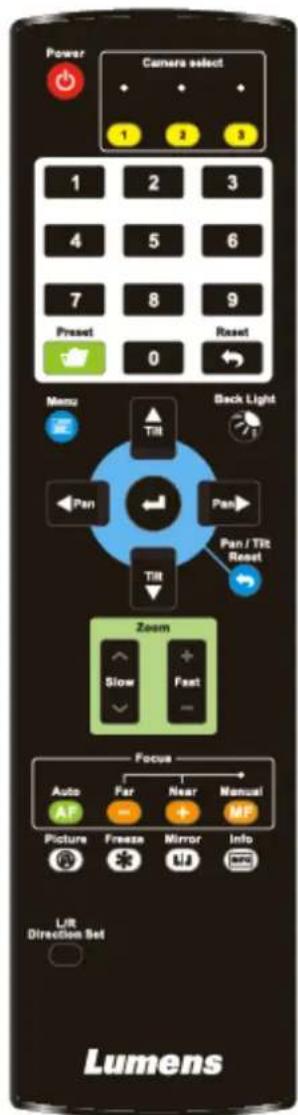

5.1 Functions of remote control

The remote control VC-IR01 is optional accessory

The below functions are listed alphabetically.

Power Camera select 1 2 3 1 2 3 4 5 6 7 8 9 Preset Reset 0 Menu Tilt Back Light Pan Pan Tilt Pan / Tilt Reset Zoom Slow Fast Focus Auto Par Near Manual AP - + + MP Picture Freeze Mirror Info L/R Direction Set Lumens

Item	Description
<,>,▲,▼	Move the lens
Back Light	Turn on/off back light compensation
Camera select	Choose Camera ID 1~3
Focus-Manual / Far/Near	Reserved
Focus-Auto	Reserved
Freeze	Freeze the screen
Home-Enter	Go back to the main page / Execute
Info	Status information
L/R Direction Set	L/R Direction / Normal
Menu	Display OSD menu
Mirror	Rotate the image (OFF / Mirror / Flip / Rotate)
Pan/Tilt Reset	Clear the Pan / Tilt setting
Picture	Switch image effect (OFF / Neg / B&W)
Power	Power Switch
Preset	Appoint an ID (0~9) to save the current position data
Reset	Appoint an ID (0~9) to delete the current position data
Zoom-Fast	Adjust image size
Zoom-Slow	Fine-tune image size

5.2 Setting Menu

Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults.

1^st LevelMajor Items	2^nd LevelMinor Items	3^rd LevelAdjustment Values		Function Descriptions
Exposure	Mode	1.Full Auto2.Shutter Pri3.Manual		Exposure mode setting
	Exposure Comp.	On/Off		AE Level
	Exposure Comp.Level	-5~C~5		The value can be adjusted after Exposure Comp. is activated
	Spot Light	On/Off
	Spot Light Position	X(0~6)Y(0~4)		The value can be adjusted after Spot Light is activated
	Shutter Pri	60/30mode	50/25mode	Adjustable when the Exposure mode is set to Shutter Pri
		1/10000	1/10000
		1/5000	1/5000
		1/3000	1/3000
		1/2500	1/2500
		1/2000	1/1750
		1/1500	1/1250
		1/1000	1/1000
		1/725	1/600
		1/500	1/425
		1/350	1/300
		1/250	1/215
		1/180	1/150
		1/120	1/120
		1/100	1/100
		1/90	1/75
		1/60	1/50
		1/30	1/25
		1/15	1/12
		1/8	1/6
		1/4	1/3
		1/2	1/2
		1/1	1/1
	Manual Gain	0dB/ 3 dB/ 6 dB/ 9 dB/12 dB/ 15 dB/ 18 dB/ 21dB/ 24 dB/ 27 dB/ 30 dB/33 dB/ 36 dB/ 39 dB/ 42dB/ 45 dB		Adjustable when the Exposure mode is set to Manual
	Manual Speed	60/30mode	50/25mode	Manually set the shutter
		1/10000	1/10000
		1/5000	1/5000
		1/3000	1/3000
		1/2500	1/2500
		1/2000	1/1750
		1/1500	1/1250
		1/1000	1/1000
		1/725	1/600
		1/500	1/425
		1/350	1/300
		1/250	1/215
		1/180	1/150
		1/120	1/120
		1/100	1/100
		1/90	1/75
		1/60	1/50
		1/30	1/25
		1/15	1/12
		1/8	1/6
		1/4	1/3
		1/2	1/2
		1/1	1/1
	Gain Limit	9 dB/ 12 dB/ 15 dB/ 18dB/ 21 dB/ 24 dB/ 27 dB/30 dB/ 33 dB/ 36 dB/ 39dB/ 42 dB/ 45 dB		Max. limit value of electron gain
	WDR	1. Disable2. 13. 24. 3

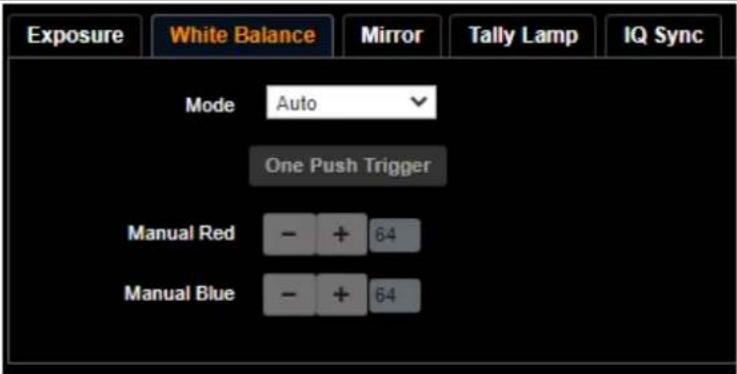

White Balance	Mode	1. Auto2. Indoor3. Outdoor4. One Push WB5. ATW6. Manual7. Sodium Lamp	Select the color temperature mode1. 4000k ~ 7000k2. 3200k3. 5800k4. 1700k ~ 10000k5. 1700k ~ 10000k6. Custom7. 2800k
	One Push Trigger	ENTER	One push trigger
	Manual Red	0~C~128	Adjustable when the white balance mode is set to Manual
	Manual Blue	0~C~128	Adjustable when the white balance mode is set to Manual
Picture	Picture effect	1. Disable2. Neg3. B & W
	Sharpness	0~A~14
	2D NR	1. Disable2. 13. 24. 3
	3D NR	1. Disable2. Low3. Typ4. Max
	Image Mode	1. Default2. Custom	The user may customize his/her desired image mode
	Image Mode Load	ENTER	Adjustable when the Image mode is set to Custom. After selected, the corresponding Image mode parameters will be read and applied to Custom
	Brightness	0~A~15	Adjustable when the Image mode is set to Custom
	Hue	0~A~15	Adjustable when the Image mode is set to Custom
	Saturation	0~A~15	Adjustable when the Image mode is set to Custom
	Gamma	0~A~3	Adjustable when the Image mode is set to Custom
Pan Tilt Zoom	Pan Flip	On/Off	Activate the reverse Pan direction
	Tilt Flip	On/Off	Activate the reverse Tilt direction
	Zoom Mode	Clear ImageZoom/Digital Zoom
D-Effect	Mirror	1. Disable2. Mirror3. Flip4. Mirror + Flip	Set the mode at which the image is mirror or flipped
Ethernet	DHCP	On/Off	Enable/Disable DHCP setting using left and right arrow keys and press [ENTER] to apply setting.
	IP Address	192.168.100.100	Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.
	Subnet Mask	255.255.255.0	Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.
	Gateway	192.168.100.254	Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.

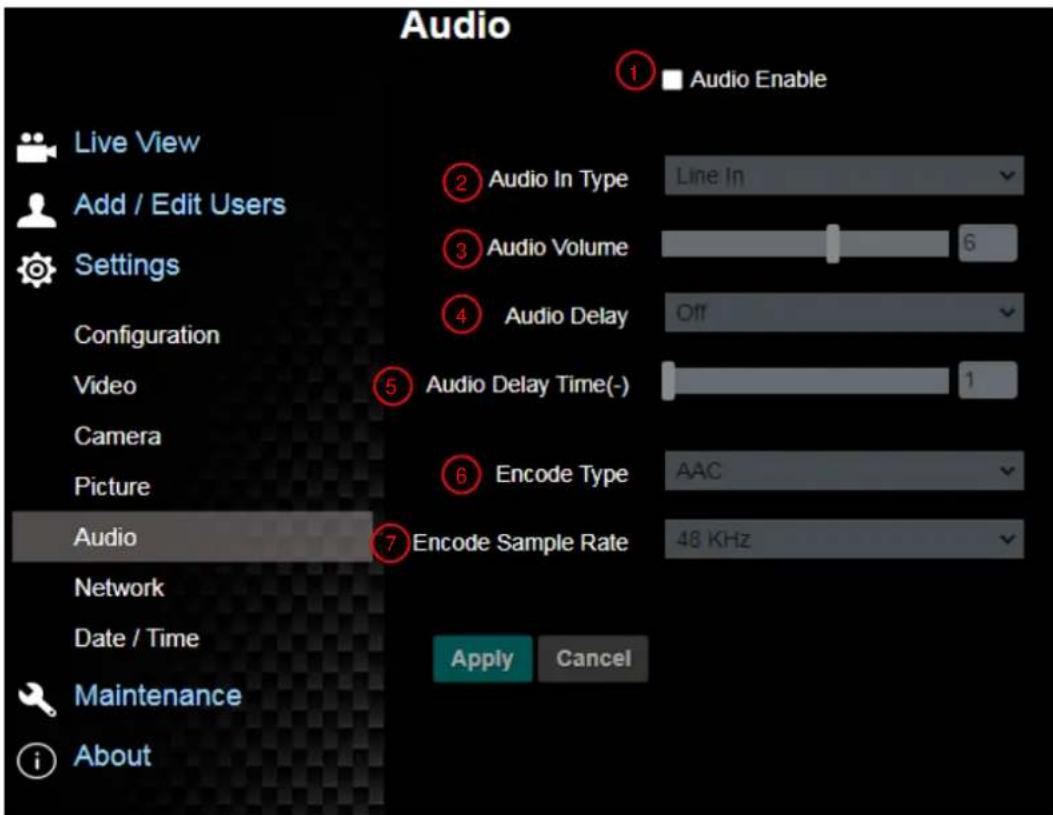

Audio	Audio In	Line In/Mic In	Set Audio In
	Audio Enable	On/Off	Turn on/off audio output
	Audio Volume	0~A~10	Audio Volume Setting
	Audio Delay	On/Off	When the audio is not synchronized with the video, enable this function to set the audio delay time
	Audio Delay Time (ms)	-1~-500ms	Set audio delay time
	Encode Type	1.AAC2.G.711	Set audio encode type
	Encode Sample Rate	1. 48 KHz(AAC)2. 44.1 KHz(AAC)3. 16 KHz(AAC)4. 16 KHz(G.711)5. 8 KHz(G.711)	Set the encode type and sample rate
System	Prompt	On/Off	Turn on/off the prompt information on the display
	IR Receive	On/Off	When it is Off, the remote control will not be able to control the camera. At this moment, turn off and then turn on the power to restore control of the remote control.

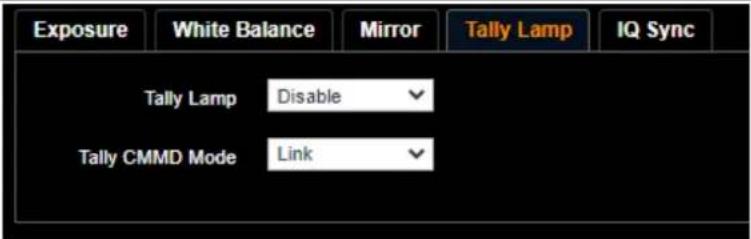

	Tally Lamp	On/Off	Select to enable or disable Tally Lamp function.
	Language	English/Chinese
	Initial Position	Last MEM/ 1st Preset	Select the camera lens to return to the last operated position or the first preset position after POWER ON
	Output Mode	1. 3840x2160/59.94p2. 3840x2160/50p3. 3840x2160/29.97p4. 3840x2160/25p5. 1080p/59.946. 1080p/507. 1080p/29.978. 1080p/259. 720p/59.9410. 720p/5011. 720p/29.9712. 720p/2513. 1080i/59.9414. 1080i/50	Choose the output resolution
	Factory Reset	On/Off	Resume the factory default setting
Status			Display the current setting status

6.1 Web System Requirements

6.1.1 Web Browser:

■ Internet Explorer 11 or above
■ FireFox 66.0.3 or above
- Chrome 73 or above
■ Edge 42.17134 or above
■ Safari 12.1 or above

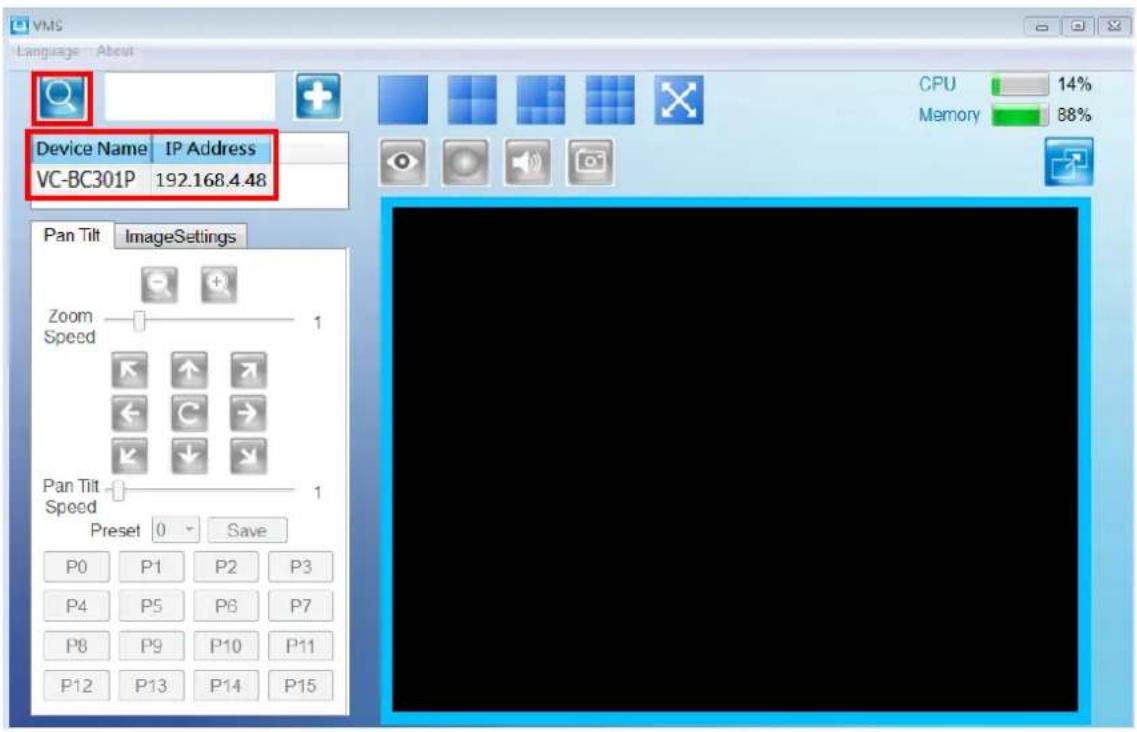

6.1.2 Using Lumens VMS Software to View the Images

• The VC-BC301P DHCP initial setting is ON. If VC-BC301P is connected to the local area network (LAN), the camera IP can be retrieved via the following methods
• Install Lumens VMS software (Please download from the Lumens official website, https://www.mylumens.com/support)

■ Open LUMENS VMS software

■ Search for the camera: Press [automatically search for the device] button to locate the VC-BC301P camera

■ Click VC-BC301P in the list and start operation after connecting to network

When using automatic search, the camera and computer must be in the same network segment, e.g.: 192.168.4.X

VMS Language About Device Name IP Address VC-BC301P 192.168.4.48 Pan Tilt ImageSettings Zoom Speed 1 Pan Tilt Speed 1 Preset 0 Save P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 CPU 14% Memory 88%

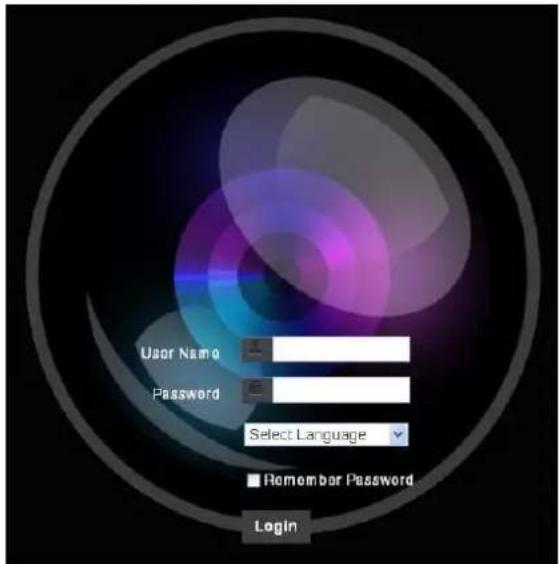

6.1.3 Using the Browser to View the Images

• Open the browser, and enter the URL of VC-BC301P in the IP address bar E.g.: http://192.168.100.100 (default IP address)
• Enter administrator's account and password Account: admin (Default)

Password: 9999 (Default)

User Name Password Select Language Remember Password Login

6.1.4 Using RTSP Player to View the Images

In addition to the browser and VMS, other free softwares also can be used for RTSP connection, such as VLC, Quick Time and PotPlayer

RTSP connection address formats are as follows:

• RTSP Main Streaming (1080P@H.265) => rtsp://camera IP:8554/hevc
• RTSP Sub1 Streaming (1080P@H.264) => rtsp://camera IP:8557/h264
• RTSP Sub2 Streaming (720P@H.264) => rtsp://camera IP:8556/h264

Example: Open VLC software and enter URL: rtsp://192.168.4.48:8557/h264

VLC media player Media Playback Audio Videos Subtitle Tools View Help Open File... Ctrl+O Open Multiple Files... Ctrl+Shift+O Open Folder... Ctrl+F Open Disc... Ctrl+D Open Network Stream... Ctrl+N Open Capture Device... Ctrl+C Open Location from clipboard Ctrl+V Open Recent Media Save Playlist to File... Ctrl+Y Convert / Save... Ctrl+R Stream... Ctrl+S Quit at the end of playlist Quit Ctrl+Q

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: rtsp://192.168.4.48:8554/hevc http://www.example.com/steam.avi stp://@-1234 mnr//mnr.example.com/steam.scz rtsp://server.example.csg.8080/test.stp http://www.youtube.com/watch?v=gg6fzx

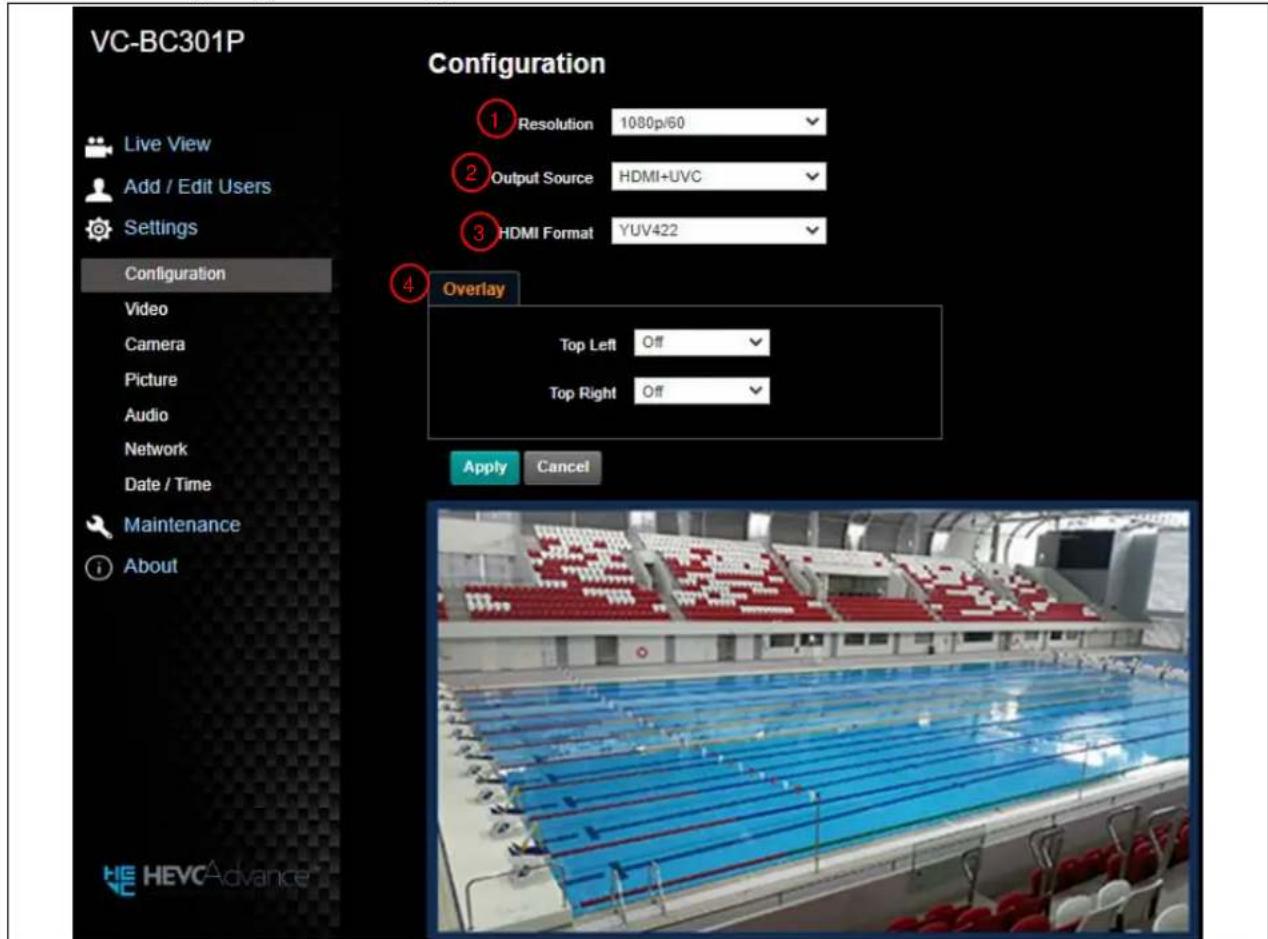

Interior view of a large indoor swimming pool with red and white seating, no visible text or signage.

6.1.5 Get VC-BC301P images/Adjust parameter settings by connecting the computer via USB

- View the images

VC-BC301P can be connected to a PC via a USB cable as a USB video source, and used with a USB video software conference system, such as Skype and Zoom.

Example: Enter Skype settings, go to audio and video page, and select VC-BC301P as the camera source

Skype Settings Account & Profile General Appearance Audio & Video Calling Messaging Notifications Contacts Help & Feedback VIDEO Camera Lumans VC-BC301P ✓ Lumans VC-BC301P Video Camera Webcam settings AUDIO Microphone Default communications device Automatically adjust microphone settings Speakers Default communications device 0 1 2 3 4 5 6 7 8 9 10

- Adjust parameter settings and control VC-BC301P

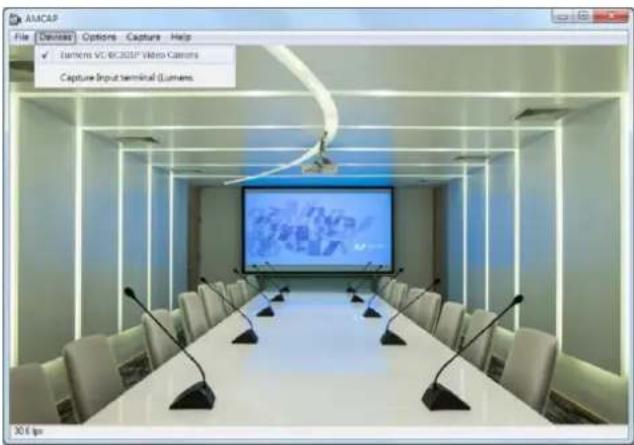

In addition to using the optional remote control VC-IR01, you can also download AMCAP software. Select VC-BC301P as the Devices image source

AMCAP File Options Options Capture Help ✓ Lumens VC-BC305P Video Camera Capture Input terminal (Lumens) 30.6 fps

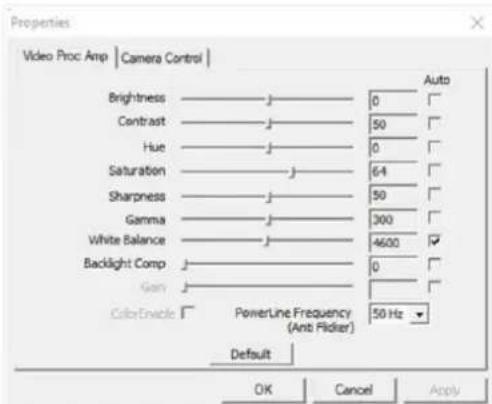

Click Options > Video Capture Filter to open the Properties Window to adjust the parameter settings and control VC-BC301P

Properties Video Proc Amp | Camera Control | Brightness — J — 0 Contrast — J — 50 Hue — J — 0 Saturation — J — 64 Sharpness — J — 50 Gamma — J — 300 White Balance — J — 4600 Backlight Comp — J — 0 Gain — J — ColorEnable □ PowerLine Frequency (Anti Flicker) 50 Hz Default OK Cancel Apply Auto

6.2 Web Page Function Description

6.2.1 Login Screen

1 User Name 2 Password 3 Select Language 4 Remember Password 5 Login

No	Item	Function Descriptions
1	Username	Enter user account (default: admin)
2	Password	Enter user password (default: 9999)
3	Language selection	Currently, the system supports English, Traditional Chinese and Simplified Chinese
4	Remember password	Save user account name and password to the browser. When you log in next time, there is no need to re-enter them
5	Login	Log into the administrator screen on the website

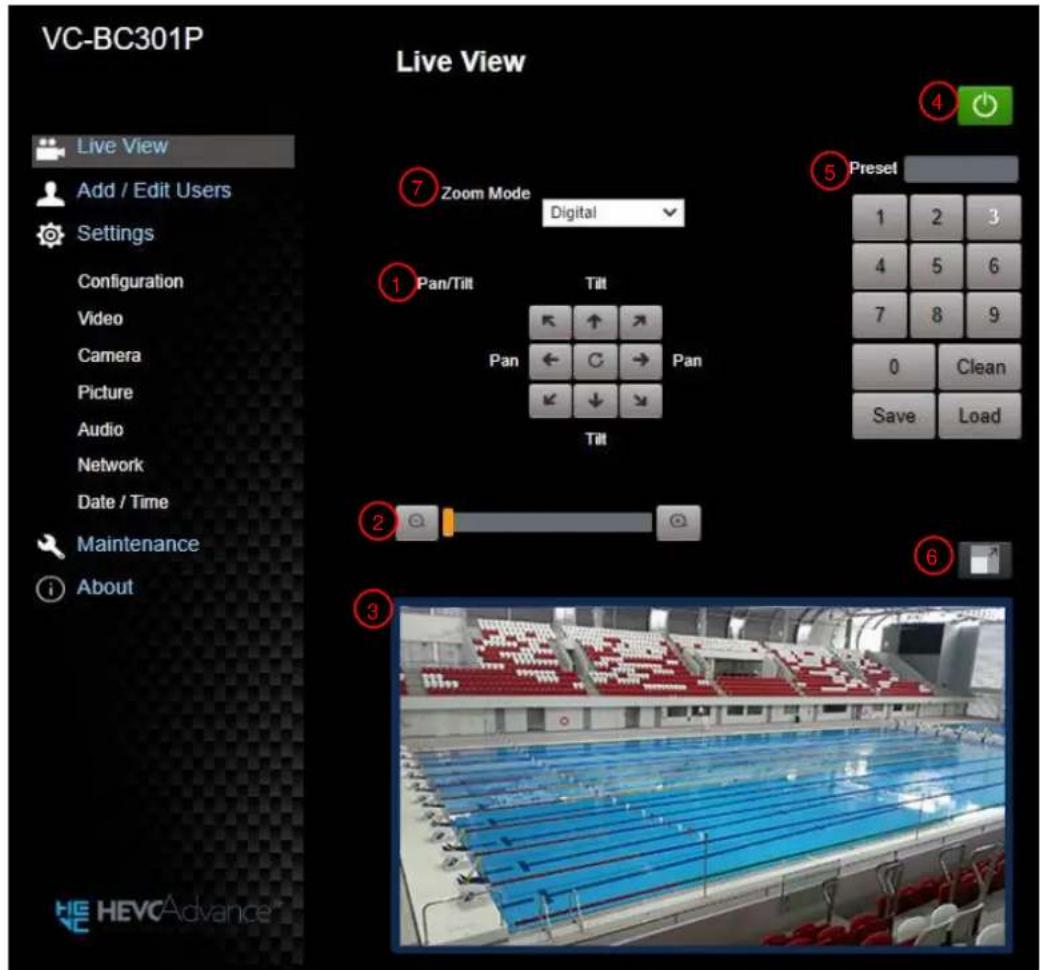

6.2.2 Viewing In Real Time

VC-BC301P Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About Live View Zoom Mode Digital 1 Pan/Tilt Tilt Pan ← C → Pan ← ↓ Tilt 2 3 4 5 6 7 8 9 0 Clean Save Load 5 Preset 4 ④ ⑤ ⑥ HEVCAvAdvance®

No	Item	Function Descriptions
1	Pan/Tilt setting	Adjust the Pan/Tilt position of the camera screen (ePTZ)
2	Zoom ratio	Adjust the zoom-in or zoom-out ratio via scroll bar
3	Preview window	Display the screen currently captured by the camera
4	Power button	Turn on or turn off the camera power
5	Preset setting	Select the number first and then select SAVE or LOAD
6	Switch to Full Screen	Switch the preview window to full screen
7	Zoom Mode	Select Zoom Mode (Digital/Optical)

6.2.3 Account Management

VC-BC301P Add / Edit Users Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About 1 User Name Password Confirm Password 2 Authority ● Admin ● Operator ● Viewer 3 OK Cancel 4 User Name Authority admin Administrator Edit

No	Item	Function Descriptions
1	Add user account	Enter a user name and password to add a new user
2	Permission setting	Set the new account management permissions
		User Type	Admin	Operator	Viewer
		View Images	Y	Y	Y
		Settings	Y	Y	N
		Account Management	Y	N	N
3	Applying setting	Add the newly created user to the list of account
4	List of accounts	Edit: Modify the user password and permissionsDelete: Delete the user account

6.2.4 Setting - System Setting

VC-BC301P Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About Configuration Resolution 1080p/60 Output Source HDMI+UVC HDMI Format YUV422 Overlay Top Left Off Top Right Off Apply Cancel

No	Item	Function Descriptions
1	Resolution	Set the resolution of the camera, resolutions supported by the camera are as follows:➢ 3840x2160/60p/ 59.94p/ 50p/ 30p/ 29.97p/ 25p➢ 1080p/60/ 59.94/ 50/ 30/ 29.97/ 25➢ 720p/60/ 59.94/ 50/ 30/ 29.97/ 25➢ 1080i 59.94/50After switching the resolution, the camera will restart. If there are no images on the website, please refresh the browser
2	Output source	According to the output resolution, you can select HDMI + streaming output or HDMI + UVC outputUVC option is limited to less than the 3840x2160/29.97p (inclusive) resolution
3	HDMI format	Select YUV422, YUV420, or RGBYUV420 is limited to two resolution options: 3840x2160/59.94p and 3840x2160/50p
4	Overlay	Select content to add to the preview window

6.2.5 Setting - Video

VC-BC301P Video ① Camera ID VC-BC301P ② Location Default Stream 1 Stream 2 Stream 3 Enable Stream1 Codec H.265 Resolution 4K Frame Rate 59.94 fps Bit Rate 15000 kbps Rate Control CBR IP Ratio 60 Apply Cancel

No	Item	Function Descriptions
1	Camera name	Modify the camera name■ Camera names are limited to 1-12 characters■ Please use a camera name by mixing uppercase and lowercase letters or numbers. Do not use “/” and “space” or special symbols
2	Camera Location	Modify the location of the camera, such as ROOM 1■ Camera location is limited to 1-12 characters■ Please use a camera name by mixing uppercase and lowercase letters or numbers. Do not use “/” and “space” or special symbols
3	Streaming 1 / Streaming 2 / Streaming 3	This can be seen when Settings - System Settings - Output Signals is set to HDMI + StreamingSupports 3 streaming outputs. Please refer to6.2.5.1 Streaming Parameter Settingfor relevant settings
4	Open Streaming	Confirm whether or not the streaming function is opened
5	UVC	This can be seen when Settings - System Settings - Output Signals is set to HDMI + UVC■ Encode Format:➢ 3840x2160 / 29.97 / 25 : H.264➢ Less than 1080p (inclusive): H.264/MJPEG■ Resolution: It is shown based on Settings - System Settings - ResolutionFrame Rate: 3840x2160 can only select the highest 29.97

6.2.5.1 Streaming parameter setting

Function		Streaming 1	Streaming 2	Streaming 3
Encode Format		H.265	H.264
Resolution		4K / 1080P / 720P	1080P / 720P	640x360
Frame Rate		Setting according to the supported resolution
Bit Rate(kbps)	Range	2,000~20,000	2,000~20,000	512~5,000
	Factory Default	15,000	7,500	1,000
Rate Control		CBR / VBR
IP Ratio		Setting according to the supported resolution

6.2.6 Setting - Camera

VC-BC301P Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About Camera 1 2 3 4 5 6 Exposure White Balance Mirror Tally Lamp IQ Sync Mode Full Auto Exposure Comp Level - + 0 WDR Off Gain Add Shutter Speed Smart AE Off Apply Cancel

No	Item	Function Descriptions
1	Zoom ratio	Adjust the zoom-in or zoom-out ratio via scroll bar
2	Exposure	Mode: Select exposure mode (Automatic/Shutter Priority/Aperture Priority/Manual)Exposure Comp. Level: Select exposure compensation levelGain: The gain limit is adjustable when the exposure mode is set to “Manual”WDR: Set the level of wide dynamic range (WDR) in order to obtain better imagesShutter Speed: The shutter speed is adjustable when the exposure mode is set to “Manual” or “Shutter Priority”
3	White Balance	■ Mode: Select the color temperature mode➢ Auto➢ Indoor➢ Outdoor➢ One Push WB➢ ATW➢ Manual➢ Sodium Lamp■ Open Push WB: One push color temperature is adjustable when the white balance mode is set to “One Push WB”■ Manual Red/Blue: Manually adjust blue/red color temperature
4	Mirror	■ Mirror: Set the mode at which the image is mirror and flipped➢ Off➢ Mirror➢ Flip➢ Mirror + Flip
5	Tally Lamp	Enable/Disable Tally Lamp function■ Tally CMMD Mode: Tally On and Mode command linkedNormal: Not linkedLink: LinkedWhen it is disabled, the Tally indicator will not receive RS232 commands to trigger Enable or Disable

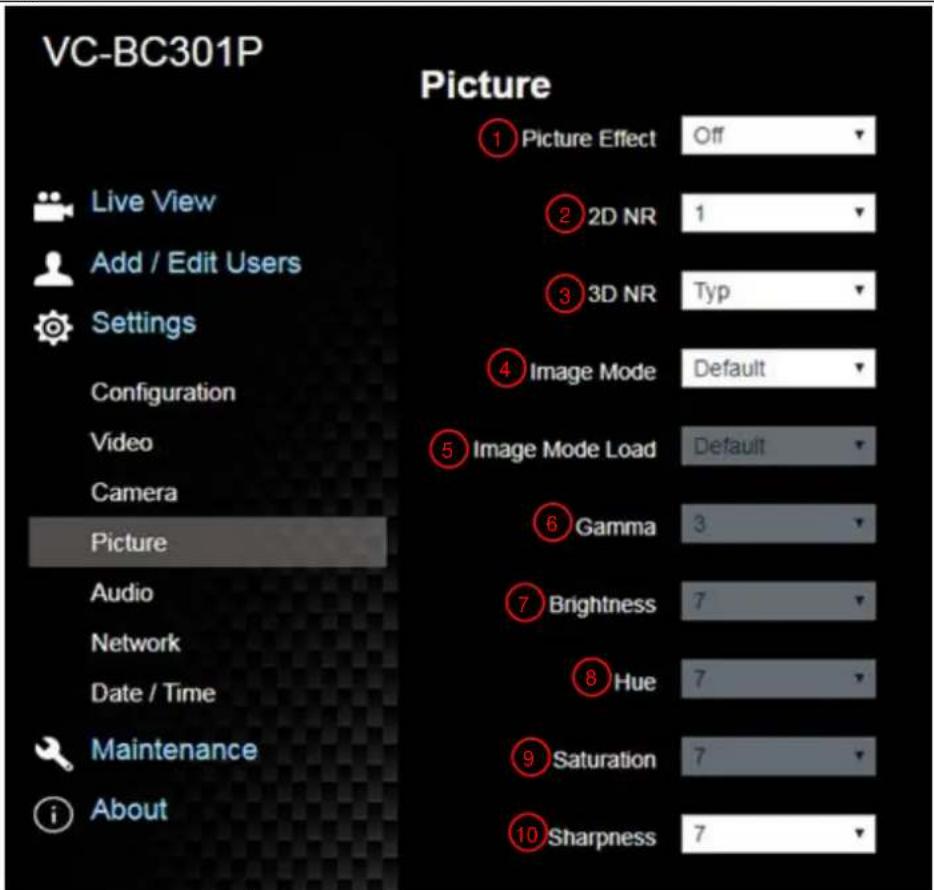

6.2.7 Setting - Picture

VC-BC301P Picture ① Picture Effect Off ② 2D NR 1 ③ 3D NR Typ ④ Image Mode Default ⑤ Image Mode Load Default ⑥ Gamma 3 ⑦ Brightness 7 ⑧ Hue 7 ⑨ Saturation 7 ⑩ Sharpness 7 Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About

No	Item	Function Descriptions
1	Picture Effect	Set picture effect, Off/Neg/Black and White
2	2D noise reduction settings	2D noise reduction settings, selecting from Off/1/2/3
3	3D noise reduction settings	3D noise reduction settings, selecting from Off/Low/Typ/Max
4	Image mode	By selecting Default/Custom, the user may customize his/her desired image mode
5	Image Mode Load	When no custom setting is needed, reset the picture parameters back to the factory default by selecting this item
6	Gamma	Gamma Level adjustment; Adjustable when the image mode is set to Custom
7	Brightness	Brightness adjustment; Adjustable when the image mode is set to Custom
8	Contrast*	Contrast adjustment; Adjustable when the image mode is set to Custom
9	Saturation	Saturation adjustment of the image; Adjustable when the image mode is set to Custom
10	Sharpness	Adjust the sharpness of the image

6.2.8 Setting - Audio

Audio Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About Audio In Type Line In Audio Volume 6 Audio Delay Off Audio Delay Time(-) 1 Audio Delay Time 6 Encode Type AAC 7 Encode Sample Rate 48 KHz Apply Cancel

No	Item	Function Descriptions
1	Open audio	Turn on/off sound
2	Soundtrack effect setting	Set MIC In/Line In
3	Audio Volume	Adjust Audio Volume
4	Audio Delay	Turn on/off audio delay
5	Audio Delay Time	Set audio delay time for -1~-500 ms
6	Encode Format	Set encode format as ACC/G.711
7	Encode sample rate	Set audio sample rate➢ 48 KHz (AAC)➢ 44.1 KHz (AAC)➢ 16 KHz (AAC)➢ 16 KHz (G.711)➢ 8 KHz (G.711)

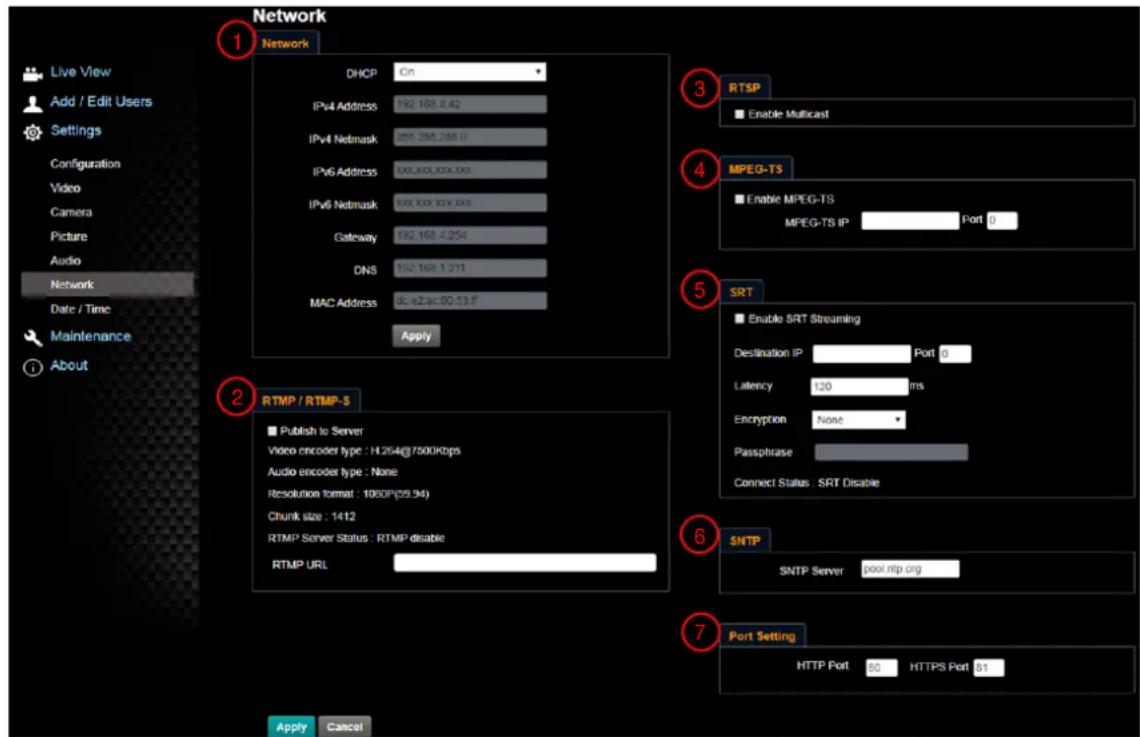

6.2.9 Setting - Network

Network 1 Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About DHCP On IPv4 Address 192.168.4.42 IPv4 Netmask 205.288.268.0 IPv6 Address 007.633.834.03 IPv6 Netmask 008.xxxx.xxxx.xxxx Gateway 192.168.4.254 DNS 192.168.1.211 MAC Address 0x-e2.ac.00-53.8 Apply 2 RTMP / RTMP-S ■ Publish to Server Video encoder type : H.264@7500Kbps Audio encoder type : None Resolution format : 1000P(59.94) Chunk size : 1412 RTMP Server Status : RTMP disable RTMP URL 3 RTSP ■ Enable Multicast 4 MPEG-TS ■ Enable MPEG-TS MPEG-TS IP Port 0 5 SRT ■ Enable SRT Streaming Destination IP Port 0 Latency 120 ms Encryption None Passphrase Connect Status : SRT Disable 6 SNTP SNTP Server pool.rtp.org 7 Port Setting HTTP Port 80 HTTPS Port 81 Apply Cancel

No	Item	Function Descriptions
1	Network	Network setting of camera. Change of setting is available only when DHCP function is closed.
2	RTMP/RTMP-S Setting	Copy the RTMP/RTMP-S web address provided by the RTMP/RTMP-S service platform and paste it to the RTMP/RTMP-S connection address to publish the camera images on the RTMP/RTMP-S service platformTo upload to YouTube for live streaming, please see6.2.8 Settings -Audioto turn on the audio function first
3	RTSP Setting	Enable/Disable Multicast. It is suggested to enable Multicast when the number of users online watching the live image simultaneously is more than 4
4	MPEG-TS Setting	1. Port must be set in the range above 1024 with a maximum value of 9999The following port has been used by the camera. Setting of the port may not connect correctly8554, 8556, 8557, 8080, 9090, 1935

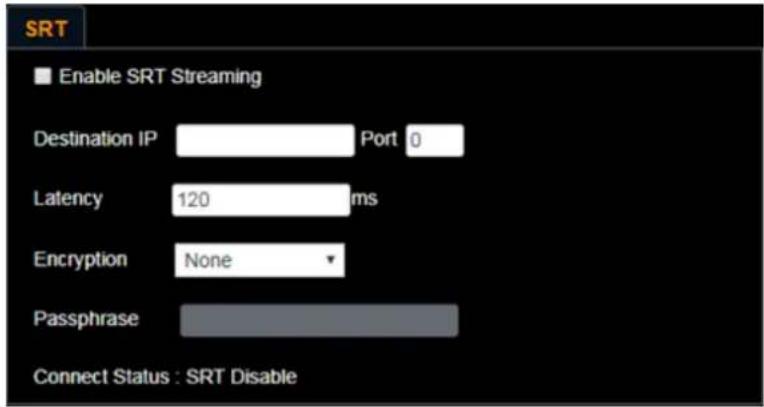

5	SRT Setting	1. Set the field of SRT and then check the item to open SRT streamingAfter the SRT streaming is opened, it will be connected automatically upon startup2. The port number must be set in the range above 1024 with a maximum value of 9999The following port has been used by the camera. Setting of the port may not connect correctly8554, 8556, 8557, 8080, 9090, 19353. Delay time is for 20 to 8,000 microseconds. The default value is 120 microseconds
6	SNTP Setting	Set SNTP Server IP
7	Port Setting	Set HTTP and HTTPS ports. The default values are Port 80 and Port 81 respectivelyChange of setting is available only when DHCP function of camera is closed

6.2.10 Setting - Time

VC-BC301P Date / Time ① Time in Camera Date 2020/01/21 Time 16:06:13 Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance ① About ② Set Time ● Set Manually Date 2020/1/21 Time 16 Hr : 06 Min : 12 Sec ● Synchronize with Computer Time Date 2020/1/21 Time 16:06:13 ● Synchronize with SNTP Server SNTP Server pool.ntp.org Time Zone GMT+08 Taipei, Beijing, Chong ▼ ■ Automatically Adjust for Daylight Saving Time Apply Cancel No Item Function Descriptions 1 Camera Time Display the date and time of the camera 2 Set the Time ■ Manual Configuration: Set time manually ■ Synchronize with computer time: Set the camera time according to the computer time ■ Synchronize with SNTP server: Set the camera time synchronously with the SNTP server SNTP server address: Please change in network setting

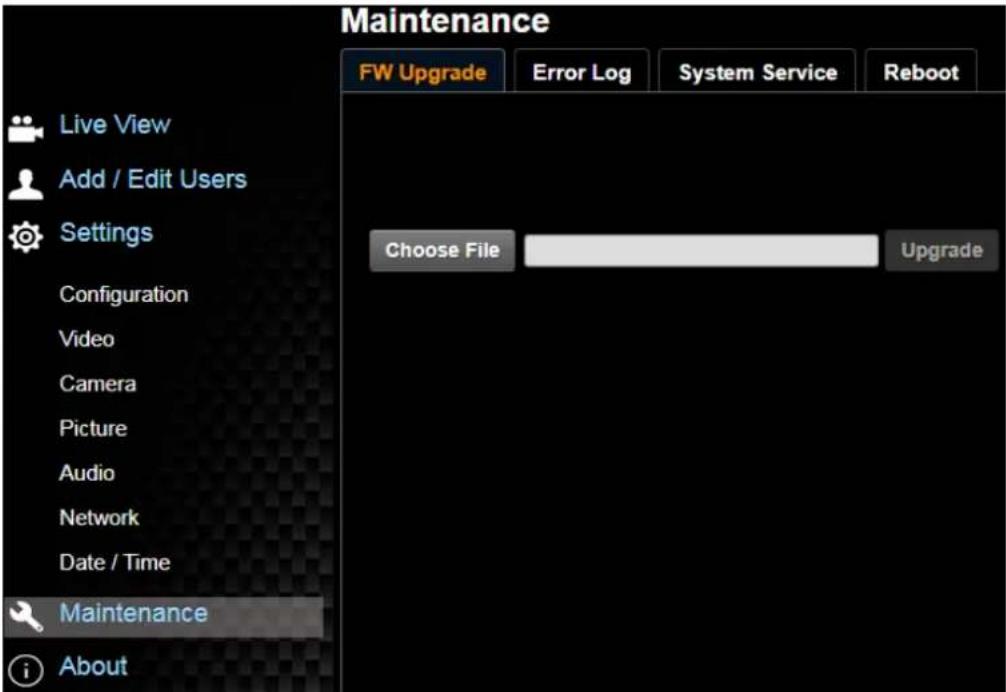

6.2.11 Setting - Maintenance - Upgrading Firmware

Maintenance FW Upgrade Error Log System Service Reboot Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance Choose File Upgrade About

No	Item	Function Descriptions
1	Firmware Update	The camera firmware may be upgraded via web page. For the upgrade method, please download the FW upgrade manual from Lumens official website

6.2.12 Setting - Maintenance - Incident Log

Maintenance FW Upgrade Error Log System Service Reboot Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About Error Log Clean

No	Item	Function Descriptions
1	Event Logs	If the camera encounters errors, an error code log will be established<Remark> If an error code appears, the user may try to clear and confirm if the error will repeat itself

6.2.13 Setting - Maintenance - System Service

Maintenance FW Upgrade Error Log System Service Reboot Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About 1 Factory Reset Factory Reset Reset 2 Setting Profile Load Save

No	Item	Function Descriptions
1	Reset to the default value	Select the reset button to resume the factory default setting as the web page setting
2	Setting File	The web page setting parameters can be exported from the computer and imported/applied to another camera

6.2.14 Setting - Maintenance - Reboot

VC-BC301P Maintenance FW Upgrade Error Log System Service Reboot Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About 1 Reboot 2 Disable 3 Daily Reboot 4 Timing Reboot 1 HR Apply Cancel

No	Item	Function Descriptions
1	Reboot	Reboot immediately
2	Disable	Disable the reboot settings
3	Daily reboot	Set the daily reboot timePlease go to Settings - Time to complete the SNTP server synchronization to set daily reboot
4	Timing Reboot	Set the timing reboot time

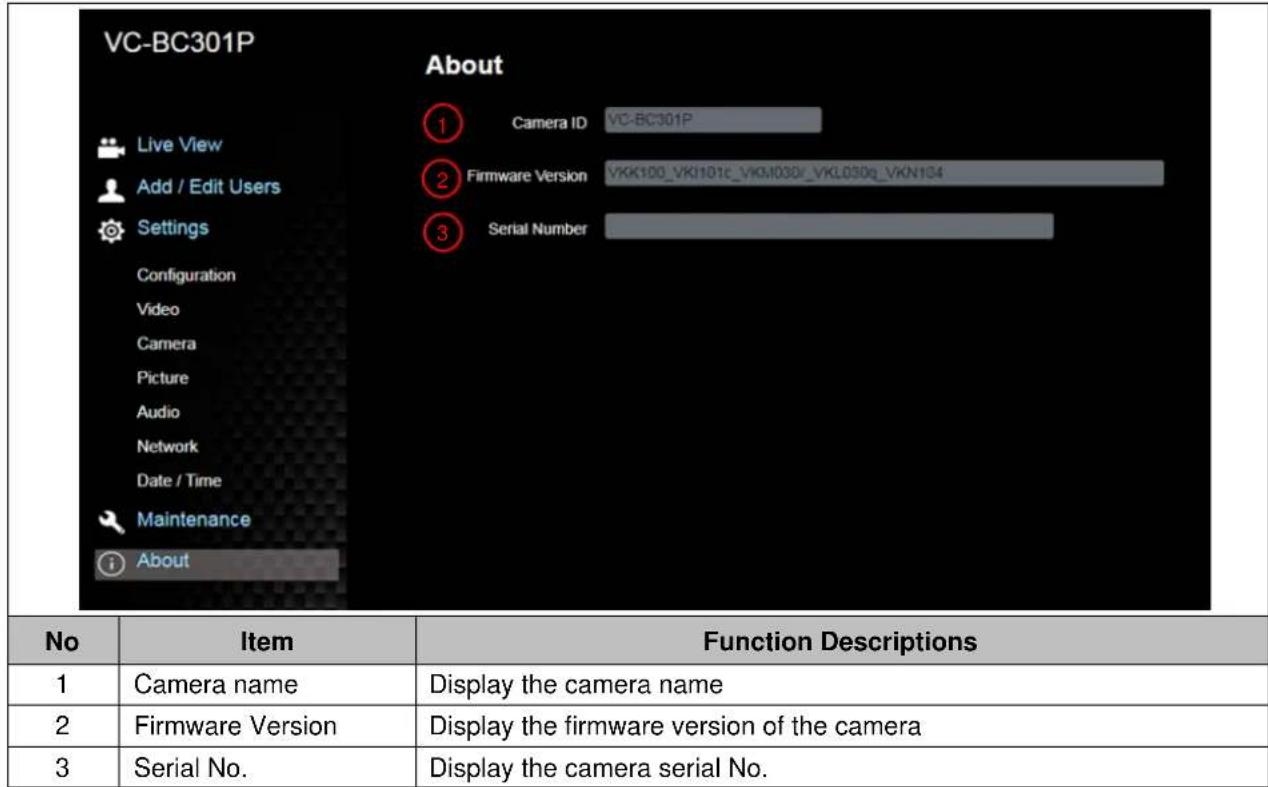

6.2.15 About

VC-BC301P Live View Add / Edit Users Settings Configuration Video Camera Picture Audio Network Date / Time Maintenance About About ① Camera ID VC-BC301P ② Firmware Version VKK100_VKI101e_VKM1030r_VKL050q_VKN104 ③ Serial Number No Item Function Descriptions 1 Camera name Display the camera name 2 Firmware Version Display the firmware version of the camera 3 Serial No. Display the camera serial No.

Chapter 7 Troubleshooting

This chapter describes problems you may encounter while using VC-BC301P. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center.

No.	Problems	Solutions
1.	Boot without power signal	1. Make sure you have plugged in the power cord.2. When using a PoE connection, ensure that the power supply supports IEEE 802.3af hubs
2.	There is no image output from VC-BC301P	1. Check the power supply or PoE supply functions.2. Confirm the output signals are in streaming output.3. If the camera is connected to a monitor, confirm the monitor equipment supports 4K output.4. Replace the cables and make sure they are not faulty.
3.	VC-BC301P image is severely delayed	1. Please use 4K, 1080p or 720p 60/50 Hz signals rather than 25/30 Hz signals.
4.	RS-232 over IP cannot be controlled	1. Please make sure the port number (52381) is set correctly2. For related command settings, please download the Command Set Manual from Lumens official website
5.	The ONVIF software cannot find the machine	Please make sure that [Setting]> [Video]> [Camera ID]/[Location] in the webpage uses only English letters or numbers. The ONVIF software cannot find the machine if you use special characters and space.

Always follow these safety instructions when setting up and using the VC-BC301P UHD Box Camera:

1 Operation

1.1 Please use the product in the recommended operating environment, away from water or source of heat.
1.2 Do not place the product on a tilted or unstable trolley, stand or table.
1.3 Please clean the dust on the power plug prior to usage. Do not insert the product's power plug into a multiplug to prevent sparks or a fire.
1.4 Do not block the slots and openings in the case of the product. They provide ventilation and prevent the product from overheating.
1.5 Do not open or remove covers, otherwise it may expose you to dangerous voltages and other hazards. Refer all servicing to licensed service personnel.
1.6 Unplug the product from the wall outlet and refer servicing to licensed service personnel when the following situations happen:

■ If the power cords are damaged or frayed.

■ If liquid is spilled into the product or the product has been exposed to rain or water.

2 Installation

2.1 For security considerations, please make sure the standard hanging rack you bought is in line with UL or CE safety approbations and installed by technician personnel approved by agents.

3 Storage

3.1 Do not place the product where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.
3.2 Unplug this product during thunderstorms or if it is not going to be used for an extended period.
3.3 Do not place this product or accessories on top of vibrating equipment or heated objects.

4 Cleaning

4.1 Disconnect all the cables prior to cleaning and wipe the surface with a dry cloth. Do not use alcohol or volatile solvents for cleaning.

5 Batteries (for products or accessories with batteries)

5.1 When replacing batteries, please only use similar or the same type of batteries.
5.2 When disposing of batteries or products, please adhere to the relevant instructions in your country or region for disposing of batteries or products.

■ Precautions

This symbol indicates that this equipment may contain dangerous voltage which could cause electric shock. Do not remove the cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel.

This symbol indicates that there are important operating and maintenance instructions in this User Manual with this unit.

■ FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

Notice :

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment..

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

■ IC Warning

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada.

Operation of this equipment in a residential environment could cause radio interference.

Warning: Operation of this equipment in a residential environment may cause radio interference.

Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information

Manufacturer : Lumens Digital Optics Inc.

Product Name : VC-BC301P

Model Number : UHD Box Camera

Responsible Party – U.S. Contact Information

Supplier : Lumens Integration, Inc.

4116 Clipper Court, Fremont, CA 94538, United States

e-mail : [e-mail]

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Copyrights © Lumens Digital Optics Inc. All rights reserved.

Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc.

Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.

In order to keep improving the product, the information in this file is subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may refer to names of other products or companies without any intention of infringement.

Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any possible technological, editorial errors or omissions, nor responsible for any incidental or related damages arising from providing this file, using, or operating this product.
