F12A8NDA - Washing machine LG - Free user manual and instructions

Product Type	Front Loading Washing Machine
Dimensions (H x W x D)	850 x 600 x 400 mm
Weight	62 kg
Power Supply	220 - 240 V~, 50 Hz
Max Power Consumption	1700 W
Wash Capacity	6 kg
Permissible Water Pressure	100 - 1000 kPa (1.0 - 10.0 kgf/cm²)
Max Spin Speed	1200 rpm
Noise Level (Wash / Spin)	53 dB(A) / 73 dB(A)
Energy Efficiency Class	A---
Annual Energy Consumption	150.156 kWh/year
Annual Water Consumption	9500 L/year
Programs	Cotton, Cotton Eco, Easy Care, Mix, Baby Care, Silent Wash, Skin Care, Duvet, Sports Wear, Dark Wash, Delicate, Wool, Quick 30, Intensive 60
Drive System	Inverter Direct Drive with 6 Motion
Additional Features	Time Delay, Crease Care, Favorite, Pre Wash, Medic Rinse, Child Lock, Tub Clean, SmartDiagnosis
Standard Programs for Energy Label	Cotton Eco 60°C + Intensive, Cotton Eco 40°C + Intensive
Maintenance	Clean drain pump filter, water inlet filter, dispenser drawer periodically
Safety	Child lock, door lock during operation, anti-flood protection
Warranty	Standard manufacturer warranty; refer to manual for terms

Frequently Asked Questions - F12A8NDA LG

How do I remove the transit bolts?

Before operating, unscrew the 4 transit bolts with the supplied spanner. Take out the bolts along with the rubber bungs by slightly twisting the bung. Keep the bolts for future use.

What is the maximum spin speed?

The maximum spin speed for the LG F12A8NDA is 1200 rpm (for the F12 model; F10 models have 1000 rpm). Available spin speeds vary by program.

How do I use the Time Delay feature?

Press Power, select a cycle, touch the Time Delay button, set the desired time (the time to finish), then press Start/Pause. The machine will start automatically to finish at the set time.

What is the Child Lock and how do I activate it?

Child Lock prevents children from pressing buttons during operation. During a cycle, touch the Child Lock button for 3 seconds. 'LL' appears on the display. To unlock, press again for 3 seconds.

How do I clean the drain pump filter?

Open the lower cover cap, pull out the hose, unplug the drain plug, open the filter by turning left, remove any objects, then reassemble. Be careful if water is hot.

How do I run the Tub Clean cycle?

Remove laundry, open dispenser, add anti-limescale (e.g., Calgon) to main wash compartment. Power on, touch and hold Tub Clean button for 3 seconds until 'ECL' appears, then press Start/Pause. After cycle, leave door open to dry.

What should I do if water does not enter the washer?

Check that water supply taps are fully open, inlet hoses are not kinked, and the inlet filter is not clogged. Also ensure the door is fully closed. The 'IE' error may indicate a water inlet issue.

How do I fix an unbalanced load?

If the washer vibrates or thumps, stop the machine and rearrange the laundry. Add 1-2 similar items to balance the load. Avoid washing single heavy items.

How do I use the SmartDiagnosis feature?

Only use when instructed by customer service. Press Power, place phone mouthpiece near the Power button, touch and hold Temp. button for 3 seconds. Keep phone until tones finish (about 6 seconds). The display counts down.

What is the recommended detergent dosage?

Use detergent according to manufacturer instructions. For full load, use recommended amount; for half load, use 3/4; for minimum load, use 1/2. Avoid oversudsing. Do not use liquid detergent with Time Delay or Pre Wash.

USER MANUAL F12A8NDA LG

- Screw the hose connector onto the water supply tap.

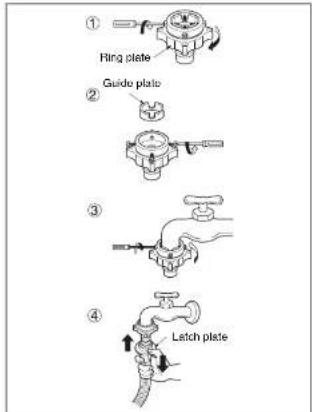

Type B: attaching the screw-on hose to a tap without threads

	Time Delay	Crease Care	Favorite	Pro Program Wash	Medic Rinse	Rinse + Spin	Time Save	Intensive
Cotton	●	●	●	●	●	●	●	●
Cotton Eco	●	●	●	●	●	●	●	●
Easy Care	●	●	●	●	●	●	●	●
Mix	●	●	●	●	●	●	●	●
Baby Care	●	●	●	●****	●	●		●
Silent Wash	●	●	●			●	●	●
Skin Care	●	●	●	●	●	●	●	●
Duvet	●	●	●			●	●	●
Sports Wear	●	●	●			●	●	●
Dark Wash	●	●	●			●	●	●

	Time Delay	Crease Care	Favorite Program Wash	Pre Program Wash	Medic Rinse	Rinse + Spin	Time Save	Intensive
Cotton	●	●	●	●	●	●	●	●
Cotton Eco	●	●	●	●	●	●	●	●
Easy Care	●	●	●	●	●	●	●	●
Mix	●	●	●	●	●	●	●	●
Baby Care	●	●	●	●	●	●		●
Silent Wash	●	●	●			●	●	●
Skin Care	●	●	●	●	●	●	●	●
Duvet	●	●	●			●	●	●

Technical data ....7

Installation

Removing packaging material .... 8

Removing transport bolts ..... 8

- Preventing creases (Crease

Care....22 - Favorite 22

- Favorite (Pavone) 22 - Pre Wash 22

Options 23

- Medic Rinse .. 23

- Wash 23

Installation

Removing the packaging material

Installation

Concrete floors

• The installation location must be clean, dry, and level. • Install the washing machine on a flat, hard floor.

Tile floors (slippery floors)

1. Sort the laundry. (See page 17.)
2. Open the door and place the laundry in the machine.
3. Press the power button.
4. Select a program.

(See pages 18 - 20.)

1. Care labels

Refer to the care labels on the items.

	Time Delay	Crease Care	Favorite	Pre Program Wash	Medic Rinse	Rinse + Spin	Time Save	Intensive
Cotton	●	●	●	●	●	●	●	●
Cotton Eco	●	●	●	●	●	●	●	●
Easy Care	●	●	●	●	●	●	●	●
Mix	●	●	●	●	●	●	●	●
Baby Care	●	●	●	●**	●	●		●
Silent Wash	●	●	●			●	●	●
Skin Care	●	●	●	●	●	●	●	●
Duvet	●	●	●			●	●	●

Using the washing machine ■ Data

Programm	Maksimaalne p rete arv minutis
	F12A8ND(W)(A)(1~9) F10A8ND(W)(A)(1~9)
Cotton	1200	1000
Cotton Eco	1200	1000
Easy Care	1000	1000
Mix	1200	1000
Baby Care	1000	1000
Silent Wash	1000	1000
Skin Care	1200	1000
Duvet	1000	1000
Sports Wear	800	800
Dark Wash	1200	1000
Delicate	800	800
Wool®	800	800
Quick 30	1200	1000
Intensive 60	1200	1000

① NOTE

OWNER'S MANUAL

WASHING MACHINE

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the washer is installed correctly and safely. Leave these instructions near the washer after installation for future reference.

Contents

Contents....2

Product Features....3

Important safety instructions

Important safety instructions ....4

Basic safety precautions ....5

Save these instructions....6

Specifications....7

Installation

Removing packing 8

Removing transit bolts 8

Installation place requirements .....9

Connecting water supply hose....11

Installation of drain hose....13

Leveling....14

How to use washer

Operating washing machine .....16

Care before washing....17

Washing program table....18

Extra options....19

Operating data 20

Control panel....21

Additional program....22

- Time Delay....22

- Crease Care 22

- Favorite....22

• Pre Wash 22

Options....23

- Medic Rinse 23

- Wash....23

- Temp. 23

- Rinse....23

A. 12

Thank you for buying a LG Fully

Automatic Washing Machine.

Please read your owner's manual

carefully, it provides instruction on safe

installation, use and maintenance.

Retain it for future reference.

Record the model and serial number of

your washing machine.

Model No.

Serial No.

Date of Purchase

Adding detergent

Adding detergent and fabric softener...26

Maintenance

The water inlet filter....28

The drain pump filter 29

Dispenser drawer....30

The washing drum 31

Cleaning your washer 31

Cold conditions 31

Troubleshooting guide

Diagnosing problems 32

Error messages....34

Using SMARTDIAGNOCIOTM 95

Product Features

■ Inverter Direct Drive system

The advanced Brushless DC motor directly drives the drum without belt and pulley.

■ 6 Motion

Washer is able to perform various drum actions or a combination of different actions depending on the wash program selected. Combined with a controlled spin speed and the ability of the drum to rotate both left and right, the wash performance of the machine is greatly improved, giving you perfect results every time.

■ Protection against creases

With the alternating rotation of the drum, creasing is minimized.

■ Built-in heater

Internal heater automatically heats the water to the best temperature on selected cycles.

■ More economical with Intelligent Wash system

Intelligent Wash System detects the size of load and water temperature, and then determines the optimum water level and washing time to minimize energy and water consumption.

Child Lock

The Child Lock prevents children from pressing any button to change the settings during operation.

Important safety instructions

READ ALL INSTRUCTIONS AND EXPLANATION OF THE INSTALLATION BEFORE USE.

▲ WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

Your Safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or CAUTION.

These words mean:

▲ DANGER

You will be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

You may be slightly injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Important safety instructions

■ Basic safety precautions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following:

- Before installation, check for exterior damages. If any, do not install.

- Do not install or store the washer where it will be exposed to the weather.

- Do not tamper with controls.

- Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in the user-maintenance instructions or published user-repair instructions that you understand and have the skills to carry out.

- Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc.

• The appliance is not intended for use by young children or infirm persons without supervision. Do not allow children to play on, with, or inside this or any other appliance.

- Keep small animals away from the appliance.

- Do not leave the washer door open. An open door could entice children to hang on the door or crawl inside the washer.

- Never reach into the washer while it is moving. Wait until the drum has

- Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Oil may remain in the tub after a whole cycle resulting in fire during drying.

So, do not load oiled clothes.

- Do not slam the washer door closed or try to force the door open when locked. This could result in damage to the washer.

- When the machine runs at high temperature, the front door may be very hot. Do not touch it.

- To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.

- When unplugging the power cord, do not pull it out by grasping the cord. Otherwise, the power cord may be damaged.

- Never attempt to operate this appliance if it is damaged.

Important safety instructions

■ Basic safety precautions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following:

- Before discarding an old machine, unplug it. Render the plug useless. Cut off the cable directly behind the appliance to prevent misuse.

- If a product has been under water, please call the service center. There is a risk of electric shock and fire.

- The appliance must be connected to the water mains using new hose-sets. Old hose-sets should not be reused.

• To reduce the risk of personal injury, adhere to all industry recommended safety procedures, including the use of long-sleeved gloves and safety glasses. Failure to follow all of the safety warnings in this manual could result in property damage, personal injury, or death.

- Do not push down on the door excessively when the washer door is open. This could topple over the washer.

Save these instructions.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Do not use an adapter; this will defeat the grounding plug.

If you don't have the proper outlet, consult an electrician.

▲ WARNING

Improper connection of the equipment-grounding conductor can result in electric shock.

Specifications: Front loading washing machine. Power supply: 220-240 V~, 50 Hz. Dimensions: 600 mm × 850 mm × 400 mm (D). Weight: 62 kg. Max. Watt: 1700 W. Standby power: 0.33 W (off-mode, left-on mode). Wash capacity: 6 kg [F12/10A8ND(W)(A)(1~9)]. Permissible water pressure: 100-1000 kPa (1.0-10.0 kgf/cm²). Information for customer regarding noise per EN norm EN 60704: Declared value of acoustical noise of this product is like below table. That complies with the requirements level A of acoustical power considering reference acoustical power 1 pW. Noise Level: Wash: 53 dB(A), Spin: 73 dB(A).

The consequences and qualifications were not without notice to improve the quality of the visit.

Removing packing

Remove the cardboard box and styrofoam packing.

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

NOTE

- Keep the spanner provided for future use.

WARNING

- Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all packaging well away from children

■ Removing transit bolts

To prevent internal damage during transport, the 4 special bolts are locked. Before operating the washer, remove the bolts along with the rubber bungs. If they are not removed, it may cause heavy vibration, noise and malfunction.

1. Unscrew the 4 bolts with the spanner supplied.
2. Take out the 4 bolts along with the rubber bungs by slightly twisting the bung.

NOTE

- Keep the transit bolts for future use.

Installation

■ Installation place requirements

▶ Location

• Level floor:

Allowable slope under entire washer is 1

• Power outlet:

Must be within 1.5 meters of either side of location of washer.

Do not overload the outlet with more than one appliance.

• Additional Clearance

For Wall, 10cm:rear / 2cm : right & left side

Do not place or store laundry products on top of washer at

any times.

They can damage the finish or controls.

▶ Positioning

• Install the washer on a flat hard floor. • Make sure that air circulation around the washer is not impeded by carpets, rugs, etc. - Never try to correct any unevenness in the floor with pieces of wood, cardboard or similar materials under the washer - If it is impossible to avoid positioning the washer next to a gas cooker or coal burning stove, an insulating (85x60cm) covered with aluminum foil on the side facing the cooker or stove, must be inserted between the two appliances. - The washer must not be installed in rooms where the temperature can drop below 0°C. - Please ensure that when the washer is installed, it is easily accessible for the engineer in the event of a breakdown. - With the washer installed, adjust all four feet using the transit bolt spanner provided ensuring the appliance is stable, and a clearance of approximately 20mm is left between the top of the washer and the underside of any work-top. - This equipment is not designed for maritime use or for use in mobile installations such as caravans, aircraft etc.

▶ Electrical connection

• Do not use an extension cord or double adapter.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard. • Always unplug the machine and turn off the water supply after use.
• Connect the machine to an earthed socket in accordance with current wiring regulations. The appliance must be positioned so that the plug is easily accessible.

Installation

CAUTION

CAUTION concerning the Power cord

• Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.
• Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in an electric shock or fire.
• Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
• Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. If the appliance is supplied from a cord extension set or an electrical portable outlet device, the cord extension set or electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture.

CAUTION

• The appliance is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the appliance.

Installation

■ Connecting water supply hose

• Water supply pressure must be between 100 kPa and 1000 kPa (1.0 - 10.0 kgf / cm²).
• Do not strip or crossthread when connecting inlet hose to the valve.
• If the water supply pressure is more than 1000 kPa, a decompression device should be installed. Periodically check the condition of the hose and replace the hose if necessary.

Step 1: Check rubber seal inlet hose

Two rubber seals are supplied with the water inlet hoses.

They are used for preventing water leaks. Make sure the connection to taps is sufficiently tight.

Step 2: Connect hose to water tap. Type-A: Connecting screw-type hose to tap with thread

Screw the hose connector onto water supply tap.

Type-B: Connecting screw-type hose to tap without thread

1. Unscrew the adapter ring plate and the 4 adapter retaining screws.
2. Push the adapter onto the end of the tap so that the rubber seal forms a watertight connection. Tighten the adapter ring plate and the 4 screws.

Installation

Type-C: Connecting one touch type hose to tap without thread

1. Unscrew the adapter ring plate and the 4 adapter retaining screws.
2. Remove the guide plate if the tap is too large to fit the adapter.
3. Push the adapter onto the end of the tap so that the rubber seal forms a watertight connection. Tighten the adapter ring plate and the 4 screws.
4. Pull the connector latch plate down, push the inlet hose onto the adapter, and release the connector latch plate. Make sure the adapter locks into place.

NOTE

• After connecting the inlet hose to the water tap, turn on the water tap to flush out foreign substances (dirt, sand, or sawdust) from the water lines. Let the water drain into a bucket, and check the water temperature.

▶ Step 3: Connect the hose to the washer

• Make sure that there are no kinks in the hose and that they are not crushed. ▶ When your washer has two valves: • The inlet hose with the red connector is for the hot water tap. - If the washer has two valves, energy is saved by using the hot valve.

NOTE

- After completing the connection, if water leaks from the hose, replace the seal.

Installation

■ Installation of the drain hose

• The drain hose should not be placed higher than 100 cm above the floor. Otherwise, water in the washer will not drain or will drain slowly.
• Securing the drain hose correctly will protect the floor from damage due to water leakage.
• If the drain hose is too long, do not force it back into the washer. This will cause abnormal noise.

• When installing the drain hose to a sink, secure it tightly with string.
• Securing the drain hose correctly will protect the floor from damage due to water leakage.

Installation

■ Leveling

1. Leveling the washing machine properly prevents excessive noise and vibration. Install the appliance on a solid and level floor surface, preferably in a corner of the room.

NOTE

- Timber or suspended type flooring may contribute to excessive vibration and unbalance.

1. If the floor is uneven, turn the adjustable feet as required. (do not insert pieces of wood etc. under the feet) Make sure that all four feet are stable and resting on the floor and then check that the appliance is perfectly level. (use a spirit level)

- Once the washer is level, tighten the lock nuts up towards the base of the washer. All lock nuts must be tightened.

- Diagonal Check When pushing down the edges of the washing machine top plate diagonally, the machine should not move up and down at all (Please, check both directions). If machine rocks when pushing the machine top plate diagonally, adjust the feet again.

Installation

▶ Concrete floors

• The installation surface must be clean, dry and level. • Install washer on a flat hard floor.

▶ Tile floors (Slippery floors)

• Position each foot on the Tread Mate and level the machine to suit. (Cut Tread Mate into 70x70 mm sections and stick the pieces on to the dry tile where machine is to be placed.)
• Tread Mate is a self adhesive material used on ladders & steps that prevents slipping.

▶ Wooden floors (Suspended floors)

• Wooden floors are particularly susceptible to vibration.
• To prevent vibration we recommend you place rubber cups under each foot under washer at least 15mm thick, secured to at least 2 floor beams with screws.
• If possible install the washer in one of the corners of the room, where the floor is more stable. • Fit the rubber cups to reduce vibration.
• You can obtain the rubber cups (p/no.4620ER4002B) from the LG spares dept.

NOTE

• Proper placement and leveling of the washer will ensure long, regular and reliable operation.
• The washer must be 100% horizontal and stand firmly in position.
• It must not "Seesaw" across corners under load.
• The installation surface must be clean, free from floor wax and other lubricant coatings.

How to use washer

■ Operating washing machine

1. Sort Laundry. (Refer to page 17)

1. Open the door and load laundry.

1. Press the Power button.

1. Select a Program. (Refer to pages 18 - 20)

Select options at this time (Refer to pages 22 - 25) ■ Additional Program ■ Temperature ■ Spin Speed ■ Other functions

1. Add detergent. (Refer to pages 26 - 27)

How to use washer

■ Care before washing

1. Care Labels

Look for a care label on your clothes.

This will tell you about the fabric content of your garment and how it should be washed.

2. Sorting

To get the best results, sort clothes into loads that can be

washed with the same wash cycle.

Water temperature and spin speed and different fabrics need to

be washed in different ways.

Always sort dark colors from pale colors and whites. Wash

separately as dye and lint transfer can occur causing

discolouration of while etc. If possible, do not wash heavily

soiled items with lightly soiled one.

• Soil (Heavy, Normal, Light)

Separate clothes according to amount of soil.

• Color (White, Lights, Darks)

Separate white fabrics from colored fabrics.

• Lint (Lint producers, Collectors)

Wash lint producers and lint collectors separately.

3. Caring before loading

Combine large and small items in a load. Load large items first.

Large items should not be more than half the total wash load. Do

not wash single items.

This may cause an out-of-balance load. Add one or two similar

Items.

- Check all pockets to make sure that they are empty. Items such

as nails, hair clip, matches, pens, coins and keys can damage

both your washer and your clothes.

- Close zippers, hooks and strings to make sure that these items

don't snag on other clothes.

- Pre-treat dirt and stains by brushing a little detergent dissolved in

water onto stains like collars and cuffs to help lift dirt.

- Check the folds of the flexible gasket (gray) and remove any

small articles.

- Check inside of the drum and remove any item from a previous

How to use washer

■ Washing program table - Recommended courses according to the laundry type.

Program	Description	Fabric type	Proper Temp.	Maximum Load
Cotton	Provides better performance by combining various drum motions.	Color fast garments (shirts, nightdresses, pajamas, etc) and normally soiled cotton load (underwear).	40°C(Cold to 95°C)	Rating
Cotton Eco	Provide optimized washing performance with less energy consumption.		60°C(Cold to 60°C)
Easy Care	This cycle is suitable for casual shirts that do not need ironing after washing.	Polyamide, Acrylic, Polyester.	40°C(Cold to 60°C)	Less than 3.0 kg
Mix	Enables various fabrics to be washed simultaneously.	Various kind of fabrics except special garments. (Silk/delicate, sports wear, dark clothes, wool, Duvel/Curlaims).	40°C(Cold to 40°C)
Baby Care	Removes solid and protein stain and provide better rinse performance.	Lightly soiled baby wear.	60°C(95°C)
Silent Wash	Provides less noise and vibration and saves money by using overnight electricity.	Color fast garments (shirts, nightdresses, pajamas, etc)and lightly soiled white cotton (underwear).	40°C(Cold to 60°C)	Less than 3.0 kg
Skin Care	Removes efficiently detergent residue in clothes.	Fabrics which will be in direct contact with the skin, e.g. underwear, nappes, towelling, bed linen, pillow and mattress covers.		Rating
Duvet	This cycle is for large items such as bed cover, pillows, sofa covers, etc.	Cotton bedding except special garments (delicates, wool, silk, etc.) with filling: duvets, pillows, blankets, sofa covers with light filling.	40°C(Cold to 40°C)	1 single size
Sports Wear	This cycle is suitable for sports wear such as jogging clothes and running wear.	Cocimax, Gore-tex, Ilreece and Sympatex.		Less than 2.0 kg
Dark Wash	It is positive for clothes to decolorate, please use this cycle. The cycle prevent decolorization. (Please use detergent for colored fabrics.)	Dark garments made from cotton or mixed fabrics.	20°C(Cold to 40°C)
Delicate	This cycle is for delicate clothes such as underwear, blouse, etc.	Delicate, easily damaged laundry.
Wool	Enable to wash wool fabrics.(Please use detergent for	Machine washable woolers with pure new work only.	40°C(Cold to 40°C)

How to use washer

• Water Temperature: Select water temperature to suit wash cycles. Always follow garment manufacturer's care label or instructions when washing. - Set program at "Cotton Eco 40°C + Intensive (Half Load)", "Cotton Eco 60°C + Intensive (Half Load)", "Cotton Eco 60°C + Intensive (Full Load)" option for test in accordance with EN60456 and Regulation 1015/2010. - Standard 60°C Cotton program: Cotton Eco + 60°C + Intensive - Standard 40°C Cotton program: Cotton Eco + 40°C + Intensive (They are suitable to clean normally soiled cotton laundry.) (They are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry.) * Actual water temperature may differ from the declared cycle temperature. - The test results depend on water pressure, water hardness, water inlet temperature, room temperature, type and amount of load, degree of soiling utilized detergent, fluctuations in the main electricity supply and chosen additional options.

NOTE

• Neutral detergent is recommended.

• The wool cycle features gentle tumbling and low-speed spin for garment care.

■ Extra options

	Time Delay	Clease Care	Favorite Program Wash	Pre Purchase Wash	Medic Rinse	Rinse + Spin	Time Save	Intensive
Cotton	●	●	●	●	●	●	●	●
Cotton Eco	●	●	●	●	●	●	●	●
Easy Care	●	●	●	●	●	●	●	●
Mix	●	●	●	●	●	●	●	●
Baby Care	●	●	●	● ***	●	●		●
Silent Wash	●	●	●			●	●	●
Skin Care	●	●	●	●	●	●	●	●
Duvet	●	●	●			●	●	●
Sports Wear	●	●	●			●	●	●
Dark Wash	●	●	●			●	●	●
Delicate	●	●	●			●	●	●
Wood (P)	●	●	●			●		●

English

How to use washer

Operating data

Program	Max RPM
	F12A8ND(W)(A)|1~9|	F10A8ND(W)(A)|1~9|
Cotton	1200	1000
Cotton Eco	1200	1000
Easy Care	1000	1000
Mix	1200	1000
Baby Care	1000	1000
Silent Wash	1000	1000
Skin Care	1200	1000
Duvet	1000	1000
Sports Wear	800	800
Dark Wash	1200	1000
Delicate	800	800
Wool®	800	800
Quick 30	1200	1000
Intensive 60	1200	1000

NOTE

Information of main washing programmes at half load.

How to use washer

Control panel

Power

• Press the Power button to turn power on and off.
• To cancel the Time Delay function, the power button should be pressed.

Program dial

• Programs are available according to the laundry type.
• Lamp will light up to indicate selected program.

Start/Pause

Additional program

Use these buttons to select the desired cycle options for the selected cycle.

LED display

The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

Options

How to use washer

Additional program

Time Delay

You can set a time delay so that the washing machine will start automatically and finish after a specified time interval.

NOTE

The delay time is the time to the end of the programme, not the start. The actual running time may vary due to water temperature, wash load and other factors.

1. Press the Power button.
2. Select a cycle.
3. Touch the Time Delay button and set time required.
4. Press the Start/Pause button.

Favorite

Favorite program allows you to store a customized wash cycle for future use.

1. Press the Power button.
2. Select a cycle.
3. Select the course. (Washing method, number of rinses, spin speed, water temperature etc.)
4. Touch and hold Favorite program button for 3 seconds.

The Favorite program is now stored for future use.

To reuse the program, select Favorite program and press the Start/Pause.

Crease Care

If you want to prevent creasing, select Crease Care option.

1. Press the Power button.
2. Select a cycle.
3. Press the Crease Care button.
4. Press the Start/Pause button.

Pre Wash

If the laundry is heavily soiled, "Pre Wash" course is effective.

1. Press the Power button.
2. Select a cycle.
3. Touch the Pre Wash button.
4. Press the Start/Pause button.

How to use washer

■ Options

Medic Rinse

For best results or for cleaner rinsing.

This allows the final rinse to be heated to 40 degrees.

1. Press the Power button.
2. Select a cycle.
3. Touch the Medic Rinse button and set time required.
4. Press the Start/Pause button.

Wash

• Time Save: This option can be used to reduce the time of a wash program.
• Intensive: If the laundry is normal and heavily soiled, "Intensive" option is effective.

Temp.

• By touching the Temp. button, the water temperature can be selected.
• Cold

-20°C, 40°C, 60°C, 95°C

• Water temperature can be selected according to the program.

Rinse

• R⁺ +Hold : Add rinse once, then after rinsing process, the course is paused until start button is pressed again. • N+Hold : The course is paused until start button is pressed again when rinse is

Rinse+Spin

This can be helpful in preventing fresh stains from setting in fabrics.

This is a separate cycle.

1. Press the Power button.
2. Select a cycle.
3. Touch the Rinse+Spin button.
4. Press the Start/Pause.

■ Other functions

Spin only

1. Press the Power button.
2. Touch the Spin button to select RPM.
3. Press the Start/Pause.

NOTE

When you select "No Spin", it will still rotate for a short time with low speed to drain quickly.

How to use washer

■ Child Lock

Select this function to lock the buttons on the control assembly to prevent tampering.

"Child Lock" can be set only during the washing cycle.

Locking the control panel

1. Touch the Child Lock button simultaneously

for 3 seconds.

1. A beeper will sound, and 'LL' will appear on the LED display.

When the child lock is set, all buttons are

locked except the Power button.

NOTE

- Turning off the power will not reset the

child lock function. You must deactivate

child lock before you can access any

other functions.

Unlocking the control panel

1. Touch the Child Lock button simultaneously

for 3 seconds.

1. A beeper will sound and the remaining time

for the current programme will reappear on

for the current pin the LED display.

■ Beep On / Off

The Beep on/off function can be set only during the washing cycle.

1. Press the Power button.
2. Press the Start/Pause button.
3. Touch and hold the Temp. and Rinse button.

How to use washer

■ Tub Clean

Tub Clean is a special cycle to clean the inside of the washing machine.

A higher water level is used in this cycle at higher spin speed. Perform this cycle regularly.

1. Remove any clothing or items from the washer and close the door.
2. Open the dispenser drawer and add Anti limescale (e.g., Calgon) to the main wash compartment.
3. Close the dispenser drawer slowly.
4. Power On and then touch and hold the Tub Clean button for 3 seconds. Then "ECL" will be displayed on the LED display.
5. Press the Start/Pause button to start.
6. After the cycle is complete, leave the door open to allow the washer door opening, flexible gasket, and door glass to dry.

NOTE

• Do not add any detergent to the detergent compartments.
• Excessive suds may generate and leak from the washer.

CAUTION

If there is a child, be careful not to leave the door open for too long.

■ Door Lock & Detecting

- “Door Lock” - For safety reasons, the door will lock while the machine is in use and the “Door Lock” icon will light up. You can safely open the door after the “Door Lock” icon

Adding detergent

■ Adding detergent and fabric softener

▶ The dispenser drawer

• Main wash only → 📊
• Pre Wash + Main Wash → ∪ ∪ · ∪ ∪

WARNING

• Keep all washing detergents away from children as there is danger of poisoning.
• Too much detergent, bleach or softener may cause an overflow.
• Be sure to use the appropriate amount of detergent.

▶ Adding fabric softener

• Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener which could stain clothes. Close the dispenser drawer slowly.
• Do not leave the fabric softener in the detergent drawer for more than 2 days. (Fabric softener could harden)
• Softener will automatically be added during the last rinse cycle.
• Do not open the drawer when water is supplied.
• Solvents (benzene, etc.) should not be used.

Adding detergent

▶ Detergent dosage

• Detergent should be used according to the instructions of the detergent manufacturer and selected according to type, colour, soiling of the fabric and washing temperature.
• If too much detergent is used, too many suds can occur and this will decrease the washing result or cause heavy load to the motor.
• It is recommended that you use powdered detergent for best results.
• If you wish to use liquid detergent, follow guidelines provided by the detergent manufacturer.
• You can pour liquid detergent directly into the main detergent drawer if you are starting the cycle immediately.
• Please do not use liquid detergent if you are using 'Time Delay' as the liquid may harden, or if you have selected 'Pre Wash'.
• If too many suds occur, please reduce the detergent amount.
• Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. For best results, avoid oversudsing. • Refer to the label of the clothes before choosing the detergent and water temperature. • To use the washing machine, put the designated detergent only.

- General powdered detergents for all types of fabric (Cold - 95°C)

- Powdered detergents for delicate fabric (Cold - 40°C)

- Liquid detergents for all types of fabric (Cold - 95°C) or designated detergents only for wool (Cold - 40°C)

- For better washing performance and whitening, use the detergent with the General powdered bleach.

WARNING

- Do not let the detergent harden.

Doing so may lead to blockages, poor rinse performance or bad odor.

NOTE

• Full load : according to manufacturer's recommendation. - Part load : 3/4 of the normal amount. • Minimum load : 1/2 of full load.

- Detergent is flushed from the dispenser at the beginning of the cycle.

▶ Adding water softener

• A water softener, such as Anti-limescale (e.g. Calgon) can be used to cut down on the use of detergent in extremely hard water areas. Dispense according to the amount specified on the packaging. First add detergent and then the water softener. - Use the quantity of detergent as for soft water.

Maintenance

• Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock hazards.
• Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.

■ The water inlet filter

• The "I E" icon will be displayed on the control panel when water does not enter the detergent drawer.
• If water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it from time to time.

1. Turn off the water tap.
2. Unscrew the water inlet hose.
3. Clean the filter using a hard bristle brush.

4. Tighten up the inlet hose.

Maintenance

■ The drain pump filter

- The drain filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of your machine.

CAUTION

- First drain using the drain hose and then open the pump filter to remove any threads or objects. Be careful when draining if the water is hot.

- Allow the water to cool down before cleaning the drain pump, carrying out emergency emptying or opening the door in an emergency.

1. Open the lower cover cap. Pull out the hose.
2. Unplug the drain plug. Open the filter by turning to the left.
3. Remove any extraneous matter from the pump filter.
4. After cleaning, turn the pump filter and insert the drain plug.

Maintenance

■ Dispenser drawer

• After a while, detergents and fabric softeners leave a deposit in the drawer. It should be cleaned from time to time with a jet of running water. If necessary, it can be removed completely from the machine by pressing the catch downwards and pulling it out. To facilitate cleaning, the upper part of the fabric softener compartment can be removed.

1. Pull out the dispenser drawer.

1. Clean the dispenser drawer under water.

1. Clean inside the recess with an old toothbrush.

1. Insert the dispenser drawer.

Maintenance

The washing drum

• If you live in a hard water area, limescale may build up continuously in places where it cannot be seen and thus not easily removed. Over time the build up of scale clogs appliances, and if it is not kept in check these may have to be replaced.
• Although the washing drum is made of stainless steel, specks of rust can be caused by small metal articles (paper clips, safety pins) which have been left in the drum. The washing drum should be cleaned from time to time.
• If you use descaling agents, dyes or bleaches, make sure they are suitable for washing machine use.
• Descaler may contain chemicals that may damage part of your washing machine.
• Remove any spots with a stainless steel cleaning agent.
• Never use steel wool.

Cleaning your washer

Exterior

• Proper care of your washer can extend its life.
• The outside of the machine can be cleaned with warm water and a neutral non-abrasive household detergent.
• Immediately wipe off any spills. Wipe with a damp cloth.
• Try not to hit the surface with sharp objects.
• Do not use methylated spirits, diluents or similar products.

Interior

• Dry around the washer door opening, flexible gasket and door glass.
• Run washer through a complete cycle using hot water.
• Repeat process if necessary.

NOTE

• To remove hard water deposits, use only cleaners labelled washer safe.

Cold conditions

If the washer is stored in an area where freezing may occur or moved in freezing temperatures, follow these instructions to prevent damage to the washer: • Turn off water supply tap. - Disconnect hoses from water supply and drain water from hoses.

Troubleshooting guide

This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately.

When the machine does not function properly or does not function at all, check the following points before you contact your service provider.

Diagnosing Problem

Symptom Possible Cause Solution
Rattling and clanking noise	·Foreign objects such as coins or safety pins maybe in drum or pump.	Slop washer, check drum and drain filter.If noise continues after washer is restarted, call your authorised service centre.
Thumping sound	·Heavy wash loads may produce a thumping sound. This is usually normal.	If sound continues, washer is probably out of balance. Stop and redistribute wash load.
Vibrating noise	·Have all the transit bolts and packing been removed?·Are all the feet resting firmly on the ground?	If not removed during installation, refer to Installation guide for removing transit bolts.Wash load may be unevenly distributed in drum. Stop washer and rearrange wash load.
Water leaks.	·Fill hoses or drain hose are loose at tap or washer.·House drain pipes are clogged.	Check and tighten hose connections.Unclog drain pipe. Contact plumber if necessary.
Oversudsing		Too much detergent or unsuitable detergent may cause excessive foaming which may result in water leaks.
Water does not enter washer or it enters slowly	·Water supply is not adequate in area.·Water supply tap is not completely open.	Check another tap In the house.Fully open tap.

Troubleshooting guide

Symptom Possible Cause Solution
Washer does not start	Electrical power cord may not be plugged in or connection may be loose.House fuse blown, circuit breaker tripped,or a power outage has occurred.Water supply tap is not turned on.Check that the door is firmly shut.	Make sure plug fits tightly in wall outlet.Reset circuit breaker or replace fuse. Do not increase fuse capacity. If problem is a circuit overload, have it corrected by a qualified electrician.Turn on water supply tap.
Washer will not spin		Close the door and press the Start/Pause button. After pressing the Start/Pause button, it may take a few moments before the washer begins to spin. The door must be locked before spin can be achieved. Add 1 or 2 similar items to help balance the load. Rearrange load to allow proper spinning.
Door does not open		Once machine has started, the door cannot be opened for safety reasons. Check if the "Door Lock" icon is illuminated. You can safely open the door after the "Door Lock" icon turns off.
Wash cycle time delayed		The washing time may vary by the amount of laundry, water pressure, water temperature and other usage conditions.If an imbalance is detected or if the suds removing programme is on, the wash time shall be increased.
Fabric softener overflow	Too much softener may cause an overflow.	Follow softener guidelines to ensure appropriate amount is used.

Troubleshooting guide

Error Messages

Symptom Possible Cause Solution
	• Water supply is not adequate in area.• Water supply taps are not completely open.• Water inlet hose(s) are kinked.• The filter of the inlet hose(s) are clogged.	Check another tap in the house.Fully open tap.Straighten hose(s).Check the filter of the inlet hose.
	• Drain hose is kinked or clogged.• The drain filter is clogged.	Clean and straighten the drain hose.Clean the drain filter.
	• Load is too small.• Load is cut of balance.• The appliance has an imbalance detection and correction system. If individual heavy articles are loaded (e.g. bath mat, bath robe, etc.) this system may stop spinning or even interrupt the spin cycle altogether.• If the laundry is still too wet at the end of the cycle, add smaller articles of laundry to balance the load and repeat the spin cycle.	Add 1 or 2 similar items to help balance the load.Rearrange load to allow proper spinning.
	• Ensure door is not open.	Close the door completely.*If * d/E " is not released, call for service.
		Unplug the power plug and call for service.
	• Water overfills due to the faulty water valve.	Close the water tap.Unplug the power plug.Call for service.
	• Water level sensor has malfunctioned.

Troubleshooting guide

NOTE

- SMARTDIAGNOSISTM function is available only for the products with a SMARTDIAGNOSISTM mark. In case of a mobile phone with static option, the SMARTDIAGNOSISTM function might not operate.

■ Using SMARTDIAGNOSISTM

• Only use this feature when instructed to do so by the call center. The transmission sounds similar to a fax machine, and so has no meaning except to the call center.
• SMARTDIAGNOSISTM cannot be activated if the washer does not power up. If this happens, then troubleshooting must be done without SMARTDIAGNOSISTM. If you experience problems with your washer, call the Customer Information Center. Follow the call center agent's instructions, and do the following steps when requested:

1. Press the Power button to turn on the washer. Do not press any other buttons or turn the cycle selector knob.
2. When instructed to do so by the call center, place the mouthpiece of your phone very close to the Power button.

1. Touch and hold the "Temp." button for three seconds, while holding the phone mouthpiece to the icon or Power button.
2. Keep the phone in place until the tone transmission has finished.

This takes about 6 seconds, and the display will count down the time.

- For best results, do not move the phone while the tones are being transmitted.

- If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.

- Pressing the Power button during the transmission will shut off the SMARTDIAGNOSIS™

1. Once the countdown is over and the tones have stopped, resume your conversation with the call center

Terms of Warranty

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

NOTE

- When disposing of the appliance, cut off the mains cable, destroy the plug and disable the door lock to prevent children being trapped inside.

What Is Not Covered:

• Service trips to your home to teach you how to use the product. - If the product is connected to any voltage other than that shown on the rating plate. - If the fault is caused by accident, neglect, misuse or Act of God. - If the fault is caused by factors other than normal domestic use or use in accordance with the owner's manual. - Provide instruction on use of product or change the set-up of the product. - If the fault is caused by pests for example, rats or cockroaches, etc. - Noise or vibration that is considered normal, for example water drain sound, spin sound, or warning beeps. - Correcting the installation. For example, levelling the product, adjustment of drain. • Normal maintenance which is recommended by the owner's manual. - Removal of foreign objects / substances from the machine, including the pump and inlet hose filter. For example, grit, nails, bra wires, buttons etc. - Replace fuses in or correct house wiring or correct house plumbing.

Operating Data

Product fiche_Commission Delegated Regulation (EU) No. 1061/2010
Supplier's name or trade mark	LG LG
Supplier's model	F12A9ND(WJAX1-9)	F10A9ND(WJAX1-B)
Rated capacity	66kg
Energy efficiency class	A---	A---
Awarded an "EU EcoLabel award" under Regulation (EC) No 68/2010	No No
Weighted annual energy consumption (AEC) in kWh per year based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.	150.156		kWh/year
The energy consumption
- the standard 60°C cotton programme at full load	0.64	0.64	kWh
- the standard 60°C cotton programme at partial load	0.56	0.56	kWh
- the standard 40°C cotton programme at partial load	0.52	0.52	kWh
Weighted power consumption of the off-mode and of the left-on mode	0.330.33		W
Weighted annual water consumption (AWC) in liters per year based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used	9.5009.500		hours/year
Spin-drying efficiency class on a scale from G (least efficient) to A (most efficient).	5	5
Maximum spin speed attained for the standard 60°C cotton programme at full load or the standard 40°C cotton programme at partial load, whichever is the lower, and remaining moisture content attained for the standard 60°C cotton programme at full load or the standard 40°C cotton programme at partial load, whichever is the greater.	1200100		rpm
	58.58		%
The "Cotton Eco 60°C/40°C +Intensive" are the standard washing programmes to which the information in the label and the fiche relates. that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
The programme time
- the standard 60°C cotton programme at full load	235	233	min
- the standard 60°C cotton programme at partial load	199	199	min
- the standard 40°C cotton programme at partial load	184	184	min
The duration of the left-on mode (TI)	10.10		min

English

- Taimer (Time Delay) 22

	Time Delay	Crease Care	Favorite Program Wash	Pre program	Medic Rinse	Rinse + Spin	Time Save	Intensive
Cotton	●	●	●	●	●	●	●	●
Cotton Eco	●	●	●	●	●	●	●	●
Easy Care	●	●	●	●	●	●	●	●
Mix	●	●	●	●	●	●	●	●
Baby Care	●	●	●	●***	●	●		●
Silent Wash	●	●	●			●	●	●
Skin Care	●	●	●	●	●	●	●	●
Duvet	●	●	●			●	●	●
