Product Type	Leaf blower/vacuum
Brand	Meec Tools
Model	721-226
Power Consumption	3000 W
Voltage	230-240 V~, 50 Hz
No-Load Speed	15000 rpm
Max Air Speed	260 km/h
Max Air Flow	12.8 m³/min
Bag Capacity	35 L
Net Weight	3 kg
Sound Pressure Level	85 dB(A) (K=3 dB)
Guaranteed Sound Power Level	102 dB(A) (K=3 dB)
Vibration Level	4.8 m/s² (K=1.5 m/s²)
Double Insulation	Yes
Functions	Blowing and vacuuming
Switching Modes	Blower/vacuum selector
Included Accessories	2 tubes, bag, shoulder strap, screws
Safety Features	Double insulation, safety switch, earthing
Maintenance	Clean with damp cloth and mild detergent; no lubrication needed
Protection Class	Class II

Frequently Asked Questions - 721-226 Meec Tools

How do I switch between blower and vacuum mode?

Move the blower/vacuum selector on the machine to the desired position. Ensure the power is off before switching.

What type of extension cord should I use?

Use an extension cord approved for outdoor use with connectors complying with IEC 60320-2-3. Ensure the wire cross-section is sufficient for 3000 W to avoid voltage drop.

How do I assemble the tubes?

First connect tube 1 and tube 2 together by pressing them firmly. If they don't lock, tighten the screws. Then insert the assembled tubes into the casing and tighten screw 1 and 2.

What safety precautions should I take?

Always wear heavy-duty shoes, long trousers, safety glasses, and ear protection. Keep children and pets away. Do not use in rain or wet conditions. Unplug before maintenance.

How do I clean and maintain the leaf blower?

Clean with a cloth moistened with water and mild detergent. Do not use petrol, solvents, or other volatile agents. All bearings are permanently lubricated; no additional lubrication needed.

What should I do if the machine vibrates abnormally?

Immediately switch off, unplug, and wait for all moving parts to stop. Inspect for damage or blockages. Have the machine checked and repaired by qualified personnel before reuse.

Can I use the leaf blower in wet conditions?

No. Do not expose the machine to rain or moisture. It is not waterproof and poses a risk of electric shock.

How do I empty the collection bag?

Switch off the machine, unplug, and wait for moving parts to stop. Open the zip on the bag and empty the contents. The bag can be removed before emptying.

What is the noise level of this leaf blower?

The sound pressure level is 85 dB(A) with a tolerance of 3 dB. The guaranteed sound power level is 102 dB(A). Always wear hearing protection.

Where can I find spare parts?

Only use identical spare parts approved by the manufacturer. Contact your dealer or Jula service department for genuine parts. Using non-identical parts can cause injury.

USER MANUAL 721-226 Meec Tools

Black Meecr Tool with attached black cover (no visible text or symbols on the tool itself)

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer Jula AB, Box 363, 532 24 SKARA

Importör/ Importör/ Importer/ Importer

SAFETY INSTRUCTIONS....26

Training 26

Preparations....26

Use 26

Maintenance and storage 26

Symbols 27

DESCRIPTION 28

Electrical data 28

Double insulation 28

Earth connection 28

Extension cords 29

TECHNICAL DATA....29

ASSEMBLY 29

Unpacking 30

Assembly 30

OPERATION....31

Use....31

Use....31

MAINTENANCE 32

Cleaning 32

SÄKERHETSANVISNINGAR

Person in a coat and skirt crouching with a large black brush (no text or symbols visible)

Person in a coat and skirt crouching with a large black pipe, holding a small device (no visible text or symbols)

Person in a coat and skirt crouching beside a large black industrial chimney (no visible text or symbols)

Read the Operating Instructions carefully before use.

Save these instructions for future reference.

Training

- Read these instructions carefully and familiarise yourself with the controls on the machine and how they are used.

- Never allow children, or anyone who is unfamiliar with the machine and these instructions, to use it. There may be local regulations for the minimum age of persons allowed to use the machine.

• Do not use the machine when other persons, especially children, or pets are in the vicinity.

- The user is responsible for any accidents or risks to other persons or property.

Preparations

• Always wear heavy-duty shoes and long trousers when using the machine.

- Do not wear loose-fitting clothing or jewellery which can be drawn into the air intake. Keep the air intake away from long hair.

- Wear safety glasses.

- Wear a dust filter mask if the work produces a lot of dust.

- Always check the power cord and extension cord for damage, wear and ageing before use. Do not use the machine if the power cord is damaged or worn.

- Never use the machine if the guards or covers are dismantled or damaged. Never use the machine without the safety devices fitted, e.g. the collector.

- Only use an extension cord approved for outdoor use, with connectors the comply with the requirements in IEC 60320-2-3.

Use

• Always make sure that the power cord is pointing away from the machine.
- Pull out the plug immediately if the cord gets damaged when working. Do not touch the power cord until it has been unplugged.
- Never carry the machine by the power cord.
- Unplug the power cord

before leaving the machine

• before removing a blockage
• before checking, cleaning or doing any other work on the machine
• if the machine starts vibrating abnormally.

- Only use the machine in daylight, or in good artificial lighting.

• Do not overreach. Always maintain a firm footing and good balance.
• Make sure you always have a good footing on sloping ground.
• Never run with the machine.
• Keep all the vents clean and free from debris.
  • Always blow debris away from onlookers.

Maintenance and storage

• Make sure that all the screw connections are properly tightened to keep the machine in safe condition.
- Check the catcher for wear or damage at regular intervals.
- Replace damaged or worn parts.
- Only use approved spare parts and accessories.
- Store the machine in a dry place.

Symbols

Symbol		Significance
		Never allow children, or anyone who is unfamiliar with the machine and these instructions, to use it. Keep children and onlookers at a safe distance when using the machine.
		Switch OFF: Remove plug from mains before cleaning or maintenance.
		Keep onlookers at a safe distance.
		Wear safety glasses and ear protection.
		Do not expose the machine to rain or moisture.
		Do not touch moving parts.
		Read these instructions before use.
		Double insulation

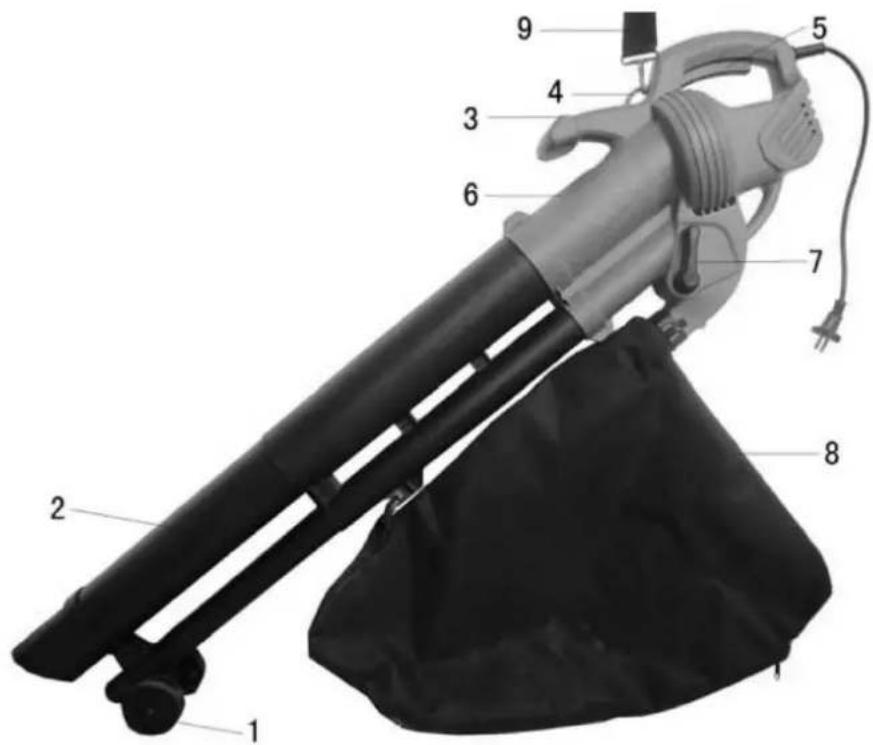

DESCRIPTION

1. Wheel
2. Tube
3. Front handle
4. Hole for shoulder strap
5. Power switch
6. Type plate
7. Blower/vacuum selector
8. Bag
9. Shoulder strap

ELECTRICAL DATA

Double insulation

The machine has double insulation, which means that all metal parts are insulated from internal motor components made of metal.

WARNING: Only use identical spare parts when servicing. The use of other parts can result in the risk of personal injury and/or material damage.

WARNING: Pay attention to what you are doing, and use your common sense when working with power tools.

WARNING: ELECTRICAL SAFETY

The machine must only be serviced by qualified personnel using identical spare parts. Do not use power tools in damp or wet areas. Do not expose power tools to rain.

Earth connection

The current is earthed in the event of a fault or malfunction, which reduces the risk of electric shock. The plug must be connected to a suitable power outlet, which is correctly installed and earthed. Never modify the plug in any way. If the plug does not fit the mains socket, contact an authorised electrician to install an earthed mains socket.

IMPORTANT: Always check that the mains socket is correctly earthed. If in doubt, contact a qualified electrician to check the mains socket.

Extension cords

If you are using an extension cord, the cross sectional area of the wires must be sufficient for the power supply to the appliance. An undersized power cord causes a voltage drop, which leads to power loss and overheating.

Check that the extension cord is in good condition and that the wires are correctly connected. Always replace a damaged extension cord, or take it to an authorised electrician for repair before use. Keep the power cord away from heat, sharp edges and moisture.

Make sure the power switch is in the OFF position and that the mains voltage corresponds with the data on the type plate before plugging in the cord. Low voltage will damage the motor.

WARNING: The machine should only be connected to an earthed mains outlet.

TECHNICAL DATA
Voltage	230–240 VAC, 50 Hz
Power consumption	3000 W
Speed (no load)	15000 rpm
Max. air speed	260 km/h
Max. air flow	12.8 m ^3 /min
Spray ratio	10:1
Bag	35 l
Sound pressure level, LpA	85dB(A), K= 3 dB
Measured Sound power level, LwA	101dB(A), K= 2.03 dB
Guaranteed Sound power level, LwA	102dB(A), K= 3 dB
Vibration level	4,8m/s2, K= 1,5 m/s2
Net weight	3 kg

Always use hearing protection!

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

WARNING: The actual vibration level when using power tools may differ from the specified maximum value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

ASSEMBLY

Unpacking

Unpack the machine, 2 tubes, bag, strap and 2 screws, from the box. Check that all parts are included and unpacked.

WARNING: Do not use the machine if any parts are missing or damaged. Contact your dealer.

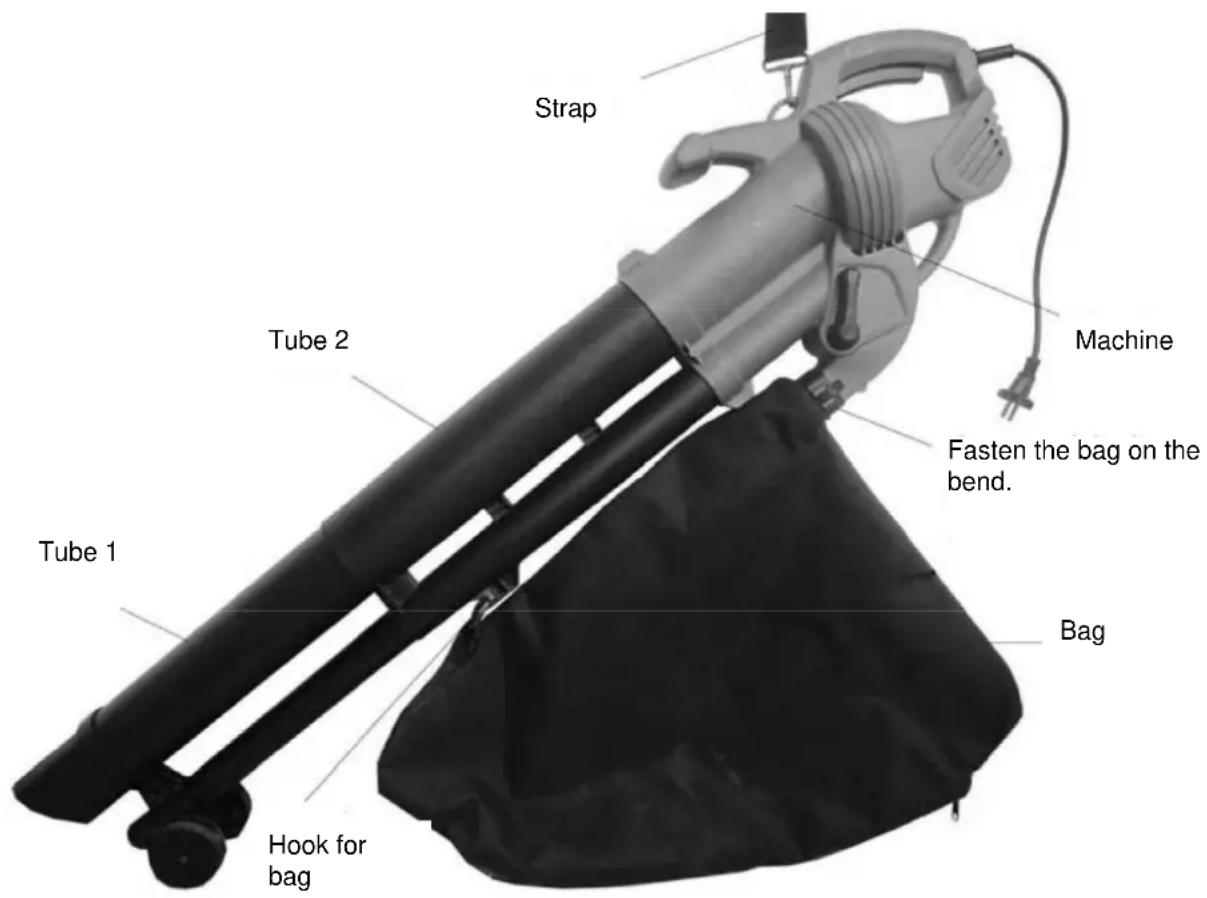

Assembly

WARNING: Check that the power cord is unplugged and that the power switch (pos. 5) is in the OFF position before assembling.

1. Fit tube 1 and 2 together first. Press tube 1 into tube 2. If tube 1 does not lock in place in tube 2, tighten the screws to lock it firmly in place.
2. Insert the assembled tubes in the casing and tighten screw 1 and 2.
3. Hang the bag on the hook and fit the other end on the bend.

OPERATION

WARNING: Do not use the machine if the power cord or plug are damaged.

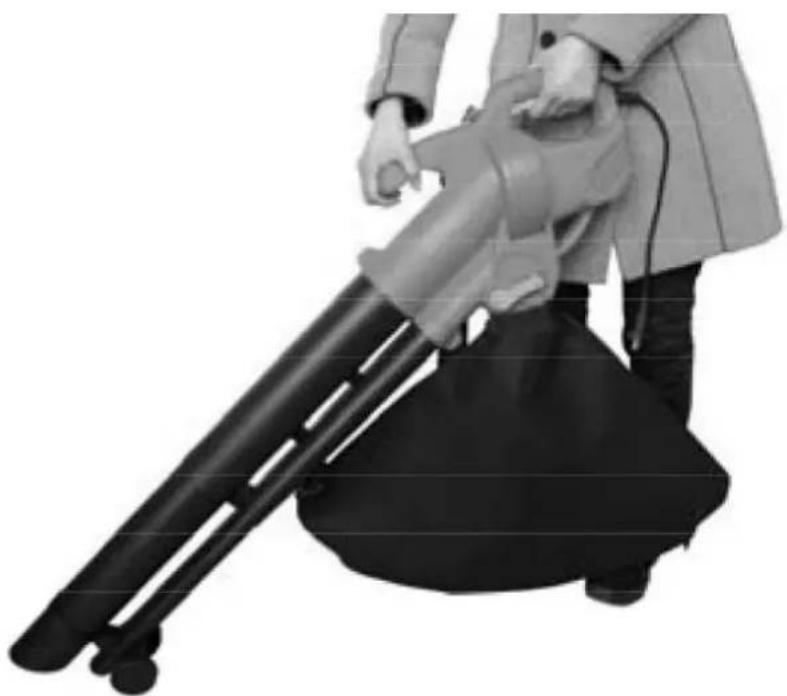

Use

1. Put the strap over your shoulder.
2. Grip the large handle with your right hand and the small handle with your left hand.

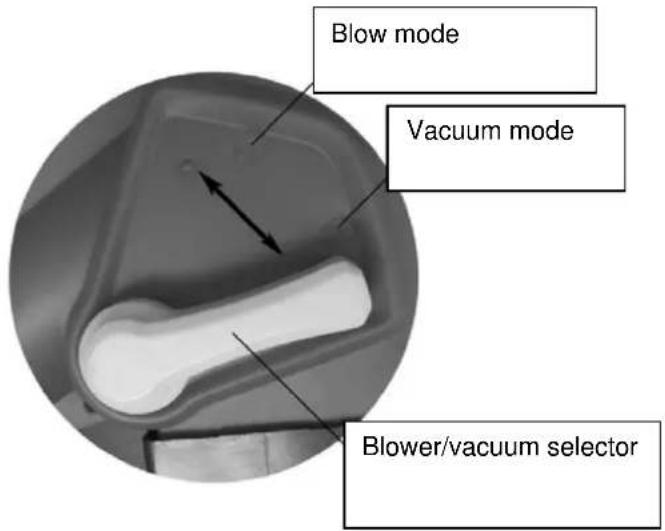

3. To vacuum, move the selector to vacuum mode. To blow, move the selector to blow mode.

1. Plug in the power cord and press the power switch.
2. Allow the wheels to roll over the ground to move the machine backwards and forwards.
3. When the bag is full, open the zip and empty. The bag can be removed before emptying.

Use

Person in a coat and skirt crouching with a large black hairdryer (no text or symbols visible)

WARNING: Switch off the machine, unplug the power cord and wait until all moving parts have completely stopped before emptying the bag.

MAINTENANCE

Keep the machine clean and in good condition for best performance and service life. Always check the machine, power cord and plug for damage before use. Check that no parts are damaged, missing or worn and that no other factors can affect functionality. Switch off and unplug the machine immediately in the event of abnormal noise or vibrations. Have the machine checked and repaired before using it again.

WARNING: Only use identical spare parts when servicing. The use of other parts can result in the risk of personal injury and/or material damage.

Cleaning

Clean the machine with a cloth moistened with water and a mild detergent. Some detergents and solvents can damage plastic and insulated parts. Do not use petrol, solvents or detergents that can damage the plastic parts.

WARNING: Do not clean the machine with petrol, naptha, acetone, thinner or other highly volatile agents – this can cause fire and/or a toxic reaction.

WARNING: Do not expose the machine to water or any other liquid – risk of electric shock.

Lubrication

All the bearings are permanently lubricated. No further lubrication is normally necessary.

WARNING: The machine must only be serviced by qualified personnel using identical spare parts. The use of other parts can result in the risk of personal injury and/or material damage.

CE

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLAERING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

Machinery Directive 2006/42/EC

Low Voltage Directive 2006/95/EC

EN 60335-1:2002+A11+A1+A12+A2+A13+A14+A15

IEC 60335-2-100, EN 62233:2008

Electromagnetic Compatibility Directive 2004/108/EC

EN 55014-1:2006+A1+A2, EN 55014-2:1997+A1+A2

EN 61000-3-2:2014, EN 61000-3-3:2013

Outdoor Noise Directive 2000/14/EC, amended by 2005/88/EC

RoHS Directive 2011/65/EU

IEC 62321:2008

This product was CE marked in year -13

Name and address of the person

authorised to compile the technical file:

Skara

2016-01-27

Jonas Backstad

Box 363, SE-532 37 Skara, Sweden

Stefan Rundberg

PRODUCT MANAGER
