Brand	Equator
Model	WP818
Product Type	Portable Dishwasher
Place Settings	8
Wash Programs	7 (Intense, Normal, Economy, Rinse, Light, Fast Wash, Soak)
Energy Source	120 V ~ 60 Hz, 15 A
Tub Material	Stainless Steel
Display	Remaining time display
Delay Timer	1 to 9.5 hours
Upper Basket	Adjustable height
Rinse Aid Indicator	LED warning light
Error Alarm	Fault code display
Overflow Protection	Automatic shut-off and drain
Memory Function	Automatically sets frequently used program
Automatic Adaption	Intelligent control adjusts to conditions
Water Connection	Portable faucet adapter (unicouple)
Dimensions (approx.)	450 x 650 x 915 mm (width x depth x height)
Warranty	1 year parts and labor (USA/Canada)

Frequently Asked Questions - WP818 Equator

What should I do if the dishwasher does not start?

Check the fuse or circuit breaker, ensure the power is on and the door is closed securely, and press the Start button. Make sure the power cord is plugged in.

How do I adjust the rinse aid dispenser?

Open the dispenser cap and rotate the dial to a higher number if spots or poor drying occur. Start at setting '1' and increase as needed. The dispenser holds about 100 ml.

Why are there spots on my dishes?

Hard water, low inlet temperature, overloading, or empty rinse aid can cause spots. Try using more rinse aid, less detergent, or run a vinegar cycle to remove spots.

How do I clean the filters?

Remove the filter assembly by pulling the cup handle upward. Rinse the semicircular filter under running water. Clean the coarse and fine filters with a brush at least once a month.

Can I use regular dish soap?

No, use only detergent specifically made for automatic dishwashers. Regular soap causes excessive suds and may damage the machine.

How do I connect the dishwasher to the faucet?

Attach the faucet adapter to the sink faucet, then connect the unicouple connector by depressing the collar and pushing it onto the adapter until it locks. Ensure the small hose carries water to the dishwasher and the large hose drains into the sink.

What does the error code E1 mean?

E1 indicates longer inlet time. Check that the faucet is fully open and water pressure is adequate.

Why is water not draining from the dishwasher?

Check if the drain is clogged. Ensure the kitchen sink drains well. If the dishwasher drains into a disposer, run it clear. Also verify the drain hose is not kinked or too high.

How do I clean the spray arms?

Unscrew the nut and remove the washer on top of the spray arm, then lift off the arm. Wash in warm soapy water using a soft brush to clean the jets. Rinse and reassemble.

What is the memory function?

The memory function automatically sets the most frequently used program as the current program, making operation easier by remembering your preferred cycle.

USER MANUAL WP818 Equator

Technical line drawing of a multi-level cleaning machine with visible internal components and mounting base (no text or labels)

MODEL: SP 818 & WP 818

SAVE THESE INSTRUCTIONS

PRODUCT FEATURES

The automatic dishwasher of our series, based on the philosophy technology is based on human being, besides the common characteristics of other household dishwashers, it has its own specialties:

Automatic adaption

The intelligentized control system could be adaptive to different conditions of temperature, voltage and humidity to automatically correct remaining time display.

7 wash programs

You can choose your desired program according to the soiled level. Such as, strong wash, normal wash, economy, rinse, glass, rapid and pre-wash etc.

Memory function

The memory function could automatically set the frequently used program as current program, it make operation much more easier.

8 place setting capacity

Be sufficient for normal use.

Delay timer function

This allows the start of the programme to be delayed between 1 and 9.5 hours, enabling you to benefit fully from cheaper electricity! Or just to be benefit from the convenience of the programming finishing when you want to.

Stainless steel tub

You need not worry about stain of tub.

Remaining time display

The length of time the programme has left to run will be clearly displayed in the text window, leaving you in no doubt as to when the programme will end and you can go out.

Adjustable upper basket

Even if the dishware are abnormality, you can load them by adjust the upper basket.

Error alarm

Fault codes display would inform the user of abnormal status of the machine;

LED low rinse aid Indicators

If the rinse aid are running low, there will be clearly displayed on the panel alerting you to top them up, to ensure that the machine continues to operate at optimum performance.

Broad applied voltage

The broad scope of the applied voltage, reduce the code of electric condition.

Overflow protection

Your Midea dishwasher has an overfill protection program which could automatically shut off the inlet valve and start the drain pump if the water Overflow.

WARRANTY INFORMATION

Your Equator appliance is protected by this warranty under normal, personal, family or household use (1 Year), and limited commercial use (90 days) in the USA and Canada.

WARRANTY

Equator Corporation undertakes to the consumer-owner to repair or, at Equator Corporation's option, to replace any part of this product which proves to be defective in workmanship or material under normal personal, family or household use, in the USA and Canada, for a period of one year from the date of original purchase.

For commercial use, the product is warranted for a period of 90 days.

During this period, Equator Corporation will provide all labor and parts necessary to correct such defect, free of charge, if the appliance has been installed and operated in accordance with Equator Corporation's written instructions with the appliance. Ready access to the appliance, for service, is the responsibility of the consumer-owner.

EXCLUSIONS

In no event shall Equator Corporation be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts God.

This warranty does not cover service calls which do not involve defective workmanship or materials covered by this warranty. Accordingly, diagnosis and repair costs for a service call which does not involve defective workmanship or materials will be the responsibility of the consumer-owner.

Specifically, the following work is not covered under warranty and does not constitute warranty work: . Installation –e.g. improper hook–up or leveling . Maintenance – e.g. cleaning of air and/or water filter . Damage – e.g. Replacing broken door handle

Most work is covered. The defining factor is, has the machine malfunctioned (Equator is responsible) or has the customer omitted or done something to cause machine to malfunction (customer is responsible). Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

WARRANTY SERVICE

This warranty is given by:

Equator Corporation,

Equator Plaza,

2801 W. Sam Houston Pkwy. N.,

Houston, TX 77043-1611.

Service under this warranty must be obtained by the following steps, in order:

Call an Equator Corporation Authorized Service Agent (obtain number of nearest agent from your dealer or by calling Equator Service at 1–800–776–3538). Under normal circumstances, Service will be provided during regular business hours (9:00 a.m. to 5:00 p.m. weekdays).

GENERAL

Since it is responsibility of the consumer-owner to establish the warranty period by verifying the original purchase date, Equator Corporation recommends that a receipt, delivery slip or some other appropriate payment record be kept for that purpose.

Remember to send in your Warranty Registration Card so that a proof of your purchase exists with Equator. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

Corporate Office

EQUATOR CORPORATION

Equator Plaza

2801 W. Sam Houston Pkwy. N.

Houston, TX 77043-1611

Tel: [phone] - Fax: [phone]

Tel: [phone]

We & You, A Service Partnership

Thank you for buying this product. As a home appliances producer, we are proud of our quality products and we are committed to providing dependable service. We are able to utilize our global resources in creating innovation that makes housework lighter and easier, and provide a truly comfortable home for you to relax and enjoy.

Read this Manual

This manual contains sections of Safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips etc. Carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.

Before Calling for Service

To review the section on Troubleshooting Tips will help you to solve some common problems by yourself and not need to ask for the help of professional technicians.

If You Need Service

If you can not solve the problems by yourself after reading the section of Troubleshooting Tips, please contact the professional technicians of the service center. We are happy to help you with your questions, 24 hours a day, 7 days a week.

Safety Information....1

Operating Instructions

Control Panel 2
Dishwasher Features 2
Wash Cycle Table 3
Turning On the Appliance 3
Detergent 4
Rinse Aid 4,5
Dishwasher Rack 5,6
Filtering System 6
Caring for the Dishwasher 6,7

Installation instruction

About Electricity connection .....8
About the Unicouple....8
Water Connection 9
Dimentions 9

Troubleshooting Tips

Before calling for service.... 10,11
Overflow conditions.... 12

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher, follow the below basic precautions.

⚠ WARNING! HYDROGEN GAS IS EXPLOSIVE

Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shocky providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

▲ WARNING!

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plugprovided with the appliance;If it is not fit for the outlet have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not touch the heating element during or immediately after use.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufactures recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of children.
- Keep child away from detergent and rinse aid, keep child away from the open door of the dishwasher, there could still be some detergent left inside.
The door should not be left in the open position since this could present a tripping hazards.
During installation, the power supply must not be excessively or dangerously bent or flattened.
To reduce the risk of injury, do not allow children to play in or on a dishwasher.

Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
Do not place any heavy objects of stand on the door when it is open. The appliance could tip forward.
When loading items to be washed: 1) Locate sharp items so that the y are not likely to damage the door seal; 2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.
When using your dishwasher, you should prevent plastic item from contacting with heating element.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
- Please dispose of packing materials properly.
■ Use the dishwasher only for its intended function.
■ Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY

SAVE THESE INSTRUCTIONS

IMPORTANT!

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

About the Dishwasher Control Panel

Models:SP 818 & WP 818

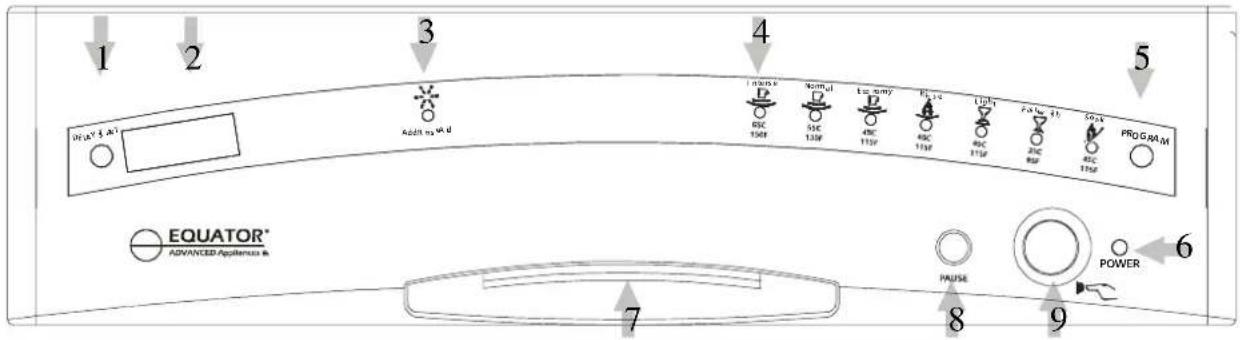

1 Delayed Start Button: Press this button to set the delayed hours for washing.
2 Display Window: Program remaining time, delay time, and faut codes.
3 Rinse Aid Warning light: Add more rinse aid as the indicator on the front panel lights up.
4 Program indicator light
5 Program Button: Pressed to choose desired program, whose program indicator light will come on.

6 Power On indicator light: Comes on when the power is turned on.
7 Door Lock: Pull it to open the door.
8 Start/Pause Button: Press this button to start orpause.
9 Power Switch: Turn on/off the power supply.

DISHWASHER FEATURES

Front View (Door open)

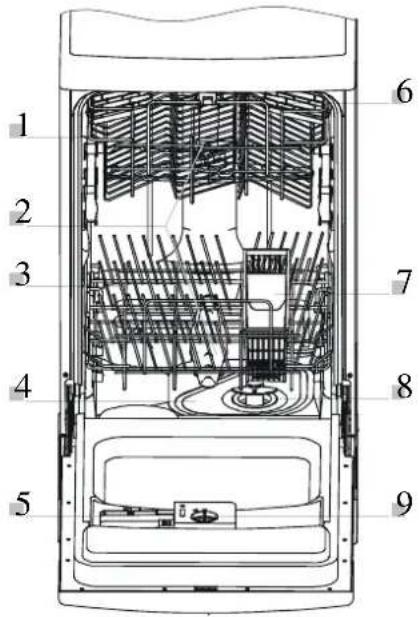

1 Upper Basket 4 Main Filter
2 Spray Arms 5 Detergent Dispenser
3 Lower Basket 6 Cup Shelf

Back View

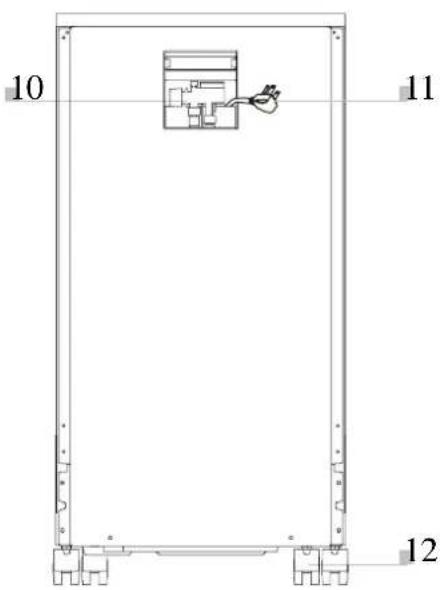

7 Silverware Basket 10 Portable Faucet Adapter Assembly
8 Coarse Filter 11 Power Cord
9 Rinse Aid Dispenser 12 Caster

WASH CYCLE TABLE

Program	Cycle	Cycle Selection Information	Description of Cycle	Detergent pre/main	Rinse Aid
Intense		For the heaviest soiled loads, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.	Pre-rinse (115°F)Wash (150°F)RinseRinse (158°F)Drying.	4/20 gr.	★
Normal		For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.standard daily cycle.	Pre-rinseWash (130°F)RinseRinse (158°F)Drying.	4/20 gr.	★
Economy		For lightly soiled loads, such as plates, glasses, bowls and lightly soiled pans.	Wash (115°F)RinseRinse (158°F)Drying.	20 gr.	★
Rinse		For dishes that need to rinsed and dried only	RinseRinse (158°F)Drying.		★
Light		A shorter wash for lightly soiled loads that do not need drying.	Wash (115°F)RinseRinse (150°F)Drying	15 gr.	★
Fast wash		For lightly soiled loads, such as glasses, crystal and fine china.	Wash (95°F)RinseRinse	15 gr.
Soak		Pre-wash of dishes pots and pans while waiting for the load to be completed after the subsequent meal.	Pre-rinse

TURNING ON THE APPLIANCE

Starting a wash cycle...

1 Draw out the lower and upper basket, load the dishes and push them back. It is commended that loading the lower basket first, then the upper one.
2 With a little force to ensure the door is properly closed.
NOTE: A click could be heard when the door is closed perfectly.
3 Insert the plug into the socket. The power supply is 120VAC 60HZ, the specification of the socket is 15A 125VAC.
4 Press the ON/OFF button
5 According to the soil level to choose the desired program by pressing the program selection button.
6 Press the Start/Pause button to start the washing
7 Press the ON/OFF button at the end of washing. Open the door of dishwasher after waiting 30 minutes.

Change the Programme

When the dishwasher is running, you want to change the using programme, you should do according the following step.

1 Press the Start/Pause button to stop the washing.

2 Press(or turn around the programme button to select the desired programme.

3 Press the button to start washing.

At the end of the wash

At end of washing, the time display will flash for 8 seconds while the buzzer sound. But at the end of delayed washing, no sound of the buzzer, only the flash of the time display.

NOTE: If you open the door when washing, the machine will delay start for several seconds, which will make the dishwasher work much better.

DETERGENT DISPENSER

YOU MAY NOT ADD TOO MUCH DETERGENT TO PREVENT THE FORMATION OF DEPOSITS BECAUSE OUR DISHWASHERS HAVE SPECIALLY-DESIGNED WATER SOFTENERS.

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table". Our dishwashers use less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

IF THE WATER ISN'T TOO HARD, YOU MAY ALSO PREVENT THE FORMATION OF DEPOSITS BY ADDING

DETERGENT. The amount of detergent needed can vary due to differences in water hardness. To determine the water hardness in your area, contact your local water utility or area water softening company. The harder the water, the more detergent you may need. Remember, you should adjust the amount of detergent you use by small amounts until you find the correct amount.

▲ WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

RINSE AID DISPENSER

Line drawing of a washing machine with control panel and mechanical components (no text or symbols)

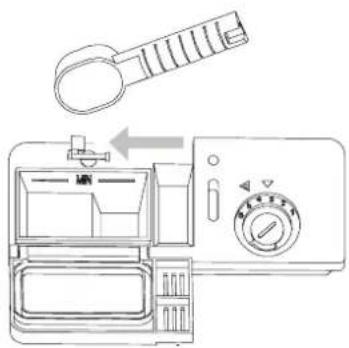

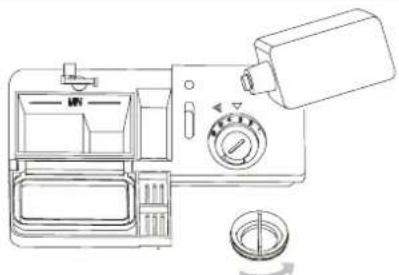

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open"
arrow and turning it to the closed (right) arrow.

Removing Hard Water Spots

To remove hard water spots, try the following g:

■ Run dishes through a normal wash program.
Remove all metal dishware, such as cutler y, pans, etc.,
from the dish washer. Do not add detergent.
Pour two cu ps of vinegar into a bowl and set the bowl face
■ up on the lower rack of the dishwasher.

Run the dishes through a normal wash program.

If this doesn't work, try the same process with 1 / 4 cup of citric acid crystals instead of vinegar.

Proper Use of Detergent

Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until You're ready to wash dishes.

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to "sheet" off the dishes.

Our dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The dispenser holds about 100 ml of liquid rinse aid.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close the dishwasher door. If you have soft water, you may not need rinse aid for it may cause a white film to develop on your dishes.

Adjusting Rinse Aid Dispenser

A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in lather of foaming and cause cloudiness or steaks on your dishes. If the water in your area is very soft, you may not need rinse aid. If you do, you can dilute the rinse aid with an equal amount of water. The rinse aid dispenser has six settings. Always start with the dispenser set on "1". If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "2". If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. We suggest you to set on "4".

When to Refill the Rinse Aid Dispenser

If there is no rinse aid warning light in the control panel, you can judge the amount of rinse aid by the following means. The black dot on the rinse aid dispenser indicates the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of the black dot decreases. You should never let the rinse aid get below 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4 full
1 / 2 full
- 1 / 4 full – Should refill to eliminate spotting
○ Empty

Loading the Dishwasher Racks.

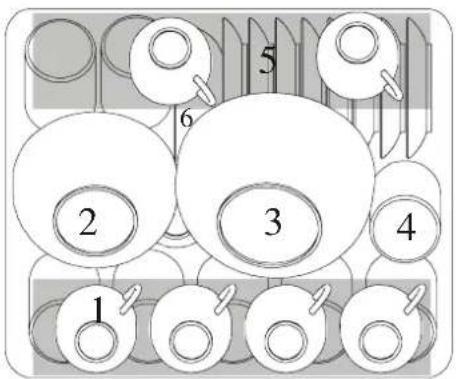

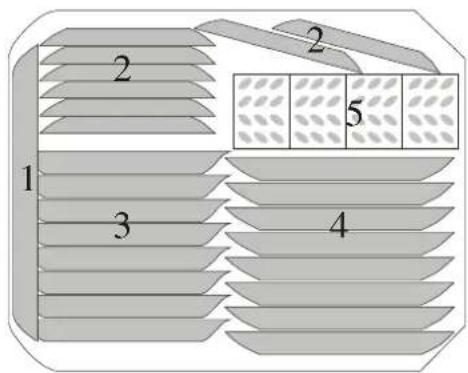

For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

How to use the Upper Rack

The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they do not get moved by the spray of water.

The upper rack can be adjusted for height by putting wheels of different height into the rails.

1 Cups
2 Small serving bowl
3 Large serving bowl
4 Glasses
5 Saucers
6 Dish
7 Plates

How to use the Lower Rack

We recommend that you place large items which are most difficult to clean into the lower rackets, pans, lids, serving dishes and bowls, as shown in the figure to the right.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking top spray arm.

■ Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The bottom rack feature fold downtine rows so that larger or morepots and pans can be loaded.

1 Oval platter
2 Dinner plates
3 Soup plates
4 Dessert dishes
5 Silverware basket

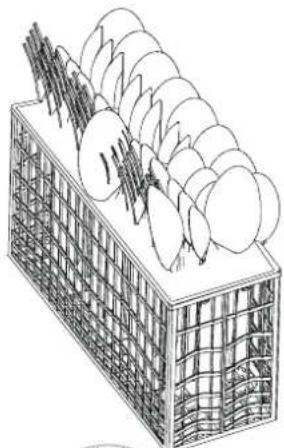

SILVERWARE BASKET

Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the front of the upper rack.

Isometric line drawing of a building with spiral-shaped components on top (no text or symbols)

1	4	5	2
1	4	5
1	4	5	2
1	4	5	2
1	4	5
4	4	5	2
7	4	5	2
8	3	5
1	3	3	2
1	3	3	2
1	3	3
6	3	6	2

▲ WARNING!

Do not let any item extend through bottom.

1 Forks
2 Soup spoons
3 Dessert spoons
4 Teaspoons

5 Knife
6 Serving spoon
7 Gravy ladle
8 Serving fork

Filtering System

For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter.

1 Main filter

Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.

2 Coarse filter

Larger items, such as pieces of bone or glass, that could clog the drain are trapped in the coarse filter. To remove an item caught in this filter, gently squeeze the tabs on top of this filter and lift it out.

3 Fine filter

This filter holds soil and food residue in the sump area and prevents it from being redeposited on the dishes during a cycle.

Caring for the Dishwasher

To clean the control panel use a lightly dampened cloth then dry thoroughly. To clean the exterior use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect Against Freezing

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

1 Cut off electrical power to the dishwasher. Remove fuses or trip circuit breaker.
2 Turn off the water supply and disconnect the water inlet pipe from the water valve.
3 Drain water from the inlet pipe and water valve. (Use a pan to catch the water.)

4 Reconnect the water inlet pipe to the water valve.
5 Remove the plastic sump cover in the tub the bottom and use a sponge to soak up water in rubber boot.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arm, screw off the nut to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Cleaning the Filters

Simple line drawing of a rectangular container with a circular button and a smiling face (no text or symbols)

Filter assembly

For best performance and results, the filter assembly must be cleaned.

The filter efficiently removes food particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsin g the semicircular filter and cp under running g water. To remove the filter assembly, pull on the cup handle in the upward direction. The entire filter assembly should be cleaned at least once a month.

To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble the filter parts as shown in the figures left and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.

The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

▲WARNING!

Never run the dishwasher without the filters in place.

Cleaning the Door

Simple line drawing of a mechanical component or housing with no text or symbols

To clean the edge around the door, you should use only a soft warm, dam prag. To prevent penetration of water into the door lock and electrical components, do not use a s pray cleaner of any kind.

Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish. Some papers towels can also scratch or leave marks on the surface.

▲WARNING!

Never use a s pray cleaner to clean the doopanel for it could damage the door lock and electrical components. It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots on the stainless steel surface.

Cleaning the Drain Pump

Something will occasionally move into the filters and the drain pump. If this occurs, the drain pumps employed in our dishwashers are designed to automatically reverse, ejecting the item back into the sump area or down the drain. If you have to remove an obstacle from the drain pump, before you remove the filters, you should turn off the power; Then remove the small black insert from the sump area. (You might want to remove any standing water first). Scoop out the item that is probably in the sump area and causes the obstruction. Remember to replace the black insert before you put the filters back in.

How to Keep Your Dishwasher in Shape

After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks.

■ No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Rather, use only a cloth and warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwashers.

■ When You Go on Holiday

When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep p it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

ABOUT ELECTRICITY CONNECTING

CAUTION, for personal safety:

DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD GROUNDING PRONG FROM THE POWER CORD.

Simple line drawing of an electric plug with a wall-mounted panel and socket (no text or symbols)

Insure proper ground exists before use

Electrical Requirements

This dishwasher is designed for operation on an adequately wired individual 120VAC, 60HZ, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time-delay fuse.

If the electric supply provided does not meet the above specifications, it is recommended that a licensed electrician install an approved outlet.

Your dishwasher circuit should not be used for any other appliance while the dishwasher is in operation as the dishwasher requires the full capacity of the circuit.

If the wall socket you plug the dishwasher's power cord into is controlled by a switch, turn on the switch.

ABOUT THE UNICOUPLE.

Before Operating the Dishwasher the First Time

Technical line drawing of a mechanical assembly with a handle, screwdriver, and valve (no text or symbols)

Attach the faucet adapter. The special faucet adapter supplied with your dishwasher must be assembled to the sink faucet before you can use your dishwasher if your faucet is not threaded. You will find the adapter installed with uncouples.

If faucet has no threads: attach the faucet adapter to faucet, then tighten every screw of the adapter. To prevent leaking your should tighten the adapter.

How to Connect the Unicouple

Line drawing of a hand adjusting a faucet handle with a valve and hose (no text or symbols)

1 Pull Unicouple and its hoses completely out from storage compartment located at rear of dishwasher and attach it to the faucet adapter.
2 Attach the Unicouple connector to the faucet adapter by depressing the collar at the top of the connector. When Unicouple is all the way up onto the adapter, release the collar. It will then snap Into position to lock the Unicouple in place. The Unicouple's small hose carries water from the faucet to the dishwasher. Its large hose carries drain water to the sink. Be sure Unicouple is pointing toward the sink bowl drain opening and the sink drain is open for water that will drain from your dishwasher. If your dishwasher drains into a disposer, operate the disposer until it is completely empty before starting the dishwasher.
3 Turn water fully on before starting the dishwasher.

WARNING!

A hose that attaches to a sink pray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and hole plugged.

How to Disconnect the Unicouple

1 Turn off the water.
2 Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severe splashing.
3 Release Unicouple from faucet by depressing the collar at the top of the Unicouple connector.

How to Disconnect the Dishwasher

1 Remove the power cord plug from the wall socket.
2 Disconnect Unicouple from faucet adapter.

NOTE: When the cycle is over, the Unicouple can be disconnected and returned to storage.

Hot Water Connection

The water supply to the appliance can also be connected to the house hot water (centralized system, heating system), as long as it does not exceed a temperature of 60 C.

In this case, the wash cycle time will be shortened by about 15 minutes and the wash efficiency slightly reduced. The connection must be made to the hot water line following the same procedures as those for the connection to the cold water line.

How to Drain Excess Water

Simple line drawing of a vertical container with a small top and a curved tail extending from its side (no text or symbols)

If the sink is 34 inches or higher from the floor, the excess water in Unicouple hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

HANGING HEIGHT OF DRAIN PIPE

Troubleshooting Tips Review the charts on the following pages may make you be free of calling for service.

Problem	Possible Causes	What To Do
Dishwasher doesn't run	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove another appliances sharing the same circuit with the dishwasher
	Power supply is turned off	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Start button isn't pressed	Pressed the Start button.
Drain pump doesn't stop	Overflow The s	y stem is designed to detect an overflow. When it does, it shuts off the circulation pump and turns on the drain pump.
Noise	Some audible sounds are normal	Sound from soft food shredding action and detergent cup opening.
	Utensils are not secure in the baskets or something small has dropped into the basket	To ensure everything is secured in the dishwasher.
	Motor hums Dishwasher has not been used re use it often, remember to set it to fill and pump out every week, which will help keep the seal moist.
Suds in the tub	Improper detergent Use onl	y the special dishwasher deter gent to avoid suds. If this occur, open the dishwasher and let suds eva porate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then drain out the water by slowly turning the dial until a drain period is reached. Repeat if necessary.
	Spilled rinse agent Always wipe up rinse agent spills immediately.
Stained tub interior	Detergent with colorant was used	Make sure that the deter gent is the one without colorant.
Dishes are not dried	Rinse agent dispenser is empty	Make sure that the rinse agent dispense is filled.
Dishes and flatware not clean	Clogged air gap Clean the air	gap.
	Improper rack loading Make sure that the action of the deter and spray arms are not blocked by large dishware.
Spots and filming on glasses and flatware	Extremely hard waterLow inlettemperatureOverloading the dishwasherImproper loadingOld or damp powder detergentEmpty rinse agent dispenserIncorrect dosage of detergent	To remove spots from glassware:Take out all metal utensils out of the dishwasher.Do not add detergent.Choose the longest cycle.Start the dishwasher and allow it to run for about 18 to 22 minutes, then it will be in the main wash.Open the door to pour 2 cups of white vinegar into the bottom of the dishwasher.Close the door and let the dishwasher complete the cycle. If the vinegar does not work: Repeat as above, except use 1/4 cup (60 ml)of citric acid crystals instead of vinegar.

BEFORE CALLING FOR SERVICE...

Problem	Possible Causes	What To Do
Cloudiness on glassware	Combination of soft water and too much detergent	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
Yellow or brown film on inside surfaces	Tea or coffee stains	using a solution of 1/2 cup of bleach and 3 cu ps warm water to remove the stains by hand.⚠ WARNINGYou have to wait for 20 minutes after a cycle to let the heating elements cool down before cleaning interior; otherwise, burns will happen.
	Iron deposits in water can cause an overall film	You have to call a water softener company for a special filter.
White film on inside surface	Hard water minerals	To clean the interior, use a dam sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher deter gent for the risk of foaming or suds.
Detergent left in dispenser cups	Dishes block detergent cups	Re-loading the dishes properly.
Steam	Normal phenomenon	There is some steam coming through the vent by the door latch during drying and water draining.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Water standing in the bottom of the tub	This is normal	A small amount of clean water around the outlet on the tub bottom at the back of the tub kee ps the water seal lubricated.
Water doesn't pump out of the tub	Drain is clogged	Make sure the kitchen sink is draining well.If the dishwasher drains into a dis poser, run it clear.
Dishwasher leaks	Overfill dispenser or rinse aid spills	Be careful not to overfill the rinse aid dis penser.Spilled rinse aid could cause over sudsin g and lead to overflowing. Wipe away any spills with a damp cloth.
	Dishwasher isn't level	Make sure the dishwasher is level.

FAULT CODES

Codes	Meanings	Possible Causes
E1	Longer inlet time.	Faucets is not opened.
E2	Longer draining time.	The installation position of the drain pipe is too high.
E3	Longer heating time, but not reaching required temperature	Malfunction of temperature sensor or of heating element.
E4	Overfilled.	Too much inlet water.
E5	Abnormal temperature	Short circuit or break of temperature sensor

WARNING!

If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of anoverfill or small leak, the water should be removed before restarting the dishwasher.

OVERFLOW CONDITIONS

The dishwasher is designed to detect/monitor water overflow conditions. The overflow tube is located in the lower (well) section of the inner door liner. This tube must be kept free and clear of obstructions and debris. In the event of an overflow condition, the water level rises above the height of the overflow tube and is directed into the overflow container. (Located at the lower right side of the dishwasher) When the water level reaches a predetermined height, the float switch is activated closing power to the water inlet valve and automatically turns on the pump to evacuate the water inside the tub only. The accumulated water inside the float container must be discharged manually before the dishwasher can be re-started. To empty the float container, follow the instructions below.

PORTABLE DISHWASHER:

\* Remove the kick-plate by pulling forward. \* Disconnect the dishwasher from the electrical power supply. \* Disconnect the flexible (braid) hose from the water inlet valve \* IMPORTANT: Keep the dishwasher upright at all times. \* The overflow container is located at the lower front side of the dishwasher.(See Fig. 1) \* Carefully slide out the dishwasher just enough to access the overflow container. \* Remove the rubber plug from the bottom of the float container.(See Fig. 2) \* Allow the water to drain into a cup/container. \* Replace the rubber plug, making sure it is firmly secured. \* Re-install the kick-plate. The dishwasher is now ready to be restarted.

EQUATOR CONTACT NUMBER

PARTS & SERVICE: [phone]

 EQUATOR® ADVANCED Appliances ≡ Equator Corporation Equator Plaza 2801 W. Sam Houston Parkway N. Houston, Texas 77043-1611 Tel: [phone] Fax: [phone] Toll Free: 800–935–1955 All Rights Reserved Manual subject to change without notice
