Product Type	Microwave Oven
Brand	IFB
Model	17PM-MEC2B
Capacity	17 Litres
Microwave Power Output	700 W
Power Consumption	1200 W
Operation Frequency	2450 MHz
Outside Dimensions (H x W x D)	262 mm x 452 mm x 347 mm
Net Weight	Approx. 10.5 kg
Power Levels	6 (Low, M.Low, Defrost, Med, M.High, High)
Timer Range	Up to 30 minutes
Control Type	Manual Knobs (Power Selector and Timer)
Cooking Uniformity	Turntable System
Installation	Freestanding; do not install over a range cooktop or other heat-producing appliance
Door Safety Interlocks	Yes
Interior Light	Yes (replaceable by service center)
Cleaning	Wipe interior with damp cloth; clean glass tray and roller ring regularly
Warranty	12 months on parts, 36 months on magnetron and cavity
Safety Certifications	Group 2 Class B ISM equipment

Frequently Asked Questions - 17PM-MEC2B IFB

How do I set the cooking time and power level?

Turn the Power Selector knob to choose a power level (e.g., High, Med, Defrost). Then turn the Timer knob to set the cooking time up to 30 minutes. The oven starts automatically once the timer is set.
Note: For times under 2 minutes, turn the timer past 2 minutes and then back to the desired time.

Can I use metal containers or aluminum foil in the microwave?

No, metal containers, metal racks, and aluminum foil should not be used in microwave mode as they can cause sparks and damage. Only use microwave-safe materials like heat-resistant glass, ceramics, and microwave-safe plastics.

What should I do if the microwave stops working or does not heat?

First, check that the oven is securely plugged in. Verify the circuit breaker or fuse. Ensure the door is properly closed. If the control panel is set correctly and the timer is not at zero, contact qualified service personnel. Do not attempt to repair yourself.

How do I clean the microwave oven?

Unplug the oven. Wipe the interior with a damp cloth; use mild detergent for tough stains. Clean the glass tray and roller ring in warm soapy water or a dishwasher. Wipe the door seals and control panel with a soft damp cloth. Avoid letting water seep into vents.

Is it safe to heat liquids or sealed containers?

No, do not heat sealed containers as they may explode. For beverages, be cautious of delayed eruptive boiling. Stir or shake baby bottles and check temperature before serving.

Can the microwave be installed over a stove or in a cabinet?

No, the microwave must be placed on a flat, stable surface, freestanding. Do not install over a range cooktop or other heat-producing appliance. Do not place it in a cabinet. Ensure 20 cm space above, 10 cm at back, and 5 cm on each side for airflow.

What power levels are available and what are they used for?

There are 6 power levels: High (100%) for fast cooking, M.High (88%), Med (73%), M.Low (52%), Defrost (42%) for thawing, and Low (20%) for gentle heating. Select the appropriate level based on the food.

How do I remove odors from the microwave?

Place a cup of water with the juice and skin of one lemon in a microwave-safe bowl. Microwave on high for 5 minutes. Then wipe the interior dry with a soft cloth.

What does the warranty cover?

The warranty covers defects in workmanship and materials for 12 months on all parts and 36 months on magnetron and cavity from the date of purchase for domestic use. It does not cover damage from misuse, unauthorized repairs, or commercial use.

Can children use the microwave safely?

Children aged 8 years and above can use the microwave if given adequate supervision and instruction on safe use. Children should not play with the appliance. Ensure they understand the hazards of improper use.

USER MANUAL 17PM-MEC2B IFB

Front view of a microwave oven with control knobs and a door (no text or symbols visible)

PLEASE READ THESE OWNER'S MANUAL INSTRUCTIONS CAREFULLY BEFORE OPERATING AND KEEP FOR FUTURE REFERENCE.

Please record the details of your microwave oven below for future reference:

Serial no: ....

Purchase Date: ....

Content

Precautions to Avoid Possible Exposure to Excessive Microwave Energy....2

Important Safety Instructions....2

Specifications....4

Installation Guide 5

Grounding Instructions 5

Radio Interference 6

Before Calling For Service....6

Cooking Techniques 6

Cooking Utensils Guide....7

Product Diagram 8

Control Panel....9

Power/Action Selector....9

Timer Knob....9

Microwave Cooking 9

Standard Menu Guide 10

Cleaning and care ....16

Precautions to Avoid Possible Exposure to Excessive Microwave Energy

1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is very important that the oven door close properly and that there is no damage to the
   a) Door (including any dents),
   b) Hinges and latches (broken or loosened),
   c) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except qualified service personnel.

Important Safety Instructions

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. To reduce the risk of fire in the oven cavity:

When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.
Remove wire twist-ties from paper or plastic bags before placing bag in oven.
If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

1. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
8. Utensils should be checked to ensure that they are suitable for use in microwave oven.
9. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
10. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.
13. The microwave oven is only used in freestanding.
14. WARNING: Do not install oven over a range cooktop or other heat-producing appliance. if installed could be damaged and the warranty would be a void.
15. The accessible surface may be hot during operation.
16. The microwave oven shall not be placed in a cabinet.
17. The door or the outer surface may get hot when the appliance is operating.
18. The temperature of accessible surfaces may be high when the appliance is operating.
19. The appliance shall be placed against a wall.
20. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
21. Children being supervised not to play with appliance.

22. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

23. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.

24. The microwave oven is for household use only and not for commercial use.
25. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
26. Please secure the turn table before you move the appliance to avoid damages.
27. Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
28. The microwave oven is intended for defrosting, cooking and steaming of food only.
29. Use gloves if you remove any heated food.
30. Caution! Steam will escape, when opening lids or unwrapping foil.
31. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
32. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.

Specifications

Rating	230V~50Hz
Power Consumption (Microwave mode)	1200W
Microwave Power Output	700W
Operation Frequency	2450MHz
Outside Dimensions	262mm(H)×452mm(W)×347mm(D)
Oven Capacity	Compact 17 Litres
Cooking Uniformity	Turntable System
Net Weight	Approx.10.5kg

Installation Guide

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

Grounding Instructions

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING--- Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

Radio Interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Before Calling For Service

Before asking for service, please check each item below:

• Check to ensure the oven is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
• Check to ensure the control panel is programmed correctly and the timer is set.
• Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not flow inside.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

Cooking Techniques

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils for microwave mode.

Cookware	Microwave cooking
Heat-Resistant Glass	Yes
Non Heat-Resistant Glass	No
Heat-Resistant Ceramics	Yes
Microwave-Safe Plastic Dish	Yes
Kitchen Paper	Yes
Metal Tray	No
Metal Rack	No
Aluminum Foil & Foil Containers	No

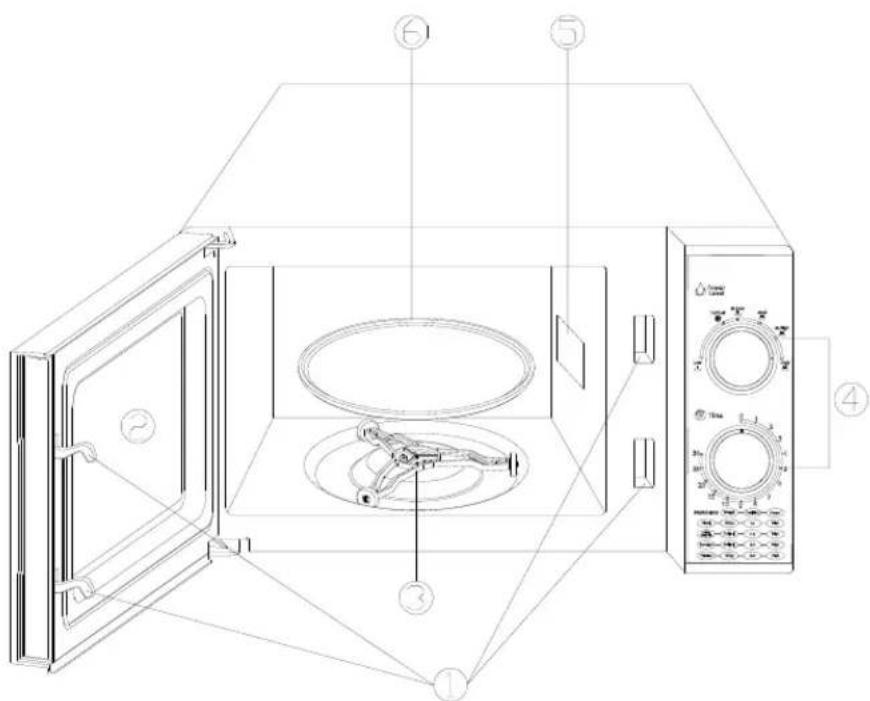

Product Diagram

① Door Safety Lock System
② Oven Window
③ Turntable Support
④ Control Panel
⑤ Wave Guide (Please do not remove the mica plate covering the wave guide)
⑥ Glass Tray

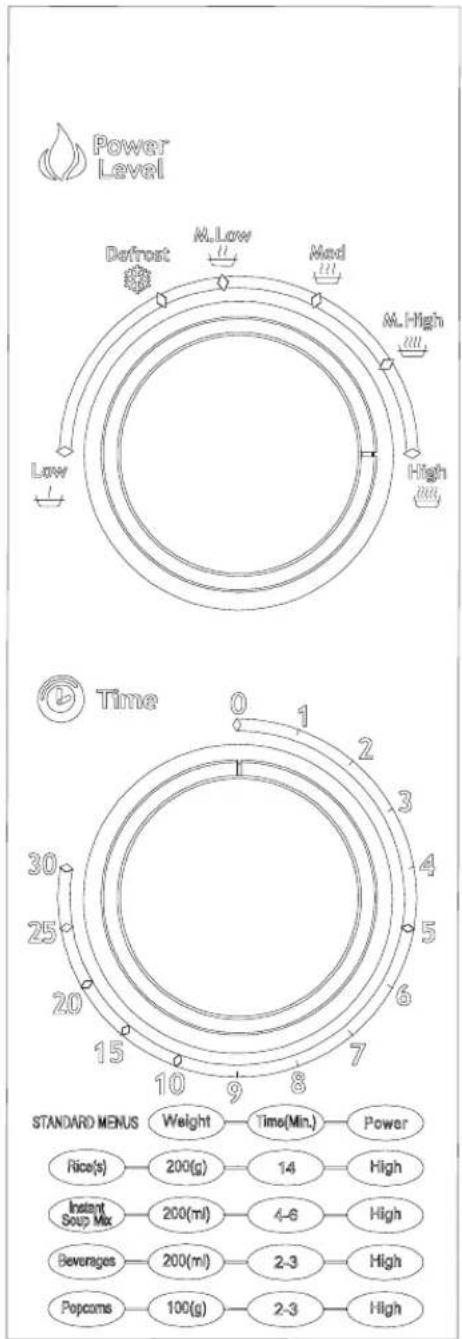

Control Panel

The control panel consists of two function operators. One is a time knob, and the other a power knob.

Power/Action Selector

You use this operator knob to choose a cooking power level. It is the first step to start a cooking session.

Timer Knob

Offer manual knob for time settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

Microwave Cooking

For pure microwave cooking, there are six power levels from which you can choose one that is best suitable.

Power level increases with the knob turning clockwise. It also offers flexibility in changing power level during cooking. The power levels can be classified as the following:

Power Output	Description
100%	High
88%	M.High
73%	Med
52%	M.Low
42%	Defrost
20%	Low

STANDARD MENU GUIDE

Recipe Guide (cooking timings provided for standard menu's are approximate; factors that may affect cooking are - starting temperature of food, cookware's used, volume, size and shape of food. As you become familiar with the oven, you will be able to adjust the timings.

Sr.no	RICE(S)	COOKWARE	INGREDIENTS	METHOD
1	Plain rice	Microwave safe bowl/ microwave safe rice cooker	Rice 200gms/1cupWater 2 cups	Wash and soak the rice for about half an hour. Drain water from the rice and add 2 cups water, cover and cook, by selection cooking time and power level. Allow it to stand for 5 to 10 minutes and then serve hot.
2	Prawn Biryani	Microwave safe bowl/ microwave safe rice cooker	Uncooked rice (Soaked for 30 minutes)-1 cup, peeled and deveined tiger prawns-100gms,ginger garlic paste-1 tbsp, Garam masala-1 tbsp, black pepper -1 tbsp,cloves-4,cardamom seeds-4,cinnamon stick, salt-to taste, plain yogurt- 12 cup, vegetable oil- 14 cup, water 2 cup, Chicken bouillon cube-2	Stir together the prawns, ginger garlic paste, garam masala, black pepper, cloves, cardamom seeds, cinnamon sticks, salt, yogurt, and oil in a microwave safe bowl until well mixed. Stir the rice, water, and chicken bouillon cubes and mix well. Add water and cook by selection cooking time and power level. Discard cinnamon stick, cloves, and cardamom seeds before serving.
3	Rajasthani Pulao	Microwave safe bowl/ microwave safe rice cooker	1 cup long grain rice 1 tablespoons ghee or oil, 1 medium onions- finely sliced ,1 sticks cinnamon, 2 cardamom pods, 3 whole cloves,5 whole black pepper,2 cups hot stock(vegs) or water ,Salt to taste.Note:Serves 2	If the rice needs washing, wash well and leave to soak for 1 hour.Then drain in a colander for at least 30 minutes.Mix all the ingredients, add water or stock and cook by selection cooking time and power level.Serve hot with curry.
4	Rice with Peas	Microwave safe bowl/ microwave safe rice cooker	1 cups long grain rice,1 tablespoon ghee,4 whole cloves,1 small cinnamon stick,3 or 4 cardamom pods,1 teaspoon cumin seeds,1/2 teaspoon turmeric powder ,1 1/2cups shelled green peas and diced carrots ,2 1/2 teaspoons salt,2 cups water	Wash the rice well and leave to soak in cold water for 30 minutes, then drain well.Mix all the ingredients, add water or stock and cook by selecting cooking time and power level.Remove whole spices, and serve hot with meat or vegetable curries.
5	Rice in coconut milk	Microwave safe bowl/ microwavesafe rice cooker	Coconut milk-2 cup Rice -1 cup Carrot-50 gmsBeans-50 GmsGhee-1 tbspBay leafCloves-4Salt to tastePoppy seeds-1/4 tsp	Wash and soak rice for 10 minutes. Mix all the ingredients, and cook by selecting cooking time and powerlevel.Serve hot .
6	Namkin Chawal	Microwave safe bowl/microwave safe rice cooker	1 cup long grain rice ,2 cups water, 2 teaspoons ghee ,2 teaspoons salt	Wash rice well and soak for 1 hour in cold water. Mix all the ingredients, and cook by selecting cooking time and power level.Lift lid to allow steam to escape for about 5 minutes, and then lightly fluff up rice with fork, taking care not to mash the grains, which will be firm, separate the grains with fork. Dish up using a slotted metal spoon rather than a wooden spoons. Serve with curries or other spiced dishes.
7	Veg. Pulao	Microwave safe bowl/microwave safe rice cooker	1 cup Rice ,2 cups Water, 1/4 cup chopped Vegetables,1/2" Cinnamon stick,2 Cloves,2 Cardamom, Salt as per taste,1/4 teaspoon turmeric powder,1 teaspoon coriander powder ,2 Chillies ,4 tomatoes, 1⁄2 cup Coconut (grated),handul Coriander leaves chopped,2 pieces Garlic,1/2" piece Ginger (made into a paste),2 tablespoons Butter,1 onion cut lengthwise	Mix all the ingredients, and cook by selecting cooking time and power level..Serve Hot with Raitha.
8	Spiced Rice	Microwave safe bowl/microwave safe rice cooker	1 cup Rice, 2 cups Water, Cinnamon, Cloves. Salt to taste.	Mix all the ingredients, and cook by selecting cooking time and power level.
9	Pongal	Microwave safe bowl	Rice (soaked for 30 minutes) -1 cup, green gram dal-4tbsp,ginger (finely chopped)- 1tbsp,curry leaves-few, broken cashewnuts-4tbsp,black pepper-1 1⁄2 tsp, cumin seeds-1tsp,ghee-3 -4tbsp,water 3 cup, salt as per taste.	Drain soaked rice and dal, add ginger and cook by selecting cooking time and power level..Tip to serve: Microwave cashew nuts, pepper and cumin seeds in ghee for 1 minutes and add it to rice-dal mixture. Mix well and serve steaming hot with ghee on top.
10	Khichdi	Microwave safe bowl/microwave safe rice cooker	Rice -3/4 cup, tur dal (arhar dal-1/2 cup, Ghee or oil-1tbsp, Hing powder-1/4 tsp, Laung-3-4 , Dalchini (cinnamon)-2 inch stick, Jeera-1/2 tsp, Dry red chillies (broken to 2-3 pieces) -2 no's ,groundnuts roasted-25 gms , Turmeric powder- 1⁄4 tsp, salt as per taste, water 3 cups.	Wash and soak dal and rice for 30 minutes.Mix all the ingredients, and cook by selecting cooking time and power level. Serve hot with ghee and kadhi.
11	Jeera Rice	Microwave safe bowl/ microwave safe rice cooker	1 cup basmati rice ,1 tsp shahjeera or caraway seeds ,1 black cardamom ,1 green cardamom ,2-3 black peppercorns ,2 cloves ,1 inch cinnamon ,2 tsp ghee ,2 cups water .	Wash and soak dal and rice for 30 minutes.Mix all the ingredients, and cook by selecting cooking time and power level. Once done, remove the cooker and let it stand for 5 minutes.
12	Methi Pulao	Microwave safe bowl/ microwave safe rice cooker	Methi ( Fenugreek leaves) 1 cup chopped ( you can use the frozen one)1 cup Basmati rice ,2 to 4 black Pepper ( Kali Mirch), 2 Cloves1 Cinnamon stick, 2 Green Elaichi ( Cardamom), 1 Medium sized sliced Onion, 1/2 Cup sweet corn kernels 1/4 Teaspoon turmeric powder (haldi) ,1 Tablespoon butter1 Tablespoon oil ,Water 2 cupsSalt to taste	Wash the rice well and leave to soak in cold water for 30 minutes, then drain well.Mix all the ingredients, and cook by selecting cooking time and power level .
13	Sabji khichdi	Microwave safe bowl/ microwave safe rice cooker	Rice -1 cup, tur dal (arhar dal-1/4cup, Mix vegetables -1/2 cup ,Ghee or oil- 1tbsp, Hing powder-1/4 tsp, Laung-3-4 , Dalchini (cinnamon)-2 inch stick, Jeera-1/2 tsp, Dry red chillies (broken to 2-3 pieces) -2 no ,groundnuts roasted-25 gms , Turmeric powder- 1⁄4 tsp, salt as per taste, water 3 cups.	Wash and soak dal and rice for 30 minutes.Mix all the ingredients, and cook by selecting cooking time and power level .Serve hot with ghee and kadhi.
14	Aloo Matar Biryani	Microwave safe bowl/ microwave safe rice cooker	Rice (Soaked for 30 minutes )-1 cup, aloo matar -100gms,ginger garlic paste-1 tbsp, Garam masala-1 tbsp, black pepper -1tbsp,cloves-4,cardamom seeds-4,cinnamon stick,salt-to taste, plain yogurt- 12 cup, vegetable oil- 14 cup,water 2 cup, Veg. bouillon cube-5	Stir together the matar and potato, ginger garlic paste, garam masala, black pepper, cloves, cardamom seeds, cinnamon sticks, salt, yogurt, and oil in a microwave safe bowluntil well mixed. Cook until Dry.Place half rice, add cooked matar and potato mixture, cover with raw rice.Add water mixed with bouillon cube and cook by selection the time given for Rice.

Sr.no	INSTANT SOUP Mix	COOKWARE	INGREDIENTS	METHOD
15	Tomato Soup	Microwave safe bowl	Mix ready mix Soup powder in 200 ml water, Refer Soup Manufacture's guidance for quantity of soup mix to be added in 200 ml water.	Mix all the ingredients,Select high Power and microwave for 4 to 6 minutes.Stirr in-between
16	Spinach Soup
17	Minestrone Soup
18	Sweet corn soup
19	Chicken Soup
Sr.no	BEVERAGES	COOKWARE	INGREDIENTS		METHOD
20	Chai/Tea	Microwave safe kettle	Water-1/2 cup; Milk-1/2 cup; Tea leaves- 1 tsp; Sugar-1tsp		Mix all the ingredients and microwave at high power for 2-3 minutes.
21	Coffee		Water-3⁄4 cup; Milk-1⁄4 cup; Coffee-1 tsp, Sugar -1tsp
22	Jeera Water		Water -3⁄4 cup , Jeera - 1 tsp
23	Herbal Water		Water -200ml, Saunf –a pinch, Ajwain –a pinch, Cardamom-1, Tulsi leaves---2-3, Mint leaves-2 to 3
24	Sole Kadhi /Cocum Saar		Water-200ml, Cocum-5 ,Salt-To taste, Ginger (grated)- 1⁄4 tsp,Green chillies (slit)- 2,Coriander (chopped fine) - 1 tbsp	Mix water and cocum in a microwave proof cookware, keep it in the microwave and then select the high power level and 2-3minutes cooking time . Strain and add ginger and chillies and allow it to cool. Add coriander and refrigerate until serving time.NOTE: Amount of ingredients may differ as per individual preferences but the volume of water will remain the same.It is an excellent appetizer.

Sr.no	POPCORNS	COOKWARE	INGREDIENTS	METHOD
25	Plain Popcorn	Borosil with a lid, covered loosely or ready to cook popcorn in microwave proof bag.	Popcorn ,olive oil and salt	Pop the popcorn with olive oil, and sprinkle with the cheese powder or dry fruits chopped, grated chocolate or caramelized sugar crystals or pepper . Select flavors you wish to enjoy.
26	Cheese popcorn		Popcorn and cheese powder .
27	Nutty Popcorn		Dry fruit roasted, olive oil, salt and popcorn
28	Chocolate Popcorn		Grated chocolate ,popcorn, olive oil , salt
29	Buttery popcorn		Popcorn and salted butter
30	Caramel		Popcorn ,olive oil, salt and sugar caramel.
31	Pepper Popcorn		Popcorn ,olive oil, salt and pepper

Operation Instructions

To start a cooking session,

1. Place food into oven and close the door.
2. Turn Power Selector to select a power level.
3. Turn Timer knob to set a cooking time.

NOTE: As soon as the timer is turned, oven starts cooking. When selecting time for less than 2 minutes, turn timer past 2 minutes and then return to the correct time.

CAUTION: ALWAYS RETURN TIMER BACK TO ZERO POSITION if food is removed from oven before the set cooking time is complete or when oven is not in use. To stop oven during cooking process, open the door or return the timer to Zero position.

Cleaning and Care

1. Turn off the oven and unplug the power cord from the wall when cleaning.
2. Keep the inside of the oven cavity clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.
3. The outside of the oven should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. If the light bulb burns out, please contact customer service to have it replaced.
11. The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.
12. Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

WARRANTY

IFB Industries Limned. ("The Company") warrants to the original domestic purchase of this microwave oven ("Appliances") that it is free from defects in workmanship & materials. During 12 months from the date of purchase of the new microwave oven model, all the parts of the microwave oven and 36 months on Magnetron & Cavity, shall be replaced or repaired free of charge, on intimation to the Company I Company's authorized service centre nearest to the place where the appliance is installed This warranty is subject to Limitations of Warranty.

LIMITATIONS OF WARRANTY

1. This warranty is not valid in case of the following events.
   a) If the warranty card is not fully and properly filled in and signed at the time of purchase I installation by the company's authorised dealer I service engineer.
   b) If the completed warranty card is not presented to the authorised personnel at the time of service I repair.
   c) If the appliance is not used in accordance with manufacturer's instructions given in the Operating Manual.
   d) If the appliance has been serviced, repaired, opened or tampered by any unauthorized personnel.
   e) If defects arise I caused by accidents, alteration, misuse, neglect, abuse, substitution of original components with spurious I non-genuine components, attack by household pests I rodents, fire, flood, earth-quake, lightning and I or any other acts of God I natural calamities.
   f) If damages occur by improper electrical, circuit outside the appliance or by any defective electrical supply thereof.
   g) If the machine serial number on the appliance is defaced, missing or altered.
   h) If the appliance is taken out of India.

2. This warranty does not cover any type of painting, plating including rusting etc or defects thereof.

3. This warranty does not cover normal wear and tear of parts.

4. Liability for consequential damages is neither accepted nor implied.

5. Parts replaced or repaired under this warranty are warranted throughout the remaining of the original warranty period.

6. Company is not liable for any delay in servicing due to reasons beyond the control of the company or any of its authorised service center.

7. This warranty is not applicable, if the microwave oven is used for commercial purpose of at places like Institutions, Hotels, Hostels, Hospitals, Community Halls and other similar applications.

8. For any service under this warranty beyond city I town I municipal limits from the Company I authorized service centre, a fixed charge of Rs. 250 /- will be collected from the customer in addition to the actual to and fro charges by the shortest route. Anernatively the customer can bring the appliance to the nearest service centre for carrying out the neccassary repairs, at customer's own cost.

9. During the warranty period whenever the appliance is shifted from the original city of purchase to another cny I town where service is provided by the company's authorized service agent, a warranty transfer charge of Rs. 300 /- will be collected from the customer by the company's authorized service agent. The above charges also include the reinstallation of the appliance. However in case of transfer to a city where the company provides direct service, a nominal charge of Rs. 250 /- only will be collected from the customer towards reinstallation. The Company, however, shall not undertake the responsibility of shifting I transferring the appliance from the location where the appliance was originally installed.

10. This warranty is issued subject to the jurisdiction of Kolkata courts, and I or other judicial/ quasi judicial forums having jurisdiction over the registered office of the Company.

Note: For all types of repairs I maintenance under warranty, the appliance shall be brought to the nearest Company service centre or its authorised service agent.

CUSTOMER COPY

Mr./Mrs./Ms

Address

Telephone No.:

Model Name:

Serial No.:

Date of Purchase:

Cash Memo No.:

Dealer Name and:

Address stamp:

Service Station Copy

Mr./Mrs./Ms

Address

Pincode :

Telephone No.:

Model Name:

Serial No.:

Date of Purchase:

Cash Memo No.:

(R)

(0)

Products Owned by the customer:(Please tick in the appropriate box.)

Washing

Machine

Refrigerator

Color Tv

100% Clothes

Dryer

Dishwasher

Music System

Oven Toaster Grtll

2Wheeler

Car

Air Conditioner

IFB Industries Limited

Regd.off.: 14 Taratolla Road

Kolkata - 700088
