Product Type	DAB/FM Clock Radio
Brand	Logik
Model	L55DAB10
Dimensions (L x W x H)	246 x 86.5 x 126 mm
Weight	1.26 kg
Power Source	AC 100-240V~ 50/60Hz or DC 6V (4 x 1.5V AA batteries)
Battery Life (Approx.)	DAB: 5 hours, FM: 6 hours (alkaline)
Output Power	1.6W x 2
Radio Frequency Range	FM: 87.5-108 MHz, DAB: 174-240 MHz
Display Type	LCD
Speaker	Built-in
Connections	Earphones socket (3.5mm stereo)
Preset Stations	10 each for DAB and FM
Alarm	Two independent alarms with DAB, FM, or buzzer wake-up
Sleep Timer	Yes (AC operation only)
Snooze	Yes, 5 minutes (AC operation only)
Display Backlight	4 levels (AC mode)
Clock Synchronisation	Automatic via DAB signal
System Reset	Yes, via menu
Accessories Included	Mains cable, instruction manual
Maintenance	Wipe with a slightly moist, lint-free cloth. Do not use abrasive cleaners.
Safety	Indoor use only. Keep away from moisture, heat sources, and naked flames. No user-serviceable parts.
Spare Parts	Mains cable (Part No. 157-949072-313) available from Partmaster.co.uk

Frequently Asked Questions - L55DAB10 Logik

How do I set the alarm on the Logik L55DAB10?

Press and hold the ALARM1 or ALARM2 button. The hour digits will flash. Turn the VOLUME/SELECT control to adjust the hour and press TUNE/SELECT to confirm. Repeat for minutes. Then select a wake-up source: DAB preset, FM preset, or buzzer. Finally adjust the volume level. Press the alarm button again to activate.

How do I perform a system reset?

Press and hold the MENU button until 'Press SELECT to confirm reset' appears. Press the TUNE/SELECT button to reset. The unit will restart and scan for DAB stations.

Can I use batteries instead of mains power?

Yes, the unit can run on 4 x 1.5V AA batteries (not included). Note that the alarm, sleep, and snooze functions are only available on AC power.

How do I store a DAB or FM station as a preset?

While listening to the desired station, press and hold the PRESETS button. The display will show 'Empty preset #'. Turn the VOLUME/SELECT control to choose a preset number (1-10) and press TUNE/SELECT to save.

Why is there no sound from the radio?

Check the volume control is turned up. Ensure the unit is not in standby. If using earphones, the speakers are muted. Also verify that batteries are not exhausted or that the mains cable is connected properly.

How do I switch between DAB and FM modes?

Press the DAB/FM button repeatedly to toggle between DAB and FM modes.

What does the '>' symbol next to a station name mean?

It indicates that there are secondary services available for that station. Press TUNE/SELECT when the '<' appears to access them.

How do I adjust the display backlight?

Repeatedly press the SNOOZE/DIMMER button to cycle through four backlight levels: Off, 01, 02, 03. This is only available in AC operation.

What should I do if the display shows 'SERVICE N/A'?

This means no DAB coverage in your area or poor reception. Adjust the aerial or move the unit to a location with stronger signal. You can also try a manual tune or auto scan.

How do I clean the radio?

Unplug the unit from the mains (or remove batteries) before cleaning. Wipe the case with a slightly moist, lint-free cloth. Do not use cleaning fluids containing alcohol, ammonia, or abrasives, and do not spray aerosol near the unit.

USER MANUAL L55DAB10 Logik

Battery Life (Approx. Hours) 7

Knowing When to Replace the Batteries 7

Mains Power 8

Connections 8

Connecting to the Earphones Socket 8

Basic Operation 9

Powering ON/OFF 9

Selecting Modes 9

Adjusting the Volume 9

Setting the Clock....9

Setting the Alarm (AC Operation Only)....9

Activating the Alarm Function 10

Automatic Alarm Repeat....10

Snooze Function (AC Operation Only)....10

Sleep Function (AC Operation Only)....11

System Reset....11

DAB Operation....12

DAB Auto Scan 12

Secondary Services....13

Manual Tuning....13

Storing Stations....13

Recalling a Stored Station....13

DAB Display Modes 14

FM Operation....15

Switching from DAB to FM Mode....15

Auto Scan....15

Manual Scan....15

Audio Mode....15

Storing Stations....15

Recalling a Stored Station....16

FM Display Modes....16

Display Backlight....16

Maintenance....17

Hints and Tips ....17

Specification 17

Safety Warnings....18

Thank you for purchasing your new Logik DAB Radio.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

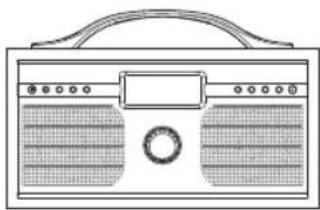

Line drawing of a portable electronic device with front panel and buttons (no text or symbols)

Clock Radio

Mains Cable
(P.N.: 157-949072-313)

Instruction Manual
(P.N.: L55DAB10-002)

If items are missing or damaged, please contact Partmaster (UK only).

Tel: [phone] for assistance.

Product Overview

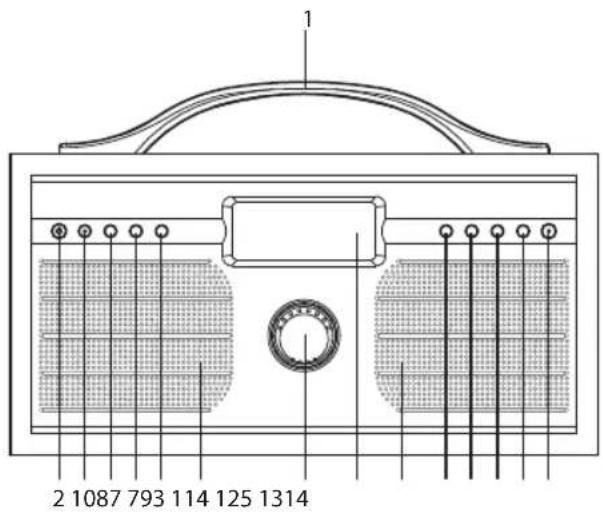

Top View

6

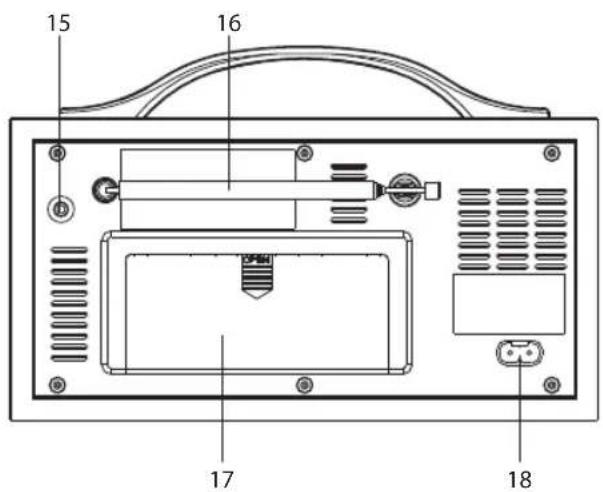

Rear View

1. Handle

2. ⏻ STANDBY Button

3. DAB/FM Button

4. INFO Button

5. MENU Button

6. SLEEP Button

7. Speaker

8. VOLUME/SELECT Control

9. LCD Display

10. TUNE/SELECT Button

11. PRESETS Button

12. ALARM1 Button

13. ALARM2 Button

14. SNOOZE/DIMMER Button

15. Earphones Socket

16. FM Aerial

17. Battery Door

18. Mains Cable Socket

6

Power Source

Battery Power

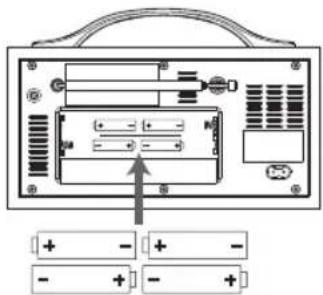

Insert 4 X 1.5V AA battery (not included) into the battery compartment located at the bottom of the unit.

Alarm and sleep function are not available under battery power.

Battery Life (Approx. Hours)

Battery Type DAB FM
Alkaline (Size AA) 5 6

Knowing When to Replace the Batteries

• When the batteries lose power, the sound becomes weak and distorted.
• When the batteries are completely exhausted, the power is turned off.

Always switch the unit off after use to conserve the battery life.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property.
• Install the batteries correctly by following the polarity (+ and -) indications in the battery compartment.
  • Use only the types of the batteries which are indicated in this manual.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with local regulations.
• If you are not going to use the unit for a long time, remove the batteries to avoid damage from battery leakage and corrosion.
• Due to the short battery life span of some alkaline batteries. It is recommended to use rechargeable batteries. You will need to purchase a charger to charge the rechargeable batteries. This saves cost and is more environmentally friendly.

Mains Power

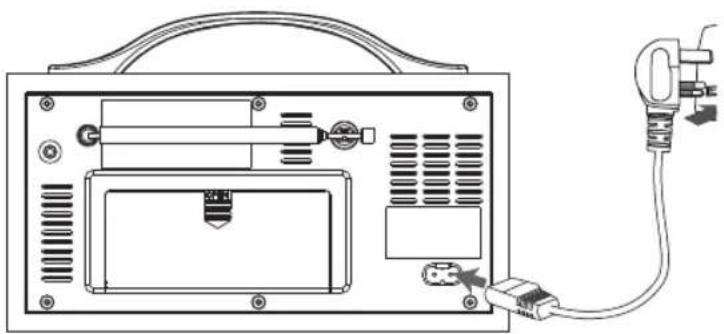

Before using, connect the supplied power cable to the mains cable socket at the rear of the unit and to the mains socket.

Line drawing of a vintage television set with cable and plug, no text or symbols present

Connections

Connecting to the Earphones Socket

1. Connect earphones (3.5mm stereo mini plug) to the earphones socket.
2. Adjust the volume control to obtain the desired volume level.
3. When the earphones are connected, the speakers will automatically mute.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods.

Basic Operation

Powering ON/OFF

• Press and hold the Ⓧ STANDBY button to switch the unit on.
• Press and hold the STANDBY button to switch the unit back to standby mode.
• Disconnect the mains plug from the mains socket if you want to switch the unit off completely.

Selecting Modes

Press the DAB/FM button repeatedly to switch between modes (DAB or FM).

Adjusting the Volume

Adjust the volume to the desired level by turning the VOLUME/SELECT control.

Setting the Clock

The clock can only set and be updated if you can receive DAB signals in your location. In order for the clock to synchronise to the current local time you must leave it on one DAB station for a short period of time. Manual clock setting is not required.

Setting the Alarm (AC Operation Only)

Make sure you have preset FM and DAB stations before setting the Alarm.

1. The unit has two alarms. Press and hold the ALARM1/ALARM2 button to set alarm 1 or alarm 2. The display will show "Alarm # Setting" and the hour digits will flash.

2. Turn the VOLUME/SELECT control to adjust the hour digits and then press the TUNE/SELECT button to confirm.

3. The minute digits will flash. Turn the VOLUME/SELECT control to adjust the hour digits and then press the TUNE/SELECT button to confirm.

4. Turn the VOLUME/SELECT control to select DAB preset station. Press the TUNE/SELECT button to confirm.

5. Turn the VOLUME/SELECT to select FM preset station. Press the TUNE/SELECT button to confirm.

6. Turn the VOLUME/SELECT to select Buzzer 1/2. Press the TUNE/SELECT button to confirm.

7. Turn the VOLUME/SELECT to select the alarm wake up volume level. Press the TUNE/SELECT button to confirm.

Activating the Alarm Function

1. To activate the alarm function, repeatedly press the ALARM1 or ALARM2 button, the alarm wake-up modes will be displayed and change in the below sequence on every press:

1. When the display shows your desired alarm wake-up mode, release the button, the alarm function is now activated and an alarm icon will be displayed.
2. When the alarm time arrives, the selected wake-up mode will be on and the alarm icon in the display will flash to indicate the alarm is triggered. To stop the alarm sooner, press the ⏻ STANDBY button.
3. To check the alarm status, press the ALARM1 or ALARM2 button. The alarm status will show on the display.

If you have activated the alarm function and the wake-up mode is DAB or FM, make sure that the volume is at a sufficient level for you to hear.

Automatic Alarm Repeat

The alarm will automatically repeat each day at the selected time as long as the alarm icon is displayed. To cancel this function, repeatedly press the ALARM1 or ALARM2 button until "Alarm Off" shows on the display.

Snooze Function (AC Operation Only)

When the alarm has triggered, press the SNOOZE button to temporarily switch off the alarm for 5 minutes. The display will show "Zz" to indicate that snooze is on. Snooze function will continue for 1 hour from the set alarm time. If alarm 2 is due to go off within 1 hour of alarm 1, it will not activate until alarm 1 has been switched off.

Sleep Function (AC Operation Only)

This function allows you to program the unit to switch off by itself after a set period of time.

1. To activate the sleep function, press the SLEEP button repeatedly until the "Sleep Timer" shows on the display. The time will change in the below sequence on every press:

1. When your desired sleep time appears in the display, release the button and the sleep function will be activated in two seconds. "S#" will show on the display (for example "S1" represents "10 minutes" sleep time).
2. When the sleep time counts to zero, the unit will go off. To put the sleep function off while the sleep timer is still counting down, press the SLEEP button once, "Sleep Off" will show on the display.
3. Press the INFO button repeatedly to the display the sleep timer status.

The sleep function can be activated only in AC power operation.

System Reset

There may be times when you need to reset your unit back to the factory settings especially when you have moved house. If you experience reception problems you may want to reset and try again. If you move to another part of the country and pick up the local and national DAB stations in that area, your previously tuned channels may no longer be available.

1. Press and hold the MENU button until the "Press SELECT to confirm reset" shows on the display.
2. Press the TUNE/SELECT button to start the system reset, "Restarting..." will show on the display. After the reset is complete, the unit will go to standby mode.
3. Press the ⏻ STANDBY button again to turn the unit on, the unit will then start scanning for DAB channels immediately.

After the system reset, all the tuned stations, DAB & FM preset stations and alarm settings will be erased.

DAB Operation

If the unit is connected to the mains power and then switched on from standby for the first time, the unit will automatically enter into the DAB mode and perform auto scan function. During the scan the display will show "Scanning ..." together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far.

Once the scan has finished, the unit will select the first alphanumerically found station. To explore the found stations, press the TUNE/SELECT button and then turn the VOLUME/SELECT control. When you find a station that you would like to listen to, press the TUNE/SELECT button.

Welcome! Digital Radio

Scanning... 0

If no stations are found after auto scan, the unit will then enter into the Tune Select Menu. Turn the VOLUME/SELECT control and then press the TUNE/SELECT button to select manual tune or auto scan modes for stations.

DAB Auto Scan

The auto scan will search for the entire DAB Band III channels. After the scan has finished, the first alphanumerically found station will be automatically selected.

Full auto scan will not replace the DAB stations in memory. If you want to remove all the previous scanned stations, system reset is required.

1. To activate auto scan, first press the MENU button to enter into the Tune Select Menu, then rotate the VOLUME/SELECT control to select "Autoscan", finally press the SELECT button to confirm, the display will show "Scanning ..." and a progressing slide bar.

2. All the stations that have been found will be stored automatically, to explore and select listening to the found stations, press the TUNE/SELECT button and then turn the VOLUME/SELECT control. Press the TUNE/SELECT button to confirm.

DAB

Autoscan

[NO TEXT]

Secondary Services

You may see a “>” symbol after the name of the station, this indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station. e.g. a sports station may want to add extra commentaries. The secondary services are inserted directly after the primary station in the station list.

To select the secondary station, press the TUNE/SELECT button when the "<" appears in the display before the station name. When the secondary service ends, the unit will automatically switch back to the primary station.

Manual Tuning

As well as the auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning.

1. Press the MENU button and then press the TUNE/SELECT button to select Manual tune, the display will now show Manual tune.

2. Turn the VOLUME/SELECT control to cycle through the DAB channels, which are numbered from 5A to 13F.

3. After your desired channel number is selected, press the TUNE/SELECT button to enter the current multiplex, the top line will now display the first station in the multiplex.

4. Press the TUNE/SELECT button to select a station that you would like to listen to.

Storing Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save, press and hold the PRESETS button. The "Empty preset #" will show on the display and the preset number will flash.
2. Turn the VOLUME/SELECT control to select your desired preset station number and then press the TUNE/SELECT button to confirm.
3. The station will be stored and the screen will then show "Preset # Saved".

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESETS button.
2. Turn the VOLUME/SELECT control to select your desired preset station number.
3. Press the TUNE/SELECT button to confirm the selection.
4. If you choose a preset that hasn't been allocated a station, the "Empty preset #" will be displayed.

DAB Display Modes

Every time you press the INFO button, the display will cycle through the following display modes: Ensemble/Multiplex (Group name), Time/Date, Frequency, Audio Bit Rate, Signal Strength, DLS, Programme Type.

The information is displayed on the lower segment of the display.

Multiplex Name

A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area.

DAB – unlike normal radio, groups together several radio stations and transmits them on one frequency.

Time/Date

The broadcaster (Radio station) provides clock and date information automatically so there's no need to manually set this information.

Frequency

The frequency of the present station will be displayed.

Audio Bit Rate

The display will show the digital audio bit rate being received.

Signal Strength

The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

DLS (Dynamic Label Segment)

Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as program details etc.

Programme Type

This describes the style of the programme that is being broadcast. If the information is not available, the display will show ""

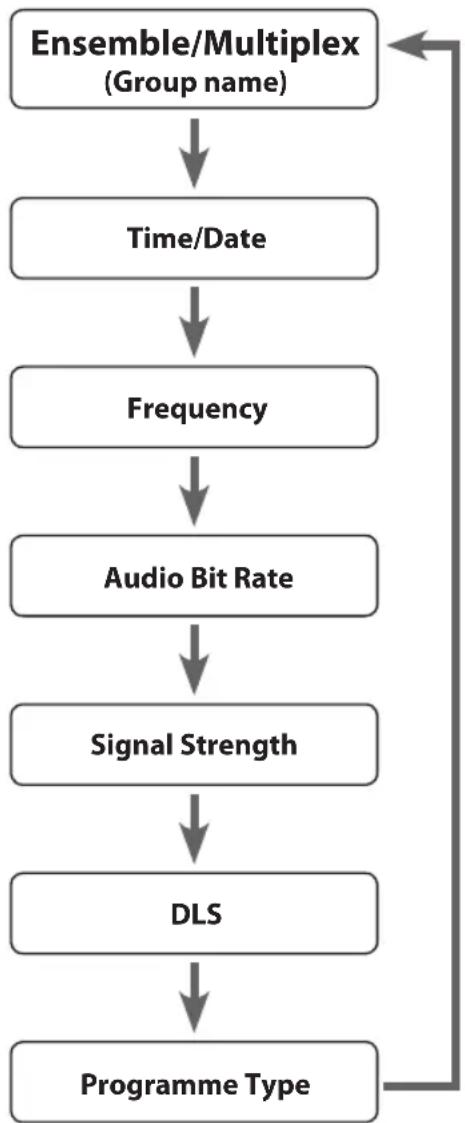


FM Operation

Switching from DAB to FM Mode

To switch the unit from DAB to FM mode, press the DAB/FM button once. The display will show FM and the frequency.

Auto Scan

To search for an FM station, press and hold the TUNE/SELECT button to start the auto scan. The display will show "Searching ...". Once a station has been found, the scanning will stop automatically.

Manual Scan

To search for FM stations manually, press the TUNE/SELECT button. The display will show "<Tuning)". Turn the VOLUME/SELECT control until your desired frequency is reached.

Audio Mode

Press the MENU button to toggle between the Stereo or Mono selection.

The unit will automatically switch between stereo and mono mode, but you can override this and switch this function manually. This is helpful when receiving poor signal reception.

Storing Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save, press and hold the PRESETS button. The "Empty preset #" will show on the display and the preset number will flash.
2. Turn the VOLUME/SELECT control to select your desired preset station number and then press the TUNE/SELECT button to confirm.
3. The station will be stored and the screen will then show "Preset # Saved".

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESETS button.
2. Turn the VOLUME/SELECT control to select your desired preset station number.
3. Press the TUNE/SELECT button to confirm the selection.
4. If you choose a preset that hasn't been allocated a station, "Empty preset #" will be displayed.

FM Display Modes

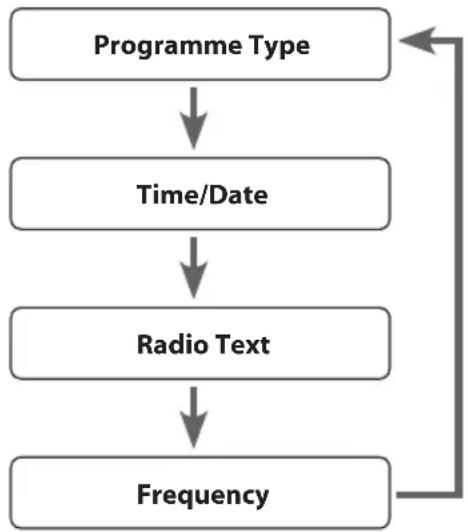

Every time you press the INFO button, the display will cycle through the following display modes: Programme Type, Signal Strength, Time/Date, Channel Frequency, Audio Mode, Radio Text.

Programme Type

This describes the "Style" or "genre" of music that is being broadcast e.g. "Rock" or "Classical".

Time/Date

The broadcaster (Radio station) provides clock and date information automatically so there's no need to manually set this information. In the unlikely event that the broadcaster does not transmit any clock information; the display will show .

Radio Text

As with DAB, the broadcaster can include a scrolling text that displays information about the current program. If Radio text information is not available, then the display will show .

Frequency

This shows the frequency of the current station.

Display Backlight

There are four backlight levels for you to select from in AC mode. During AC standby and DC on mode, the backlight will be turned on to full brightness for 5 seconds on every key press. There is no backlight setting in DC operation.

To set the backlight, repeatedly press the BACKLIGHT/SNOOZE button and the brightness of the display will change in the below sequence on every press:

Backlight off > Backlight 01 > Backlight 02 > Backlight 03 > Backlight off >......

The display backlight level is defaulted to "Backlight 01" in AC standby and "Backlight 03" during operation. This is resumed only when the factory reset has taken place.

Maintenance

Ensure to unplug the unit from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray an aerosol at or near the unit.

Hints and Tips

Problem Solution
No Sound Adjust the volume control, it may not be turned up.
Static Sound Signal reception too low. Adjust the aerial or move the unit to a stronger signal location.
Sound is distorted Volume is too high. Adjust the volume control.
Desired station not found	Weak signal. Use the Manual Tune function.
The display shows “SERVICE N/A”	No DAB coverage in your area or poor reception. Adjust the position of the aerial.
	Poor reception. Adjust the position of the aerial.
The display is blank This	may occur if the broadcaster changes the label of a service or removes a label. The unit will try to retune or perform a scan.

Specification

Mains Supply AC 100 – 2	40V~ 50/60HzDC 6V 1.5V(UM3) x 4
Output Power 1.6W x 2
Radio Frequency Range	FM87.5 – 108 MHzDAB 174 – 240 MHz
Dimension 246 (L) x 86.5	(W) x 126 (H) mm
Weight 1.26kg

Features and specifications are subject to change without prior notice.

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Mains Cable 157-949072-313

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door

the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead

Herts • HP2 7TG • England

(P.N.: L55DAB10-002)
