USER MANUAL PF-A720CE Logik

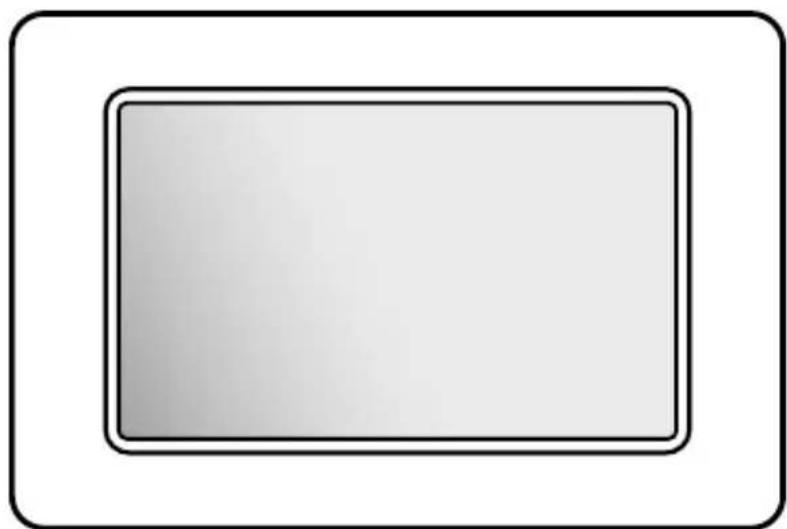

7" Digital Photo Frame with Interchangeable Frames

PF-A720C/PF-A720CE

GB

Blank rectangular frame with rounded corners and a central blank area (no text or symbols)

User Manual

Thank you for purchasing this Digital Photo Frame. You can play your favorite JPEG files directly from a memory card or a USB thumb drive without a computer. With additional interchangeable frame you can quickly change the frame to fit your mood or match your room. Read the following instructions for more details.

GB

Safety Warnings

Some DOs and DON'Ts on the safe use of equipment

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

***************************

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and interconnections between the pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

DO be careful with glass panels or doors on equipment.

DO route the mains lead so that it is not likely to be walked on, crushed, chafed, or subjected to excessive wear and tear or heat.

***************************

DON'T remove any fixed cover as this may expose dangerous voltages.

DON'T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DON'T allow electrical equipment to be exposed to dripping or splashing, or objects filled with liquids, such as vases, to be placed on the equipment.

DON'T place hot objects or naked ame sources such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

DON'T use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety always fit the manufacturer's approved stand or legs with the fixings provided according to the instructions.

DON'T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst driving.

DON'T listen to headphones at high volume, as such use can permanently damage your hearing.

DON'T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a stand-by mode. Switch off using the switch on the equipment and make sure that your family know how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON'T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

ABOVE ALL

--- NEVER let anyone especially children push anything into holes, slots or any other opening in the case - this could result in a fatal electrical shock;

--- NEVER guess or take chances with electrical equipment of any kind

--- it is better to be safe than sorry!

************************

Table of contents

Safet y Warnings 2

Safety Information 4

Package Content 4

Product Overview 5

Preparations 6

- Attaching the stand 6

- Connecting to the power 6

Changing the Frame 6

Inserting a Memory Card or USB drive 7

Switching the Power on 7

Viewing Photos and Slide Shows 8

-Thumbnail Mode 8

-Rotation 8

Setup Menu 9

Specifications 10

Troubleshooting 11

GB

GB

Safety Information

• Keep away from water or moisture and dusty areas.
• Ambient Temperature is 0\~40°C. Never store in hot and very cold areas.
• Be carefully to keep it without dropping it or strong impact.
• Do not try to open the case alone without technical support.
• Connect the AC adapter to the DC IN jack and to power outlet.
• Only use attachments/accessories specified by the manufacturer.
• When left unused for a long period of time, the unit should be unplugged from the household AC outlet.

Warning: To reduce the risk of fire or electric shock, do not expose to rain, moisture, dripping or splashing.

Package Content

1. Digital Photo Frame

Simple rectangular frame with rounded corners, no text or symbols inside

1. Power Adapter

Pure electrical circuit lines without any symbols

Note: 2-pin adapter for EU market; 3-pin adapter for UK market.

1. User manual

1. Guick Start Guide

(82-270-00180) (82-270-00160)

1. Stand

1. Additional changeable frame x 2

Stacked 3D geometric shapes with no text or symbols

(60-270-C1101)

( Silver: 60-270-C0703

Pink: 60-270-C0702)

4

Product Overview

GB

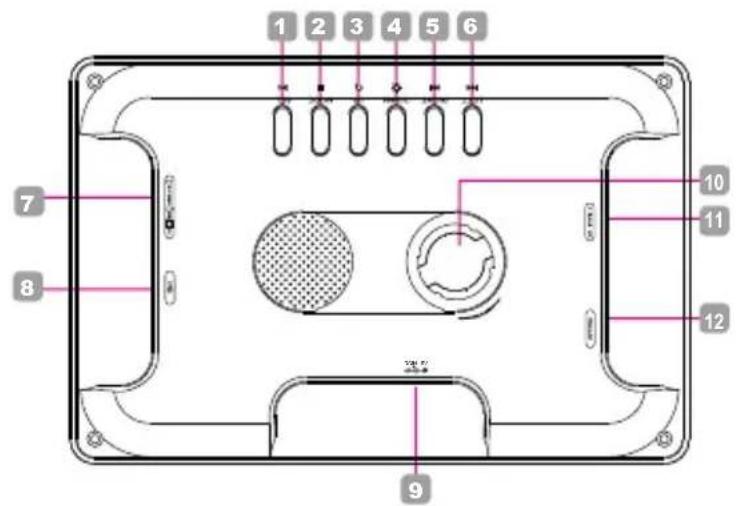

Name Description

1 (Play/Pause)/SEL. button • To start/pause the sildeshow.• To confirm a setting or function.
2 (S■p)/MODE button • To stop playback of slideshow.• To return to the main menu.
3 UP/(Rotate) button		• To move up in the menu.• To rotate the photo by 90° clockwise.
4 DOWN/(Brightness) button		• To move down in the menu.• To adjust the value of brightness.
5 RIGHT/ (Next) button • To move right in the menu.• To display the next photo.
6 LEFT/ (Previous) button • To move left in the menu.• To display the previous photo.
7 SD/MMC/MS/xD Slot To accommodate SD, MMC, MS and xD cards.
8 USB Port To accommodate the USB devices such as a portable USB flash drive or a flash memory card reader.
9 DC IN Jack To connect to power supply.
10 Stand receptacle		To attach to the supplied stand.
11 CF Type I Slot		To accommodate CF Type I cards.
12 Power ON/OFF switch		To turn the unit power on and off.

Preparations

GB

Attaching the stand

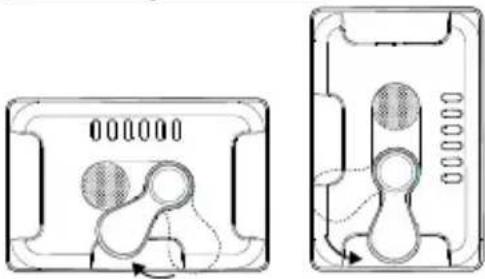

Two technical diagrams showing a device with internal components and directional arrows, no readable text or symbols present.

Landscape viewing Portrait viewing

Connecting to the power

Changing the Frame

1. Insert the round end of the stand into the receptacle.
2. Slide the stand to the direction as shown until it is locked tightly in position.

Note: The photo frame can be placed vertically or horizontally for both landscape and portrait display.

1. Connect the supplied AC power adaptor (5V, 1.5A) to the DC in jack and then plug the other end to the wall outlet.

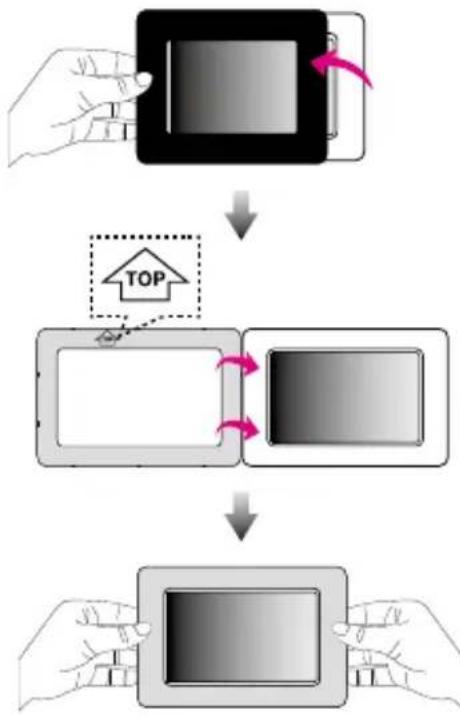

2. Pull up the frame along its edge from the unit using your fingers.

Note: Make sure all the clips around the frame are entirely unlocked before pulling away from the unit.

1. Hold the other supplied frame with the Arrow ( ) marking pointing upright, and then place it on the unit in an upright position.
2. Press the frame around the edge until it sits in place. Now the frame is changed successfully.

Inserting a Memory Card or USB drive

- This frame can only play JPEG format. If playing other formats, please convert the images to readable format for this unit in your computer.

GB

Warning:

Do not attempt to connect MSD/MMC/MS/xD Slot and CF Type I Slot at the same time, or it will cause the main unit work improperly. If it happens, please remove one card and restart the power on the unit.

Inserting Memory Card

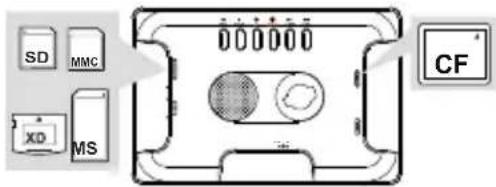

- Insert your memory card to the appropriate slot according to the orientation marked on the unit. Note: To remove MMC/SD/MS/xD card or CF card, pull the card straight out.

Inserting USB drive

Diagram of a device panel with labeled components and an external indicator (no text or symbols present)

- Insert a USB drive to the USB port. Note: This device can only display one storage media's contents at a time. If there are more than one storage media is used, the USB drive will be displayed first, then the memory card; when you want to display the files in the memory card, please remove the USB drive first.

Switching the Power on

Diagram of a device casing with control panel and arrow pointing to the bottom-right corner (no text or symbols)

- Switch the power to the "ON" marking position to turn on the unit after inserting a memory card/USB drive.

Viewing Photos and Slide Shows

GB

- Displaying pictures bigger than 480 x 234 will take longer time for loading.

1. Press LEFT/RIGHT button to select "Photo" from the main menu, then press SEL. button.

2. The slideshow starts to play.

Note 1 : To pause the slideshows, press ▶button.

Note 2: When the unit does not operate in a while at the main menu, the screen saver will be activated immediately. Press any buttons to return to the main menu again.

Thumbnail Mode

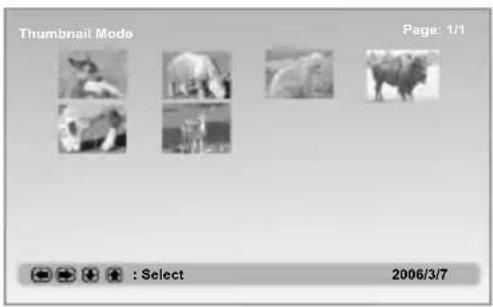

1. Press MODE button during the slideshow to enter the thumbnail mode.

2. Press LEFT/RIGHT/UP/DOWN button to select the photo you wish to play, then press ▶button.

Note: If the thumbnail has more then one page, press button repeatedly to turn to next page. Press button repeatedly to return to the upper page.

1. The slide show starts to play with the photo selected.

Note 1 : Refer to the Setup Menu section on Page 9 to set up the slideshow settings.

Note 2: Press MODE button again to return to the main menu.

Rotation

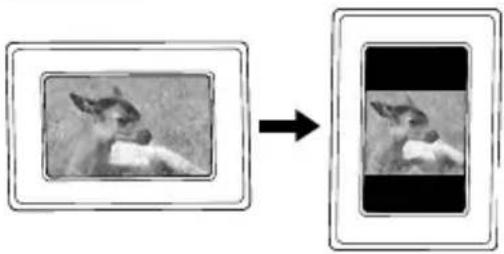

Two frames showing a deer photo before and after transformation, with no visible text or symbols.

1. Press LEFT/RIGHT button to select the photo you wish to rotate, then press button of the unit to rotate by 90 in clockwise direction.

Note 1: Each press of the button will rotate the photo by 90 degree in clockwise direction.

Note 2: All the rotate effects will be cancelled when returning to the main menu.

8

Setup Menu

1. Press MODE button to enter the Setup Menu.
2. Press LEFT/RIGHT button to select "Setup" from the main menu, then press SEL. button.
3. Press UP/DOWN to select an item in OSD menu, and then press RIGHT/UP/DOWN to select an item from the sub-menu, as shown on the below table.
4. Press SEL. to confirm. Note: To leave the Setup Menu, press MODE button again.

OSD menus Sub-menus Description of operations
Interval Time 5 Sec.	15 Sec.,30 Sec., 1 Min.,5 Min., 30 Min.,1 Hour, 4 Hours,12 Hours, 1 Day	Set up the interval time for slideshow.
Transition No Effect,	Random,Cover Up,Cover Down,Uncover Left,Push Right,Wipe Up,Wipe Down	Set up the style of transition.
Contrast -4, -3, -2, -1	0, +1,+2, +3, +4	Adjust the value of contrast.
OSD Language English	French,German,Italian,Spanish,Portuguese,Dutch,Polish	Set up the language in which the OSD menu is shown on your screen.
Panel Original Select	"Original" for playing aspect ratio of images. Black bands appear on left and right screen with a landscape viewing,or top and bottom with a portrait viewing.
	Full Screen Select "Full Screen" to play the photos in a full screen size. (If the non 16:9 images is displayed, it will cause the image distortion when selecting the "Full Screen".).
Reset Confirm Select	Reset to restore to the default settings.
Exit Setup Mode Select to exit the setup menu.

GB

Specifications

GB

Display 7" Color TFT LCD Panel
View Area 480 X 234 pixels, 16:9 ratio
Button (6) Left, Right, Down / Brightness, Up / Rotate, Stop, Play/Pause/Select
Brightness 130
Contrast	150:1
Changeable Frame Yes
Stand Design Detachable (for Portrait and Landscape)
Memory Card Slot SD/SDHC/MMC/MS/MS Pro/ xD/ CF type I
File Format JPEG
Power Adapter 5V / 1.5A
OSD Language English, French, German, Italian, Spanish, Portuguese, Dutch, Polish
Dimensions 200 x 132.8 x 83.7 mm (with stand)
Weight 340g
Accessories	Power Adapter
	Stand
	User Manual
	Quick Start Guide
	Additional changeable frames (silver/ pink)

Troubleshooting

No power

• Check to make sure the power plug is plugged into the power outlet.
  • Make sure there is power to the outlet.

Unable to view photos on the Digital Photo Frame

• Not all JPEG files are compatible. Please open the files in the computer and resave them as JPEG files and try to playback in the device.
• Check if using compatible memory cards.

If the picture display is distorted or cannot display properly

- Go to the setup menu, then the panel setting and change the aspect ratio to match your photo: Original or Full Screen.

If picture display seems slow

- Use lower resolution picture.

GB

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.

With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call

0870 6001 338

(UK customers only) Calls charged at National Rate.

Note: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
User Manual 82-270-00180
Quick Start Guide 82-270-00160
Power Adapter 43-111-00269
Stand 60-270-C1101
Additional changeable frames (Silver / Pink)	Silver: 60-270-C0703
	Pink: 60-270-C0702

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
