LED5003 - Television Manta - Free user manual and instructions

Product Type	LED Television
Brand	Manta
Model	LED5003
Screen Size	50 inches
Display Technology	LED
Resolution	Full HD (1920 x 1080)
Backlight Type	Direct LED
Power Supply	AC 100-240V, 50/60Hz
Power Consumption (Typical)	90 W
Standby Power Consumption	< 0.5 W
Weight (with stand)	13.5 kg
Weight (without stand)	12.0 kg
Dimensions (with stand) (W x H x D)	112.5 x 71.0 x 25.0 cm
Dimensions (without stand) (W x H x D)	112.5 x 65.5 x 8.5 cm
VESA Mount Pattern	200 x 200 mm
Connectivity	2 x HDMI, 1 x USB, 1 x AV, 1 x VGA, 1 x RF
Built-in Tuner	DVB-T/T2/C, DVB-S/S2
Audio Output	2 x 8W speakers
Supported Video Formats	MPEG, AVI, MKV, MP4, etc.
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use solvents.
Safety	Keep away from water and heat sources. Do not block ventilation.
Repairability	Refer to manual for spare parts and qualified service.

Frequently Asked Questions - LED5003 Manta

How do I connect external devices to my Manta LED5003 TV?

Use the HDMI ports for HD devices like Blu-ray players or game consoles. For older devices, use the AV input. To play media from a USB drive, insert it into the USB port and select USB source.

Why is there no sound from my TV?

Check if the volume is muted or set too low. Ensure the audio output is not set to external speakers. If using external audio, verify the cable connection. Also, try a different channel or source to isolate the issue.

How can I reset the TV to factory settings?

Go to the Menu > Settings > System > Factory Reset. Enter the PIN (default is 0000) and confirm. This will erase all personal settings.

Can I mount my Manta LED5003 on a wall?

Yes, it supports VESA 200x200mm mounts. Use a compatible wall bracket and follow the instructions in the manual to safely mount the TV.

What is the maximum supported USB size?

The TV supports USB drives up to 32GB formatted in FAT32. Larger drives or exFAT may not be recognized.

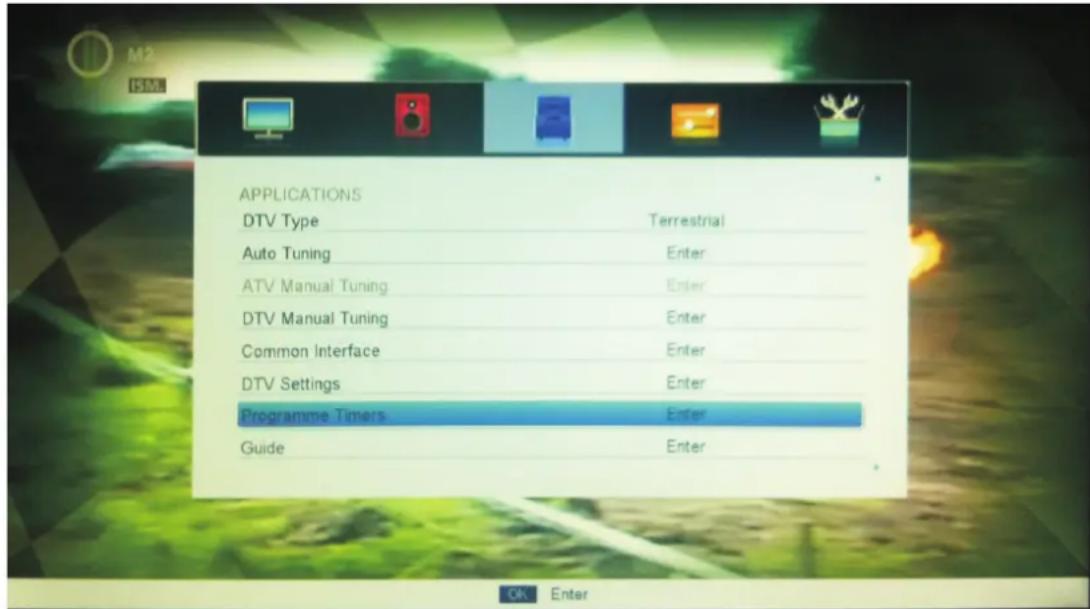

How do I tune digital channels?

Press Menu, go to Channel > Auto Tuning. Select your antenna type (Cable or Terrestrial) and start the scan. The TV will find all available channels.

The remote control is not working. What should I do?

First, replace the batteries. Ensure there are no obstacles between the remote and the TV sensor. If still not working, try using the power button on the TV manually. If the TV responds, the remote may be defective.

How do I clean the screen?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use any liquids or cleaning agents as they may damage the screen.

What are the power consumption specifications?

The Manta LED5003 consumes 90W during normal operation and less than 0.5W in standby mode.

Does the TV support HDR?

No, the Manta LED5003 is a Full HD model and does not support HDR (High Dynamic Range). It is designed for standard dynamic range content.

USER MANUAL LED5003 Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

LED TV

LED1903

LED2206

LED2403

LED2803

LED3204

LED3903

LED4004

LED5003

Illustration of a crossed-out flame symbol next to a blank rectangular object (no text or symbols present)

Symbolic icon of a person pushing a large box under a circular background (no text or symbols)

Illustration of a crossed-out hand holding a bottle, above a blank screen (no text or symbols)

Black-and-white photo of a person surfing on a large screen, no visible text or symbols

Close-up of a dark, curved object with a gray arrow pointing to it (no text or symbols visible)

Close-up of a dark rectangular object with a textured surface and an attached rectangular block, no visible text or symbols.

Close-up of a dark, curved object with a gray arrow pointing to it (no text or symbols visible)

Black-and-white photo of a person surfing on a surfboard, no visible text or symbols

PREFERENCES
Menu Language	English
Teletext Language	English
Key Lock	Off
PC Settings	Enter
Energy Saving Setting	Enter
PIN Setting	Enter
Parental Control	Enter

Energy Saving Settings

Automatic Power Down	Off
No Signal Power Down

Zmiana kodu PIN (Change Pin Code)

High voltages are used in the operation of this product. to reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Warning The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Important Safety Precautions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Warning to reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
15. The apparatus shall be disconnected from the mains by placing the power/standby switch in the standby position and unplugging the power cord of the apparatus from the AC mains receptacle.
16. The socket-out shall be installed near the equipment and shall be easily accessible.
17. This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
18. Apparatus shall not be exposed to dripping or splashing.
19. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
20. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
21. Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.
22. The USB terminal should be loaded with 0.5 A under normal operation.

TV Bracket assemble

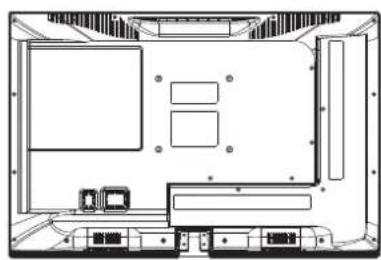

Fix the TV on the wall

1. First, put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen.
2. User the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1). And take off the bottom stand (please take off the screws and bottom stand carefully).
3. Make one bracket which can fix on the wall according to the size of arrow direction of photo2 and photo3.
4. Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts) Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts)
5. according to the step 4, use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall.

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

1

Top-down schematic of a room layout with furniture and fixtures (no text or labels)

2

3

Note:

1. The bracket fixed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to avoid the danger.
4. The fixing picture is only for reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.

TV Buttons And Terminal Interface

TV Buttons

Note: The following is only functional schematic, And the actual position and arrangement of different models may be different.

VOL+

VOL -

CH+

CH-

MENU

SOURCE

(1):Turn ON/OFF Power.

SOURCE: External Signal Input Selection.

MENU: Display Main MENU And Confirm MENU Item Selection.

CH+/-:Selecting Channel.

VOL+/-:Adjusting Volume.

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

	AV inputExternal AV Signal Input AndRelevant Rith/Left Sound Channel		EARPHONE outputWhen earphones are plugged in,speakers are disabled
	CI SLOTThe card reader input CI(common interface) this requires CAM (conditional access module) used for pay TV.		USB inputConnect a USB device here to play its media files or to recordprograms via the PVR function.
	Y Pb Pr inputConnect to the composite terminal of your DVD/VCR (Some models without this interface)		SCART inputstandard,it supports composite and RGBsignal input.It is a connection for european (Some models without this interface)
	HDMI inputDigital signal input from HDMI video connector.		COAXIALConnect the SPDIF receiver.
	ANT 75Connect the antennal/cadle tv input (75/VHF/UHF)
	VGA inputPC analog signal input
	PC AUDIO INPUTVGA input and audio input when VGA input

External device connection diagram

Install and connect TV

3

2
1

Set your TV

To put your TV in a firm place which can bear the weight of the TV. To avoid danger, please don't expose the TV near water or heating place (such as light, candle, heating machine), do not block the ventilation at the back of TV.

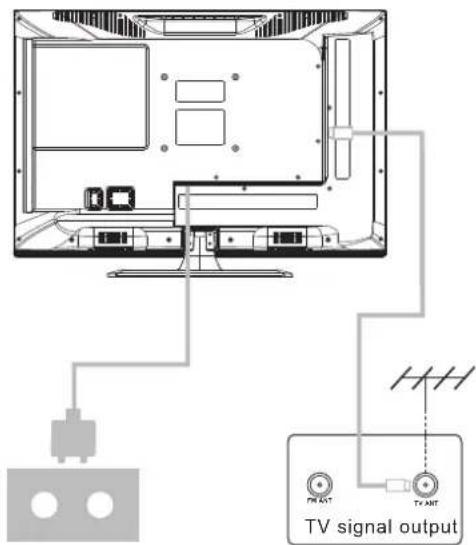

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV (AC 100-240V\~50/60Hz).

Turn on TV

1. Press the power button of the TV the indication light will turn to green. if it is on standby mode (the light is red), press the power button on the remote control to turn on the TV.

Note:

Picture for reference purposes only.

TV Stand Installation Instructions

1. Open the carton and remove the TV and scattered accessories and base (some models without base).

2. to avoid the injury of the TV, covered with a soft mattress, put it on the table, face down on a soft mattress, the base of the neck is fixed on the TV with screws.

3.screw the base and connected to the TV 4. the installation is complete.

Note:

Picture for reference purposes only.

Please prevail in kind

Simple line drawing of a desk with a book and a small object on top (no text or symbols)

Remote Controller

1. POWER : Set your TV to power on or standby mode.
2. MUTE : Press to mute the sound. Press again or press VOL+ to unmute.
3. 0-9: Press 0\~9 to select a TV channel directly while watching TV. The channel will change after 2 seconds. Applicable for entering page number in teletext mode and so on.
4. DTV/ATV: Switch between Analog and Digital TV
5. Return to the previous viewed program.
6. S.MODE: Press to cycle through the different sound settings
7. SLEEP: Select amount of time before TV turn itself off automatically.
   8 MTS : Press to search the NICAM modes.
8. P.MODE: Press to cycle through the different picture settings
9. MENU: Allow you to navigate the on-screen menus.
10. SOURCE: Open the main menu, press to list the sources
11. ▲▼◀▶ ENTER: Allow you to navigate the on-screen menus and adjust the system settings to your preference.
12. EXIT: Exit from the menu or sub-menu and cancel the function in process (if applicable)
13. DISPLAY: Press to display the source and channel's info.

Battery Installation:

Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as indicated. Do not mix old and new batteries or different types of batteries.

Slide the lid until you hear it click into place.

Using the Remote Control:

Unless stated, otherwise, the remote control can operate all the features of the TV.

Always point the remote control directly at the remote sensor in front of the TV.

Remote Controller

1. VOL+/VOL-: Press to increase / decrease the sound level.
2. TV/RADIO : When watching channel allows you, to switch between TV and Radio modes
3. GUIDE:1. Launches the EPG (Electronic Program Guide) 2. Fast reverse in PVR or Media Player mode.

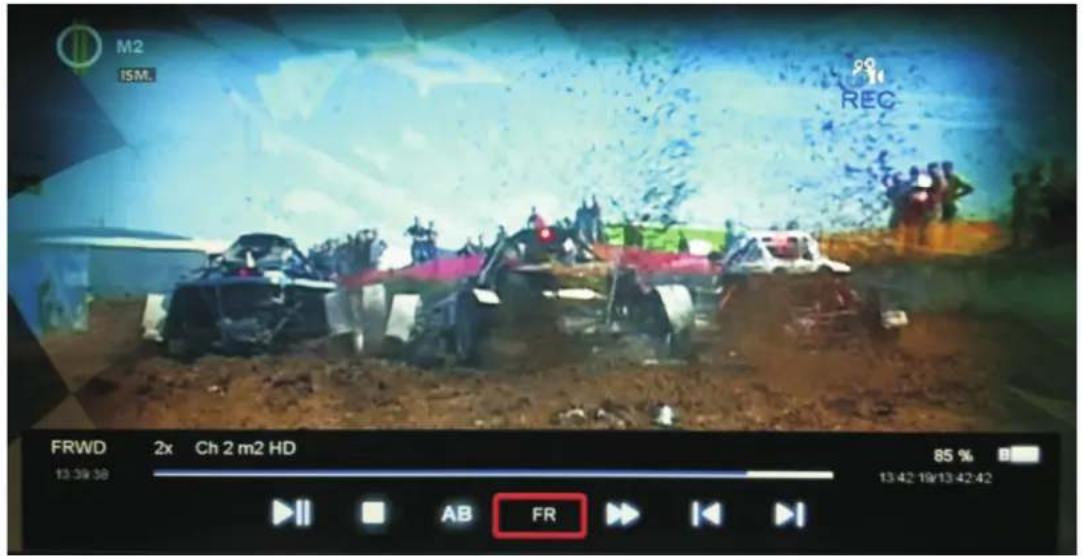

4. TIME SHIFT: 1.DTV channel time shift Function. 2.play on PVR or Media Player mode.
5. CANCEL: 1. When a page is selected in the mode of text, it may take some time before it becomes available, pressing the CANCEL key will return to the TV mode. When the required page is found, the page number will appear at the top of the TV picture, press the CANCELkey to return to the mode of text for you to browse this page.
6. Previous chapter in PVR or Media Player mode
7. INDEX:1. Request the Index page in Teletext mode. 2.Exit the playing function in PVR or Media Player mode.
8. SIZE: Change the size of display in Teletext mode.
9. REVEAL: Reveal or Hide the hidden words.
10. COLOR BUTTONS: Teletex switch of the analog parts, the items selection in the menu of the digital parts and the practice of the MHEG5 in the DVB menu.
11. CH+/CH- : Press to scan through channels.
12. FAV/LIST: press to open the favorite list. then you can select the favorite channel.
13. ASPECT:1. Select picture scale. 2.fast forward in PVR or Media Player mode.
14. FREEZE: press to freeze the picture
15. SUB PG. 1. Press to access sub page. 2 Next chapter in PVR or Media Player mode.
16. SUBTITLE: To show and set the language of current DTV.
17. HOLD: HOLD On or Off for current page display.
18. TEXT: Switch the teletext on and off.
19. RECLIST: Show the recorded list.
20. REC: Record begin in PVR mode.

Function Description

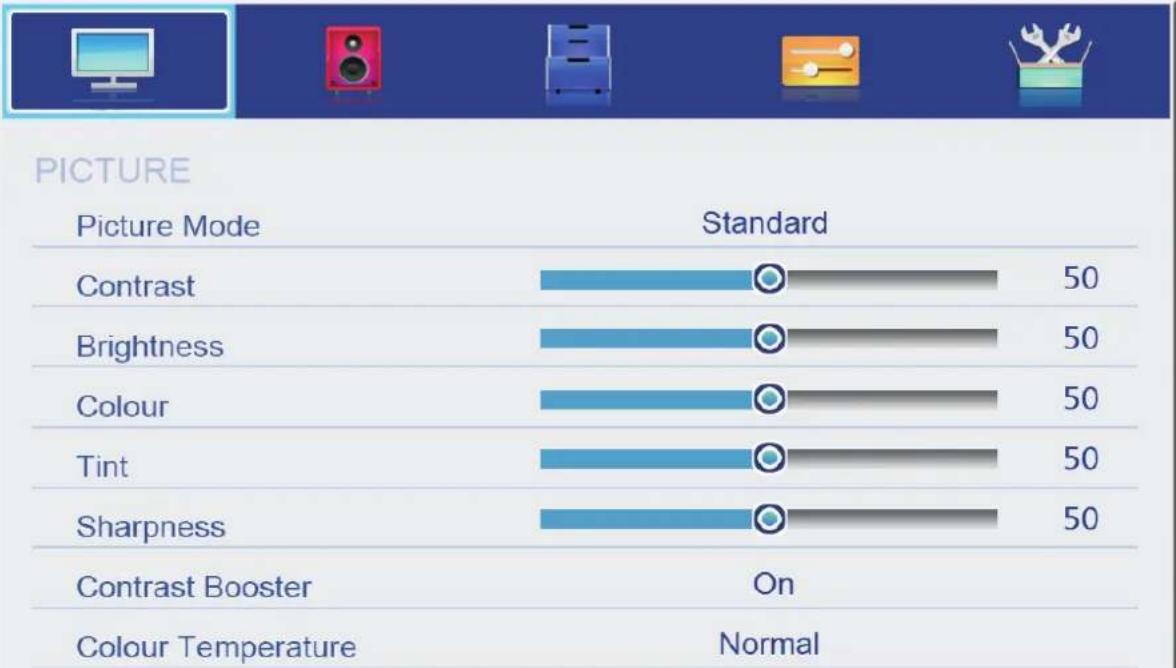

Picture Menu

The picture is for a reference only; the actual item is the standard.

Press TV MENU button to display the main menu.

Press ▲/▼ button to select Picture in the main menu, and then press ENTER button to enter.

1. Press ▲/▼ button to select the option that you want to adjust in the Picture menu, and then press ENTER button or ▶ button to enter.
2. Press ◀/▶ button to adjust or press ▲/▼ button to select. And press ENTER button to select the sub menu.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu, and press EXIT button to exit the entire menu.

Picture Mode

Press ▲/▼ button to select Picture Mode, then press ENTER button to enter and press ◀/▶ button to select.

You only can change the value of brightness, contrast, sharpness, color, when the picture is in User mode.

TIPS: You can press P-MODE button on the remoter control again and again to change the picture mode directly.

Picture Mode

Standard

Contrast

Press ▲/▼ button to select Contrast, then press ENTER button to enter and press ◀/▶

button to adjust. Then press MENU button to return back the previous menu directly.

Brightness

Press ▲/▼ button to select Brightness, then press ENTER button to enter and press ◀/▶ button to adjust. Then press MENU button to return back the previous menu directly.

Colour

Press ▲/▼ button to select Colour, then press ENTER button to enter and press ◀/▶ button to adjust. Then press MENU button to return back the previous menu directly.

Tint

Press ▲/▼ button to select Tint, then press ENTER button to enter and press ◀/▶ button to adjust. Then press MENU button to return back the previous menu directly.

Sharpness

Press ▲/▼ button to select Sharpness, then press ENTER button to enter and press ◀/▶ button to adjust. Then press MENU button to return back the previous menu directly.

Contrast Booster

Press ▲/▼ button to select Contrast Booster, then press ENTER button to enter and press ◀/▶ button to select On or Off. Then press MENU button to return back the previous menu directly.

Colour Temperature

Press ▲/▼ button to select Colour Temperature, then press ENTER button to enter and ◀/▶ button to select Standard, Cool, Warm.

DNR

Press ▲/▼ button to select DNR, and then press ENTER button to enter and ◀/▶ button to select Off, Low, Middle, High.

Reset

Press ▲/▼ button to select Reset, then press ENTER button to enter the confirm menu, and then choose OK to reset the value.

SOUND Menu

The picture is for a reference only; the actual item is the standard.

Press MENU button to display the main menu.

Press ▲/▼ button to select Sound in the main menu, and then press ENTER button or ▶ button to enter.

1. Press ▲/▼ button to select the option that you want to adjust in the Sound menu, then press ENTER button to enter.
2. press ◀/▶ button to adjust or press ▲/▼ to select, and press ENTER button to select submenu.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu, or press EXIT button to exit the entire menu.

Sound mode

Press ▲/▼ button to select Sound mode, and then press ENTER button to enter. And then press ◀/▶ button to select.

You can change the value of bass and treble, Balance and EQ, when the sound is in User mode.

TIPS: You can press S-MODE button on the remote control to change the Sound Mode directly.

Sound Mode

Standard

Bass

Press ▲/▼ button to select Bass, then press ENTER or ▶ button to enter and press ◀/▶ button to adjust. It can only be adjusted under user mode. Then press MENU button to return

back the previous menu directly.

Treble

Press ▲/▼ button to select Treble, then press ENTER button to enter and press ◀/▶ button to adjust. It can only be adjusted under user mode Then press MENU button to return back the previous menu directly.

Balance

Press ▲/▼ button to select Balance, then press ENTER button to enter and press ◀/▶ button to adjust. Then press MENU button to return back the previous menu directly.

Surround

Press ▲/▼ button to select Surround, and then press ENTER button to enter and press ◀/▶ button to select ON or OFF.

AVL

Press ▲/▼ button to select AVL, and then press ENTER button to enter and press ◀/▶ button to select ON or OFF.

Digital Audio Output

Press ▲/▼ button to select Digital Audio Output, then press ENTER button to enter and press ◀/▶ button to select.

Then press ENTER button or ▶ button to enter and press ◀/▶ button to adjust, then press MENU button to return back the previous menu directly.

Reset

Press ▲/▼ button to select Reset, then press ENTER button to enter RESET menu.

APPLICATIONS

The picture is for a reference only; the actual item is the standard.

Press MENU button to display the main menu.

Press ▲/▼ button to select APPLICATIONS in the main menu, and then press ENTER button to enter.

APPLICATIONS
Channel			Enter
Channel Options			Enter
Country			Russia
DTV Type			Terrestrial
Auto Tuning			Enter
ATV Manual Tuning			Enter
DTV Manual Tuning			Enter
Common Interface			Enter

1. Press ▲/▼ button to select the option that you want to adjust in the APPLICATIONS menu, and then press ENTER button to enter.
2. Press ◀/▶ button to select and press ENTER button to select the sub menu.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu, or press EXIT button to exit the entire menu.

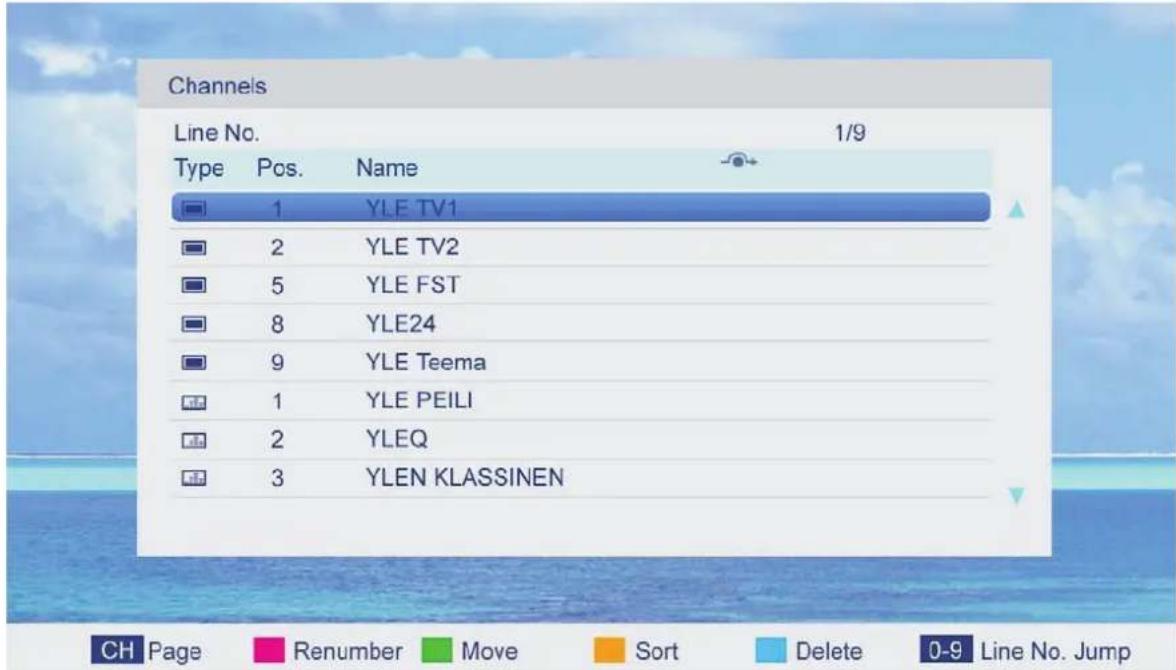

Channel

Press ▲/▼ button to select Channel, and then press ENTER button to play the channel selected. The menu will appear as follows:

Key Description:

CH button: Press CH+ or CH- to turn the page.

RED button: Press this button to modify the channel number.

GREEN button: Press this button to move down the channel.

YELLOW button: Press this button to the order to restore the default channel.

GREEN button: Press this button to delete the channel selected.

0-9 button: Press these buttons to jump to the appropriate channel by inputting different channel number.

Channel Options

Press ▲/▼ button to select Channel Options, and then press ENTER button to the channel List menu. The menu will appear as follows:

Key Description:

CH button: Press CH+ or CH- to turn the page.

RED button: Press this button to set the favorites channels.

GREEN button: Press this button to lock the channel.

YELLOW button: Press this button to skip the channel, if the channels already skipped, press YELLOW button again will cancel skip.

Country

Press ▲/▼ button to select Country, and then press ◀/▶ button to select which area you stay.

DTV Type

Press ▲/▼ button to select DTV Type, then press ◀/▶ button to select.

(Available DTV Type: Cable, Terrestrial)

Auto Tuning

Press ▲/▼ button to select Auto Tuning, and then press ENTER button to enter (When the System Lock is on, please input the PIN code to unlock).

Select to open the auto searching page, and press Enter button to start the scan.

DEFAULT CODE:0000

ATV Manual Tuning

Press ▲/▼ button to select ATV Manual Tuning, and then press ENTER button to start the scan.

DTV Manual Tuning

Press ▲/▼ button to select DTV Manual Tuning, and then press ENTER button to start the scan.

Common Interface

Press ▲/▼ button to select Common Interface, and then press ENTER button to display the CI slot Information.

PREFERENCES

The picture is for a reference only; the actual item is the standard.

Press MENU button to display the main menu.

Press ▲/▼ button to select PREFERENCES in the main menu, and then press ENTER or ▶ to enter.

Five icons on a blue background: monitor, speaker, printer, progress bar, and wrench (no text or symbols)

PREFERENCES

Menu Language	English
Teletext Language	English
Key Lock	Off
PC Settings	Enter
PIN Setting	Enter
Parental Control	Enter
Auto Power Down	4 hours

1. Press ▲/▼ button to select the option that you want to adjust in the PREFERENCES menu, then press ENTER to enter.
2. Press ◀/▶ button to adjust or press ▲/▼ button to select.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu and press EXIT button to exit the entire menu.

Menu Language

Press ▲/▼ button to select Menu Language, then press ENTER or ▶ button to enter the sub menu, then press ▲/▼ button to select, then press ENTER or ▶ button to confirm.

Teletext Language

Press ▲/▼ button to select Teletext Language, then press ENTER or ▶ button to enter the sub menu, then press ▲/▼ button to select, then press ENTER or ▶ button to confirm.

Key Lock

Press ▲/▼ button to select Key Lock, then press ENTER button to enter and press ◀/▶ button to select ON or OFF.

PC Settings

Press ▲/▼ button to select PC Settings, then press ENTER to enter the sub menu. Then Press ▶ to enter, then press ENTER or ▶ to confirm. (When the PC signal is connected).

PIN Setting

Press ▲/▼ button to select PIN Setting, then press ENTER button to enter the sub menu, and than you can set a password.

Parental Control

Press ▲/▼ button to select Parental Control, then press ENTER or ▶ button to enter the sub menu. Then press ▲/▼ button to select Rate (From4-17, or None). Then press

ENTER or ▶ button to confirm.

Change Pin Code

Press ▲/▼ button to select Change Pin Code, then press ENTER to enter and Change Pin Code menu will appear as follows:

Input old password at "Old Password", (if the old password is incorrect, the password will not be allowed to modify.)

Input new password at "New Password".

Input new password again at "Confirm New Password", if new password and confirm new password consistent, the successfully updated menu will appear a few second, otherwise, the menu will display the password mismatch.

Auto Power Down

Press ▲/▼ button to select Auto Power Down and press ◀/▶ button to select OFF/1 hours/2 hours/3 hours/4 hours

SETUP

The picture is for a reference only; the actual item is the standard.

Press MENU button to display the main menu.

Press ▲/▼ button to select Setup in the main menu, then press ENTER to enter.

SETUP
OSD Timer	Off
Cinema	Super Live
Blue Screen	On
Sleep Timer	Off
Location	Home
Quick Setup	Enter
Upgrade	Enter
Channel Details	Enter
Reset TV	Enter

1. Press ▲/▼ button to select the option that you want to adjust in the Setup menu, then press ENTER or ▶ button to enter.
2. Press ◀/▶ button to adjust or press ▲/▼ button to select.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu and press EXIT button to exit the entire menu.

OSD Timer

Press ▲/▼ button to select OSD Timer, and then Press ◀/▶ button to select. (Available OSD Timer: 10 S, 20 S, 30S, 40S, 50S, 60S, off), then press ENTER button to confirm.

Cinema

Press ▲/▼ button to select Cinema, and then Press ◀/▶ button to select. (Available Cinema: Auto, 4x3, Wide, Super Live), then press ENTER button to confirm.

Blue Screen

Press ▲/▼ button to select Blue Screen, then press ◀/▶ to select On or Off. Then press ENTER to confirm.

Sleep Timer

Press ▲/▼ button to select Sleep Timer, and then Press ◀/▶ button to select. (Available Sleep Timer: 00:15, 00:30, 01:00, 01:30, 02:00, off), then press ENTER button to confirm.

Location

Press ▲/▼ button to select Location, and then Press ◀/▶ button to select Home or Store, then press ENTER button to confirm.

Quick Setup

Press ▲/▼ button to select Quick Setup, and then Press then press ENTER button to enter the sub menu, enter the password if locked, and then you can quickly make some basic settings of the TV.

Upgrade

Press ▲/▼ button to select Upgrade.

Channel Detaile

Press ▲/▼ button to select Channel Detaile.

Reset TV

Press ▲/▼ button to select Reset TV, and then press ENTER to enter the sub menu, enter the password if locked, and then you can restore factory settings.

Shopping Mode

Press ▲/▼ button to select Shopping Mode.

Multimedia

MEDIA OPERATION

The picture is for a reference only; the actual item is the standard.

Note: Before operation MEDIA menu, Plug in USB device or memory card, then press SOURCE button to set the Source to Media.

Press ▲/▼ button to select MEDIA in the Source Menu, and then press ENTER or ▶ to enter. You can also enter the Media by pressing MEDIA button on the remote control.

1. Press ▲/▼ button to select the option that you want to adjust in the Media menu, then press ENTER or ▶ button to enter.
2. Press ◀/▶ button to adjust or press ▲/▼ button to select.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu and press EXIT button to exit the entire menu.

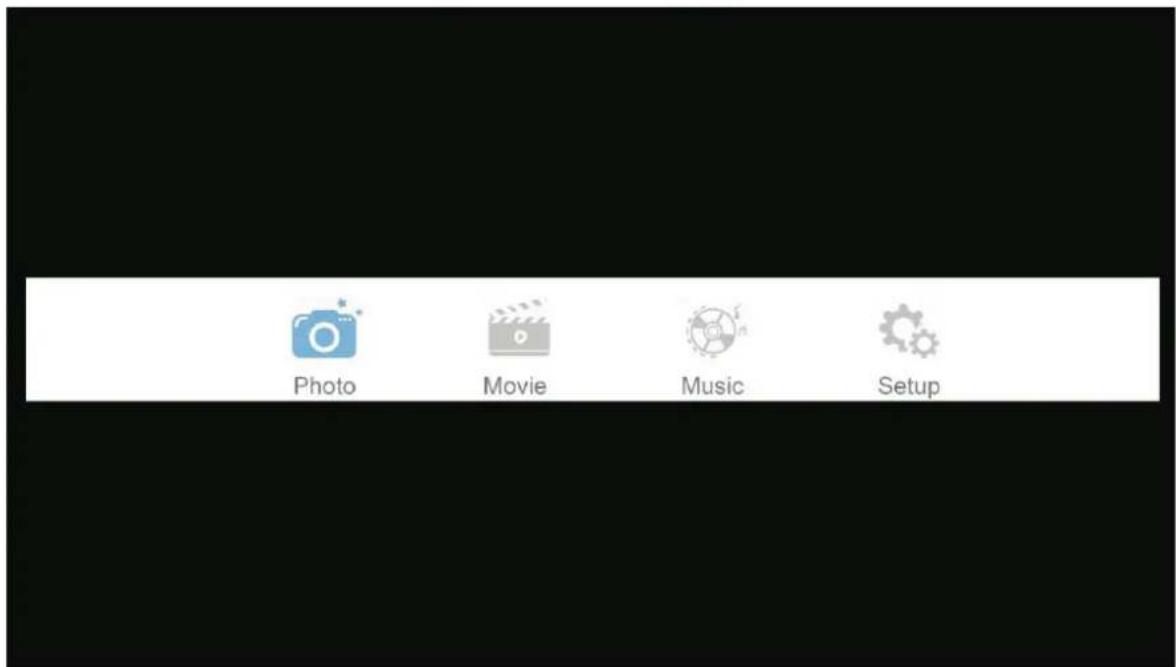

The picture is for a reference only; the actual item is the standard.

Press ◀/▶ button to select Music in the main menu, and then press ENTER button to enter.

Press EXIT button to return back to the previous menu.

Press ▲/▼ to select the photos, press ENTER or ▶ || button to view.

Select

Features

Page

You can see the information of the current playing photo after press INFO button, then press

▶ || button to play or pause, you can see the playing state in the right.

Then press ▲/▼ or ◀/► button to ratite the picture.

Notes: Other menu and description are the same as that for Movie menu.

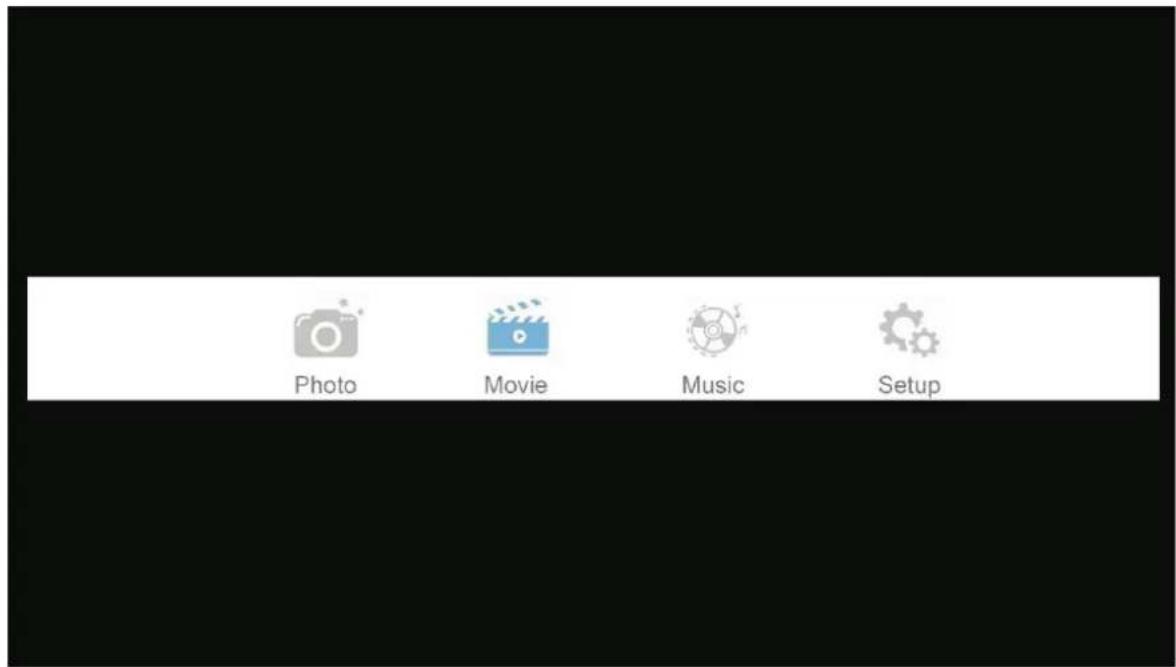

Movie

The picture is for a reference only; the actual item is the standard.

Press ◀/▶ button to select Movie in the main menu, then press ENTER button to enter.

Press EXIT button to return back to the previous menu.

Press ▲/▼ button to select the folder that you want to view.

Press ENTER button to select the sub folder.

Press ENTER button or ▶ || button to play,

Press ■ button or EXIT button to stop playing.

Press the ◀ button to return back to previous page.

You can see the information of the current playing media at the first flew second or after press INFO button.

Music

The picture is for a reference only; the actual item is the standard.

Press ◀/▶ button to select Music in the main menu, and then press ENTER button to enter.

Press EXIT button to return back to the previous menu.

Press ▲/▼ button to select the sonny you want to listen, and then press ENTER or ▶ || or ▶ button to play.

Press ◀ button to return back to the previous menu.

C:/Music

1/1

128cm.mp3

Select

Features

Page

You can see the information of the current playing sonny at the left of the menu.

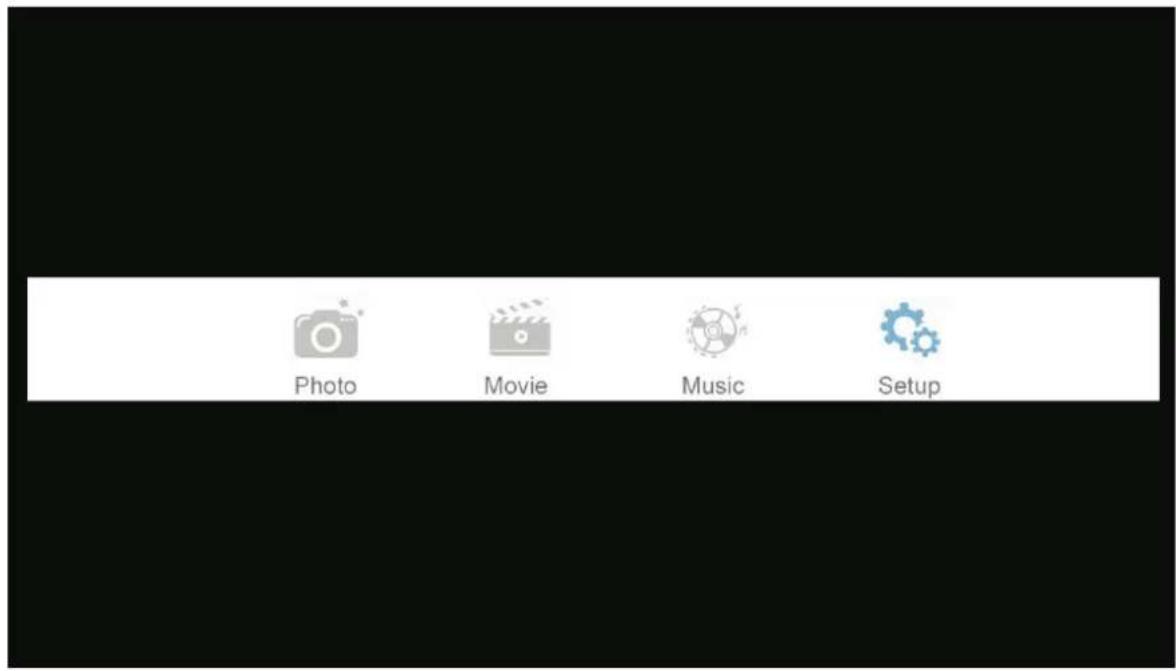

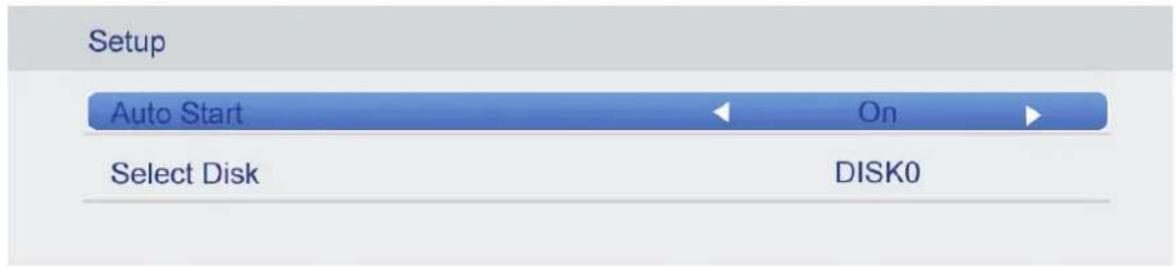

Setup

The picture is for a reference only; the actual item is the standard.

Press ◀/▶ button to select Setup in the main menu, and then press ENTER button to enter. Press EXIT button to return back to the previous menu.

Press ▲/▼button to select the option, and then Press ◀/▶ button to select it on or off.

How to use Record

The HK-RTD2957support two type to record :

A、Direct Record

B、Subscribe Record

Direct Record.

1. In the DTV source, you can start record function by press the "REC" key while program playing. Before that, you have to make sure the USB storage device is inserted and the device checking and Initialization is done.

If you press "REC" key when there's no USB storage device inserted, the prompt window will appear as follow.

If you press "REC" key during the device checking and Initialization, the prompt window will show black screen about 2s.when the TV is recording, it will appear the recording menu.

1. After record started, you can select the items for the functions:

PLAY/PAUSE/STOP/AB/FF/FR/PRVE/NEXT。You can seen the detail info by the record menu.

PLAY/PAUSE: you can set the play mode PLAY/PAUSE;

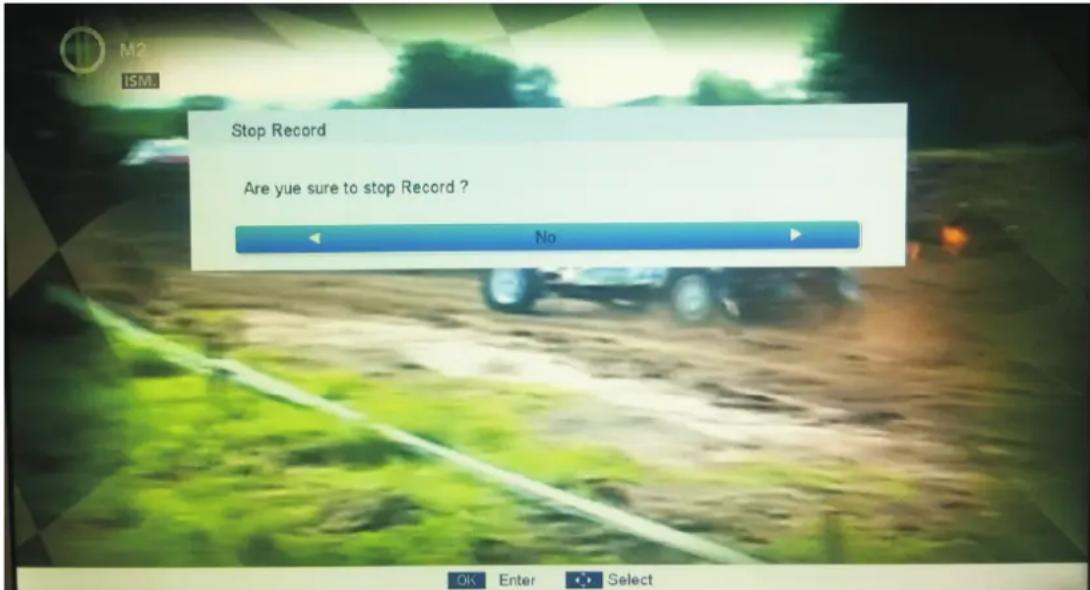

STOP: you can stop the recording, it will appear the menu for check whether to stop the recording.

AB: you can set two point for play the record file from A to B.

FF/FR: you can set the play mode FF/FR;

PRVE/NEXT: you can play the record file to PRVE/NEXT 30s.

1. After record started, you can press the button of PLAY/FF/FR/PRVE/NEXT on the RC, you can play the record file by PALY/PAUSE/FF/FR/PRVE/NEXT/STOP.

2. You can press "STOP" key to stop record function after confirm.

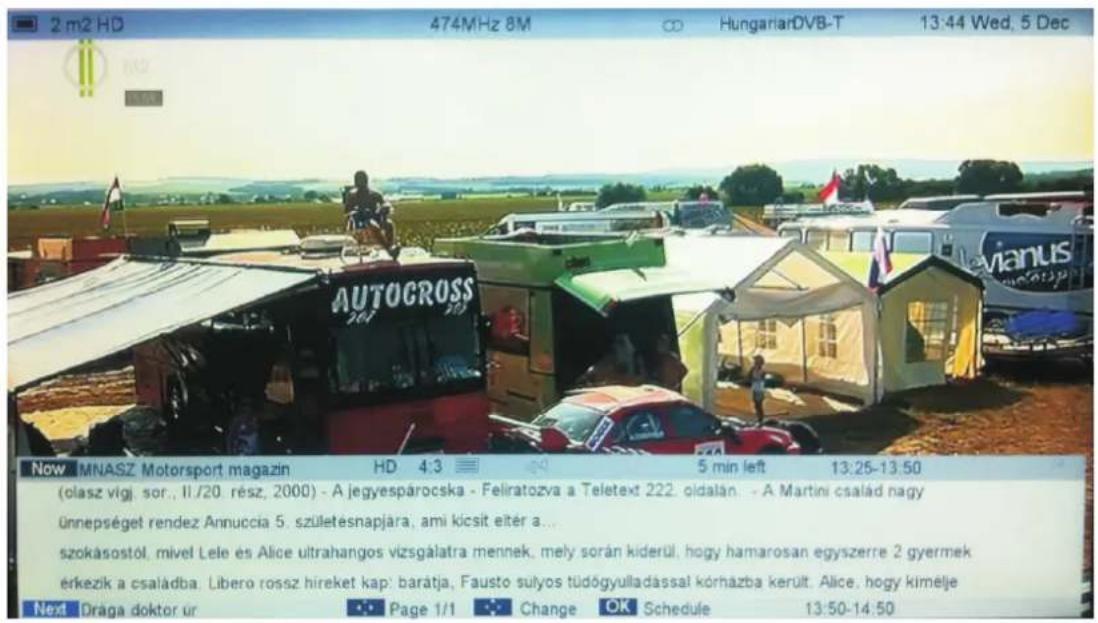

Subscribe Record

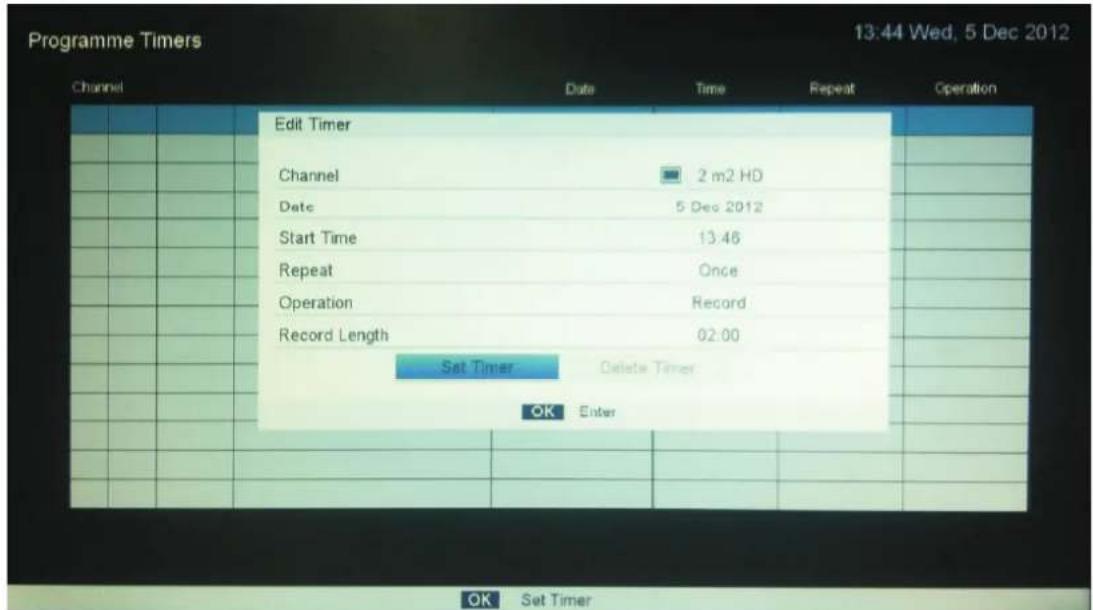

1. In the DTV source, you can enter the Timer menu set the Subscribe Record. Press the "ENTER" key to add the record task.

The Way: Main menu-->APPLICATIONS-->Programme Timers-->Programme Timers

1. If you enter the Timer Edit menu, you can set the record task that you want to record.


1. When you success to set the record task, if the TV is standby mode, it will auto power on when three minutes before the start of the task.
2. When the record task time is start, It will auto record, but you must check you USB storage device inserted and it is enough speed to record. Otherwise the task will failure.
3. The TV enter false standby mode when the task is start, you can press the "POWER" key to watch the TV program. You can do same operation as Direct Record. When you press "POWER" again, if the task is not over, the TV will power off the panel and continue to record. The TV will real power off until the record task is over.
4. When you open the EPG menu, press the BLUE button, you can enter the programmer time menu too.

1. When you open the display menu, and select the next program, you can press the ENTER to set the record task, the task will auto set by the appear menu, you can modify it too.

Note: Record function will stop when there's no space left on the USB storage device.

1. In the DTV source, you can start timeshift function by press the "PLAY/PAUSE" key while program playing. Before that, you have to make sure the USB storage device is inserted and the device checking and Initialization is done.

If you press "PLAY/PAUSE" key when there's no USB storage device inserted, the prompt window will appear as follow.

If you press "PLAY/PAUSE" key during the device checking and Initialization, the prompt window will appear as follow.

If you press "PLAY/PAUSE" key during the device checking and Initialization, the prompt window will show black screen about 2s.when the TV is timeshifting, it will appear the timeshift menu.

1. After timeshift started, you can select the items for the functions:

PLAY/PAUSE/STOP/AB/FF/FR/PRVE/NEXT。You can seen the detail info by the timeshift menu.

PLAY/PAUSE: you can set the play mode PLAY/PAUSE;

STOP: you can stop the recording, it will appear the menu for check whether to stop the recording.

AB: you can set two point for play the record file from A to B.

FF/FR: you can set the play mode FF/FR;

PRVE/NEXT: you can play the record file to PRVE/NEXT 30s.

1. After record started, you can press the button of PLAY/FF/FR/PRVE/NEXT on the RC, you can play the record file by PALY/PAUSE/FF/FR/PRVE/NEXT/STOP.

2. you can press "STOP" key to jump to the realtime broadcast of the program, and another press of "STOP" key, you can stop timeshift function after confirm.

Note: Timeshift function will stop when there's no space left on the USB storage device.

Help

No Power	Check the AC cord of TV is plus in or not. If still no power, please Pull out the plug and replug in after60 seconds. And open the TV again
Signal receive not properly	To cause double image or phantom if there has high building or high mountain round TV. You can adjust image effect by manually operation: consult instruction of vernier regulation or change the direction of external antenna.If you use the indoor antenna . under certain circumstance, receive will be more difficult .So you can change the direction of the antenna to adjust the image effect . If can't change image receiving effect either , you have to use external antenna.
No picture	Check the antenna at the back of TV is connected properly or not.Try to select other channels and check whether the TV problem itself or not
but,Video is ok without audio	Increase the volume.Check the TV is in mute mode or not , and please press the mute button to make sound resume.
Audio is ok, but color error or no picture.	Increase contrast and brightness.
snow statics picture and noise	Check the antenna at the back of TV is connected or not.
Level broken line	vacuum, such as hair drier, Maybe has electrical appliance interfere-please turn off these kinds of electrical appliance, cleaner and so on.
Image or-Dual "simulacrum" The TV no response with the Remote.	Perhaps the location for the antenna is not good.Use the tall beamed antenna can be improved quality of the display image.Operate the remote direct to the remote sensor on the TV.If still no response for the TV, please check if the plastic bag on the remote take or not. And check if the location for the battery is correct.Change the new battery.The TV will shift to the STAND BY if no response from the remote in the few minutes.
.NO Video In (PC Mode)	Please check if the display cable connect to the VGA correcte.Please check if there has the bend on the display cable.
Vertical twinkling (PC Mode)	Enter the main menu, Use the clock regulator for the Video display noise to eliminate the vertical line.
horizontal ripping (PC Mode)	Adjust the Audio sound horizontal in the main menu to clear the horizontal ripping line.
The screen is too bright or too dark (PC Mode)	Adjust the contrast ratio or brightness in the main menu.
PC Function no response	Check the computer setting in the state of compatible display resolution
Ripping line in RCA connecting	Please use good quality connecting cable.
Problem still exist	Unplug the power cable and wait for 30 seconds, then connect.If there is some problem with our TV, do not repair it by yourself, please contact with the customer service center.

There will be complete picture and the brightness will come down if the TV is in: Note So please do not keep the TV in a state of same, the static picture for too long time Menu or same picture that has much difference in brightness and contrast ratio for too long time.

Machine Technical Specifications

Screen Size	TV System	Speaker Output
19"	PAL/SECAM	5W+5W
22"	PAL/SECAM	5W+5W
28"	PAL/SECAM	8W+8W
39"	PAL/SECAM	10W+10W

Screen Size	Power Consumption	Main accessories
19"	17W	User s manual x1'Remote controller x1AAA Batteries x2
22"	20W
24"	23W
28"	30W
39"	58W

Product fiche

LED1903

• Supplier's name: Manta S.A.
• Supplier's model: LED1903
  • Energy efficiency class: A
• Visible screen diagonal in centimetres and in inches: 48 cm; 19"
• On-mode power consumption: 17 W
  • Annual energy consumption: 25 kWh/year
• Standby and off-mode power consumption: < 0,5 W
• Screen resolution in physical horizontal and vertical pixel count: 1366x768

LLLEEEDDD222222000666

• Supplier's name: Manta S.A.
• Supplier's model: LED2206
  • Energy efficiency class: A
• Visible screen diagonal in centimetres and in inches: 56 cm; 22"
• On-mode power consumption: 20 W
  • Annual energy consumption: 29 kWh/year
• Standby and off-mode power consumption: < 0,5 W
• Screen resolution in physical horizontal and vertical pixel count: 1920x1080

LED2404

• Supplier's name: Manta S.A.
• Supplier's model: LED2403
  • Energy efficiency class: A
• Visible screen diagonal in centimetres and in inches: 61 cm; 24"
• On-mode power consumption: 23 W
  • Annual energy consumption: 33 kWh/year
• Standby and off-mode power consumption: < 0,5 W
• Screen resolution in physical horizontal and vertical pixel count: 1366x768

Product fiche

LLLEEEDDD222888000333

• Supplier's name: Manta S.A.
• Supplier's model: LED2803
  • Energy efficiency class: A
• Visible screen diagonal in centimetres and in inches: 71 cm; 28"
• On-mode power consumption: 30 W
  • Annual energy consumption: 44 kWh/year
• Standby and off-mode power consumption: < 0,5W
• Screen resolution in physical horizontal and vertical pixel count: 1366x768

LLLEEEDDD3332220004

• Supplier's name: Manta S.A.
• Supplier's model: LED3204
  • Energy efficiency class: A
• Visible screen diagonal in centimetres and in inches: 81 cm; 32"
• On-mode power consumption: 38 W
  • Annual energy consumption: 56 kWh/year
• Standby and off-mode power consumption: < 0,5 W
• Screen resolution in physical horizontal and vertical pixel count: 1366x768

LLLEEEDDD333999000333

• Supplier's name: Manta S.A.
• Supplier's model: LED3903
  • Energy efficiency class: A
• Visible screen diagonal in centimetres and in inches: 100 cm; 39"
• On-mode power consumption: 58 W
  • Annual energy consumption: 84 kWh/year
• Standby and off-mode power consumption: < 0,5W
• Screen resolution in physical horizontal and vertical pixel count: 1366x768

PPPrrrooodduuucccttt fffiiiccchhheee

LED4004

•Suppliers name: Manta S.A.
•Suppliers model: LED4004
•Energy efficiency class: A
•Visible screen diagonal in centimetres and in inches: 101cm; 40"
•On-modepower consumption: 58 W
•Annual energy consumption: 84 kWh/year
- Standby and off-mode power consumption: < 0,5 ~W
- Screen resolution in physical horizontal and vertical pixel count: 1920x1080

LED5003

•Suppliers name: Manta S.A.
•Suppliers model: LED5003
•Energy efficiency class: A
•Visible screen diagonal in centimetres and in inches: 135 cm; 50"
•On-modepower consumption: 87W
•Annual energy consumption: 127kWh/year
- Standby and off-mode power consumption: < 0,5 ~W
•Screen resolution in physical horizontal and vertical pixel count: 1920x1080

INFORMACJA O PRAWIDŁOWYM POSTĘPOWANIU W PRZYPADKU UTYLIZACJI URZĄDZEŃ ELEKRONICZNYCH I ELEKTRYCZNYCH
