HWM-6010E - Washing machine Heinner - Free user manual and instructions

Product Type	Freestanding Washing Machine
Loading Type	Front Load
Wash Capacity	6 kg
Maximum Spin Speed	1000 rpm
Energy Efficiency Class	A++
Annual Energy Consumption	173 kWh
Annual Water Consumption	9240 L
Spin Drying Efficiency Class	C
Dimensions (W x D x H)	595 x 470 x 850 mm
Net Weight	54 kg
Rated Power	1950 W
Power Supply	220-240 V ~ 50 Hz
Rated Current	10 A
Water Pressure Range	0.05 - 1 MPa
Number of Programs	10 (Cotton, Synthetic, Daily Wash, Delicate, Cotton Eco, Drum Clean, etc.)
Additional Functions	Prewash, Extra Rinse, No Spin, Child Lock, Delay End (3/6/9h), Bubble Removal
Display Type	LED
Noise Level Washing	59 dB(A)
Noise Level Spinning	74 dB(A)
Safety Features	Child lock, door lock protection, overheating protection, water leak protection
Cleaning and Maintenance	Drum clean program, pump filter cleaning, inlet filter cleaning, detergent drawer cleaning
Included Accessories	User manual, warranty card, inlet hose, transport bolt hole plugs

Frequently Asked Questions - HWM-6010E Heinner

What is the maximum load capacity of the Heinner HWM-6010E?

The maximum load capacity is 6 kg for cotton and other fabrics. For synthetics, the recommended load is 3 kg.

How do I remove the transport bolts?

First, loosen all bolts using a spanner and remove them. Then, insert the supplied transport hole plugs into the holes. Keep the bolts for future use.

What should I do if the washing machine does not drain water (error E21)?

Error E21 indicates a drain problem. Check if the outlet hose is blocked or twisted. Also clean the drain pump filter. If the issue persists, contact service.

How do I activate the child lock?

During a running program, press and hold the Extra Rinse and No Spin buttons simultaneously for 3 seconds. A beep will sound, and all buttons except Power will be locked. To unlock, repeat the same action.

What is the Drum Clean program and how do I use it?

The Drum Clean program cleans the drum and tube using 90°C water without laundry. Add a small amount of chlorine bleach to the detergent drawer for better results. Run this program regularly.

How can I adjust the machine's feet for leveling?

Loosen the lock nut with a spanner, then turn the leg by hand until it contacts the floor. Tighten the nut. Use a spirit level or a can to check stability. Adjust all four feet if needed.

Why is the door not opening after a cycle?

The door is locked for safety. It will unlock automatically about 2 minutes after the program ends. If not, disconnect power and wait a few minutes. Do not force the door.

What type of detergent should I use?

Use low-sudsing detergents suitable for front-loading washing machines. Avoid using soap, as it may leave residues. Follow the detergent manufacturer's recommendations for dosage.

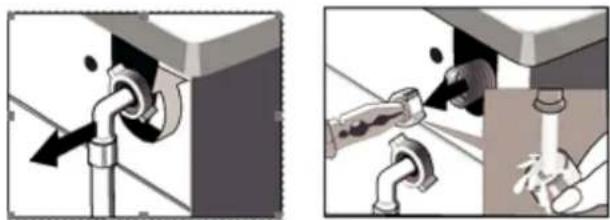

How do I clean the inlet filter?

Close the tap, unscrew the inlet hose from the tap, and clean the mesh filter. Also, remove the filter inside the machine by unscrewing the hose from the back and pulling out the filter with long-nose pliers. Rinse and reinstall.

What is the meaning of error E30?

Error E30 indicates a door lock problem. Ensure the door is properly closed and restart the machine. If the error persists, contact the service center.

USER MANUAL HWM-6010E Heinner

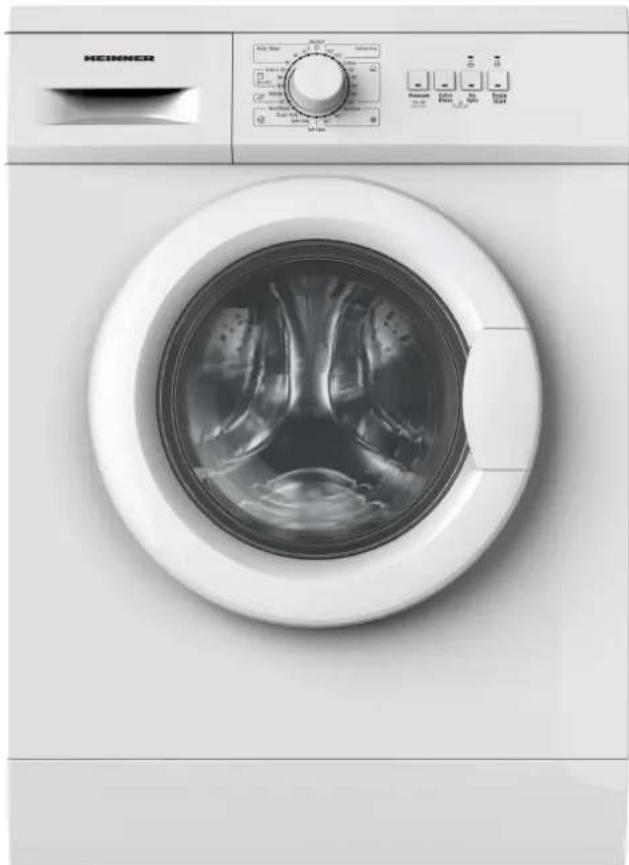

Front view of a white HEINER washing machine with visible internal components and control panel (no text or symbols on the device itself)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

VIII. ALEGEREA LOCULUI AMPLASĂRII MAŞINII DE SPĂLAT

Mechanical assembly diagram showing a lever and handle mechanism (no text or symbols)

X. RACORDAREA FURTUNULUI DE ADMISIE

Simple line drawing of a washing machine with a hose and fan (no text or symbols)

XI. INSTALAREA FURTUNULUI DE ADMISIE

Diagram of a hand holding a valve and a coiled spring, no text or symbols present

XII. POZITIONAREA FURTUNULUI DE EVACUARE

Simple line drawing of a bathtub with a curved tube inserted into the cup and a piping bag attached (no text or symbols)

Diagram of a washing machine with a drain and piping (no text or labels)

Diagram of a washing machine with a drain and piping (no text or labels)

Line drawing of a kitchen sink with faucet and sink (no text or symbols)

Illustration of a food item being processed into a basket, showing a bag being lifted by an arrow (no text or symbols)

Nu uitați:

Illustration of a hand using a tool to lift a circular object, no text or symbols present

Mechanical component diagram showing a sliding mechanism with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Illustration of a faucet with a hand holding a tool, showing a curved arrow indicating direction (no text or symbols present)

Diagram of a pipe valve inserted into a corner, showing fluid flow direction (no text or labels)

Illustration of a faucet and pipe installation process (no text or symbols)

Atentie!

Copyright © 2013 Network One Distribuon. All rights reserved.

hp://www.heinner.com, hp://www.nod.ro

CE

Front view of a white HERNONER washing machine with visible internal components and control panel (no text or symbols on the device itself)

• Washing Machine
• Wash capacity: 6 kg
• Spin capacity: 1000 rpm

Thank you for purchasing this product!

I. Introducon

Before using the appliance, please read carefully this instrucon manual and keep it for future reference.

This instrucon manual is designed to provide you with all required instrucons related to the installaon, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instrucon manual carefully before installaon and usage.

II. Content of your package

Washing machine
User manual
Warranty card

III. Safety precautions

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

- This washing machine is for indoor use only.

- The openings must not be obstructed by a carpet.

- (This warning is only for EUROPEAN market) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instrucon concerning use of the appliance in a safeway and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- (This warning is not for EUROPEAN market) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instrucon concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Notes on disposal:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collecon systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

- Pull out its plug from the power socket before cleaning or maintenance.

- Make sure that all pockets are emped.

Ensure that the voltage and frequency are identical to those of the electric washing machine.

- Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine.

- Pull out its plug and cut o water supply aer the operaon.

- Please check whether the water inside the drum has been drained before opening its door. Please do not open the door if there is any water visible.

- Pets and kids may climb into the machine. Check the machine before every operaon.

• Glass door may be very hot during the operaon. Keep kids and pets far away from the machine during the operaon.
• Take care that power voltage and frequency shall be identical to those of washing machine.
• Do not use any socket with rated current less than that of washing machine. Never pull out power plug with wet hand.
• To ensure your safety, power cord plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.
• Children of less than 3 years should be kept away unless connously supervised.
• Kids should be supervised to ensure that they do not play with the machine.
• Packing materials may be dangerous to the kids. Please keep all packing materials (plasc bags, foams etc) far away from the kids.
• Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or cause gases.
• Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instrucons and local safety regulaons.
• Before operang this machine, all packages and transport bolts must be removed. Otherwise, the washing machine may be seriously damaged while washing the clothes.
• Before washing the clothes at rst me, the washing machine shall be operated in one round of the whole procedures without the clothes inside.
• The washing machine with single inlet valve only can be connected to the cold water supply. The washing machine with double inlet valves can be connected to the hot water and cold water supply.
• Your washing machine is only for home use and is only designed for the texles suitable for machine washing.
• Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc. Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.
• It is forbidden to wash carpets.
• Be careful of burning when washing machine drains hot washing water.
• Never rell the water by hand during washing.
• Aer the program is completed. Please wait for two minutes to open the door.
• Please remember to disconnect water and power supply immediately aer the clothes are washed.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the excessive clothes are put in or distributed well.
• The household washing machine isn't intended to be built-in.

• Cauons during Handling Machine.

• Transport bolts shall be reinstalled to the machine by a specialized person.

• The accumulated water shall be drained out of the machine.
• Handle the machine carefully. Never hold each protruded part on the machine while liing. Machine door can not be used as the handle during the conveyance.

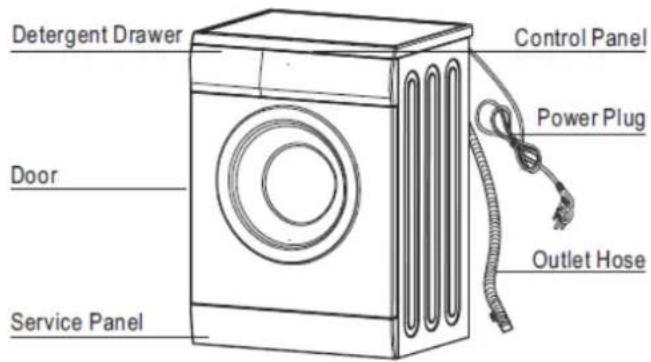

IV. Descripon of goods

V. Unpacking the washing machine

Unpack your washing machine and check if there is any damage during the transportaon. Also make sure that all the items in the aached bag are received. If there is any damage to the washing machine during the transportaon, or any item is missing, please contact the local dealer immediately.

VI. Dispose packaging

The packing materials of this machine may be dangerous to kids. Please dispose them properly and avoid easy touch by kids. Please dispose the related packing materials according to the relevant local regulaons. Please do no throw the packing materials away together with the other daily living rubbishes.

VII. Remove transport bolts

Before using this washing machine, transport bolts must be removed from the backside of this machine. Please take the following steps to remove the bolts:

1. Loosen all bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

Pure diagram of a mechanical or fluidic component with no text, numbers, or symbols

VIII. Choose the place for the washing machine

Before installing the washing machine, the locaon characterized as follows shall be selected:

-Rigid, dry, and level surface (if not level, please make it level with reference to the following gure "Adjust Leg").

• Avoid direct sunlight.
• Sucient venlaon.
• Room temperature is above 0 °C.
• Keep far away from the heat resources such as coal or gas.

Make sure that the washing machine will not stand on power cord.

Do not install the washing machine on the carpet oor.

IX. Adjusng the feet

1. When posioning the washing machine, please rst check if the legs are closely aached to the cabinet. If not, please turn them to their original posions with hand or spanner and ghten the nuts with spanner.
2. Aer posioning the washing machine, press four corners on top cover of washing machine in sequence. If the washing machine is not stable when being pressed, this leg shall be adjusted.
3. Ensure the posioning status of washing machine. Loosen the lock nut with spanner and turn the leg with hand until it closely contacts with the oor. Press the leg with one hand and fasten the nut closely to the cabinet with the other hand.
4. Aer being locked properly, press four corners again to make sure that they has been adjusted properly. If it is sll unstable, it has to repeat Steps 2 and 3.
5. Put a solid cylinder (e.g. pop cans) oppositely on the top cover of the washing machine from in the le, right, front and back direcons. If the cylinder keeps stable, the washing machine is posioned level. If it rolls, the washing machine is posioned unlevel. The rolling direcon is the direcon of lower ground surface. Then, the two legs in this direcon shall be raised at the same me until the washing machine is level. Steps 1\~3 are repeated to make the boom legs closely against the ground and the nuts shall be locked ghtly.

Mechanical assembly diagram showing a lever and handle mechanism (no text or symbols)

X. Connect inlet pipe

Connect the inlet pipe as indicated in the figure. For the model which has hot valve, please connect the hot vale to hot water tap. Energy will decrease automatically for some program.

Simple line drawing of a washing machine with a hose and fan (no text or symbols)

XI. Install inlet pipe

1. Connect the elbow to tap and fasten it clockwise.
2. Connect the other end of inlet pipe to the inlet valve at the backside of washing machine and fasten the pipe ghtly clockwise.
   Notes: Aer conncon, if there is any leakage with hose, then repeat the steps to connect inlet pipe. The most common type of tap shall be used to supply water. If tap is square or too big, then standard tap shall be changed.

Diagram of a hand holding a valve and a coiled spring, no text or symbols present

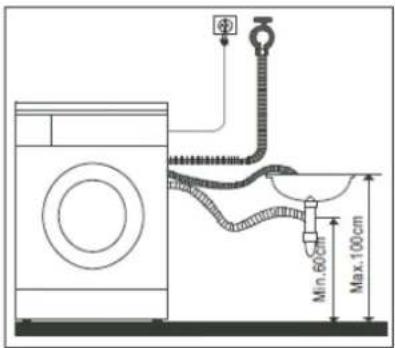

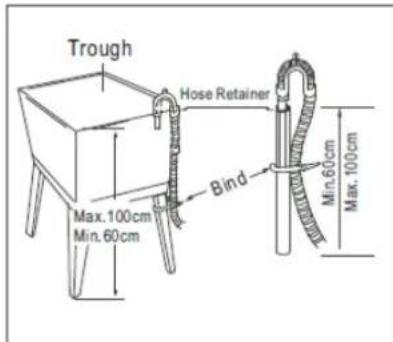

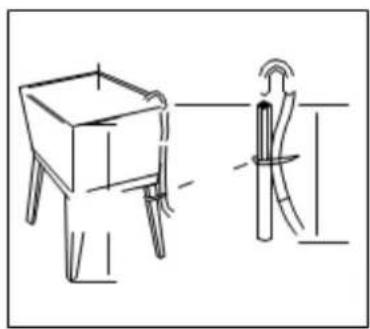

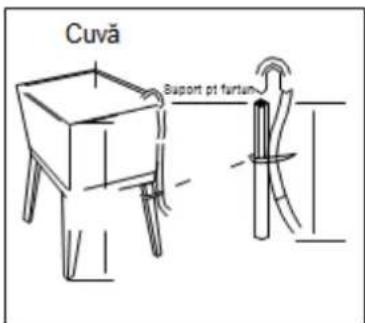

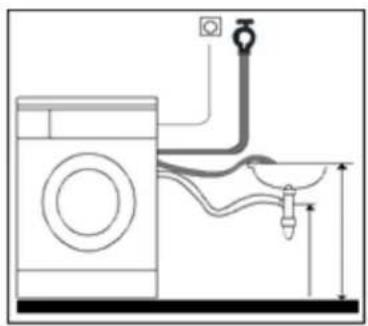

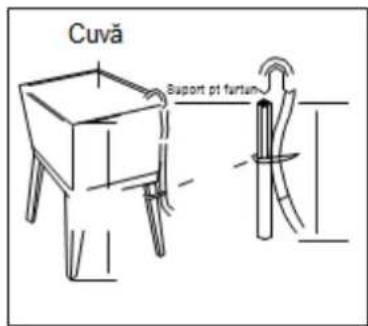

XII. Place outlet hose

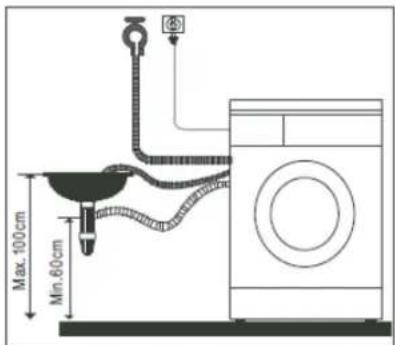

There are two ways to place the end of outlet hose:

1. Put it beside the water trough:

Simple line drawing of a bathtub with a curved tube and a vertical pipe inserted into it (no text or symbols)

1. Connect it to the branch drain pipe of the trough:

Posion outlet hose properly so that the oor will not be damaged by water leakage.

Notes:

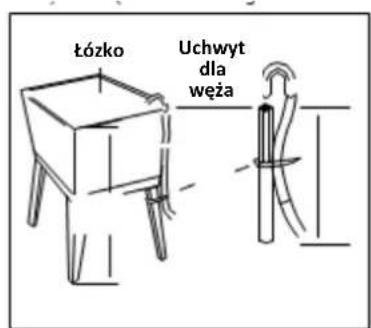

If the machine has outlet hose support, please install it like the following pictures.

Line drawing of a kitchen sink with faucet and sink (no text or symbols)

• When installing outlet hose, fix it properly with a rope.
• Position outlet hose properly so that the floor will not be damaged by water leakage.

- If outlet hose is too long, do not force it into washing machine as it will cause abnormal noises.

XIII. Electrical Connecon

As the maximum current through the unit is 10A when you are using its heang funcon, please make sure the power supply system (current, power voltage and wire) at your home can meet the normal loading requirements of the electrical appliances.
➢ Please connect the power to a socket which is correctly installed and properly earthed.
Make sure the power voltage at your place is same to that in the machine's rang label.
Power plug must match the socket and cabinet must be properly and eecvely earthed.
Do not use mul-purpose plug or socket as extension cord.
When connecng and pulling out the plug, hold the plugghtly and then pull it out. Do not pull power cord forcibly.

If power cord is damaged or has any sign of being broken, special power cord must be selected or purchased from its manufacturer or service center for replacement.

WARNING!!!

1. This machine must be earthed properly. If there is any short circuit, earthing can reduce the danger of electrical shock.

This machine is equipped with power cord, which includes plug, earthing wire at earthing terminal.

1. Washing machine shall be operated in a circuit separate from other electrical appliances. Otherwise, power protector may be tripped or fuse may be burned out.

XIV. Operate Washing Machine

Checklist and Preparaon before Washing Clothes

Please read this operaon method carefully to avoid the troubles of washing machine and damages of clothes.

Check if the rst-washed clothes will bed decolorized.

Aer a white towel touched with liquid detergent is used to wash the invisible corners of the clothes, check if the white towel is stained with clothes' original color. As for the scarves and those clothes that easily get decolorized among imported clothes, please wash them separately before washing. As for the stains on sleeves, collars and pockets, use the liquid detergent and wash it with brush gently. Finally put them into the washing machine to achieve more ideal washing eects. As for temperature-sensitive clothes, they shall be washed as required in the labels. Otherwise, it may cause color change or distoron.

Illustration of a food sorting process showing steps from unrolled to finished product (no text or symbols)

Keep in Mind!!!

Never put the clothes to be washed in washing machine for a long period of me. Otherwise it may get moldy and cause spots. Therefore, please wash the clothes in me.

The clothes also may get color changed or distorted if they are not washed according to the stated washing temperature.

Clothes that can not be washed by washing machine

The clothes that may get distorted if being immersed in water:

Ties, waistcoats, western-style clothes, outer garments etc. may have obvious shrinkage if being immersed in water; the decolorized clothes such as blended spinning clothes of arcial ber etc.
Wrinkle-style clothes, embossed clothes, resin clothes etc. may get distorted when being immersed in water. Among coon and wool materials, the clothes that get easily distorted are wrinkle-style silk, fur products and fur decoraons.
Clothes with decoraon, long dress and traditional clothes etc are the products to get decolorized easily.
➢ Please do not wash the clothes without material labels and washing requirements.
Never wash the clothes stained with the chemicals such as gasoline, petroleum, benzene, paint thinner and alcohol.

Please pay aenon with regard to detergents

“Low bubble” detergent or washing powder or washing powder special for drum washing machine shall be selected according to ber types (coon, synthec ber, so products and wool products), colors, washing temperatures, dirty degrees and types. Otherwise, excessive bubbles may be generated and overowed out of the drawer so that accidents may take place.
Bleacher belongs to alkali type and can damage clothes, so it is suggested to use as lile as possible.
Powder detergents can easily leave the residues in the clothes so as to generate the bad smell, so they shall be suciently rinsed.
Detergent can not easily get dissolved completely if there is too much detergent or water temperature is rather low. It can remain in clothes, pipes and washing machines to pollute the clothes.
Washing shall follow the weight of clothes, dirty degrees, local water hardness as well as the recommendations from the detergent manufacturers. Please consult the water company if you are not clear of water hardness.

Notes: Keep detergents and addives in safe and dry places out of touch by kids.

Please take out the items out of the pockets.

Please check the pockets of the clothes to be washed, empty the rigid items such as decoraons and coins, otherwise washing machine may be damaged or have abnormal troubles.

For the clothes to be washed, they are classied according to the following characteriscs:

The symbol types of care labels: the clothes to be washed are classied into coon, blended ber, synthec ber, silk, wool and arcial ber
Color: white and colorful colors shall be idened. All new colorful arcs shall be washed in a separate way.
Size: the arcs of dierent sizes are washed together to increase the washing eects.
Sensitivity: so arcs shall be washed separately. As for new pure wool texles, curtains and silks, the so washing procedure shall be selected. Check the labels in all washing arcs.
The clothes shall be sorted before being put into washing machine. As for the curtains with hooks, the hooks shall be removed before being washed.
The decoraons on the clothes may damage the washing machine. As for the clothes with buons or embroideries, they shall be turned over before being washed

Clean up fasteners:

Zips shall be zipped close and buons or hooks shall be xed. The loose band or ribbon shall be bound together.

It is suggested to put bras into the pillow slip with zip or buons sealed to prevent the steel wire from popping out of bras into the drum and damaging the machine.

Especially delicate texles such as laced curtains, straight jackets, small arcs (ght socks, handkerchiefs, es etc.) shall be put into string bag for washing.

When washing a single big and heavy dress such as Turkish towels, jeans, wadded jackets etc., it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.

Clean away dusts, stains and pet hairs from the clothes

The clothes may be damaged and disturb washing eects during the fricon between dusts, stains and clothes.

To protect baby skin

Baby arcs (baby clothes and towels) including napkins shall be washed separately. If they are washed together with the adults' clothes, they may be infected. Rinsing mes shall be increased to ensure the thorough rinsing and cleaning without the detergent residues.

It is suggested that the parts that are easily stained such as white sockets, collars and sleeves etc. shall be hand washed before being put into washing machine to achieve more ideal washing eects. Please use powder or liquid detergents. The residues of the soap could remain in the gaps of the clothes if soap is used.

Conrm the washing capacity

Do not put excessive washings; otherwise it may aect the washing eects. Please conrm the maximum aordable washing quantity according to the following table:

Fibre type	Maximum loading capacity6.00 kg
Coon 6.0 Kg
Synthec 3.0 Kg

The clothes which easily get fuzzed shall be turned over for washing

The clothes which easily get fuzzed shall be washed separately; otherwise the other arcs can be stained with dust and thrum etc. Preferably, black clothes and coon clothes shall be washed separately because they can easily get stained with the thrums of other colors when being washed together. Please check before washing.

Washing machine shall not wash water-proof materials (ski suits, outside napkin pads, curtains)

As for the ber products that water can not get soaked easily into such as water-proof cushions, and clothes, it is beer not to wash. Otherwise there will be water bursng out or abnormal vibraon to cause danger while rinsing and draining so that the clothes also may be damaged. (Such as outside napkin pads, raincoats, umbrella, ski suits, car covers, sleeping sacks etc.)

Cauons during Draining

Draining of normal clothes: Moistures of washings are drained through drain hole.

Draining of water-proof clothes and ber products:

In the normal washing and draining status, moistures of water-proof clothes and ber products can not be drained while washing water is gathered in one direcon so that the eccentricity of washing machine is too great and vibraon or moving is caused.

HWM-6010E

6kg, 1000rpm. A++

Note: Select spin speed according to the following table!

Model Speed	opons (rpm)
HWM-6010E 0/400	/600/800/1000

Rotary Switch Funcon

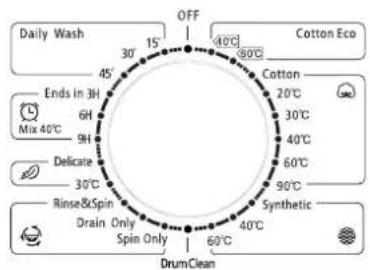

There are 10 types of washing selecon funcons in display. For example:

Coon: With the corresponding temperature selecons: 20,30,40, 60, 90 °C, Cold

Daily Wash: 15', 30', 45'

Synthec: 40, 60 °C, Cold

Coon ECO: 40, 60

Rinse&Spin

Drain Only

Spin Only

Delicate: 30 °C, Cold

Ends in: 3h, 6h, 9h

Drum Clean: 90 °C

Atenon!

1. The Control panel line chart is for reference only, Please refer to real product as standard.
2. The Control panel could be changed without written noce. Please visit the website Washing Machine or call up the service line for consultaon.

Washing clothes at rst me

Before washing clothes at rst me, the washing machine shall be operated in one round of the whole procedures without clothes in as follows:

1. Connect power source and water.
2. Put a lile detergent into the box and close it.
3. Press the buon "Power".
4. Press the buon "Start/Pause".

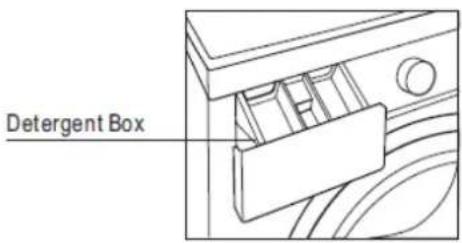

The drawer is separated as follows:

A. Pre - detergent or washing powder
B. Main detergent, soener, pre-dip, bleaching or decontaminang products.

: Washing addive, such as fabric soener or tackier

Mechanical assembly diagram showing components like gears and a knob (no text or labels)

Put the detergent in the washing machine:

1. Pull out the drawer
2. Fill pre-detergent into Case I (when necessary)
3. Fill detergent into Case II.
4. Il soener into Case (when necessary).

Warning!!!

• As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for diluon to prevent the inlet of detergent box from being blocked and overowing while lling water.
• Please choose suitable type of detergent for the various washing temperature to get the best washing eect with less water and energy consumpon.

Start up washing machine

Connect the power. Check if water pipes are connected properly. Open the tap completely. Put in the clothes to be washed and ll in the detergent and tackier. Then press the buon "Power". Select the proper procedures and funcons and press the buon "Start/Pause".

Select the procedure

The proper washing procedures shall be selected according to the types, quanes, and dirness of the clothes to be washed in combinaon with the following washing temperature table.

90°C	Seriously besmirched, pure white coon or ax (for example: coee table cloths, canteen table cloths, towels bed sheets)
60°C	Moderately besmirched, colorful ax, coon and synthec arcles with certain decolorizing degree (for example: shirts, night pajamas; Slightly besmirched, pure white ax (for example: underwear)
40°C,30°C,20°C Cold water	Normally besmirched arcles (including synthec and delicate)

1. Load the laundry and add Detergent
2. Turn the rotary switch to select a program according to the program table.
3. Select optional function if needed
4. Press start/pause button.

First, turn the rotary switch to select the corresponding procedures according to the types of texles. Second, select the proper temperature according to the dirness. Generally, the higher the temperature is, the more the power is consumed.

Last, select the proper revoluon speed. The higher the revoluon speed is, the drier the texles are spun, but higher the noises will also be increased. The surfaces of delicate texles will have wrinkles and the working life of washing machine will be shortened.

PLEASE NOTE: To protect the clothes, the lower revoluon speed shall be selected for delicate texles. The main washing procedures depend on the types of the clothes to be washed. The main washing troubles can be selected as follows:

Coon: You can select this procedure to wash the daily washable clothes. The washing period is quite long with quite strong washing intensions. It is recommended to wash the daily coon arcs, for example: bed sheets, quilt covers, pillowcases, gowns, underwear etc.

Synthec: You can select this procedure to wash the quite delicate clothes. The procedure is shorter compared with that for coons and the washing intension is quite gentle. It is recommended to wash synthec articles, for example: shirts, coats, blending. As for curtains and laced texles, the procedure "Synthec" shall be selected. While washing the kning texles, detergent quantity shall be reduced due to its loose string construcon and easily forming bubbles.
Daily wash: This procedure is suitable for washing few and not very dirty clothes quickly.
Coon Eco: To increase the washing eects, main additional washing me is increased. It is recommended to wash the clothes for babies or worn by the persons with allergic skin.
➢ Spin only: Separate Spin Procedure. Soap water or rinse water shall be drained out before spinning.
Rinse&Spin
Separate Rinse&Spin procedure
Drain Only
Separate Drain Only procedure
Delicate
You can select this procedure to wash your delicate clothes. Its washing intension is gentler and revoluon speed is less compared with the procedure "Synthec". It is recommended for the arcs to be washed soly.
Drum Clean: This cycle is specially set in this machine to clean the drum and tube. It applies 90 °C high temperature sterilizaon to make the clothes washing more green. When this procedure is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in, the barrel cleaning eect will be beer. The customer can use this procedure regularly according to the need.
Ends in
When this function is selected, the total program time (including washing and timing) is 3H, 6H or 9H. The default program when this function is activated is 1H and 13min, 40°C, 800rpm. Example: when you set 9H ENDS IN program, the washing process starts after 7H and 47min (after activating this function, the washing program is 1H and 13min) and will finish when 9 hours come true.

Notes:

If you want to change the program on child lock condion, you should unlock the child lock rst, then rotate the knob to ON/OFF posion, nally choose the program you want.

The main function can be selected as follows:

Prewash

The Prewash function can get an extra wash before main wash.

Extra Rinse

The laundry will undergo extra rinse once after you select it.

No Spin

The machine will not spin if you choose this function.

Child Lock

To avoid that the washing procedure cannot operate normally due to the mis operation by kids during the washing procedure, you can select this function, In this case, the other buttons except Off button can not work, at this state, the machine power off when press the key on/off. The machine remembers the program child lock and the program during powered off when press the key on/off again. Press "Extra Rinse" and "No Spin" together 3 seconds during the running procedure, the buzzer will beep, Start/Pause button as well as the rotary switch are locked. Press the two buttons for 3 seconds together and buzzer will beep to release to locking. But cut off the power supply, the kid's protection is also release to locking. The kid's protection will not be cancelled after all procedures are completed.

Suppression of the acoustic signals

This is an additional buzzer function on your appliance. After deactivating the buzzer function, the buzzer will be closed.

After starting the machine, press the "Prewash" button for 3 seconds and you will hear a beep, then the buzzer will be closed. To restart the buzzer function, press the "Temp.&Spin" button again for 3 seconds. The setting will be kept until the next reset. Warning: After deactivating the buzzer function, the sounds will not be activated any more.

Bubble Removal Function

Bubble Check Function: Redundant bubbles will occur when there is excessive detergent, which will affect wash and rinse effects. The procedure will check automatically and one bubble removal procedure will be added automatically to remove bubbles when excessive bubbles are checked.

Table of Washing Procedures:

ProcedureDescripon	Load	Detergent box			Default temp.(°C)	Default me (H)	Default speed(rpm)
	6.0	I	II	Soener	6.0	6.0	6.0
							1000
Coon Eco 40°C	6.0	X	●	○	40	3:35	1000
Coon Eco 60°C	6.0	X	●	○	60	3:52	1000
Coon	6.0	○	●	○	0	1:35	1000
Coon 20°C	6.0	○ ●	○ 20			1:19	1000
Coon 30°C	6.0	○ ●	○ 30			1:20	1000
Coon 40°C	6.0	○ ●	○ 40			1:40	1000
Coon 60°C	6.0	○ ●	○ 60			1:45	1000
Coon 90°C	6.0	○ ●	○ 90			2:40	1000
Synthec	3.0	○ ●	○ 0			1:18	1000
Synthec 40°C	3.0	○ ●	○ 40			1:33	1000
Synthec 60°C	3.0	○ ●	○ 60			1:43	1000
Drum clean	-	X X	X 90			1:21	400
Spin only	6.0	X X	X -			0:12	1000
Drain only	-	X	X	X	-	0:01	0
Rinse&Spin	6.0	X	X	○	-	0:31	1000
Delicate 30°C	2.5	X	●	○	30	1:00	600
Delicate	2.5	X	●	○	0	0:55	600
Ends in 9H	6.0	X	●	○	40	9H (1:13)	1000
Ends in 6H	6.0	X	●	○	40	6H (1:13)	1000
Ends in 3H	6.0	X	●	○	40	3H (1:13)	1000
Daily Wash 45'	2.0	X	●	○	30	0:45	800
Daily Wash 30'	2.0	X	●	○	20	0:30	800
Daily Wash 15'	2.0	X	●	○	0	0:15	800

- obligatory

o optional

X it is not necessary

The energy class is A++

Energy test program: Coon ECO 60 °C /40 °C, Speed: the highest speed; Other as the default.

Half load for 6.0 Kg, machine: 3.0 Kg

"Coon ECO 60 °C /40 °C " are the "standard coon 60 °C /40 °C programme and the standard washing programs to which the informaon in the label and the che relates, and they are suitable to clean normally soiled coon laundry and that they are the most ecient programmes in terms of combined energy and water consumpons for washing that type of coon laundry,that the actual water temperature may dier from the declared cycle temperature.

Note: The parameters in this table are only for user's reference. The actual parameters maybe dierent with the parameters in above menoned table.

Before your maintenance starts, please do pull out the power plug or disconnect power and close the tap.

Warning!!!

Solvents are forbidden to avoid that the washing machine is damaged, and toxic gases are generated or exploded.
➢ Never use water to sprinkle and wash the washing machine.
It is forbidden that the detergents containing PCMX are used to clean the washing machine.

XV. Cleaning and maintenance

Cleaning and Maintenance of Washing Machine Cabinet:

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overow, use the wet cloth to wipe it o immediately. No sharp items are allowed to strike the cabinet.

Note: Formic acid and its diluted solvents or equivalent are forbidden.

Cleaning internal drum

The rusts le inside the drum by the metal arcles shall be removed immediately with chlorine-free detergents.

Never use steel wool.

Dispose a Frozen Washing Machine

When the temperature drops below zero and your washing machine gets frozen, you may:

1. Disconnect the power supply for the washing machine.
2. Wash the tap with warm water to loosen inlet pipe.
3. Take down inlet pipe and immerse it in warm water.
4. Pour warm water into washing drum and wait for 10 minutes.
5. Reconnect inlet pipe to the tap and check whether inlet and outlet are working normally.

Note: When the washing machine is reused, make sure the ambient temperature is above 0 °C.

An-freeze:

If your washing machine is located in the room where it can get frozen easily, please drain the remaining water inside drain pipe and inlet pipe thoroughly.

Remove the remaining water in inlet pipe:

1. Close the tap
2. Screw o the inlet pipe from tap and put its end into the container.
3. Start up any procedure except single Wash or Drain procedure. Water will be drained out of inlet pipe if any for about 40 seconds.
4. Reconnect the inlet pipe to tap.
   Remove the remaining water in drain pump.
   Warning!!! To avoid burning, it shall be done aer the hot water inside the machine cools down.

Clean detergent box and grooves

➢ Press down the arrow locaon on soener cover inside the drawer.
Li the clip up and take out soener cover and wash all grooves with water.
Restore the soener cover and push the drawer into posion.

Clean inlet Iter

➢ Inlet Iter shall must be cleaned if there is not any or insufficient water in when the tap is opened.

Mechanical component diagram showing a piston-like structure with two arrows indicating direction (no text or symbols)

Clean the tap Iter

Close the tap.
Select any procedure except "Wash" or "Drain" procedure
➢ Press the buon "Start/Pause" and keep the procedure running for about 40 seconds.
Remove the inlet pipe from the tap.
▶ Use water to wash the Iter.
Reconnect the inlet pipe.

Diagram of a mechanical device with an arrow indicating rotation or movement (no text or symbols present)

Mechanical assembly diagram showing a piston-like component inserted into a housing (no text or symbols)

Washing the liter in washing machine

Screw o the inlet pipe from the backside of the machine.
➢ Pull out the Iter with long nose pliers and reinstall it back aer being washed.
➢ Reconnect the inlet pipe.
➢ Open the tap and make sure there is no water leakage.
Close the tap

Diagram of a mechanical device with an arrow indicating rotation, showing internal components (no text or symbols)

Note: Generally, the tap liter is washed rst and then the liter in washing machine will be washed. If only the liter in washing machine is washed, then the steps 1\~3 in cleaning the tap liter shall be repeated.

Aenon!

Pull out the power plug to avoid electrical shock before washing. Aer using the washing machine, pull out the power cord and close the door ghtly to avoid pinching the kids.

Remove foreign maers: Drain Pump Filter. Drain pump liter can liter the yarns and small foreign maers from the washings. Clean the liter periodically to ensure the normal operaon of washing machine.

Warning!!!

First, drain the water with drain pump and then open the drain pump to clean away foreign maers from drain pump liter. Take care if the drained water is hot.

Cleaning the pump

Important! According to the soil level within the cycles and the frequency of the cycles, you have to inspect and clean the liter regularly. The pump should be inspected if the machine does not empty and/or spin. The machine makes an unusual noise during draining due to objects such as safety pins, coins etc., blocking the pump.

Proceed as follows:

1. Disconnect the appliance.
2. If necessary wait unl the water has cooled down.
3. Open the service panel .Place a container close to collect any spillage.
4. When no more water comes out, unscrew the pump cover and remove it. Always keep a rag nearby to dry up spillage of water when removing the cover..
5. Remove any objects from the pump impeller by rotang it.
6. Screw the pump cover fully in.
7. Close the service panel

Warning!!!

When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has nished the cycle, and is empty. When replacing the cover, ensure it is securely reightend so as to stop leaks and young children being able to remove it.

Close-up of hands installing or adjusting a white electronic device with buttons (no visible text or symbols)

Open the service panel

Hand pressing a button on a white computer keyboard (no visible text or symbols)

Unscrew the pump cover

Close-up of a hand pressing down on a white appliance with a circular arrow indicating rotation (no text or symbols visible)

Screw the pump cover

Close-up of a hand pressing down on a white appliance with a black arrow pointing to the side (no visible text or symbols)

Close the service panel

XVI. Troubleshoong

Troubles	Reason	Soluon
Washing machine cannot start up		Check if the door is closed ghtly.Check if power plug is inserted well.Check if water supply tap is opened.Check if buon “Start/Pause” is pressed.Check if buon “Power” is pressed.
Door cannot be opened	Machine's safety protecon design is working.	Disconnect the power
Heang fault	NTC is damaged and heang pipe is aging.	Can normally wash the clothes.Only cannot wash with heang.Shall contact the service center promptly.
Water leakage	The conncon between inlet pipe or outlet hose and tap or washing machine is not ght.Drain pipe in the room is blocked	Check and fasten water pipes.Clean up outlet hose and ask a specialized person to repair it when necessary.
Water is overowed from the boom of the machine.	The inlet pipe is not connected rmly. Outlet hose has water leakage.	Fix the inlet pipe.Replace the drain hose.
Indicator or display does	Power is disconnected.PC board has problems.	Check if the power is shut down and power plug is connected correctly.
not light	Harness has connecon problem.	If not, please call up service line.
Detergent residues in the box.	Washing powder is dampened and agglomerated.	Clean and wipe the box.Use liquid detergents or the detergents special for drum.
Washing eects are not good.	The clothes are too dirty.Insucient detergent quantity.	Select a proper procedure.Add the proper detergent quantity according to the instrucons in detergent package.
Abnormal noise Great vibraon.		Check if the xing (bolts) has been removed.If cabinet is installed on the solid and level oor.Check if there are any barrees or metal arcles inside.Check if the legs in the washing machine are adjusted level

Remove the problems:

Display LED	Descripon	Reason	Soluon
E30	Door lock problem	Door is not closed properly	Restart aer the door is closed.
		Please call up service line if there are sll troubles
E10	Water injecng problem when washing	Tap is not opened or water ows too slowly. Inlet valve lter is blocked. Inlet pipe is twisted.If water is not supplied	Open the tap or wait ll the water supply becomes normal.Check inlet valve lter.Straighten the water pipeCheck the other taps in the room.
		Please call up service line if there are sll troubles
E21	Drain problem while washing	Outlet hose is blocked or twistedDrain pump is blocked	Wash and straighten outlet hose.Wash drain pump lter.
		Please call up service line if there are sll troubles
Please call up the service line if there is any other problem

Normal washGentle wash

Warm wash (max 40°C)

Hand washDo not wash

BleachDo not bleach

Chlorine bleach ma!Chlorine bleach not be used

Tumble dry. Medium (max 150°C)Tumble dry. Low heat (max 110°C)

Iron	Cool iron(max 110°C)	Dry clean	Dry clean normal cycle with any solvent	Tumble dry normal	Drip dry
Do not iron	Warm iron.medium (max 150°C)	Do not dry clean	Dry clean normal cycle petroleum solvent only	Dry flat	Line dry / hang to dry

Iron with clothSteam Iron

Dry after washLine Dry in shade

Warmly dry cleanDo not tumble dry

Line Dry

No Wring

No machine wash

To avoid re, electrical shock and other accidents, please remember the following reminding:

Only the voltage indicated in power label can be used. If you are not clear of the voltage at home, please contact the local power bureau.
When you are using the heang funcon, the maximum current through the washing machine will reach 10A. Therefore, please make sure the power supply units (current, voltage and cable) can meet the normal load requirements for the machine.
Protect the power cord properly. Power cord shall be xed well so that it will not trip the people or other things and be damaged. Special aenon shall be paid to the socket. It shall be plugged into the sockets easily and aenon shall be paid to the plug locaon.
Do not make the wall-mounted socket overloaded or cable extended. Overloading of the wiring may cause re or electrical shock. Do not pull out power plug with wet hand.
To ensure your safety, power plug shall be inserted into an earthed three-pole socket. Carefully check and ensure that your socket is properly and reliably earthed.

Washing Capacity 6.0 kg
Dimension (W*D*H) 595*47	0*850
Weight 54 kg
Rated Power 1950 W
Power Supply 220-240V ^ , 50 Hz
Rated Current 10A
Standard Water Pressure 0.05	MPa~1MPa

Rated capacity: 6 kg

Energy eciency class: A++

Energy consumpon 173 kwh per year, based on 220 standard washing cycles for coon ECO programmes at 60°C and 40°C at full and paral load, and the consumpon of the low-power modes. Actual energy consumpon will depend on how the appliance is used.

Water consumpon 9240 litres per year, based on 220 standard washing cycles for coon ECO programmes at 60°C and 40°C at full and paral load. Actual water consumpon will depend on how the appliance is used.

Spin-drying eciency class C on a scale from G (least ecient) to A (most ecient)

Maximum spin speed: 1000 rpm.

Consumpon values (1000rpm):

Standard programme	Load	Energy consumpon	Water consumpon	Remaining moisture content	Programme duraon
Coon ECO 60°C	6 Kg	0.85 Kwh	48L	59%	232 min
Coon ECO 60°C	3.0 Kg	0.82 Kwh	37L	63%	210 min
Coon ECO 40°C	3.0 Kg	0.52 Kwh	37L	63%	204 min

Note:

Programme seng for tesng in accordance with applicable standard EN60456-2011.
When using the test programmes, wash the specied load using the maximum spin speed.
The actual parameters will depend on how the applicance is used, and maybe dierent with the parameters in above menoned table.

O mode power consumpon: 0.5 W

Le-on mode power consumpon: 1.0 W

Airborne acouscal noise (washing): 59

Airborne acouscal noise (spinning): 74

Notes: The airborne acouscal noise emissions during washing/spinning for the standard 60 °C coon programme at full load

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulaons: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribuon SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the speciaons may be reproduced in any form or by any means or used to make any derivave such as translaon, transformaon, or adaptaon without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Disbuon. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribuon

Marcel Iancu Street, 3-5, Buchrest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

АВТОМАТИЧНА ПЕРАЛНА МАШИНА

Модел: HWM-6010E

Front view of a white HEINKER washing machine with visible internal components and control knobs (no text or symbols on the device itself)

• Автоматична перална машина
- Капацитет за пране: 6Kg
- Обороти на центрофугата: 1000 об./мин.

Diagram of a mechanical or fluidic component with a valve and arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

X. СВЪРЗВАНЕ НА МАРКУЧА ЗА ЗАХРАНВАНЕ

Simple line drawing of a washing machine with a hose and fan (no text or symbols)

XI. МОНТИРАНЕ НА МАРКУЧА ЗА ЗАХРАНВАНЕ

Diagram of a hand holding a valve and a spring, with no text or symbols present

Simple line drawing of a bathtub with a curved tube inserted into the cup and a piping outlet (no text or symbols)

Diagram of a washing machine with a drain and piping, no text or symbols present

Diagram of a washing machine with a drain and piping, showing internal components (no text or labels)

Line drawing of a kitchen sink with faucet and shower (no text or symbols)

Line drawing of a small wooden table and a cylindrical object with a curved handle, both without any text or symbols.

Illustration of a food item being discarded into a basket, showing a hand holding a paper and a bag with a triangular shape (no text or symbols)

Не забравяйте:

Prewash Press 3 sec.

Extra Rinse No Spin Press 3 sec.

Pause Start
HWM-6010E
6kg, 1000rpm, A++

Illustration of a hand holding a circular object with a curved arrow, no text or symbols present

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Mechanical component diagram showing internal structure with arrows indicating direction (no text or symbols)

Diagram of a pipe valve with a magnified inset showing the insertion of a tool (no text or symbols present)

Diagram of a pipe outlet with arrows indicating flow direction (no text or symbols)

Illustration of a faucet and drain with hands performing maintenance (no text or symbols)

Внимание!

Copyright © 2013 Network One Distribuon. All rights reserved.

hp://www.heinner.com, hp://www.nod.ro

Front view of a white front-loading washing machine with visible control panel and side door (no text or symbols on the device itself)

V. A MOSÓ GÉP KICSOMAGOLÁSA

Diagram of a mechanical or fluidic component with a valve and arrow indicating direction (no text or symbols)

VIII. VÁLASSZA KI A MOSÓ GÉP HELYÉT

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

X. BEFOLYÓCSŐ CSATLAKOZTATÁSA

Simple line drawing of a washing machine with a bulb and tubing (no text or symbols)

XI. BEFOLYÓCSŐ BEKÖTÉSE

Diagram of a hand holding a valve with a coiled spring, no text or symbols present

XII. A KIFOLYÓCSŐ ELHELYEZÉSE

Simple line drawing of a bathtub with a tube inserted into the cup (no text or symbols)

Diagram of a washing machine with a drain and piping (no text or labels)

Diagram of a washing machine with a drain and piping (no text or labels)

Line drawing of a kitchen sink with faucet and shower (no text or symbols)

Illustration of a food item being processed into a basket, showing a hand pouring liquid from a paper bag into a container (no text or symbols)

Ne feledje:

Illustration of a hand pressing down on a circular component with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Illustration of a faucet with a hand holding a tool, showing a curved pipe being inserted (no text or symbols present)

Diagram of a pipe outlet with arrows indicating flow direction (no text or symbols)

Illustration of a faucet being installed, showing hand positioning and cleaning process (no text or symbols)

Figyelem!

Copyright © 2013 Network One Distribuon. All rights reserved.

hp://www.heinner.com, hp://www.nod.ro

CE

Front view of a white HEINKER washing machine with visible internal components and control panel (no text or symbols on the device itself)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

VIII. WYBÓ R MIEJSCA USTAWIENIA PRALKI

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

X. PODŁACZENIE WEŻA DOPROWADZAJACEGO WODE

Simple line drawing of a washing machine with a handle and base (no text or symbols)

XI. PODŁACZENIE WEŻA DOPROWADZAJACEGO WODE

Diagram of a hand holding a valve and a washer, with no visible text or symbols

XII. UMIEJSCOWIENIE WEŻA ODPROWADZAJĄCEGO

Simple line drawing of a bathtub with a curved tube inserted into the cup and a piping outlet (no text or symbols)

Diagram of a washing machine with a drain and piping (no text or labels)

Diagram of a washing machine with drainage system and piping (no text or labels)

Simple line drawing of a kitchen sink with faucet and shower (no text or symbols)

Illustration of a bag being discarded into a basket with arrows indicating process flow (no text or symbols)

Zapamiętaj:

Illustration of a hand pressing down on a circular component with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Illustration of a faucet with a hand holding a tool, showing a close-up of the handle (no text or symbols present)

Diagram of a pipe outlet with arrows indicating flow direction (no text or symbols)

Illustration of a faucet and drain with hands performing a manual operation (no text or symbols)

Uwaga

Copyright © 2013 Network One Disbuon. All rights reserved.

hp://www.heinner.com, hp://www.nod.ro

CE
