Harvest Coffee - Coffee maker FAKIR - Free user manual and instructions

Product Type	Drip Coffee Maker
Brand	Fakir
Model	Harvest Coffee
Dimensions (W x D x H)	28 x 22 x 35 cm
Weight	2.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1000 W
Capacity	1.25 L (10 cups)
Water Tank	Removable, 1.25 L
Filter Type	Permanent filter (reusable) or paper filter size 4
Brewing Time	Approx. 10-12 minutes per full pot
Keep Warm Function	Automatic keep warm for 40 minutes
Auto Shut-off	Yes, after 2 hours
Anti-drip System	Yes, allows removing carafe mid-brew
Carafe Material	Glass with markings
Safety Features	Overheat protection, boil-dry protection
Maintenance	Descaling every 2-3 months; clean filter and carafe after each use
Spare Parts Availability	Carafe, filter basket, water tank available via Fakir service
Repairability	Modular design; replaceable heating element and wiring
Warranty	2 years (EU)

Frequently Asked Questions - Harvest Coffee FAKIR

How do I descale the Harvest Coffee?

Mix a solution of vinegar and water (1:2) or use a commercial descaler. Fill the water tank, start a brew cycle without coffee grounds. Repeat with fresh water 2-3 times to rinse. Descale every 2-3 months.

Why is my coffee weak?

Check if you are using enough ground coffee (recommended: 1-2 tablespoons per cup). Ensure the filter is not clogged and that the water temperature is optimal (about 92-96°C). Also, try a finer grind.

Can I use paper filters?

Yes, the machine is compatible with standard size 4 paper filters. Alternatively, use the included permanent filter.

How do I clean the carafe?

Wash the glass carafe with warm soapy water and a soft sponge. Do not use abrasive cleaners. Rinse thoroughly. The carafe is also dishwasher-safe (top rack).

What should I do if the machine stops working?

First, check the power cord and outlet. Make sure the water tank is properly seated. If it still doesn't work, the thermal fuse may have tripped. Contact Fakir customer service for assistance.

How much water should I use?

Do not fill beyond the MAX line (1.25 L). For fewer cups, use the markings on the water tank. Minimum level is about 2 cups (250 ml).

Can I brew only half a pot?

Yes, but use the corresponding amount of ground coffee. The anti-drip system allows you to remove the carafe mid-brew to pour a cup.

What type of coffee grind is best?

Use a medium grind, similar to table salt. Too fine may clog the filter; too coarse results in weak coffee.

How do I replace the permanent filter?

The permanent filter is reusable. If damaged, order a replacement from Fakir. To remove, lift the filter basket and unclip the filter.

Is the machine BPA-free?

Yes, all plastic parts that come into contact with water or coffee are BPA-free, ensuring safe use.

USER MANUAL Harvest Coffee FAKIR

HARVEST

COFFEE

Kullanma kılavuzu

Türk Kahve Makinesi

Instructions manuel

Turkish Coffee Machine

Genel 2

Line drawing of a cylindrical device with a handle and arrow indicating direction (no text or symbols)

Line drawing of a portable water heater with lid and base, no text or symbols present

Line drawing of a kettle pouring tea into a cup and a saucer, with a lid nearby (no text or symbols)

Three black-and-white symbols: a trash can with crossed lines, a horizontal line, and a recycling symbol (no text or labels)

Information about the operating instructions 13

Liability 13

Notices in the operating instructions 13

Important Safeguards 13

Safety is important 13

CE Declaration of Conformity 14

Usage Area 14

Unauthorized use 14

Electric current 15

Safety instructions 16

Specifications 18

Part of Description 18

Using the appliance 19

Making turkish coffee 19

Preparing hot water 20

Cleaning the appliance 21

Disposal 22

Dispatch 22

Thank you for purchasing Fakir Harvest Coffee Turkish Coffee Maker. It was developed and manufactured to work reliably for many years.

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability We will accept no liability for damages resulting from failure

to comply with the operating instructions.

We cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

DTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC "Electromagnetic Compatibility" and 2006/95/EC "Low-Voltage Directive."

The appliance bears the CE mark on the rating plate.

Safety is important

For yours and others safety please read the instructions before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too. Remove all packaging, but keep it until you are satisfied that the appliance is working.

Usage Area

This appliance is suitable for places; home, office. Do not use appliance for other than intended use and never use this appliance outdoors. Do not keep and use this appliance in humid areas (such as bathrooms, etc).

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury: This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.

Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.

Keep packaging films away from children - danger of suffocation!

NOTICE!

Please read all instructions and safety guards carefully.

Unauthorized use

ATTENTION!

Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.

The socket must be protected with a 16 A automatic circuit breaker.

Use only extension cords designed for the power input of the appliance.

WARNING: DANGER OF ELECTRIC SHOCK!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power cord and do not expose it to heat sources.
• Do not put the appliance in operation if you detect any visible damage on the housing, if the power cord is defective or if you suspect a defect (e.g. after a fall).
• Do not use any damaged extension cords.

ATTENTION!

In case of danger or accident, unplug the appliance immediately.

WARNING!

Before contacting our service department, check to see if you can eliminate the problem yourself. Refer to the chapter "Troubleshooting".

If you were not able to eliminate the problem yourself, please contact Fakir Customer Service.

WARNING!

Repairs and maintenance may by performed only by Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user.

Safety instructions

When use electrical appliances, basic safety precautions should always be followed, including the following:

Before operating this appliance, please read the instruction manual first.

Before operating your appliance, make sure the power rating of your appliance does in fact match that of your electrical system

Never use an extension cord. Plug the appliance directly in to the electrical outlet.

Always hold your appliance by its handle. Its body surface might get hot during operation.

To protect against fire, electric shock and injury to persons do not immerse cord or plug in water or any other liquid.

Close supervision is necessary when any appliance is used by or near children.

Unplug from outlet when not in use and before cleaning.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized Fakir Service facility for examination, repair or adjustment.

Do not let cord hang over edge of table or counter, or touch hot surface.

Do not place the appliance on or near a hot gas or electric burner, or in a heated oven. Place the appliance on a flat / safety surface.

Before unplug the appliance from power socket, turn ON/OFF Switch to "Off", then remove the plug from power socket.

Do not abuse the electrical cord. Never disconnect from outlet by pulling the power cord. Always use the body of the plug for disconnecting the appliance.

Do not use any abrasive substance for cleaning the appliance. You could clean the surface with a damp cloth.

Use your appliance with its own power base unit only.

Do not place it on a power base that belongs to any other appliance.

After the cooking process finished, switch ON/OFF button to OFF for switching the appliance off.

Safety instructions

You could also use this appliance as a kettle. However, when the water starts to boil switch your appliance off by pressing ON/OFF switch since your appliance would not be switched off automatically.

Only fill the water till max level in the water tank. While boiling the water flows if it exceeds max level.

Never keep the power base, plug or power cord wet.

Before drying wet power base, make sure that the appliance is unplugged from power socket. Never operate the appliance before the power base gets dry completely.

When filling water in your appliance, please take the appliance out on its power base.

Specifications:

Power consumption : 800W

Voltage : 230V/50Hz

Water capacity : 300 ml (max level)

Product life : 10 years

Protection class : 1

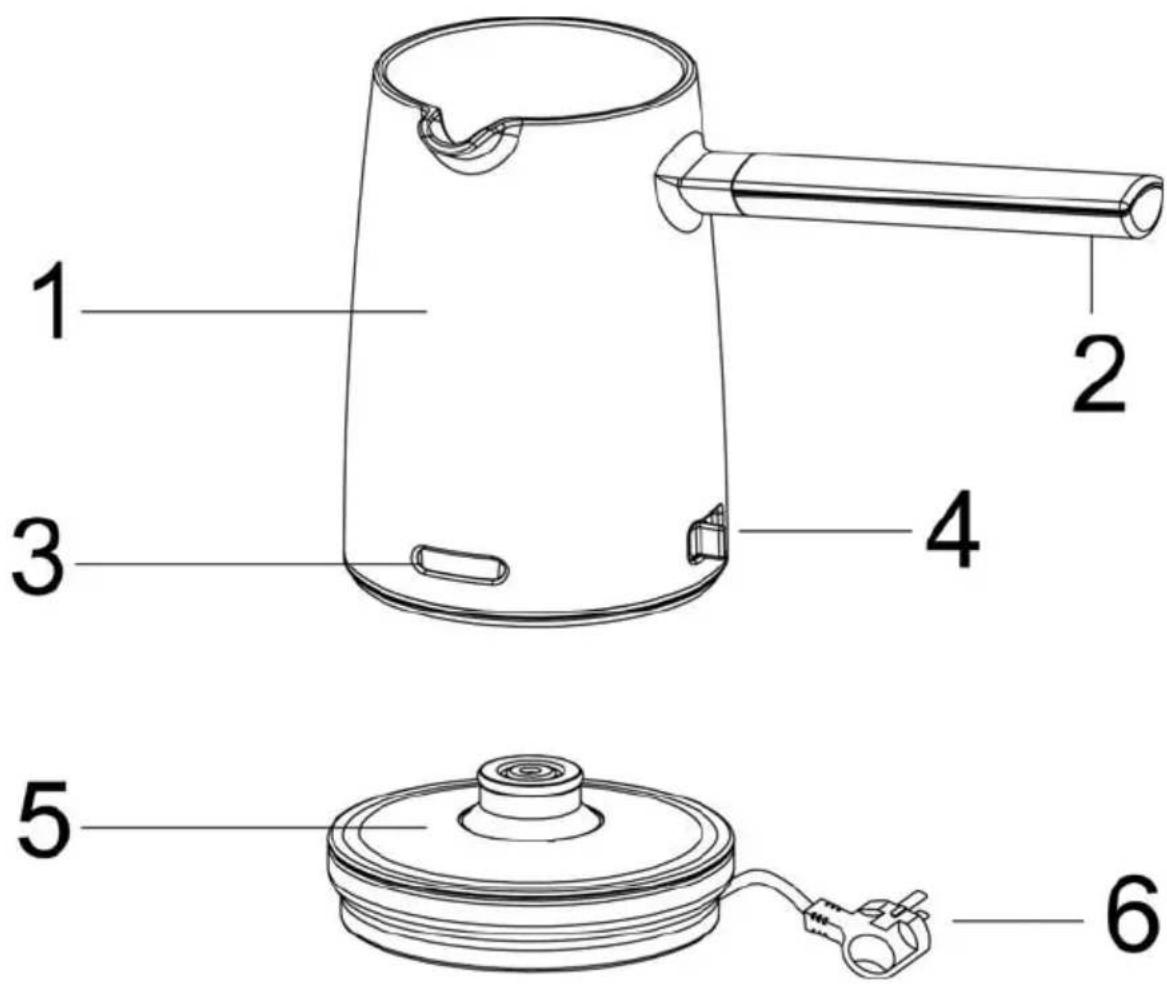

1-Water tank (capacity: 4 Turkish coffee cups)
2-Spout
3-Indication light
4-ON/OFF Switch
5-Power base
6-Cable

Using the appliance:

Line drawing of a cylindrical container with a handle and an arrow indicating direction (no text or symbols)

You could prepare max 4 cups of rich frothy Turkish coffee with Harvest Coffee Turkish coffee maker. You could also use this appliance as kettle for boiling water.

By boiling water, you could prepare hot drinks like teabag, herbal infusion, granule coffee, granule pulp, etc.

Before first usage, you could clean the surface of your appliance with a damp soft cloth. For cleaning inside (water tank) of the unit, fill the water tank with water till max level and switch your appliance by pushing ON/OFF Switch. After the water boiled, switch your appliance off and pour the water and shake the inside of the unit with clean unit. Never immerse the power base, power cord and plug to the water.

Line drawing of a portable electric kettle with lid and base, labeled (2) (no text or symbols on device)

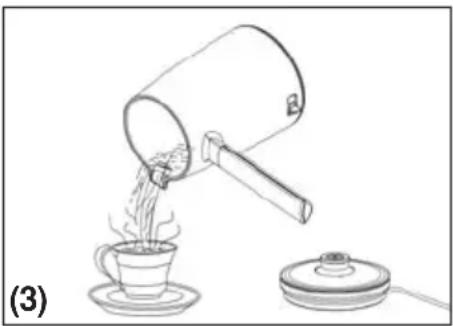

Making Turkish Coffee:

Line drawing of a kettle pouring tea into a cup and a lid, with no text or symbols present.

You could prepare max 4 cups of Turkish coffee with your appliance. Fill the water tank till max level. If the water exceeds max level, the water flows from the water tank. Before filling the appliance with water, take the appliance out from the power base. For a cup of Turkish coffee, add 1 or 2 teaspoon of coffee. For coffee with less amount of sugar in it, add 1 pcs of cuse sugar. For coffee with a middling amount of sugar in it, add 2 pcs of cuse sugar.

Pour water into the water tank according to how many cup or cups of coffee you want to make.

Replace the appliance on its power base and turn on the ON / OFF switch.

Mix coffee and sugar in the water tank for a short time.

When the coffee starts to boil, take the appliance out from the power base and give the froth out to the cups equally.

Replace your appliance on to the power base and turn the ON/OFF Switch. After your coffee starts to boil once again, turn off the ON/OFF Switch and hand out rest of the coffee.

Preparing Hot Water:

Pour the water how much you need into the water tank. But do not exceed the max level. If you exceed max level, boiled water can overflow and might give damage to you.

Turn on the ON / OFF Switch for operating the appliance. When the water starts to boil switch your appliance off by pressing ON/OFF switch since your appliance would not be switched off automatically.

NOTICE!

Do not boil the milk in the brewing pot. If you boil the milk in the water tank, it sticks on heating element and makes a black layer that can only be cleaned by steel wool. This will damage to your appliance. You could only make Turkish coffee or boil the water with this appliance. Never use any other liquid (rather than water and Turkish coffee) for boiling.

Cleaning the appliance:

Cleaning the water tank: first of all unplug the appliance from the power socket. If you are making Turkish coffee regularly, only cleaning the water tank with water would be enough. If the water tank gets dirty too much, you could use washing-up liquid to clean the water tank.

If you would like to warm or boil the water after you prepared Turkish coffee, for dissolving the smell of coffee, you could use washing-up liquid to clean the water tank and then clean it with water.

While cleaning, do not immerse the power base of the unit to the water. If the power base (that has electrical circuits under itself) immerses to the water, this will cause a risk of electrical shock and damage on electrical circuits.

Do not turn on your appliance while there is no water inside.

UYARI!

Do not ever wash your appliance in to the dishwasher or under running water. You could wash inside of the water tank under running water. However do not ever immerse the power base (that has electrical circuits under itself) of the unit to the water. You could clean the body surface of the unit with a damp cloth.

In a period of time, some calcification becomes inside of the water tank of your appliance. This is normal, the calcification within the water used in the course of time accumulates on the heater base and burns out and foams a brown layer and then reduces the output of your heater. The slight calcification can be easily cleaned with a brush. You could clean the hard calcification with sediments by means of calcification removers which are sold for the household appliances that can be purchased from the market or vinegar. To clean with the white vinegar; fill the water tank till max level with white vinegar and wait for one hour, after that pour the white vinegar and clean the water tank 2 or 3 times with clean water. To clean with the calcification remover; after boiling some water into the water tank, add some calcification remover and mix it with the boiled water. After waiting for a while, boil the mixed water 2 or 3 minutes. Pour the mix of calcification remover and boiled water and clean the water tank with clean water 2 or 3 times.

If at once you don't succeed

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center.

The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your dealer.

Dear customer,

Our products are subject to strict quality control.

If this device should not function trouble-free in spite of that, we regret this very much.

Before you contact our Fakir Customer Service, check whether you can correct the fault yourself.

Malfunction	Possible cause Solution
Appliance does not work	Plug is not plugged in or the appliance is not switched on. Socket does not carry any current. Power cable is damaged.	Plug in the plug or switch the appliance on Test the cylinder vacuum cleaner at another socket which you are sure carries curreent Have the cable replaced by authorized Fakir services

Dispatch Carry the appliance in the original package or a similar,

well-padded package to prevent damage to the appliance.
