PRT55I - Telephone Pyle - Free user manual and instructions

Product Type	Vintage Landline Telephone
Brand	Pyle
Model	PRT55I
Handset	Included
Dial Mode	Tone/Pulse switchable
Ringer Volume	High/Low switch
Redial Function	Yes
Flash Function	Yes
Volume Control	VOL- and VOL+ for mobile phone audio
Indicator Light	Red (landline incoming) / Blue (mobile incoming)
Connection	Telephone line cord and 3.5mm auxiliary cable for mobile
Power Source	Powered by telephone line (no batteries required)
Dimensions (approx.)	8.5 x 7 x 4 inches
Weight (approx.)	1.5 lbs
Materials	Wood (vintage style) and plastic
Care Instructions	Clean with soft dry cloth; use polish for wood parts; avoid chemicals
Safety	Disconnect during electrical storms
Included Accessories	Handset coil cord, line cord, 3.5mm jack cable, owner's manual, warranty card
Troubleshooting	No dial tone: check telephone line cord connections

Frequently Asked Questions - PRT55I Pyle

How do I switch between tone and pulse dialing?

Locate the P/T switch on the bottom of the telephone base. Slide it to "T" for touch-tone service or "P" for rotary dial service.

How do I answer a landline call?

When the landline number is called, the telephone indicator will blink with a red light. Simply lift the handset to answer the call directly.

How do I answer a mobile call connected via auxiliary cable?

When your mobile phone rings and the indicator is blue, pick up the handset directly to answer. If the indicator is red, pick up the handset and press the SWITCH button to transfer the call from landline to mobile, then press the ☐ button to answer.

How do I adjust the ringer volume?

Use the ringer switch located on the bottom of the telephone base. Slide it to "H" for high volume or "L" for low volume.

How do I redial the last number?

Lift the handset, wait for a dial tone, then briefly press the REDIAL button. The last number dialed will be dialed automatically.

What does the FLASH button do?

Pressing the FLASH button terminates the current call and provides a new dial tone. It can also be used to answer a call waiting by pressing FLASH to switch between calls.

How do I adjust the volume for mobile phone calls?

When the phone is connected to a mobile via the 3.5mm cable, use the VOL- and VOL+ buttons located on the bottom of the telephone base to adjust the mobile phone receiver earphone volume.

What should I do if there is no dial tone?

Check that the telephone line cord is properly connected to both the telephone jack and the wall socket. Also test the phone in a different wall socket. If the problem persists, the first socket may be damaged.

How should I clean and maintain the phone?

Use a soft, dry cloth to clean the telephone. For wooden parts, use a suitable wood polish. Protect the phone from high temperatures, dust, and moisture. Do not use chemical or abrasive powders. Disconnect the phone during electrical storms.

What accessories are included in the box?

The box includes: 1 Telephone Body, 1 Telephone Handset, 1 Handset Coil Cord, 1 Line Cord, 1 Owner's Manual, 1 3.5mm Jack Cable, and 1 Warranty Card.

USER MANUAL PRT55I Pyle

Owners Manual

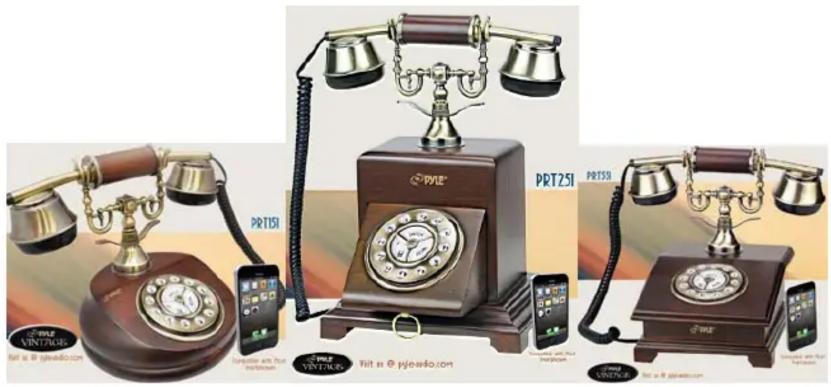

PRT15I

PRT25I

PRT55I

PRT15I
PRT25I
PRT55I

Installation

1. Connect the telephone handset cord to the handset jack
2. Connect the telephone line cord to the line cord jack
3. Connect the other telephone line cord to the telephone wall socket
4. Adjust the desired level (L/H) of the ringer signal with the switch on the under side of the telephone (see pictures below)

How To Use

1. Tone/Pulse switch

On the bottom of telephone base is the P/T switchable dialer. If you have touch tone service then slide the switch to the T(Tone)position; if you have rotary dial service then slide the switch to the P(Pulse) position.

2. Making and Answering Calls

To get a dial tone or answer an incoming call, lift the handset. To hang up, either replace the handset or simply press the HANDSET CRADLE.

--Receive landline calls

When the landline number called, the telephone indicator will blink with a RED light; pick up the handset to receive the incoming calls directly.

If the indicator color is BLUE, pick up handset then press SWITCH to receive the incoming calls.

--Receive mobile phone calls

Connect your mobile phone to the vintage phone using the 3.5mm auxiliary cable. When mobile phone called, if the indicator color is BLUE, pick up the handset to receive the incoming calls directly; if the indicator color is RED, pick up handset and

press SWITCH to transfer landline to mobile phone, then press “☐” button to receive incoming calls.

3. Ringer H/L switch

You can choose the loudness of the ringing of the phone by the ringer switch located on the bottom of telephone base to either H (High) or L (Low) position

4. Last Number Redial(REDIAL)

The feature may be used to speed dial the last number dialed. Simply pick up the handset listen for dial tone and then momentarily press the REDIAL button, the last number dialed will dial out automatically.

5. Flash Function (F)

If you get a busy tone after entering the number, press the FLASH butoon first, after hearing the dial tone, institute a dial tone for another call.

Press the FLASH button to terminate a call, and institute a dial tone for another call to getting another call from call waiting.

6.VOL-&VOL+

When the phone connected with mobile phone, VOL- and VOL+ switch located on the bottom of telephone base can adjust the volume of the mobile phone receiver earphone.

Parts Included

Your new telephone includes the following items

1-Telephone Body
1-Telephone handset
1-Handset coil cord
1-Line cord
1-Owners manual

1-3.5mm jack cable

1-Warranty card

Care and Maintenance

Use soft and dry cloth to clean the telephone, use polish for wood for polishing the wooden parts

1. Protect the telephone from the high temperatures
2. Keep the telephone free from the dust and moisture; if it gets wet please wipe it dry immediately.
3. Don't use any kind of chemical or any abrasive powder to clean the cabinet
4. Don't use the telephone during the electrical storm; A lightning strike can cause serious damage
5. As extra protection to disconnect the telephone during electrical storms

Trouble shooting

No dial tone

*the telephone line cord is not properly to connected the telephone jack or the telephone

*test the telephone in the different telephone wall socket if it works the first wall socket may be damaged
