Product Type	Karaoke System
Brand	Pyle
Model	PKRK212
Dimensions (W x D x H)	12.6 x 8.7 x 5.9 inches
Weight	5.5 lbs
Power Supply	AC 110-240V, 50/60Hz
Power Consumption	30W
Microphone Type	Wired dynamic microphones (2 included)
Speaker Type	Built-in dual 5" speakers
Output Power	2 x 10W RMS
Frequency Response	80Hz - 15kHz
Audio Inputs	AUX (3.5mm), USB, SD card, Bluetooth
Audio Outputs	Headphone jack, line out (RCA)
Bluetooth Version	5.0
Echo Control	Yes, adjustable echo level
Key Control	Yes, adjustable key for music
Display	LED indicators for power and functions
Material	ABS plastic body with metal grille
Cleaning Instructions	Wipe with a dry, soft cloth; avoid liquids
Safety Features	Overload protection, auto shut-off after 30 min idle
Spare Parts Availability	Contact Pyle customer service for replacement microphones, cables, and power adapters
Repair Service	Authorized service centers available; visit pyleaudio.com for details
Warranty	1 year limited warranty
Package Contents	Karaoke system, 2 microphones, microphone cables, power adapter, remote control (batteries not included), user manual

Frequently Asked Questions - PKRK212 Pyle

How do I connect my phone to the karaoke system via Bluetooth?

Turn on the system, press the Bluetooth button on the unit or remote. Enable Bluetooth on your phone, search for 'Pyle PKRK212', and pair. Once connected, audio will stream wirelessly.

Can I use external speakers with this system?

Yes, you can connect external speakers via the line out (RCA) jack. Note that the internal speakers will be disabled when an external output is connected.

How do I adjust the echo effect?

Use the 'Echo' knob on the front panel or the remote control. Turn clockwise to increase echo, counterclockwise to decrease.

What should I do if there is no sound from the microphones?

Check that the microphone cable is fully plugged into the mic input. Ensure the microphone volume is turned up on the unit. Also, verify that the mic is not muted (some models have a switch on the mic).

How do I play music from a USB drive?

Insert a USB drive with MP3 files into the USB port. Press the 'Mode' button until 'USB' is selected. The system will automatically play the files. Use the controls to skip tracks.

Can I change the key of the music?

Yes, use the 'Key Control' buttons on the remote: 'Key Up' and 'Key Down' to adjust pitch to match your vocal range.

How do I clean the karaoke system?

Unplug the unit. Wipe the exterior with a dry, lint-free cloth. Do not use any liquids or abrasive cleaners. For the microphone grille, gently wipe with a soft brush.

What is the power consumption and can I use batteries?

The system consumes 30W and operates on AC power only. No battery compartment is available; it must be plugged into a wall outlet.

How do I reset the system if it freezes?

Turn off the power switch, unplug the power cord, wait 30 seconds, then plug back in and turn on. This should restore normal operation.

Where can I find replacement microphones?

Replacement microphones (model PYLE-MICPKRK212) can be ordered from Pyle's official website or authorized dealers. Contact customer support for compatibility.

USER MANUAL PKRK212 Pyle

718.535.1800 718.236.2400(fax) 1600 63rd Street, Brooklyn NY 11204

PYLE®

PKRK212 OPPERATING INSTRUCTIONS

1200 Watt Bluetooth Karaoke Vibe Portable PA Speaker w/ Dual 12" Woofers, 7" TFT Screen, DVD Player and VHF Wireless Handheld Microphone

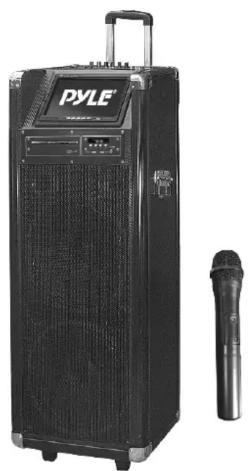

Black PYLE electronic device with a microphone beside it (no visible text or symbols on the device body)

Karaoke

User's manual

Panel design

1. Power ON/OFF switch

2. Guitar Volume controller

3.Mic volume

1. Echo for microphones

2. Bass controller for main channel

3. Treble controller for main channel

4. Master volume controller

8.Mic Priority ON/OFF

9.DC 12V Input

1. Low battery indicator lights

2. Charging indicator lights1

3. Power ON/MP3 Working indicator lights

4. Guitar Input slot

14.MIC input slot

15.Input selectors

1. Next song selector

2. Previous song selector

3. Play for Mp3 or other audio sources

4. Repeat function for USB/SD

20.Mp3 player

21.Aux-In

1. Video output

2. Audio Input

3. Audio Output

DVD Panel design

1. USB slot

2.Game Slot

3.Power ON/OFF

1. Next

5.Previous

6.Play/Pause

7.Open/Close

DVD Remote contol

1.Open/Close for DVD

1. PAL/NTSC/AUTO switch

3.Mute for speakers

4.Radom play

1. Subtitle selector

6.Angle: choose different angles for visual

1. Vidoe Mode selector

8.A-B: Repeat from A to B

1. Set up: set up for many functions

10.11.28.30. Four directions controllers

1. Menu for DVD player

2. Language: Choose to different operation language

14.STOP:stop the disc playing

1. Volume +: increase the Volume

16.VOLUME-:decrease the volume level

17.1-10.10+: Numbers for choose discs or songs

songs 10 Times

1. Time: select the time you want to play

2. Next for song or other playing

3. Previous for song or other playing

21.Forward

1. Backward for discs

23.DVD/USB switch

1. Programme: make programmer for your

playing

25.Play/Pause controllers

1. Reset: reset for all playing back to Menu

2. Title: press this will playing from title

3. Confirm: confirm for your operation

31.PBC: open all menu for discs

32.View

33.Repeat: repeat for disc or songs

34.Slow: will slow down your playing

35.Eq, choose different sound effect

36.ZOOM: enlarge what you playing

37.STEP: step playing the present videos or

pictures

38.OSD:operation situation display

1. Power: power in or standby your DVD player

7"display screen

User's manual

User's manual

Instructions

Turning ON/OFF

The PA speaker can be powered when connected to main power or using the internal 12V battery.

1. Connect the power cable to the top of the unit.
2. Connect the other end of power cable to main power.
3. Turn on the switch for the main power.
4. The unit will automatically power on when connected to main power.

Notes: If you wish to use the internal battery power of the unit, just simply turn on the Battery switch located on the top of unit to ON. Charging

Before using the PA speaker for the first time, charge the unit at least 8 hours.

1. Connect the power cable to the top of the panel.
2. Turn off the battery switch on the top of the panel.
3. Recharge indicator light will be on when unit is charging. Notes: Notes: The internal battery will charge while the unit is being operated and the power switch is on. It is better to charge the unit while the power switch is off.

Instructions

Using the Wireless Microphone

The PA speaker comes with wireless microphones to get you started straight out of the box.

1. Tune on the unit.
2. Unscrew the bottom of the microphone to access the battery enclosure. Insert 2XAA batteries into the microphone. Take note the battery polarity when inserting the batteries.
3. Replace the bottom microphone cover.
4. The wireless microphone will flash once and automatically pair with the PA speaker, it is ready to use. If it does not flash, check that you have inserted the batteries correctly or replace old batteries.
5. Adjust the volume of the microphone by turning the MIC VOL knob located on top control panel

Notes: Please do not operate the microphone directly in front of the PA speaker, please set the MIC VOL/ECHO at a lower level before turning on the wireless microphone. Operating the microphone incorrectly will cause a loud squealing noise. Please turn off the power switch when the wireless microphone is not in use. This will save the battery.

Instructions:

Using the Wired Microphone

You can connect the wired microphone to this unit using the MIC INPUT located on the top of control panel.

1. Turn off the unit.
2. Connect your wired microphone to the MIC INPUT located on top of the control panel.
3. Adjust the microphone volume by tuning the MIC VOL/ECHO knobs located on top control panel.
   NOTES: You can use the wired microphone and wireless microphone at the same time.

Connecting a Guitar

You can connect your Guitar to unit using the 1/4" GUITAR INPUT plug.

1. Turn on the unit.
2. Connect your guitar cable to GUITAR INPUT port on top control panel.
3. Adjust the volume by turning the GUITAR VOL on top control panel.

Instructions

USB/SD Card Playback

You can play music from USB stick or SD Card using the USB/SD slot on the PA speaker.

1. Turn on the unit.

User's manual

User's manual

1. Insert your USB or SD card into the slot.
2. Once inserted the USB or SD card unit will automatically play.
3. You can use the PRE/NEXT/PLAY/PAUSE to control and play music. NOTES: The speaker system can play the following audio file formats: MP3, MP4, WMA. The USB/SD Card no more than 32GB. Operation may be slower when searching large memory files. It will need several seconds to respond when your USB/SD Card full of contents.

BLUETOOTH playback

You can connect your Bluetooth phone or other device to the PA speaker.

1. Turn on the unit.
2. Press the INPUT button which is located on top control panel, next to the USB/SD slot.
3. The Bluetooth is on when you hear two "tone" indicator sound.
4. Use your Bluetooth phone or other device to search for the PA speaker. It will displayed as PKRK212.
5. Connect your device by selecting PKRK212, it will require you to enter a four digit code, the code is 0000.
6. Enter the code and connect with unit.
7. Play music on your phone or device, sound will come from the speaker through the BLUETOOTH wireless connection.
8. You can use the VOLUME/BASS/TREBLE to adjust the sound level for BLUETOOTH, also you can adjust the Bluetooth music sound through your own phone or other device.

NOTES: If there is no sound through the PA speaker during Bluetooth, Check the volume controller both on the unit and on your phone or other device.

Using the Radio

1. Turn on the unit.

2. Press INPUT once, to select FM Radio.

3. Press PRE/NEXT to select your desired radio station. Ensure that you have the extended the antenna located on the rear of the speaker. It will ensure the best possible radio quality and signal strength.

4. When you first use the radio, press NEXT button twice, it will auto search and store the radio stations with the strongest signal.

Instructions

Use of the External Battery Option

To use the PA speaker longer than the internal battery life, you can connect the PA speaker to a external 12V Battery Source.

1. Find the INPUT DC 12V on the top control panel.

2. Use the correct cable connect the INPUT DC 12V.

NOTES: The PA speaker will consume the internal battery first, when it is low, the LOW BATTERY indicator light located on the control panel will turn on, you can use the external 12V battery to power on the unit. The external 12V battery will also charge the internal battery while in use.

PyleAudio 1600 63rd St Brooklyn, NY 11204 www.pyleaudio.com
