TS6213 - Digital decoder TELE System - Free user manual and instructions
Find the device manual for free TS6213 TELE System in PDF.
| Product Type | Free-to-air digital terrestrial receiver (DVB-T) |
| Frequency Range | 147–230 MHz (VHF) / 470–862 MHz (UHF) |
| Bandwidth | 6 / 7 / 8 MHz |
| Menu Languages | English, French, Spanish, Italian, German, Czech, Polish |
| Teletext | Yes (ETSI EN 300 472) |
| Subtitles | Yes (ETSI EN 300 706) |
| Electronic Program Guide (EPG) | Yes |
| Video Aspect Ratios | 16:9 Full Screen, 16:9 Pillar Box, 4:3 Pan Scan, 4:3 Letter Box |
| Digital Audio Output | Coaxial SPDIF |
| TV SCART Output | Video RGB/CVBS, Audio L+R |
| VCR SCART | Output/Input Video CVBS, Audio L+R |
| Software Upgrade | Over The Air (OTA) |
| Factory Reset | Yes |
| Favorite Channel List | Yes |
| Timer Reservation | Yes |
| Auto Standby | Yes (after 3 hours) |
| Channel Auto-Updating | Yes (in standby) |
| Power Supply | 230V~ 50Hz |
| Power Consumption (Active) | 2.90 W |
| Power Consumption (Standby) | 0.41 W |
| Dimensions (W x D x H) | 168 x 110 x 36 mm |
| Remote Control Batteries | 2 x AAA, 1.5V |
| Cleaning Instructions | Use a soft, dry cloth; no chemicals |
| Parental Control | Yes (age-based, password protected) |
Frequently Asked Questions - TS6213 TELE System
User questions about TS6213 TELE System
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Digital decoder in PDF format for free! Find your manual TS6213 - TELE System and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TS6213 by TELE System.
USER MANUAL TS6213 TELE System
1 Safety regulations 2
2 Product description and connections....3
2.1 Front Panel....3
2.2 Rear panel and connections 3
2.3 Remote Control Unit 4
2.3.1 Batteries 4
2.3.2 Buttons and related functions....4
3 First time installation 5
4 Receiver settings....6
4.1 Password....6
4.2 Parental Control 6
4.3 Advanced menu protection (Hotel Function)....6
4.4 Channel scanning and updating....6
4.4.1 Channel scanning....6
4.4.2 Standby channel updating....6
4.5 Clock setting 6
4.6 Software Upgrading....7
4.7 Energy saving....7
4.7.1 Auto Standby 7
4.7.2 Antenna loop-through 7
4.8 Factory Reset 7
5 The menus 8
6 Problem solver 9
7 Technical Specifications.... 10
1 Safety regulations
We advise you to read the following advice concerning the safety regulations carefully in order to ensure safe use of the appliance.
ELECTRICAL SUPPLY
- The appliance should only be supplied by a current of 230 Volt AC, 50Hz.
- The appliance must not be repaired in any way by the user, in case of breakages or failures please refer to the nearest centre for assistance.
- Do not remove the cover. The inside of the appliance could contain higher voltages than that of the supply voltage which could endanger the user. High voltage is also present when the appliance is on standby. The receiver should be disconnected from the electrical supply before performing any intervention. Non-authorised removal will mean that the warranty is no longer valid!
POWER CABLE
- Before installing the appliance make sure that the cable is intact, paying particular attention to its connection to the power supply and to the receiver. If the cable is damaged do not attempt to connect the appliance and refer the problem to an authorised centre for assistance.
- When installing the cable make sure that it can not be flattened in any way by items placed above or next to the appliance. Avoid placing the cable in an area where it could accidentally be stepped on, removed from the wall or damaged in any way.
- If the cable is damaged in any way carefully disconnect from the appliance and refer to specialised technicians or the centre for assistance to get a replacement.
LIQUIDS
- Keep the appliance far from any liquids. Do not place any objects containing liquids on the appliance, such as vases, humidifiers etc. The appliance must not be installed in areas where it could come into contact with sprays or drops of water or in an environment with a high level of humidity where condensation could occur.
- If the receiver should accidentally come into contact with liquids, disconnect immediately from the wall. DO NOT TOUCH the device until it has been disconnected.
SMALL OBJECTS
- Keep the receiver away from coins or other small objects. Objects which fall into the appliance via the ventilation gaps could cause serious damage.
CLEANING
- Before cleaning, disconnect the device from the power supply.
- To clean the outside of the receiver use a soft and dry or slightly damp cloth. Avoid using products which contain chemicals or solvents.
VENTILATION
- Make sure that the area where the appliance is to be installed has good air circulation so that the heat can be dissipate well in order to avoid overheating.
- In order to allow enough ventilation it is necessary to have a distance of at least 10 cm on either side of the appliance and 15cm above the appliance.
- The vents must be kept clear from any obstructions such as newspapers, table cloths, furniture material, curtains, carpets etc.
- Avoid installing the receiver close to any heat sources (i.e. radiators, stoves etc) or on top of any other appliances which omit heat (video players, DVD etc).
WARNING!
- Keep the appliance out of reach of children.
- The plastic bags used for packaging can be dangerous. To avoid suffocating keep the bags out of reach of children.
- Do not expose the receiver or remote control to direct sunlight.
- The appliance must be placed on a solid and stable base.
- Connect the device to the power supply only after installation is complete.
- Remove the batteries from the remote control if they will not be used for a long period of time. The remote control could be damaged by any eventual battery leakages.
- Dispose of the product correctly so as to avoid damage to the environment and human health as well as to facilitate recycling of the components/materials used in the appliance. If the product is not disposed of properly this could be punishable according to the involved law.
- The manufacturers recommend that the parts are recycled separately and are taken to sites which conform to current regulations.
- Take the product, including its accessories and batteries, when no longer usable to a collection point which is authorised to handle waste from electrical or electronic appliances that should be kept separate from regular household waste.
2 Product description and connections
2.1 Front Panel
- IR Infrared sensor for remote control.
- LED Standby status indicator (Green=On, RED=stand-by).
- ⏻ ON / Stand-by button.
2.2 Rear panel and connections
CAUTION
- It is good practice to connect the receiver with other appliances (e.g. TV, VCR, HI-FI, etc.) and the antenna before plugging in the mains lead. When the receiver is powered electrical voltage differences may be created when plugging in the jacks, which may generate currents that could damage the appliances.
- The direct audio-video connection with TV screen should always be used as a first operating test, since other more complex connection sequences may give malfunctions that are not caused by faults or defects of the actual appliances but by problems of incompatibility.
- ANT IN Antenna Input.
- ANT OUT Antenna TV loop through output.
CAUTION
For energy saving, during stand.by mode the ANT OUT is disabled by default, but it can be activated by setting On the RF Loop parameter in the Installation - Power Control menu.
- TV SCART Analogue audio-video output for connecting TV screen.
- VCR SCART Auxiliary analogue audio-video socket.
CAUTION
The VCR SCART plug can be used as input for an external source (e.g. DVD player), but only in operative mode and by pressing the VCR/DTV button of the remote control unit.
- SPDIF Coaxial Digital Audio output for home-theatre amplifier.
- POWER Power lead for 230V AC, 50Hz.
2.3 Remote Control Unit
Get well acquainted with your remote control and you will find it much easier to navigate through the various menu options.
2.3.1 Batteries
Information and warnings
Battery type: 2 x AAA, 1.5V.
Insert/replace the batteries at the first installation or when the remote control doesn't work well.
It's recommended to remove batteries from the remote control if it is not used for long time, in order to avoid any possible damage.
Do not use different types of battery or flat and new batteries at the same time.
Insertion and removal
Open the battery cover on the bottom of remote control and insert the two batteries (AAA format) respecting the right polarity direction as indicated on their place. Then, close the cover.
Remove the flat batteries, that must be disposed separately from common garbage and they must be taken to the shop or waste collection point, repeating similar operations done during the insertion.

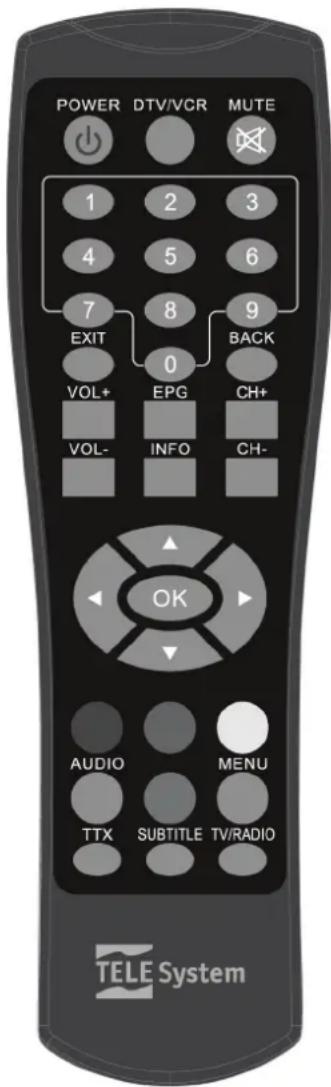

2.3.2 Buttons and related functions
- ON/ST.BY ON / Stand-by.
- DTV/VCR TV SCART switching.
- MUTE Mute.
- 0÷9 Change channel/enter number in menu input boxes.
- EXIT Quit function or menu.
- BACK Go back to previous menu.
- VOL+ / VOL- Audio volume up/down.
- EPG Electronic Program Guide.
- INFO Display channel information.
- CH+/CH- Next/Previous channel.
- ▲/▼ Navigate menu items/options.
- ◀/▶ Modify menu parameters/options.
- OK Go to channel list menu or confirm action/changes in the menu.
- Coloured Buttons Contextual menu functions.
- AUDIO Set audio mode or select audio track.
- MENU Main menu.
- TTX Teletext.
- SUBTITLE Subtitles, either Standard (DVB) or Teletext (TTX).
- TV/RADIO Swaps between TV and radio programs of the receiver.
3 First time installation
When all the connections on the receiver are ready (section 2.2) and the power lead is plugged in, the receiver will start up automatically. If this does not happen, press the ⏻ button on the front panel of the receiver or on the remote control.
An easy installation menu will be displayed where you can set different parameters and then run the channel scan:
Step 1 – OSD Language
Use the arrow ◀/▶ button to select a language for the On Screen Display menu (OSD). Press ▼ to go to the next parameter.
Step 2 – Region
Use the arrow ◀/▶ buttons to select your Country. Press ▼ to proceed.
CAUTION
If a wrong Region is selected the channel scan may not detect all the channels available.
Step 3 - LCN Mode
When the Logical Channel Numbering option is active, after the scanning, the TV/Radio services will be automatically stored in the list following the order requested by the broadcasters. Press ▼ to go forward.
NOTE
When LCN mode is turned on, we suggest to not change the channel positions in the TV/Radio Channel List menu.
Step 4 – Tuner Power
If you are using an active antenna press ◀/▶ to power the antenna; this is necessary when, for instance, an indoor amplified antenna has to be powered by the receiver.
CAUTION
With a traditional antenna, like typical rooftop models, or an independently powered antenna, the antenna power option must be set to off: risk of overload!
Step 5 – Password Definition
Press OK on New Password field and input a 4-digit numeric password (PIN), then reinsert the same password on Confirm Password and push OK again. Press ▼ to proceed.
CAUTION
Password definition for Parental Control (par. 4.2) is mandatory for completing the installation.
Step 6 – Channel Scan
Press OK item to start the automatic channel scan. When the scan is completed, if there are no LCN conflict the receiver will enter the viewing mode, otherwise see below step.
Step 7 – LCN Conflict Resolution
When the LCN function is active and more than a service asks for the same channel list position, the system will recognize that conflict and display on screen a list of the involved services. Choose the preferred channel by using ▼/▲ arrow buttons e confirm with OK. As an alternative, go to the automatic solution. Also, if the user doesn't make a choice, after a few time the appliance will carry out a solution by itself. After these actions, the receiver will enter the viewing mode.
Step 8 – Time Setting
We suggested to check the time setting. Press MENU and go to Setup - Region and Time menu, choose the proper Summer Time option (Off/On) or change another type of time regulation (par. 4.5).
Step 9 – Video Configuration
For TV SCART output settings, go to Setup - TV System menu and regulate Aspect Ratio (16:9 Full Screen/Pillar Box or 4:3 Letter Box/Pan Scan) and Video Output (RGB or CVBS) respecting the technical characteristics of the connected screen.
4 Receiver settings
The first time installation procedure (chapter 3) will allow the receiver to be used with its basic functions. However the receiver offers many more advanced features and options that are illustrated in the following sections.
4.1 Password
To access settings and events locked by the Parental Control (par. 4.2), a password has to be entered. The password is defined by the end-user at the first time installation (cap. 3), but it can be changed by pressing MENU and selecting the Setup - Parental Lock.
CAUTION
If you forget your personal password, you have to reset the device by using Tools - Load Factory Default menu.
4.2 Parental Control
The Parental Control protects children by the viewing of sensitive contents. When an event is broadcasted with a parental rating equal or higher than the parental lock level defined on receiver menu, a system message will notify that the channel is locked. To see that channel, you have to enter the password (par. 4.1).
The factory set level is Age=18 and it can be changed by the user on Setup - Parental Lock - Channel Lock menu.
4.3 Advanced menu protection (Hotel Function)
The Hotel Function is a hidden utility, which consists in an advanced protection of the receiver. It allows to enter the main menu only by typing a password.
For enabling that function, press MENU and any numeric button of remote control, then input the system password (par. 4.1) or the special PIN 3327. For disabling it, press MENU and type the system password (par. 4.1) or the special PIN 3327.
4.4 Channel scanning and updating
The first time guided installation procedure runs a channel scan and saves any channels available at that time. However later scans may become necessary if, for instance, a new channel becomes available or when an existing channel changes frequency.
4.4.1 Channel scanning
To access the channel scan function from the viewing mode, press MENU on the remote control to open the main menu, select Installation and then go to one of the following submenu:
- Auto Scan: an automatic scan of all digital terrestrial channels through whole frequency range. Define the Scan Mode parameter (All for all channels or Free for Free to air) and the type of Action (Update or Reinstall). Press OK on Search to start the scan.
CAUTION
When a reinstallation is run, the previous existing channel list will be lost.
- Channel Scan (for expert users): set all needed parameters displayed on video related to the interested RF channel, then select Search and press OK.
4.4.2 Standby channel updating
In standby mode, this receiver is set to search daily for new available channels, at the exact Time defined on Tools - Automatic Upgrade Setting - Automatic Channel List Update menu. Through this menu, it's possible to modify the searching Time or to disable the In Standby Mode option.
4.5 Clock setting
In viewing mode, press MENU and go to Setup - Region and Time menu. These kind of settings are available under GMT Usage item:
• Off: the user manually sets date and time.
- By Region: the receiver will automatically set the time according to the selected Region. In addition, set properly the Summer Time option (Off, On).
- User Define: the receiver will automatically set the time according to Greenwich Mean Time offset (GMT Offset parameter).
CAUTION
Some digital terrestrial services transmit information, which is strictly linked to a correct time setting of the receiver. In addition, under GMT usage, the receiver will follow the time data transmitted by the broadcaster.
4.6 Software Upgrading
Since this receiver is made to last, the time may come when its software needs to be modified or improved by updates. These updates will optimise the receiver's functions or correct minor flaws. Updates may be distributed to the receiver Over The Air (OTA).
CAUTION
An OTA upgrade could take several time, in particular in case of weak signal. During the upgrade, do not interact with the receiver and never turn off the main leads: risk of permanent damage!
Manual
When an update is made available, enter the Tools - Software Upgrade - Upgrade by Air.
Automatic
Thanks to the Tools - Automatic Upgrade Setting - Automatic Software Upgrade menu, the user may customize the automatic software upgrading, which can take place In Standby Mode (On/Off) and/or In Operate Mode (On/Off) at the Time defined on menu.
4.7 Energy saving
This receiver is equipped with energy saving functions:
4.7.1 Auto Standby
After three hours in active mode without any action of the user, the receiver will be switched automatically into standby mode. A few minutes before the switching, a notification message will appear on screen. The automatic power-down function is set to On (active) by default, but the user may disable it from the Setup - Auto Standby menu.
CAUTION
If you set a program timer on Setup - Timer Setting menu or from EPG with a duration grater than three hours, we suggest to disable the Auto Standby function.
4.7.2 Antenna loop-through
During stand.by mode, the antenna loop-through (ANT OUT connector, see par. 2.2) is disabled by default. It can be activated by setting On the RF Loop parameter of the Installation - Power Control menu.
4.8 Factory Reset
The factory settings of the receiver can be restored by a reset. To do so, press MENU on the remote control, select Tools and then Load Factory Setting.
CAUTION
A reset will lose all personal options and features settings saved in the receiver.
5 The menus
The menu map:
| Main Menu | |||
| Channel | Installation | Setup | Tools |
| -TV Channel List | -Auto Scan | -OSD Language | -Receiver Information |
| -Radio Channel List | -Channel Scan | -TV System | -Load Factory Default |
| -TV Channel Recycle List | -Power Control | -Region and Time | -Software Upgrade |
| -Radio Channel Recycle List | -Timer Setting | -Automatic Upgrade Setting | |
| -Delete All Favourites | -OSD Setting | ||
| -Delete All | -Parental Lock | ||
| -Group Rename | -Auto Standby | ||
CAUTION
The menus are simple and easy to navigate. Use the arrows, OK and number buttons and always follow the instructions given in the bottom toolbar.
6 Problem solver
| PROBLEM POSSIBLE CAUSE REMEDY | ||
| 1. The receiver does not start (the status LED on front panel is not lighted up). | -The power lead is not plugged in.-The power lead is plugged in but the receiver still does not work. | -Plug in the power lead.-Disable the electric power and check it for damage (RISK of electric shock!). |
| 2. No Video or Audio signal. | -No signal or a poor signal.-SCART cable or antenna cable not connected properly.-Audio volume low or zero.-AV channel not selected on TV. | -Verify the antenna installation and signal quality.-Check the SCART connection.-Make sure the TV and receiver volumes are not set to zero.-Make sure the AV channel is selected on the TV (consult the TV user manual). |
| 3. Video on screen with green colour shade. | -Problematic SCART cable.-RGB not supported by the TV set. | -Replace the SCART cable.-Change the Video Output in CVBS from Setup - TV System menu. |
| 4. The channel scan gives no results. | -No antenna signal.-Your antenna system is not fully compliant with the digital terrestrial signal. | -Check for a signal using the receiver menu.-Ask for an antenna technician help.-Manually scan for channels. |
| 5. The settings are not saved. | -Setting changes are not confirmed before quitting. | -Before quitting a menu, press the confirm button to save the changes (if any). |
| 6. The remote control does not work. | -The receiver is in Stand-by.-The remote control is not being directed towards the receiver.-The remote control batteries are flat.-The batteries have been inserted in the wrong direction.-The remote control has been dropped and its internal components have been damaged. | -Press the STAND-BY button on the front panel to check if the receiver is working properly.-Make sure nothing is obstructing the front panel.-Change batteries.-Check the battery polarities.-Contact the local dealer and buy a new remote control. |
| 7. You have forgotten the Password. | -Consult this manual at section 4.1. | |
| 8. Accessing the menu denied. | -Hotel Mode enabled. -See section 4.3. | |
| 9. The receiver does not interact with the remote control buttons. | -The receiver is temporarily blocked.-A broadcaster transmits wrong data.-There is a problem with the remote control. | -Unplug the mains lead of the receiver for at least one minute and then plug it back in.-Reboot the box without the antenna connection, delete the problematic channel, then connect again the antenna.-Go to point 5 of this table. |
| 10. Cannot exit the Easy Install menu. | -The password is not defined. -See chapter 3. | |
| 11. The scheduled event timer doesn't work properly. | -The receiver time has not been set correctly.-The specific program transmits a wrong time information. | -Set the time from the menu (see section 4.5). |
| 12. The receiver goes down into standby mode automatically. | -The Auto Standby function is active -Disable the automatic power-down function (see section 4.7.1). | |
| 13. The antenna loop-through is not working | -ANT OUT is disabled. -See section 2.2 and 4.7.2. | |
CAUTION
Generally, in case of dysfunctional behaviours of the receiver, a factory reset (par. 4.8) could solve the problem.
7 Technical Specifications
| Product type Free to air digital terrestrial receiver (ETSI EN 300 744) | |
| Input frequency range 147÷230 MHz (VHF) / 470÷862 MHz (UHF) | |
| Bandwidth 6 / 7 / 8 MHz | |
| Front Panel Display ● | |
| Menu language Eng, Fra, Spa, Ita, Deu, Cze, Pol | |
| OSD menu ● | |
| Teletext (ETSI EN 300 472) ● | |
| Subtitle ( ETSI EN 300 706) ● | |
| Electronic Program Guide (EPG) ● | |
| RF modulator - | |
| Video format ratio 16:9 Full Screen / 16:9 Pillar Box / 4:3 Pan Scan / 4:3 Letter Box | |
| Coaxial Digital Audio Output (SPDIF) ● | |
| Optical Digital Audio Output (SPDIF) | - |
| TV SCART Output | Out: Video RGB / CVBS, audio L+R |
| VCR SCART Output | Out/In: Video CVBS, audio L+R |
| Stereo Audio Output RCA | - |
| Video Output RCA | - |
| RS232 Serial Data Port | - |
| Software Upgrade | Over The Air (OTA) |
| Factory Reset Function | ● |
| Favourite Channel List | ● |
| Timer Reservation | ● |
| Auto-Standby (power saving) | ● |
| Channel Auto-Updating | ● |
| Power Supply | 230V~ 50Hz |
| Power Consumption | Standby mode: 0.41 W |
| Active mode: 2.90 W | |
| Dimensions | 168 x 110 x 36 mm |
TELE System Electronic
