Product Type	Portable Radio with Alarm Clock
Model	PR 200S
Brand	Hyundai
Power Supply	Mains: 230 V ~ 50 Hz; Battery: 4 x 1.5 V (Size C / UM-2 / LR14, not included)
Standby Power Consumption	< 1 W
Net Weight	580 g
Radio Frequency Bands	AM 522 – 1620 kHz; FM 87.5 – 108 MHz
Display	LCD
Speaker	Built-in
Headphone Jack	3.5 mm
Antenna	Telescopic (FM); Internal (AM)
Controls	Tuning, volume, band selector, time/alarm setting buttons, alarm on/off
Alarm Function	Buzzer alarm with preset time and alarm on/off
Care and Cleaning	Wipe with soft cloth, use mild detergent if necessary
Safety	Keep away from water, do not disassemble, no user-serviceable parts
Disposal	Do not dispose as household waste; recycle per local regulations

Frequently Asked Questions - PR 200S HYUNDAI

How do I set the time on my Hyundai PR 200S radio?

Press the Time set button (7) and simultaneously press the Hour set button (10) or Minute set button (9) until the correct time is displayed.

How do I set the alarm?

Press the Alarm set button (8) and simultaneously press the Hour set button (10) or Minute set button (9) to adjust the alarm time. Then press the Alarm on/off button (11) to activate the alarm (alarm icon appears).

How do I turn off the alarm after it sounds?

Press the Alarm on/off button (11) once to switch off the alarm. To reactivate it for the next day, press the same button until the alarm icon displays again.

How do I listen to the radio?

Turn the Volume control - buzzer knob (12) upward to switch on. Select the desired waveband with the Waveband selector (6). Turn the Tuning control knob (3) to choose a frequency. Adjust volume with the Volume control knob.

What type of batteries does the PR 200S use?

It uses 4 x Size C (UM-2 / LR14) 1.5 V batteries, not included. Alkaline or heavy duty recommended.

Can I use headphones with this radio?

Yes, plug 3.5 mm headphones into the Headphone jack (13). The built-in speaker will automatically mute. Lower volume before inserting headphones.

How do I clean the radio?

Wipe external surfaces with a soft cloth. If heavily soiled, unplug and use a damp cloth with mild soapy water, then dry thoroughly before reuse.

Is the radio safe to use near water?

No, do not use near water or in wet areas to avoid fire or electric shock. Keep it away from sources of moisture.

What should I do if the radio malfunctions?

Do not attempt to repair yourself. Contact an authorized technician. There are no user-serviceable parts inside.

How do I dispose of the radio?

Do not dispose as household waste. Take it to a local recycling facility for electrical and electronic equipment. Follow local regulations.

USER MANUAL PR 200S HYUNDAI

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

PŘENOSNÉ RÁDIO S BUDÍKEM PRENOSNÉ RÁDIO S BUDÍKOM PRZENOŚNE RADIO Z BUDZIKIEM PORTABLE RADIO WITH ALARM CLOCK HORDOZHATÓ ÉBRESZTŐS RÁDIÓ

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

GENERAL SAFETY INSTRUCTIONS

• The appliance is designed exclusively for private use and for the envisaged purpose.
  • This appliance is not fit for commercial use.
• Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis.

Do not use the appliance if it is damaged.

- Do not try to repair the appliance on your own. Always contact an authorized technician.

To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

- Pay careful attention to the following "Special Safety Instructions for this unit".

1. SAFETY

• No naked flame sources such as lighted candles, should be placed on the apparatus.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device will remain readily operable.
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Ensure minimum distances around the apparatus for sufficient ventilation.

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• Attention should be drawn to the environmental aspects of battery disposal.
• The use of apparatus in moderate climates.
• Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Do not place the product in closed bookcases or racks without proper ventilation.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the way of use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

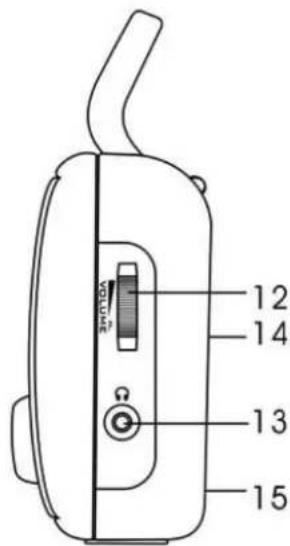

2. PARTS

1) Handle
2) FM antenna (telescopic)
3) Tuning control knob
4) LCD
5) Speaker
6) Waveband selector
7) Time set button

8) Alarm set button
9) Minute set button
10) Hour set button
11) Alarm on/off button
12) Volume control - buzzer knob
13) Headphone jack 🙏

14) AC socket
15) Battery compartment
16) Power cable (not shown)

3.1 To use the appliance with batteries ensure that the AC power cord is NOT inserted into the back of the appliance and install the batteries into the battery compartment (15).
3.2 Lift off the battery compartment cover and insert 4 x Size "C" /UM-2/ LR14 (or equipvalent) 1.5 V heavy duty alkaline batteries in accordance with the diagram in the battery compartment. Take care to observe the correct polarity (+/-).
3.3 Refit the battery compartment cover.

Note

• Dispose of batteries responsibly at local authority household waste recycling facility.
• DO NOT dispose of batteries in a fire as the batteries may explode.
• Only use 'C' 1.5 V batteries in this appliance.
• Be sure to insert correctly taking care to observe the correct polarity (+ and -).
• Use only batteries of the same or equivalent type as recommended.
• Do not recharge non-rechargeable batteries.
• Never mix old and new batteries (replace all batteries at the same time).
• Never try to dismantle batteries.
• Do not short circuit the supply terminals.
  • Always remove exhausted or dead batteries from the product, do not dispose of in fire.
• Remove batteries from the product before extended storage.

4. MAINS OPERATION

Fit the AC power cord into the AC socket (14) at the back of the appliance and plug into the household socket.

5. REAL TIME SETTING

Press the time set button (7) and hour set button (10), or minute set button (9), together, until the correct clock time is displayed.

6. ALARM FUNCTION

6.1 Press the alarm set button (8) and simultaneously press the hour set button (10) or minute set button (9) as appropriate until the required alarm time is reached.
6.2 To double check the alarm time, simply press the alarm set button (8) then the display will show the pre-set alarm time.
6.3 Press the alarm on/off button (11) to activate the alarm (the alarm icon will display).
6.4 Turn the volume control – buzzer knob (12) fully downward until hear a “click” sound to select the BUZZ function.
6.5 The alarm tone will switch on automatically at the pre-set alarm time.
6.6 To switch off the alarm simply press the alarm on/off button (11) once.
6.7 To activate the alarm again, press the alarm on/off button (11) until the alarm icon is displayed.

7. USING THE RADIO

7.1 Turn the volume control - buzzer knob (12) upward to switch the radio on.
7.2 Set the waveband selector (6) to the required waveband.
7.3 Turn the tuning control knob (3) to select the frequency.
The current radio frequency will display.
7.4 Adjust the volume to the desired level by rotating the volume control - buzzer knob (12).
7.5 To turn off the radio, turn the volume control – buzzer knob (12) downward until a “click” sound is heard.

Note

- The built-in AM and the external FM antennas are directional. If tuning into a FM station extend or move the antenna (2) for a better reception. If tuning into an AM station rotate the whole unit after tuning to obtain the best reception.

8. USING HEADPHONES (NOT INCLUDED)

A headphone jack has been provided so that the set can be used without disturbing others. Plug in the 3.5 mm headphones at the point marked 📊 Turn the listening volume to the lowest setting before adjusting the volume up to your chosen level. Excessive sound pressure from earphones and headphones can cause hearing loss. The speakers will not operate when headphones are fitted.

9. CARE AND MAINTENANCE

Wipe external surfaces with a soft cloth. If the casing is very dirty, unplug from the mains supply and use a damp cloth soaked in a weak solution of washing up liquid and water. Allow to dry thoroughly before reusing.

10. TECHNICAL SPECIFICATION

Rated voltage 230 V \~ 50 Hz

Batteries 4 x 1.5 V Battery size "C"/UM-2/LR14 (not included)

Radio frequency AM 522 – 1620 kHz

FM 87,5 - 108 MHz

Standby Power Consumption < 1 W

Weight (NET) 580 g

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A

QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will

help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type PR200 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.hyundai-electronics.cz/declaration_of_conformity
