FES150 (2007) - Scooter Honda - Free user manual and instructions
Find the device manual for free FES150 (2007) Honda in PDF.
| Product Type | Scooter |
| Brand | Honda |
| Model | FES150 (2007) |
| Overall Length | 2,090 mm |
| Overall Width | 745 mm |
| Overall Height | 1,435 mm |
| Wheelbase | 1,490 mm |
| Engine Displacement | 153 cm³ |
| Fuel Tank Capacity | 9.4 L |
| Engine Oil Capacity (After Draining) | 0.9 L |
| Coolant Capacity | 0.95 L |
| Maximum Weight Capacity | 180 kg |
| Maximum Cargo Weight | 19 kg |
| Front Tyre Size | 110/90-13 M/C 56L |
| Rear Tyre Size | 130/70-12 62L |
| Brake System | Combined Brake System (CBS) with optional ABS |
| Battery | 12V - 6Ah (maintenance-free) |
| Spark Plug (Standard) | NGK CR8EH-9 or DENSO U24FER-9 |
| Headlight | 12V - 55W × 2 |
| Center Compartment Capacity | 10 kg |
| Left Compartment Capacity | 0.5 kg |
| Shopping Hook Capacity | 1.5 kg |
| Recommended Fuel | Unleaded petrol with RON 91 or higher |

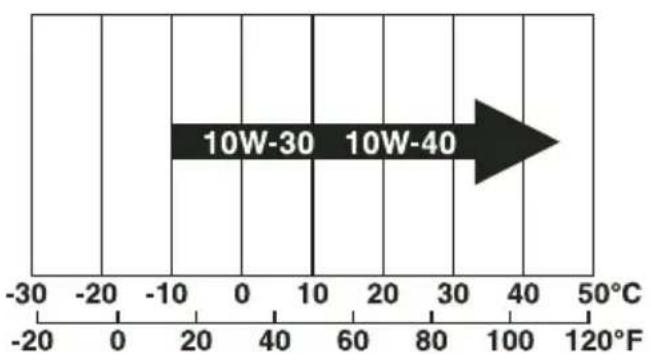

| Engine Oil Recommendation | API SG or higher (except energy conserving), SAE 10W-30, JASO T 903 MB |
Frequently Asked Questions - FES150 (2007) Honda
User questions about FES150 (2007) Honda
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Scooter in PDF format for free! Find your manual FES150 (2007) - Honda and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FES150 (2007) by Honda.
USER MANUAL FES150 (2007) Honda
This scooter is designed to carry the operator and one passenger. Never exceed the maximum weight capacity as shown on the accessories and loading label.
- ON-ROAD USE
This scooter is designed to be used only on the road.
- READ THIS OWNER'S MANUAL CAREFULLY
Pay special attention to the safety messages that appear throughout the manual. These messages are fully explained in the “A Few Words About Safety” section which appears before the Contents page.
This manual should be considered a permanent part of the scooter and should remain with the scooter when resold.

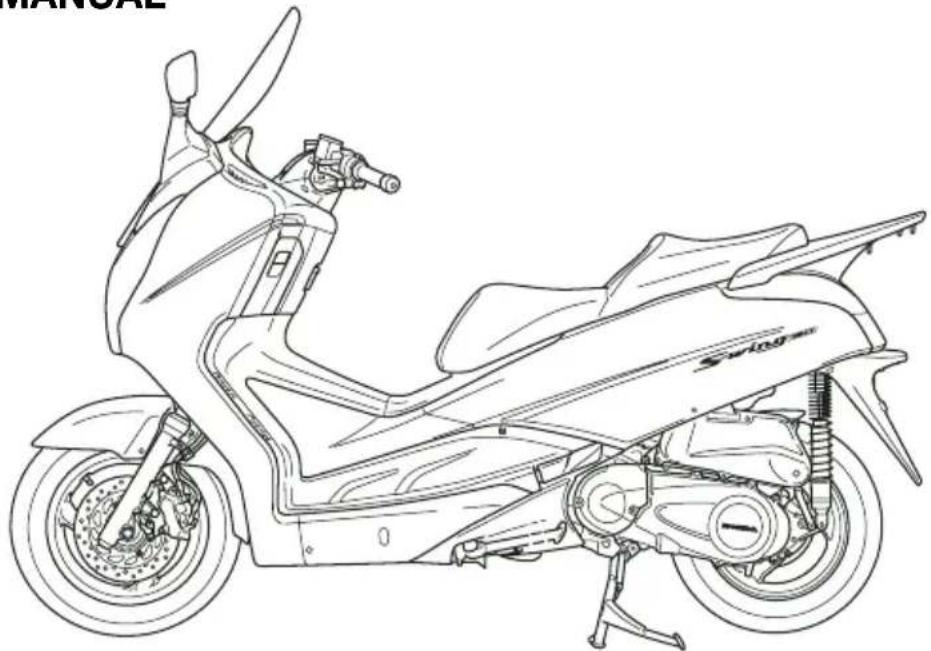

Honda FES125/A - FES150/A OWNER'S MANUAL
WELCOME
The scooter presents you a challenge to master the machine, a challenge to adventure. You ride through the wind, linked to the road by a vehicle that responds to your commands as no other does. Unlike an automobile, there is no metal cage around you. Like an airplane, a pre-ride inspection and regular maintenance are essential to your safety. Your reward is freedom.
To meet the challenges safely, and to enjoy the adventure fully, you should become thoroughly familiar with this owner's manual BEFORE YOU RIDE THE SCOOTER.
As you read this manual, you will find information that is preceded by a NOTICE symbol. This information is intended to help you avoid damage to your scooter, other property, or the environment.
When servicing is required, remember that your Honda dealer knows your scooter best. If you have the required mechanical “know-how” and tools, your dealer can supply you with an Official Honda Service Manual to help you perform many maintenance and repair tasks.
Pleasant riding, and thank you for choosing a Honda!
- Following codes in this manual indicate each country.
| FES125/125A/150/150A | |
| ED European direct sales | |
| F France,Belgium | |
| E | UK |
| IIED European direct sales | |
| IIF France,Belgium | |
| IIIE UK | |
- The specifications may vary with each location.
A FEW WORDS ABOUT SAFETY
Your safety, and the safety of others, is very important and operating this scooter safely is an important responsibility.
To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.
Of course, it is not practical or possible to warn you about all hazards associated with operating or maintaining a scooter. You must use your own good judgement.
You will find important safety information in a variety of forms, including:
- Safety Labels - on the scooter.
- Safety Messages - preceded by a safety alert symbol ⚠ and one of three signal words: DANGER, WARNING, or CAUTION.
These signal words mean:
⚠️ DANGER You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.
⚠ WARNING You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.
CAUTION You CAN be HURT if you don't follow instructions.
- Safety Headings - such as Important Safety Reminders or Important Safety Precautions.
- Safety Section - such as Scooter Safety.
- Instructions - how to use this scooter correctly and safely.
This entire manual is filled with important safety information – please read it carefully.
OPERATION
Page
1 SCOOTER SAFETY
1 Important safety information
2 Protective apparel
5 Load limits and guidelines
10 PARTS LOCATION
13 Instruments and indicators
29 MAJOR COMPONENTS
(Information you need to operate this scooter)
29 Suspension
30 Brakes

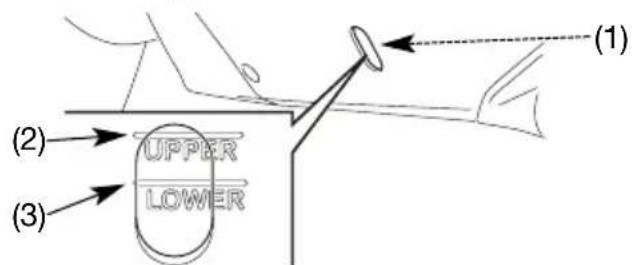

35 Coolant
37 Fuel
41 Engine oil

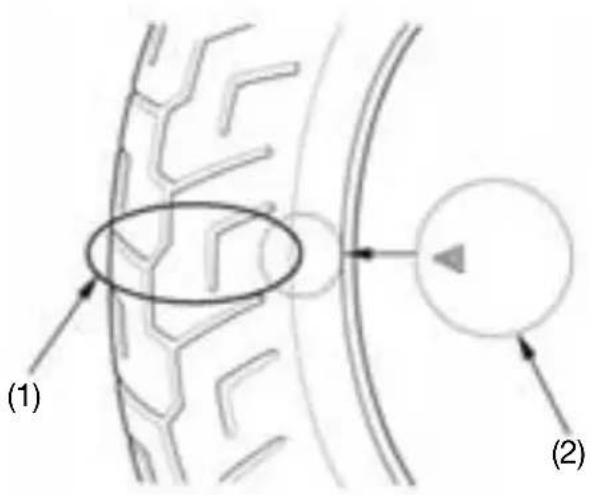

42 Tubeless tyres
48 ESSENTIAL INDIVIDUAL COMPONENTS

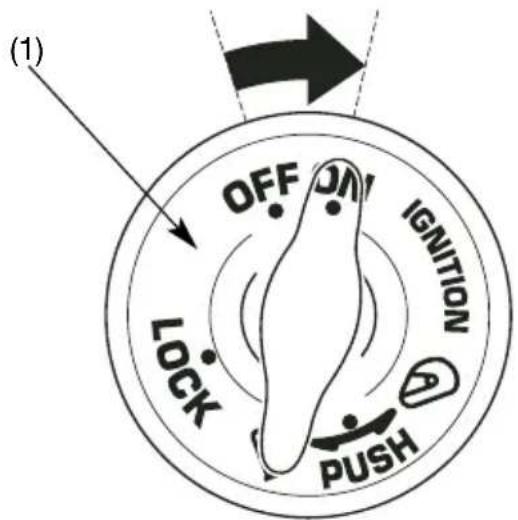

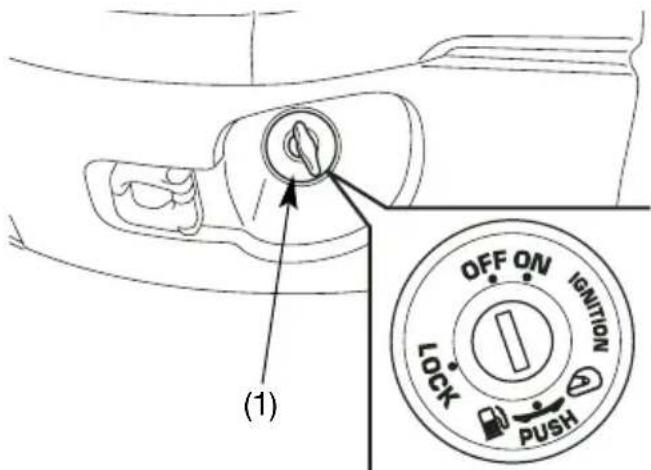

48 Ignition switch

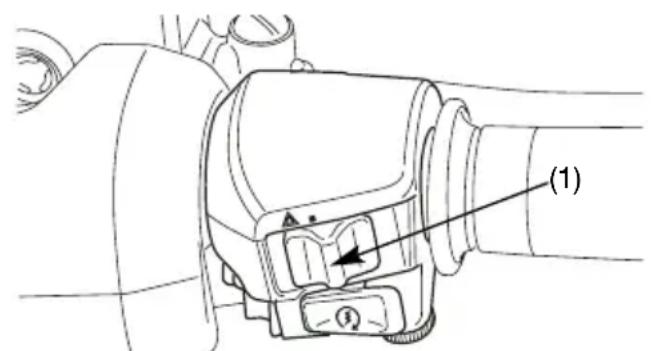

49 Right handlebar controls
51 Left handlebar controls
Page
52 FEATURES
(Not required for operation)

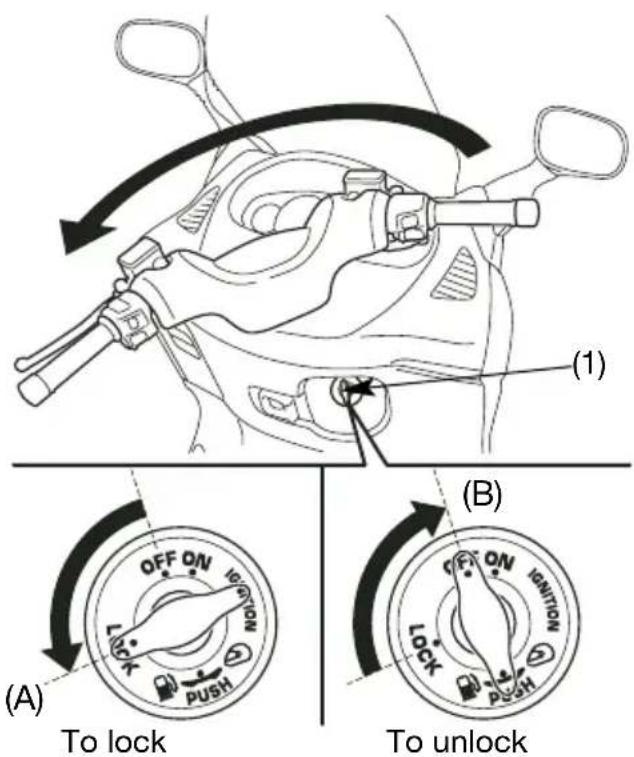

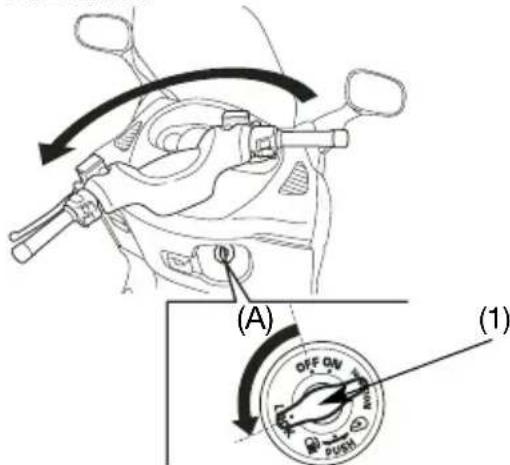

52 Steering lock
53 Seat lock
54 Helmet holder

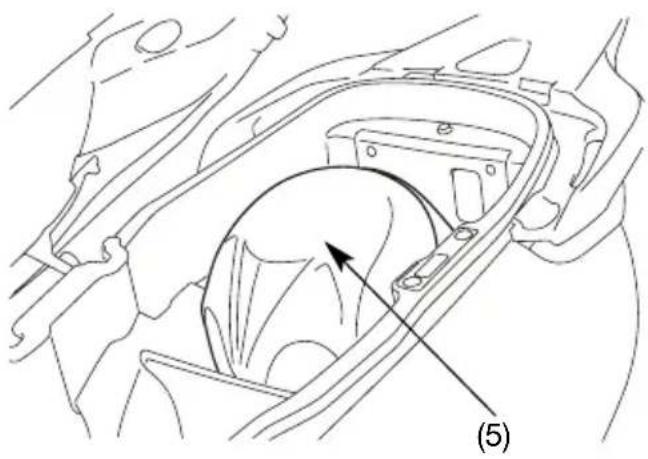

55 Center compartment
57 Document compartment

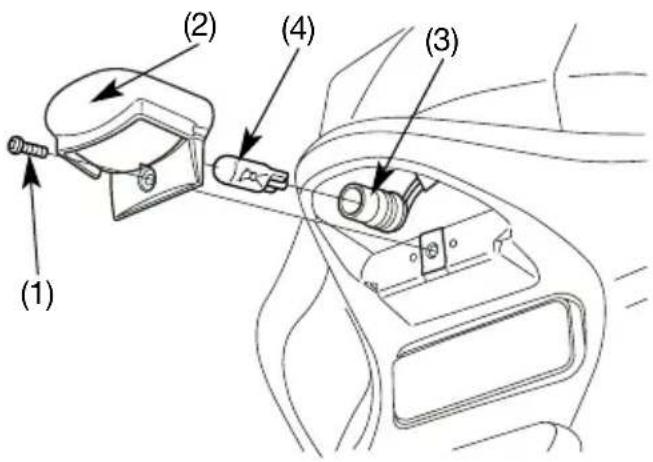

57 Trunk light

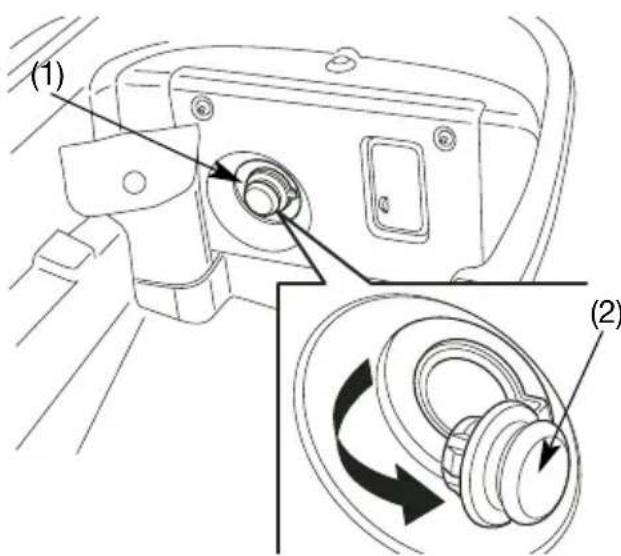

58 Accessory socket
59 Left compartment

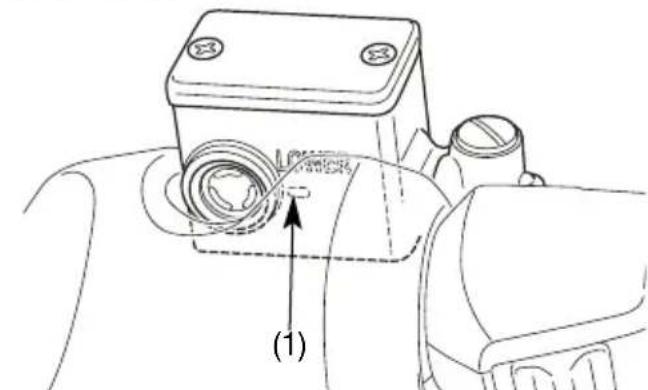

60 Shopping hook

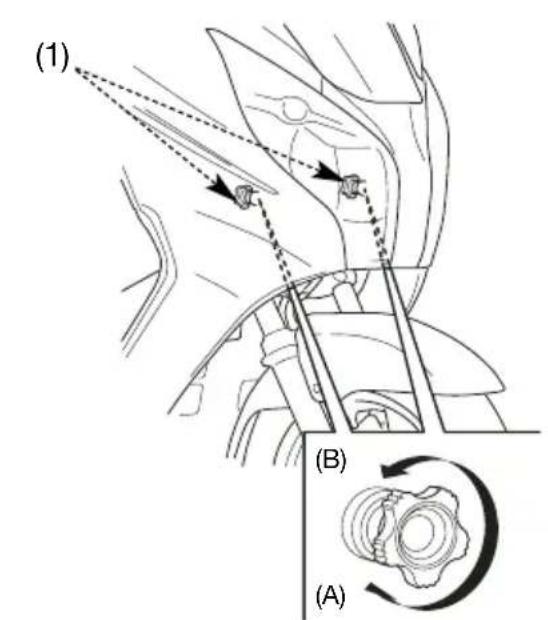

61 Headlight aim vertical adjustment
62 OPERATION
62 Pre-ride inspection
64 Starting the engine
68 Running-in

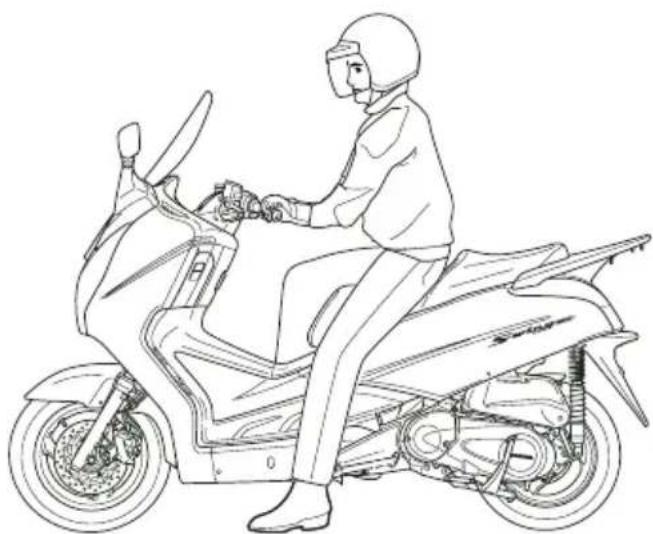

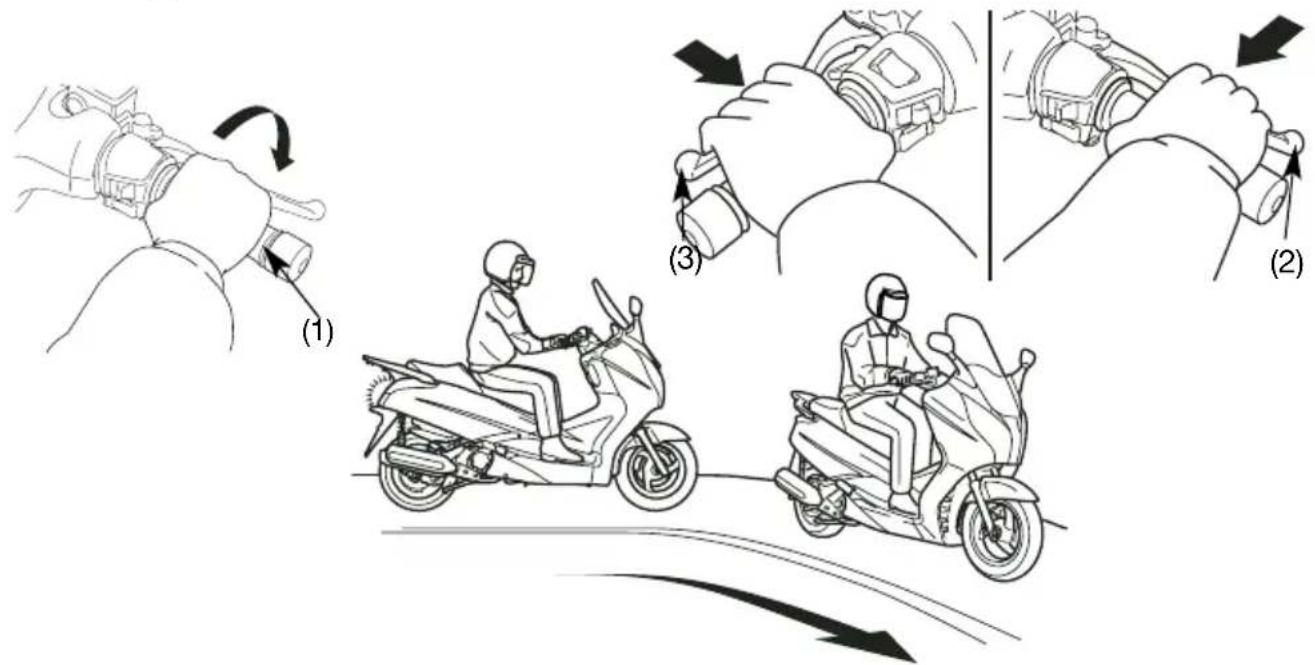

69 Riding

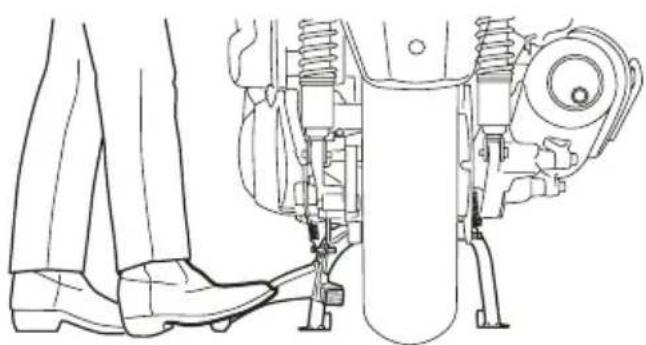

76 Parking
77 Anti-theft tips
MAINTENANCE
Page
78 MAINTENANCE
78 The importance of Maintenance
79 Maintenance safety
80 Safety precautions
81 Maintenance schedule

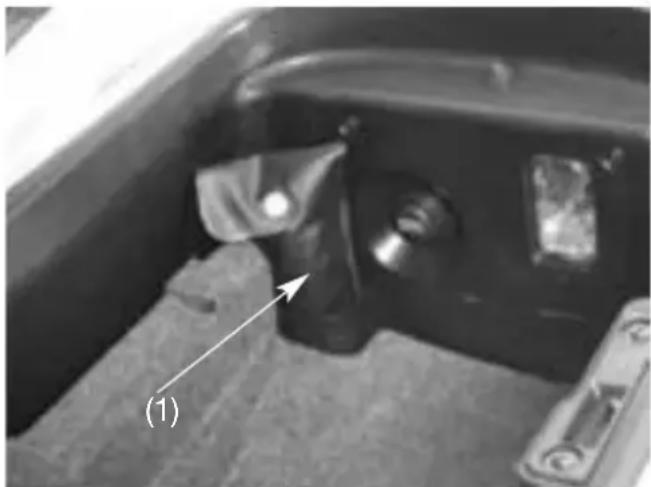

84 Tool kit
85 Serial numbers
86 Colour label
87 Air cleaner

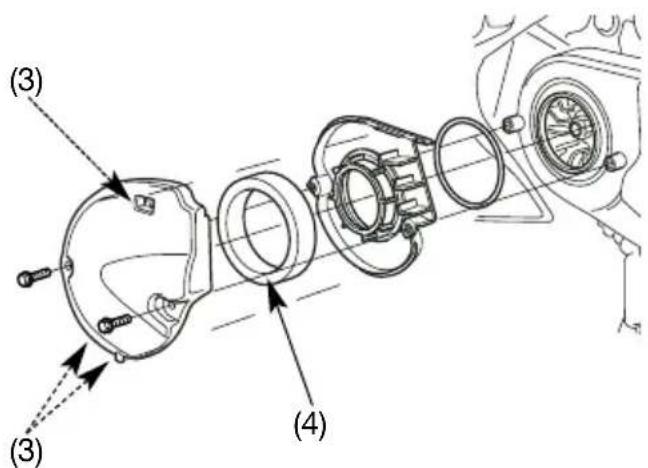

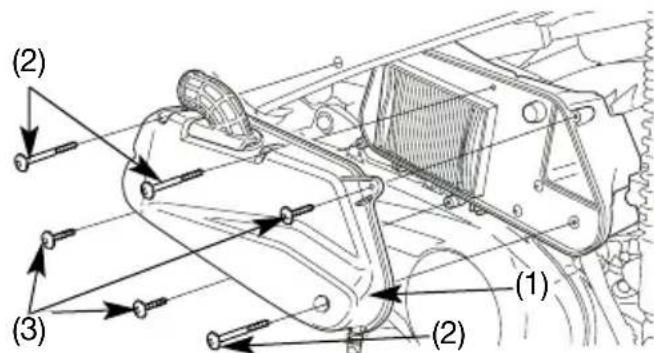

88 Belt case air cleaner

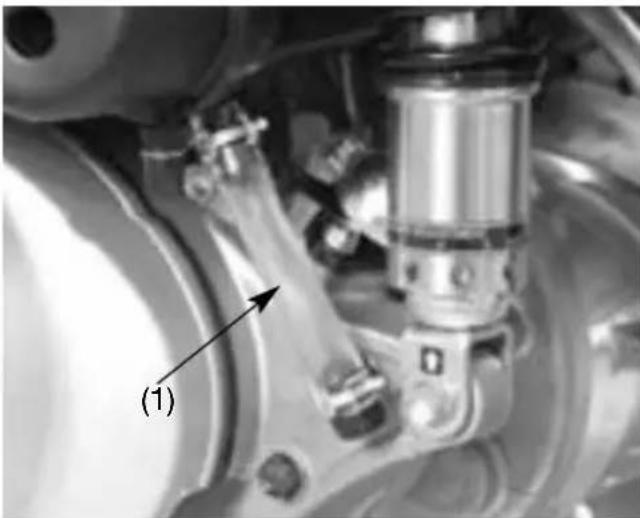

90 Crankcase breather

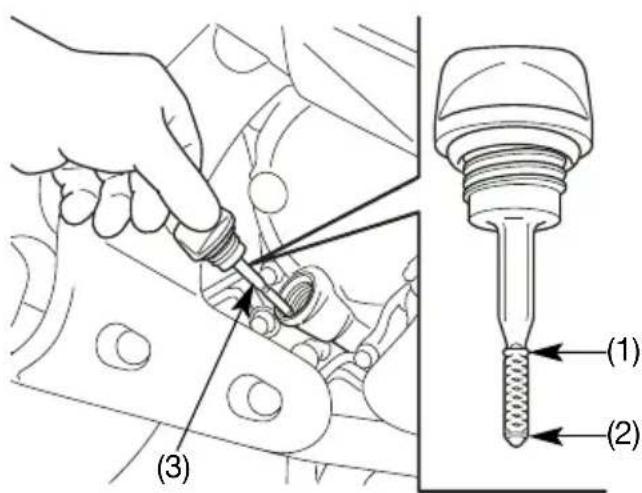

91 Engine oil
93 Engine oil / Oil strainer screen
96 Spark plug

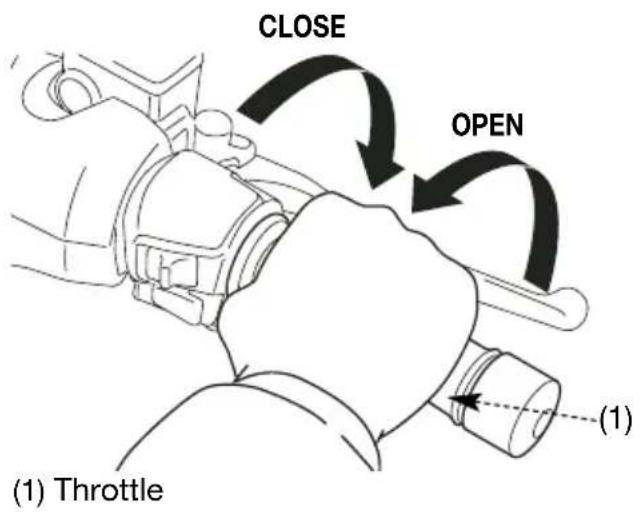

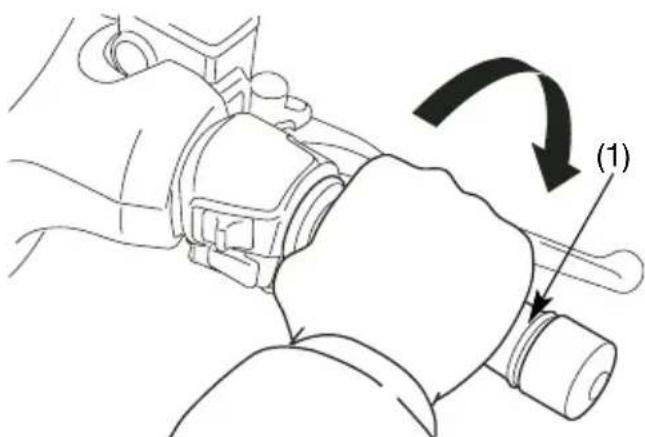

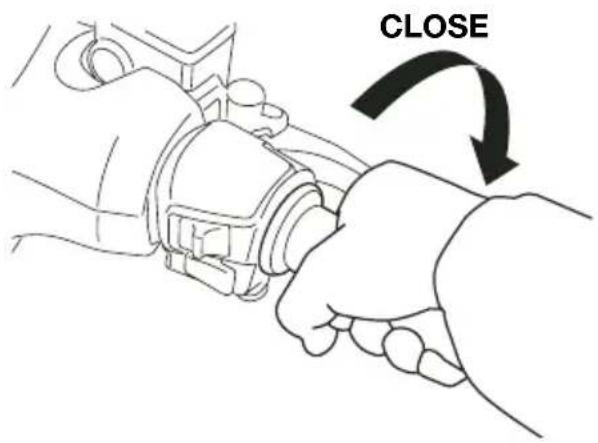

99 Throttle operation
100 Coolant
101 Front and rear suspension inspection
102 Side stand

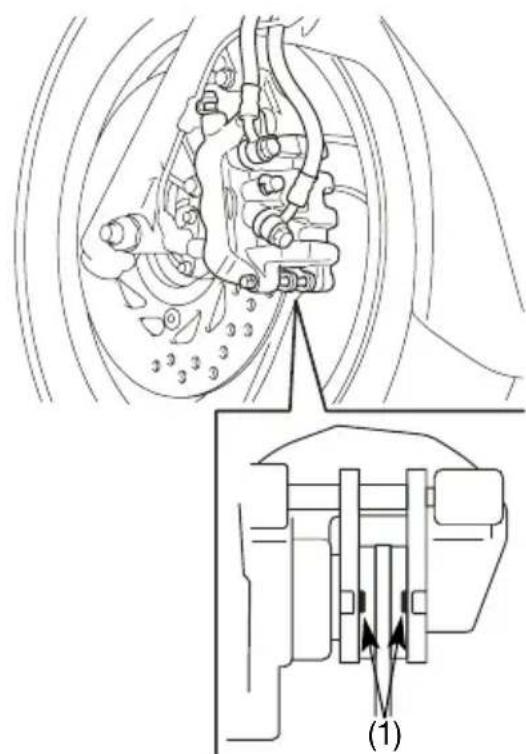

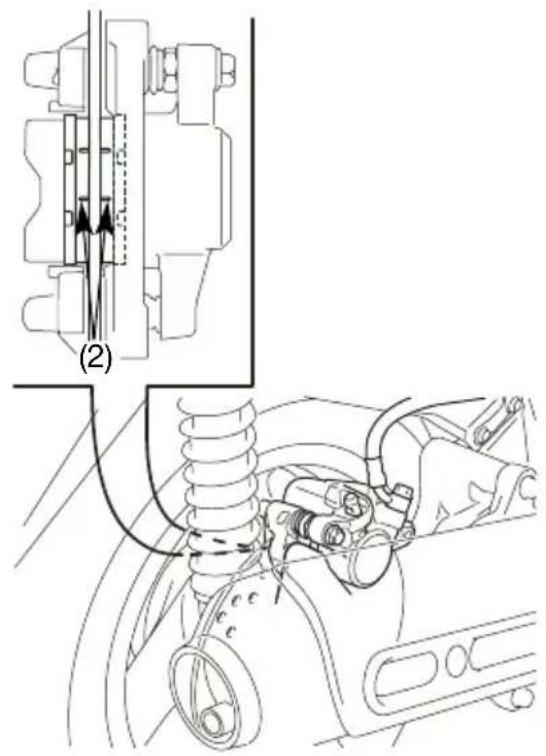

103 Brake pad wear
105 Battery

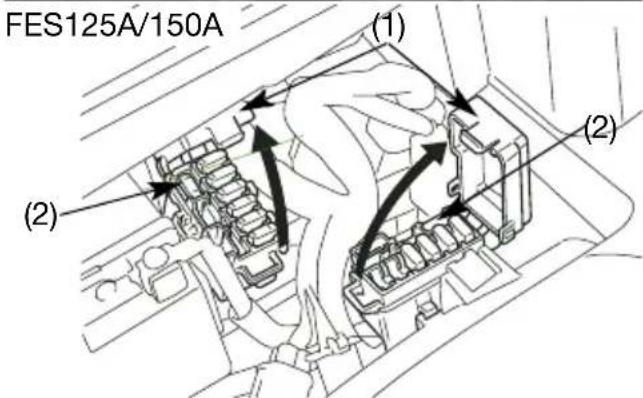

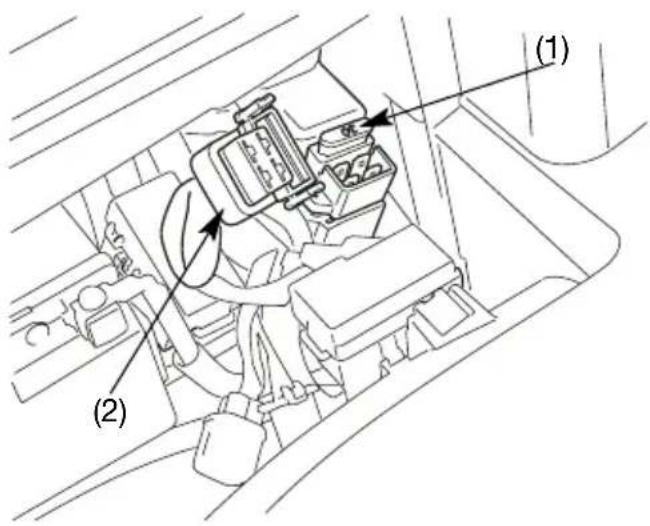

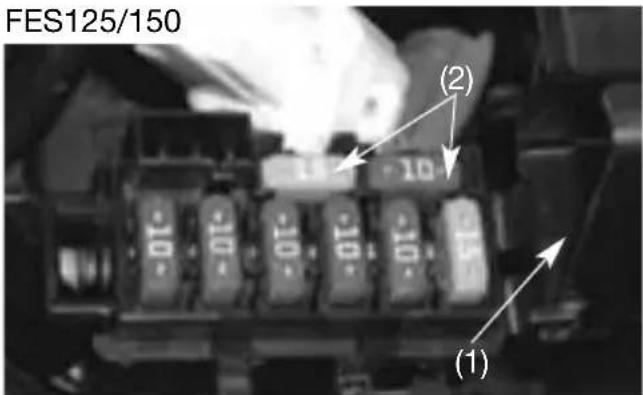

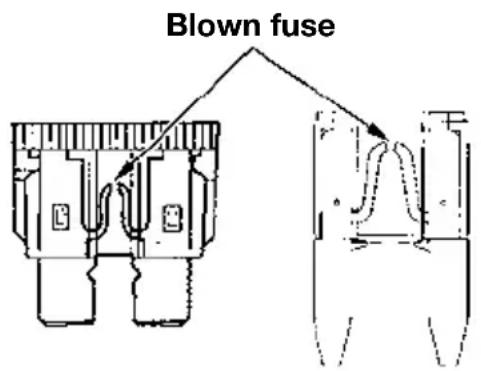

107 Fuse replacement

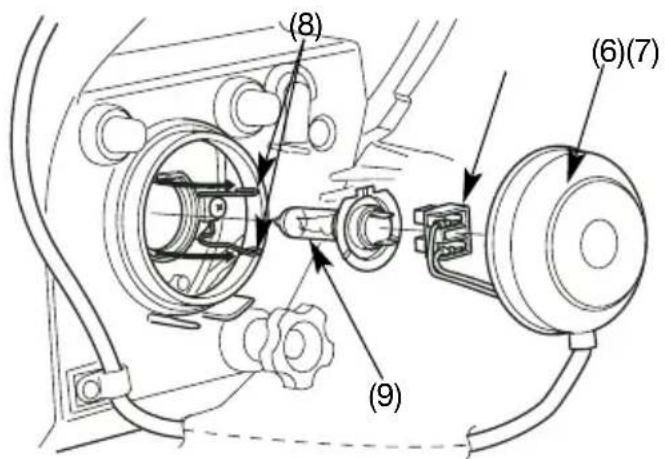

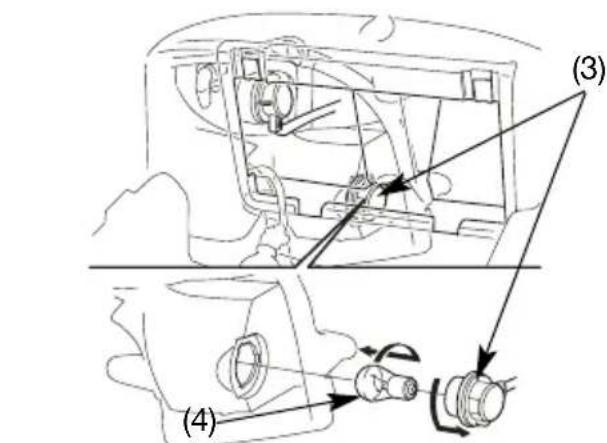

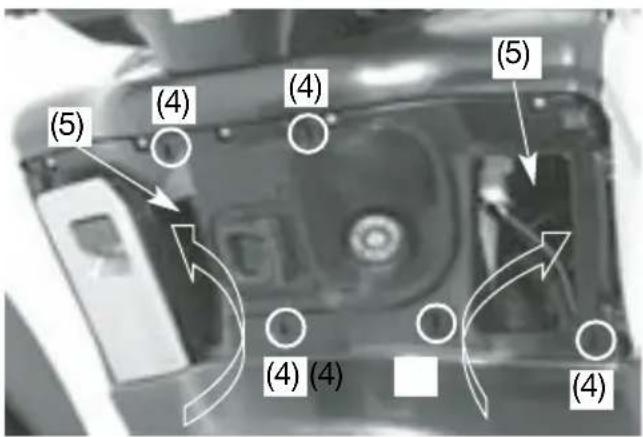

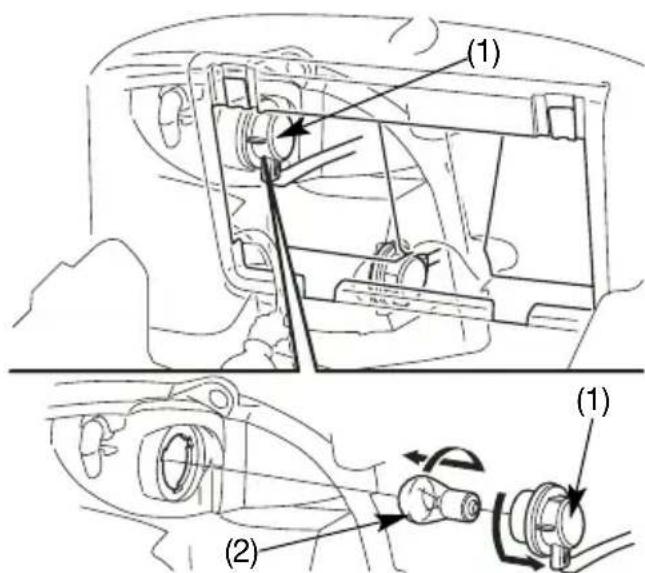

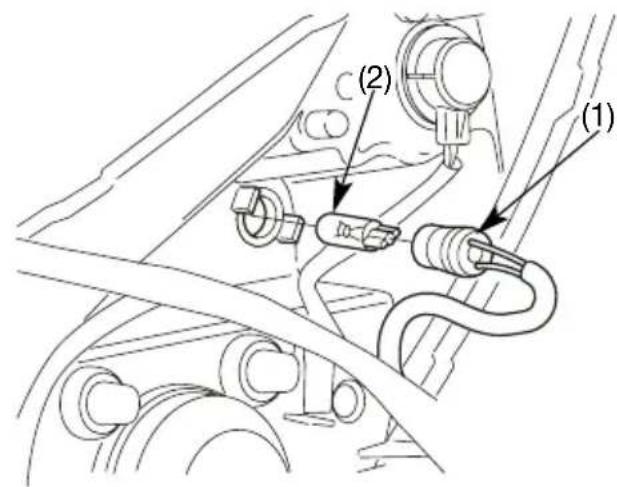

110 Bulb replacement
Page
118 CLEANING
122 STORAGE
122 Storage
124 Removal from storage
125 SPECIFICATIONS
129 CATALYTIC CONVERTER
SCOOTER SAFETY
IMPORTANT SAFETY INFORMATION
Your scooter can provide many years of service and pleasure – if you take responsibility for your own safety and understand the challenges that you can meet on the road.
There is much that you can do to protect yourself when you ride. You'll find many helpful recommendations throughout this manual. The following are a few that we consider most important.
Always Wear a Helmet
It's a proven fact: Helmets significantly reduce the number and severity of head injuries. So always wear an approved motorcycle helmet and make sure your passenger does the same.
We also recommend that you wear eye protection, sturdy boots, gloves and other protective gear (page 2).
Make Yourself Easy to See
Some drivers do not see scooters because they are not looking for them. To make yourself more visible, wear bright reflective clothing, position yourself so other drivers can see you, signal before turning or changing lanes, and use your horn when it will help others notice you.
Ride Within Your Limits
Pushing the limits is another major cause of scooter accidents. Never ride beyond your personal abilities or faster than conditions warrant. Remember that alcohol, drugs, fatigue and inattention can significantly reduce your ability to make good judgements and ride safely.
Don't Drink and Ride
Alcohol and riding don't mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don't drink and ride, and don't let your friends drink and ride either.
Keep Your Bike in Safe Conditions
For safe riding, it's important to inspect your scooter before every ride and perform all recommended maintenance. Never exceed load limits and only use accessories that have been approved by Honda for this scooter.
See page 5 for more details.
PROTECTIVE APPAREL
For your safety, we strongly recommend that you always wear an approved motorcycle helmet, eye protection, boots, gloves, long pants and a long-sleeved shirt or jacket whenever you ride. Although complete protection is not possible, wearing proper gear can reduce the chance of injury when you ride.
Following are suggestions to help you choose proper gear.
WARNING
Not wearing a helmet increases the chance of serious injury or death in a crash.
Be sure you and your passenger always wear a helmet, eye protection and other protective apparel when you ride.
Helmets and Eye Protection
Your helmet is your most important piece of riding gear because it offers the best protection against head injuries. A helmet should fit your head comfortably and securely. A bright-coloured helmet can make you more noticeable in traffic, as can reflective strips.
An open-face helmet offers some protection, but a full-face helmet offers more. Always wear a face shield or goggles to protect your eyes and help your vision.
Additional Riding Gear
In addition to a helmet and eye protection, we also recommend:
- Sturdy boots with non-slip soles to help protect your feet and ankles.
- Leather gloves to keep your hands warm and help prevent blisters, cuts, burns and bruises.
- A motorcycle riding suit or jacket for comfort as well as protection. Bright-coloured and reflective clothing can help make you more noticeable in traffic. Be sure to avoid loose clothes that could get caught on any part of your scooter.

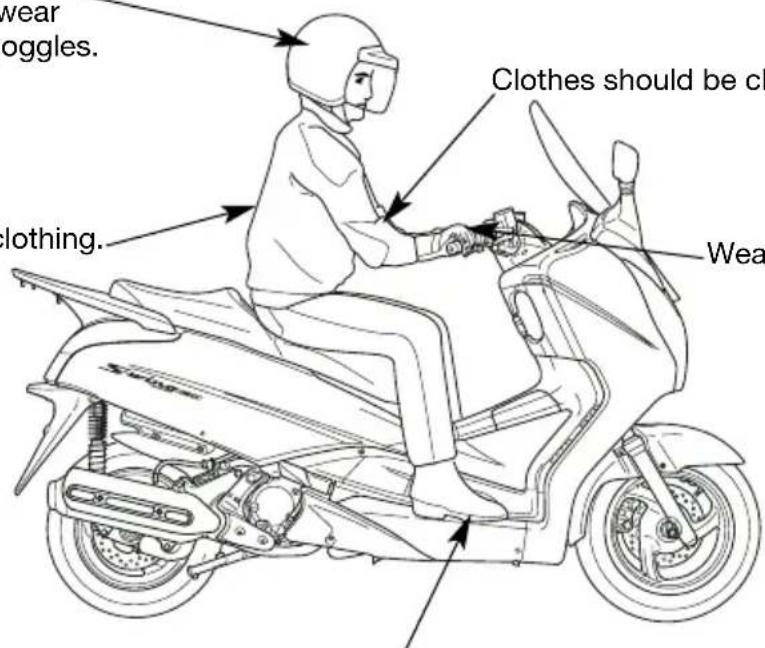

ALWAYS wear a helmet. You should also wear a face shield or goggles.
Wear bright or reflective clothing.
Shoes should be close-fitting, have low heels and offer ankle protection.
LOAD LIMITS AND GUIDELINES
Your scooter has been designed to carry you, one passenger and a limited amount of cargo. When you add cargo or carry a passenger, you may feel some difference during acceleration and braking. But so long as you keep your scooter well-maintained, with good tyres and brakes, you can safely carry loads within the given limits and guidelines.
However, exceeding the weight limit or carrying an unbalanced load can seriously affect your scooter's handling, braking and stability. Non-Honda accessories, improper modifications, and poor maintenance can also reduce your safety margin.
The following pages give more specific information on loading, accessories and modifications.
Loading
How much weight you put on your scooter and how you load it, are important to your safety. Anytime you ride with a passenger or cargo you should be aware of the following information.
WARNING
Overloading or improper loading can cause a crash and you can be seriously hurt or killed.
Follow all load limits and other loading guidelines in this manual.
Load limits
Following are the load limits for your scooter:
Maximum weight capacity:
180 kg (397 lbs)
Includes the weight of the rider, passenger, all cargo and all accessories.
Maximum cargo weight:
19 kg (42 lbs)
The weight of added accessories will reduce the maximum cargo weight you can carry.
Putting too much weight in individual storage compartments can also affect stability and handling. So be sure to stay within the limits given below:

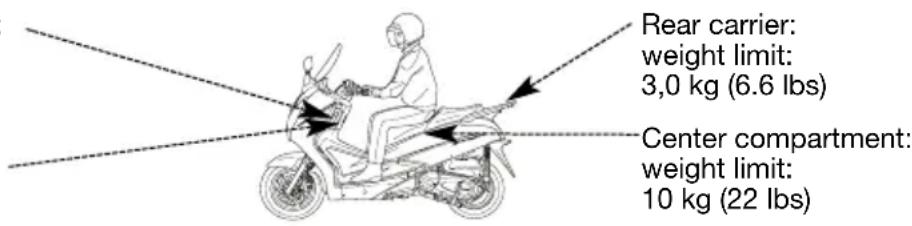

Maximum weight:

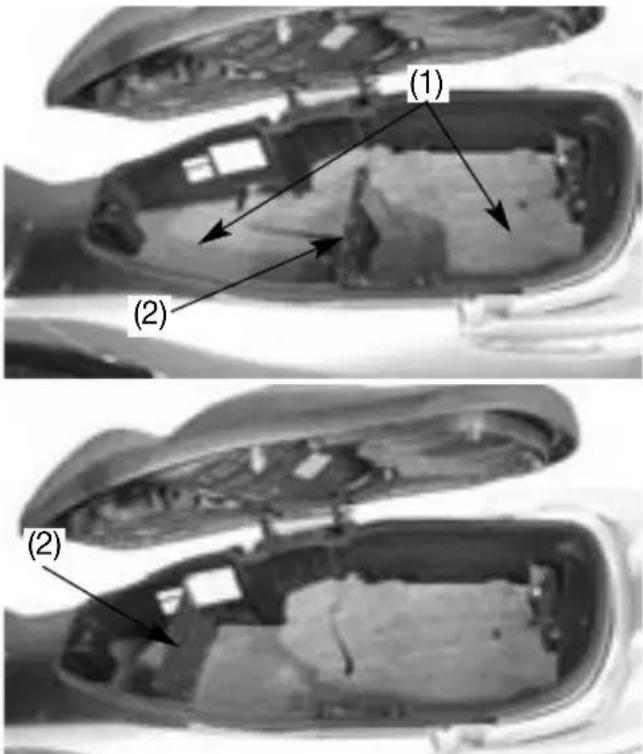

in center compartment 10 kg (22 lbs)
in left compartment 0,5 kg (1.0 lbs)
shopping hook 1,5 kg (3.0 lbs)
rear carrier 3,0 kg (6.6 lbs)

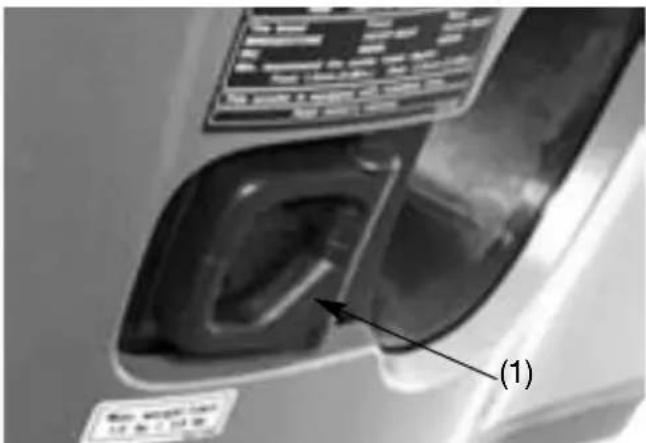

Left compartment: weight limit: 0,5 kg (1.0 lbs)
Shopping hook: weight limit: 1,5 kg (3.0 lbs)
Loading Guidelines
Your scooter is primarily intended for transporting you and a passenger.
If you wish to carry more cargo, check with your Honda dealer for advice and be sure to read the information regarding accessories on page 8.
Improperly loading your scooter can affect its stability and handling. Even if your scooter is properly loaded, you should ride at reduced speeds whenever carrying cargo.
Follow these guidelines whenever you carry a passenger or cargo:
- Check that both tyres are properly inflated.

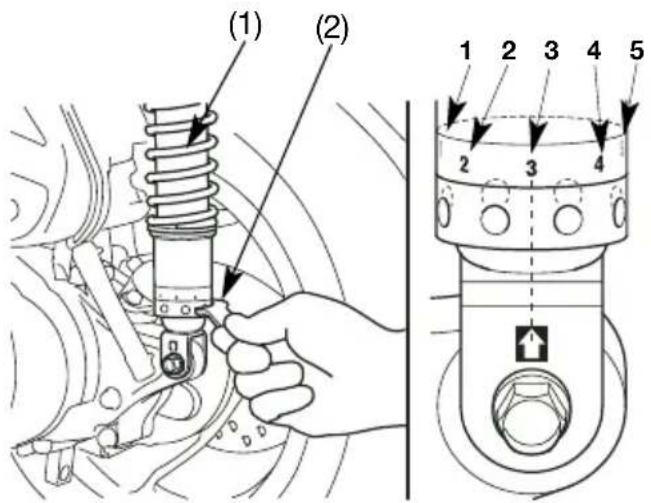

- If you change your normal load, you may need to adjust the rear suspension (see page 29).
- To prevent loose items from creating a hazard, make sure the left compartment and the center compartment are closed and that any other cargo is securely tied down before you ride away.
- Place cargo weight as close to the center of the scooter as possible.
• Balance cargo weight evenly on both sides.
Accessories and modifications
Modifying your scooter or using non-Honda accessories can make your scooter unsafe. Before you consider making any modifications or adding an accessory, be sure to read the following information.
WARNING
Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.
Follow all instructions in this owner's manual regarding accessories and modifications.
Accessories
We strongly recommend that you use only genuine Honda accessories that have been specifically designed and tested for your scooter. Because Honda cannot test all other accessories, you must be personally responsible for proper selection, installation and use of non-Honda accessories. Check with your dealer for assistance and always follow these guidelines:
- Make sure the accessory does not obscure any lights, reduce ground clearance and banking angle, limit suspension travel or steering travel, alter your riding position or interfere with operating any controls.
- Be sure electrical equipment does not exceed the scooter's electrical system capacity (page 128). A blown fuse can cause a loss of lights or engine power.
- Do not pull a trailer or sidecar with your scooter. This scooter was not designed for these attachments, and their use can seriously impair your scooter's handling.
Modifications
We strongly advise you not to remove any original equipment or modify your scooter in any way that would change its design or operation. Such changes could seriously impair your scooter's handling, stability and braking, making it unsafe to ride.
Removing or modifying your lights, mufflers, emission control system or other equipment can also make your scooter illegal.

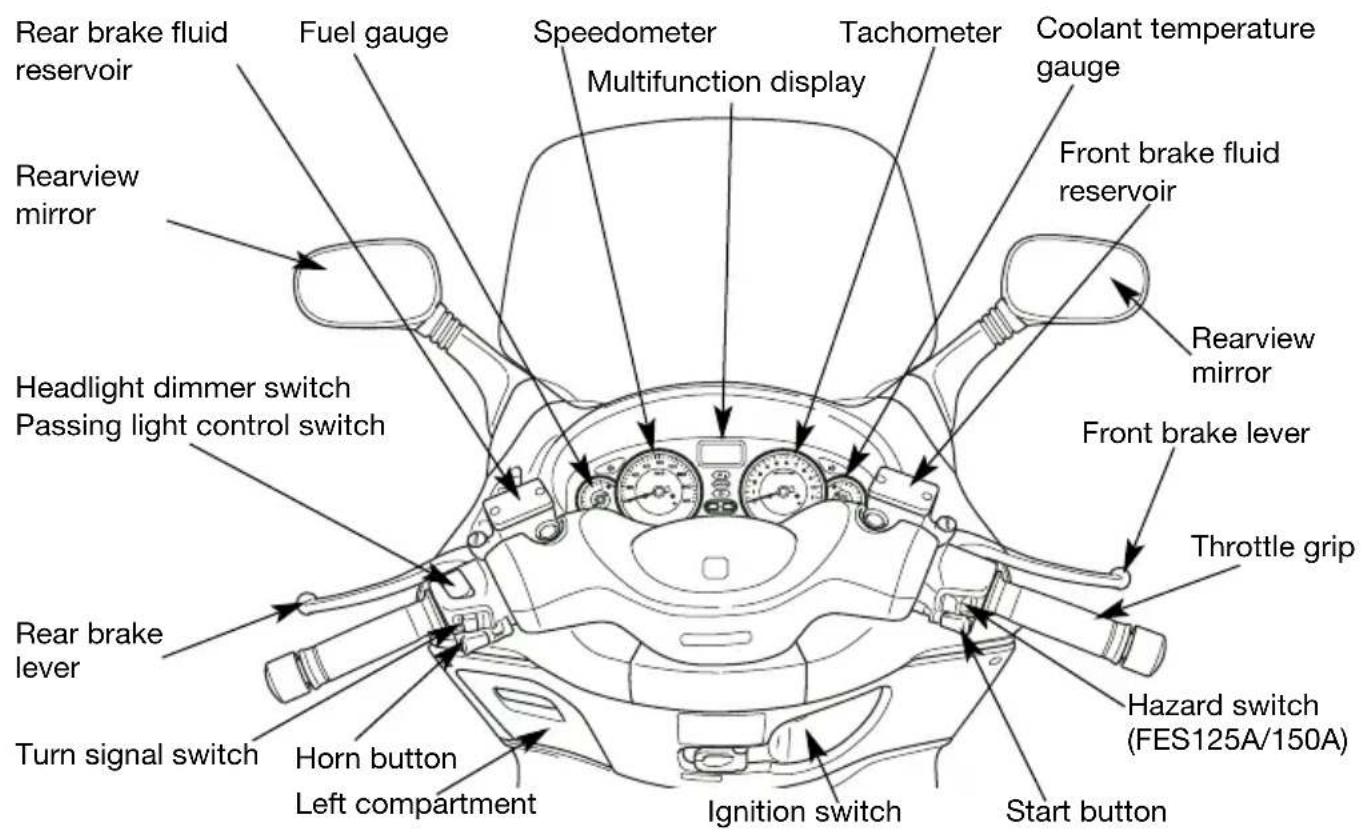

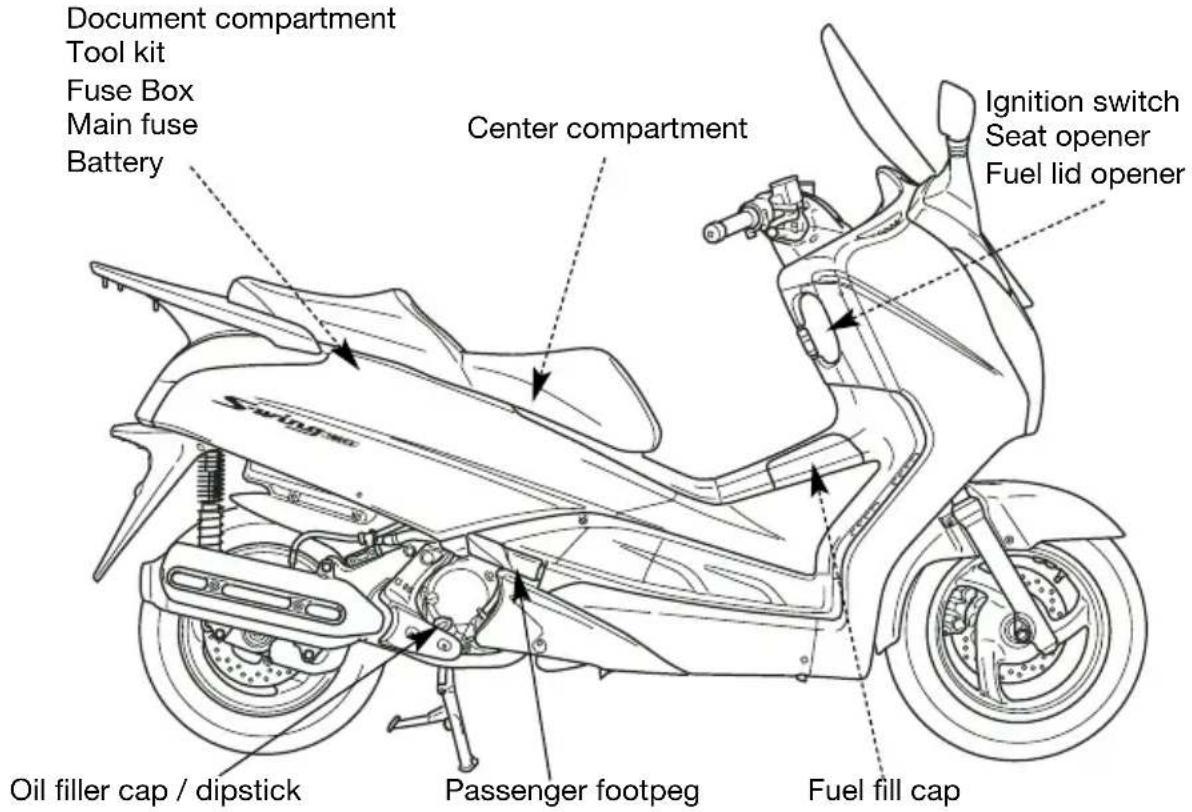

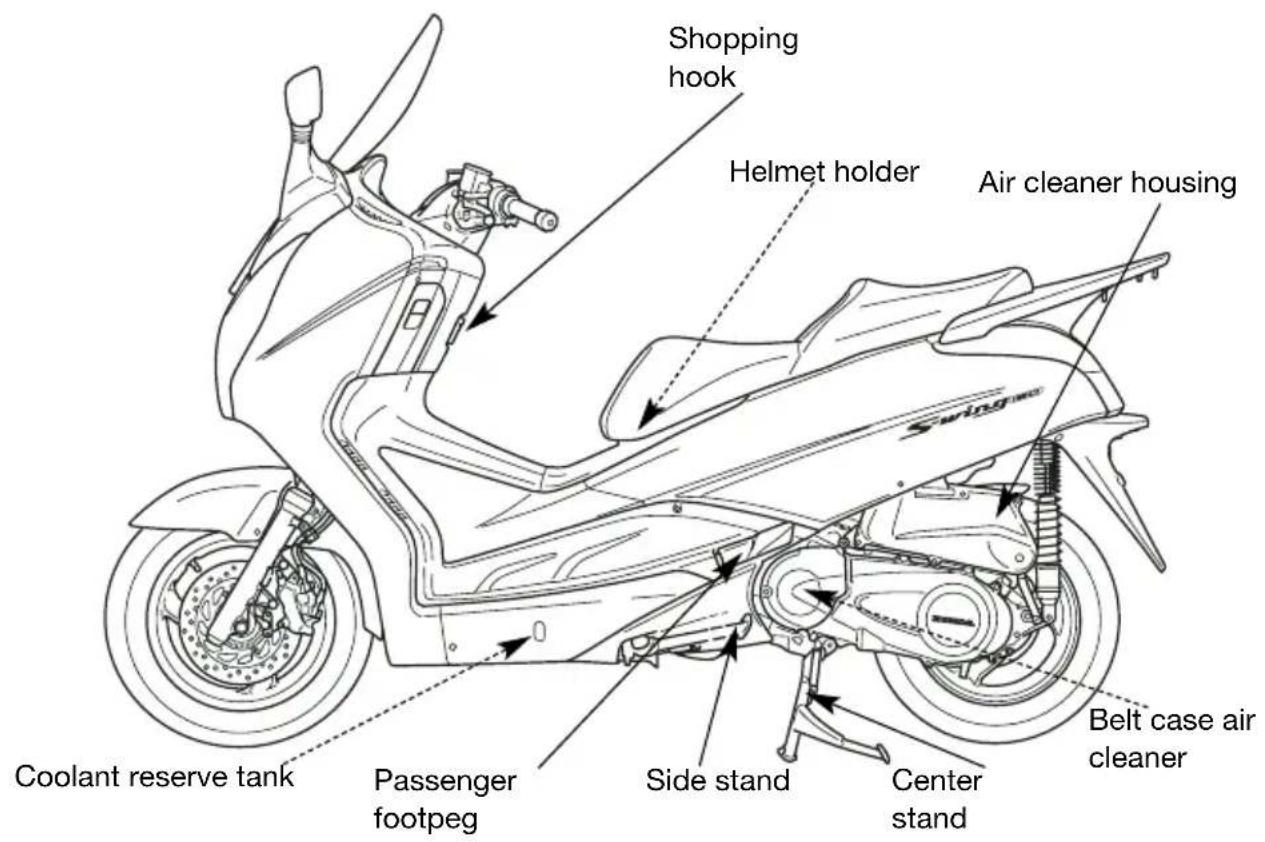

PARTS LOCATION
INSTRUMENTS AND INDICATORS

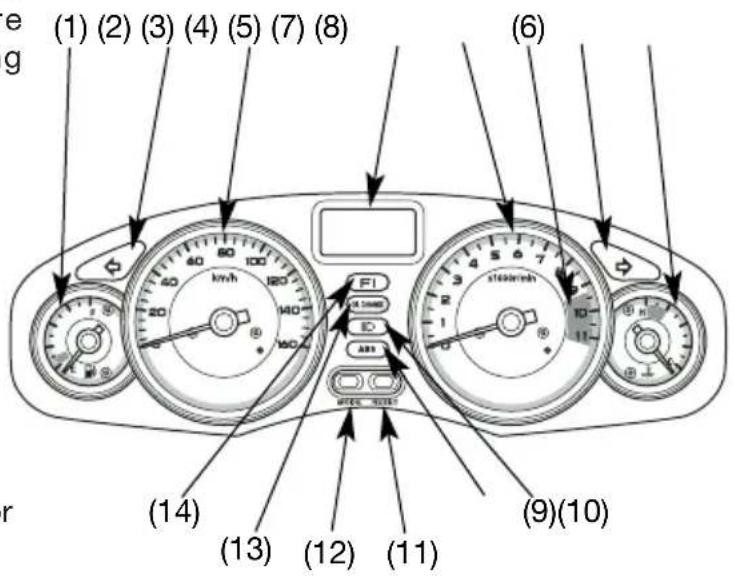

The indicators are contained in the instrument panel. Their functions are described in the tables on the following pages.
(1) Fuel gauge
(2) Left turn signal indicator
(3) Speedometer
(4) Multi-function display
(5) Tachometer
(6) Tachometer red zone
(7) Right turn signal indicator
(8) Coolant temperature gauge
(9) High beam indicator
(10) Anti-lock brake system (ABS) indicator (FES125A/FES150A)
(11) RESET button
(12) MODE button
(13) Oil change indicator
(14) PGM-FI malfunction indicator
| (Ref. No.) Description Function | |
| (1) Fuel gauge Shows approximate fuel supply | y available(page 26).The fuel gauge needle will swing to the maximum scale on the dial once when the ignition switch is turned ON. |
| (2) Left turn signal indicator (green) Flashes when | the left turn signal operates. |
| (3) Speedometer Shows riding speed. This shows | your speed inkilometers per hour (km/h) and/or miles per hour (mph) depending on the type.The speedometer needle will swing to the maximum scale on the dial once when the ignition switch is turned ON. |
| (Ref. No.) Description Function | ||
| (4) Multifunction display The display includes the following functions;This display shows the initial display (page 19). | ||
| Odometer | Shows accumulated mileage (page 21) | |
| Tripmeter A and B | Shows trip mileage (page 21) | |

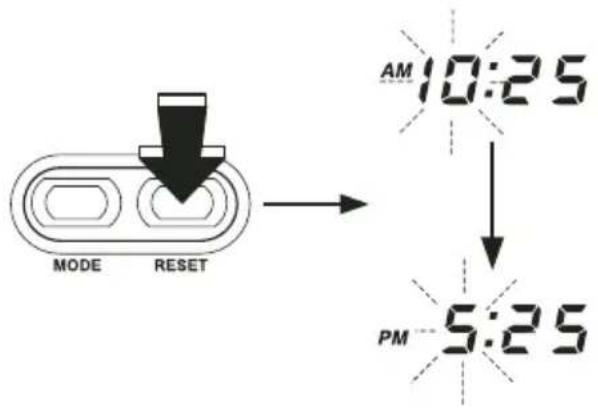

| Digital clock | Shows hours and minutes (page 23) | |
| Fuel consumption meter | Shows current fuel consumption(page 25). | |
| (5) Tachometer Shows engine revolution per minute.The tachometer needle will swing to the maximum scale on the dial once when the ignition switch is turned ON. | ||
| (Ref. No.) Description Function | |
| (6) Tachometer red zone | Never allow the tachometer needle to enter the red zone, even after the engine has broken in.NOTICERunning the engine beyond recommended maximum engine speed (the beginning of the tachometer red zone) can damage the engine. |
| (7) Right turn signal indicator (green) Flashes when the right turn signal operates. | |

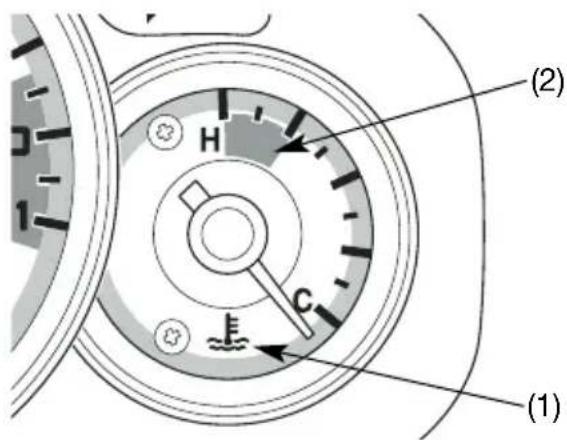

| (8) Coolant temperature gauge Shows coolant temperature (page 27).The coolant temperature gauge needle will swing to the maximum scale on the dial once when the ignition switch is turned ON. | |
| (9) High beam indicator (blue) Lights when the headlight is on high beam. | |
| (10) Anti-lock brake system (ABS) indicator (red)(FES125A/FES150A) | This indicator light normally illuminates when the ignition switch is turned ON and is extinguished when the scooter is ridden at a speed of more than 10 km/h (6 mph).In the event of problems with the ABS system this indicator flashes and remains on (page 31-32). |

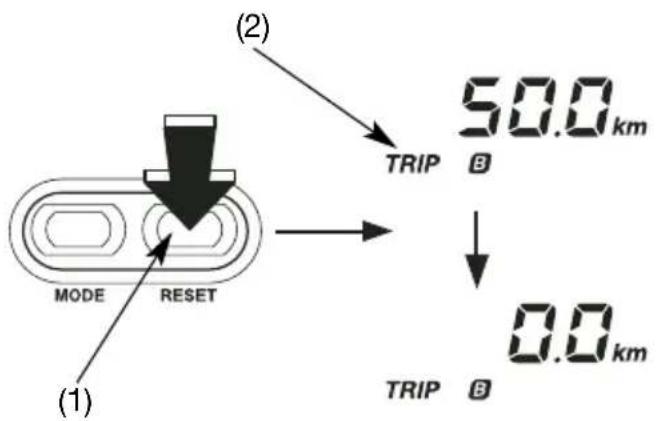

| (11) RESET button | This button is used to reset the tripmeter A or B to zero (page 22).This button is also used to reset the oil change indicator (page 28) and adjust the time (page 23). |
| (12) MODE button | This button is used to select the odometer or the tripmeter A or B (page 21).This button is also used to select the current fuel consumption meter (page 21-25) and to adjust the time (page 23). |
| (13) Oil change indicator (yellow) Lights when specified maintenance interval for engine oil change is reached (page 28). | |
| (14) PGM-FI Malfunction Indicator Lamp (red) | Lights when there is any abnormality in the PGM-FI (Programmed Fuel Injection) system.It should also light for a few seconds and then go off when the ignition switch is turned ON.If it comes on at any other time, reduce speed and take the motorcycle to your Honda dealer as soon as possible. |
Initial display
When the ignition switch is turned ON, the multi-function display (1) will temporarily show all the modes and digital segments so you can make sure the liquid crystal display is functioning properly.

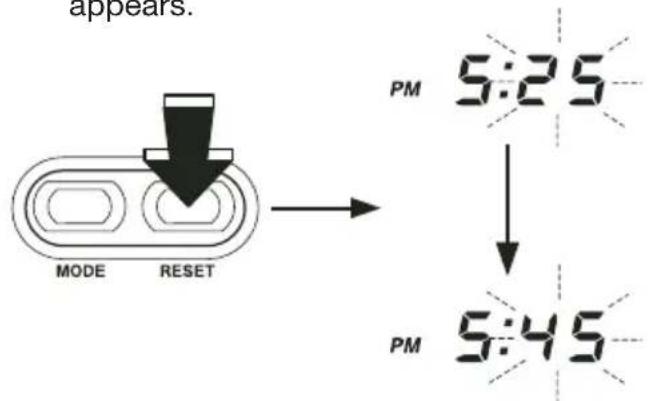

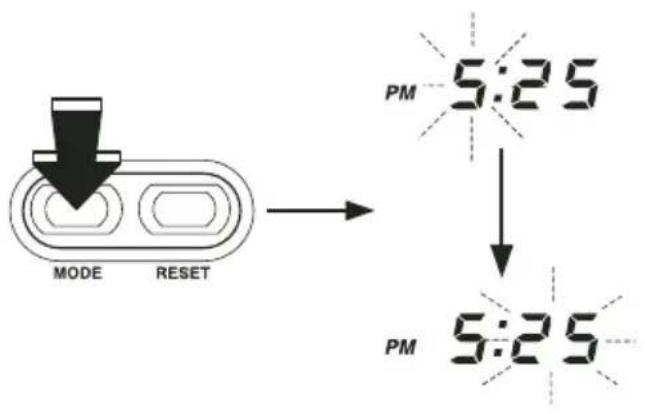

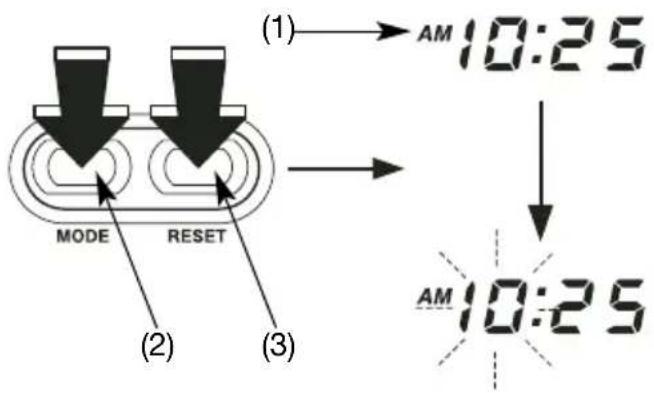

Digital clock (2) and tripmeter (3) will reset if the battery is disconnected.

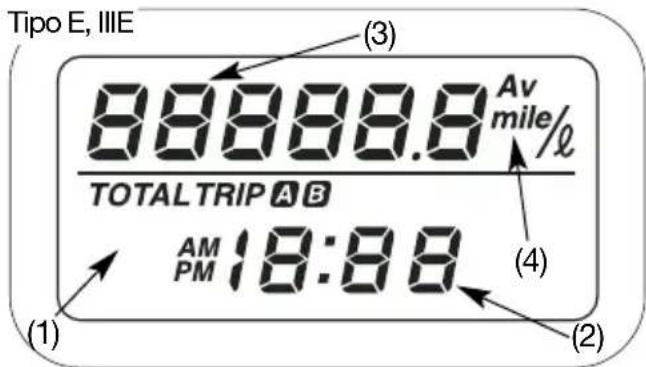

The unit "mile" (4) will be displayed only for E and IIIE type.
(1) Multifunction display
(2) Digital clock
(3) Tripmeter
(4) "mile"

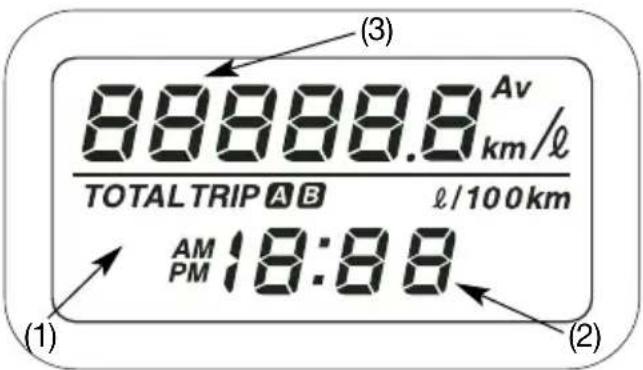

Multifunction Display
Multifunction display (1) includes the following functions:

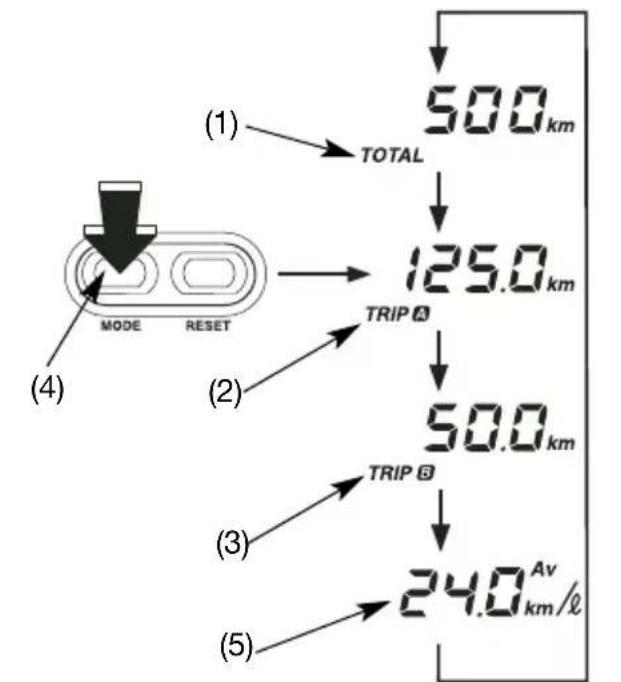

Odometer/Tripmeter (2)
Digital clock (3)

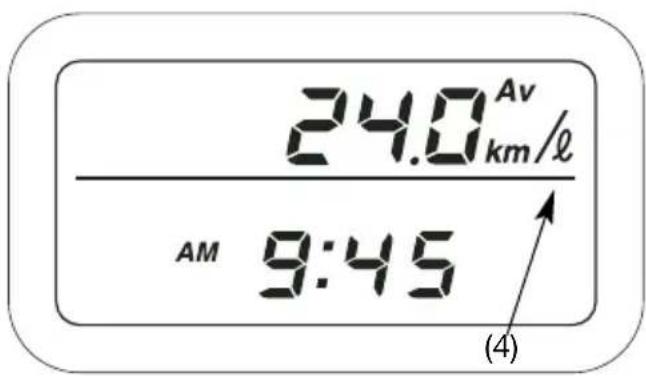

Fuel consumption meter (4) (page 25)

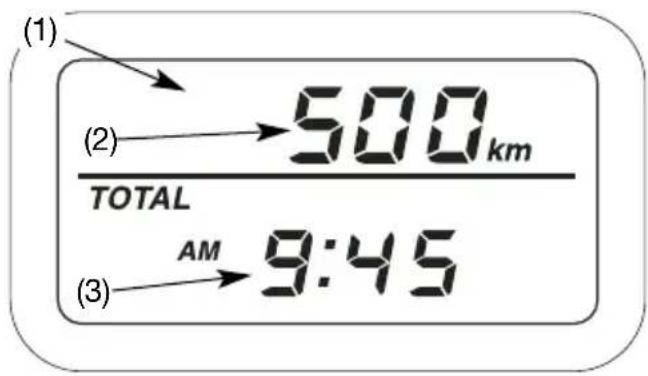

(1) Multifunction display
(2) Odometer/Tripmeter
(3) Digital clock
(4) Fuel consumption meter
Odometer/Tripmeter
The odometer (1) shows accumulated mileage.
Shows mileage per trip.
There are two tripmeters, tripmeter A (2) and tripmeter B (3). Switch between the A and B displays by pressing the Mode button (4) repeatedly.
When you press the button MODE repeatedly, the following functions appear alternately on the display:
- Odometer
- Tripmeter A
- Tripmeter B
- Fuel consumption meter (5) (page 25)
(1) Odometer
(2) Tripmeter A
(3) Tripmeter B
(4) Mode button
(5) Fuel consumption meter
Resetting the tripmeter
To reset the tripmeter, push and hold the RESET button (1) when the display is in the tripmeter A or tripmeter B (2) mode.
(1) RESET button (2) Tripmeter B
Digital Clock (1)
Shows hour and minute. To adjust the time, proceed as follows:
- Turn the ignition switch ON.
- Press and hold the MODE button (2) and RESET button (3) for more than 2 seconds. The clock will be set in the adjust mode with the hour display flashing.
(1) Digital clock
(2) MODE button
(3) RESET button
-
To set the hour, press the RESET button until the desired hour and AM/PM are displayed.
-
The time is advanced by one hour, each time the button is pushed.
- Quick setting - press and hold the RESET button until the desired hour appears.
- Press the MODE button. The minute display will start flashing.
-
To set the minute, press the RESET button until the desired minute. The minute display will return to "00" when "60" is reached without affecting the hour display.
-
The time is advanced by one minute, each time the button is pushed.
- Quick setting - press and hold the RESET button until the desired minute appears.
- To end the adjustment, press the MODE button or turn the ignition switch OFF.
Fuel consumption meter (1)
Shows fuel consumption in the following way:
- In increment of km/l or mile/l (how many km/miles are covered with a liter of fuel).
When the speed is 0 km/h or 0 mph, the display shows “--.-”.
- Push MODE (2) button two seconds, to visualize the consumption in ℓ/100 km (how many liters of fuel are necessary to cover 100 km). (Except type E, IIIE)
Push again MODE (2) button two seconds, to select again the consumption in km/l.
- To reset the fuel consumption meter push and hold RESET (3) button two seconds, when this value is displayed.
- Displayed fuel consumption meter (1) is an instant value, so it is different from a value that is measured after filling up the tank. It may give you an indication of your eco drive.
(1) Fuel consumption meter
(2) MODE button
(3) RESET button
Fuel gauge

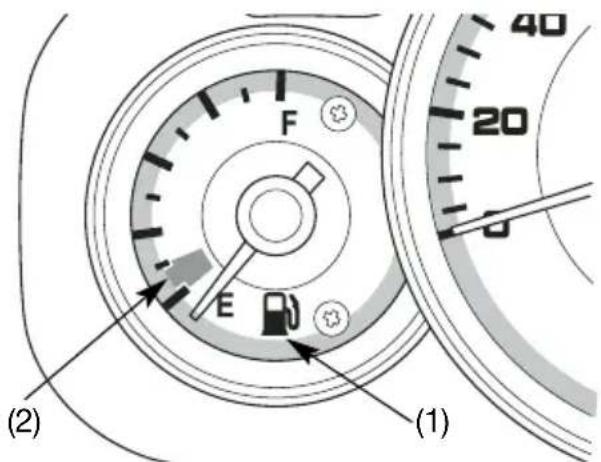

The fuel gauge (1) shows the approximate fuel supply available in a graduated display. When the gauge needle enters the red band (2), fuel will be low and you should refill the tank as soon as possible. The amount of fuel left in the tank, with the vehicle set upright, when the needle enters the red band is approximately:
2.0l
(1) Fuel gauge needle
(2) Red band
Coolant temperature gauge
The coolant temperature gauge (1) shows coolant temperature.
When the needle begins to move above the "C" (Cold) mark, the engine is warm enough for the scooter to be ridden. The normal operating temperature range is within the section between the "H" and "C" marks. If the needle reaches the red band (2), stop the engine and check the reserve tank coolant level.
Read pages 35-36 and do not ride the scooter until the problem has been corrected.
NOTICE
Exceeding maximum running temperature may cause serious engine damage.
(1) Coolant temperature gauge (2) Red band
Oil change indicator
The oil change indicator (1) illuminates when the distance covered by the scooter arrives at the oil change interval specified in the user and maintenance schedule (page 82).
Reset the indicator after every oil change, as follows.
- Press and hold the RESET button (2), then turn ON the ignition switch. Keep the reset button pressed for 3 seconds. The oil change indicator wil go off.
If the oil is changed before the oil change indicator illuminates, remember that the indicator must anyway be reset. In this case, follow the procedure described at point 1, but when you continue to hold down the reset button the oil change indicator will illuminate for 2 seconds and then switch off. This sequence of events means that the indicator has been reset.
The first oil change is at 1000 km (600 miles), but in this case the indicator should not be reset. The indicator will appear after the scooter has covered approximately 4,000 km (2500 miles for the type E). Therefore, after the second engine oil change as prescribed by the maintenance schedule (page 82) remember to reset the oil change indicator.

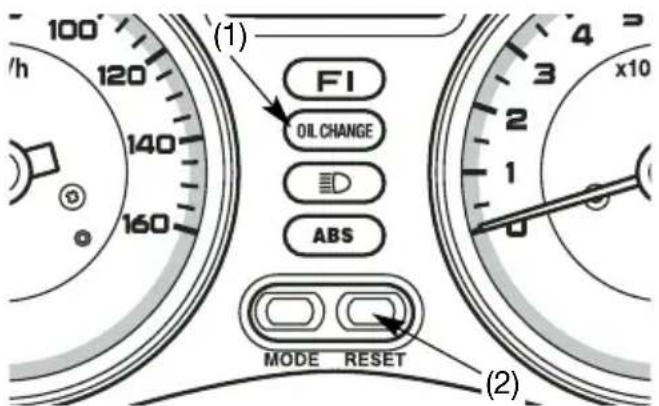

(1) Oil change indicator
(2) RESET button
MAJOR COMPONENTS
(Information you need to operate this scooter)
SUSPENSION
Each shock absorber (1) has 5 adjustment positions for different load or riding conditions.
Use a pin spanner (2) to adjust the rear shock.
Always adjust the shock absorber position in sequence (1-2-3-4-5 or 5-4-3-2-1).
Attempting to adjuste directly from 1 to 5 or 5 to 1 may damage the schock absorber.
Position: 1 to 2 is for light loads and smooth road conditions. Standard position is 3.
Positions 4 to 5 increase spring preload for a stiffer rear suspension, and can be used when the scooter is heavily loaded.
Be certain to adjust both shock absorbers to the same position.
(1) Shock absorber
(2) Pin spanner
BRAKES
Combined Brake System (CBS)
This scooter is equipped with a Combined Brake System. Operating the rear brake lever applies the rear brake and a portion of the front brake. For full braking effectiveness, use both the front and rear brake lever simultaneously, as you would with a conventional scooter braking system.
As with a conventional scooter braking system, excessively hard application of the brake controls may cause wheel lock, reducing control of the scooter.
For normal braking, apply both the front and rear brake lever to match your road speed. For maximum braking, close the throttle and firmly apply the front and rear brake lever.
Anti-lock Brake System (ABS) (FES125A/150A)
This model is also equipped with an Anti-lock Brake System (ABS) designed to help prevent wheel lock up during hard braking on uneven or other poor surfaces while running straight. Although the wheel may not lock up - if you are braking too hard in a turn the scooter can still lose traction, causing a loss of control.
In some situations, a scooter with ABS may require a longer stopping distance to stop on loose or uneven surfaces than an equivalent scooter without ABS.
ABS cannot make up for road conditions, bad judgement, or improper operation of the brakes. It is still your responsibility to ride at reasonable speeds for weather, road surface, and traffic conditions, and to leave a margin of safety.
ABS is self-checking and always on.
- ABS system may be activated by riding over a sharp drop or rise in the road level. It is important to follow the tyre recommendations (page 42). The ABS computer works by comparing wheel speed. Non recommended tyres can affect wheel speed and may confuse the ABS computer.
- ABS does not function at low speeds (approximately 10 km/h (6 mph) or below).
- ABS does not function if the battery is discharged.
ABS Indicator Light (ABS) (FES125A/150A)
Normally, this light comes on when the ignition switch is turned ON and goes off after you ride the scooter at speed above 10 km/h (6 mph). If there is an ABS problem, the indicator light comes on and remains on. The ABS system does not operate when the ABS indicator light is on.
If the ABS indicator light comes on while riding, stop the scooter in a safe place and turn off the engine.
Turn the ignition switch ON again. The light should come on, and go off after you ride the scooter at speeds above 30 km/h (19 mph). If it does not go off, ABS is not functioning, but the brakes still work the Combined Brake System and provide normal stopping ability. However, you should have the system checked by your Honda dealer as soon as possible.
The ABS indicator light may come on if you turn the rear wheel while the scooter is upright on the stand. This is normal. Turn the ignition switch OFF, then turn it ON. The indicator should come on and then go off after you run the scooter above 30 km/h (19 mph).
Inspection
Both the front and rear brakes are the hydraulic disc types.
As the brake pads wear, the brake fluid level drops.
There are no adjustments to perform, but fluid level and pad wear must be inspected periodically. The system must be inspected frequently to ensure there are no fluid leaks. If the control lever free travel becomes excessive, and the brake pads are not worn beyond the recommended limit (page 103-104), there is probably air in the brake system and it must be bled. See your Honda dealer for this service.

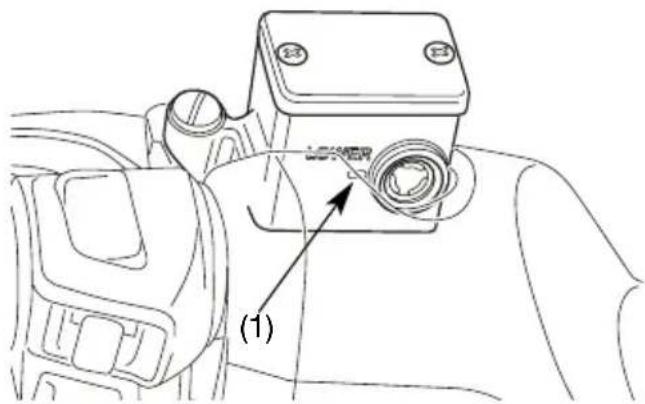

Front Brake Fluid Level
With the scooter in an upright position, check the fluid level. It should be above the LOWER level mark (1). If the level is at or below the LOWER level mark (1), check the brake pads for wear (page 103-104).
Worn pads must be replaced.
If the pads are not worn, have your brake system inspected for leaks.
The recommended brake fluid is Honda DOT 4 brake fluid from a sealed container, or an equivalent.
Front brake
(1) LOWER level mark
Rear Brake Fluid Level
With the scooter in an upright position, check the fluid level. It should be above the LOWER level mark (1). If the level is at or below the LOWER level mark (1), check the brake pads for wear (page 103-104).
Worn pads must be replaced.
If the pads are not worn, have your brake system inspected for leaks.
The recommended brake fluid is Honda DOT 4 brake fluid from a sealed container, or an equivalent.
Other checks:
Make sure there are no fluid leaks. Check for deterioration or cracks in the hoses and fittings.
Rear brake
(1) LOWER level mark
COOLANT
Coolant recommendation
The owner must properly maintain the coolant to prevent freezing, overheating and corrosion. Use only high quality ethylene glycol antifreeze containing corrosion protection inhibitors specifically recommended for use in aluminum engines. (SEE ANTIFREEZE CONTAINER LABEL).
Use only low-mineral drinking water or distilled water as a part of the antifreeze solution. Water that is high in mineral content or salt may be harmful to the aluminum engine.
Using coolant with silicate inhibitors may cause premature wear of water pump seals or blockage of radiator passages.
Using tap water may cause engine damage.
The factory provides a 50/50 solution of antifreeze and distilled water in this scooter. This coolant solution is recommended for most operating temperatures and provides good corrosion protection. A higher concentration of antifreeze decreases the cooling system performance and is recommended only when additional protection against freezing is needed. A concentration of less than 40/60 (40% antifreeze) will not provide proper corrosion protection. During freezing temperatures, check the cooling system frequently and add higher concentrations of antifreeze (up to a maximum of 60% antifreeze) if required.
Inspection
The reserve tank is under the left side step board.
Check the coolant level in the reserve tank (1) while the engine is at the normal operating temperature with the scooter in an upright position. If the coolant level is below the LOWER level mark (3), pull the rubber floor mat (4) off, remove the coolant box cover (5) and reserve tank (6) and add coolant mixture until it reaches the UPPER level mark (2).
(1) Reserve tank
(2) UPPER level mark
(3) LOWER level mark
Always add coolant to the reserve tank. Do not attempt to add coolant by removing the radiator cap.
If the reserve tank is empty, or if coolant loss is excessive, check for leaks and see your Honda dealer for repair.

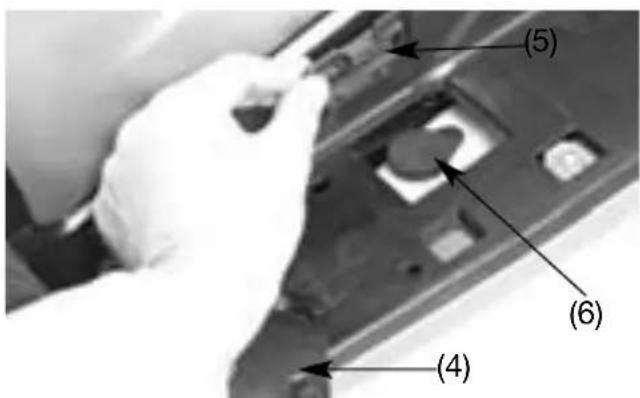

(4) Rubber floor mat
(5) Coolant box cover
(6) Reserve tank cap
FUEL Fuel tank
The fuel tank is located above the step board. The fuel tank capacity including the reserve supply is: 9.4 ℓ

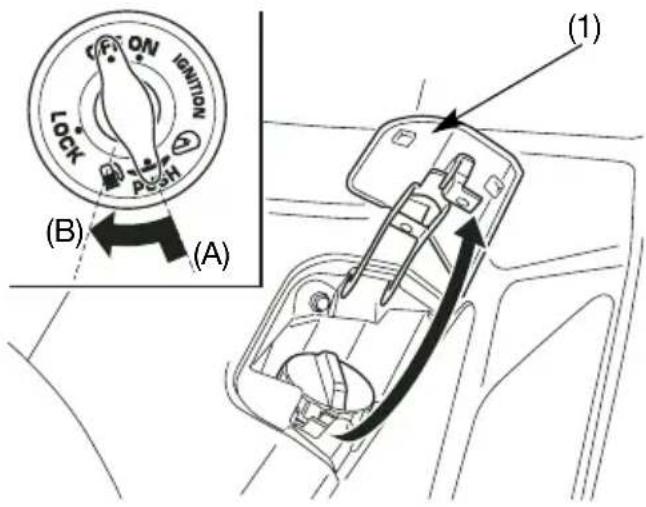

To open the fuel tank lid (1) insert the ignition key, push in at the OFF position and turn it clockwise.
(1) Fuel tank lid (A) Push in
(B) Turn to open

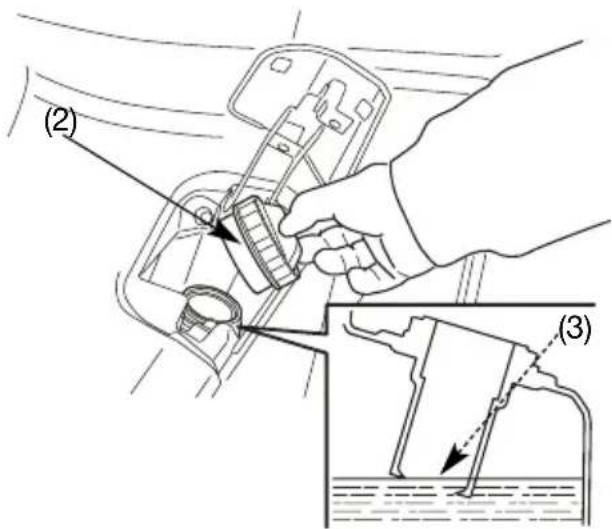

To open the fuel fill cap (2), turn it counterclockwise.
Do not overfill the tank. There should be no fuel in the filler neck (3).
After refueling, be sure tighten the fuel fill cap firmly by turning in clockwise.
Close the fuel tank lid.
WARNING
Petrol is highly fiammable and explosive. You can be burned or seriously injured when handling fuel.
- Stop the engine and keep heat, sparks, and flame away.
• Refuel onmy outdoors. - Wipe up spills immediately.
(2) Fuel fill cap
(3) Filler neck
Use unleaded petrol with a research octane number of 91 or higher.
The use of leaded petrol will cause premature damage to the catalytic converter.
NOTICE
If “spark knock” or “pinking” occurs at a steady engine speed under normal load, change brands of petrol. If spark knock or pinking persists, consult your Honda dealer. Failure to do so is considered misuse, and damage caused by misuse is not covered by Honda Limited’s Warranty.
Petrol containing alcohol
If you decide to use a petrol containing alcohol (gasohol), be sure it's octane rating is at least as high as that recommended by Honda. There are two types of "gasohol": one containing ethanol, and the other containing methanol. Do not use petrol that contains more than 10% ethanol. Do not use petrol containing methanol (methyl or wood alcohol) that does not also contain cosolvents and corrosion inhibitors for methanol. Never use petrol containing more than 5% methanol, even if it has cosolvents and corrosion inhibitors.
Fuel system damage or engine performance problems resulting from the use of fuels that contain alcohol is not covered under the warranty. Honda cannot endorse the use of fuels containing methanol since evidence of their suitability is as yet incomplete.
Before buying fuel from an unfamiliar station, try to find out if the fuel contains alcohol. If it does, confirm the type and percentage of alcohol used. If you notice any undesirable operating symptoms while using a petrol that contains alcohol, or one that you think contains alcohol, switch to a petrol that you know does not contain alcohol.
ENGINE OIL
Engine oil level check
Check the engine oil level each day before riding the scooter.
The level must be maintained between the upper (1) and the lower (2) level marks on the oil filler cap/dipstick (3).
- Start the engine and let it idle for 3-5 minutes.
- Stop the engine and put the scooter on its center stand on level ground.
- After 2-3 minutes, remove the oil filler cap/dipstick (3), wipe it clean, and reinsert the oil filler cap/dipstick without screwing it in. Remove the oil filler cap/dipstick. The oil level should be between the upper (1) and lower (2) level marks on the oil filler cap/dipstick.
- If required, add the specified oil (page 91) up to the upper level mark. Do not overfill.
- Reinstall the oil filler cap/dipstick. Check for oil leaks.
NOTICE
Running the engine with insufficient oil pressure may cause serious engine damage.
(1) Upper level mark
(2) Lower level mark
(3) Oil filler cap/dipstick
TUBELESS TYRES
To safely operate your scooter, your tyres must be the proper type and size, in good condition with adequate tread and correctly inflated for the load you are carrying. The following pages give more detailed information on how and when to check your air pressure, how to inspect your tyres for damage and what to do when your tyres need to be repaired or replaced.
WARNING
Using tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
Follow all instructions in this owner's manual regarding tyre inflation and maintenance.
Air pressure
Keeping your tyres properly inflated provides the best combination of handling, tread life and riding comfort. Generally, underinflated tyres wear unevenly, adversely affect handling and are more likely to fail from being overheated.
Overinflated tyres make your scooter ride more harshly, are more prone to damage from road hazards and wear unevenly.
We recommend that you visually check your tyres before every ride and use a gauge to measure air pressure at least once a month or any time you think the tyres might be low. Tubeless tyres have some self-sealing ability if they are punctured. However because leakage is often very slow, you should look closely for punctures whenever a tyre is not fully inflated.
Always check air pressure when your tyres are “cold” – when the scooter has been parked for at least three hours. If you check air pressure when your tyres are “warm” – when the scooter has been ridden for even a few miles – the readings will be higher than if the tyres were “cold”. This is normal, so do not let air out of the tyres to match the recommended cold air pressures given below. If you do, the tyres will be underinflated.
The recommended “cold” tyre pressures are:
| kPa (kgf/cm2,psi) | ||
| Driver only | Front | 175 (1.75, 25) |
| Rear | 200 (2.00, 29) | |
| Driver and one passenger | Front | 175 (1.75, 25) |
| Rear | 250 (2.50, 36) | |
Inspection
Whenever you check the tyre pressures, you should also examine the tyre treads and sidewalls for wear, damage, and foreign objects:
Look for:
- Bumps or bulges in the side of the tyre or the tread. Replace the tyre if you find any bumps or bulges.
- Cuts, splits or cracks in the tyre. Replace the tyre if you can see fabric or cord.
- Excessive tread wear.
Also, if you hit a pothole or hard object, pull to the side of the road as soon as you safely can and carefully inspect the tyres for damage.
Tread Wear
Replace tyres before tread depth at the centre of the tyre reaches the following limit:
| Minimum tread depth | |
| Front: 1.5 mm (0.06 in) | |
| Rear: 2.0 mm (0.08 in) |
< For Germany >
German law prohibits use of tyres whose tread depth is less than 1.6 mm.
(1) Wear indicator
(2) Wear indicator location mark
Tyre repair
If a tyre is punctured or damaged, you should replace it not repair it. As discussed below, a tyre that is repaired, either temporarily or permanently will have lower speed and performance limits than a new tyre.
A temporary repair, such as an external tubeless tyre plug may not be safe for normal speeds and riding conditions. If a temporary or emergency repair is made to a tyre, you should ride slowly and cautiously to a dealer and have the tyre replaced. If possible you should not carry a passenger or cargo until a new tyre is installed. Even if a tyre is professionally repaired with a permanent internal patch plug, it will not be as good as a new tyre.
You should not exceed 80 km/h (50 mph) for the first 24 hours, or 130 km/h (80 mph) at any time thereafter. In addition you may not be able to safely carry as much weight as with a new tyre. Therefore, we strongly recommend that you replace a damaged tyre. If you choose to have the tyre repaired, be sure the wheel is balanced before you ride.
Tyre replacement
The tyres that came on your scooter were designed to match the performance capabilities of your scooter and provide the best combination of handling, braking, durability and comfort.
WARNING
Installing improper tyres on your scooter can affect handling and stability. This can cause a crash in which you can be seriously hurt or killed.
Always use the size and type of tyres recommended in this owner's manual.
The recommended tyres for your scooter are:
| Front | 110/90-13 M/C 56LBRIDGESTONEHOOP B03 FIRCMB99 |
| Rear | 130/70-12 62LBRIDGESTONEHOOP B02 FIRCMB99 |
| Type TUBELESS | |
Whenever you replace a tyre, use one that is equivalent to the original and be sure the wheel is balanced after the new tyre is installed.
Important safety reminders
- Do not install a tube inside a tubeless tyre on this scooter. Excessive heat build-up can cause the tube to burst.
- Use only tubeless tyres on this scooter. The rims are designed for tubeless tyres and during hard acceleration or braking a tube-type tyre could slip on the rim and cause the tyre to rapidly deflate.
ESSENTIAL INDIVIDUAL COMPONENTS IGNITION SWITCH
The ignition switch (1) is on the right side below the steering stem.
The headlight and taillights will come on whenever you turn the ignition switch ON. If your scooter is stopped with the ignition switch ON and the engine is not running, the headlight and taillights will still be on, resulting in battery discharge.
NOTICE
The original Honda rear top box is opened with the ignition key (only type IIF, IIED, IIIE).
(1) Ignition switch
| Key Position Function Key Removal | ||
| LOCK Steering is locked (steering lock) | Engine and lights Key can be cannot be operated. removed. | |
| OFF Engine and lights | cannot be operated. Key can be | removed. |
| ON Engine and lights | can be operated. Key cannot | be removed. |
RIGHT HANDLEBAR CONTROLS Start button
The start button (1) is next to the throttle grip.
When the starter button is pressed, the starter motor cranks the engine.
See page 64 for the starting procedure.
Hazard switch (FES125A/150A)
Hazard switch is over to start button. This system should be used only when your scooter is stopped under emergency or hazardous conditions. To turn it on, turn the ignition key to the ON position, and then slide the switch marked ⚠. The front and rear turn signals will blink simultaneously.
All of the turn signals can blink without the ignition key.
To operate this function, proceed as follows:
- Turn the ignition key to ON position and then slide the hazard switch (1) to the △ marked position.
- All of the turn signals will keep blinking even after you turn the ignition key to OFF position.
- You can turn off the turn blinking signals by sliding the hazard switch back to the off position.
If the switch is left in the off position for more than two seconds and then moved back to the △ position again, the turn signals will not be on.
Be sure to turn the switch off when the hazard warning is no longer required, or the turn signals will not work properly, and may confuse other drivers.
If all the turn signals are left blinking with the engine stopped, the battery will be discharged.
(1) Hazard switch

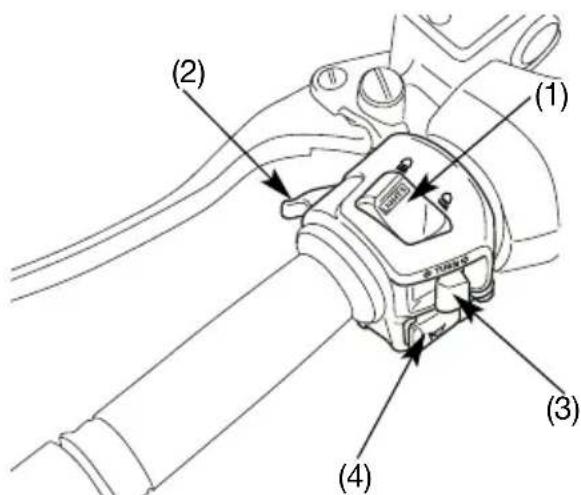

LEFT HANDLEBAR CONTROLS
Headlight dimmer switch (1)
Push the dimmer switch to (HI) to select high beam or to (IO) to select low beam.
Passing light control switch (2)
When this switch is pressed down, the headlight flashes on to signal approaching cars or when passing.
Turn signal switch (3)
Move to (L) to signal a left turn, (R) to signal a right turn. Press to turn signal off.
Horn button (4)
Press the button to sound the horn.
(1) Headlight dimmer switch
(2) Passing light control switch
(3) Turn signal switch
(4) Horn button
FEATURES
(Not required for operation)
STEERING LOCK
To lock the steering, turn the handlebars all the way to the left; turn the ignition key (1) to LOCK.
Remove the ignition key.
To unlock the steering turn the ignition key to OFF.
Do not turn the ignition key to LOCK while riding the scooter; loss of vehicle control will result.
(1) Ignition key
(A) Turn to "LOCK"
(B) Turn to "OFF"
SEAT LOCK
The seat lock is on the ignition switch (1).
To open the seat, insert the ignition key (2), push in the key and turn to the OFF position, then push and turn it counterclockwise.
Lift the seat.
To lock the seat, lower and push down on the reverse side of the hook (3) of the seat until it locks. Ensure the seat is securely locked before riding the scooter.
Do not place luggage or clothing near the seat catch (4). It could make the seat difficult to open if it gets caught between the seat hook and catch while closing the seat.
HELMET HOLDER
The helmet holder eliminates the need for carrying your helmet after parking your scooter. The helmet holder is located below the seat.
Open the seat (page 53).
Route either end of the helmet holder cable (1) through the helmet's D-ring (2).
Hook the loops of the wire onto the helmet holder (3) and lower the seat to lock.
The helmet holder wire is furnished in the tool kit. Remove the helmet wire and store it in the tool bag when it is not used.
WARNING
Riding with a helmet attached to the holder can interfere with the rear wheel or the suspension and could cause a crash in which you can be seriously hurt or killed.
Use the helmet holder only while parked. Do not ride with a helmet secured by the holder.

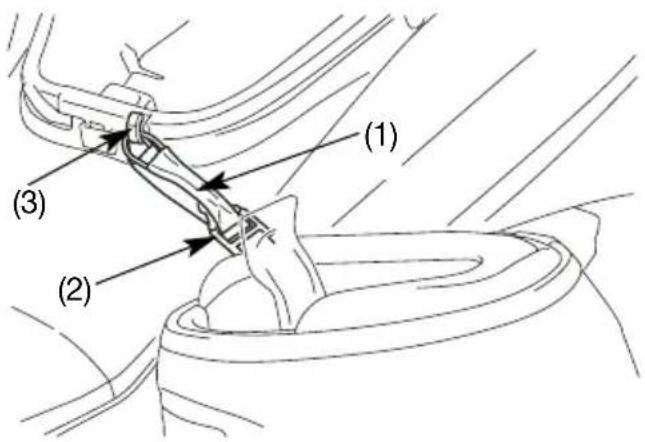

(1) Helmet holder cable
(2) D-ring
(3) Helmet holder
CENTER COMPARTMENT
The center compartment (1) is below the seat. Opening and closing: See “SEAT LOCK” (page 53).
MAXIMUM WEIGHT LIMIT: 10 kg (22 lbs)
Never exceed the maximum weight limit; handling and stability may be severely affected.
The center compartment may become heated by the engine. Do not store food and other articles which are flammable or susceptible to heat damage in this compartment.
Do not direct water under pressure against the center compartment as water will be forced into the compartment.
A position of the partition board (2) can be changed like the following figure.
(1) Center compartment
(2) Partition board
Fold back the carpet (3) at the front notch (4) and install the partition board in the groove.
- Soiled things can be stored without making the carpet dirty.
(3) Carpet
(4) Front notch
You can store helmet(5) in the center compartment.
Store helmet as shown in the following picture. If you store helmet wrongly, it will interfere with the front seat.
Some helmets may not be stored in the compartment due to their size or design.
DOCUMENT COMPARTMENT

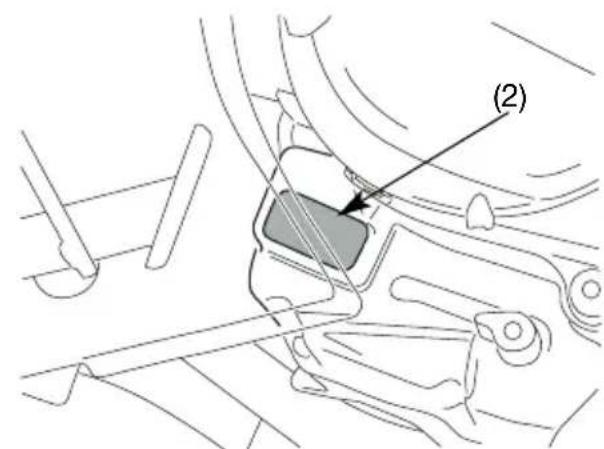

The document bag (1) is in the document compartment (2) under the rear seat (3).
This owner's manual and other documents should be stored in the document bag.
When washing your scooter, be careful not to flood this area with water.

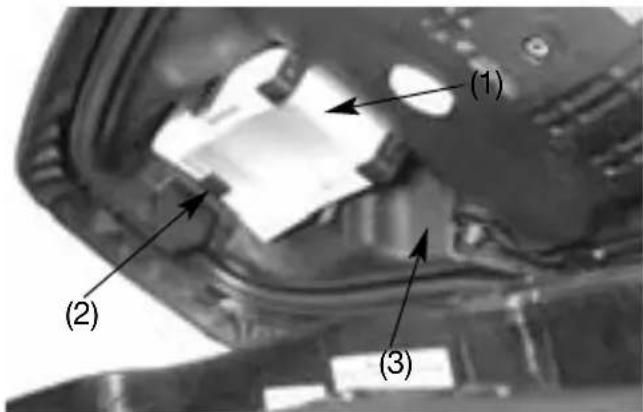

(1) Document bag
(2) Document compartment
(3) Seat

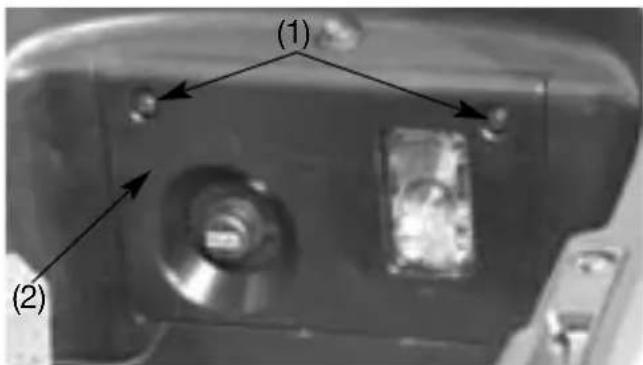

TRUNK LIGHT
The trunk light (1) will be turned ON automatically when the front seat is opened. It is kept ON as long as the front seat is opened regardless of the position of the ignition switch.

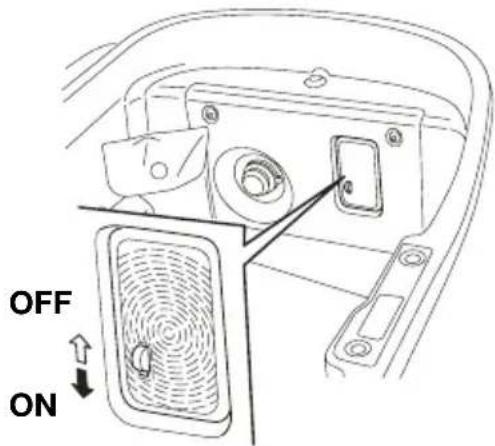

The trunk light can be cancelled if the trunk light switch is at OFF position, when the seat is open.
(1) Trunk light
ACCESSORY SOCKET
The accessory socket (1) is in the center compartment.
Open the cover (2) to gain access to the accessory socket.
Rated capacity is:
12 watt (12 volt, 1amps).
To prevent battery run down or weak battery, keep the engine running while drawing current from the socket.
Set the headlight in the LO beam. Battery run down or damage to the accessory socket cause result.
To prevent entry foreign matter, be sure to close the cover when the accessory socket is not used.
(1) Accessory socket
(2) Cover accessory socket
LEFT COMPARTMENT
There is left compartment (1) below the left side of the handlebar.
The maximum allowable load in the left compartment shall be no more than: 0.5 kg (1.0 lbs)
Do not open the left compartment while riding the scooter.
To Open:
- Pull the knob (2), then open the left compartment (3).
To Close:
- Press forward until it is firmly closed.
Make sure the left compartment cover is closed before riding.
When washing your scooter be careful not to flood this area with water.
Do not store valuables or fragile articles in the left compartment.

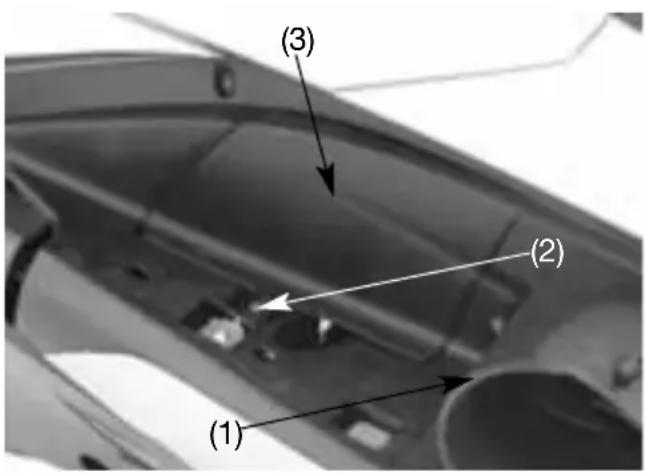

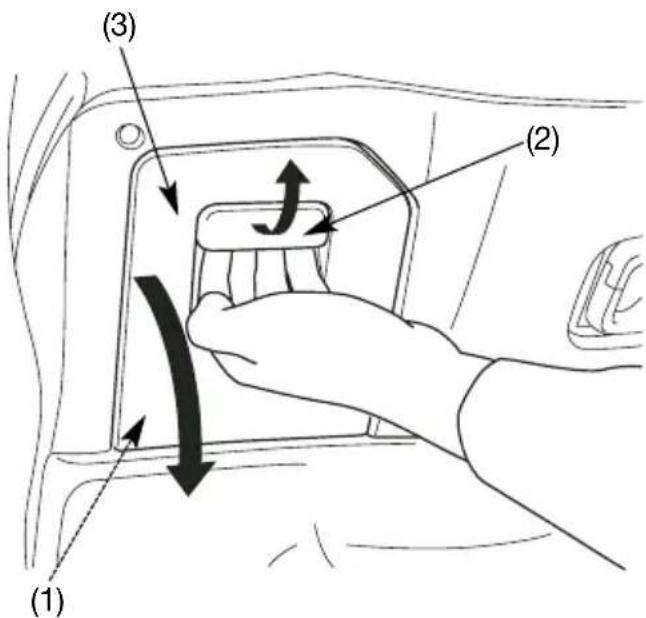

(1) Left compartment
(2) Knob
(3) Left compartment cover
SHOPPING HOOK
The shopping hook (1) is provided below the handlebar.
MAXIMUM WEIGHT LIMIT:
1.5 kg (3.0 lbs)
Do not attach large luggage to the hook that would hang out from the scooter and/or interfere with the movement of your feet.
(1) Shopping hook
HEADLIGHT AIM VERTICAL ADJUSTMENT
Vertical adjustment can be made by turning the knob (1) in or out as necessary.
Obey local laws and regulations.
(1) Knob (A) Up
(B) Down
For your safety, it is very important to take a few moments before each ride to walk around your scooter and check its condition. If you detect any problem, be sure you take care of it or have it repaired by your Honda dealer.
WARNING
Improperly maintaining this scooter or failing to correct a problem before riding can cause a crash in which you can be seriously hurt or killed.
Always perform a pre-ride inspection before every ride and correct any problems.
- Engine oil level - add engine oil if require (page 41). Check for leaks.
- Fuel level - fill fuel tank when necessary (page 37). Check for leaks.
- Coolant level - add coolant if required. Check for leaks (pages 35-36).
- Front and rear brakes - check operation; make sure there is no brake fluid leakage (pages 30-32).
- Tyres - check condition and pressure (pages 42-47).
-
Throttle - check for smooth opening and full closing in all steering positions.
-
Lights and horn - Check that the headlight, brake/tail light, turn signals, indicator lights and horn are all working properly.

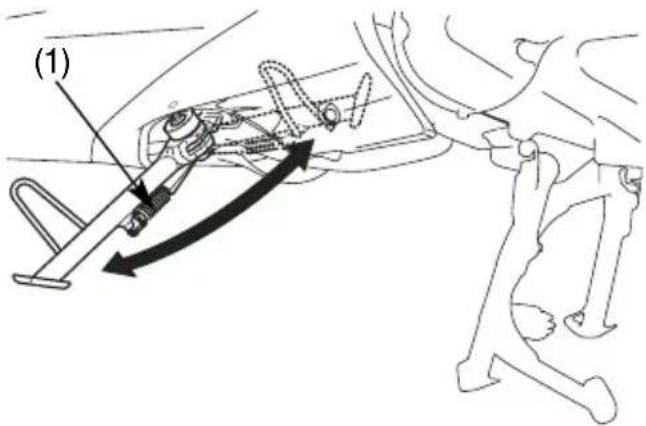

- Side stand ignition cut-off system - check for proper function (page 102).
STARTING THE ENGINE
Always follow the proper starting procedure described below.
This scooter has a fuel-injected engine with an automatic choke.
This scooter is equipped with a side stand ignition cut-off system. The engine cannot be started if the side stand is down.
A running engine will shut off if the side stand is lowered.
To protect the catalytic converter in your scooter's exhaust system, avoid extending idling and use of leaded petrol.
Your scooter's exhaust contains poisonous carbon monoxide gas. High levels of carbon monoxide can collect rapidly in enclosed areas such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move your scooter out of the garage.
Do not use the electric starter for more than 5 seconds at a time. Release the starter button for approximately 10 seconds before pressing it again.
Preparation
- Place the scooter on its center stand.
- Turn the ignition switch (1) to ON.
Confirm the following:
- The PGM-FI malfunction indicator lamp is OFF.
- The ABS indicator is ON (page 16) (FES125A/150A).
(1) Ignition switch

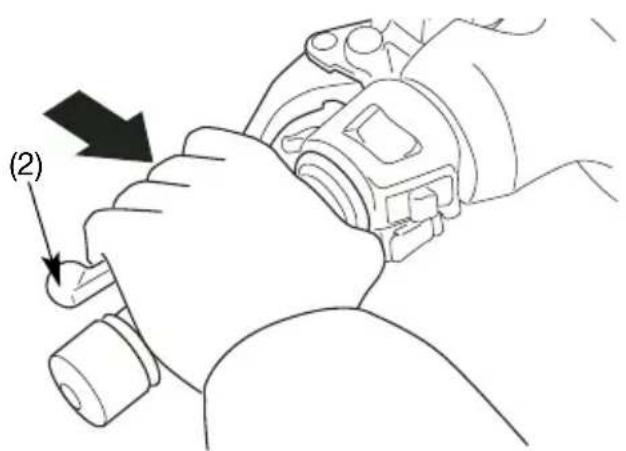

- Squeeze the rear brake lever (2). The electrical starter will only work when the rear brake lever is squeezed and the side stand is up.
CAUTION
Contact with the spinning rear wheel can cause you to be hurt.

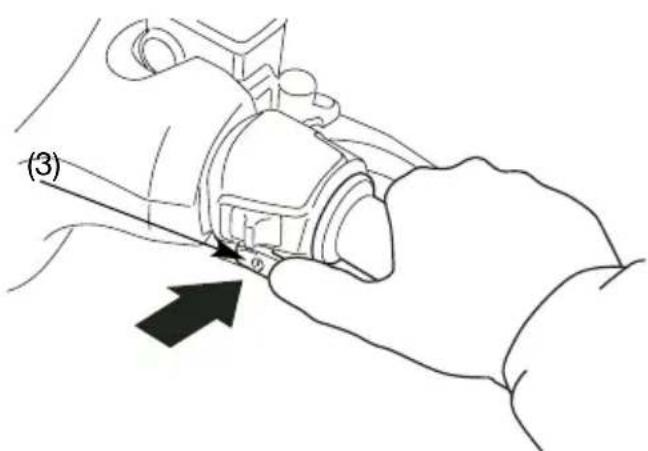

- With the throttle completely closed, push the start button (3). Release the starter button as soon as the engine starts.
The engine will not start if the throttle is fully open (because the electronic control module cuts off the fuel supply).
(3) Starter button(2) Rear brake lever
- Be sure to keep the throttle closed locked while warming up the engine.
- Allow the engine to warm up before riding (see "RIDING" page 69).
Do not "BLIP" the throttle (open and close rapidly) as the scooter will move forward suddenly.
Do not leave the scooter unattended while the engine is warming up.
Snapping the throttle or fast idling for more than about 5 minutes at normal air temperature may cause exhaust pipe discolouration.
Ignition cut-off
Your scooter is designed to automatically stop the engine and fuel pump if the scooter is over-turned (a banking sensor cuts off the ignition system). Before restarting the engine, you must turn the ignition switch to the OFF position and then back to ON.
RUNNING-IN
Help assure your scooter's future reliability and performance by paying extra attention to how you ride during the first 500 km (300 miles).
During this period avoid, full-throttle starts and rapid acceleration.
RIDING
Review scooter safety (pages 1-9) before you ride.
Make sure flammable materials such as dry grass or leaves do not come in contact with the exhaust system when riding, idling or parking your scooter.
- Make sure the throttle (1) is closed (page 67) before moving the scooter off the center stand.

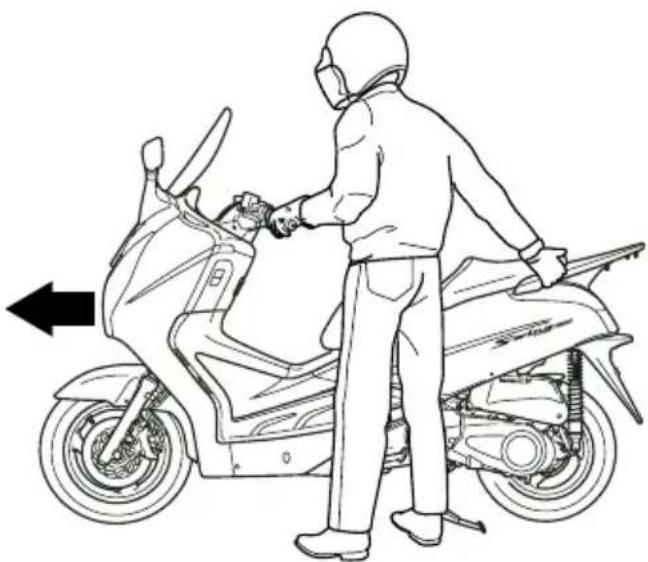

- Stand on the left side of the scooter and push it forward off the center stand.
Grasp the handlebars firmly with both hands.
Never attempt one-handed operation: loss of vehicle control could result.
-
To accelerate, open the throttle (1) gradually; the scooter will move forward. Do not "BLIP" the throttle (open and close rapidly) as the scooter will move forward suddenly, causing possible loss of control.
-
To decelerate, close throttle.

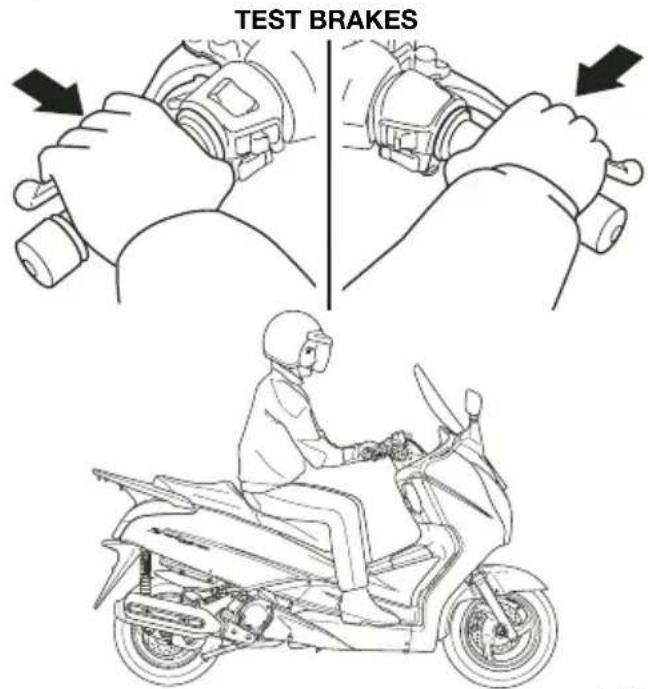

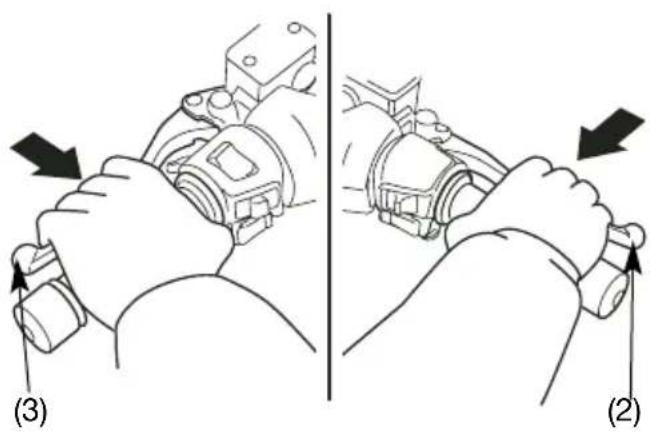

- When slowing down the scooter, coordination of the throttle (1) and front (2) and rear brakes (3), is most important.
Both front and rear brakes should be applied together. Independent use of only the front or rear brake reduces stopping performance.
Excessive brake application may cause either wheel to lock, reducing control of the scooter.

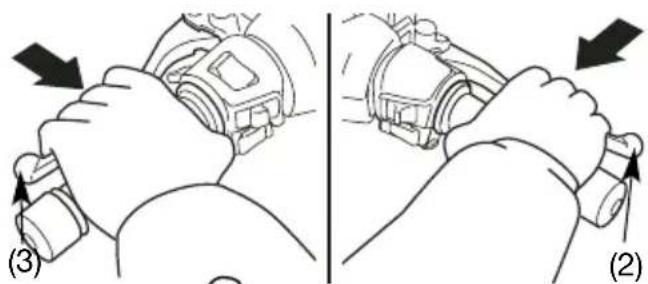

(1) Throttle (2) Front brake
(3) Rear brake
-

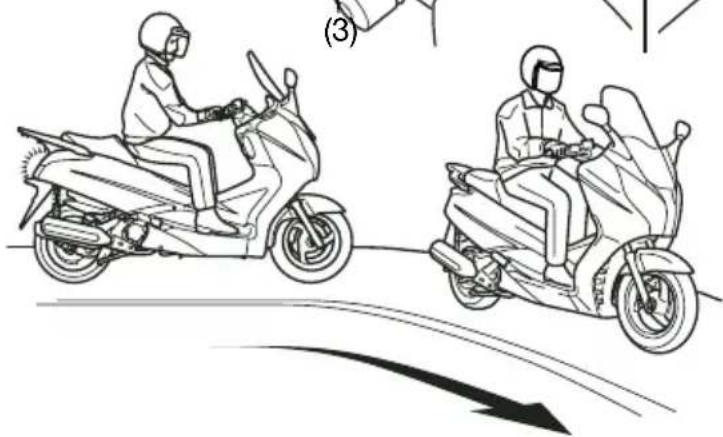

When approaching a corner or turn, close the throttle (1) fully, and slow the scooter down by applying both front (2) and rear (3) brakes at the same time.
-
After completing the turn, open the throttle gradually to accelerate the scooter.
(1) Throttle (2) Front brake (3) Rear brake

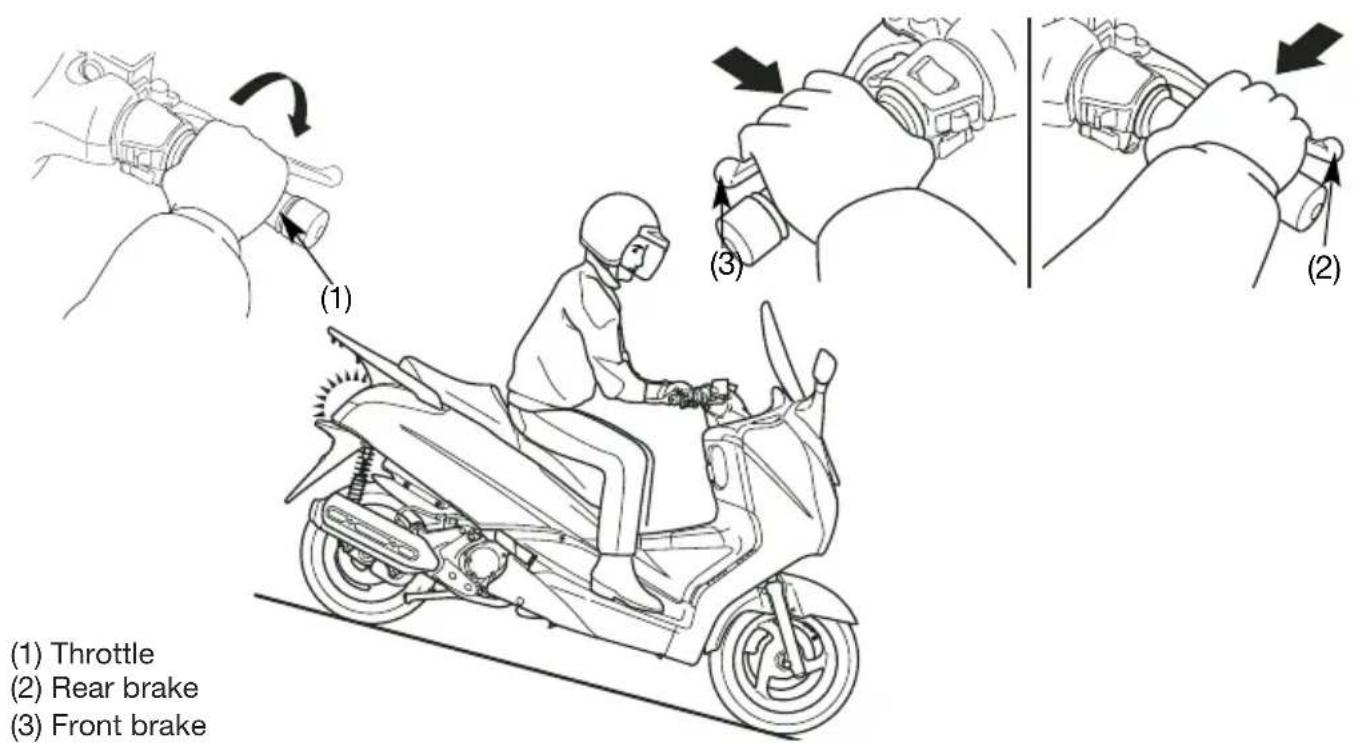

- When descending a steep grade, close the throttle (1) fully and apply both brakes (2), (3) to slow the scooter.
Avoid continuous use of the brakes, which may result in overheating and reduction of braking efficiency.
(1) Throttle
(2) Rear brake
(3) Front brake
- When riding on wet or loose surfaces, be especially cautious.
- When riding in wet or rainy conditions or on loose surfaces, the ability to maneuver and stop will be reduced.
For your safety:
- Exercise extreme caution when braking, accelerating or turning.
- Ride at slower speeds and allow for extra stopping distance.
- Keep the scooter as upright as possible.
- Use extreme caution when riding over slippery surfaces such as railroad tracks, iron plates, manhole covers, painted lines, etc.
PARKING
- After stopping the scooter turn the ignition switch to the OFF position and remove the key.
- Use the center stand to support the scooter while parked.
- Lock the steering to help prevent theft (page 52).
Park the scooter on firm, level ground to prevent it from falling over.
HOW TO USE CENTER STAND
The exhaust pipe and muffler become very hot during operation and remain sufficiently hot to inflict burns if touched even after shutting off the engine.
Make sure flammable materials such as dry grass or leaves do not come in contact with the exhaust system when parking your scooter.
- Always lock the steering and never leave the key in the ignition switch. This sounds simple but people do forget (page 52).
- Be sure the registration information for your scooter is accurate and current.
- Park your scooter in a locked garage whenever possible.
- Use an additional anti-theft device of good quality.
- Put your name, address, and phone number in this owner's manual and keep it on your scooter at all times.
Many times stolen scooters are identified by information in the owner's manuals that are still with them.
NAME:
ADDRESS:
PHONE NO:
LOCK STEERING
(1) Ignition key
(A) Turn to lock
MAINTENANCE
THE IMPORTANCE OF MAINTENANCE
A well maintained scooter is essential for safe, economical and trouble-free riding. It will also help reduce air pollution.
To help you properly care for your scooter, the following pages include a Maintenance Schedule and a Maintenance Record for regularly scheduled maintenance.
These instructions are based on the assumption that the scooter will be used exclusively for its designed purpose. Sustained high speed operation or operation in unusually wet or dusty conditions will require more frequent service than specified in the Maintenance Schedule. Consult your Honda Dealer for recommendations applicable to your individual needs and use.
If your scooter overturns or becomes involved in a crash, be sure your Honda dealer inspects all major parts, even if you are able to make some repairs.
WARNING
Improperly maintaining this scooter or failing to correct a problem before you ride can cause a crash in which you can be seriously hurt or killed.
Always follow the inspection and maintenance recommendations and schedules in this owner's manual.
MAINTENANCE SAFETY
This section includes instructions on some important maintenance tasks. You can perform some of these tasks with the tools provided – if you have basic mechanical skills.
Other tasks that are more difficult and require special tools are best performed by professionals. Wheel removal should normally be handled only by a Honda technician or other qualified mechanic; instructions are included in this manual only to assist in emergency service.
Some of the most important safety precautions follow. However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.
WARNING
Failure to properly follow maintenance instructions and precautions can cause you to be seriously hurt or killed.
Always follow the procedures and precautions in this owner's manual.
SAFETY PRECAUTIONS
- Make sure the engine is off before you begin any maintenance or repairs. This will help eliminate several potential hazards;
• Carbon monoxide poisoning from engine exhaust.
Be sure there is adequate ventilation whenever you operate the engine.
- Burns from hot parts.
Let the engine and exhaust system cool before touching.
- Injury from moving parts.
Do not run the engine unless instructed to do so.
- Read the instructions before you begin and make sure you have the tools and skills required.
- To help prevent the scooter from falling over, park it on a firm, level surface, using the center stand to provide support.
- To reduce the possibility of a fire or explosion, be careful when working around petrol or batteries. Use only nonflammable solvent, not petrol, to clean parts. Keep cigarettes, sparks and flames away from the battery and all fuel-related parts.
Remember that your Honda dealer knows your scooter best and is fully equipped to maintain and repair it.
To ensure the best quality and reliability, use only new genuine Honda parts or their equivalents for repair and replacement.
MAINTENANCE SCHEDULE
Perform the Pre-ride Inspection (page 62) at each scheduled maintenance period.
I: INSPECT AND CLEAN, ADJUST, LUBRICATE OR REPLACE IF NECESSARY
C: CLEAN R: REPLACE A: ADJUST L: LUBRICATE
The following Maintenance Schedule specifies all maintenance required to keep your scooter in peak operating condition. Maintenance work should be performed in accordance with standards and specifications of Honda by properly trained and equipped technicians. Your Honda dealer meets all of these requirements.
* Should be serviced by your Honda dealer, unless the owner has the proper tools and service data and is mechanically qualified. Refer to the Official Honda Shop Manual.
** In the interest of safety, we recommend these items be serviced only by your Honda dealer.
Honda recommends that your Honda dealer should road test your scooter after each periodic maintenance is carried out.
NOTES: (1) At higher odometer readings, repeat at the frequency interval established here.
(2) Service more frequently if the scooter is ridden in unusually wet or dusty areas.
(3) Service more frequently when riding in rain or at full throttle.
(4) Replace every 2 years, or at the indicated odometer interval, whichever comes first. Replacement requires mechanical skill.
| ITEM\FREQUENCY | WHICHEVER COMES FIRST ↓ | → | ODOMETER READING [NOTE (1)] | |||||
| x 1000 km | 1 | 4 | 8 | REFER TO PAGE | ||||
| x 1000 mi | 0.6 2.5 | 5 7.5 | ||||||
| NOTE | MONTH | 6 | 12 | 18 | ||||
| * | FUEL LINE | I | I | I | - | |||
| * | THROTTLE OPERATION | I | I | I | 99 | |||
| AIR CLEANER | NOTE (2) | R | 87 | |||||
| CRANKCASE BREATHER | NOTE (3) | C | C | C | 90 | |||
| SPARK PLUG | R | 96 | ||||||
| * | VALVE CLEARANCE | I | I | I | I | - | ||
| ENGINE OIL | R | R | R | R | 91 | |||
| * | ENGINE OIL STRAINER SCREEN | C | 93 | |||||
| RADIATOR COOLANT | NOTE (4) | I | 100 | |||||
| * | COOLING SYSTEM | I | 35 | |||||
| * | SECONDARY AIR SUPPLY SYSTEM | I | - | |||||
| ITEM\FREQUENCY | WHICHEVER →COMES FIRST↓ | ODOMETER READING [NOTE (1)] | |||||
| x 1000 km | 1 4 8 12 | ||||||
| x 1000 mi | 0.6 2.5 | 5 7.5 | |||||
| NOTE | MONTH | 6 | 12 | 18 | |||
| * DRIVE BELT | Every 8.000 km (5000 miles) I Every 24.000 km (15.000 miles) R | - - | |||||
| BELT CASE AIR CLEANER | C | C | C | ||||
| * FINAL DRIVE OIL | NOTE (4) | ||||||
| BRAKE FLUID | NOTE (4) | I | I | I | |||
| BRAKE PADS WEAR | I | I | I | ||||
| BRAKE SYSTEM | I | I | I | I | |||
| * HEADLIGHT AIM | I | I | I | ||||
| ** CLUTCH SHOES WEAR | I | ||||||
| SIDE STAND | I | I | I | ||||
| * SUSPENSION | I | I | I | ||||
| * NUTS,BOLTS,FASTNERS | I | I | |||||
| ** WHEELS/TIRES | I | I | I | I | |||
| ** STEERING HEAD BEARINGS | I | I | I | ||||
TOOL KIT
The tool kit (1) is in the center compartment (page 55). Some roadside repairs, minor adjustments and parts replacement can be performed with the tools contained in the kit.
- 8 x 10 mm open end wrench
- 12 x 14 mm open end wrench
- Suspension adjusting pin spanner
• No. 1 Screw driver - No. 3 Screw driver
- Screw driver handle
- 5 mm Hex wrench
- Spark plug wrench
- Helmet holder cable
- Fuse puller
- Fuse 30A
- Tool bag
SERIAL NUMBERS
The frame and engine serial numbers are required when registering your scooter. They may also be required by your dealer when ordering replacement parts.
Record the numbers here for your reference.
FRAME No.

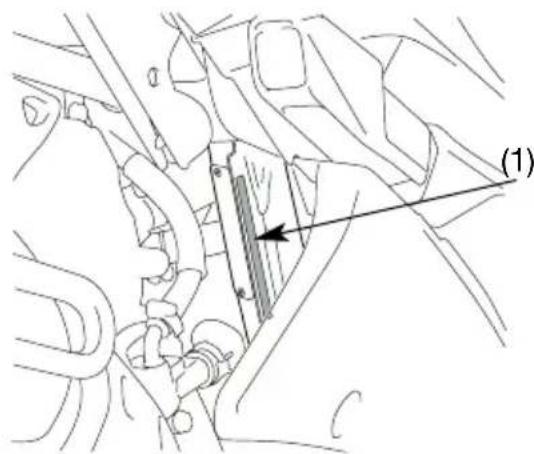

The frame number (1) is stamped on the right side of the frame body.
The engine serial number (2) is stamped on the left side of the crankcase.
ENGINE No. ____
(2) Engine number(1) Frame number
COLOUR LABEL

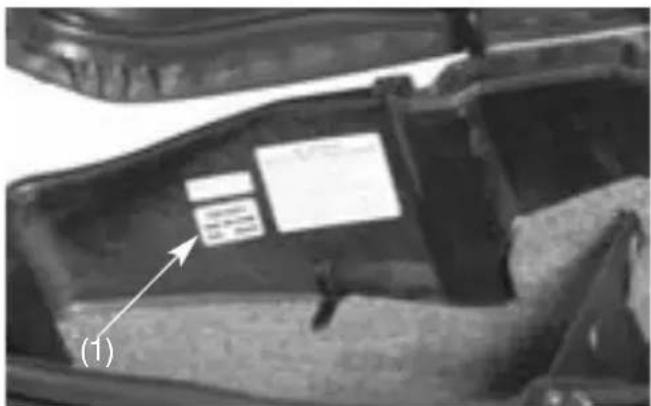

The colour label (1) is attached to the center compartment (page 55).
It is helpful when ordering replacement parts. Record the colour and code here for your reference.
COLOUR
CODE
(1) Colour label
AIR CLEANER
Refer to the Safety Precautions on page 80.
The air cleaner should be serviced at regular intervals (page 82). Service more frequently when riding in unusually wet or dusty areas.

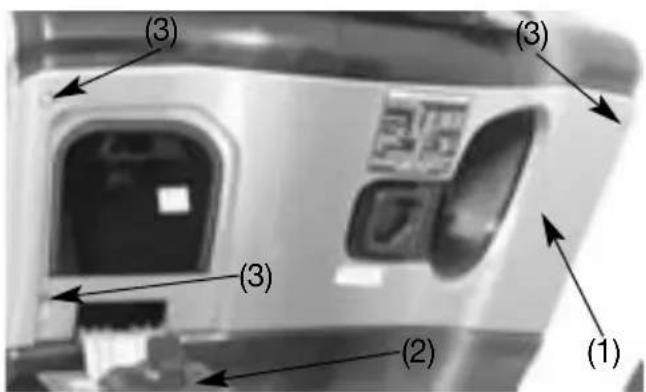

- Remove the air cleaner cover (1) by removing the screws A (2) and screws B (3).

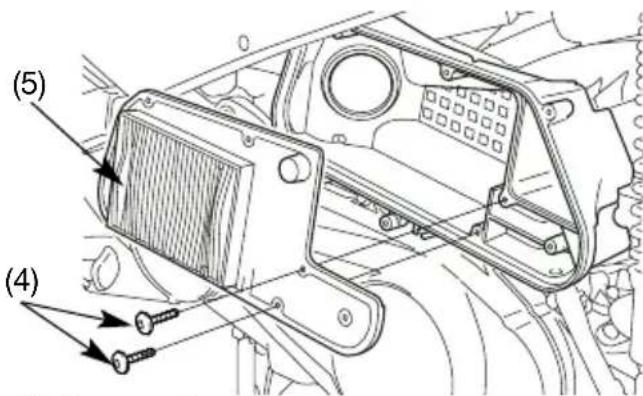

- Remove the screws C (4).
- Remove the air cleaner (5).
- Discard the air cleaner.
(1) Air cleaner cover
(2) Screws A
(3) Screws B
- Install the new air cleaner.
Use the Honda genuine air cleaner or an equivalent air cleaner specified for your model. Using the wrong Honda air cleaner or a non-Honda air cleaner which is not of equivalent quality may cause premature engine wear or performance problems. - Install the removed parts in the reverse order of removal.
(4) Screws C
(5) Air cleaner
BELT CASE AIR CLEANER
Refer to the Safety Precautions on page 80.
-
Place the scooter on its center stand.
-

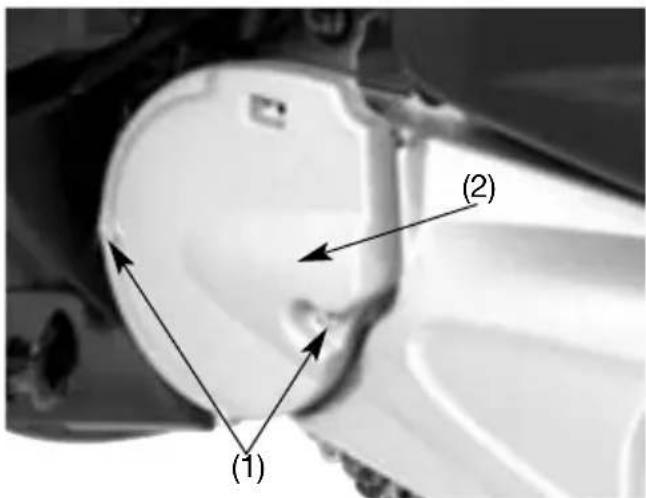

Remove the belt case cover two bolts (1). Remove the belt case cover (2) by releasing the three couplings (3).
-
Remove the air cleaner (4).
(1) Bolts
(2) Belt case cover
(3) Couplings
(4) Air cleaner
- Wash the element in clean, nonflammable or high flash point solvent and let it dry thoroughly.
Never use petrol or low flash point solvents for cleaning the air cleaner. A fire or explosion could result.
Allow the element to dry thoroughly before installation.
Do not apply oil to the element; damage to the drive belt will occur.
- For installation, reverse the removal procedure.
CRANKCASE BREATHER
Refer to the Safety Precautions on page 80.
- Remove the drain tube (1) and drain deposits into a suitable container.
- Reinstall the drain tube.
Service more frequently when riding in rain, at full throttle, or after the scooter is washed or overturned. Service if the deposit level can be seen in the transparent section of the drain tube.
ENGINE OIL
Refer to the Safety Precautions on page 80.
Oil Recommendation
| API Classification | SG or higher except oils labeled as energy conserving on the circular API service label. |
| Viscosity SAE 10W-30 | |
| JASO T 903Standard | MB |
| Suggested Oil | |
| Honda “4-STROKE MOTORCYCLE OIL” or equivalent. | |
Your scooter does not need oil additives. Use the recommended oil.
Do not use API SH or higher oils displaying a circular API "energy conserving" service label on the container. They may affect lubrication.
NOT RECOMMENDED OK
Do not use non-detergent, vegetable or castor based racing oils.
Viscosity:
Viscosity grade of engine oil should be based on average atmospheric temperature in your riding area. The following provides a guide to the selection of the proper grade or viscosity of oil to be used at various atmospheric temperatures.
bar
| Range | Value | |---|---| | 10W-30 | 10W-40 | | 10W-40 | (value not labeled) |JASO T 903 standard
The JASO T 903 standard is an index for choosing engine oils for 4-stroke motorcycle engines.
There are two classes: MA and MB.
Oil conforming to the standard is labeled on the oil container. For example, the following label shows the MA classification.
PRODUCT MEETING JASO T 903
COMPANY GUARANTEEING THIS MA PERFORMANCE:
(1) Code number of the sales company of the oil (2) Oil classification
Engine Oil / Oil strainer screen
Engine oil quality is the chief factor affecting engine service life. Change the engine oil as specified in the maintenance schedule (page 82).
When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule.
Please dispose of used engine oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local recycling center or service station for reclamation. Do not throw in the trash or pour it on the ground or down a drain.
Used engine oil may cause skin cancer if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil.
Changing the oil requires a torque wrench. If you do not have these tools and the necessary skill, we recommend that you have your Honda dealer perform this service.
If a torque wrench is not used for this installation, see your Honda dealer as soon as possible to verify proper assembly.
Change the engine oil with the engine at normal operating temperature and the scooter on its side stand to assure complete and rapid draining.
- Remove the oil filler cap/dipstick (1) from the right crankcase cover.
(1) Oil filler cap/dipstick

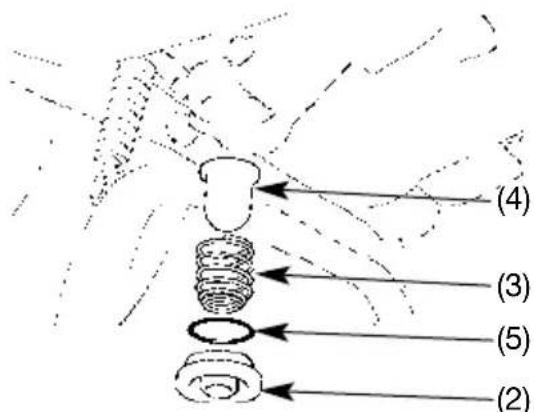

- Place a drain pan under the crankcase and remove the oil drain plug (2).
The spring (3) and oil strainer screen (4) will come out when the drain plug is removed. - Clean the oil strainer screen.
- Check that the oil strainer screen, sealing rubber and drain plug O-ring (5) are in good condition.
(2) Oil drain plug
(3) Spring
(4) Oil strainer screen
(5) O-ring
- Install the oil strainer screen, spring and drain plug.
Oil Drain Plug Torque:
20 N•m (2.0 kgf•m, 14 lbf•ft)
- Fill the crankcase with the recommended grade oil; approximately:
0,9 ℓ (1.0 US qt, 0.8 Imp qt).
-
Install the oil filler cap/dipstick.
-
Start the engine and let it idle for 2-3 minutes.
-
Stop the engine and check that the oil level is at the upper level mark on the oil filler cap/dipstick with the scooter upright on firm, level ground. Make sure there are no oil leaks.
SPARK PLUGS
Refer to the Safety Precautions on page 80.
Recommended plugs:
Standard:
CR8EH - 9 (NGK) or
U24FER9 (DENSO)
For extended high speed riding:
CR9EH - 9 (NGK) or
U27FER9 (DENSO)
NOTICE
Never use a spark plug with an improper heat range. Severe engine damage could result.
- Pull the floor mat (1) off.
- Remove the screw (2) and plug maintenance lid (3).
(1) Floor mat
(2) Screw
(3) Plug maintenance lid

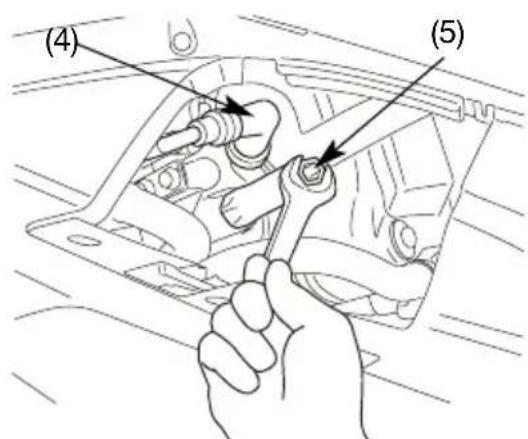

- Disconnect the spark plug cap (4) from the spark plugs.
- Clean any dirt from around the spark plug bases.
Remove the spark plug using the spark plug wrench (5) furnished in the tool kit. - Discard the spark plug.
(4) Spark plug cap
(5) Spark plug wrench
- Check the new spark plug gap (6) using a wire-type feeler gauge. If adjustment is necessary, bend the side electrode (7) carefully.
The gap should be:
0,80 - 0,90 mm (0.031 - 0.035 in)
Make sure the plug washer is in good condition. - With the plug washer attached, thread the spark plug in by hand to prevent cross-threading.
(6) Spark plug gap
(7) Side electrode
-
Tighten the spark plug:
-
If the old plug is good:
1/8 turn after it seats. - If installing a new plug, tighten it twice to prevent loosening:
a) First, tighten the plug:
NGK: 1/2 turn after it seats.
DENSO: 1 turn after it seats.
b) Then loosen the plug.
c) Next, tighten the plug again:
1/8 turn after it seats.
-
Reinstall the spark plug cap.
-
Install the remaining parts in the reverse order of removal.
NOTICE
Improperly tightened spark plug can damage the engine. If a plug is too loose, a piston may be damaged. If a plug is too tight, the thread may be damaged.
THROTTLE OPERATION
Refer to the Safety Precautions on page 80.
- Check for smooth rotation of the throttle grip from the fully open to the fully closed position at both full steering positions.
- Measure the throttle grip free play at the throttle grip flange.
The standard free play should be approximately:
2-6 mm (0.08 - 0.24 in)

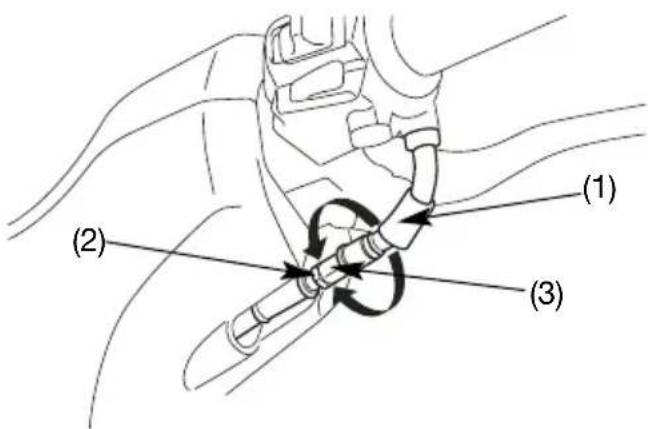

To adjust the free play, slide the throttle cable boot (1), then loosen the lock nut (2) and turn the adjuster (3).
After adjustment, tighten the lock nut and return the throttle cable boot securely.
(1) Throttle cable boot
(2) Lock nut
(3) Adjuster
COOLANT
Refer to the Safety Precautions on page 80.
Coolant replacement
Coolant should be replaced by a Honda dealer, unless the owner has proper tools and service data and is mechanically qualified. Refer to an official Honda Shop Manual.
Always add coolant to the reserve tank. Do not attempt to add coolant by removing the radiator cap.
WARNING
Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator cap.
Front and rear suspension inspection
Refer to the Safety Precautions on page 80.
- Check the fork assembly by locking the front brake and pumping the fork up and down vigorously. Suspension action should be smooth and there must be no oil leakage.
- Swingarm bearings should be checked by pushing hard against the side of the rear wheel while the scooter is on the center stand. Freeplay indicates worn bearings.
- Carefully inspect all front and rear suspension fasteners for tightness.
SIDE STAND
Refer to the Safety Precautions on page 80.
Perform the following maintenance in accordance with the maintenance schedule.
Functional Check:
- Check the side stand spring (1) for damage or loss of tension and the side stand assembly for freedom of movement.
-
Check the side stand ignition cut-off system:
-
Place the scooter on its center stand.
- Put the side stand up and start the engine.
- Lower the side stand. The engine should stop as you put the side stand down.
If the side stand system does not operate as described, see your Honda dealer for service.
(1) Side stand spring
BRAKE PAD WEAR
Refer to the Safety Precautions on page 80.
Brake pad wear depends upon the severity of usage, the type of riding, and road conditions. (Generally, the pads will wear faster on wet and dirty roads).
Inspect the pads at each regular maintenance interval (page 83).
Front brake
Check the wear indicator mark (1) on each pad.
If either pad is worn to the wear indicator mark, replace both pads as a set. See your Honda dealer for this service.
(1) Wear indicator mark
Rear Brake
Check the cutouts (2) in each pad.
If either pad is worn to the cutouts, replace both pads as a set.
See your Honda dealer for this service.
(2) Cutout
BATTERY
Refer to the Safety Precautions on page 80.
It is not necessary to check the battery electrolyte level or add distilled water as the battery is a maintenance-free (sealed) type. If your battery seems weak and/or is leaking electrolyte (causing hard starting or other electrical troubles), contact your Honda dealer.
NOTICE
Your battery is a maintenance-free type and can be permanently damaged if the cap is removed.
WARNING
The battery gives off explosive hydrogen gas during normal operation.
A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.
Wear protective clothing and a face shield or have a skilled mechanic do the battery maintenance.
Battery removal:
The battery (5) is in the battery box below the seat.
- Open the seat (page 53).
- Remove the four screws (1) and battery compartment cover (2).
- Disconnect the negative (-) terminal lead (3) from the battery first, then disconnect the positive (+) terminal lead (4).
- Pull out the battery (5) from the battery box.

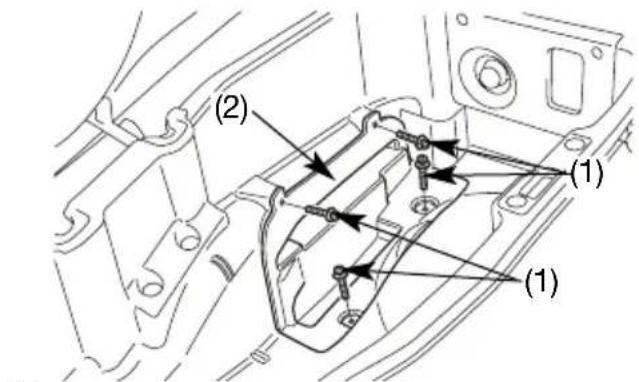

(1) Screws
(2) Battery compartment cover
Installation:
- Reinstall in the reverse order of removal. Be sure to connect the positive (+) terminal first, then the negative (-) terminal.
- Check all bolts and other fasteners are secure

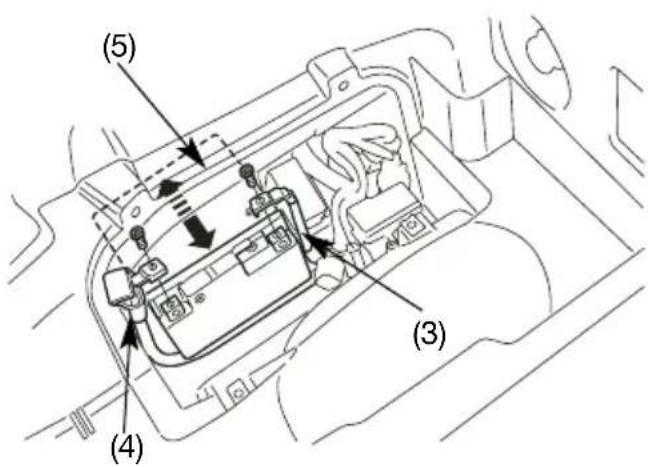

(3) Negative (-) terminal lead
(4) Positive (+) terminal lead
(5) Battery
FUSE REPLACEMENT
Refer to the Safety Precautions on page 80.
When frequent fuse failure occurs, it usually indicates a short circuit or an overload in the electrical system. See your Honda dealer for repair.
Turn the ignition switch OFF before checking or replacing fuses to prevent accidental short-circuiting.
NOTICE
Never use a fuse with a different rating from that specified. Serious damage to the electrical system or a fire may result, causing a dangerous loss of lights or engine power
Fuse box:
The fuse boxes are near the battery compartment under the seat.
The specified fuses are:
10A,15A FES125/150
- Open the seat (page 53).
- Remove the battery compartment cover (page 106).
- Open the fuse box cover (1).
- Remove the old fuse with fuse puller and install a new one. The spare fuses (2) are located in the fuse box.
- Close the fuse box cover and refit the other parts as above in reverse order.
(1) Fuse box cover
(2) Spare fuses
Main fuse:
The main fuse (1) is near the battery compartment under the seat.
The specified fuse is:
30A
- Open the seat (page 53).
- Lift the battery compartment cover (page 106).
- Disconnect the wire connector (2) of the starter magnetic switch.
- Remove the old fuse with fuse puller and install a new one.
The spare main fuse is located inside the tool kit. - Reconnect the connector.
- Refit the other parts as above in reverse order.
(1) Main fuse
(2) Connector
BULB REPLACEMENT
Refer to the Safety Precautions on page 80.
The light bulb becomes very hot while the light is ON, and remains hot for a while after it is turned OFF. Be sure to let it cool down before servicing.
Do not put finger prints on the headlight bulb, as they may create hot spots on the bulb and cause it to break.
Wear clean gloves while replacing the bulb. If you touch the bulb with your bare hands, clean it with a cloth moistened with alcohol to prevent its early failure.
- Be sure to turn the ignition switch OFF when replacing the bulb.
- Do not use bulbs other than those specified.
- After installing a new bulb, check that the light operates properly.
Headlight bulb
- Remove the bulb maintenance cover (1): open the left compartment (2), remove screws (3) of maintenance cover. Disconnect the upper and lower internal expansions pins from their housing (4). Remove maintenance cover being careful not to damage them.
(1) Bulb maintenance cover
(2) Left compartment
(3) Screws
- Enter from right and left maintenance opening (5) to remove the burnt bulb.
(4) Housing expansions pins
(5) Maintenance opening
- Remove the dust cover (6).
- Extract connector (7) without turning it.
- Disengage and lift the two lateral bulb holder clips (8).
- Remove headlight bulb (9) without turning it.
- Replace with a new bulb, following the removal procedure in reverse order.
(6) Dust cover
(7) Connector
(8) Bulb holder clips
(9) Headlight bulb
Position Lights Bulb
- Remove the bulb rear maintenance lid (page 111). Enter through right and left maintenance opening (page 111).
- Remove the bulb socket (1) from its seat.
- Extract the bulb (2) without turning it.
- To replace the bulb perform the removal operations in reverse sequence.
(1) Bulb socket
(2) Bulb
Brake /Taillight bulb
- Open the seat (page 53).
- Remove the two screws (1) and bulb maintenance lid (2).
-
Turn the socket (3) approximately 45^ counterclockwise, then pull it out toward you.
-
Slightly press the bulb (4) and turn it counterclockwise.
- Install a new bulb in the reverse order of removal.
(1) Screws
(2) Bulb maintenance lid
(3) Socket
(4) Bulb
Front Turn Signal Bulb
-
Remove the bulb rear maintenance lid (page 111). Enter through right and left maintenance opening (page 111).
-
Turn the socket (1) approximately 45^ counterclockwise, then pull it out toward you.
-
Slightly press down on the bulb (2) and turn it counterclockwise.
-
Install a new bulb in the reverse order of removal.
- Use only the amber bulb.
(1) Socket (2) Bulb
Rear Turn Signal Bulb
- Open the seat (page 53).
- Remove the bulb maintenance lid (page114).
- Turn the socket (1) approximately 45^ counterclockwise, then pull it out toward you.
- Slightly press the bulb (2) and turn it counterclockwise.
- Install a new bulb in the reverse order of removal.
- Use only the amber bulb.
(1) Socket
(2) Bulb
License Light Bulb
- Remove the screw (1).
- Remove the license light cover (2).
- Pull out the connector (3).
- Pull out the bulb (4) without turning.
- Install a new bulb in the reverse order of removal.
(1) Screw
(2) License light cover
(3) Connector
(4) Bulb
CLEANING
Clean your scooter regularly to protect the surface finishes and inspect for damage, wear, and oil, coolant or brake fluid leakage.
Avoid cleaning products that are not specifically designed for scooter or automobile surfaces.
They may contain harsh detergents or chemical solvents that could damage the metal, paint, and plastic on your scooter.
If the scooter is still warm from recent operation give the engine and exhaust system time to cool off.
We recommend avoiding the use of high pressure water spray (typical in coin-operated car washes).
NOTICE
High pressure water (or air) can damage certain parts of the scooter.
Washing the scooter
- Rinse the scooter thoroughly with cool water to remove loose dirt.
- Clean the scooter with a sponge or soft cloth using cool water.
Avoid directing water to muffler outlets and electrical parts.
- Clean the plastic parts using a cloth or sponge dampened with a solution of mild detergent and water. Rub the soiled area gently rinsing it frequently with fresh water.
Take care to keep brake fluid or chemical solvents off the scooter.
They will damage the plastic and painted surfaces.
The inside of the headlight lens may be clouded immediately after washing the scooter. Moisture condensation inside the headlight lens will disappear gradually by lighting the headlight in high beam. Run the engine while keeping the headlight on.
- After cleaning, rinse the scooter thoroughly with plenty of clean water. Strong detergent residue can corrode alloy parts.
- Dry the scooter, start the engine and let it run for several minutes.
- Test the brakes before riding the scooter. Several applications may be necessary to restore normal braking performance.
Finishing Touches
After washing your scooter, consider using a commercially available spray cleaner/polish or quality liquid or paste wax to finish the job. Use only a non-abrasive polish or wax made specifically for motorcycles or automobiles. Apply the polish or wax according to the instructions on the container.
Removing Road Salt
The salt contained in the road surface freezing prevention medicine which a road was sprayed with in winter, and the seawater becomes the cause which rust occurs in.
Wash your scooter by the following point after it runs through such a place:
- Clean the scooter using cool water (page 118).
Do not use warm water.
This worsens the effect of the salt.
- Dry the scooter and protect the surface of the metal with wax.
Painted Aluminum Wheel Maintenance
Aluminum may corrode from contact with dirt, mud, or road salt. Clean the wheels after riding through any of these substances. Use a wet sponge and mild detergent. Avoid stiff brushes, steel wool, or cleaners containing abrasives or chemical compounds.
After washing, rinse with plenty of water and dry with a clean cloth.
Exhaust Pipe Maintenance
The exhaust pipe is steel but may become stained by oil or mud. If necessary, remove heat stains with a liquid abrasive.
Clean The Windshield
Using plenty of water, clean the windshield with a soft cloth or sponge, (avoid using detergents or any kind of chemical cleaner on the windshield). Dry with a soft, clean cloth.
To avoid possible scratching or other damage, use only water and a soft cloth or sponge to clean the windshield.
For a dirtier windshield, use a diluted neutral detergent with a sponge and plenty of water.
Make sure to wash off all the detergent, (Detergent residue may cause windshield cracks).
Replace the windshield if scratches cannot be removed and they obstruct clear vision.
Do not let battery electrolyte, brake fluid or other acid chemicals get on the windshield and screen garnish.
They will damage the plastic.
STORAGE GUIDE
Extended storage, such as for winter, requires that you take certain steps to reduce the effects of deterioration from non-use of the scooter. In addition, necessary repairs should be made BEFORE storing the scooter; otherwise these repairs may be forgotten by the time the scooter is removed from storage.
STORAGE
- Change the engine oil.
- Make sure the cooling system is filled with a 50/50% antifreeze solution.
- Empty the fuel tank into an approved petrol container using a commercially available hand siphon or an equivalent method. Spray the inside of the tank with an aerosol rust-inhibiting oil.
Reinstall the fuel fill cap on the tank.
WARNING
Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.
- Stop the engine and keep heat, sparks and flame away.
- Refuel only outdoors.
-
Wipe up spills immediately.
-
To prevent rusting in the cylinder, perform the following:
-
Remove the spark plug cap from the spark plug. Using tape or string, secure the cap to any convenient plastic body part so that they are positioned away from the spark plug.
- Remove the spark plug from the engine and store it in a safe place. Do not connect the spark plug to the spark plug cap.
- Pour a tablespoon (15-20 cm ^3 ) of clean engine oil into the cylinder and cover the spark plug hole with a piece of cloth.
- Crank the engine several times to distribute the oil.
-
Reinstall correctly the spark plug and spark plug cap.
-
Remove the battery. Store it in an area protected from freezing temperatures and direct sunlight.
Slow charge the battery once a month. - Wash and dry the scooter. Wax all painted surfaces. Coat chrome with rustinhibiting oil.
- Inflate the tyres to the recommended pressures. Place the scooter on blocks to raise both tyres off the ground.
- Cover the scooter (do not use plastic or other coated materials) and store in an unheated area, free of dampness with a minimum of daily temperature variation. Do not store the scooter in direct sunlight.
REMOVAL FROM STORAGE
- Uncover and clean the scooter.
- Change the engine oil if more than 4 months have passed since the start of storage.
- Charge the battery as required. Install the battery.
- Drain any excess aerosol rust-inhibiting oil from the fuel tank. Fill the fuel tank with fresh petrol.
- Perform all Pre-ride Inspection checks (page 62-63).
Test ride the scooter at low speeds in a safe riding area away from traffic.
SPECIFICATIONS
DIMENSIONS
Overall length 2,090 mm
Overall widht 745 mm
Overall height 1,435 mm
Wheelbase 1,490 mm
CAPACITIES
Engine oil
(after draining) 0.9
(after disassembly) 1.0 ℓ
Transmission oil
(after draining) 0.19
(after disassembly) 0.22 ℓ
Fuel tank 9.4 ℓ
Cooling system capacity 0.95 ℓ
Passenger capacity Operator and one passenger
Maximum weight capacity 180 kg
ENGINE
Bore and stroke 52.4 x 57.8 mm ...FES125/125A
58.0 x 57.8 mm ...FES150/150A
Compression ratio
11.0:1
Displacement 125 cm
3
...FES125/125A
153 cm ^3
...FES150/150A
Spark plug
Standard CR8EH-9 (NGK)
U24FER-9 (DENSO)
For extended high speed riding CR9EH-9 (NGK)
U27FER-9 (DENSO)
Spark plug gap 0.80 - 0.90 mm
CHASSIS AND SUSPENSION
Caster 27°00'
Trail 80 mm
Tyre size, front 110/90 - 13M/C 56L
Tyre size, rear 130/70 - 12 62L
POWER TRANSMISSION
Primary reduction V-Belt
Final reduction 9.857 FES125/125A
8.954 FES150/150A
ELECTRICAL
Battery 12V - 6AH
Generator 0.30kW / 5,000 min
^-1 (rpm)
LIGHTS
Headlight 12V - 55W x 2
Stop/Tail light 12V - 21/5W x 2
Turn signal light Front 12V - 21W x 2
Rear 12V - 21W x 2
Position light 12V - 5W x 2
Instrument light LED
Turn signal indicator LED
High beam indicator LED
PGM FI indicator LED
Oil change indicator LED
ABS indicator LED.....FES125A/150A
License light 12V - 5W
FUSE
Main fuse 30A
Other fuse
10A,15A.....FES125/150
10A, 30A.....FES125A/150A
CATALYTIC CONVERTER
This scooter is equipped with a catalytic converter.
The catalytic converter contains precious metals that serve as catalysts, promoting chemical reactions to convert the exhaust gasses without affecting the metals.
The catalytic converter acts on HC, CO, and NOx. A replacement unit must be an original Honda part or its equivalent.
The catalytic converter must operate at a high temperature for the chemical reactions to take place. It can set on fire any combustible materials that come near it.
Park your scooter away from high grasses, dry leaves, or other flammables.
A defective catalytic converter contributes to air pollution, and can impair your engine's performance. Follow these guidelines to protect your scooter's catalytic converter.
- Always use unleaded petrol. Even a small amount of leaded petrol can contaminate the catalyst metals, making the catalytic converter ineffective.
- Keep the engine tuned-up.
- Have your scooter diagnosed and repaired if it is misfiring, backfiring, stalling or otherwise not running properly.
Honda
FES125/A
FES150/A
MANUAL DEL PROPIETARIO
© HONDA ITALIA INDUSTRIALE S.p.A. 2007
Line drawing of a person riding a motorcycle with directional arrows indicating motion (no text or symbols)Portabultos trasero:
Peso máximo:
3,0 kg (6.6 lbs)
Compartimento central:
Peso máximo:
10 kg (22 lbs)
Line drawing of a person riding a scooter, no text or symbols presentnatural_image
Mechanical assembly diagram showing a hand operating a valve with directional arrows indicating rotation (no text or symbols)
Technical line drawing of a vehicle suspension system with foot and wheel components (no text or labels)SUGERENCIAS PARA EVITAR ROBOS
Mechanical assembly diagram showing a vehicle's suspension system with labeled component (1), no readable text or symbols beyond label(1) Tubo de drenaje
ACEITE DEL MOTOR
bar
| Range | Value | |---|---| | -30 to -20 | - | | -20 to -10 | - | | -10 to 0 | - | | 0 to 10 | - | | 10 to 20 | - | | 20 to 30 | - | | 30 to 40 | - | | 40 to 50°C | 10W-30 | | 50°C to 60°C | 10W-40 | The chart displays a single bar representing the range of temperature values for the 10W-30 and 10W-40 categories. The arrow indicates that the value is approximately 10W-30 + 10W-40.Norma JASO T 903
PRODUCT MEETING JASO T 903
COMPANY GUARANTEEING THIS MA PERFORMANCE:
(2) Conector
(6) Guardapolvos
(7) Conector
(8) Ganchos laterales
(9) Bombilla
No porta-bagagens traseiro 3,0 kg (6.6 lbs)
(1) Relógio digital
(2) Tecla de MODE
(3) Tecla de RESET
Line drawing of a person riding a scooter, no text or symbols presentnatural_image
Mechanical assembly diagram showing a hand holding a component with an arrow indicating rotation (no text or symbols present)
Line drawing of a person riding a scooter with visible engine and wheel (no text or symbols)natural_image
Technical line drawing of a mechanical assembly with foot and base components (no text or symbols)SUGESTÕES CONTRA ROUBO
NÚMEROS DE SÉRIE
ÓLEO DO MOTOR
bar
| Value | Direction (°C) | |---|---| | 10W-30 | -30 | | 10W-40 | -40 | The chart displays a single bar representing a measured value at -30°C, with the arrow pointing to the 10W-30 range and the arrow pointing to the 10W-40 range. The x-axis ranges from -20 to 120°F.Norma JASO T 903
PRODUCT MEETING JASO T 903
COMPANY GUARANTEEING THIS MA PERFORMANCE:
(7) Ficha
(8) Ganchos laterais
(9) Lâmpada
- - ON-ROAD USE
- - READ THIS OWNER'S MANUAL CAREFULLY
- Honda FES125/A - FES150/A OWNER'S MANUAL
- WELCOME
- A FEW WORDS ABOUT SAFETY
- OPERATION
- Page
- MAINTENANCE
- SCOOTER SAFETY
- IMPORTANT SAFETY INFORMATION
- Always Wear a Helmet
- Make Yourself Easy to See
- Ride Within Your Limits
- Don't Drink and Ride
- Keep Your Bike in Safe Conditions
- PROTECTIVE APPAREL
- WARNING
- Helmets and Eye Protection
- Additional Riding Gear
- LOAD LIMITS AND GUIDELINES
- Loading
- Load limits
- Maximum weight capacity:
- Maximum cargo weight:
- Maximum weight:
- Loading Guidelines
- Accessories and modifications
- Accessories
- Modifications
- INSTRUMENTS AND INDICATORS
- Initial display
- Odometer/Tripmeter
- Resetting the tripmeter
- Digital Clock (1)
- Fuel consumption meter (1)
- Fuel gauge
- Coolant temperature gauge
- NOTICE
- Oil change indicator
- MAJOR COMPONENTS
- SUSPENSION
- BRAKES
- Combined Brake System (CBS)
- Anti-lock Brake System (ABS) (FES125A/150A)
- ABS Indicator Light (ABS) (FES125A/150A)
- Inspection
- Front Brake Fluid Level
- Rear Brake Fluid Level
- Other checks:
- COOLANT
- Coolant recommendation
- FUEL Fuel tank
- Petrol containing alcohol
- ENGINE OIL
- Engine oil level check
- TUBELESS TYRES
- Air pressure
- Look for:
- Tread Wear
- Tyre repair
- Tyre replacement
- Important safety reminders
- ESSENTIAL INDIVIDUAL COMPONENTS IGNITION SWITCH
- RIGHT HANDLEBAR CONTROLS Start button
- Hazard switch (FES125A/150A)
- LEFT HANDLEBAR CONTROLS
- Headlight dimmer switch (1)
- Passing light control switch (2)
- Turn signal switch (3)
- Horn button (4)
- FEATURES
- (Not required for operation)
- STEERING LOCK
- SEAT LOCK
- HELMET HOLDER
- CENTER COMPARTMENT
- DOCUMENT COMPARTMENT
- TRUNK LIGHT
- ACCESSORY SOCKET
- LEFT COMPARTMENT
- To Open:
- To Close:
- SHOPPING HOOK
- MAXIMUM WEIGHT LIMIT:
- HEADLIGHT AIM VERTICAL ADJUSTMENT
- STARTING THE ENGINE
- Preparation
- CAUTION
- Ignition cut-off
- RUNNING-IN
- RIDING
- PARKING
- ANTI-THEFT TIPS
- THE IMPORTANCE OF MAINTENANCE
- MAINTENANCE SAFETY
- SAFETY PRECAUTIONS
- MAINTENANCE SCHEDULE
- TOOL KIT
- SERIAL NUMBERS
- COLOUR LABEL
- AIR CLEANER
- BELT CASE AIR CLEANER
- CRANKCASE BREATHER
- NOT RECOMMENDED OK
- Viscosity:
- JASO T 903 standard
- Engine Oil / Oil strainer screen
- SPARK PLUGS
- THROTTLE OPERATION
- Coolant replacement
- Front and rear suspension inspection
- SIDE STAND
- Functional Check:
- BRAKE PAD WEAR
- Front brake
- Rear Brake
- BATTERY
- Battery removal:
- Installation:
- FUSE REPLACEMENT
- Fuse box:
- Main fuse:
- BULB REPLACEMENT
- Headlight bulb
- Position Lights Bulb
- Brake /Taillight bulb
- Front Turn Signal Bulb
- Rear Turn Signal Bulb
- License Light Bulb
- CLEANING
- Washing the scooter
- Finishing Touches
- Removing Road Salt
- Painted Aluminum Wheel Maintenance
- Exhaust Pipe Maintenance
- Clean The Windshield
- STORAGE GUIDE
- STORAGE
- REMOVAL FROM STORAGE
- SPECIFICATIONS
- DIMENSIONS
- CAPACITIES
- ENGINE
- CHASSIS AND SUSPENSION
- POWER TRANSMISSION
- ELECTRICAL
- LIGHTS
- FUSE
- CATALYTIC CONVERTER
- Honda
- FES125/A
- FES150/A
- MANUAL DEL PROPIETARIO
- SUGERENCIAS PARA EVITAR ROBOS
- ACEITE DEL MOTOR
- Norma JASO T 903
- Retoques de acabado
- SUGESTÕES CONTRA ROUBO
- NÚMEROS DE SÉRIE
- ÓLEO DO MOTOR
- Toques finais
Brand : Honda
Model : FES150 (2007)
Category : Scooter
