Product Type	Induction hob (cooker)
Brand / Model	Küppersbusch KI8820.0MR
Dimensions (H x W x D)	55 x 798 x 518 mm (FB) / 55 x 800 x 520 mm (FAC)
Power Supply	380-415V 3N~, 50/60 Hz
Total Power	1.1 kW (with power boost max 3.0 kW per zone)
Number of Cooking Zones	6 induction zones (2x3 layout)
Cooking Zone Sizes & Power	Each 19x21 cm; front/back left/center/right: 1.6 kW (1.85 kW boost) for front zones, 2.1 kW (3.0 kW boost) for back zones
Bridging Function	Combines front and rear zones for large cookware (max 3.7 kW)
Control Type	Touch control sensor keys with slider (sensor field)
Key Functions	ON/OFF, lock, keep warm, stop (pause), recall, child lock, timer, minute minder, automatic boost, power boost, grill, head cook
Timer	Automatic switch-off timer (0.01 to 9.59 h) and minute minder
Childproof Lock	Yes, locks controls to prevent accidental operation
Power Management	Automatic power reduction if module limit exceeded
Overheat Protection	If electronics overheat, power is reduced; error code E2 displayed
Pan Recognition	Blinking display if no pan or unsuitable pan; minimum pan base diameter 120 mm
Residual Heat Indicator	Displays 'H' when zone is hot
Automatic Time Limit	Each cooking level has a maximum continuous operating time (e.g., level 9: 90 min)
Cookware Requirement	Magnetisable metal base (enamelled steel, cast iron, stainless steel with special base)
Cleaning Instructions	Clean with damp cloth and mild detergent; use glass scraper for burnt sugar/plastic; avoid steam cleaners

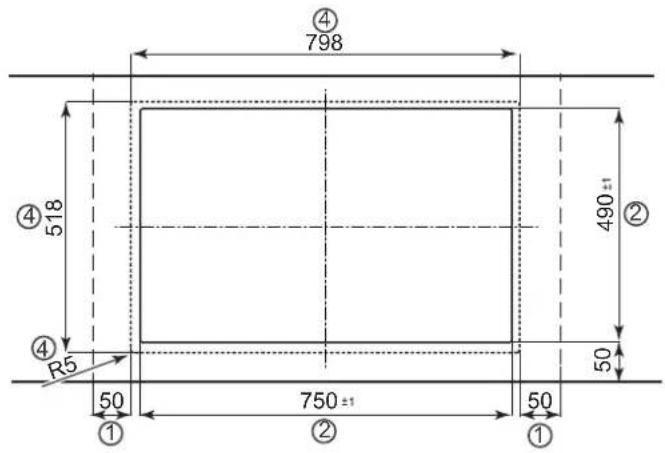

Installation Type	Overlying or flush installation; minimum clearances required
Ventilation	Integrated fan; ensure adequate airflow; minimum 5 mm air gap at front

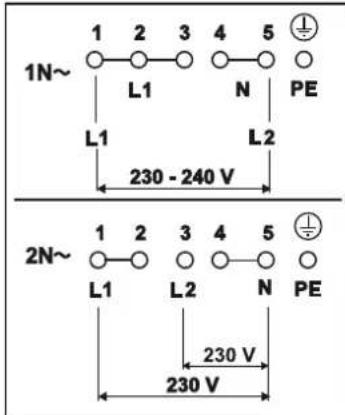

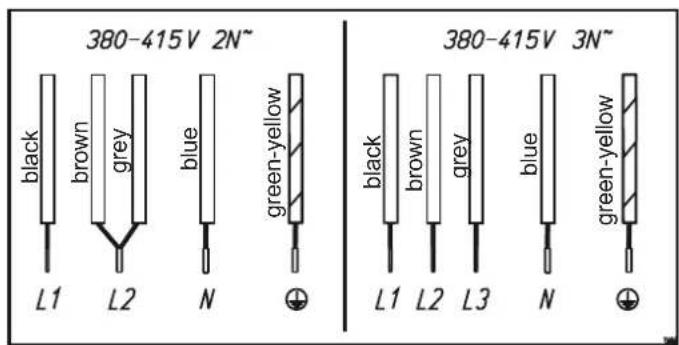

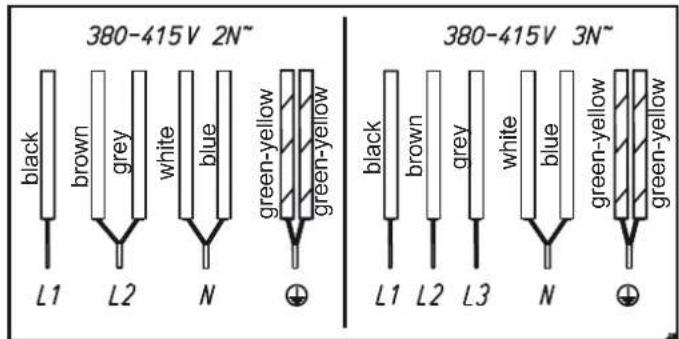

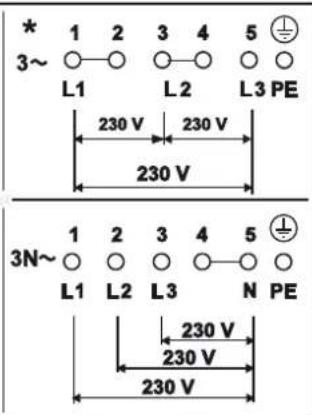

Electrical Connection	6-pole terminal; cable not included (minimum H05 RR-F); strain relief required
Safety Features	Lock key, child lock, auto shut-off, pan detection, overheat protection, residual heat indicator

Frequently Asked Questions - KI8820.0MR Küppersbusch

How do I switch on the hob?

Press the ON/OFF key for about 1 second until power setting 0 appears. Then select a cooking zone by touching its power setting display. Immediately set the desired power level using the sensor field or plus/minus keys.

What does a blinking display on a cooking zone mean?

A blinking display indicates pan recognition. It means no pan is detected on that zone, or the pan is too small or unsuitable. Place a compatible induction pan (magnetic base, minimum 120 mm diameter) on the zone to start heating.

How do I use the childproof lock?

To activate, press the ON/OFF key, then press and hold the power setting display for about 3 seconds until the sensor field lights up, then slide your finger from 0 to P on the sensor field. The display shows 'L'. To deactivate, repeat the same procedure.

Why is error code E2 displayed?

Error E2 means the electronic unit is overheating. Check that the hob has proper ventilation (ensure air gap at front and unobstructed airflow). Reduce power usage and allow the hob to cool. If persistent, consult Customer Service.

Can I use any cookware on this induction hob?

No, only cookware with a magnetisable metal base works. Use a magnet test: if the magnet sticks to the base, it is suitable. Suitable materials include enamelled steel, cast iron, and some multi-layer stainless steel. Avoid copper, aluminium, glass, ceramic, and terracotta.

How do I clean the glass ceramic hob?

Switch off and let cool. Clean with a damp cloth and mild detergent. For stubborn residues (burnt sugar, plastic), use a glass scraper immediately while still hot. Weekly, use a commercial glass ceramic cleaner. Never use abrasive cleaners or steam cleaners.

What is the bridging function?

The bridging function combines a front and rear cooking zone into one large cooking area for bigger pans. Activate by simultaneously pressing both zone selection keys. The back display shows a bridge symbol. Operate via the front zone controls.

How do I set the timer to switch off a cooking zone automatically?

Select the cooking zone, then press plus/minus keys to set time (hours:minutes). Example: left key for hours, center for 10-min increments, right for minutes. After a few seconds, the timer starts. When time ends, the zone switches off and a signal sounds.

What does the Power Boost (P) function do?

Power Boost provides extra power to rapidly boil large quantities of water. Activate by pressing the far right sensor field after selecting the zone. It automatically switches off after 5 minutes and returns to power level 9.

The hob makes clicking or cracking noises. Is this normal?

Yes, these noises are technically normal due to induction coils and electronic components. They do not indicate a defect. The cooling fan may also run after switching off to cool down the electronics.

USER MANUAL KI8820.0MR Küppersbusch

Four white circles arranged in a 2x2 grid on a black background (no text or symbols)

KI8820.0

Please read the users an installation instructions carefully before installation of the appliance and before starting to use.

Pure diagram of a mechanical or electrical component with directional arrows, no text or symbols present

Pure electrical circuit lines without any symbols

Module (Powermanagement)

4.22 Verriegelung

Line drawing of a hand using a tool to clean or inspect a circular object (no text or symbols)

Pure technical diagram of a curved structural component with an arrow indicating direction (no text or symbols)

1.1 For your information....24
1.2 Intended use 24

2 Safety Instructions and Warnings ....25

2.1 For connection and operation 25
2.2 General information on the hob 25
2.3 For persons 26
2.4 Explanation for symbols and indications .....27

3 Appliance description ....28

3.1 Operating the hob with the sensor keys .....29
3.2 Worth knowing about the slider (sensorfi eld) .....29

4 Operation ....30

4.1 The induction hob 30
4.2 Pan recognition 30
4.3 Operation time limit 30
4.4 Other functions....30
4.5 Protection against overheating (induction) .....30
4.6 Cookware for induction hobs 31
4.7 How to cut power consumption 31
4.8 Power settings ....31
4.9 Residual heat display 31
4.10 Operating the keys 32
4.11 Switching on the hob and cooking zones .....32
4.12 Switching off a cooking zone 32
4.13 Switching off the hob 32
4.14 Stop function 33
4.15 Recall function 33
4.16 Childproof lock 34
4.17 Bridging function 34
4.18 Automatic switch-off (timer) 35
4.19 Minute minder (egg timer) 35
4.20 Automatic boost function 36
4.21 Keep warm level 36
4.22 Locking 37
4.23 Power boost 37
4.24 Power management ....37
4.25 Grill function 38
4.26 Head cook function 38

5 Cleaning and care 39

5.1 Glass ceramic hob 39
5.2 Specifi c soiling 39

6 What to do if trouble occurs? 40

7 Instructions for assembly 41

7.1 Safety instructions for kitchen unit fi tters .....41
7.2 Ventilation 41

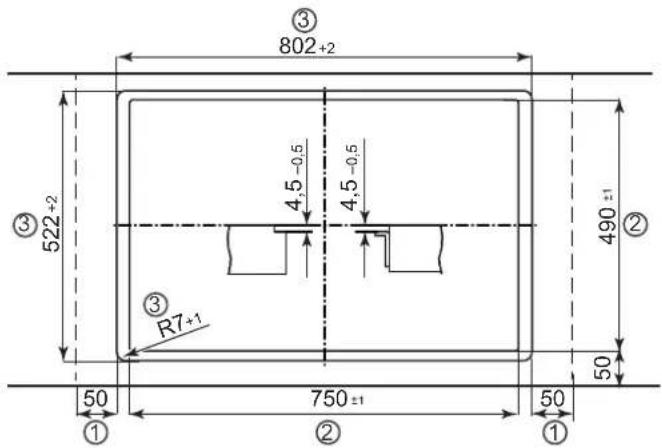

7.3 Installation 41
7.4 Variable installation possibilities: Overlying installation 42
7.5 Variable installation possibilities: Flush installation ....42
7.6 Electrical connection .....43
7.7 Technical data 44
7.8 Putting the appliance into operation .....44

8 Decommissioning and disposal of the appliance ....45

8.1 Switching the appliance off completely .....45
8.2 Disposing of the packaging 45
8.3 Disposing of old appliances 45

1 General

1.1 For your information...

Please read this manual carefully before using your appliance. It contains important safety advice; it explains how to use and look after your appliance so that it will provide you with many years of reliable service.

Should a fault arise, please first consult the section on "What to do if trouble occurs?". You can often rectify minor problems yourself, thus saving unnecessary service costs.

Please keep this manual in a safe place Please pass this manual on to new owners for their information and safety.

1.2 Intended use

The hob is to be used solely for preparing food in the home or in other environments. Similar environments:

• Using the hob in shops, offices and other similar working environments
• Using the hob in agricultural enterprises
- Use of the hob by customers in hotels, motels and other typical living environments
• Use of the hob by B & Bs
- It may not be used for any other purpose and may only be used under supervision.

2 Safety Instructions and Warnings

2.1 For connection and operation

• The appliances are constructed in accordance with the relevant safety regulations.
• Connecting the appliances to the mains and repairing and servicing the appliances may only be carried out by a qualified electrician according to currently-valid safety regulations. For your own safety, do not allow anyone other than a qualified service technician to install, service or repair the product.
• If the mains supply cable of this appliance is damaged, it has to be replaced by the manufacturer, the Customer Service of the manufacturer or by another qualified person to avoid danger.
• The appliance may not be operated with an external timer or an external telecontrol system.

2.2 General information on the hob

• Never allow the induction hob to operate unattended, as the high power setting results in extremely fast reactions.
• When cooking, pay attention to the heat-up speed of the cooking zones. Avoid boiling the pots dry as there is a risk of the pots overheating!
• Do not place empty pots and pans on cooking zones which have been switched on.
  • Take care when using simmering pans as simmering water may dry up unnoticed, resulting in damage to the pot and to the hob for which no liability will be assumed.
• It is essential that after using a cooking zone you switch it off with the respective minus key and not just with the pan recognition device.
  • Overheated fats and oils may spontaneously ignite. Always supervise the preparation of food with fats and oils. Never extinguish ignited fats and oils with water! Switch the appliance off and then carefully cover the flame, for example with a lid or an extinguisher blanket.

• The glass ceramic surface of the hob is extremely robust. You should, however, avoid dropping hard objects onto the glass ceramic hob. Sharp objects which fall onto your hob might break it.

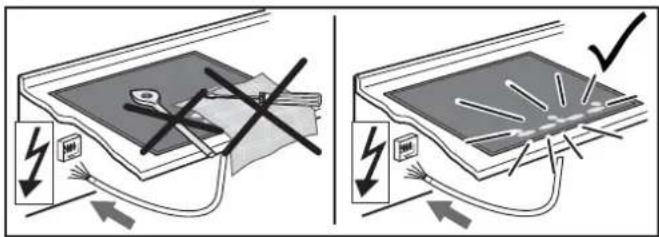

• There is a risk of electric shocks if the glass ceramic hob develops fractures, cracks, tears or damage of any other kind. Immediately switch off the appliance. Disconnect the fuse immediately and call Customer Service.

• If the hob cannot be switched off due to a defect in the sensor control immediately disconnect your appliance and call Customer Service.
  • Take care when working with home appliances! Connecting cables must not come into contact with hot cooking zones.
• Risk of fire: never store items on the hob.
• The glass ceramic hob should not be used as a storage area.
• Do not put aluminium foil or plastic onto the cooking zones. Keep everything which could melt, such as plastics, foil and in particular sugar and sugary foods away from hot cooking zones. Use a special glass scraper to immediately remove any sugar from the ceramic hob (when it is still hot) in order to avoid damaging the hob.
• Metal items (pots and pans, cutlery, etc.) must never be put down on the induction hob since they may become hot. Risk of burning!
• Do not place combustible, infl ammable or heat deformable objects directly underneath the hob.
• Metal items worn on your body may become hot in the immediate vicinity of the induction hob. Caution! Risk of burns! Non-magnetisable objects (e.g. gold or silver rings) are not aff ected.
• Never use the cooking zones to heat up unopened tins of food or packaging made of material compounds. The power supply may cause them to burst!
• Keep the sensor keys clean since the appliance may consider dirt to be fi nger contact. Never put anything (pans, tea towels etc.) onto the sensor keys!

• If food boils over onto the sensor keys, we advise you to activate the OFF key.

• Hot pans and pots should not cover resp. be moved to close to the sensor keys, since this will cause the appliance to switch off automatically.

• Place the pan as close to the centre of the cooking zone as possible.
• Whenever possible, use the back cooking zones for large pans so that the sensor keys are not heated up too much (touch control overheating; error message E2, touch control cut off).
• Activate the childproof lock if there are any pets in the home which could make contact with the hob.
• Never clean the glass ceramic hob with a steam cleaner or similar appliance!

2.3 For persons

• These appliances may be used by children aged 8 years and over and by persons with physical, sensory or mental impairments or by persons who lack experience and/or know-how, provided they are supervised or have been instructed in the safe used of the appliance and have understood the risks relating to the appliance. Children may not play with the appliance. Cleaning and maintenance by the user may only be carried out by children when they are supervised.
• The surfaces of the heating and cooking zones become hot during use. Keep small children away at all times.
• Only hob protective grids and hob covers produced by the hob manufacturer or the manufacturers of the hob protective grids and hob covers authorised by the manufacturer in the instructions for use may be used. The use of unsuitable hob protective grids and hob covers may result in accidents.
• Persons with cardiac pacemakers or implanted insulin pumps must make sure that their implants are not affected by the induction hob (the frequency range of the induction hob is 20-50 kHz).

2.4 Explanation for symbols and indications

The appliance was produced according to state of the art technology. Machines nevertheless give rise to risks which cannot be constructively avoided.

In order to guarantee sufficient safety for the use, safety instructions are also given. These instructions are marked by way of the highlighted texts which follow.

Sufficient safety in operation will only be guaranteed when these instructions are observed.

The designated text passages have different meanings:

DANGER

Note indicating an imminent threat which may result in death or very serious injury.

CAUTION

Note indicating a potentially dangerous situation which may result in death or very serious injury.

IMPORTANT

Note indicating a dangerous situation which may result in minor injury or damage to the appliance.

PLEASE NOTE

Note to be observed in order to make handling the appliance easier.

The following danger symbols are used at some points:

WARNING OF ELECTRICAL ENERGY RISK OF FATAL INJURY!

Live components have been installed near this symbol. Covers bearing this sign may only be removed by a certifi ed skilled electrician.

CAUTION! HOT SURFACES!

This symbol has been applied to surfaces which get hot. There is a risk of serious burning or scalding.

The surfaces may also be hot after the appliance has been switched off.

OBSERVE REGULATIONS FOR HANDLING ELECTROSTATICALLY SENSITIVE COMPONENTS AND MODULES (ESDS).

Electrostatically endangered components and modules are located behind covers bearing the adjacent symbol. Never touch plug connections, strip conductors or component pins. Only qualified staff members who are familiar with ESDs are authorised to carry out any technical intervention work.

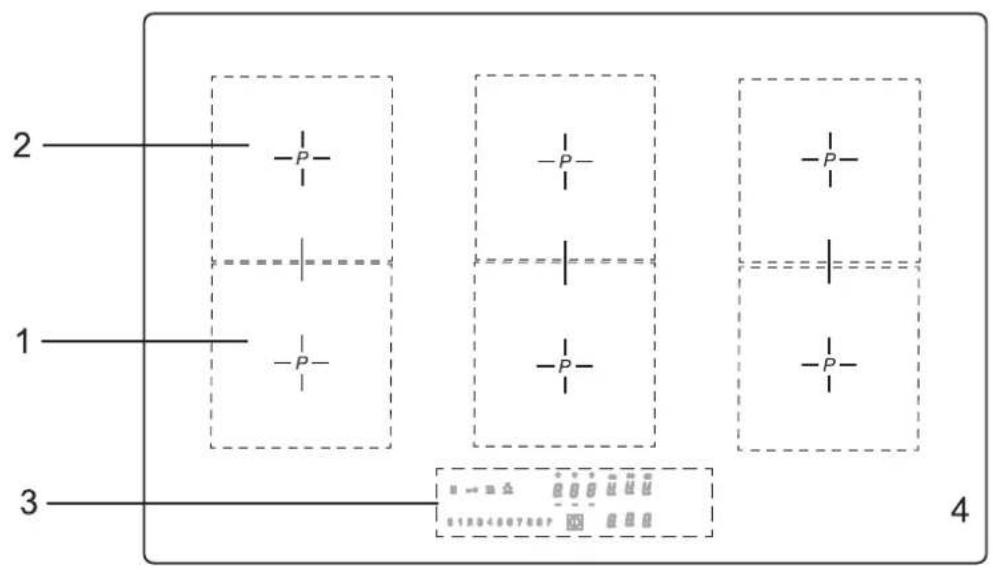

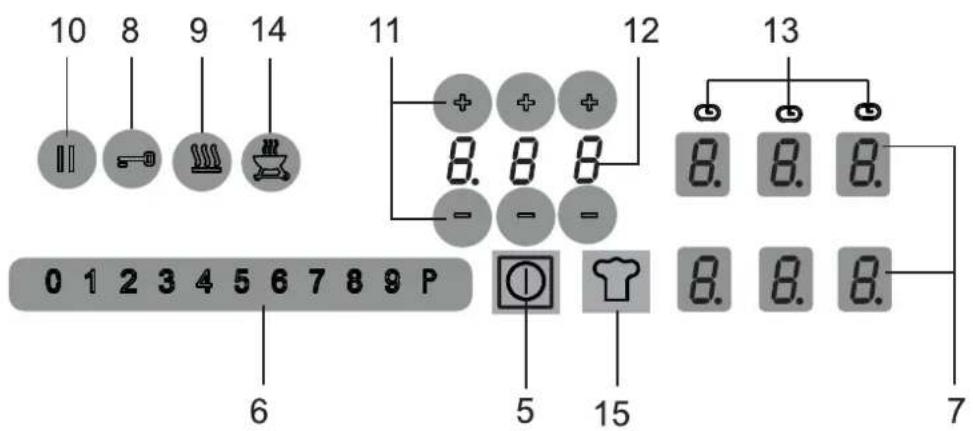

3 Appliance description

The decorative design may deviate from the illustrations.

1. Front induction cooking zone
2. Rear induction cooking zone
3. Glass ceramic hob
4. Touch-Control panel
5. ON/OFF key

6. Sensor fi eld

7. Power setting display and selection key

8. Lock key

9. Warming key
10. Stop key (pause)
11. Minus key /Plus key Timer
12. Timer indication
13. Display cooking zone timer
14. Grill key
15. Head cook function key

PLEASE NOTE

Most of the keys shown here will only become visible when the hob has been switched on.

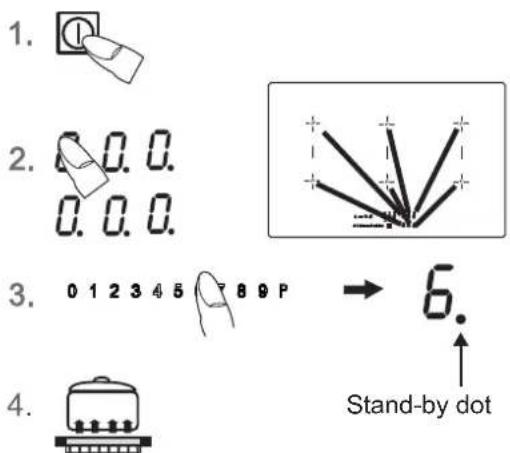

3.1 Operating the hob with the sensor keys

The glass ceramic hob is operated with touch control sensor keys. The sensor keys are operated as follows: lightly touch a symbol on the surface of the ceramic glass plate. A buzzer will indicate when the controls have been operated correctly.

The touch control sensor key will then be indicated as "key".

ON/OFF key ① (5)

This key is used to switch the entire hob on and off.

Power setting display and key (7) too

The power setting indicator shows the power setting which has been selected, or:

H......Residual heat
P....Power boost
Pan recognition
R......Automatic boost function
11......Stop function
L ....Childproof lock
Bridging function
U ....Keep warm level
- ......Grill function

The corresponding cooking zone will be selected when the power setting display is touched. The standby dot of the cooking zone selected will light up.

Symbols

5 Timer function, automatic switch-off device

Locking

Lock key (8)

The lock key can be used to lock all of the keys.

Keep warm key (9)

To keep warm

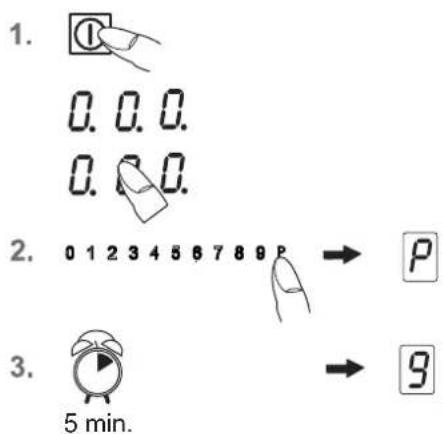

Power boost in the sensor fi eld 12345678 P

The power boost setting makes additional power available for induction cooking zones.

Stop key | (10)

The STOP function can be used to briefly stop the cooking process.

Recall function | (10) (recovery function)

The most recent setting can be recovered if the hob is switched off unintentionally.

Grill key (14)

Grill function with a griddle plate for induction

Head cook function key 7(15)

The front and the back cooking zones are switched together for form a big vertical cooking zone with different power levels preset.

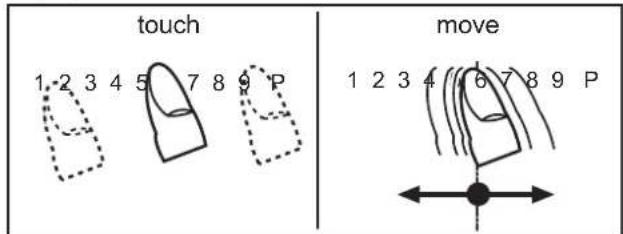

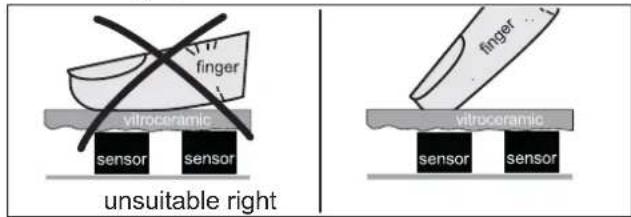

3.2 Worth knowing about the slider (sensorfi eld)

In principle, the slider functions the same as the touch controls; the only difference is that you can put your finger on the glass ceramic surface and then move it around.

The sensor fi eld recognises this movement and raises or lowers the display setting (power level) in accordance with the movement.

The term sensor fi eld is used to mean slider from now on.

1 2 3 4 5 6 7 8 9 P

Sensor fi eld

What must be observed when operating sensor fi elds?

Your fi nger should not be placed fl at onto the glass ceramic surface in order to avoid adjacent keys/sensor fi elds from reacting by mistake.

Press the sensor fi eld lightly or move your fi nger around

You can press the sensor fi eld very lightly with your fi nger; when this is done the setting on the display (power level) will gradually change.

When you put your fi nger on the sensor fi eld and then move it to the left or right, the display setting will change progressively.

The faster the movement, the faster the change in the display.

4 Operation

4.1 The induction hob

The hob is equipped with an induction cooking mode. An induction coil underneath the glass ceramic hob generates an electromagnetic alternating fi eld which penetrates the glass ceramic and induces the heat-generating current in the pot base.

With an induction cooking zone the heat is no longer transferred from a heating element through the cooking pot into the food being cooked; instead the necessary heat is generated directly in the container by means of induction currents.

Advantages of the induction hob

• Energy-saving cooking through the direct transfer of energy to the pot (suitable pots/pans made of magnetisable material are required).
• Increased safety as the energy is only transferred when a pot is placed on the hob.
  • Highly effective energy transfer between an induction cooking zone and the base of a pot.
• Rapid heat-up.
• The risk of burns is low as the cooking area is only heated through the pan base; food which boils over does not stick to the surface.
• Rapid, sensitive control of the energy supply.

4.2 Pan recognition

If a cooking zone is switched on and there is no pan on the zone or if the pan is too small, there will be no transmission of power. A blinking in the power level indicator points this out.

If a suitable pot or pan is placed on the cooking zone, the power setting will switch on and the power setting indicator will light up. The power supply will be cut off when the pan is removed and the power setting indicator will indicate a blinking

If the pots and pans placed on the cooking zone are of smaller dimension, and the pan recognition still switches on, less power will be supplied.

Pan recognition limits

Cooking zone diameter (mm)	Recommended minimal diameter pan base (mm)
190 x 210 120

The base of pots and pans must be of a certain diameter; if it is not, the induction heat will not be switched on. Always place pots and pans in the middle of a cooking zone in order to achieve the best efficiency.

Important: The minimum diameter required to activate the pan recognition device may vary according to the type of pot or pan used!

4.3 Operation time limit

The induction hob has an automatic time limit function.

The duration of continuous use of each cooking zone depends on the cooking level selected (see chart).

This requires that the setting of a respective cooking zone is not adjusted during use.

If the operation time limit has been activated, the cooking zone will switch off, a short signal will sound and an H will appear in the display.

The automatic switch-off function overrules the operation time limit, i.e. the cooking zone is only switched off when the period of time of the automatic switch-off device has expired (e.g. automatic switch-off after 99 minutes and cooking level 9 is possible).

Operation time limit

Selected cooking level	Operation time limit in minutes
U	120
1	520
2	402
3	318
4	260
5	212
6	170
7	139
8	113
9	90
P	10

4.4 Other functions

If two or more sensor keys are pressed at the same time (e.g. when a pan is mistakenly put onto a sensor key) no function will be activated.

The symbol Er03 will blink and a time-limited continuous signal will sound. After a few seconds the appliance will switch off. Please remove the item located in front of the sensor keys.

To delete the symbol Er03 press the same key or switch the hob off and on.

4.5 Protection against overheating (induction)

If the hob is used at full power for a longer period, it will not be possible to cool down the electronics system as required at a high room temperature.

In order to ensure that no excessive temperatures occur in the electronics system the power of the cooking zones may be reduced automatically. Should E2 be displayed frequently during normal use of the hob and at normal room temperature, it is likely that cooling is not sufficient.

This may occur if kitchen units have no openings. The installation may have to be checked (see the section on Ventilation).

4.6 Cookware for induction hobs

Cookware for induction cooking zones must be made of metal and have magnetic properties. The base must be sufficiently large.

Only use pots with a base suitable for induction.

Suitable cookware Unsuitable cookware
Enamelled steel pots with a thick base	Pots made of copper, stainless steel, aluminium, oven-proof glass, wood, ceramic and terracotta
Cast iron pots with an enamelled base
Pots made of multi-layer stainless steel, stainless ferrite steel and aluminium with special base

This is how to establish the suitability of a pot:

Conduct the magnet test described below or make sure that the pot bears the symbol for suitability for cooking with induction current.

Magnet test:

Move the magnet towards the base of your cookware. If it is attracted, you can use the cookware on the induction hob.

Please note:

When using pans suitable for induction from certain manufacturers, noises may occur which are attributable to the design of these pans.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Wrong: the base of the pan is curved. The electronic unit cannot determine the temperature correctly.

4.7 How to cut power consumption

The following are a few useful hints to help you cut your consumption of energy and use your new induction hob and the cookware effi ciently.

• The base of your cooking pots should be the same size as the cooking zone.
• When buying cooking pots, note that it is frequently the diameter of the top of the pot that it indicated. This is usually larger than the base of a pot.
• Pressure cookers are particularly low on energy and time required thanks to the pressure and the fact that they are tightly closed. Short cooking times mean that vitamins are preserved.
• Always make sure that there is sufficient fluid in your pressure cooker since the cooking zone and the cooker may be damaged as a result of overheating if the pressure cooker boils dry.
  • Always close cooking pots with a suitable lid.
• Use the right pot for the quantity of food you are cooking. A large pot which is hardly filled will use up a lot of energy.

4.8 Power settings

The heating power of the cooking zones can be set at various power levels. In the chart you will find examples of how to use each setting.

Setting Suitable for
0	Off, using residual heat
1-2	Simmering small portions
3	Simmering level
4-5	Simmering larger quantities or roasting larger pieces of meat until they are cooked through
6	Roasting, getting juices
7-8	Roasting
9	Bringing to the boil, browning, roasting
P	Power boost (highest power output)

A higher power level may need to be selected for cooking pots without a lid.

4.9 Residual heat display H

The glass ceramic hob is equipped with an H as a residual heat indicator.

As long as the H lights up after the cooking zone has been switched off, the residual heat can be used for melting food or for keeping food warm.

The cooking zone may still be hot when the letter H no longer lights up. Risk of burns!

The glass ceramic is not directly heated in the case of an induction cooking zone; it is only heated up by heat reflected by the pan.

4.10 Operating the keys

The controls described here expect the pressing of a (selection) key to be followed by the pressing of a subsequent key. The next key will need to be pressed within 10 seconds, otherwise the selection will be deleted.

Suitable for induction cooking

4.11 Switching on the hob and cooking zones

1. Press the ON/OFF key (Approx. 1 sec.) until the power setting 0 appears and a short signal will sound. The controls are ready for operation.
2. Use the Power setting display (as a key) to select a cooking zone. The stand-by dot of the cooking zone selected will light up.
3. The touch control must be activated immediately afterwards. A power setting will be switched on.

456789 P .....left Power setting 0.

1234 89 P ......center Power setting 6.

12345678 P ......right Power setting P*

See the section on Worth knowing about the slider (sensor fi eld)

Press the respective sensor field to change a power setting or to switch on an additional cooking zone.

Important: the stand-by dot of the cooking zone selected must light up.

1. Immediately put cookware suitable for induction cooking onto the cooking zone. The pan recognition device will activate the induction coil. The pot or pan will be heated up.

As long as no cooking pot is placed onto the cooking zone, the display will alternate between the power level set and the symbol. If no pot is placed on the cooking zone it will switch off after 10 minutes for reasons of safety. Please refer to the Section on pan recognition.

4.12 Switching off a cooking zone

Use the power setting display (as a key) to select a cooking zone. The stand-by dot of the cooking zone selected must light up.

1. a) Press the sensor fi eld on the far left 456789 P or b) drag your fi nger to the left across the touch control 89 P to reduce the power setting to 0 c) press the ON/OFF key ① The entire hob will be switched off (all the cooking zones are switched off).

4.13 Switching off the hob

1. Press the ON/OFF key ☐The hob will be switched off, irrespective of any settings.

Please note:

The hob will switch off automatically after 10 seconds when all the cooking zones are switched of manually (power setting 0) and no key/sensor fi eld is pressed afterwards.

* The Power boost function is activated immediately. See the section on Power setting.

4.14 Stop function ||

The cooking process can be briefly interrupted with the STOP function, e.g. if the doorbell rings. The STOP function must be released in order to continue cooking at the same power level. If a timer has been set it will pause and will then continue.

This function is only available for 10 minutes for reasons of safety. The hob will then be switched off.

1. Pots and pans are on the cooking zones and the required power levels have been set.
2. Press the Stop key 11. Instead of the selected power settings, the interval sign will light up.
3. The interruption is ended by firstly pressing the STOP key I and then pressing any other key (except the ON/OFF key).
   The second key must be pressed within 10 seconds as the hob will otherwise be switched off.

4.15 Recall function ||

(recovery function)

The most recent setting can be recovered if the hob is switched off unintentionally.

The recall function only works if at least one cooking zone is switched on.

1. The hob is inadvertently turned off by the ON/OFF key of the hob
2. Within 6 seconds after turning it off, press the ON/OFF key of the hob 📄 again.
   The STOP key blinks.
   The STOP key I must be pressed immediately afterwards.
   The original cooking levels are restored. The cooking process continues.

What can be restored:

• Cooking levels of all cooking zones
• Minutes and seconds of programmed timer functions
• Automatic boost function
- Power boost

Not to be restored:

• Operation time limit (it is counted from 0)

1.

2.

3.

4.

5.

6.

1.

Pure electrical circuit lines without any symbols

2.

3.

4.16 Childproof lock

The childproof lock serves the purpose of preventing children from switching on the induction hob either accidentally or intentionally. The controls are blocked here.

Switching on the childproof lock

1. Press the ON/OFF key of the hob (1 s.) until the power setting 0 appears.
2. Immediately afterwards press the power setting display and keep it pressed (for approx. 3 seconds) until the sensor fi eld lights up from 0-P.
3. Immediately afterwards slide over the complete sensor fi eld from 0-P to activate the the childproof lock. The power setting indicators will show an L for child lock, the controls will be disabled and the hob will switch off.

Switching off the childproof lock

1. Press the ON/OFF key.
2. Immediately afterwards press the power setting display and keep it pressed (for approx. 3 seconds) until the sensor field lights up from 0-P.
3. Immediately afterwards slide over the complete sensor fi eld from 0-P to deactivate the the childproof lock. The L will go off.

Please note

- In the event of a power cut the childproof lock will not be cancelled.

4.17 Bridging function

The front and the rear cooking zones may be activated together for a cooking process (bridging function). This enables larger cookware to be used.

1. Switch on the hob.
2. Press the two cooking zone selection keys of the front and back cooking zones simultaneously to activate the bridging function. The bridging function has been switched on and the back power level setting shows the bridge Operation is carried out with the front power level setting and the sensor fi eld.
3. Activate the front and back cooking zones simultaneously again or switch the hob off to deactivate the two power level settings (as a key).

Please note

The roaster or the pot will need to cover at least half of the cooking zones used in order to be recognised by the pan recognition device!

4.18 Automatic switch-off (timer)

The automatic switch-off device is used to automatically switch off any cooking zone after an adjustable period of time. Cooking times ranging from 0.01 to 9.59 (h.minutes) can be set.

1. Switch on the hob.

2. Use the power setting display (as a key) to select a cooking zone. The stand-by dot of the cooking zone selected will light up.

3. Then use the Plus key ⊕ or the Minus key ⊕ to set the required time.

Left position: Hours

Centre position: Every 10 minutes

Right position: Every minute

After a few seconds the entry will be taken over and the time will be running.

The timer symbol of the cooking zone lights up.

1. The cooking zone will be switched off when the time has lapsed.

A signal will sound for a while and can be switched off by pressing any key (except the ON/OFF key ①)

Notes

• Repeat steps 2 to 4 to program the automatic switch-off device for another cooking zone.
• To check the time that has lapsed (automatic switch-off) press the timer display (as a key). The setting displayed can be read and changed.
• Terminating the function of the timer: Select the respective cooking zone and press the minus key to delete the time (0).
• If several cooking zones have been programmed with the automatic switch-off function, the timer display will always show the cooking zone with the shortest time.

4.19 Minute minder (egg timer)

1. Switch on the hob. Don't select a cooking zone.
2. Then use the Plus key for the Minus key to set the required time.
3. Once the time has lapsed a signal will sound for a while and can be switched off by pressing any key (except for the ON/OFF key ①)

Notes

• The minute minder will also remain in operation when the right or left side of the hob is switched off. Switch the left or right side of the hob on to adjust the time.
• The minute minder will switch off after approx. 120 min. when the ⓄN/OFF key is used for switching off.

1. 012345 89P→A→6→A

Press and keep pressed (for approx. 3 seconds)

3.6

Cooking level Setting	Automatic boost function Time (min:sec)
1	0:40
2	01:12
3	02:00
4	02:56
5	04:16
6	07:12
7	02:00
8	03:12
9	-

4.20 Automatic boost function R

Food is parboiled at power setting 9 with the automatic boost function. After a certain time, the power level will switch down automatically to a lower simmering setting (1 to8).

When using the automatic boost function only the simmering setting with which the food is to be cooked through needs to be selected since the electronic unit switches down automatically.

The automatic boost function is suitable for dishes which are cold initially and are then heated up at high power. These dishes do not need to be constantly monitored when simmering (e.g. boiling meat for soups).

1. Switch on the hob.

2. Press the sensor fi eld 1234 88 P and keep it pressed (for approx. 3 seconds) to activate the function and immediately select a specifi c simmering setting:

456789P left Setting 1

1234 89P ...... center ...... Setting 6

12345678 P ...... right ...... Setting 8

A and the selected simmering setting will blink alternately.

1. The automatic boost function will operate as programmed. After a certain time (see chart) the cooking process will be continued with the simmering setting. The A symbol will go off.

Please note

- The simmering setting can be changed while the automatic boost function is in operation.

4.21 Keep warm level

With the keep-warm function you keep food warm with a specific temperature. The respective cooking zone is operated at a low power level.

1. Cookware is placed on a cooking zone and a power level (e.g. 3) is selected.

2. By pressing the Warming key ☑ select the keep warm level.

3. To switch off the function press the sensor fi eld on the far left or press the Warming key

The keep-warm function is available for 120 minutes, after which the cooking zone will be switched off.

Modules (power management)

4.22 Locking

The lock can be used to lock key operation and cooking level settings. Only the ON/OFF key can be used to switch the hob off.

Activating the lock

1. Press the lock key = The lock key will light up brightly. The lock will now be activated.

Switching off the lock

1. Press the lock key =. The lock key will light up with a dimmed light. The lock is now switched off.

Notes

An activated lock will remain activated even if the hob is switched off. It must therefore be de-activated when cooking is re-commenced.

The activated lock will be cancelled, i.e. de-activated, in the event of a power failure and when the ON/OFF key is used for switching off.

4.23 Power boost P

The power boost setting makes additional power available for induction cooking zones. A large quantity of water can be brought to the boil very quickly.

1. Switch on the hob. Use the power setting display (as a key) to select a cooking zone. The stand-by dot of the cooking zone selected will light up.
2. Press the _sensor Peld on the far right. The power boost setting will be activated.
3. After 5 minutes the power boost setting will switch off automatically. The P will go off and the power level will switch down to 9.

Please note

Press the sensor fi eld to prematurely de-activate the pow- er boost.

4.24 Power management

For technical reasons two cooking zones always comprise a module and have a maximum power level.

If this power range is exceeded when a higher power setting level or the power boost function is switched on the power management system will reduce the power setting of the corresponding cooking zone of the module.

The display for this cooking zone will initially blink, after which the highest-possible power setting will be consistently displayed.

1.

2.

3.

4.

5.

6.

1.

2.

3.

4.25 Grill function

Use the grill function with the recommended griddle plate for induction.

1. Switch on the hob.
2. Use the front power setting display (as a key) to select a cooking zone. The stand-by dot of the cooking zone selected will light up.
3. Press the Grill key 📋 to activate the grill function. The front and back cokking zone were switched together.
4. The touch control must be activated immediately afterwards. A power setting will be switched on.
5. Put the griddle plate onto the cooking zone and insert the food to be grilled. Level 1 - 3 for vegetables Level 4 - 6 for fi sh Level 7 - 9 for meat
6. To switch off the grill function press the Grill key or switch off the hob.

Notes

• Never operate the appliance unattended.
• Set the power levels just as you wish.

4.26 Head cook function

The front and the back cooking zones are switched together for form a big vertical cooking zone with different power levels preset.

Just move the pots to select keeping warm simmering and browning.

The temperature level will not need to be set. Simply move the pot on the selected temperature zone instead.

1. Switch on the hob.
2. Press the head cook function key The function will now be activated. The power setting display will show 2, 6 and 9.
3. Press the head cook function key again to de-activate the function.

5 Cleaning and care

• Switch the hob off and let it cool down before you clean it.
• Never clean the glass ceramic hob with a steam cleaner or similar appliance!
• When cleaning make sure that you only wipe lightly over the ON/OFF key. The hob may otherwise be accidentally switched on!

5.1 Glass ceramic hob

Important! Never use aggressive cleaning agents such as rough scouring agent, abrasive saucepan cleaners, rust and stain removers etc.

Cleaning after use

1. Always clean the entire hob when it has become soiled. It is recommended that you do so every time the hob is used. Use a damp cloth and a little washing up liquid for cleaning. Then dry the hob with a clean dry cloth to ensure that there is no detergent left on the surface of the hob.

Weekly cleaning

1. Clean the entire hob thoroughly once a week with commercial glass ceramic cleaning agents. Please follow the manufacturer's instructions carefully. When applied, the cleaning agent will coat the hob in a protective fi lm which is resistant to water and dirt. All the dirt will remain on the fi lm and can then easily be removed. Then rub the hob dry with a clean cloth. Make sure that no cleaning agent remains on the surface of the hob since this will react aggressively when the hob is heated up and will change the surface.

5.2 Specific soiling

Heavy soiling and stains (limescaling and shiny, mo-

ther-of-pearl-type stains) can best be removed when the hob is still slightly warm. Use commercial cleaning agents to clean the hob. Proceed as outlined under Item 2.

First soak food which has boiled over with a wet cloth and then remove remaining soiling with a special glass

scraper for glass ceramic hobs. Then clean the hob again as described under Item 2.

Line drawing of a hand holding a tool near a circular pipe (no text or symbols)

Burnt sugar and melted plastic must be removed immediately, when they are still hot, with a glass scraper. Then clean the hob again as described under Item 2.

Grains of sand which may get onto the hob when you peel potatoes or clean lettuce may scratch the surface of the hob when you move pots around. Make sure that no grains of sand are left on the hob.

Changes in the colour of the hob will not affect the function and the stability of the glass ceramic material. These colour changes are not changes in the material but food residues which were not removed and which have burnt into the surface.

Shiny spots result when the base of the cookware rubs on the surface of the hob, particularly when cookware with an aluminium base or unsuitable cleaning agents are used. They are difficult to remove with standard cleaning agents. You may need to repeat the cleaning process several times. In time, the decoration will wear off and dark stains will appear as a result of using aggressive cleaning agents and faulty pan bases.

6 What to do if trouble occurs?

Interference with and repairs to the appliance by unqualified persons are dangerous as they can result in an electric shock or a short circuit. Do not interfere with or try to repair the appliance; this could cause injury to persons and damage to the appliance. Always have such work done by an expert, e.g. a Customer Service technician.

Please note

If your appliance is faulty, please check whether you can rectify the problem yourself by consulting these instructions for use.

You may be able to rectify some problems yourself. They are described below.

The fuses blow regularly?

Contact a technical customer service or an electrician!

You can't switch your induction hob on?

• Has the wiring system (fuse box) in the house blown a fuse?
• Has the hob been connected to the mains?
• Are the sensor keys locked (childproof lock)?
• Are the sensor keys partly covered by a damp cloth, fluid or a metallic object? Please rectify.
• Are you using unsuitable cookware? See the section on "Cookware for induction hobs".

The symbol U will blink and a time-limited continuous signal will sound.

Food which has boiled over, cookware or other items are causing the touch control sensor keys to be consistently operated.

Remedy: clean the surface or remove the item. To delete the symbol press the same key or switch the hob off and on.

Error code E2 is indicated?

The electronic unit is too hot. Check the installation of the hob. Make sure that there is sufficient ventilation.

See the section on "Protection against overheating". See the section on "Ventilation".

Error code E8 is indicated?

Fault on the left or right fan. The suction opening is blocked or covered or the fan is defect.

Check the installation of the hob. Make sure that there is sufficient ventilation.

See the section on "Protection against overheating". See the section on "Ventilation".

Error code U400 is indicated?

The hob has been incorrectly connected. The controls will switch off after 1s and a continuous signal will sound. Connect the appliance to the appropriate power supply.

An error code (ERxx or Ex) is indicated?

The appliance has developed a technical defect. Please call Customer Service.

The pot sign appears?

A cooking zone has been switched on and the hob is expecting a suitable pot or pan to be placed on the cooking zone (pan recognition). Only when a pot has been placed on the cooking zone will power be supplied.

The pot sign still appears, even though a pot or pan was placed on the hob?

The cookware is unsuitable for induction cooking or the pot or pan is too small.

Is the cookware you are using making noises?

This is due to technical reasons; the induction hob and the pot are not at risk.

Does the cooling fan still operate after it has been switched off?

This is normal since the electronic unit is being cooled down.

Is the hob making noises (clicking or cracking sounds)?

This is for technical reasons and cannot be avoided.

Does the hob have tears or cracks?

There is a risk of electric shocks if the glass ceramic hob develops fractures, cracks, tears or damage of any other kind. Immediately switch off the appliance. Disconnect the fuse immediately and call Customer Service.

7 Instructions for assembly

7.1 Safety instructions for kitchen unit fi tters

• Veneers, adhesives and plastic surfaces of surrounding furniture must be temperature resistant (at least 75^ ). If the veneers and surfaces are not sufficiently heat resistant they may become deformed.
• Ensure that all live connections are safely insulated when installing the hob.
• Cover strips between the wall and the worktop behind the hob which are made of solid wood are permissible as long as minimum clearances in accordance with the installation diagrams are maintained.
• Minimum clearances of the hob cut-out towards the rear are to be maintained in accordance with the installation diagram.
• For installation directly next to a tall cupboard, a safety distance of at least 50 mm must be ensured. The side surface of the tall cupboard should be fitted with heat resistant material. Due to working requirements, however, the distance should be at least 300 mm.
• The packaging materials (plastic foil, polystyrene, nails etc.) must be kept out of reach of children as these parts are potentially dangerous. Small parts can be swallowed and there is a danger of plastic sheeting causing suffocation.

7.2 Ventilation

• The induction hob is fitted with a fan that switches on and off automatically. The fan starts slowly when the electronic system temperatures exceed a specific limit. When the induction hob is used intensively, the fan will switch to a greater velocity. Once the electronic system has cooled down sufficiently, the fan will reduce its velocity and switch off again automatically.
• Clearance between the induction hob and kitchen furniture or built-in units must provide for sufficient ventilation of the induction hob.
• If the power level of a cooking zone is automatically raised or lowered (see section on thermal cut-off device) it is likely that the cooling system does not cool sufficiently. In this case we recommend that the back wall of the bottom kitchen unit in the area of the worktop cut-out be opened and that the front transverse strip of the unit be removed over the entire width of the appliance in order to promote the circulation of air.

In order to better ventilate the hob, an air gap of 5 mm should be left at the front.

7.3 Installation

Important information

- Remove any transverse strips underneath the worktop at least in the area of the worktop cut-out.

Sealing of the hob

Before installation, correctly insert the sealing unit delivered with the hob.

Pure technical line drawing of a curved structural component with an arrow indicating downward direction (no text or symbols)

• No liquids may penetrate between the edge of the hob and the worktop or between the hob and the wall and come into contact with any electrical appliances.
• When installing a hob into an uneven worktop, e.g. with a ceramic or similar covering (tiles etc.), the seal on the hob is to be removed and the seal between the hob and worktop made with plastic sealing materials (putty).
• The hob must under no circumstances be sealed with silicone sealant! This would make it impossible to remove the hob at a later date without damaging it.

Working surface cut-out

Cut out the worktop recess accurately with a good, straight saw blade or recessing machine. The cut edges should then be sealed so that no moisture can penetrate.

The area is cut out as illustrated. The glass ceramic hob must have a level and flush bearing. Any distortion may lead to fracture of the glass panel. Make sure that the sealing of the hob is properly seated.

7.4 Variable installation possibilities: Overlying installation

Dimensions in mm

① Minimum distance to adjacent walls
② Opening dimensions
③ Cutout dimensions
④ Outer dimensions of the hob

Important:

There is a risk of breakage if the hob is canted or subjected to stress during installation!

7.5 Variable installation possibilities: Flush installation

Dimensions in mm

① Minimum distance to adjacent walls
② Opening dimensions
③ Cutout dimensions
④ Outer dimensions of the hob

Glue the sealing tape onto the corner of the supporting edge of the worktop so that no silicone adhesive can be pressed under the hob.

Place the hob into the worktop cut-out without any adhesive and align it. Use shims if necessary

Fill the gap between the hob and the worktop with heat-resistant silicone adhesive.

Important

Silicone adhesive must not get under the support surface. If this occurs it will not be possible to remove the hob again at a later stage. No liability will be assumed in the case of failure to observe these instructions.

7.6 Electrical connection

WARNING OF ELECTRICAL ENERGY! RISK OF FATAL INJURY!

Live components have been installed near this symbol. Covers bearing this sign may only be removed by a certifi ed skilled electrician.

• The electrical connection must be carried out by a qualified electrician who is authorised to carry out such work!
• Statutory regulations and the connection specifications issued by the local power supply company must be strictly observed.
• When connecting the appliance it must be ensured that there is a device which makes it possible to universally disconnect it from the mains with a contact opening width of at least 3mm. Line-protecting switches, fuses or contactors are suitable cut-out devices. When connecting and repairing the appliance disconnect it from the electricity supply with one of these devices.
• The earth wire must be sufficiently long so that if the strain relief fails, the live wires of the connecting cable are subjected to tension before the earth wire.
• Any superfluous cable must be removed from the installation area beneath the appliance.
  • Make sure that the local mains voltage is the same as the voltage on the rating label.
  • Full protection against accidental contact must be ensured on installation.
• Attention: Incorrect connection may result in the power electronics unit being destroyed.

Power supply

Mains voltage: 380-415V 3N\~, 50/60Hz

Component rated voltage: 220-240V

No mains cable present in the factory

• To connect the appliance, unscrew the cover of the connection socket on the underside of the appliance in order to be able to access the terminal. After connecting the appliance, replace the cover and secure the connection cable with the strain relief clamp.
• The connection cable must be at least H05 RR-F.

Electrical connections: 6-pole connection

Mains cable available in the factory

• The hob has been fitted with a temperature-resistant connection cable in the factory.
• Connection to the mains is carried out in accordance with the circuit diagram, unless the connection cable is already fitted with a plug.
• If the mains cable of this appliance is damaged it will need to be replaced with a special connection cable. In order to avoid any risks, this must be carried out by the manufacturer or his Customer Service.

Electrical connections

7.7 Technical data

Hob dimensionsheight/ width/ depth ...mmheight/ width/ depth ...mm	55 x 798 x 518 (FB)55 x 800 x 520 (FAC)
Cooking zonesfront left ...... cm / kWback left ...... cm / kWfront center ...... cm / kWback center ...... cm / kWfront right ......cm / kWback right ......cm / kWBridging function cm / kW	19x21/ 1.6 (1.85)*19x21/ 2.1 (3.0)*19x21/ 1.6 (1.85)*19x21/ 2.1 (3.0)*19x21/ 1.6 (1.85)*19x21/ 2.1 (3.0)*3.7
Hob, total ......kW 1	1.1

* Power when the power boost function is activated.

7.8 Putting the appliance into operation

Once the hob has been installed and the power supply has been provided (mains connected) an automatic test of the controls will be carried out and information for Customer Service will be indicated.

Important: No items may be on the touch control sensor keys when the appliance is being connected!

Briefly wipe over the surface of the hob with a sponge and soapy water and then dry with a clean cloth.

8 Decommissioning and disposal of the appliance

8.1 Switching the appliance off completely

The appliance is to be put out of operation when its useful life has finally come to an end.

• Disconnect the safety fuse for the domestic wiring system in order to prevent a risk of electric shocks.
• Ensure the environmentally friendly disposal of the hob once it has been removed.

8.2 Disposing of the packaging

Please ensure the environmentally-friendly disposal of the packaging that came with your appliance. Recycling the packaging material saves on resources and cuts down on waste.

8.3 Disposing of old appliances

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring that this product is disposed of correctly you will help to protect the environment and human health, which could otherwise be harmed through the inappropriate disposal of this product. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

K06-180185/01

Küppersbusch
